3115344200, 3115 3442 00 GUIDE ATLAS COPCO – Heavy Machinery Rock Drill Guide Component

The 3115344200, 3115 3442 00 GUIDE ATLAS COPCO is a precision-engineered guiding component designed to maintain alignment, stability, and operational efficiency inside hydraulic rock drilling systems used in demanding mining and construction environments. Built for high-impact performance, this part plays a critical role in controlling motion accuracy and protecting internal assemblies from premature wear.

Heavy machinery drilling operations depend on perfect internal guidance to ensure efficient energy transfer. The 3115344200 GUIDE ATLAS COPCO supports moving components by maintaining correct positioning during repetitive percussion cycles, helping machines deliver consistent drilling performance even under extreme operating conditions.

Supplied by 3GEN Export, an OEM spare parts supplier serving global industries, this component is available for worldwide shipment with fast delivery within 5 working days.

What Is the Function of the 3115344200 GUIDE ATLAS COPCO?

Inside hydraulic rock drills, continuous vibration and high-frequency movement generate enormous mechanical stress. The 3115 3442 00 GUIDE ATLAS COPCO acts as a stabilizing interface that ensures moving elements travel along a controlled path without deviation.

Primary Functions

• Maintains internal component alignment

• Reduces friction between moving assemblies

• Absorbs operational vibration

• Prevents uneven wear patterns

• Supports precision drilling accuracy

• Extends service life of surrounding components

Without a properly functioning guide component, drilling systems may experience performance loss, increased vibration, and accelerated maintenance cycles.

Engineering Design and Material Construction

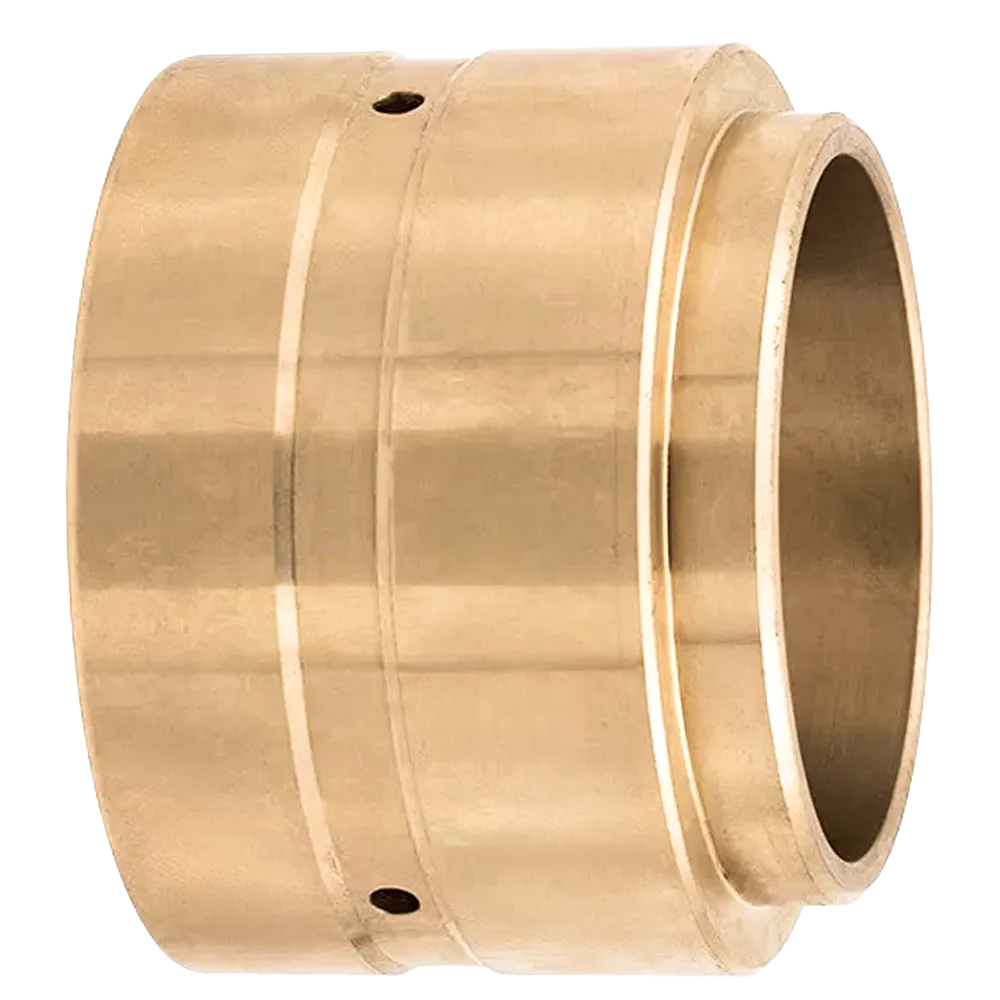

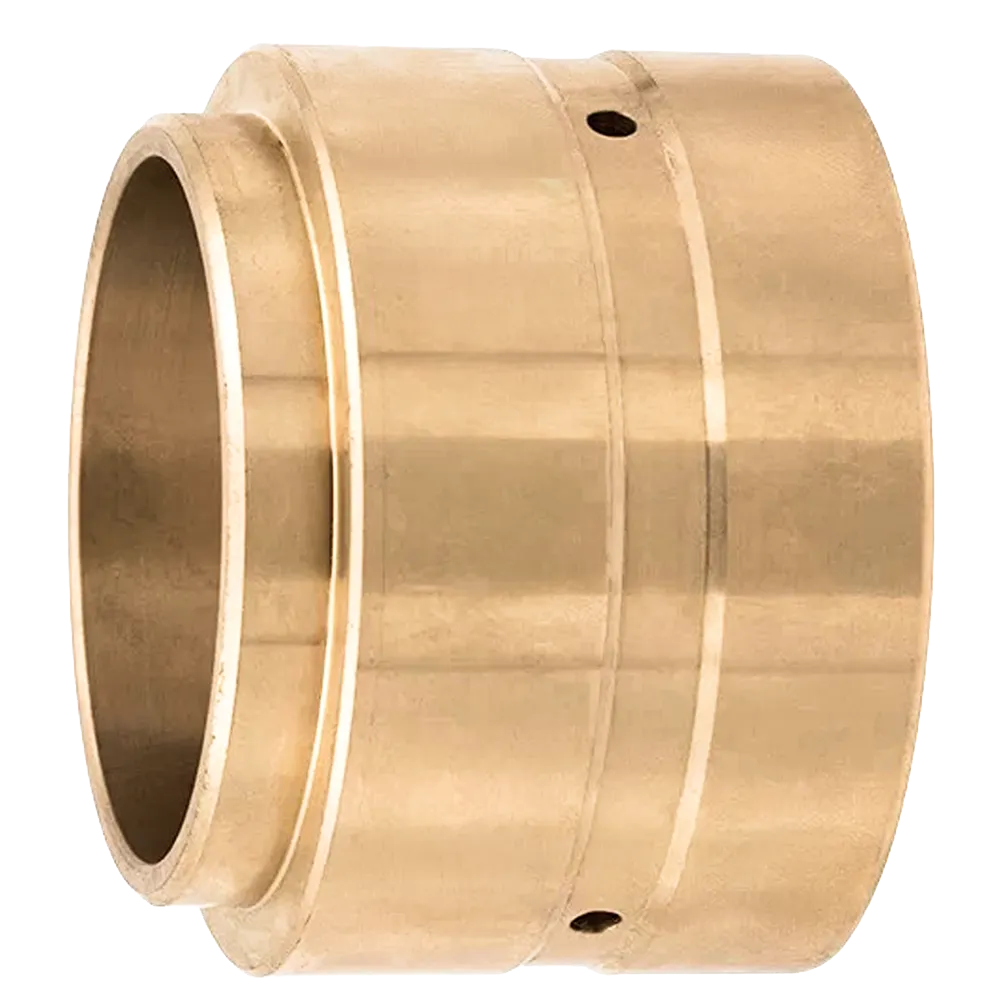

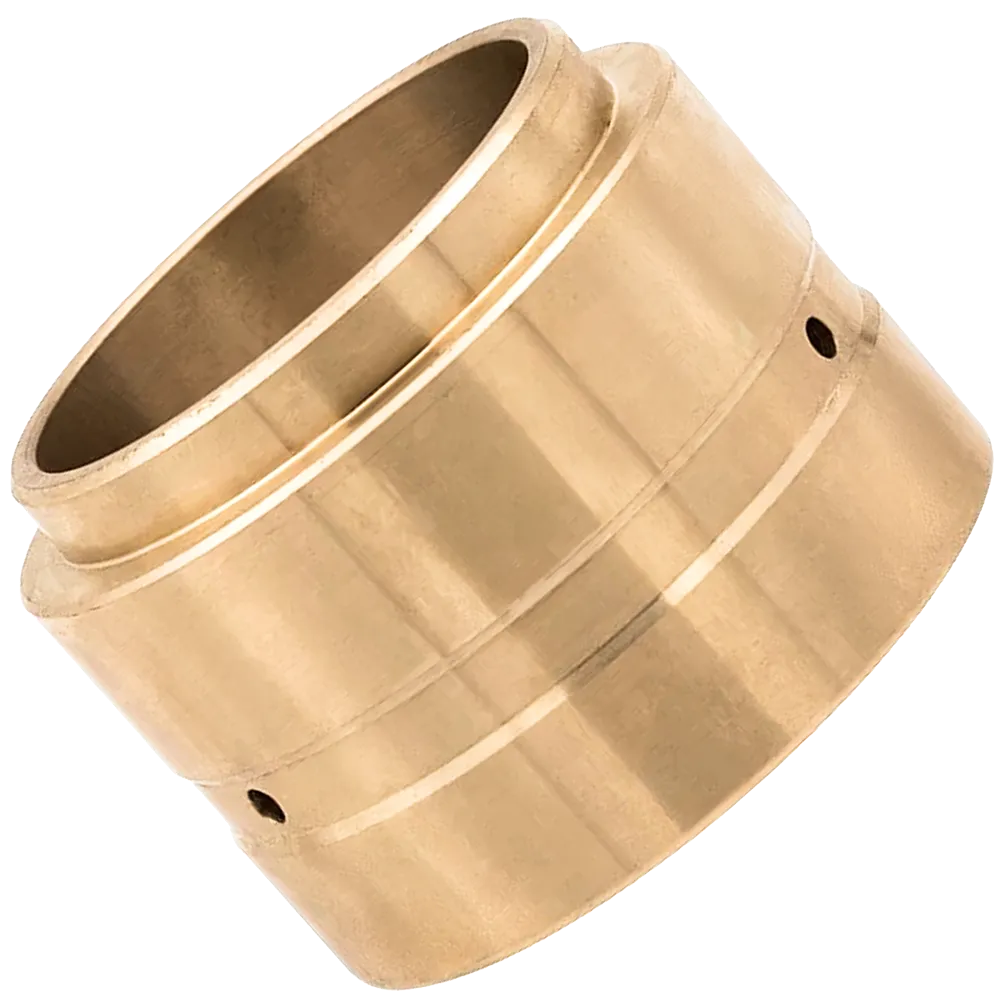

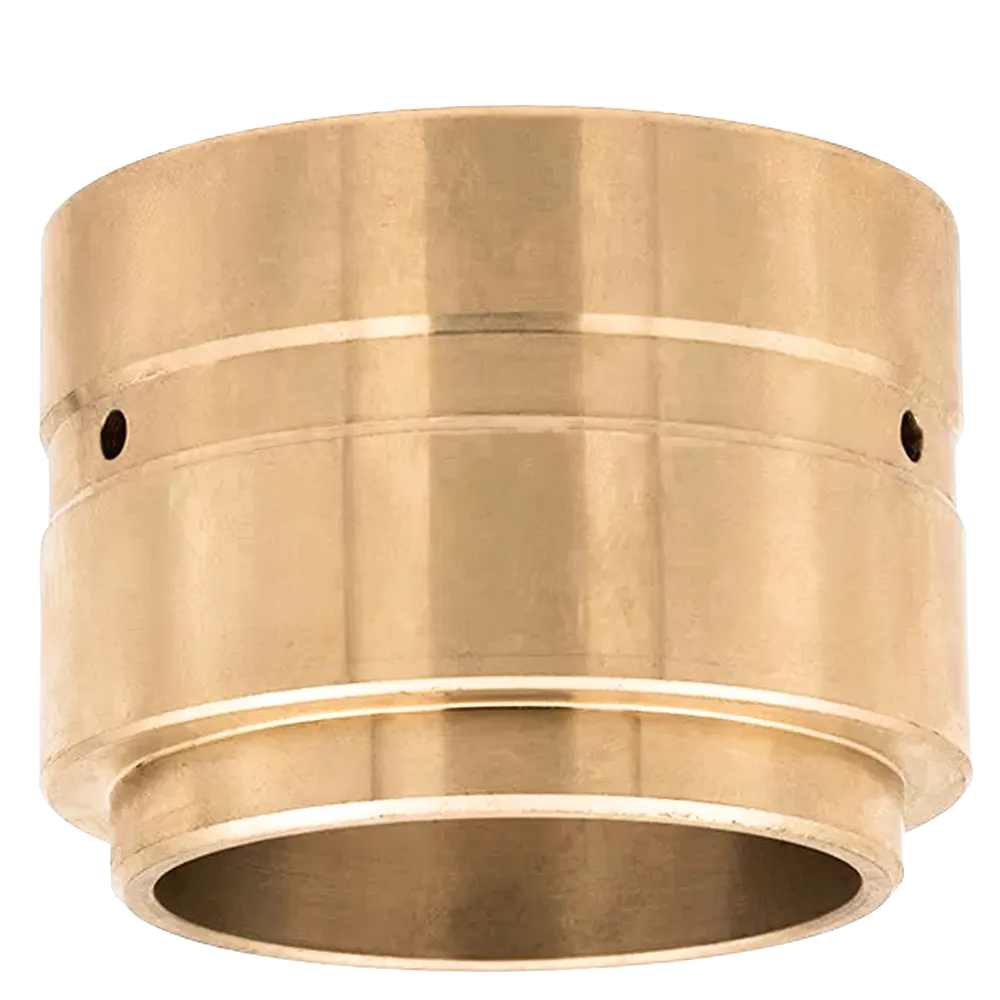

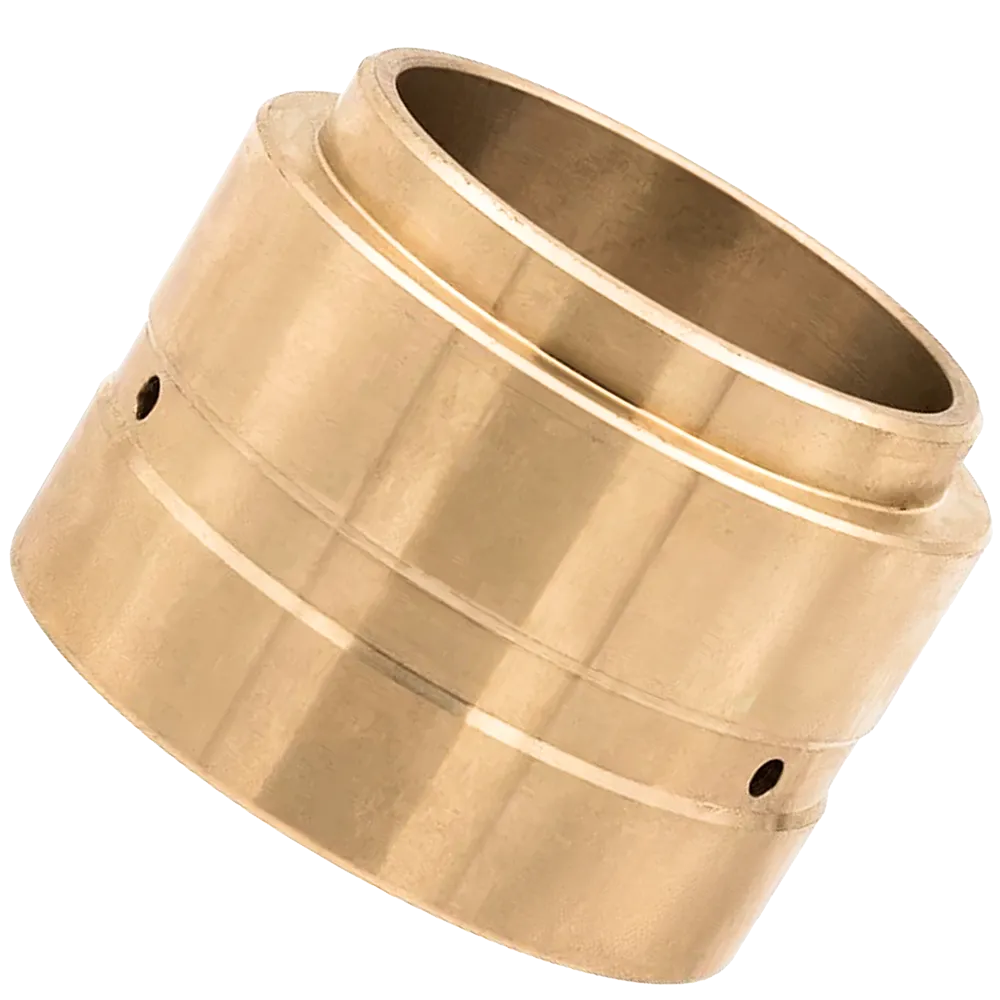

The images show a high-precision machined cylindrical guide manufactured from wear-resistant alloy material optimized for heavy mechanical loads.

Structural Characteristics

• Precision cylindrical geometry

• Smooth internal surface finishing

• Oil distribution holes for lubrication flow

• Reinforced wall thickness for impact resistance

• Balanced dimensional tolerance

These features allow the 3115344200, 3115 3442 00 GUIDE ATLAS COPCO to operate reliably in high-pressure hydraulic environments where stability is essential.

Advanced Material Advantages

The guide component is produced using specialized alloys chosen for:

• High abrasion resistance

• Thermal stability

• Load distribution capability

• Corrosion resistance in harsh environments

• Long operational lifespan

This construction ensures durability during continuous drilling operations such as tunneling, quarrying, and underground mining.

Why Guide Components Are Critical in Rock Drilling Systems

Rock drills operate through rapid percussion cycles combined with rotation and feed pressure. Every movement must remain precisely aligned.

The 3115344200 GUIDE ATLAS COPCO ensures:

• Energy transfer remains efficient

• Internal components do not misalign

• Shock forces are evenly distributed

• Hydraulic efficiency remains stable

A worn guide often leads to increased vibration, noise, and reduced drilling penetration rates.

Performance Benefits of 3115 3442 00 GUIDE ATLAS COPCO

Operational Stability

The guide stabilizes internal motion, allowing consistent drilling performance even in hard rock formations.

Reduced Maintenance Downtime

Proper alignment minimizes wear on pistons, bushings, and rotation components.

Improved Equipment Efficiency

Stable internal movement ensures hydraulic energy converts directly into drilling power.

Extended Machine Lifespan

By preventing uneven load distribution, the component protects expensive assemblies.

Compatible ATLAS COPCO Equipment Models

The 3115344200, 3115 3442 00 GUIDE ATLAS COPCO is commonly used in hydraulic rock drill systems installed on various Atlas Copco drilling rigs and carriers.

Typical compatibility includes:

COP2160

COP2560,

COP2560EX

• Atlas Copco COP Series Rock Drills

• COP 1838

• COP 2238

• COP 3038

• COP 1838HD

• COP 2238HD

• Surface drilling rigs using compatible drifter assemblies

• Underground mining drill rigs with matching configurations

Compatibility may vary depending on machine configuration. Verification using part number is recommended before installation.

Applications Across Industries

This guide component supports machines operating in extreme industrial environments.

Mining Operations

Used in underground and surface drilling where constant percussion occurs.

Quarrying

Maintains drilling accuracy during stone extraction processes.

Construction Projects

Supports foundation drilling, anchoring, and tunneling equipment.

Infrastructure Development

Essential for large-scale excavation and rock penetration systems.

Technical Specifications

Installation Guidelines

Proper installation ensures maximum service life.

Recommended Procedure

1. Clean mounting surfaces thoroughly.

2. Inspect lubrication channels.

3. Apply approved lubrication before assembly.

4. Align component precisely during installation.

5. Tighten surrounding assemblies according to manufacturer torque values.

6. Perform operational test after installation.

Professional installation is recommended for optimal performance.

Maintenance Recommendations

To maintain efficiency of the 3115344200 GUIDE ATLAS COPCO, routine inspection should include:

• Checking surface wear patterns

• Monitoring vibration levels

• Inspecting lubrication flow

• Evaluating alignment accuracy

Preventive maintenance significantly reduces unexpected equipment downtime.

Signs Replacement Is Required

Operators should consider replacement if:

• Increased vibration occurs

• Drilling accuracy decreases

• Abnormal noise appears

• Internal components show uneven wear

• Hydraulic efficiency drops

Replacing worn guides early prevents damage to costly assemblies.

Manufacturing Precision and Quality Control

Each 3115 3442 00 GUIDE ATLAS COPCO supplied by 3GEN Export undergoes strict dimensional verification to ensure compatibility and performance reliability.

Quality checks include:

• Dimensional tolerance inspection

• Surface finishing validation

• Material integrity verification

• Structural durability testing

This ensures consistent operation under demanding workloads.

Advantages of Choosing 3GEN Export

3GEN Export operates as a global OEM spare parts supplier specializing in heavy machinery components.

What You Gain

• OEM-standard manufacturing quality

• Worldwide logistics network

• Fast shipping within 5 working days

• Reliable international delivery

• Professional spare parts sourcing expertise

• Secure global supply capability

Heavy equipment operators worldwide rely on fast part availability to keep projects running without interruption.

Logistics and Global Delivery

3GEN Export provides international shipping solutions designed for industrial buyers.

• Air freight delivery options

• Secure packaging standards

• Global tracking support

• Fast dispatch process

• Delivery to mining and construction regions worldwide

Orders are prepared for shipment quickly to minimize operational downtime.

SEO and Search Visibility Advantage

The product listing for 3115344200, 3115 3442 00 GUIDE ATLAS COPCO is optimized for:

• Google search indexing

• AI search engines

• Search GPT discovery

• Industrial procurement queries

• Part number–based searches

Using both PN formats improves visibility across multiple search behaviors used by technicians and procurement teams.

Why This Guide Component Matters for Operational Efficiency

In heavy drilling operations, even small alignment deviations reduce performance dramatically. The 3115344200 GUIDE ATLAS COPCO ensures:

• Smooth internal motion

• Stable percussion cycles

• Consistent drilling output

• Reduced operational risk

This makes it a critical maintenance component rather than a simple spare part.

Order Today from 3GEN Export

Maintaining drilling productivity requires dependable spare parts availability. The 3115 3442 00 GUIDE ATLAS COPCO supplied by 3GEN Export provides durability, precision, and fast global accessibility for professional operations.

Order your 3115344200 GUIDE ATLAS COPCO spare part from 3GEN Export today — OEM supply quality with worldwide delivery in just 5 working days.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
