3216000509 / 3216 0005 09 Valve Block Atlas Copco (Hydraulic Control Manifold)

When a drill rig is working at full load, the smallest delay in hydraulic response becomes expensive downtime. The 3216000509 valve block Atlas Copco (also searched as 3216 0005 09) is the central “traffic controller” of the hydraulic circuit: it routes pressurized oil to the right function at the right moment, stabilizes flow paths, and helps keep actuation smooth under harsh rock-drilling conditions.

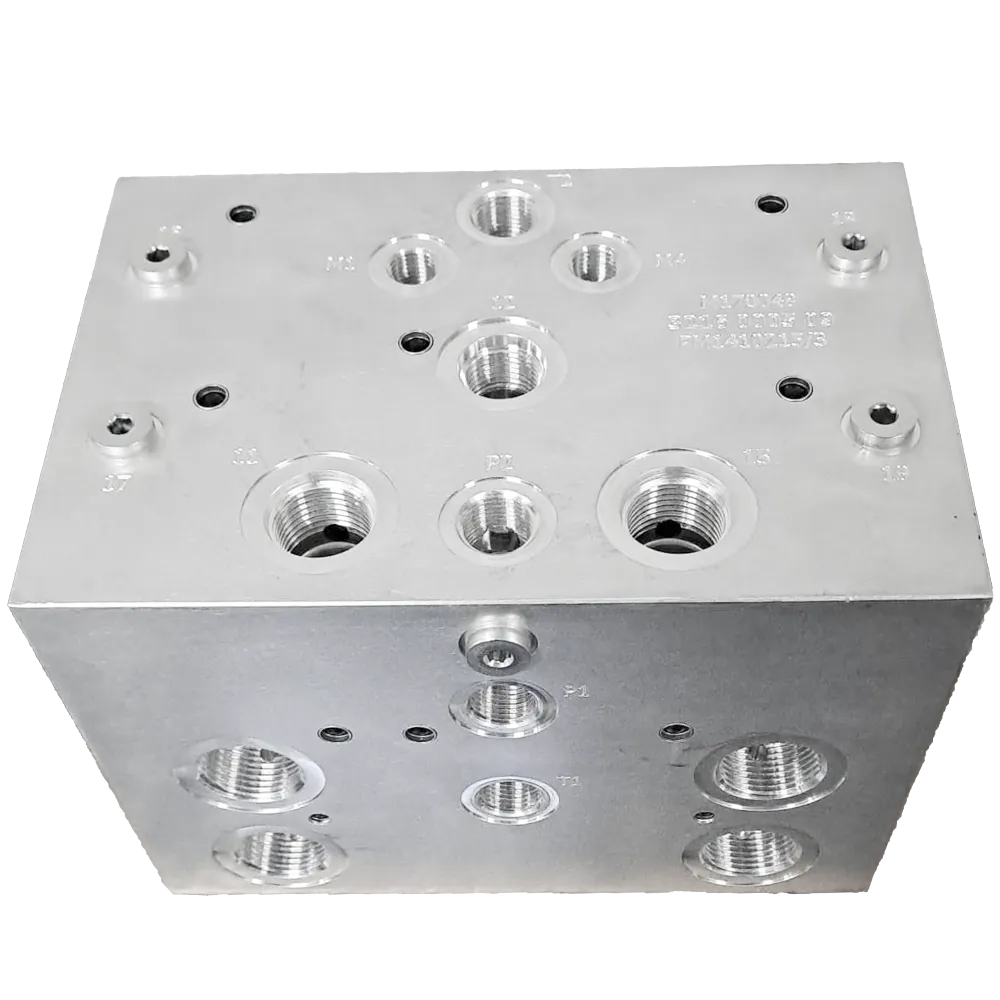

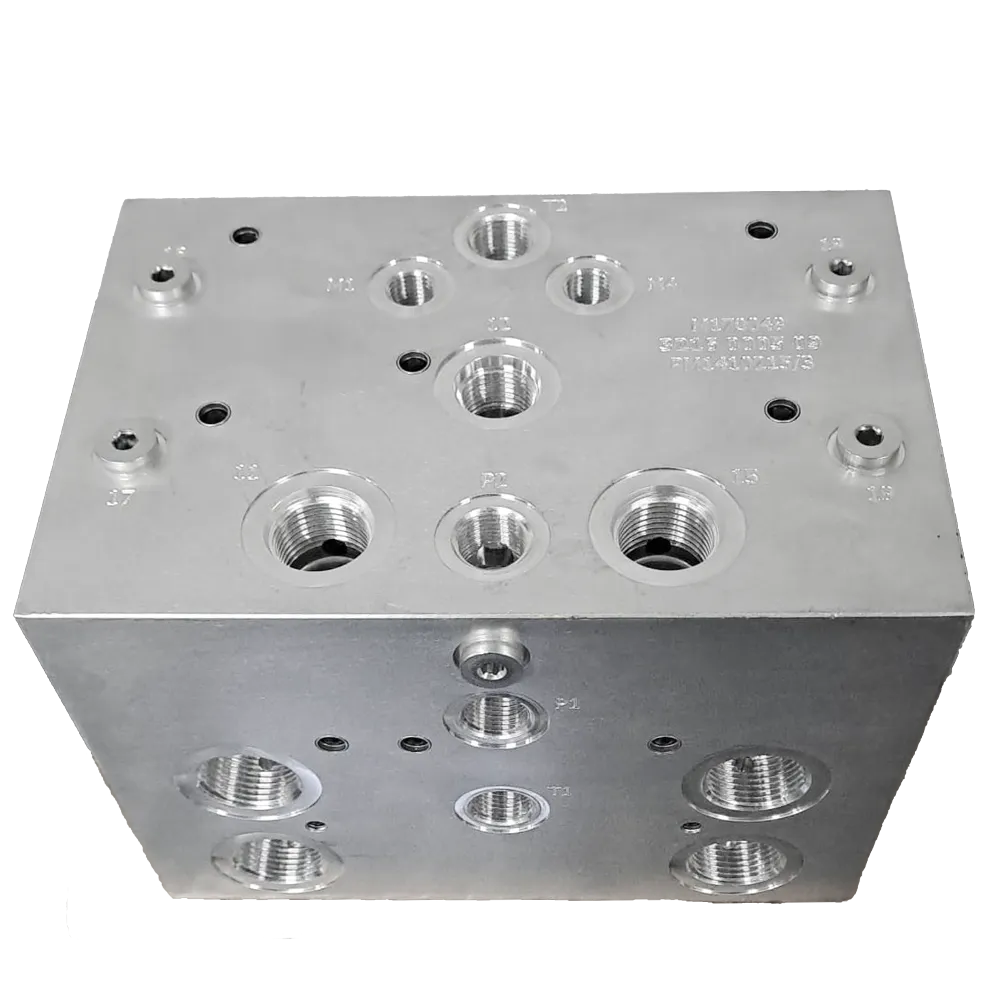

From the images you shared, this component is a precision-machined hydraulic manifold with multiple threaded ports and clearly marked circuits (typical for pressure, tank/return, pilot, and measurement points). The design indicates it’s built to manage several hydraulic functions through internal galleries, minimizing hose complexity while maximizing repeatable control.

3GEN Export supplies this part as an OEM supplier, shipping worldwide in 5 working days.

What the 3216000509 Valve Block Atlas Copco does inside the machine

A valve block is not just a chunk of metal with holes. In modern drilling and tunneling equipment, it becomes the hydraulic “brain stem” that connects:

• Main pressure supply from the pump

• Return flow to tank

• Pilot/servo circuits that command motion

• Relief, check, and directional elements (often installed into or attached to the manifold)

• Measurement points for commissioning and diagnostics

The 3216 0005 09 valve block typically sits where the machine needs compact, rigid plumbing. Instead of running many hoses across the rig, internal drilled galleries do the routing, which improves reliability and makes service more systematic.

Because this block governs how oil moves, it affects:

• Feed, rotation, percussion, and auxiliary hydraulic responses

• Heat generation and pressure stability

• Seal life in connected cylinders and motors

• Overall drilling consistency (especially during load changes)

For operators, a healthy 3216000509 valve block Atlas Copco means predictable control. For maintenance teams, it means fewer leaks, cleaner layouts, and faster troubleshooting.

Applications and compatible Atlas Copco / Epiroc models

Online spare-parts listings explicitly associate 3216 0005 09 with the SmartROC T35 surface drill rig platform.

Other catalogs and listings place 3216 0005 09 within Smart-series documentation such as Smart T40 (catalog-style references).

Additionally, reseller categorization and tags connect this part number to Epiroc underground jumbo / Boomer spare parts contexts (category/tag level).

Compatibility summary (what you can safely publish)

• Atlas Copco / Epiroc SmartROC T35

• Atlas Copco / Epiroc Smart T40 (catalog reference)

• Epiroc underground jumbo / Boomer family context (category/tag listing)

If you want, I can format this on your product page as “confirmed” vs “catalog-referenced” compatibility so it stays accurate and defensible.

Build quality you should expect from a valve block used in rock drilling

The 3216000509 valve block operates in an environment that punishes components:

• Pressure spikes from drilling cycles

• Continuous vibration

• Thermal cycling from cold starts to high operating temperatures

• Contamination risk if filtration is neglected

That’s why a proper valve block is defined by manufacturing discipline:

1) Precision machining and flatness

Sealing surfaces must remain flat and consistent so that fitted valves, plugs, and port adapters seat correctly. Even minor deviations can cause internal leakage (pressure loss) that’s hard to detect externally.

2) Clean internal galleries

A manifold can look perfect outside and still fail early if chips remain inside after drilling/tapping. Quality supply depends on:

• Deburring

• Ultrasonic/pressure flushing

• Controlled packaging to keep ports clean until installation

3) Thread integrity and port geometry

Your images show multiple large threaded ports and smaller pilot/measurement ports. These must match correct standards (BSP/NPT/metric depending on circuit design). Cross-threading or incorrect adapters can crack the block or distort sealing faces.

4) Corrosion protection and surface finish

Even in a controlled hydraulic environment, external corrosion can affect mounting surfaces and fittings. A stable surface finish helps long-term serviceability during repeated maintenance cycles.

Why buyers search for “3216 0005 09” and “3216000509” separately

In spare parts procurement, the same component is often searched in two ways:

• Without spaces: 3216000509 valve block

• With Atlas Copco grouping: 3216 0005 09 valve block

For SEO and parts-matching, your product page should include both formats naturally in headings, early paragraphs, and technical specs so customers from different ERP systems find the same listing.

Technical overview for your product page

Below is a publish-ready technical snapshot you can place under a “Specifications” section.

Key specifications (publish-ready)

That ~6.5 kg reference is commonly used for shipping calculations and warehouse handling on listings for this specific part number. 3GEN Export

Performance benefits of the 3216000509 Valve Block Atlas Copco

A new or properly refurbished 3216000509 valve block Atlas Copco typically delivers improvements that matter immediately in the field:

Stable hydraulic response

Internal leakage, worn sealing surfaces, or damaged threads can cause slow actuation, weak motion, or inconsistent pressure build-up. A correct valve block restores stable routing and sharper response.

Reduced heat and wasted energy

When oil bypasses internally due to wear or poor sealing, the pump works harder and heat rises. Heat is a silent budget killer: it accelerates seal wear across the whole machine.

Cleaner maintenance workflow

A manifold-style hydraulic layout is designed for organized service. Correct port markings and consistent geometry make it easier to trace functions, measure pressure at test ports, and isolate problems.

Better uptime planning

A dependable 3216 0005 09 valve block makes the machine less sensitive to load changes, which helps operators maintain performance targets during long shifts.

Common failure modes and what they look like

This section is useful for both buyers and technicians, and it increases the “helpfulness” signals of your page for Google and Search GPT.

1) Internal leakage (the invisible performance loss)

Symptoms:

• Rotation or feed feels weak under load

• Pressure readings drift

• The machine works “fine” unloaded but struggles in rock

Causes often include:

• Worn sealing faces where cartridge valves seat

• Micro-cracks from over-torquing fittings

• Debris damage inside galleries

2) External leakage at fittings

Symptoms:

• Oil seepage around specific ports

• Wetness around adapters after tightening

Common causes:

• Incorrect thread type adapter

• Damaged sealing washer/O-ring

• Over-tightening that distorts the port seat

3) Contamination-driven valve sticking (system-wide issue that shows up here)

Because the 3216000509 valve block is a junction point, any contamination can appear as “random” control problems. If a fitted valve sticks intermittently, the block gets blamed, but the root cause is often filtration or oil condition.

Installation guide for 3216000509 / 3216 0005 09

This is written to be safe and practical for typical hydraulic service practices.

Before installation

• Verify both part-number formats against your BOM: 3216000509 and 3216 0005 09

• Cap and protect all ports until the moment of assembly

• Flush the connected lines if contamination is suspected

• Replace sealing elements (O-rings / bonded seals / sealing washers) as per your rig’s service standard

• Confirm adapter thread standards before tightening

Mounting and connection

1. Clean the mounting surface and check for burrs or dents.

2. Align the block and start mounting bolts by hand to avoid cross-threading.

3. Tighten mounting hardware in a cross-pattern to distribute load evenly.

4. Install fittings using correct sealing method (O-ring face, bonded seal, taper thread, etc.).

5. Route hoses without twist stress; twisted hoses can loosen fittings over time.

Commissioning checks

• Start the machine at idle and observe for leaks

• Warm the system and re-check all connections

• Measure pressure at test points (if present) to confirm stable supply and return behavior

• Monitor temperature trend during the first work cycle

If pressure is unstable immediately, do not keep increasing throttle—stop and verify port connections and valve elements.

Maintenance tips that keep the valve block healthy

The best way to protect a 3216000509 valve block Atlas Copco is to protect the oil.

Oil and filtration discipline

• Keep filtration at the recommended standard for drilling hydraulics

• Investigate recurring filter clogging (it’s a symptom, not a solution)

• Track oil condition and change intervals based on real operating environment

Fitting practices

• Use the correct adapters and sealing types

• Avoid over-torquing: cracking a manifold can be subtle at first, then catastrophic later

• Use protective caps during service to prevent dirt ingress

Periodic inspection points

• Check for wetness around high-pressure ports

• Verify that mounting bolts remain secure (vibration environment)

• Monitor performance consistency across similar drilling conditions

SEO-rich buyer guidance: How to confirm you are ordering the right part

Because valve blocks can look similar, buyers should confirm three things:

1) Part number match

Your listing should clearly show:

• 3216000509

• 3216 0005 09

These appear in different systems, and buyers will search both.

2) Machine model context

Use the compatibility references on your page:

• SmartROC T35

• Smart T40 (catalog reference)

• Jumbo/Boomer context (category/tag listing)

3) Port layout confirmation

Even with the correct part number, buyers sometimes request a photo match to avoid procurement mistakes. Your images (multiple angles, port face close-up) are exactly what a professional buyer wants.

Why 3GEN Export for 3216000509 / 3216 0005 09

In heavy machinery parts, speed and consistency matter as much as the component itself. 3GEN Export positions this product for buyers who need:

• OEM supplier sourcing confidence

• Export-ready packing and documentation

• Fast, predictable logistics

With 3GEN Export, the 3216000509 valve block is supplied for global customers with delivery in 5 working days, reducing the gap between failure and full production recovery.

Frequently asked questions

Is 3216000509 the same as 3216 0005 09?

Yes. They are the same part number formatted differently in catalogs and ERP systems.

What is the weight for shipping?

Listings commonly reference an approximate 6.5 kg weight for this part number. 3GEN Export

Which rigs use the 3216 0005 09 valve block?

The SmartROC T35 is explicitly referenced in online spare parts listings, and Smart T40 appears in catalog-style documentation.

Is this part only for surface rigs?

Not necessarily. Some sellers categorize it in underground jumbo / Boomer spare parts contexts as well, though those references are category/tag-level rather than full official manuals.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
