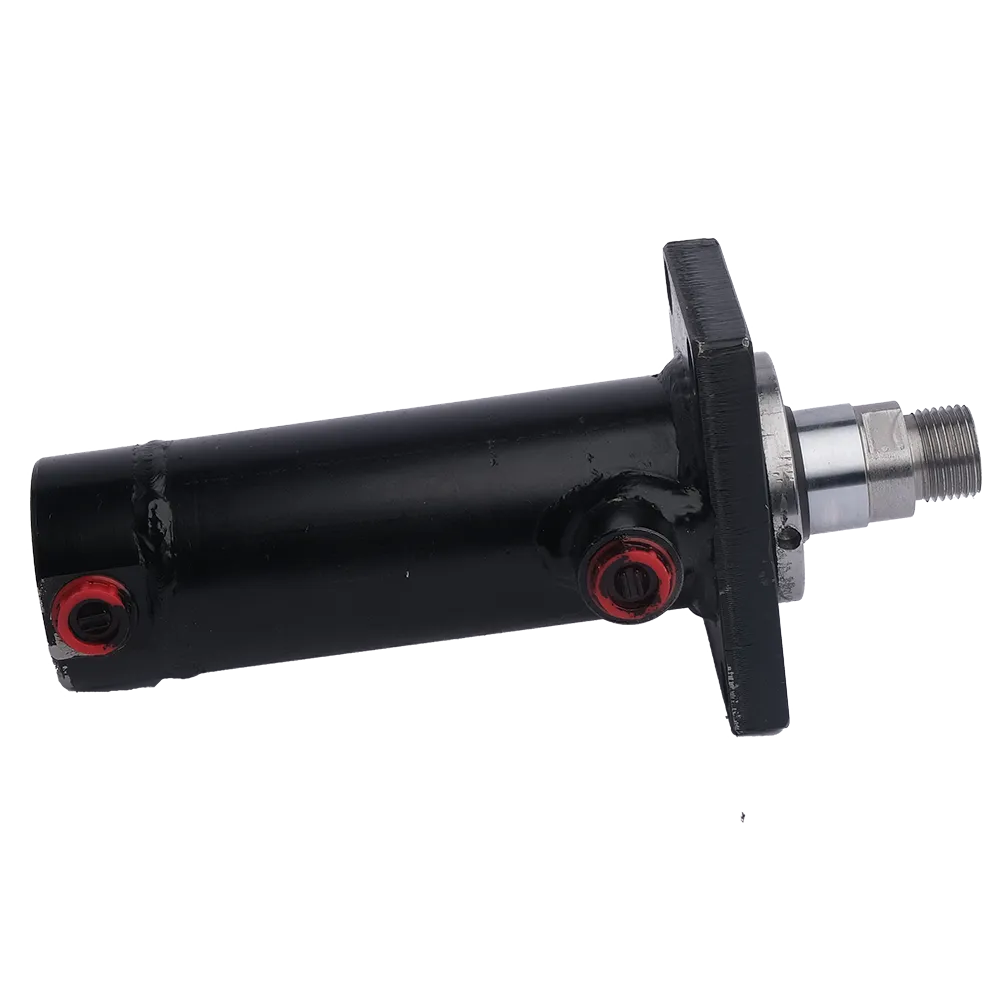

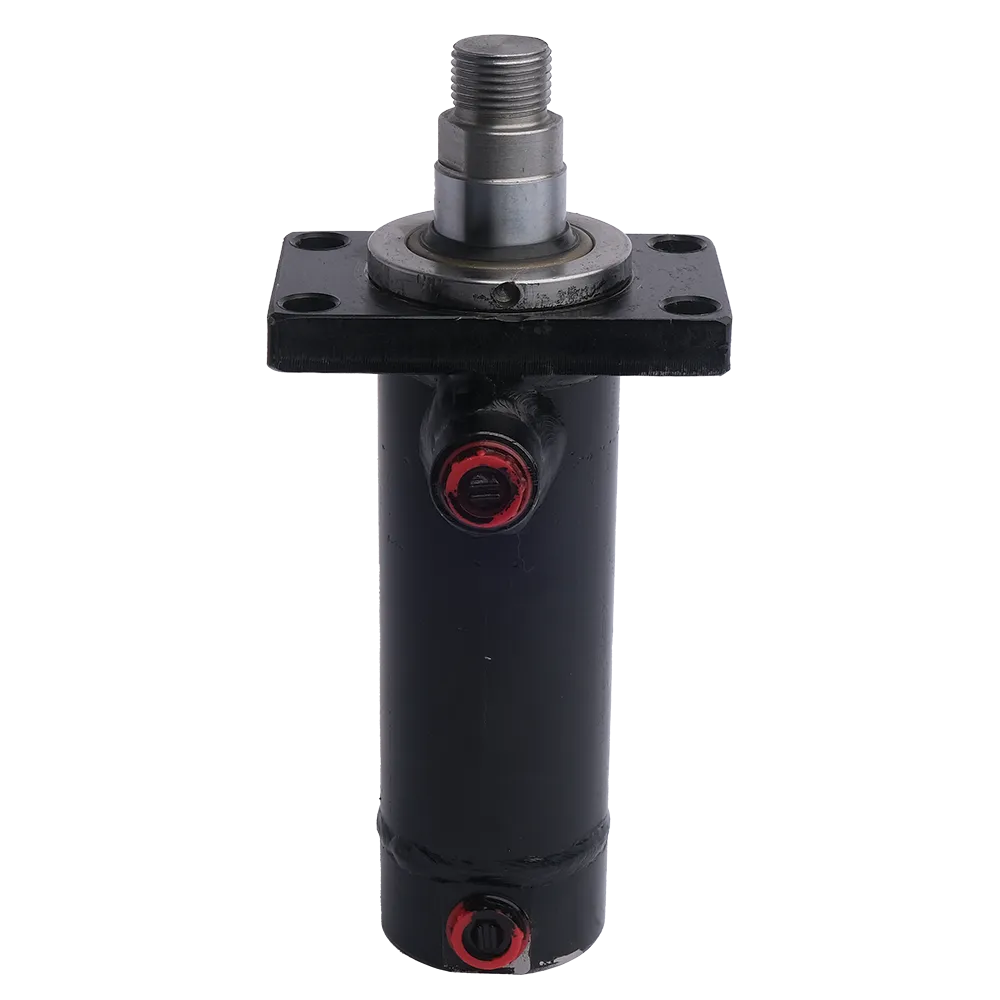

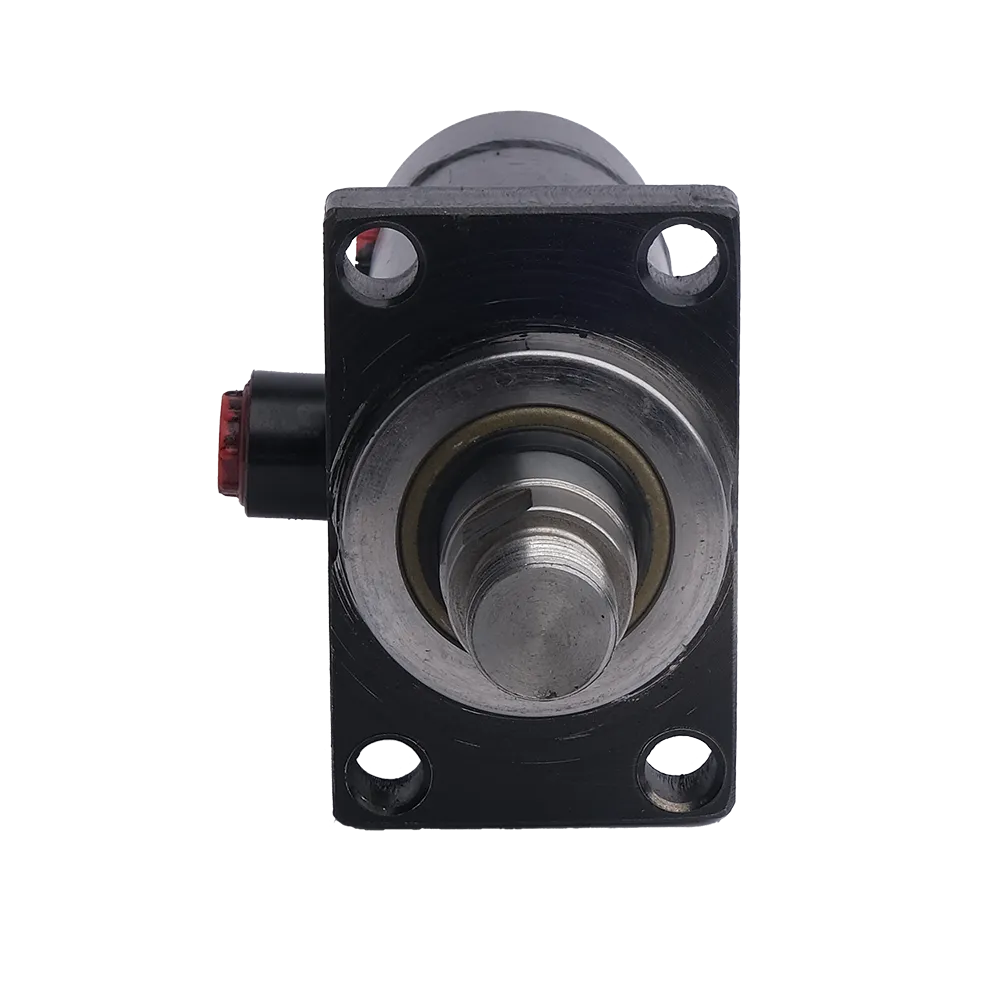

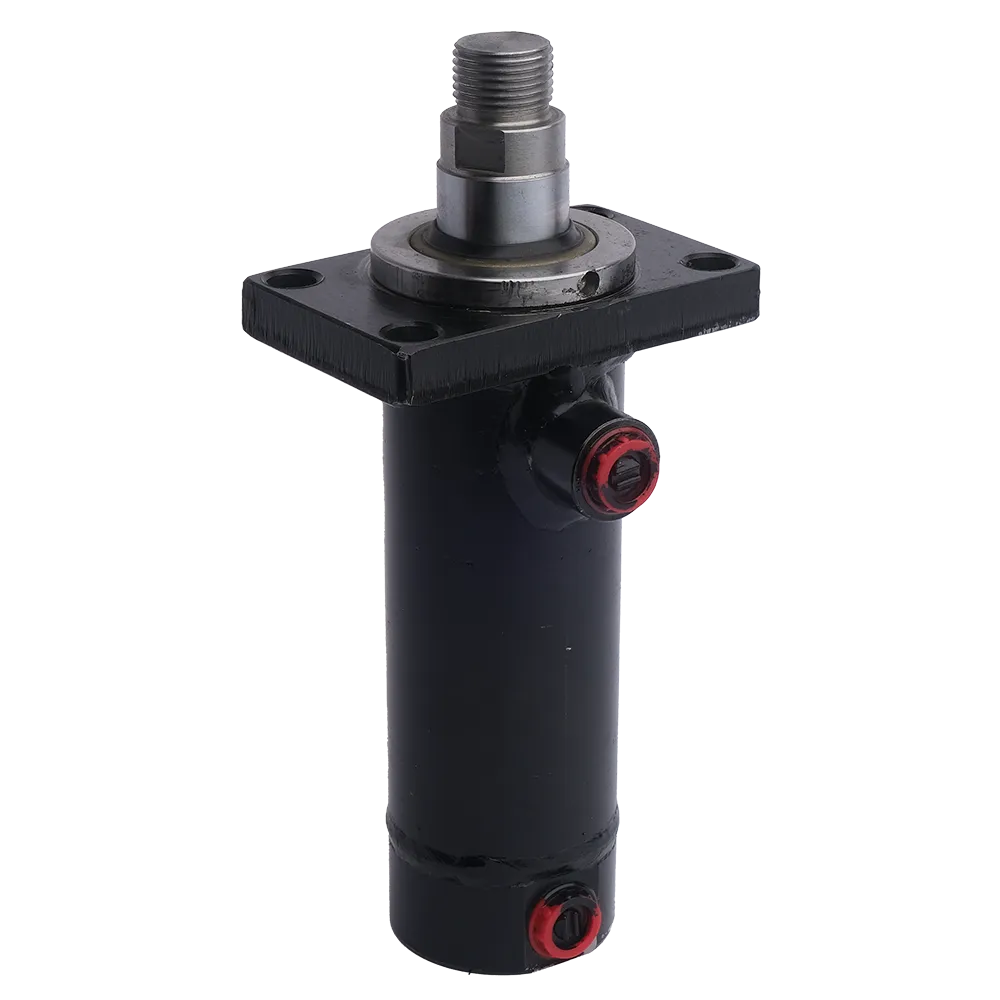

3222330149 HYDRAULIC CYLINDER L8 ATLAS COPCO

(also referenced as 3222 3301 49 HYDRAULIC CYLINDER L8 ATLAS COPCO)

---

3222330149 HYDRAULIC CYLINDER L8 ATLAS COPCO

The 3222330149 Hydraulic Cylinder L8 Atlas Copco is a core motion-control component engineered to provide exceptional linear force, pressure balance, and precision for Atlas Copco’s high-performance drilling and rock excavation systems. Built to OEM-grade standards, this cylinder transforms hydraulic energy into smooth, controlled mechanical motion—delivering consistency, strength, and durability even under the harshest operational conditions.

Supplied by 3GEN Export, a globally recognized OEM supplier of heavy-machinery components, this hydraulic cylinder is designed for seamless integration into multiple Atlas Copco drilling and excavation machines. It guarantees uncompromised reliability, rapid installation, and worldwide delivery in just 5 working days.

---

Function and Purpose of the 3222330149 Hydraulic Cylinder L8 Atlas Copco

Core Power in Hydraulic Motion Systems

The 3222330149 Hydraulic Cylinder L8 Atlas Copco serves as the muscle of the hydraulic circuit. Through a precisely engineered piston and rod assembly, it converts pressurized fluid into controlled linear motion—allowing machinery to lift, push, pull, or hold with absolute accuracy.

In Atlas Copco’s L8-series drilling systems, this hydraulic cylinder performs several critical roles:

• Drives feed movement in rock drilling assemblies.

• Provides accurate thrust and retraction in the drifter or boom system.

• Maintains pressure balance for consistent drilling performance.

• Assists in stabilizing the feed beam under varying loads.

Precision Engineering for Heavy-Duty Environments

Manufactured using high-tensile steel, advanced machining, and precision surface finishing, this component is built to operate flawlessly in mining, tunneling, and construction environments. The 3222 3301 49 Hydraulic Cylinder L8 Atlas Copco ensures zero leakage, steady thrust, and long-term endurance under extreme hydraulic pressures and temperatures.

---

Technical Specifications

---

Material and Build Quality

Robust Steel Structure

The 3222330149 Hydraulic Cylinder L8 Atlas Copco is crafted from high-strength steel alloys with excellent fatigue resistance. Each cylinder is subjected to CNC-machined precision grinding and induction hardening to achieve consistent internal surface smoothness, ensuring minimal friction during piston movement.

Advanced Seal Technology

To eliminate fluid leakage and contamination, it utilizes an NBR (Nitrile Butadiene Rubber) and polyurethane sealing system that resists hydraulic oil, heat, and pressure fatigue. The seals are embedded within precision-cut grooves, providing a perfect fit and long service intervals without performance degradation.

Anti-Corrosion Protection

Every cylinder body undergoes black-oxide coating followed by a specialized zinc-phosphate layer, preventing oxidation even in high-moisture or saline mining conditions. This ensures long-term resistance to rust, extending both operational life and overall machinery uptime.

---

Performance and Mechanical Advantages

Superior Force Transmission

The 3222 3301 49 Hydraulic Cylinder L8 Atlas Copco delivers smooth and controlled thrust, enabling operators to manage feed speed and impact depth with absolute consistency. Its high internal efficiency ensures that up to 98% of hydraulic energy is converted into linear mechanical force.

Vibration Reduction and Stability

During drilling operations, vibration control is vital for both accuracy and equipment longevity. The robust construction of this cylinder absorbs pressure fluctuations, minimizing rebound forces and mechanical fatigue in connected assemblies.

Easy Installation and Service

Equipped with standardized mounting dimensions and accessible hydraulic ports, this unit allows quick integration into existing hydraulic systems. Routine maintenance, such as seal replacement or fluid inspection, can be performed with minimal downtime.

---

Compatibility with Atlas Copco Models

The 3222330149 Hydraulic Cylinder L8 Atlas Copco is fully compatible with a broad range of Atlas Copco rock-drilling and excavation systems.

Compatible Models Include:

• Atlas Copco L8 and L8C Drilling Rigs

• Atlas Copco SmartROC T40 and T45

• Atlas Copco Boomer L2D and M2C

• Atlas Copco ROC L8 Surface Drill Rigs

• Atlas Copco FlexiROC T50 and T55 series

• Atlas Copco Hydraulic Feed Beam and Drifter Systems

• Atlas Copco COP 1838 and COP 2560 Drifters

Note: Compatibility should always be cross-checked with your machine’s service manual or verified through 3GEN Export’s technical team before ordering.

---

Installation and Maintenance Guidelines

Installation Steps

1. Depressurize the hydraulic system and clean all connection points.

2. Position the cylinder flange against the mounting plate and align bolt holes.

3. Apply thread sealant to hydraulic ports before connection.

4. Torque mounting bolts to OEM recommendations to ensure leak-proof fit.

5. Bleed air from the system to ensure smooth piston operation before resuming work.

Preventive Maintenance

To maximize service life:

• Inspect for leaks and loose fittings every 250 operating hours.

• Replace seal kits every 1,000 hours or as specified in your manual.

• Maintain clean hydraulic oil with ISO 4406 filtration standards.

• Protect the rod from impact and debris to avoid surface damage.

Routine care ensures the 3222330149 Hydraulic Cylinder L8 Atlas Copco operates smoothly and extends equipment life significantly.

---

Engineering and Testing Standards

Manufacturing Precision

Each unit is manufactured with tight tolerances through CNC machining and honed internal bores to a surface finish below 0.2 μm. This level of accuracy reduces internal leakage and ensures consistent pressure holding capacity throughout the stroke.

Testing and Certification

Before shipment, the 3222 3301 49 Hydraulic Cylinder L8 Atlas Copco undergoes:

• Hydrostatic Pressure Test (1.5× working pressure)

• Cycle Test (over 500,000 continuous strokes)

• Leak and Sealing Test for high-pressure retention

• Dimensional Verification with 3D CMM measurement

• Corrosion Resistance Testing (ISO 9227 Salt Spray 72 hours)

A full 3GEN Export OEM Quality Certificate is included with each order.

---

Advantages of the 3222330149 Hydraulic Cylinder L8 Atlas Copco

• OEM-Level Precision: Perfect fit for Atlas Copco L8 hydraulic systems.

• High Pressure Tolerance: Operates up to 320 bar without leakage.

• Durable Material: Alloy steel construction resists fatigue and corrosion.

• Improved Drilling Stability: Minimizes vibration and shock impact.

• Maintenance-Friendly: Easily accessible ports and replaceable seals.

• Enhanced Efficiency: Optimized flow design for fast response times.

• Certified Quality: Each unit tested to OEM hydraulic standards.

• Quick Delivery: 3GEN Export ships worldwide within five days.

---

Application Industries

The 3222330149 Hydraulic Cylinder L8 Atlas Copco is utilized across:

• Mining and Quarrying: Drill rigs, feed systems, and rock excavators.

• Tunneling Operations: Boomer series machines requiring controlled linear motion.

• Construction and Infrastructure: Foundation drilling and ground stabilization rigs.

• Geotechnical Exploration: Core drilling and sampling equipment.

Its design ensures adaptability to both surface and underground hydraulic applications.

---

Packaging and Worldwide Delivery

Every 3222330149 Hydraulic Cylinder L8 Atlas Copco is carefully packaged for global transport and long-term storage.

Packaging Details

• Protective anti-corrosive coating applied internally and externally.

• Cylinder ports sealed with thread caps to avoid contamination.

• Wrapped in shock-absorbing foam and industrial film.

• Packed in export-grade carton with 3GEN Export label and QR tracking code.

Delivery Information

• Shipping Weight: 6.8 kg per unit

• Dispatch Time: Within 5 working days from order confirmation

• Global Coverage: Air and express freight to 100+ countries

• Tracking: Full visibility through 3GEN Export logistics network

---

Why Choose 3GEN Export

3GEN Export is a leading OEM-equivalent supplier specializing in spare parts for heavy-machinery brands including Atlas Copco, Sandvik, Caterpillar, Komatsu, and Volvo.

Key Advantages of 3GEN Export

• OEM Precision and Certification: Guaranteed fit and durability.

• Fast Worldwide Delivery: All orders dispatched within 5 business days.

• Warranty Coverage: 1-year manufacturer guarantee on all products.

• Expert Support: Technical assistance for part verification and installation.

• Competitive Pricing: Factory-direct rates with no hidden costs.

Our mission is to bridge the gap between industrial demand and global availability—making OEM-grade parts accessible to contractors, distributors, and maintenance companies worldwide.

---

Summary

The 3222330149 Hydraulic Cylinder L8 Atlas Copco (also known as 3222 3301 49) is a precision-built hydraulic component that converts fluid pressure into linear motion with maximum efficiency. Its rugged steel construction, advanced seal technology, and OEM tolerance make it a dependable choice for Atlas Copco’s L8-series machines and beyond.

Backed by 3GEN Export’s OEM-quality guarantee and global 5-day delivery, it ensures optimal performance, extended service life, and cost-efficient operation in demanding industrial environments.

---

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
