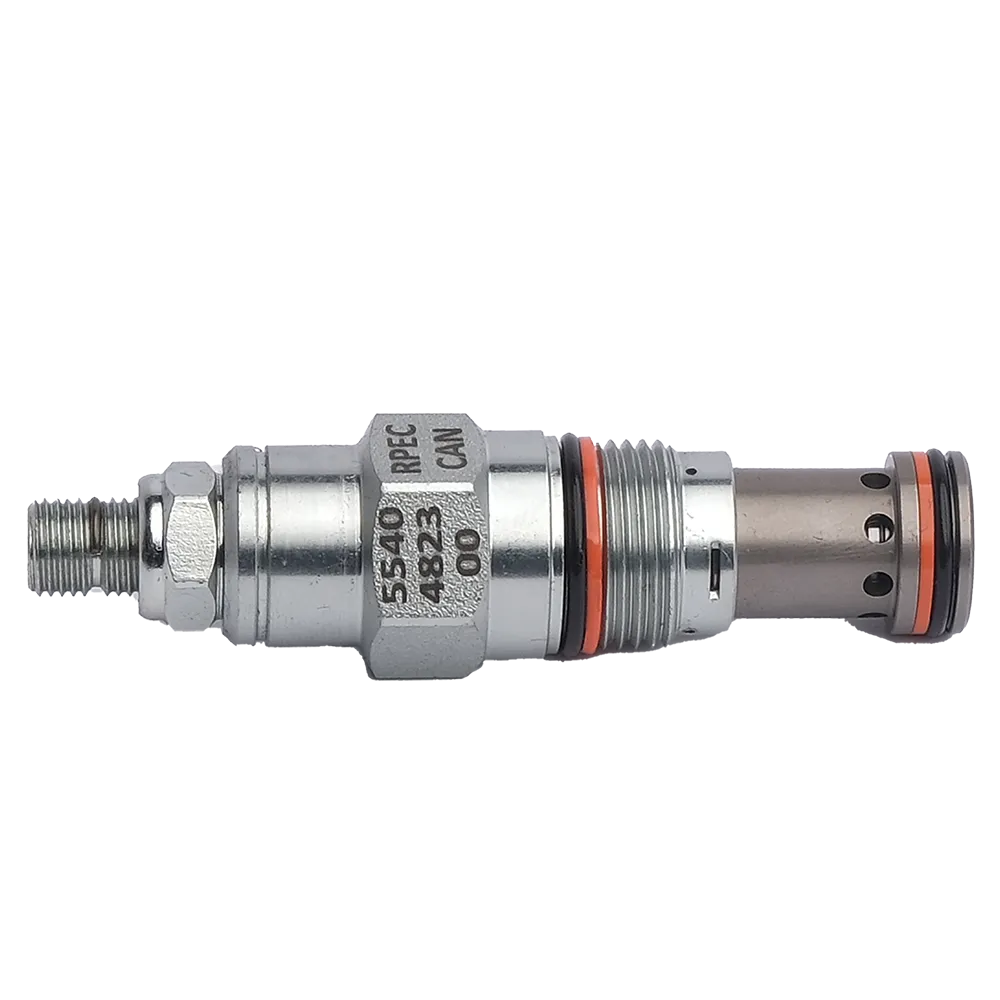

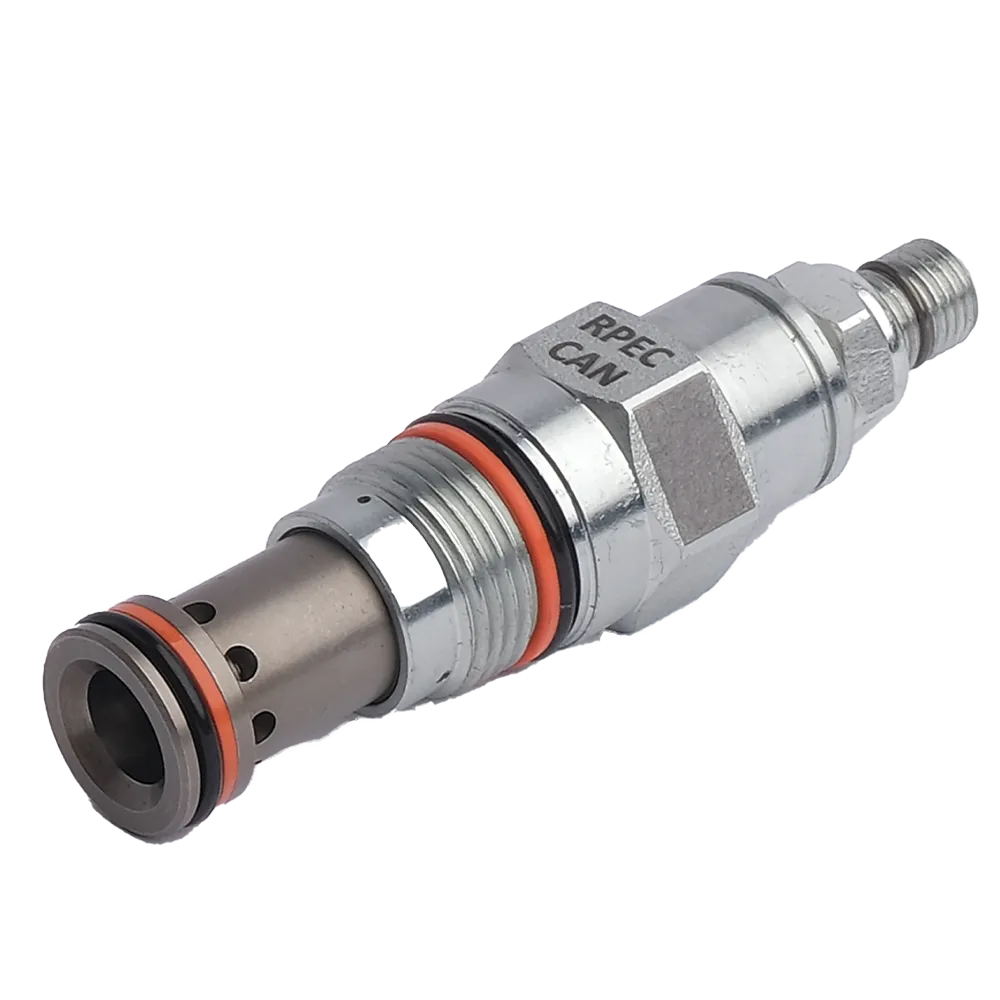

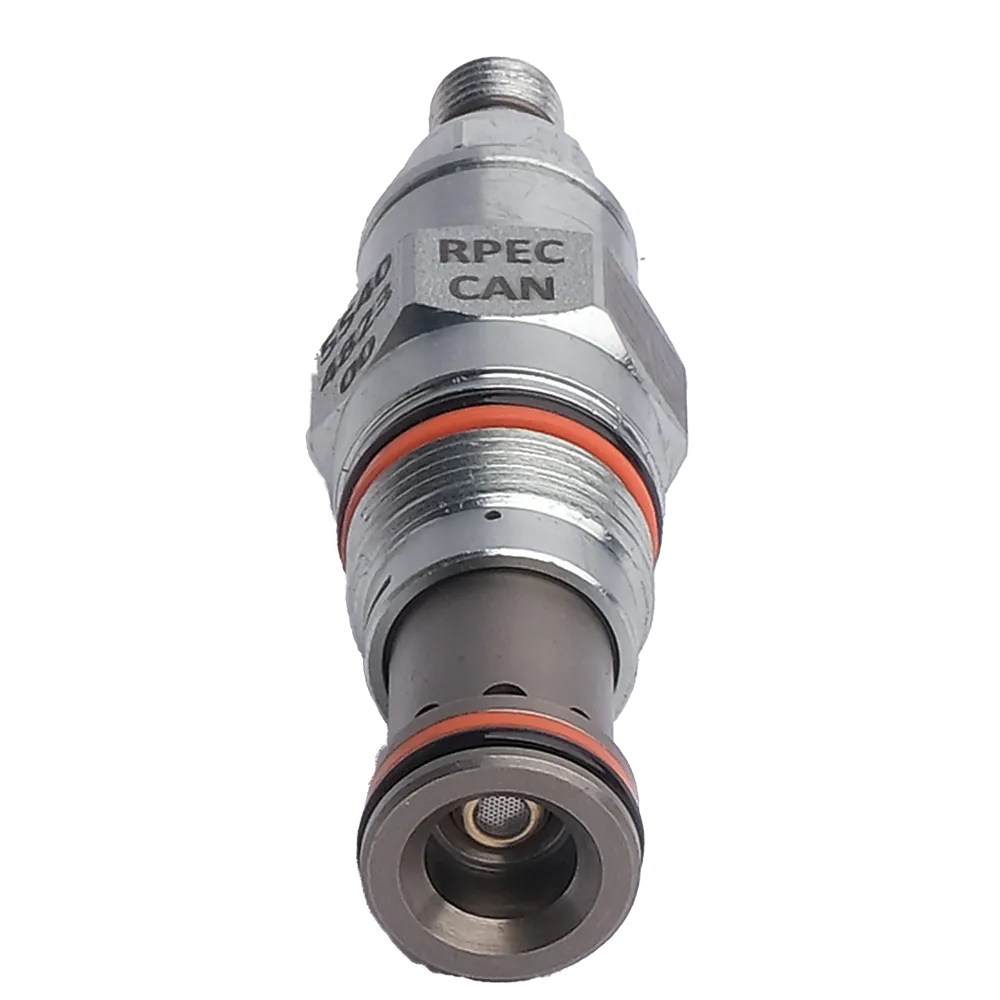

5540482300 , 5540 4823 00 VALVE RELIEF ATLAS COPCO

Overview

The 5540482300 VALVE RELIEF ATLAS COPCO is a precision-engineered hydraulic component designed to maintain consistent pressure control and protect critical drilling systems from overload. As an essential element within Atlas Copco’s rock drill and compressor assemblies, this valve ensures stability, safety, and efficiency in demanding industrial environments. Manufactured with durable materials and built to OEM standards, it guarantees long-term reliability in continuous-duty applications.

Supplied by 3GEN Export, this part exemplifies superior craftsmanship, global compatibility, and quick availability with worldwide delivery within 5 working days.

---

Function and Importance of the 5540482300 VALVE RELIEF ATLAS COPCO

A relief valve plays a critical role in every hydraulic circuit. It safeguards the system by controlling excessive pressure that could damage cylinders, pumps, or hoses. The 5540482300 VALVE RELIEF ATLAS COPCO is specifically calibrated to maintain optimal hydraulic balance under varying loads.

During operation, pressurized fluid flows through internal channels within the valve body. Once system pressure exceeds the factory-set threshold, the relief valve opens precisely, redirecting excess fluid back to the reservoir. This action prevents overheating, component fatigue, and unwanted mechanical vibration—ensuring equipment longevity and stable drilling performance.

Its responsive design and tight sealing tolerances make it ideal for heavy-duty hydraulic systems used in surface and underground mining, tunneling, and large-scale construction projects.

---

Technical Features and Specifications

Each 5540482300 VALVE RELIEF ATLAS COPCO is tested to OEM performance standards to ensure accurate pressure calibration and leak-free operation under high stress. The nickel-plated finish provides exceptional corrosion resistance, even in harsh conditions where moisture, dust, and hydraulic oil contamination are prevalent.

---

Design and Construction

1. High-Precision Machining

The relief valve body is machined from high-grade steel using CNC technology for precise internal clearances. This guarantees stable performance even under pulsating loads and continuous vibration typical of drilling machinery.

2. Dual O-Ring Sealing

Equipped with dual O-rings in high-pressure zones, the valve provides superior sealing integrity, preventing hydraulic oil leakage and maintaining consistent internal pressure.

3. Heat Treatment and Surface Protection

Critical components undergo heat-treatment to enhance hardness and wear resistance. A corrosion-resistant plating prevents oxidation and extends service life in damp or saline environments.

4. Compact Threaded Design

The compact threaded-cartridge structure allows easy installation or replacement without modifying the hydraulic block. This makes maintenance faster, minimizes downtime, and reduces the risk of alignment errors.

---

Performance Advantages

• Pressure Stability: Maintains uniform pressure across the hydraulic circuit.

• System Safety: Prevents damage due to overload, excessive heat, or internal leaks.

• Extended Component Life: Protects sensitive elements such as seals, pistons, and pump assemblies.

• Low Noise Operation: Smooth valve transitions reduce hydraulic shock and mechanical vibration.

• Easy Maintenance: Compact design allows quick removal for inspection or replacement.

• Enhanced Corrosion Resistance: Surface-plated housing resists oxidation and fluid-borne contaminants.

These attributes make the 5540482300 VALVE RELIEF ATLAS COPCO one of the most dependable hydraulic safety components used in modern drilling and excavation machinery.

---

Compatible Atlas Copco Models

This valve relief unit is compatible with a wide range of Atlas Copco equipment, including:

• ROC L6, ROC L8, ROC D7, ROC F9 surface drill rigs

• Boomer 281 and Boomer 282 underground drills

• FlexiROC T30R, T35, T40 series

• COP 1838 and COP 2560 rock drills

• Hydraulic power packs and compressor assemblies in the AirROC and PowerROC families

Its modular compatibility ensures seamless integration across multiple drilling systems, allowing efficient maintenance and streamlined part standardization for fleet operations.

---

Installation and Maintenance Guide

Installation Steps

1. Prepare the Mounting Port
   Clean the hydraulic block and remove debris or residual oil. Inspect threads to ensure proper alignment.

2. Lubricate the Seals
   Lightly coat O-rings with compatible hydraulic oil before insertion. This prevents tearing and facilitates smooth seating.

3. Thread the Valve Carefully
   Install the valve by hand to avoid cross-threading, then tighten with a torque wrench following the manufacturer’s torque recommendations.

4. Check for Leaks
   After installation, pressurize the system and observe for leakage around the O-ring area or threads. Tighten slightly if necessary.

5. Test System Pressure
   Activate the hydraulic circuit and monitor relief pressure using a calibrated gauge. Ensure pressure relief occurs at the specified setting.

Maintenance Tips

• Routine Inspection: Check every 500 operating hours for seal integrity and contamination.

• Cleanliness: Replace hydraulic oil filters regularly to prevent valve clogging.

• Seal Replacement: Always use OEM-quality O-rings to maintain correct pressure thresholds.

• Storage: Keep unused valves in a clean, dry environment to prevent corrosion.

Proper maintenance ensures the 5540482300 VALVE RELIEF ATLAS COPCO continues delivering consistent performance over years of operation.

---

Applications

• Surface and underground drilling rigs

• Hydraulic rock drills and hammers

• Air compressor pressure control systems

• Construction and quarrying machinery

• Tunneling and mining applications

Its robust design and precise calibration make it the ideal component for any Atlas Copco system requiring pressure-relief control under variable load conditions.

---

Why Choose 3GEN Export as Your OEM Supplier

At 3GEN Export, we specialize in supplying OEM-standard Atlas Copco spare parts designed for durability, compatibility, and peak performance. Every 5540482300 VALVE RELIEF ATLAS COPCO undergoes strict quality inspection to ensure mechanical precision, pressure stability, and flawless installation fitment.

3GEN Export Advantages

• Global Delivery in 5 Working Days: Fast, trackable worldwide shipping.

• OEM Engineering Quality: Reliable fit and functionality across all compatible machines.

• Comprehensive Inventory: Full range of Atlas Copco drifter, hydraulic, and pneumatic parts.

• Secure Transactions: Protected payments and verified export documentation.

• After-Sales Support: Technical assistance for installation and calibration.

As a trusted OEM supplier, 3GEN Export ensures you receive precision-machined components that maximize uptime and minimize maintenance costs—backed by a global logistics network.

---

Packaging and Logistics

Each valve is vacuum-sealed and cushioned in a protective industrial-grade box to prevent damage during transit. Labels include part numbers and inspection data for immediate warehouse integration.

3GEN Export’s global distribution network ensures rapid delivery to Europe, Asia, Africa, and the Americas—within five working days from order confirmation.

---

Conclusion

The 5540482300 VALVE RELIEF ATLAS COPCO is the ultimate pressure-control component for hydraulic drilling and compressor systems. Its precision design, durable construction, and global compatibility make it indispensable in maintaining system stability and extending machinery life.

By choosing 3GEN Export, you secure direct access to premium OEM-level Atlas Copco spare parts with rapid worldwide delivery and expert support—ensuring every project runs with maximum safety and efficiency.

---

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
