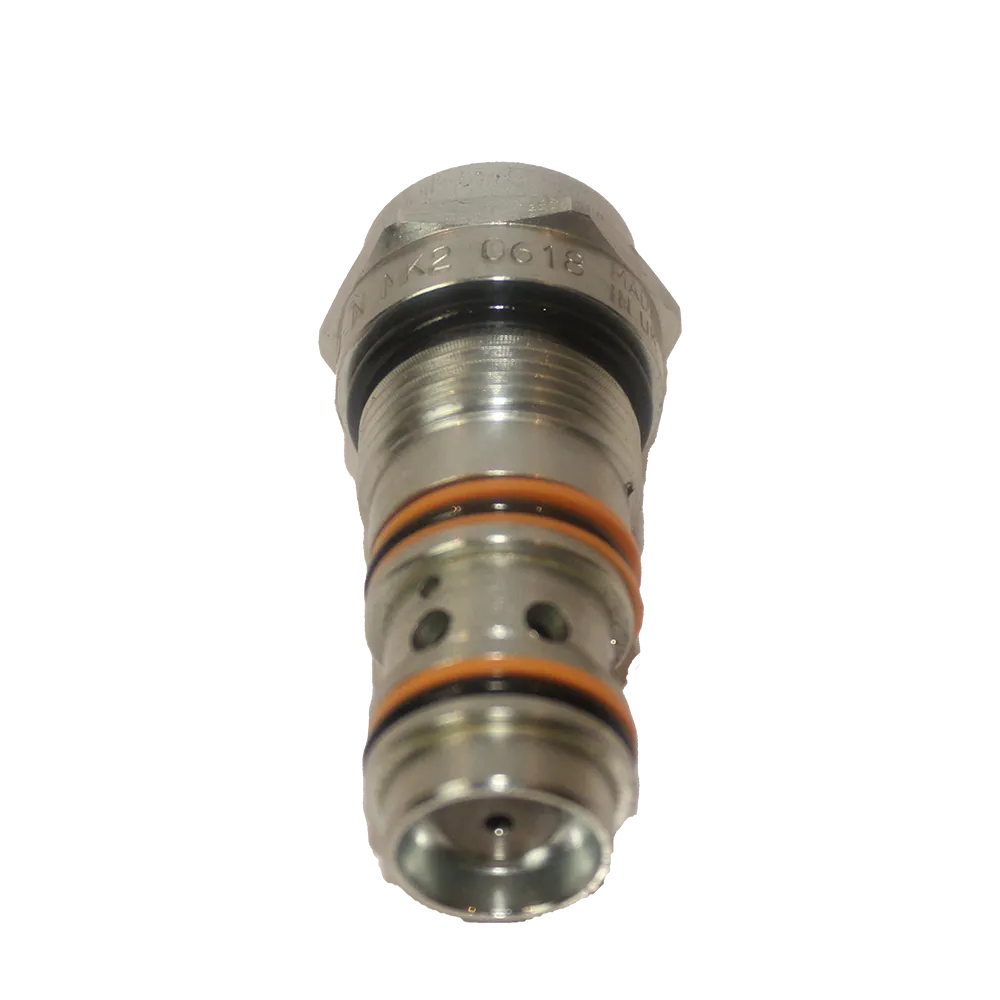

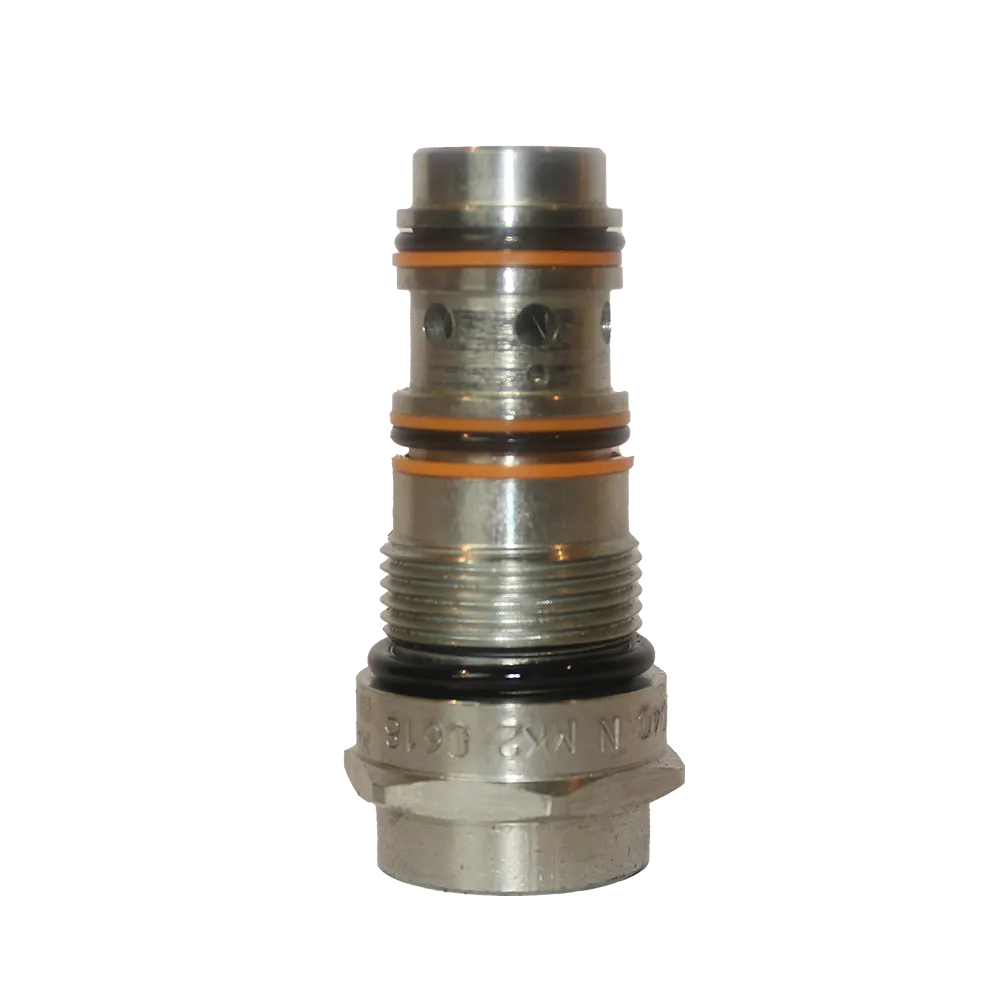

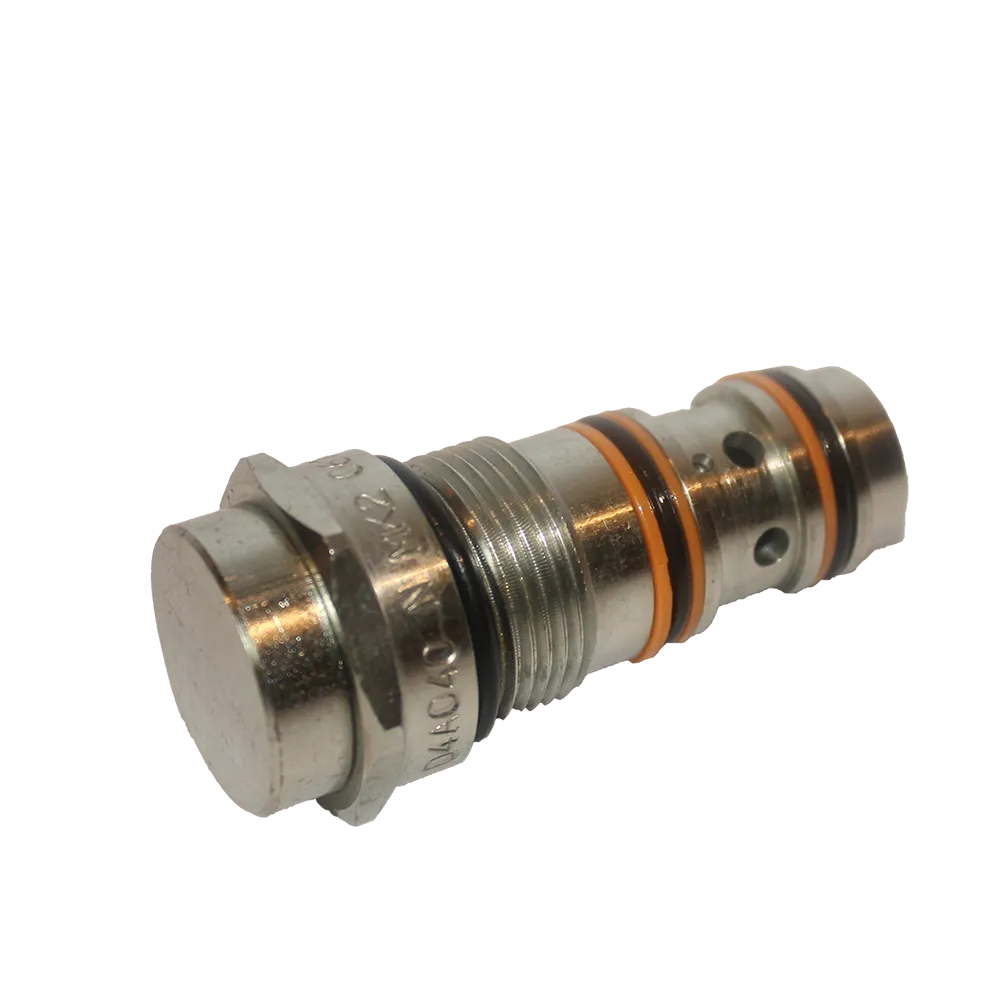

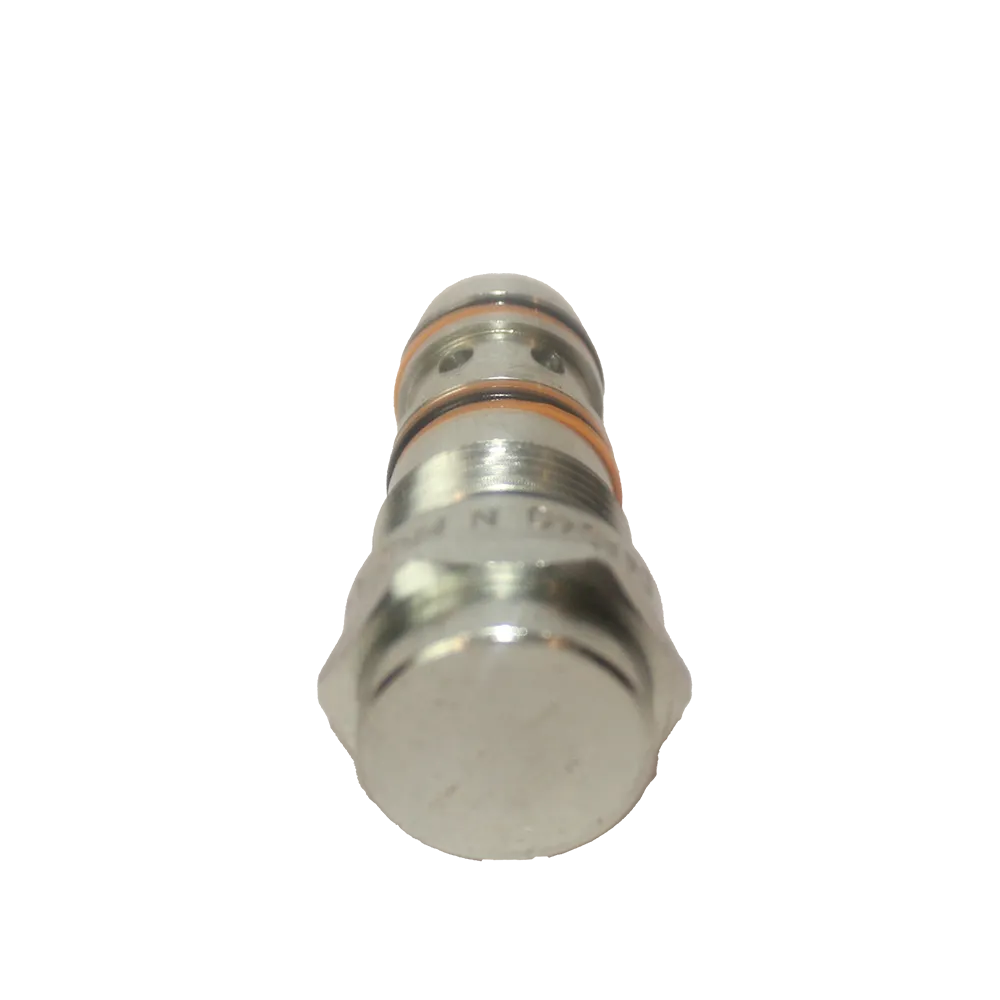

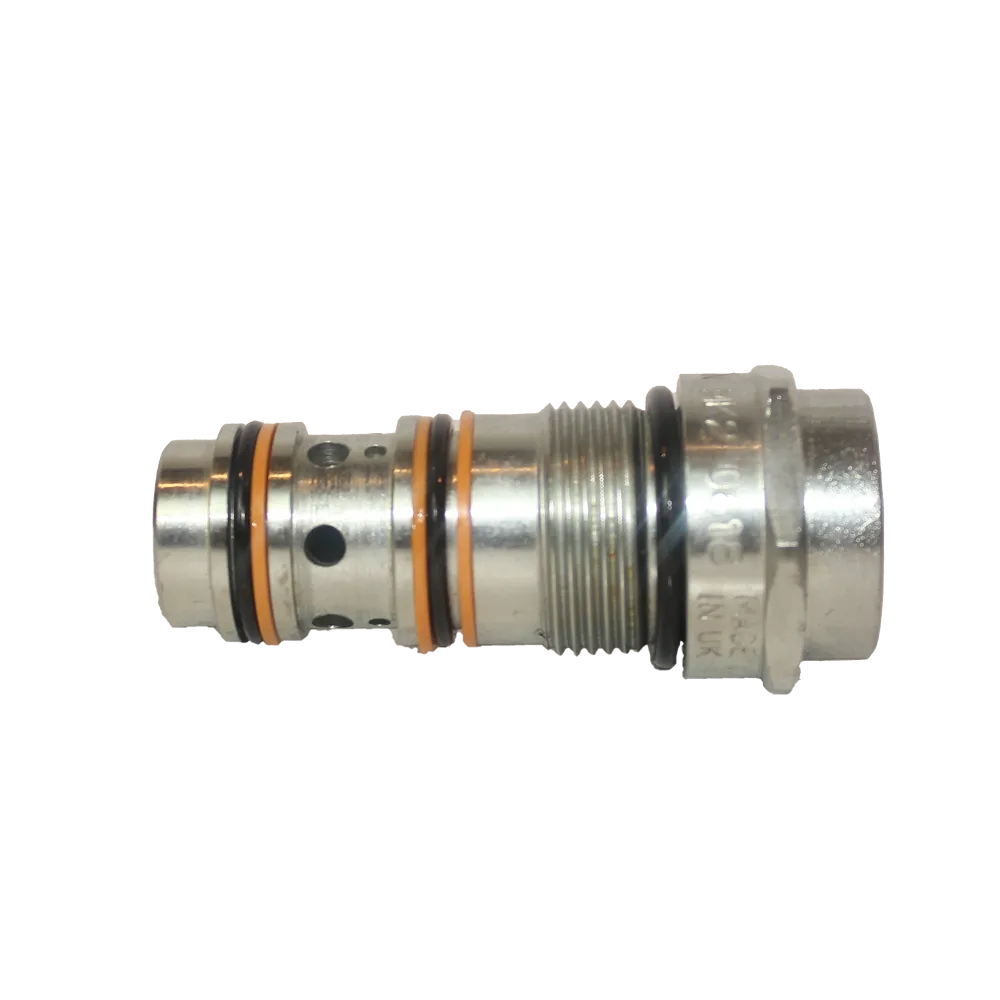

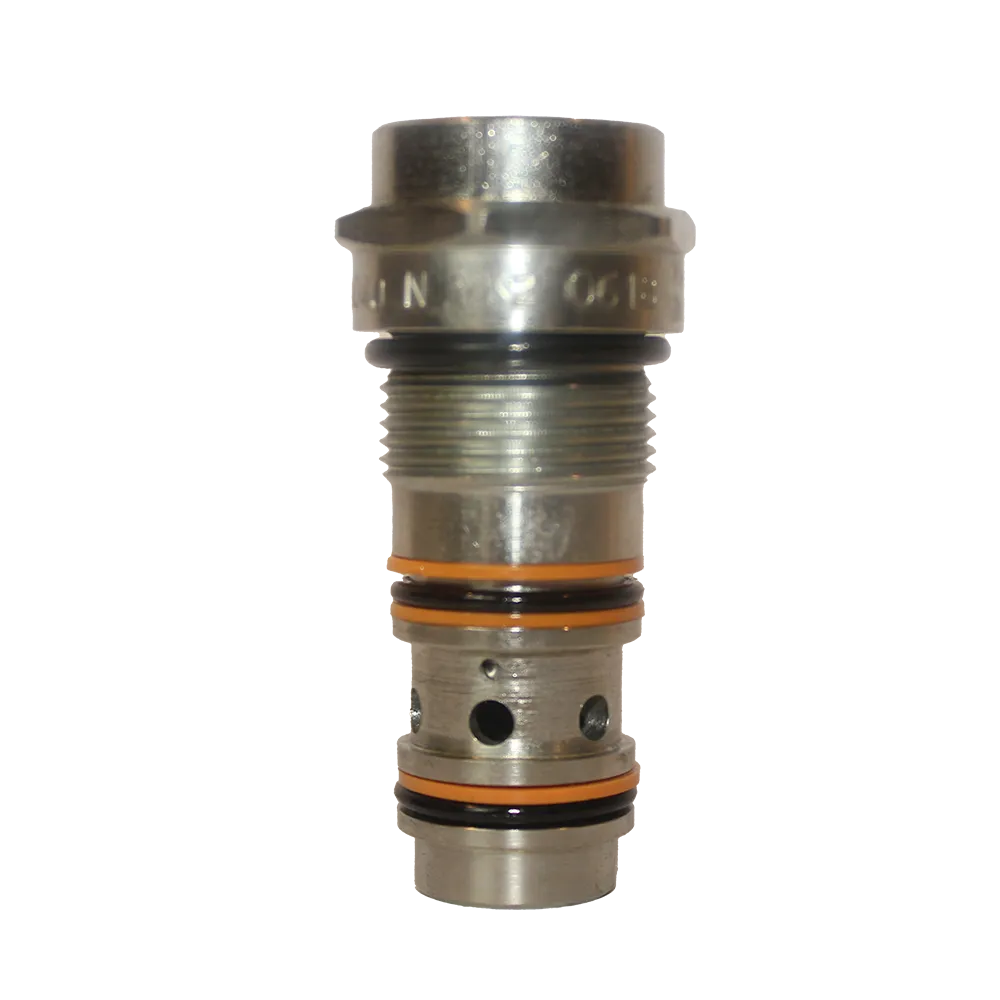

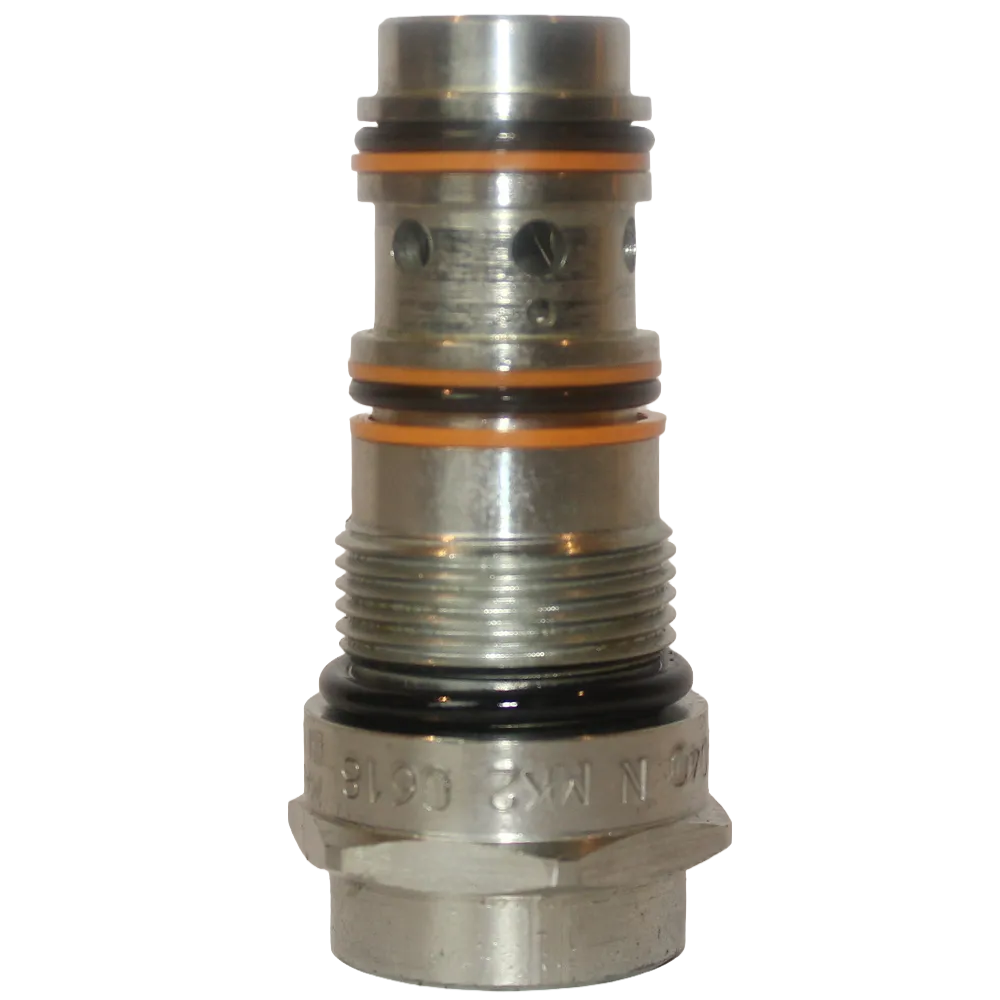

8231120286 , 8231 1202 86 CHECK VALVE ATLAS COPCO

Precision Hydraulic Component for Controlled Flow and Reliability

The 8231120286 CHECK VALVE ATLAS COPCO (also known as 8231 1202 86 CHECK VALVE ATLAS COPCO) is an essential component within Atlas Copco hydraulic rock drill systems. Designed to ensure controlled, one-directional oil flow, this valve prevents backflow and safeguards the hydraulic circuit from pressure surges, contamination, and operational inefficiency.

Manufactured with precision engineering and robust material integrity, this valve guarantees a secure seal, fast response times, and long-term reliability even under the high-pressure conditions typical of drilling, tunneling, and mining operations. As part of the 3GEN Export OEM-quality lineup, the 8231120286 check valve is designed to deliver high performance, durability, and consistent operation , with worldwide delivery in just 5 working days.

---

Product Overview

Function and Working Principle

The 8231120286 CHECK VALVE ATLAS COPCO serves a vital role in controlling the hydraulic oil direction within the system. Its function is straightforward yet critical , it allows fluid to pass freely in one direction while automatically sealing off the reverse flow.

This mechanism protects the hydraulic pumps, actuators, and cylinders from reverse pressure, ensuring system stability and preventing potential damage caused by pressure fluctuations.

The valve’s precision-ground internal seat, combined with its spring-loaded poppet design, guarantees a rapid sealing response under variable pressure conditions. This responsiveness ensures consistent oil flow, improved energy efficiency, and reduced wear across the entire hydraulic system.

---

Technical Specifications

This part is engineered to provide long service life and minimal internal leakage, even in demanding hydraulic environments with high vibration or shock loads.

---

Advanced Design Features

Precision Machining for Perfect Fit

The 8231120286 CHECK VALVE ATLAS COPCO features a finely machined stainless-steel body, ensuring a tight seal and easy integration into hydraulic systems. The valve threads are manufactured with micron-level accuracy, providing a leak-free connection with no need for additional fittings or sealing compounds.

High-Performance Sealing Technology

Its triple O-ring sealing design guarantees excellent resistance against oil leaks and contamination. The seals are crafted from high-grade materials that retain flexibility across extreme temperature variations, preventing degradation even during continuous high-pressure cycles.

Nickel-Chrome Surface Protection

To withstand harsh industrial conditions, the valve’s outer surface is coated with a nickel-chrome protective layer. This not only enhances corrosion resistance but also reduces surface friction, ensuring smooth installation and disassembly.

---

Compatibility with Atlas Copco Models

The 8231120286 CHECK VALVE ATLAS COPCO is widely compatible across a range of hydraulic systems, particularly those used in drilling and rock-breaking applications. It fits the following Atlas Copco models:

• Atlas Copco COP Series Rock Drills: COP 1838, COP 1840, COP 2238, COP 2240

• Atlas Copco ROC Surface Drills: ROC D7, ROC D9, ROC D10

• Atlas Copco Boomer Series: Boomer 282, Boomer E2C, Boomer E3C

• Atlas Copco Hydraulic Breakers: HB 2000, HB 2500, HB 3100, MB 1700

• Atlas Copco Mining Rigs: Simba M7C, Simba M4C, Simba S7

This broad compatibility allows the valve to serve both direct replacement needs and general maintenance applications within Atlas Copco’s hydraulic system range.

---

Functional Advantages

Optimized Flow Control

The 8231120286 CHECK VALVE ATLAS COPCO ensures fluid moves precisely in the required direction, maintaining stable hydraulic pressure throughout the system. This reliability supports smoother operation and consistent tool performance during drilling or impact cycles.

Increased Component Longevity

By preventing reverse pressure and hydraulic shock, the check valve protects critical system parts , such as pumps, pistons, and seals , from unnecessary stress. This significantly reduces the risk of early component failure, extending maintenance intervals and minimizing downtime.

Reduced Energy Loss

The valve’s internal geometry is optimized for smooth oil passage with minimal turbulence. This design ensures efficient energy transfer and reduces power losses across the system, improving overall performance and productivity.

Enhanced Safety in Hydraulic Systems

Maintaining one-way flow prevents sudden pressure release that could damage the hydraulic system or endanger operators. The valve’s reliable sealing capability ensures safe operation even under fluctuating loads and high temperatures.

---

Applications

The 8231120286 CHECK VALVE ATLAS COPCO is used in various heavy-duty hydraulic applications that demand consistent oil flow control.

Typical Application Areas:

• Rock drilling rigs and mining equipment

• Hydraulic breaker systems

• Quarry and construction machinery

• Tunnel boring machines

• Underground drilling rigs

Its rugged construction makes it suitable for continuous use in harsh and dusty environments, including deep mining operations and high-impact demolition work.

---

Installation and Maintenance

Installation Guidelines

1. Cleanliness First: Ensure both the valve port and surrounding hydraulic lines are free from contaminants before installation.

2. Apply Suitable Lubrication: Use compatible hydraulic oil to lubricate O-rings and threads for easier assembly.

3. Torque Specifications: Tighten to the manufacturer’s recommended torque to maintain a proper seal.

4. Leak Check: Pressurize the system gradually and inspect for leaks before full operation.

Maintenance Recommendations

• Regularly inspect O-rings and sealing surfaces for wear or damage.

• Replace the valve during major system overhauls or every 12–18 months of continuous service.

• Avoid exceeding the rated pressure to maintain optimal sealing performance.

• Store spare valves in a dry, dust-free environment to preserve surface coating.

---

Quality Assurance and Testing

All 8231120286 CHECK VALVE ATLAS COPCO units supplied by 3GEN Export undergo rigorous OEM-level quality control and precision testing.

Each Unit Undergoes:

• Pressure Test: Tested to withstand up to 1.5× the rated working pressure.

• Flow Test: Verified for correct flow rate and sealing efficiency.

• Leak Test: Ensures zero backflow under closed-valve conditions.

• Dimensional Accuracy Check: Confirms exact thread pitch, seat angle, and length tolerances.

These quality checks ensure the valve provides consistent operation under the most demanding field conditions.

Why Choose 3GEN Export

OEM-Standard Quality

Every 8231120286 CHECK VALVE ATLAS COPCO offered by 3GEN Export is precision-engineered to match original specifications, ensuring seamless system compatibility.

Fast Global Delivery

3GEN Export guarantees worldwide delivery within 5 working days, enabling customers to maintain uninterrupted equipment performance and minimize downtime.

Expert Technical Support

Our hydraulic specialists provide personalized assistance, ensuring correct part selection and installation guidance for your specific Atlas Copco model.

Warranty and Traceability

Each part includes complete production documentation and is backed by a 1-year OEM warranty for peace of mind.

---

Packaging and Shipping Details

Every unit is securely packaged to prevent impact damage and moisture exposure during transport.

---

Key Highlights

---

Conclusion

The 8231120286 CHECK VALVE ATLAS COPCO is a critical element for maintaining hydraulic integrity in rock drill systems. Its superior design, durable materials, and precise flow control capabilities make it the preferred choice for operators seeking reliability and efficiency.

With 3GEN Export’s OEM-standard production, 1-year warranty, and worldwide delivery in just 5 working days, you can trust that your machinery will continue performing at its highest potential without delays.

---

  Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
