9106063010, 9106 0630 10 HYDRAULIC LOCK ATLAS COPCO

If your drilling rig’s boom, feed, or actuator circuit needs to hold position without creeping, a hydraulic lock is the component that makes that “stay-put” behavior reliable. The 9106063010, 9106 0630 10 HYDRAULIC LOCK ATLAS COPCO is a compact, block-style locking valve used in hydraulic systems to prevent unintended movement when the control signal is neutral, the machine is parked, or the circuit is under varying load.

At 3GEN Export, we supply this part as an OEM-quality solution for demanding rock drilling conditions, with worldwide delivery in 5 working days.

What the 9106063010 HYDRAULIC LOCK Does in a Rock Drill Hydraulic Circuit

A hydraulic lock is designed to keep an actuator from drifting. In practical terms, it helps hold cylinders and motors steady by restricting reverse flow unless the circuit is actively commanded to move.

In drilling rigs, this matters because:

• Vibrations, dynamic loads, and repeated cycling can encourage micro-movement.

• High line pressures can cause slow leakage across spools or internal clearances elsewhere.

• Boom and feed positioning must remain stable for accuracy and safety.

The 9106 0630 10 HYDRAULIC LOCK ATLAS COPCO is commonly referenced as a “double channel” style valve in parts listings, which aligns with a block featuring multiple labeled ports (often marked as A1/A2 and B1/B2 on the housing).

Where This Part Is Commonly Used

This component appears in parts references tied to several ATLAS COPCO drilling platforms. Based on available parts listings, the 9106 0630 10 HYDRAULIC LOCK ATLAS COPCO is associated with machines including:

• Boomer 281

• Boomer 291

• XL3D

• XE3C

• Simba 1354

• Simba 1254

• FlexiROC/D65

• FlexiROC/D50

• Boomer K111

• Boomer K41 (type)

Compatibility can vary by serial range, hydraulic configuration, and circuit revision. The safest confirmation method is matching the part number in your parts book/BOM or checking the valve block stamping against the system drawing.

Design Cues From the Part Itself

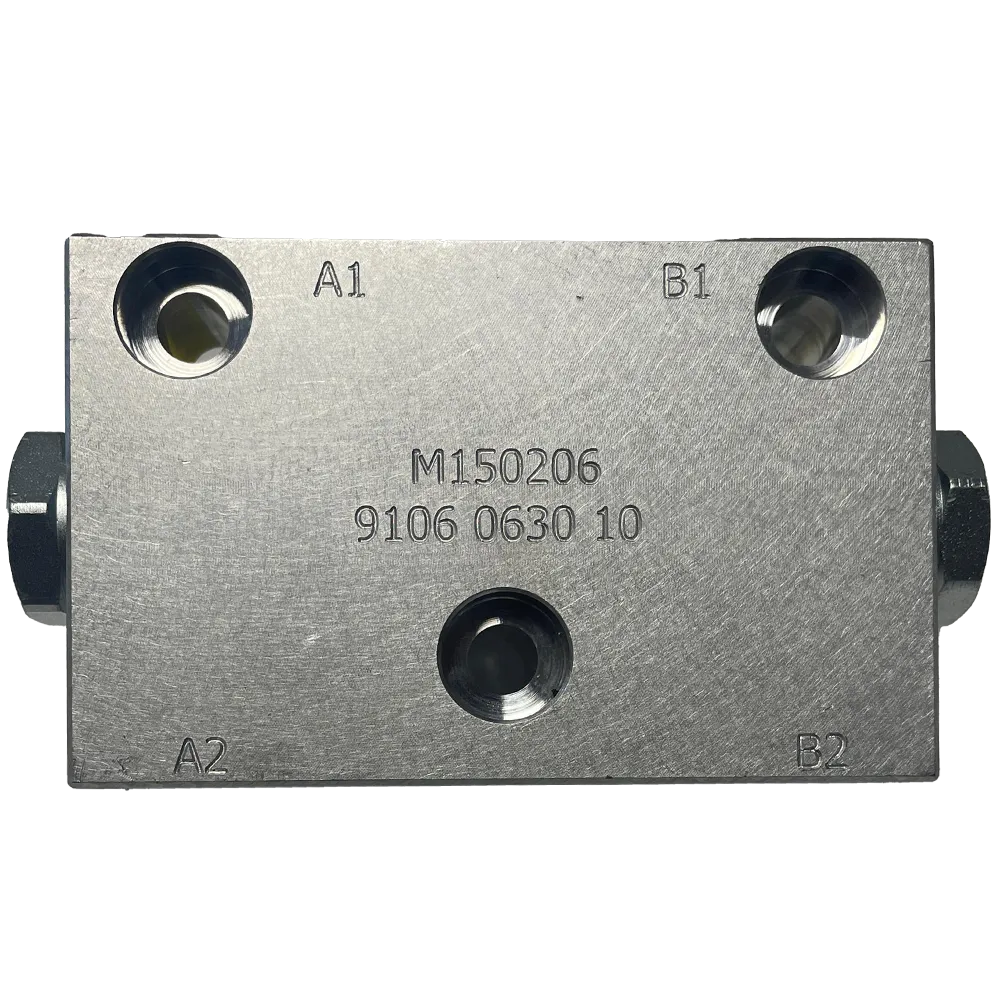

From typical product identification and the visible port labeling on these blocks, the 9106063010 HYDRAULIC LOCK ATLAS COPCO is a machined metal valve block with clearly marked port positions (A1, A2, B1, B2), designed for:

• Stable sealing under high pressure

• Consistent flow control

• Repeatable installation orientation for correct circuit mapping

This is the kind of part that must fit perfectly, hydraulic locking functions are unforgiving when tolerances are off, because even small internal leak paths can translate into actuator creep over time.

Why Hydraulic Locks Fail (and How You Notice)

A hydraulic lock usually doesn’t fail dramatically. More often, it fails slowly, showing up as performance drift that operators mistakenly attribute to other parts. Typical signs include:

1) Slow creep or drift in the held position

Boom or feed slowly moves even when the control is neutral, especially under load.

2) Position instability during drilling

You correct position, it holds for a moment, then relaxes back.

3) Heat-related worsening

When oil warms and viscosity drops, drift becomes more visible.

4) Pressure decay complaints

The system struggles to “hold pressure” in a section of the circuit during pauses.

When these symptoms appear, the 9106 0630 10 HYDRAULIC LOCK ATLAS COPCO becomes a prime suspect, particularly if other parts (spools, cylinders, hoses) have already been checked.

What Makes an OEM-Quality Replacement Important Here

A locking valve block is not a “close enough” part. Performance depends on:

• Internal sealing geometry

• Surface finish quality

• Dimensional accuracy of ports and seats

• Material integrity under pressure cycling

• Consistent machining that prevents bypass leakage

That is exactly why 3GEN Export positions this item as an OEM-grade solution, because your rig’s precision and safety depend on stable hydraulics. When a lock valve is right, your machine feels “tight,” predictable, and confident under load.

Technical Details and Practical Specifications

Exact specifications can differ by circuit version, but buyers typically care about the functional characteristics below:

Key functional role

• Load holding / anti-drift function for actuator circuits

Port mapping

• Commonly labeled A1/A2 and B1/B2 on the block for correct hose/line routing

• Construction

• Machined metal valve block designed for high-pressure hydraulic use

Approximate weight

• Listed weight: 0.64 kg (reference listing)

If you need the shipping weight including packaging (box, protective wrap, caps), that will be higher and depends on packing method.

Installation Notes for the 9106063010 Hydraulic Lock

A hydraulic lock replacement is straightforward for a qualified technician, but the details matter. Below is a practical, field-friendly installation approach.

1) Safety and depressurization

• Park safely, lock-out/tag-out.

• Relieve hydraulic pressure fully.

• Confirm the circuit is not holding residual load pressure.

2) Mark lines and port positions

Before removing the old block, label or photograph connections. The A1/A2 and B1/B2 mapping must remain correct.

3) Remove and inspect

• Remove the block carefully.

• Inspect sealing surfaces, mounting face condition, and any manifold interface.

• Check for contamination signs (metal glitter, sludge, varnish).

4) Replace seals correctly

Even if the block is new, the sealing strategy must be correct:

• Use the right O-rings or seal kit per your machine’s parts guidance.

• Ensure no nicks, twists, or dry-install damage.

• Lightly lubricate seals with compatible hydraulic oil.

5) Torque and alignment

• Tighten fasteners evenly.

• Do not over-torque, distortion can lead to leakage or internal misalignment.

6) System restart and verification

• Run at low speed first.

• Check for external leaks.

• Test hold function under load: confirm the actuator holds position without creep.

Best Practices to Extend Service Life

Because lock valves live in the “truth zone” of your hydraulics, where pressure, heat, and contaminants meet, maintenance discipline pays off.

Keep oil clean

• Change filters on schedule.

• Use correct filtration ratings.

• Investigate recurring contamination early.

Watch temperature and viscosity

• Overheating accelerates seal wear and internal leakage.

• Use the correct oil type for your operating environment.

Avoid shock loading

• Abrupt direction changes and slamming loads create spikes that stress internal components.

Inspect hoses and fittings

• Air ingress and micro-leaks can destabilize performance and mimic lock valve problems.

Ordering Information and Search Coverage

To help your listing rank across different search behaviors, include both number formats consistently:

• 9106063010 HYDRAULIC LOCK ATLAS COPCO

• 9106 0630 10 HYDRAULIC LOCK ATLAS COPCO

Some catalogs also present the same item as a valve block style component, and parts references place it across multiple drilling rigs listed earlier.

Supported ATLAS COPCO Models and Platforms

Based on accessible parts listing references, this hydraulic lock is associated with the following platforms:

• Boomer 281

• Boomer 291

• XL3D

• XE3C

• Simba 1354

• Simba 1254

• FlexiROC/D65

• FlexiROC/D50

• Boomer K111

• Boomer K41 (type)

If you want, share your machine model + serial range and I can help you phrase the compatibility section in a cleaner “fitment-friendly” e-commerce format.

Why Buy From 3GEN Export

Your customer doesn’t just buy a part number, they buy uptime. With 3GEN Export, you’re positioning this component as:

• OEM-quality supply standard

• Reliable fit and function for demanding drilling environments

• Fast worldwide delivery in 5 working days

That combination is what turns a product page into a purchase decision, especially for contractors who cannot afford position drift, rework, or downtime.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
