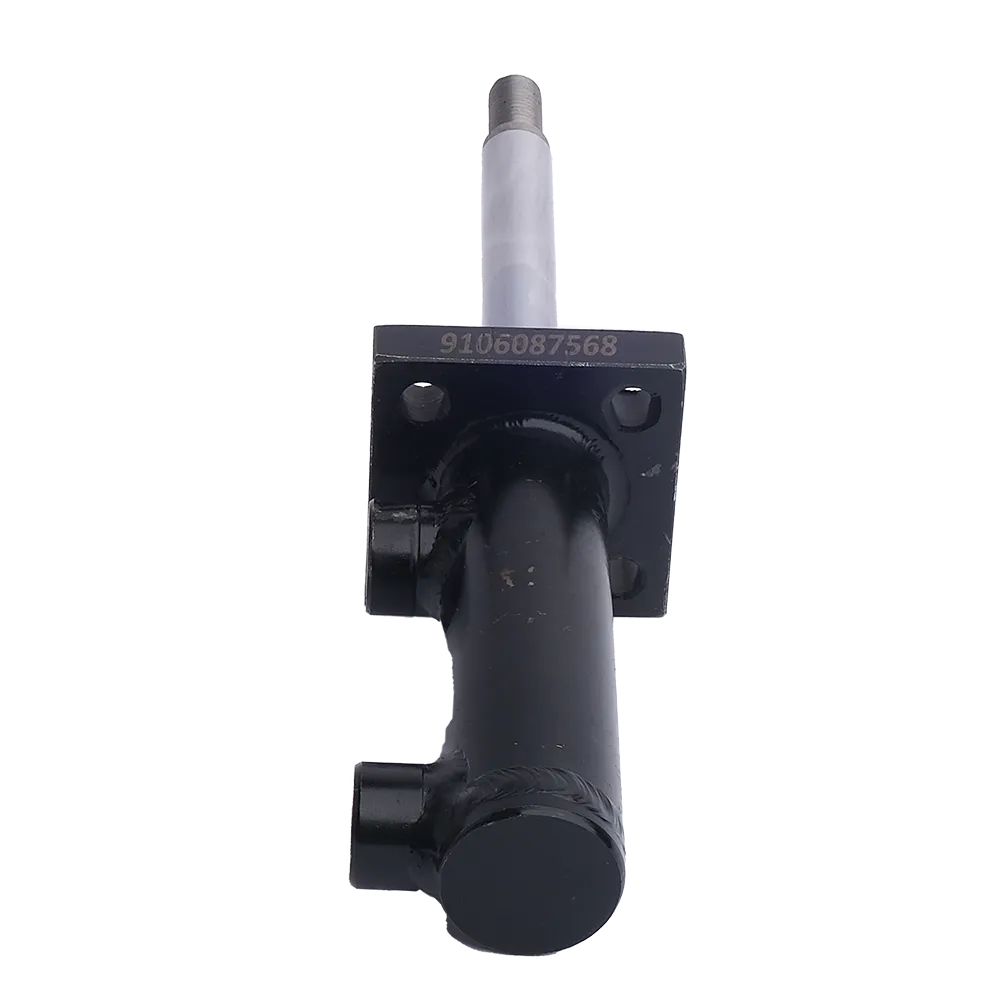

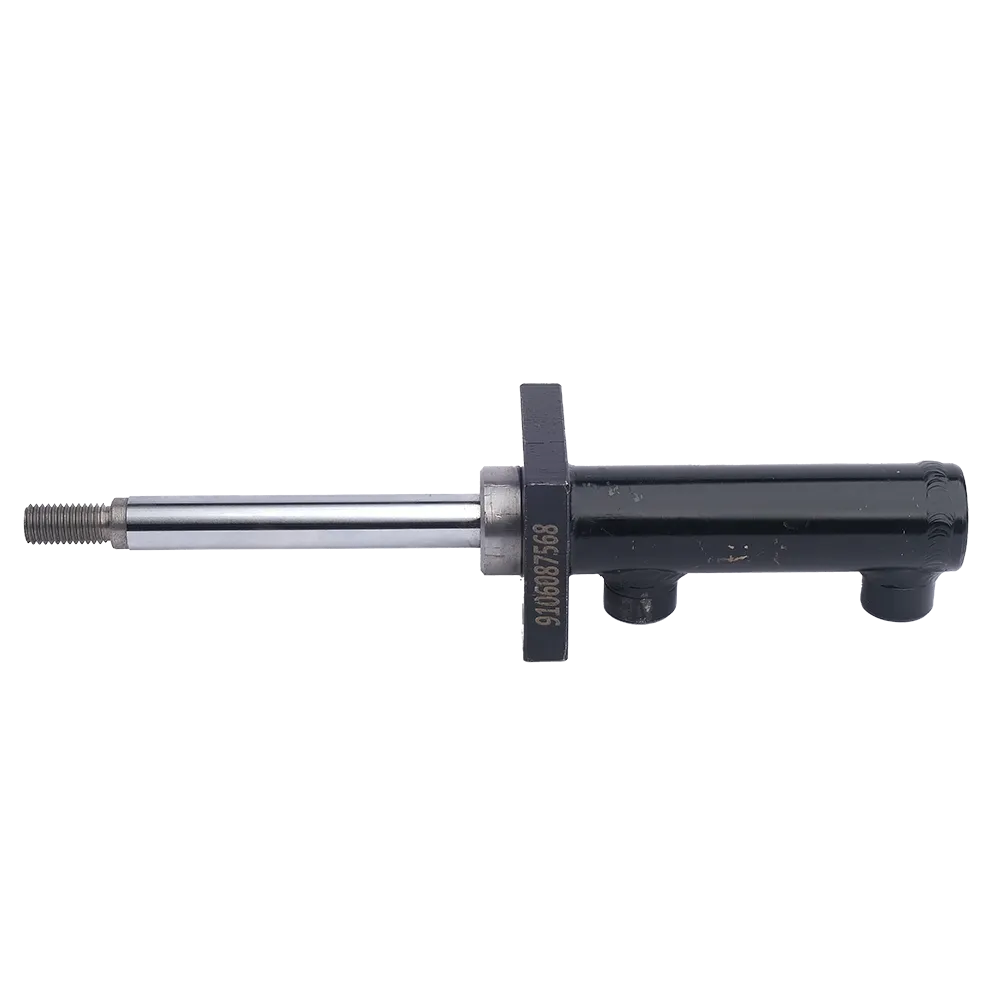

9106087568 HYDRAULIC CYLINDER ATLAS COPCO

(Also listed as 9106 0875 68 Hydraulic Cylinder Atlas Copco)

---

9106087568 HYDRAULIC CYLINDER ATLAS COPCO

The 9106087568 Hydraulic Cylinder Atlas Copco is an essential component in the motion and control systems of heavy drilling and excavation machinery. Designed for uncompromising performance, this part converts hydraulic energy into precise linear motion, ensuring consistent force, lifting capacity, and alignment in Atlas Copco’s rock drilling mechanisms.

Manufactured with high-grade steel and advanced sealing technology, the 9106 0875 68 Hydraulic Cylinder Atlas Copco maintains optimal performance even under the harshest working conditions — from deep mining tunnels to open-pit quarries. Built to meet OEM-level precision and endurance, this hydraulic cylinder ensures long-lasting reliability and minimized downtime for operators worldwide.

Distributed exclusively by 3GEN Export, this component is supplied with OEM-equivalent certification, global logistics coverage, and a 5-working-day delivery guarantee, ensuring that every Atlas Copco owner and service center can maintain peak operational continuity.

---

Function and Role of the 9106087568 Hydraulic Cylinder Atlas Copco

The Power Behind Linear Motion

The 9106087568 Hydraulic Cylinder Atlas Copco is designed to convert hydraulic fluid pressure into mechanical movement. It plays a crucial role in controlling the movement of key drilling components — such as feeding, rotation, and clamping — within Atlas Copco’s hydraulic systems.

The cylinder’s precision-machined piston and barrel assembly create controlled movement with exceptional power density. This allows the drill to maintain constant force, even under fluctuating load conditions, ensuring efficient drilling performance across varying rock densities.

A Critical Element in Rock Drill Operation

In Atlas Copco hydraulic drifters and feed systems, the 9106 0875 68 Hydraulic Cylinder Atlas Copco acts as both a power generator and motion stabilizer. Its functions include:

• Controlling feed pressure during drilling

• Stabilizing drill movement and angle alignment

• Managing torque balance during rock penetration

• Maintaining hydraulic pressure equilibrium for safety

By delivering constant linear motion and high-pressure support, this cylinder ensures the machine’s drilling accuracy, operational smoothness, and extended component lifespan.

---

Technical Specifications

---

Material Composition and Engineering

Precision-Crafted Hydraulic Construction

The 9106087568 Hydraulic Cylinder Atlas Copco is made from premium alloy steel, designed to withstand extreme hydraulic pressures without deformation. The outer barrel undergoes high-temperature forging, followed by CNC machining for exact dimensional accuracy.

The piston rod is induction-hardened and chrome-plated to achieve optimal surface finish, enhancing its resistance to corrosion, pitting, and wear. The rod-to-barrel seal interface is tested for zero leakage under continuous pressure, guaranteeing flawless operation throughout its lifecycle.

Superior Sealing System

The cylinder’s internal sealing system uses a dual-lip configuration with an auxiliary O-ring to provide a robust barrier against hydraulic oil leakage. This advanced sealing ensures:

• High-pressure retention

• Reduced contamination from external particles

• Smooth piston movement

• Extended maintenance intervals

Combined with precision alignment, these seals keep the hydraulic system efficient even in harsh conditions, including abrasive rock environments and variable hydraulic temperatures.

---

Mechanical Performance

High Pressure and Load Resistance

Engineered for durability, the 9106087568 Hydraulic Cylinder Atlas Copco is capable of handling continuous high-load operations. With its reinforced structure and optimized wall thickness, it provides reliable force output even when subjected to rapid pressure fluctuations.

The component’s balanced internal geometry reduces stress concentrations, preventing premature failure and ensuring stable force distribution throughout the drilling cycle.

Smooth Linear Control

This hydraulic cylinder delivers precise motion control through a smooth stroke mechanism. The high-precision piston surface minimizes friction, resulting in reduced vibration and controlled acceleration during both forward and return strokes.

This smooth movement enhances drilling accuracy, protects adjacent mechanical components, and minimizes the risk of oil cavitation or air entrapment.

Exceptional Durability Under Harsh Environments

In mining and quarrying operations, the cylinder is constantly exposed to dust, moisture, and vibration. The 9106 0875 68 Hydraulic Cylinder Atlas Copco features advanced anti-rust coating, ensuring long-lasting performance even in extreme conditions. Its black phosphate-treated exterior provides high resistance to rust and hydraulic fluid degradation.

---

Compatibility with Atlas Copco Models

The 9106087568 Hydraulic Cylinder Atlas Copco is compatible with a range of drilling rigs, rock drills, and hydraulic systems designed by Atlas Copco.

Compatible Atlas Copco Models Include:

• Atlas Copco ROC D7C Surface Drill Rig

• Atlas Copco ROC F9 and F9C Drilling Systems

• Atlas Copco FlexiROC T35, T40 Series

• Atlas Copco SmartROC T45 and T55 Rigs

• Atlas Copco Boomer L2, M2D Hydraulic Drifters

• Atlas Copco COP 1838 and COP 2560 Drifters

• Atlas Copco Hydraulic Feed Mechanisms with 50–280 mm stroke configuration

(Compatibility should always be cross-referenced with the original Atlas Copco parts manual or verified by 3GEN Export’s technical department prior to installation.)

---

Installation and Maintenance Guidelines

Installation Process

1. Clean all mounting surfaces and hydraulic connections.

2. Secure the 9106087568 Hydraulic Cylinder Atlas Copco using OEM-specified flange bolts.

3. Connect the hydraulic hoses according to pressure and return line specifications.

4. Bleed air from the hydraulic lines before pressurizing.

5. Test for fluid leaks and ensure free piston movement before resuming full operation.

Maintenance Recommendations

• Inspect cylinder rod for scoring or pitting every 300 operational hours.

• Check hydraulic oil cleanliness; contamination reduces seal life.

• Replace seals during scheduled service intervals or upon detection of micro-leaks.

• Keep the cylinder’s exterior clean and protected from corrosive agents.

• Store horizontally in a temperature-stable environment when not in use.

Proper care ensures the 9106 0875 68 Hydraulic Cylinder Atlas Copco delivers long-lasting, dependable performance over thousands of operating hours.

---

Advantages of the 9106087568 Hydraulic Cylinder Atlas Copco

• OEM Precision Fit: Manufactured to exact Atlas Copco dimensions for seamless integration.

• High Strength Alloy Body: Designed for maximum pressure resistance and mechanical durability.

• Advanced Sealing System: Prevents leakage and ensures stable hydraulic performance.

• Low Maintenance Requirements: Polished surfaces and high-quality seals reduce service frequency.

• Corrosion Protection: Phosphate-coated exterior prevents rust in extreme environments.

• Smooth Performance: Ensures precise linear movement for improved drilling accuracy.

• Long Service Life: Built to operate over extensive drilling cycles with minimal wear.

These advantages make this part a preferred choice for maintenance engineers and drilling contractors seeking OEM reliability without excessive cost.

---

Performance Testing and Quality Assurance

All 9106087568 Hydraulic Cylinder Atlas Copco units supplied by 3GEN Export are subjected to multi-stage performance evaluations under simulated field conditions.

Testing Procedures Include:

• Pressure Load Testing: Up to 1.25x rated pressure for 10 minutes under static load.

• Leakage Evaluation: Tested under hydraulic fluid immersion for 8 hours.

• Dimensional Accuracy Check: Tolerance range maintained within ±0.02 mm.

• Surface Hardness Verification: 58–62 HRC achieved through induction hardening.

• Corrosion Resistance: 72-hour salt spray test compliant with ISO 9227.

Each cylinder is accompanied by a 3GEN Export quality certificate, confirming compliance with ISO 9001 and CE production standards.

---

Applications Across Industries

The 9106 0875 68 Hydraulic Cylinder Atlas Copco is widely used across multiple sectors that depend on precision hydraulic power.

Typical Applications Include:

• Mining and Tunneling: Feed and rotation control in rock drills.

• Construction: Lifting and actuation in heavy foundation drilling systems.

• Quarrying: Feed systems in surface drilling rigs.

• Oil & Gas: Hydraulic actuation for exploratory drilling systems.

• Geotechnical Operations: Linear control for soil and rock analysis machinery.

Its adaptable design allows easy integration into both mobile and stationary equipment.

---

Packaging and Logistics

Each 9106087568 Hydraulic Cylinder Atlas Copco is packaged in impact-resistant protective cartons with anti-moisture linings. The rod and seal areas are greased and capped to prevent contamination during transport.

Shipping Specifications:

• Weight: 3.85 KG per unit

• Packaging Type: Foam-padded industrial carton

• Delivery Time: Worldwide within 5 working days via 3GEN Export’s global logistics network

• Tracking: Real-time shipment monitoring and customer updates

---

Why Choose 3GEN Export

3GEN Export stands as a leading international supplier of heavy machinery spare parts, specializing in OEM-quality components for global brands like Atlas Copco, Sandvik, Volvo, Caterpillar, Komatsu, and Hitachi.

Our Commitment:

• OEM-Equivalent Products: All parts are precision-matched for compatibility and reliability.

• Fast Worldwide Delivery: 5-day delivery to over 100 countries.

• One-Year Warranty: Full coverage against material and manufacturing defects.

• Technical Expertise: Engineers available for cross-reference and installation guidance.

• Integrated Supply Chain: Parts available for drifters, compressors, hydraulic systems, and mining tools.

With 3GEN Export, clients receive more than spare parts — they receive trust, engineering integrity, and a global support network designed for operational excellence.

---

Summary

The 9106087568 Hydraulic Cylinder Atlas Copco (also known as 9106 0875 68 Hydraulic Cylinder Atlas Copco) is a heavy-duty precision component engineered to deliver exceptional linear power and control in Atlas Copco’s drilling and hydraulic systems. With a chrome-plated piston rod, reinforced alloy body, and dual sealing configuration, it provides the strength, stability, and performance required for high-impact drilling environments.

Offered by 3GEN Export, this part guarantees OEM-level performance, durability, and fast international shipping within 5 working days. It remains an essential replacement for professionals who demand reliability and precision in every operation.

---

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
