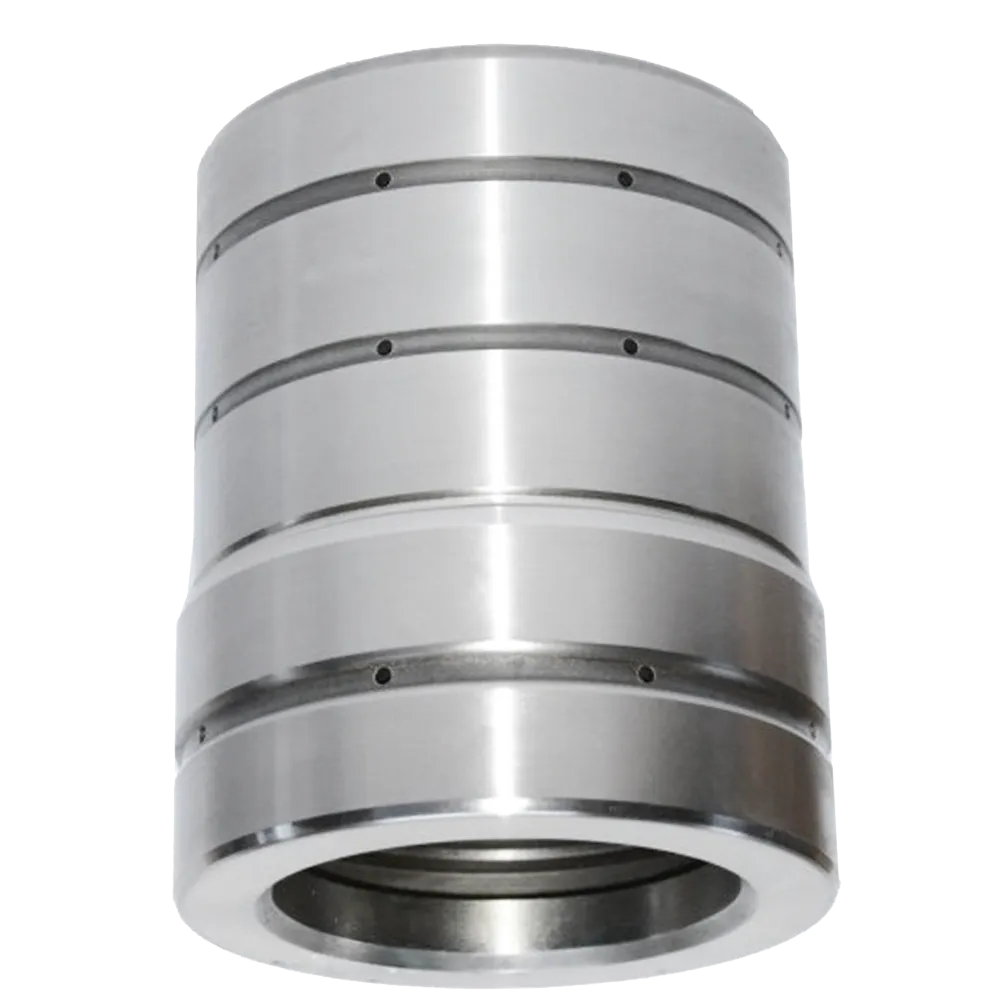

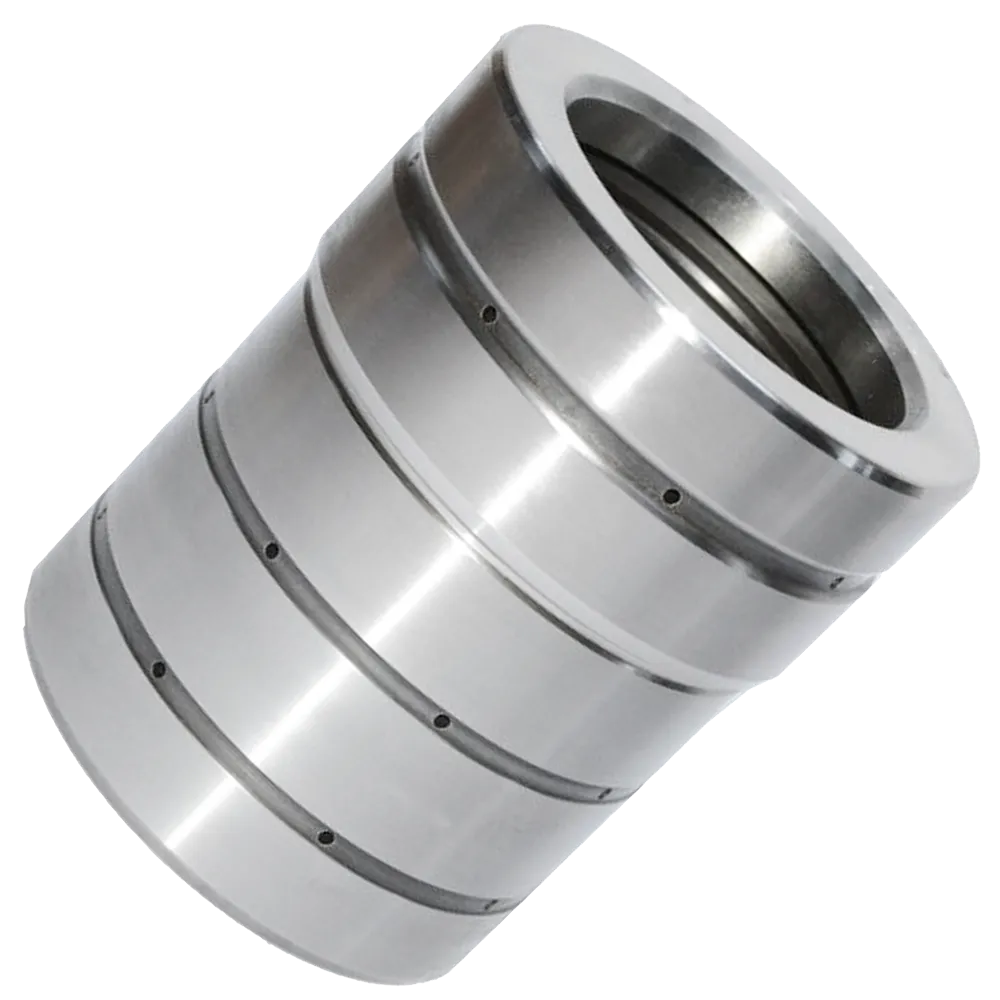

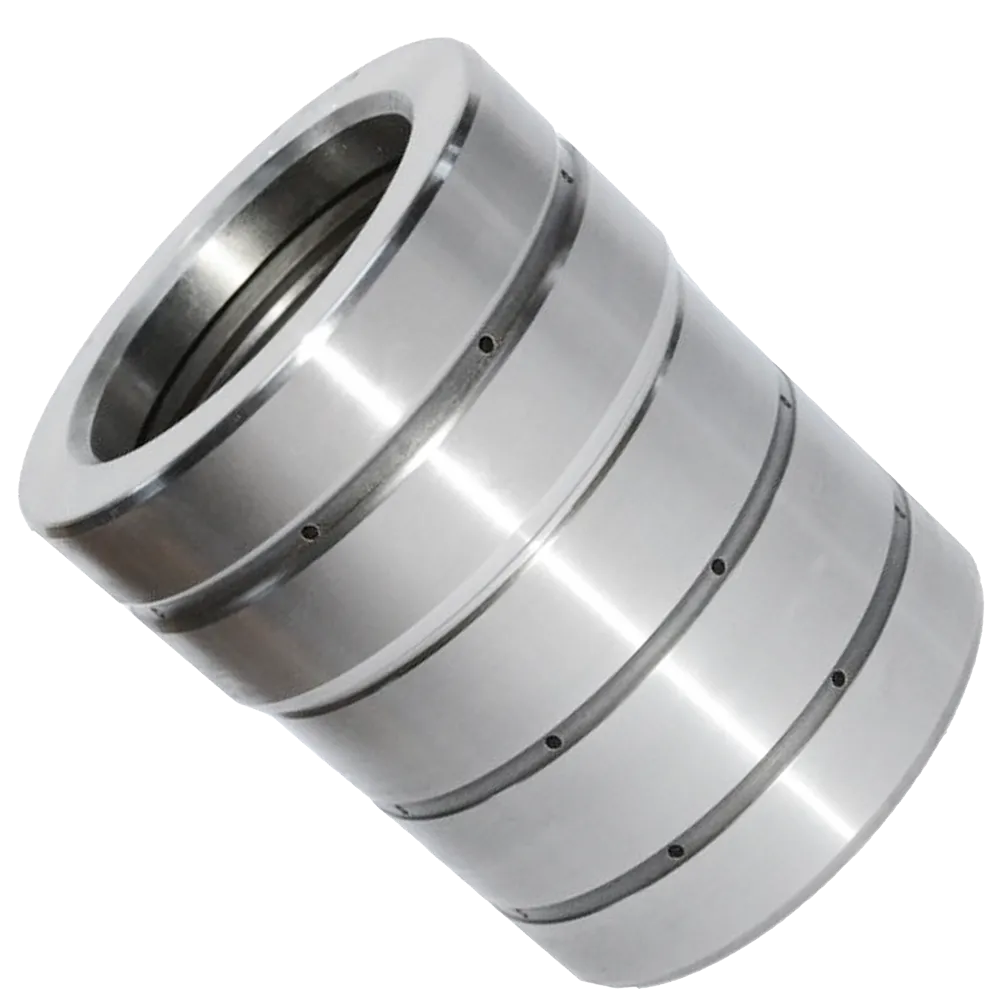

HD01503, HD01-503 DAMPING PISTON FURUKAWA

$1,230.00
Brand: Furukawa
Category: Hydraulic System
Part Number: HD01-503
Availability: In Stock

Description

HD01503 / HD01-503 Damping Piston Furukawa Internal Shock Control Component for Furukawa Hydraulic Breakers The HD01503 / HD01-503 damping piston Furukawa is a precision-engineered internal component used in Furukawa hydraulic breakers to manage impact energy, absorb vibration, and stabilize internal pressure during continuous breaking operations. This component operates inside the breaker body and plays a vital role in protecting internal assemblies from excessive mechanical stress caused by repetitive high-energy impacts. Hydraulic breakers used in mining, quarrying, demolition, and infrastructure projects are exposed to extreme working conditions. The correct operation of internal shock-control components is essential to maintain efficiency, reliability, and long service life. This damping piston contributes directly to smoother impact cycles and reduced internal wear. Supplied by 3GEN Export as an OEM-standard spare part, this component is available with worldwide delivery within 5 working days , helping operators minimize downtime and maintain operational continuity. Functional Purpose Within the Hydraulic Breaker Impact Energy Absorption During breaker operation, kinetic energy generated by the main piston must be controlled to prevent excessive rebound forces. This damping component absorbs and redistributes that energy, ensuring controlled motion inside the breaker housing. Proper energy absorption reduces internal shock loads and supports stable tool performance. Vibration Reduction and Mechanical Balance Excessive vibration can lead to premature wear of internal components and increased stress on the carrier machine. The damping piston contributes to vibration reduction by stabilizing internal movement, resulting in smoother breaker operation and improved mechanical balance. Hydraulic Pressure Stabilization Maintaining consistent hydraulic pressure is essential for predictable breaker performance. The internal geometry of this component supports controlled oil flow, helping to prevent pressure spikes that may damage seals or adjacent parts. Material Quality and Manufacturing Standards High-Strength Alloy Steel This component is manufactured from carefully selected alloy steel designed to withstand repeated impact loads, hydraulic pressure, and thermal variation. The material selection ensures long-term dimensional stability and resistance to deformation. Precision CNC Machining Tight manufacturing tolerances are critical for internal breaker components. Precision CNC machining ensures accurate fitment within the breaker assembly, allowing correct interaction with surrounding parts and consistent performance over time. Optimized Surface Finish The machined surfaces are finished to support efficient lubrication and smooth oil distribution. Reduced friction contributes to lower heat generation and extended service life. Performance Benefits in Heavy-Duty Applications Construction and Demolition In demolition work involving reinforced concrete and structural materials, stable internal damping improves impact consistency and reduces stress on the breaker body. This results in higher productivity and lower maintenance frequency. Mining and Quarrying Operations Mining environments demand components capable of sustained heavy use. The damping system supports long duty cycles by minimizing internal fatigue and protecting high-value breaker components. Infrastructure and Roadwork Projects From asphalt removal to trench excavation, controlled impact behavior ensures reliable results across varying material densities and operating conditions. Compatible Furukawa Hydraulic Breaker Models The HD01503 / HD01-503 damping piston Furukawa is commonly used in selected Furukawa breaker series, including: Furukawa F-Series Furukawa FX-Series Furukawa HB-Series Compatibility may vary depending on model configuration and production year. Verification using breaker serial numbers is recommended before installation. Technical Overview General Specifications Part numbers: HD01503 / HD01-503 Component type: Internal damping piston Application: Furukawa hydraulic breakers Material: High-strength alloy steel Manufacturing method: CNC precision machining Estimated Weight Approximate weight: 8.5 – 9.5 kg (Weight may vary slightly depending on production tolerances.) Installation and Maintenance Guidance Installation Considerations Before installation, the breaker housing should be thoroughly cleaned and inspected. Proper lubrication during assembly is essential to ensure correct seating and initial operation. Installation should follow Furukawa service procedures to maintain internal alignment. Maintenance Recommendations Routine inspection during scheduled maintenance helps identify early signs of surface wear or scoring. Timely replacement prevents secondary damage to critical internal components and supports consistent breaker performance. Why Choose 3GEN Export OEM-Standard Supply 3GEN Export supplies heavy machinery spare parts manufactured to OEM specifications, ensuring dimensional accuracy, material quality, and reliable operation. Fast Worldwide Delivery We deliver globally within 5 working days , helping operators reduce downtime and keep projects on schedule. Industry Expertise With extensive experience in hydraulic breaker and rock drilling components, 3GEN Export supports customers across construction, mining, and infrastructure sectors. Importance of Timely Replacement Operating with a worn damping component can lead to unstable impact cycles, increased vibration, and accelerated wear of internal assemblies. Replacing this part at the appropriate interval protects the breaker system and reduces long-term operating costs. Conclusion The HD01503 / HD01-503 damping piston Furukawa is a critical internal component designed to support stable operation, vibration control, and internal protection within Furukawa hydraulic breakers. Engineered for demanding environments, it contributes to reliable performance across a wide range of heavy-duty applications. Supplied by 3GEN Export as an OEM-standard solution and delivered worldwide within 5 working days , this component helps ensure uninterrupted breaker operation and long-term equipment reliability. Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
