SACK FILLING MACHINE

25-50 KG Semi-Automatic Sack Filling Machine | Granular Packing System |  by 3GEN Export

The 25–50 KG Semi-Automatic Sack Filling Machine by 3GEN Export is a robust, precision-engineered solution designed for high-efficiency packaging of granular products. Built in Turkey with international quality standards, this semi-automatic bagging system is ideal for industries seeking both speed and reliability in bulk product handling. From fertilizer and seeds to granules and plastic pellets, the machine ensures consistent and accurate filling across various densities and particle sizes.

✅ Purpose-Built for High-Performance Operations

This industrial-grade sack filling system is designed to pack granular products into bags ranging from 25 kg to 50 kg with minimal operator intervention. Equipped with dual load cells (optional) and a high-capacity stainless steel hopper, it delivers 4–6 tons/hour throughput while maintaining a weighing accuracy between ±50 to ±100 grams, depending on the product type.

The machine incorporates an advanced PLC control system paired with a touchscreen operator panel for intuitive configuration and monitoring. Operators can adjust filling parameters such as weight, speed, and product type in real time, streamlining the transition between different products and bag sizes.

🔧 Key Technical Features

• Bagging Range: 25 kg – 50 kg

• Product Compatibility: Granular materials with varying densities

• Hopper Capacity: 500 kg

• Filling Accuracy: ±50 – ±100 grams

• Filling Capacity: 4 – 6 tons/hour (for 50 kg)

• Weighing System: Single or twin load cell (optional dual-scale)

• Control System: PLC + Touchscreen (HMI)

• Frame Coating: Electrostatic powder-coated steel chassis

• Product Contact Surfaces: ANSI 304 Stainless Steel

• Air Supply Requirement: 8 Bar / 200 NL/min

• Electrical Supply: 380V / 50-60 Hz

• Machine Weight: ~1500 kg

• Machine Dimensions: 2000 × 2000 × 3500 mm

• Output Integration: Adjustable height conveyor belt for seamless discharge

• Safety: Emergency stop button, alarms, and safety sensors

⚙️ Working Principle

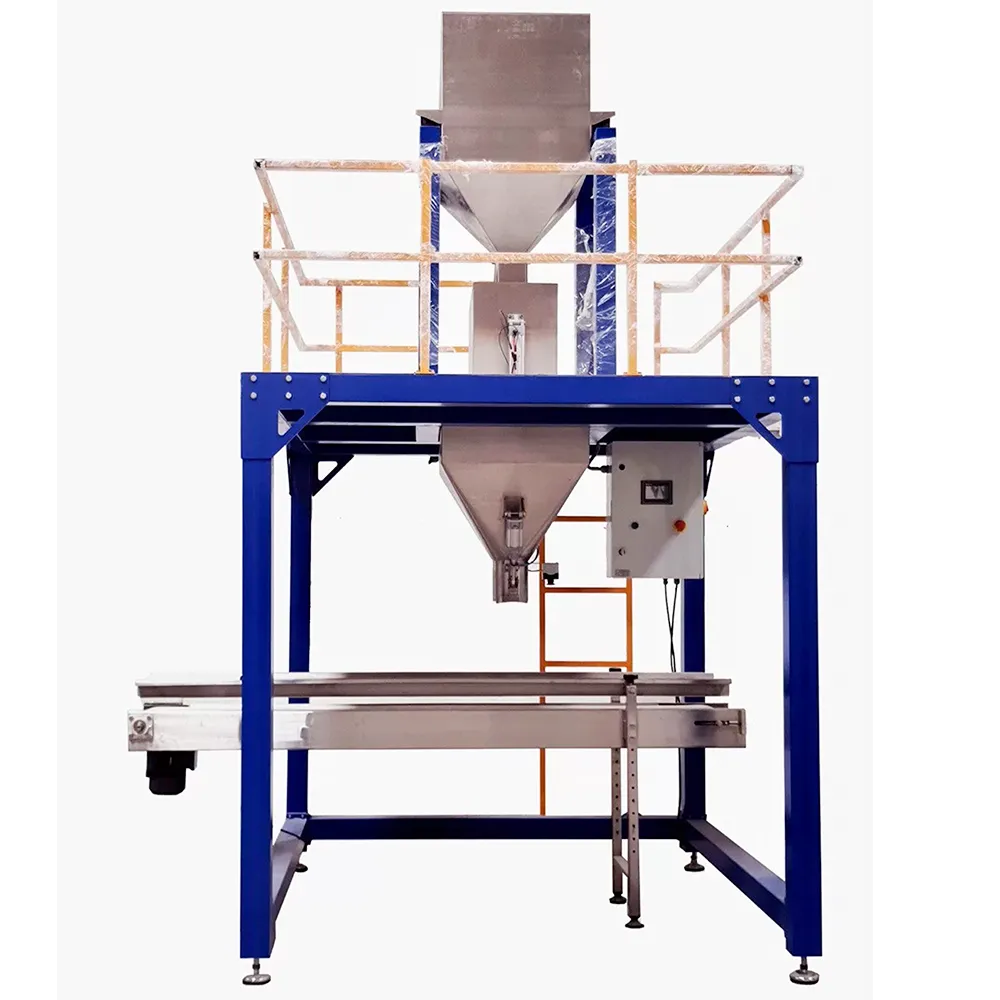

The machine begins by feeding the granular product into a top-mounted stainless steel bunker. The product is then released into an integrated weighing system. Once the preset weight is reached, the filling spout opens automatically and transfers the measured quantity into the sack. The filled sack is then gently placed on the conveyor, ready for sealing with a stitching machine (optional equipment).

This semi-automatic process minimizes operator workload while maintaining manual control over bag feeding and stitching—ideal for mid-to-high volume production environments.

🏭 Typical Applications

• Agriculture: Fertilizer, seeds, animal feed

• Food Processing: Sugar, salt, rice, pulses

• Chemicals: Plastic granules

• Construction: Granular cement additives, sand additives

🧩 Customization and Add-ons

This model is designed with modularity in mind. It can be easily adapted to meet changing production requirements by integrating:

• Bag stitching or heat sealing units

• Dust extraction systems

• Check-weigher units

• Printer and labeling units

The flexible design ensures the machine’s adaptability to evolving industry demands without requiring full equipment replacement.

🔐 Safety First

3GEN Export prioritizes operator safety and workplace protection. The sack filling machine is equipped with:

• Emergency stop buttons

• Alarm systems

• Safety rails with powder coating

• Anti-slip maintenance ladder access

All critical control points are located within safe reach, allowing for maintenance and calibration with minimal risk.

🌍 Global Reach with 3GEN Export

This industrial sack filling machine is proudly manufactured in Turkey and distributed globally by 3GEN Export, your OEM solution partner in heavy industry automation. Every unit is ready for shipment within 75 working days and includes international warranty and secure packaging.

By partnering with 3GEN Export, buyers gain access to robust after-sales support, documentation, and optional installation assistance upon request.

📦 Packaging & Delivery

• Standard Packing: Shrink-wrapped and palletized for sea freight

• Delivery Time: 75 business days (global shipping)

• Warranty: 1-year OEM manufacturer warranty

🔑 Why Choose This Machine?

• ✔ Precision filling with adjustable parameters

• ✔ High-capacity output (up to 6 tons/hour)

• ✔ Built with stainless steel for hygiene and durability

• ✔ Ideal for a wide range of granular products

• ✔ Cost-effective semi-automatic solution

• ✔ Fully compliant with CE and industrial safety standards

🖼️ Visual Documentation

The listing includes:

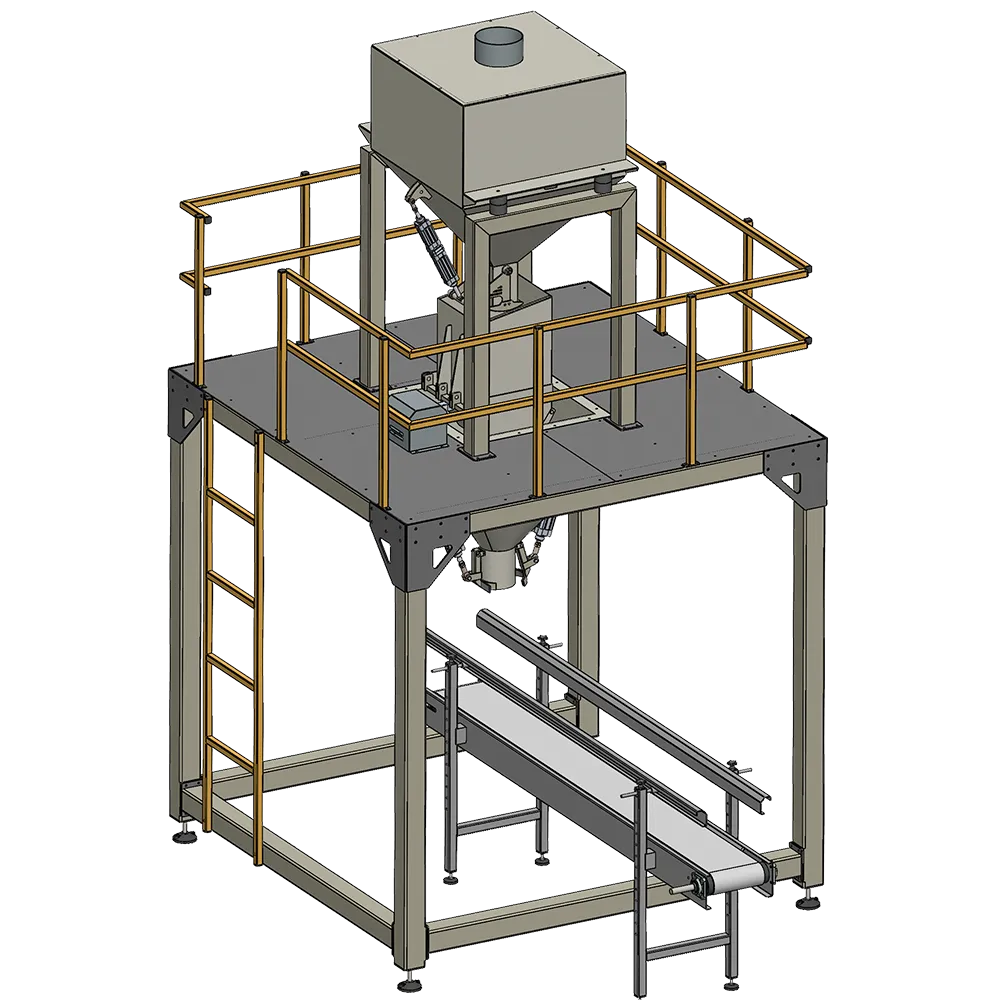

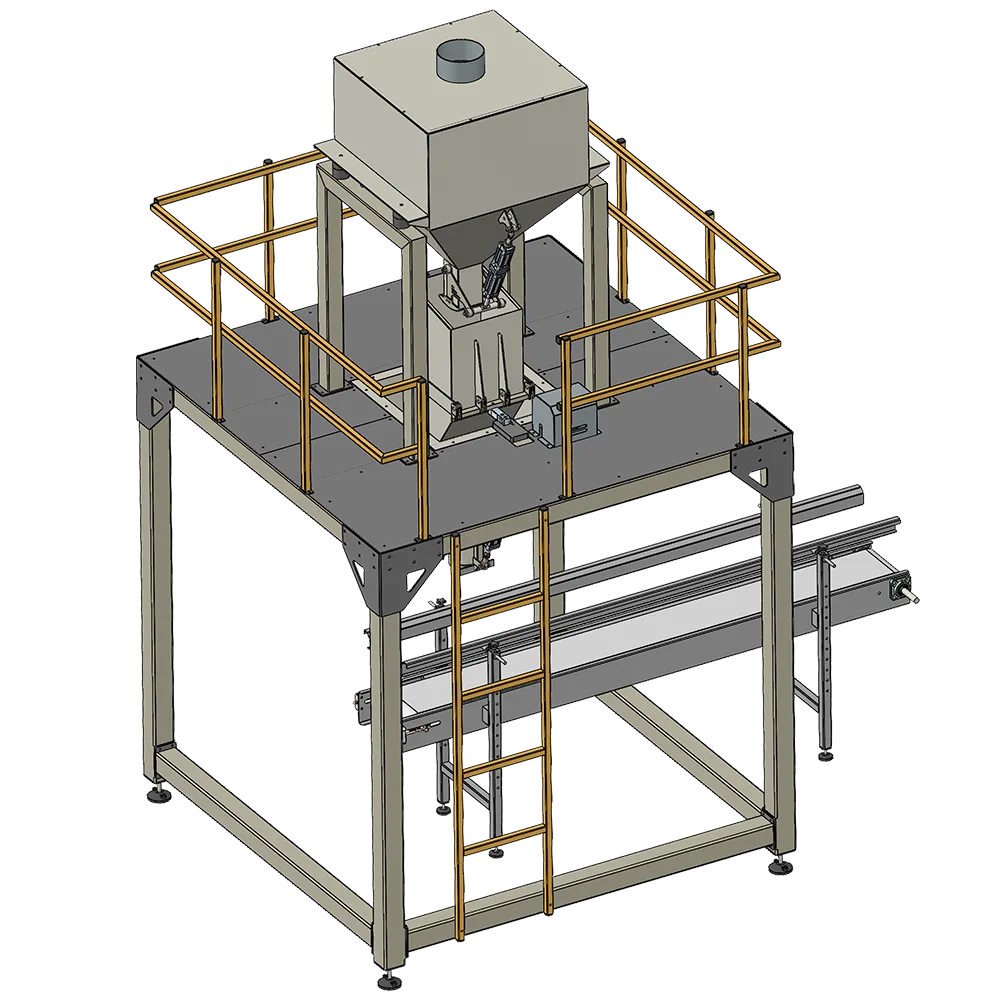

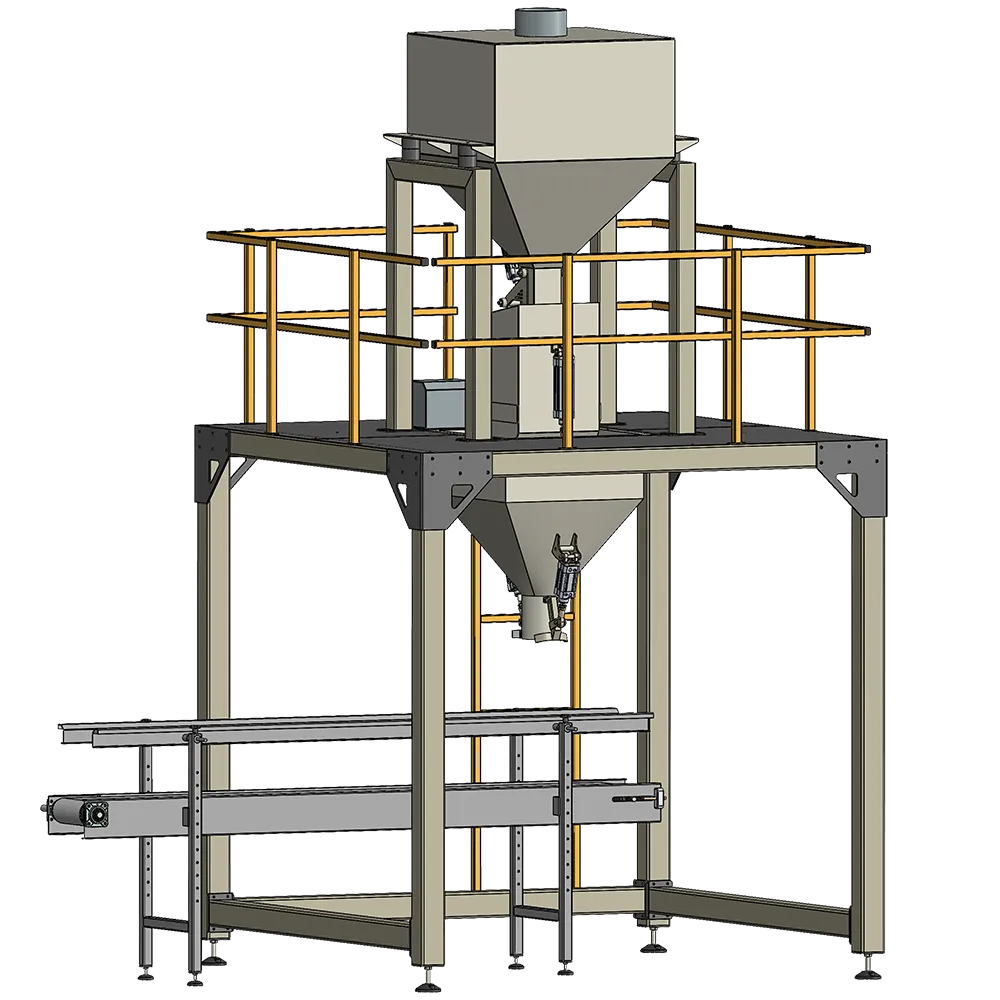

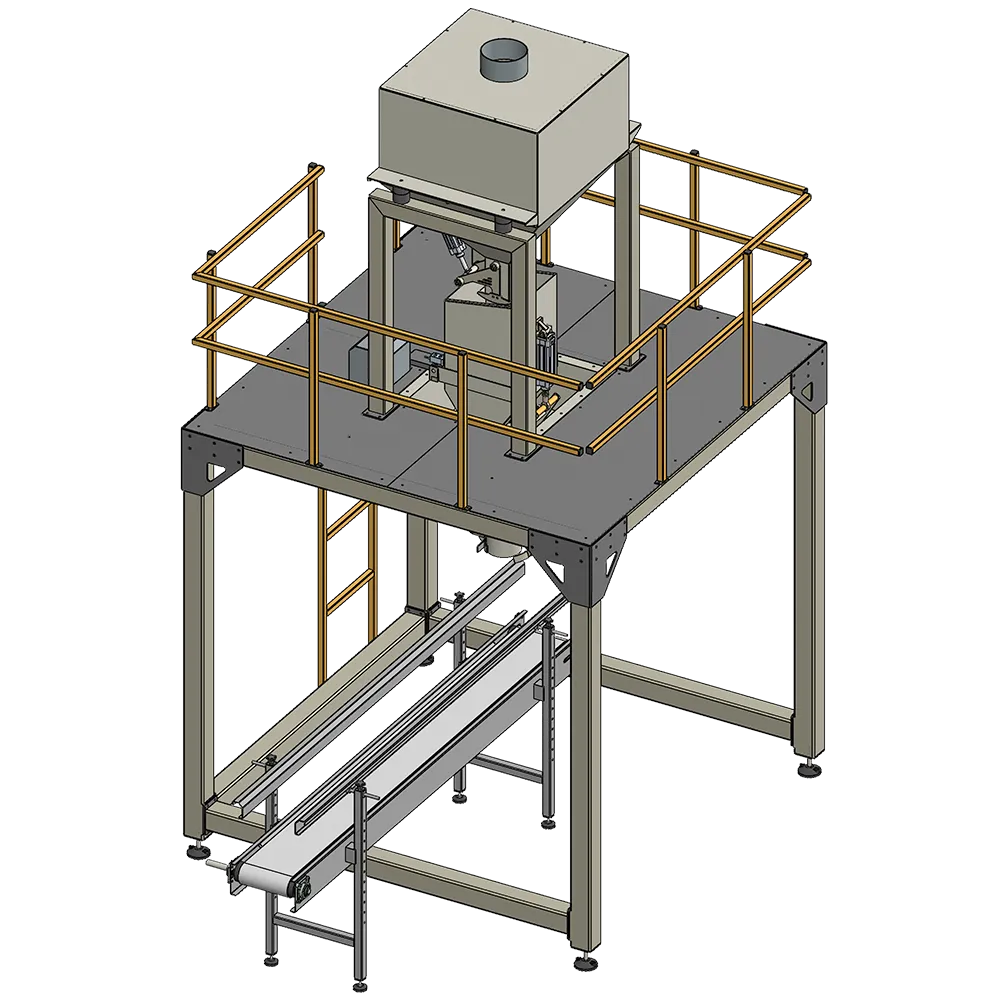

• 3D technical renders

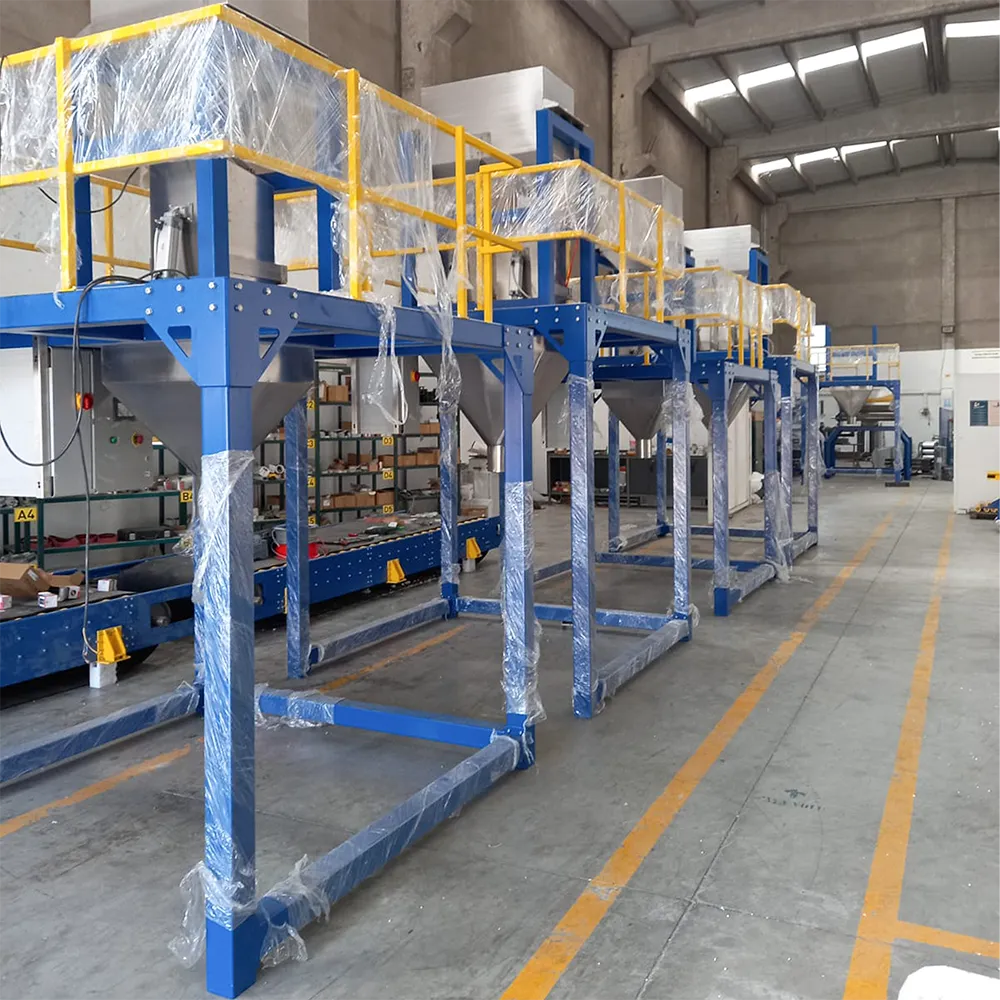

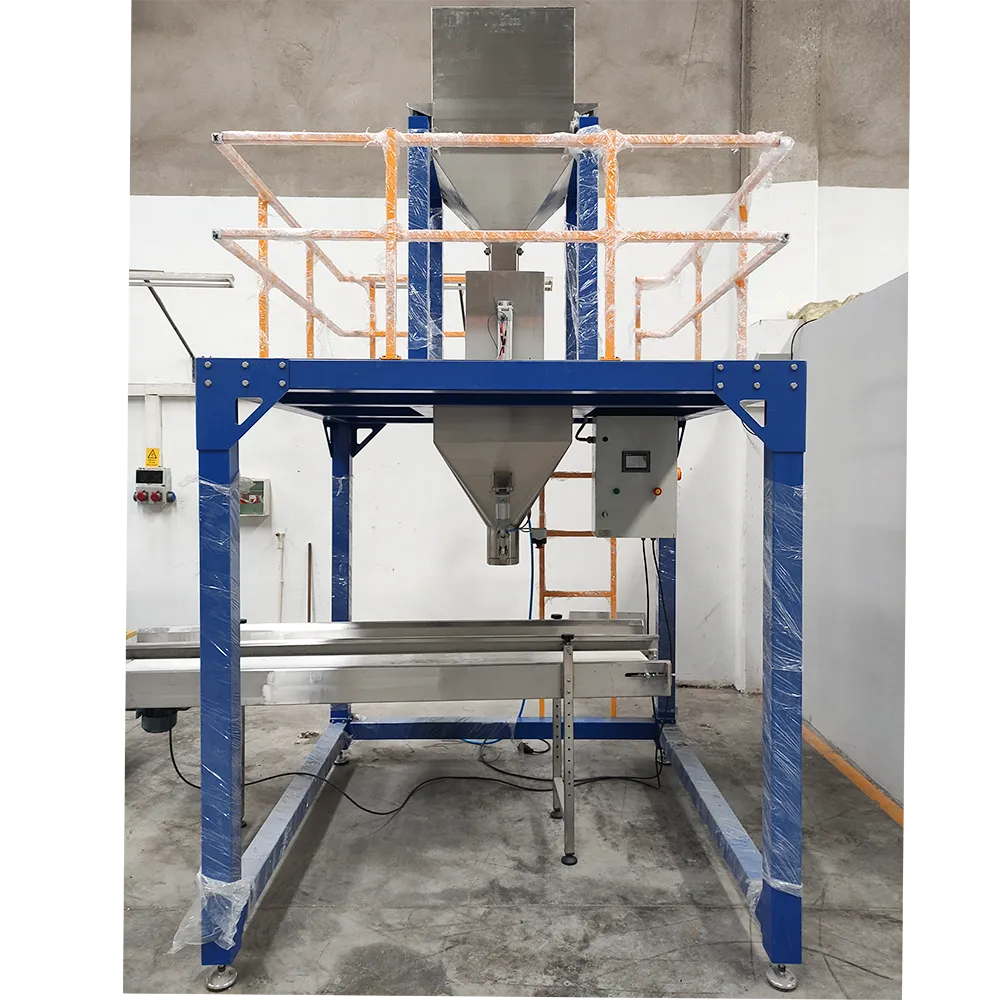

• Real-life factory and warehouse images

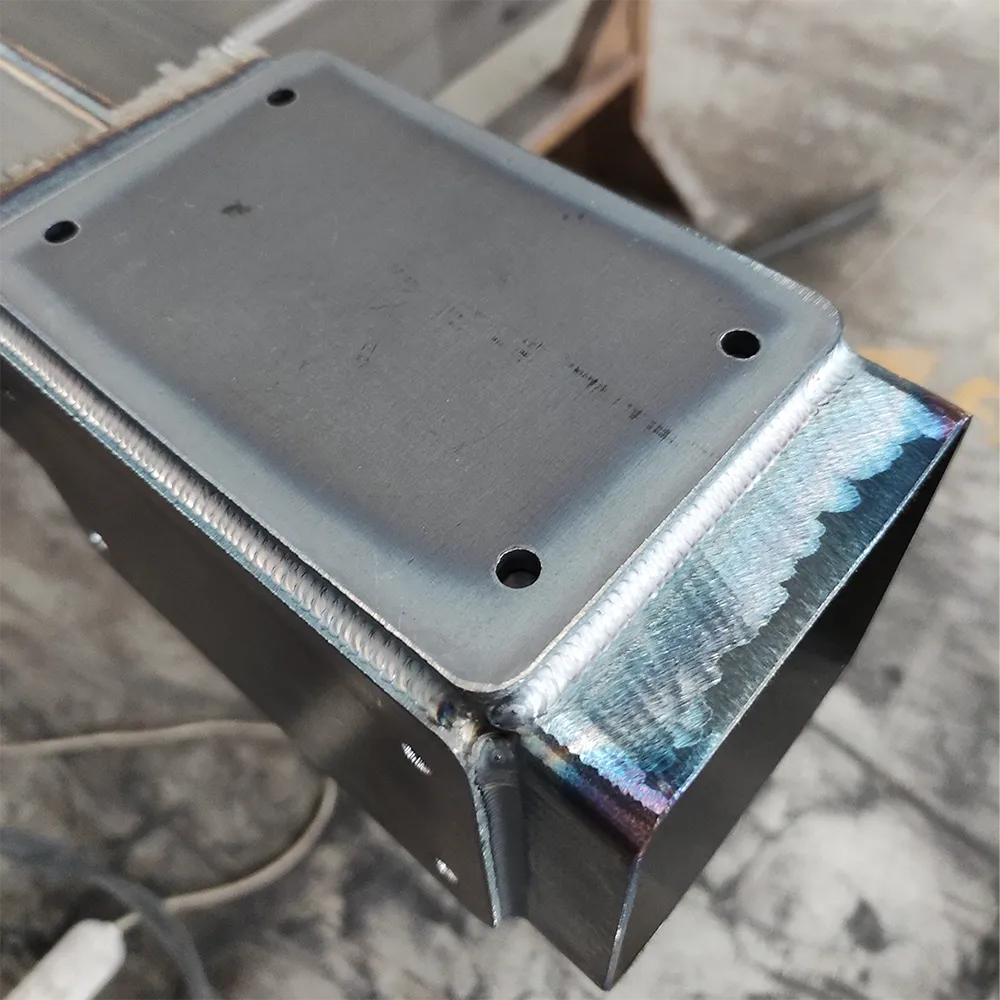

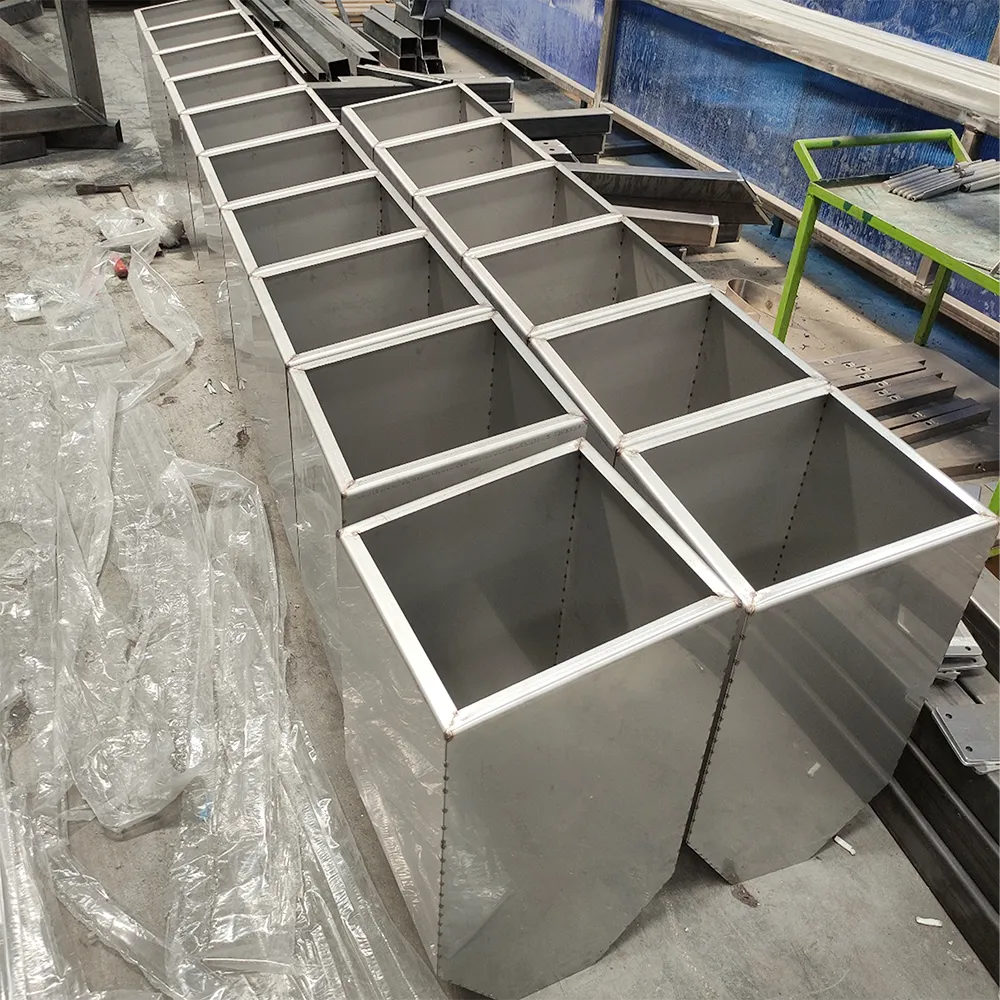

• Close-up details of frame weld quality

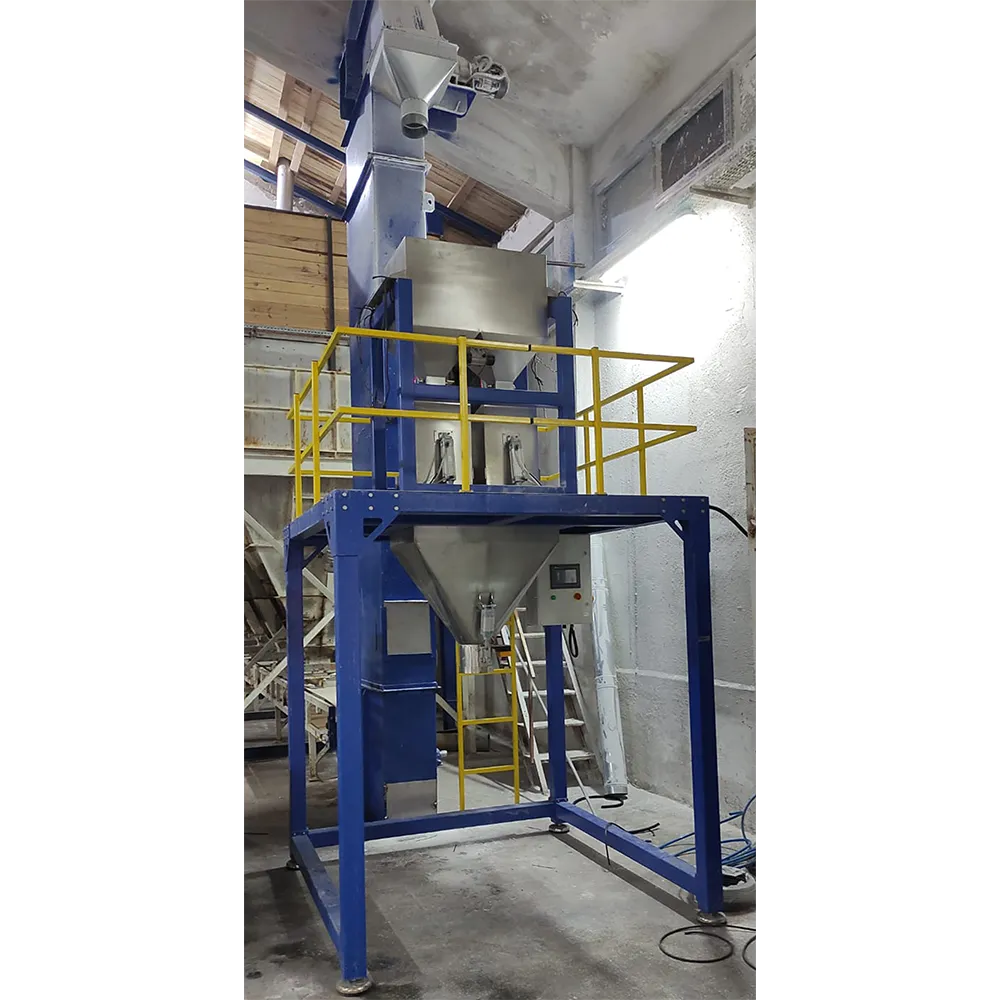

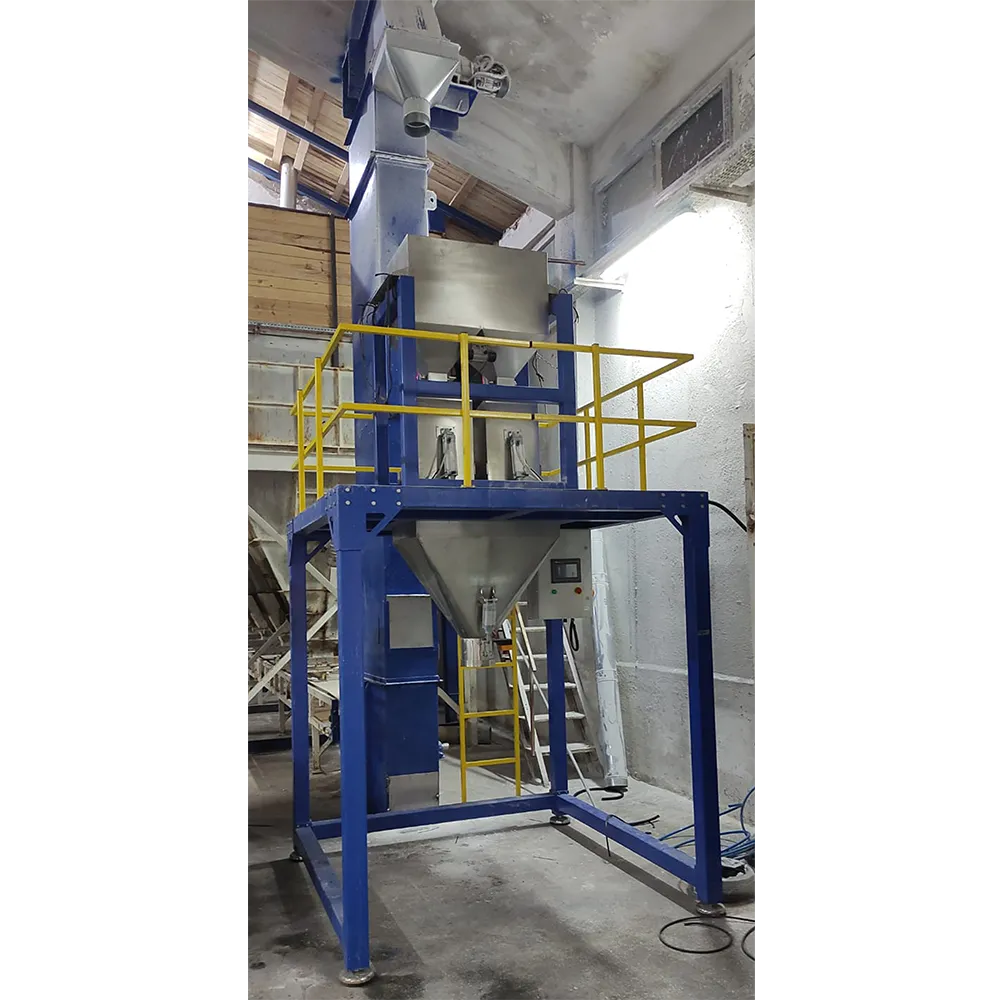

• On-site operational images

These visuals offer buyers an in-depth understanding of the machine’s construction quality, design, and industrial scale.
