3115325100 GUIDE ATLAS COPCO

3115 3251 00 Precision Guide for Rock Drilling Systems

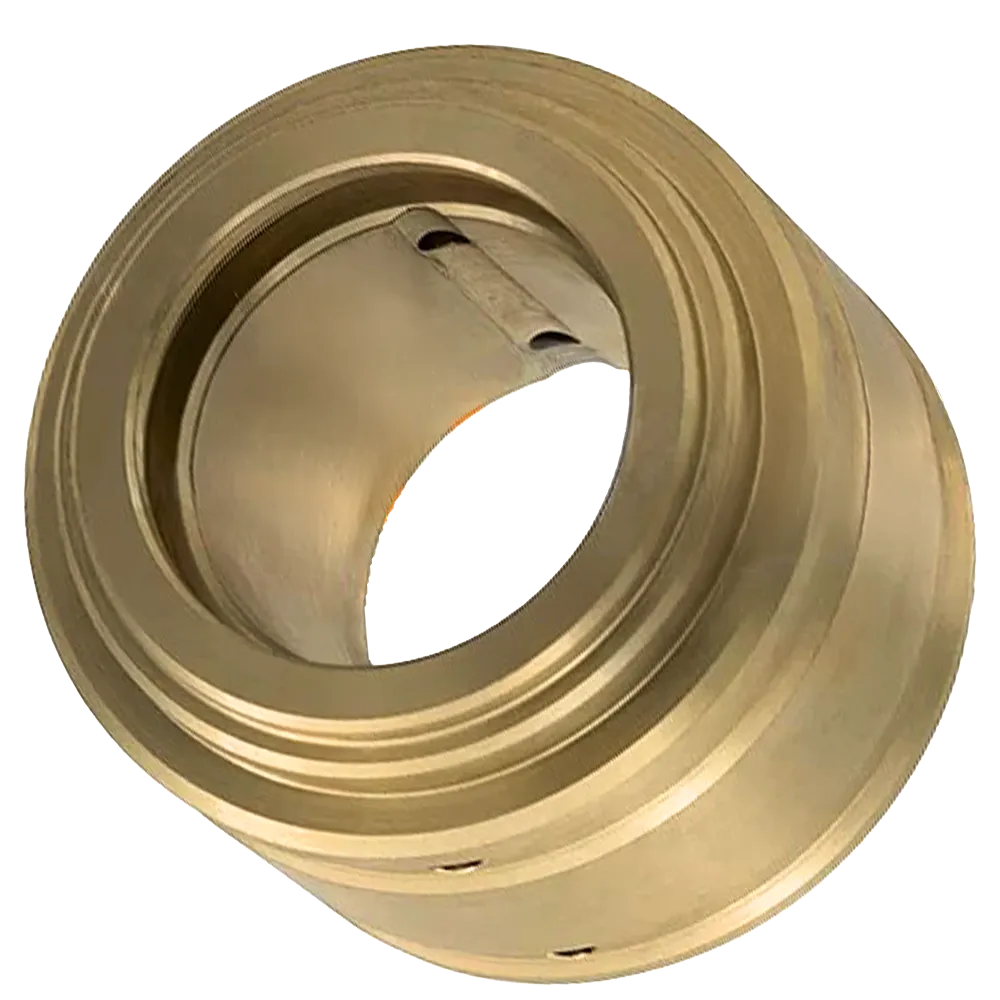

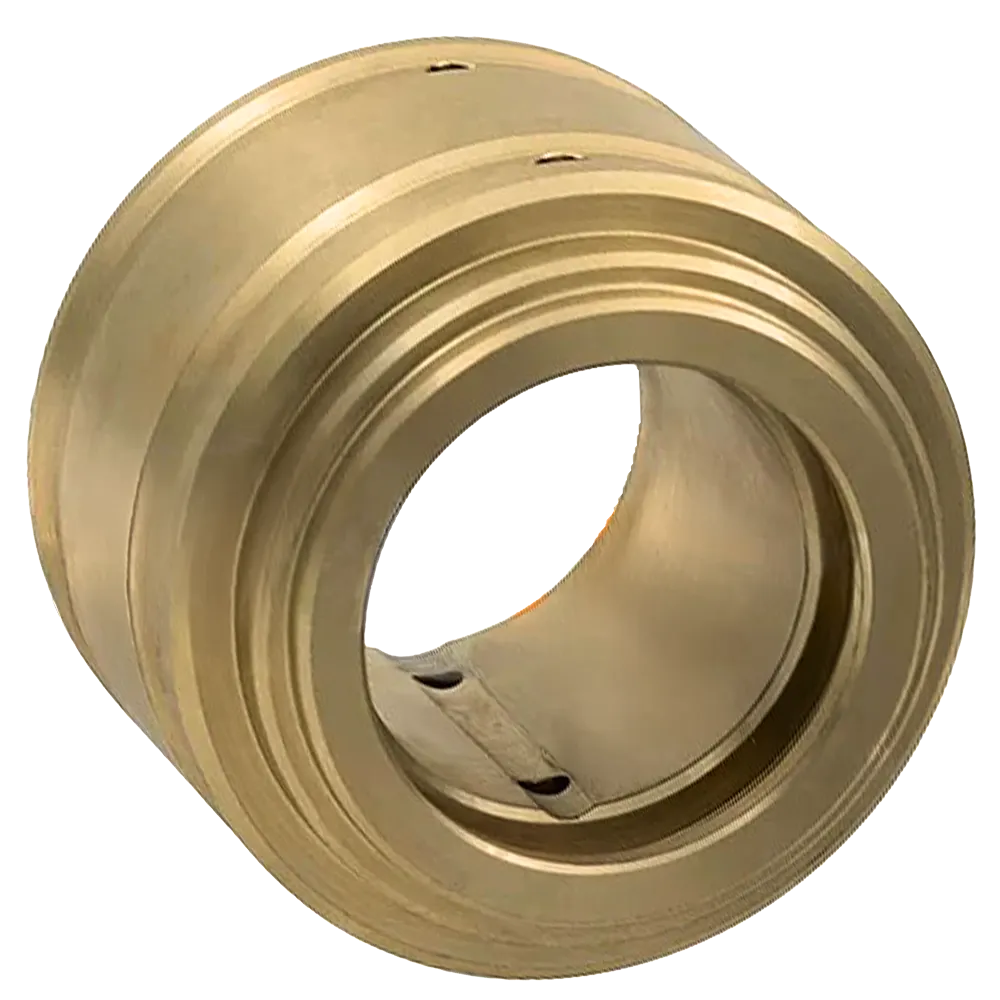

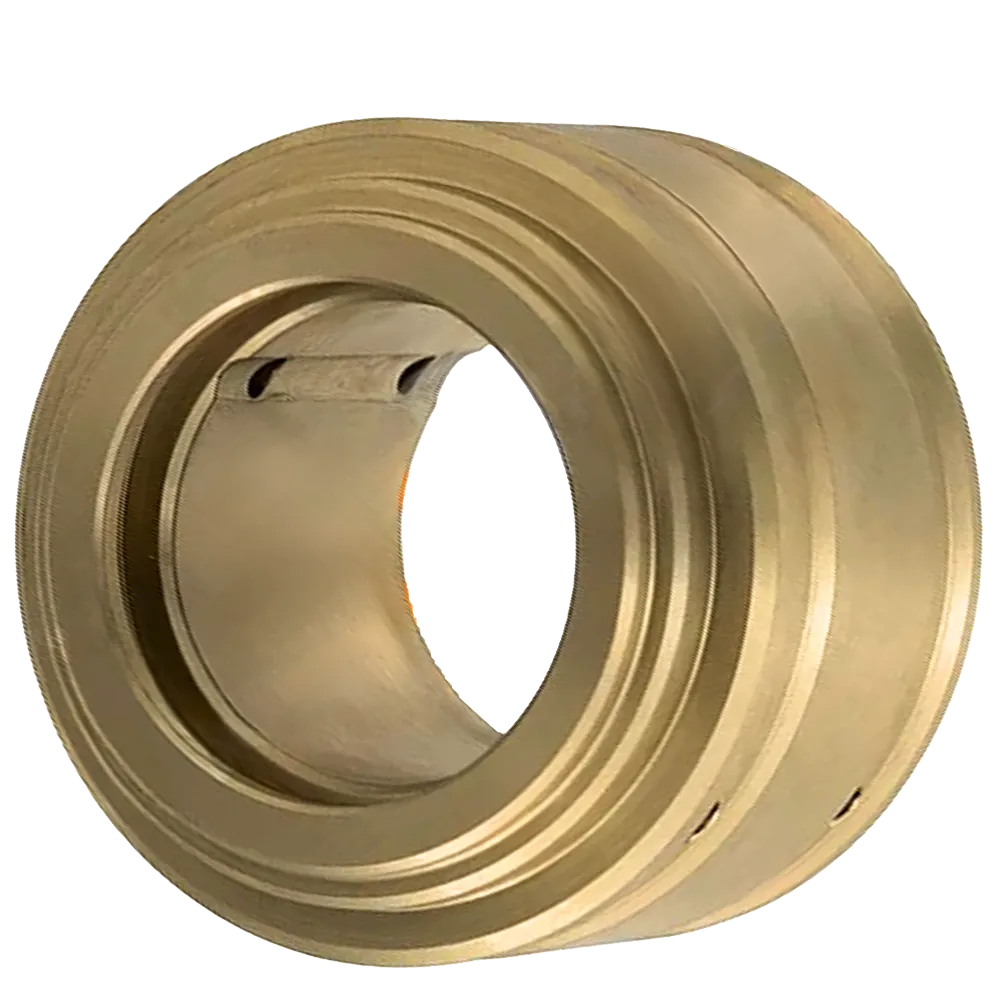

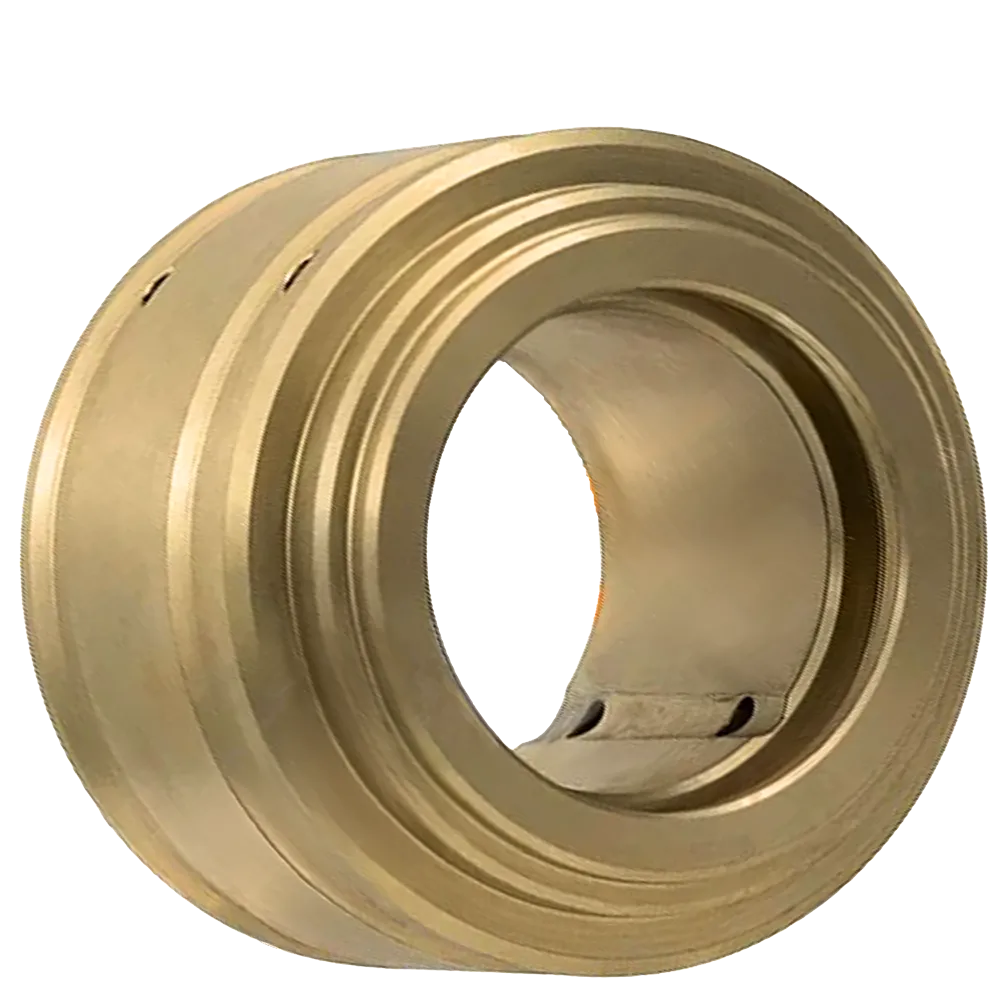

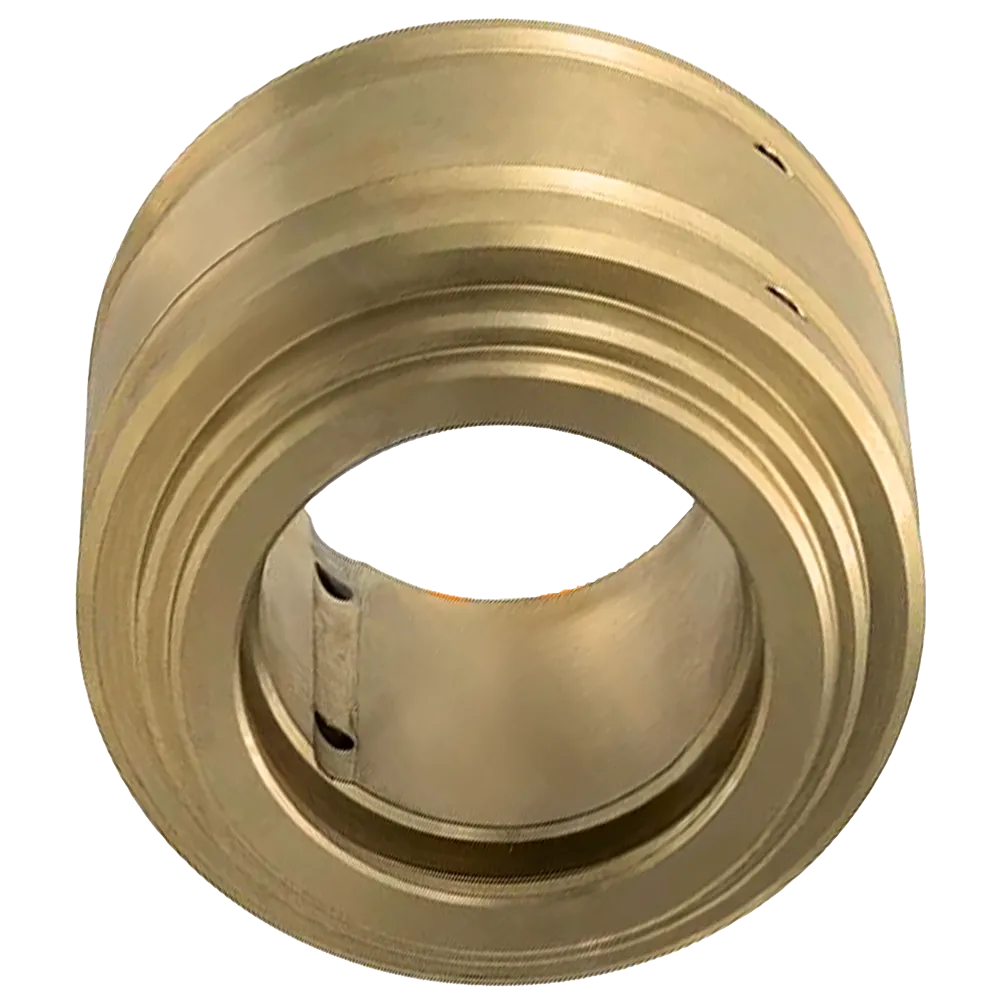

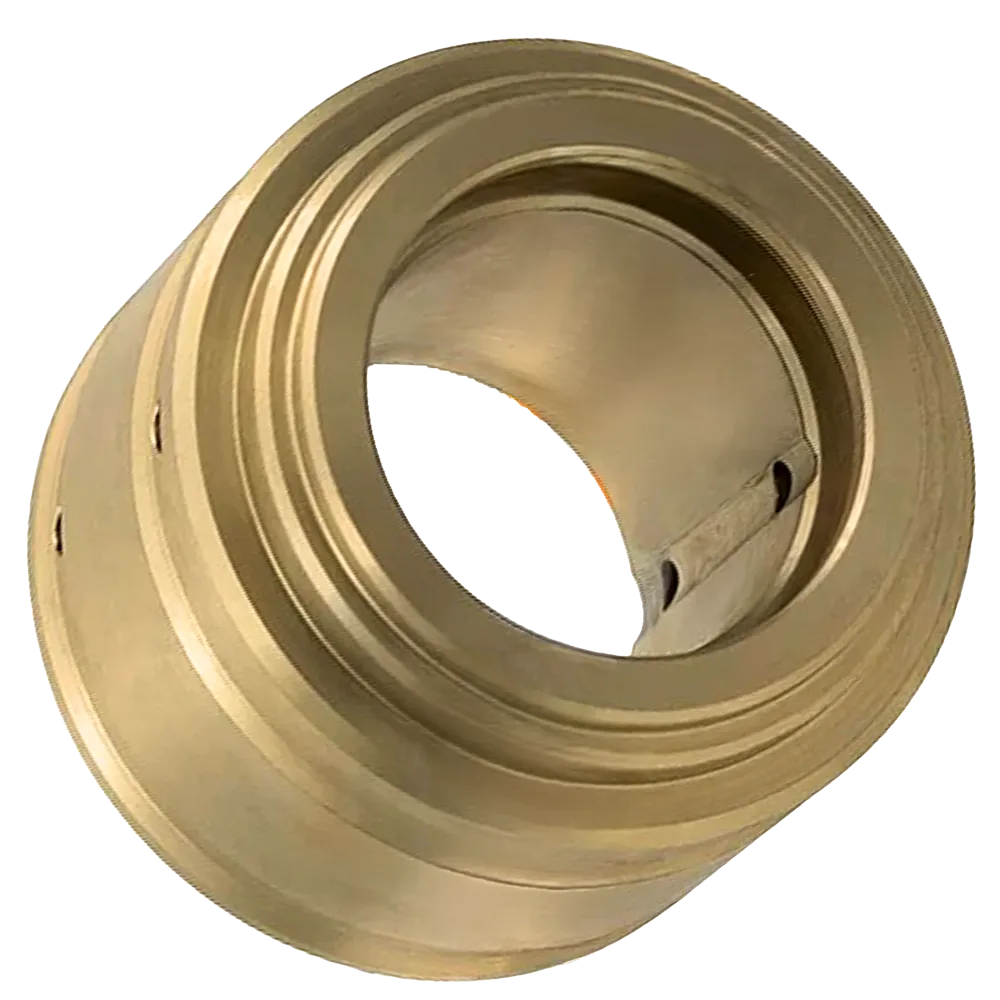

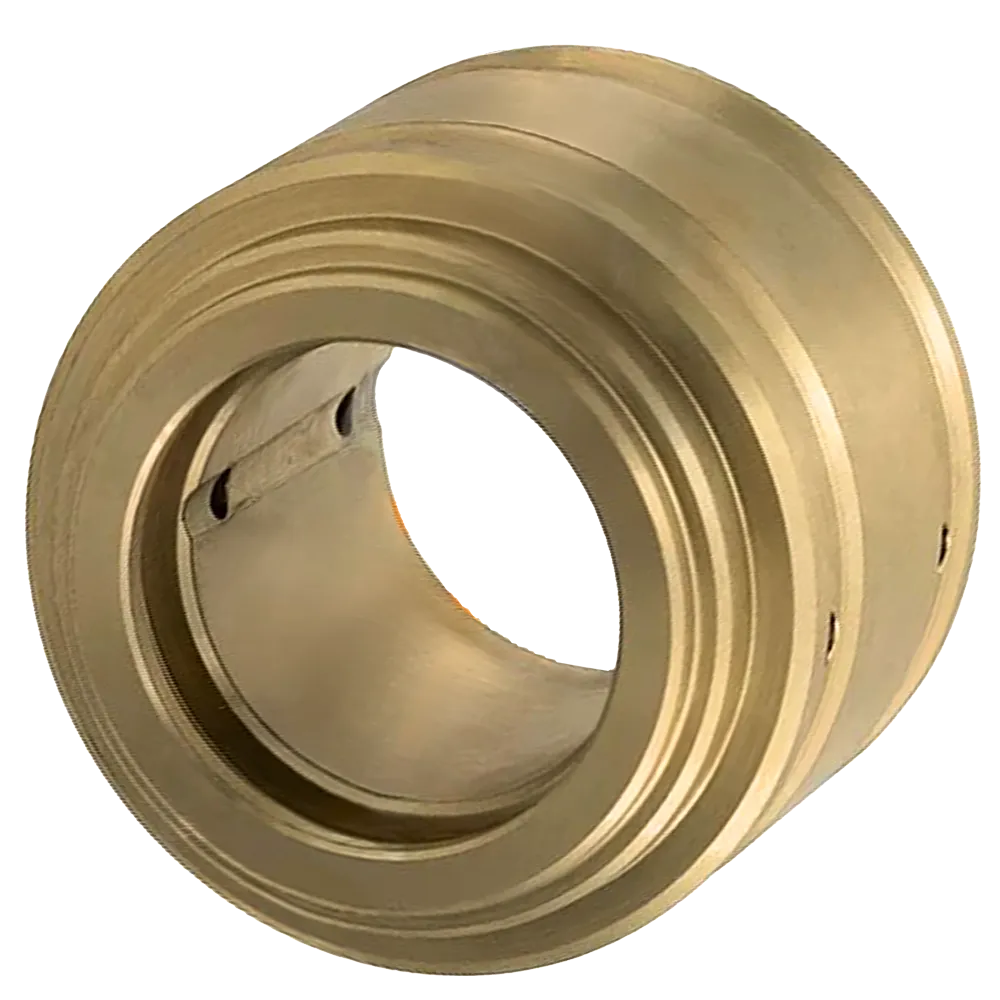

The 3115325100 GUIDE ATLAS COPCO (also referenced as 3115 3251 00 GUIDE ATLAS COPCO) is a high-precision cylindrical guiding component engineered for hydraulic rock drilling assemblies. This part plays a critical role in stabilizing internal moving elements, maintaining axial alignment, and reducing friction during continuous percussion cycles.

Manufactured from premium wear-resistant bronze alloy, this guide is designed to operate under extreme vibration, pressure, and temperature conditions typically found in underground mining, quarrying, and construction drilling environments.

At 3GEN Export, we supply this component as an OEM-quality replacement, shipped worldwide within 5 working days, ensuring minimum downtime for your drilling operations.

What Is the 3115325100 GUIDE Used For?

Inside modern hydraulic drifters and rock drill units, multiple reciprocating parts must move in perfect harmony. The 3115325100 GUIDE ATLAS COPCO functions as a structural stabilizer that:

• Keeps internal pistons and shafts centered
• Prevents lateral movement under load
• Minimizes metal-to-metal contact
• Supports smooth energy transfer
• Extends service life of surrounding components

Without a properly machined guide, vibration increases, sealing efficiency drops, and premature wear begins to affect the entire drilling system.

Material Engineering and Surface Finish

This guide is produced from a specialized bronze compound chosen for its:

• High compressive strength
• Excellent thermal conductivity
• Natural anti-seizure behavior
• Low friction coefficient
• Resistance to deformation

The internal bore features precision grooves that assist lubrication flow, while the outer diameter is machined to tight tolerances to ensure press-fit stability inside the housing.

Each edge is chamfered to prevent scoring during installation.

Key Technical Characteristics

Typical specifications for the 3115325100 / 3115 3251 00 GUIDE include:

• Component type: Internal guide sleeve
• Material: Industrial bronze alloy
• Finish: CNC machined, smooth bore
• Lubrication channels: Integrated
• Installation: Press-fit
• Function: Alignment and wear control
• Operating environment: High-impact hydraulic systems

Estimated weight: 1.6 – 1.9 KG (may vary slightly by production batch)

Compatible Rock Drill Models

The 3115325100 GUIDE ATLAS COPCO is commonly used in several hydraulic drifter and rock drill platforms, including:

RR11

COP1132

COP1435

• HL series hydraulic drifters
• Selected Boomer jumbo drilling rigs
• Surface crawler drill assemblies using COP internal layouts

If you are unsure about compatibility, simply provide your machine model or serial number and our technical team will verify fitment for you.

Why This Guide Matters in Daily Operation

In real drilling environments, even microscopic misalignment can cascade into major failures. This guide absorbs side loads generated during percussion and rotation, protecting:

• Pistons
• Driver shafts
• Seal housings
• Inner cylinders

By maintaining concentric motion, the 3115 3251 00 GUIDE ATLAS COPCO directly contributes to:

• Reduced vibration
• Lower oil contamination
• Improved drilling accuracy
• Longer maintenance intervals

Installation Notes

Professional installation is recommended.

General guidance:

• Clean housing thoroughly before fitting
• Apply assembly lubricant to outer surface
• Use proper press tools (never hammer directly)
• Confirm bore alignment after installation
• Replace worn seals simultaneously for best results

Incorrect installation can lead to ovalization or premature scoring.

3GEN Export OEM Supply Advantage

We are 3GEN Export, a global OEM spare parts supplier dedicated to heavy machinery and rock drilling systems.

When you order the 3115325100 GUIDE ATLAS COPCO from us, you receive:

• OEM-grade manufacturing
• Strict dimensional inspection
• Export-ready packaging
• Worldwide delivery in 5 working days
• Technical compatibility support
• Bulk and project pricing options

We support mining contractors, drilling service companies, and equipment owners across Europe, Middle East, Africa, Asia, and the Americas.

Typical Applications

This guide is widely used in:

• Underground mining operations
• Tunnel excavation projects
• Quarry bench drilling
• Foundation piling preparation
• Surface blast hole drilling

Wherever precision percussion systems operate, this component ensures structural stability.

Summary

The 3115325100 GUIDE ATLAS COPCO / 3115 3251 00 GUIDE ATLAS COPCO is not a passive sleeve — it is a core alignment element that protects your entire drilling assembly. Manufactured from durable bronze alloy and engineered for continuous impact environments, it delivers long service life and dependable performance.

Supplied globally by 3GEN Export as OEM quality with fast international logistics.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
