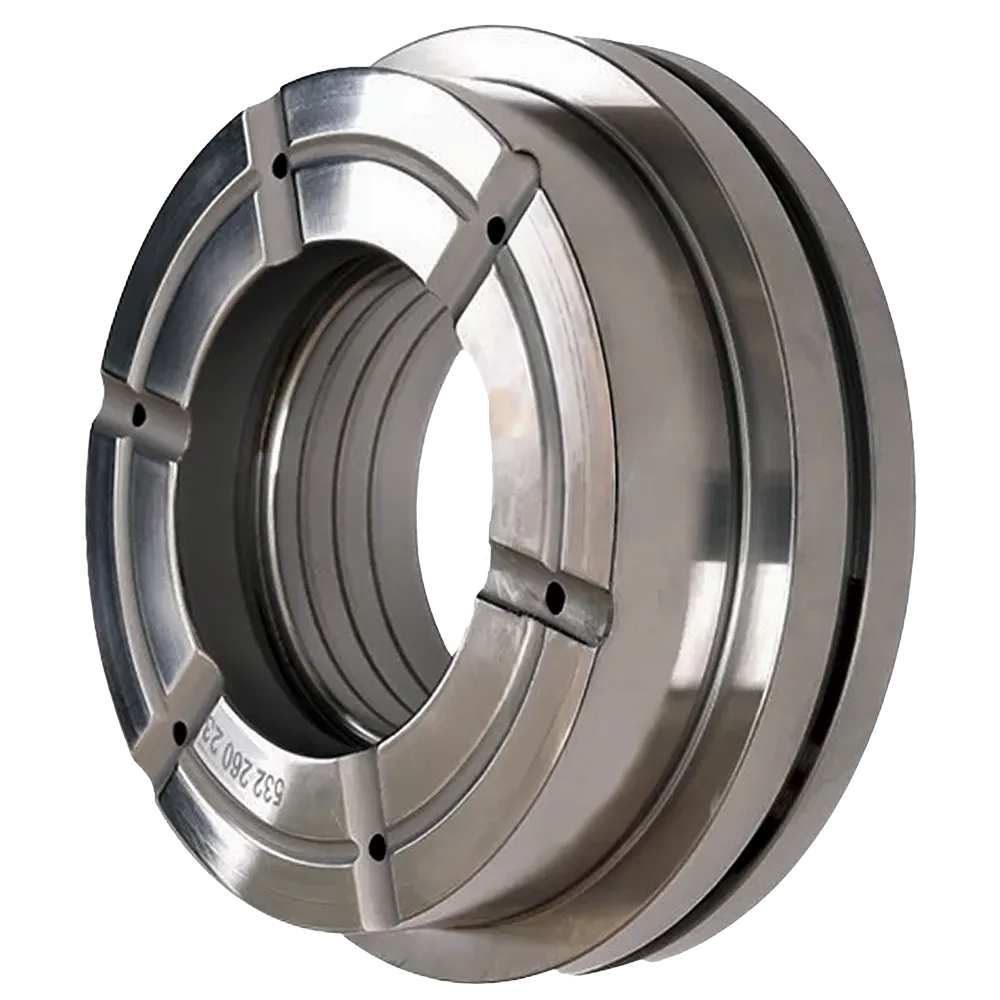

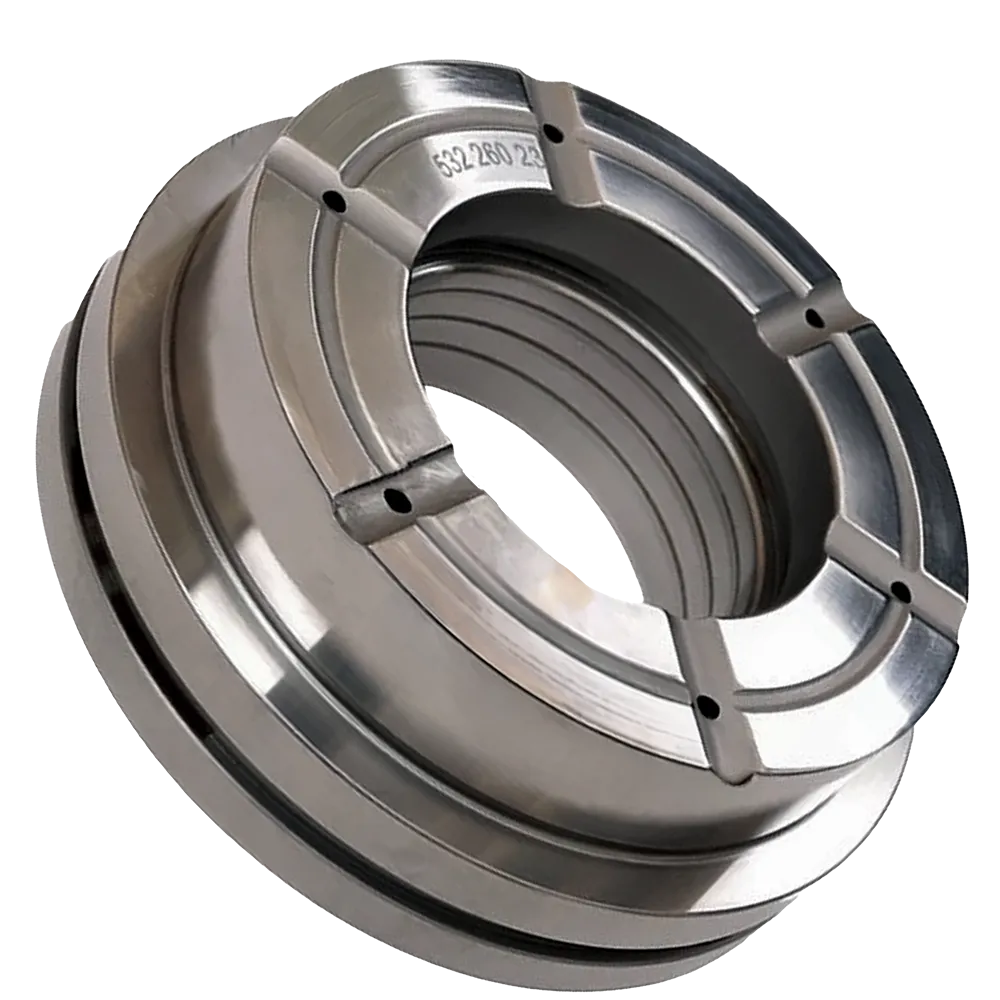

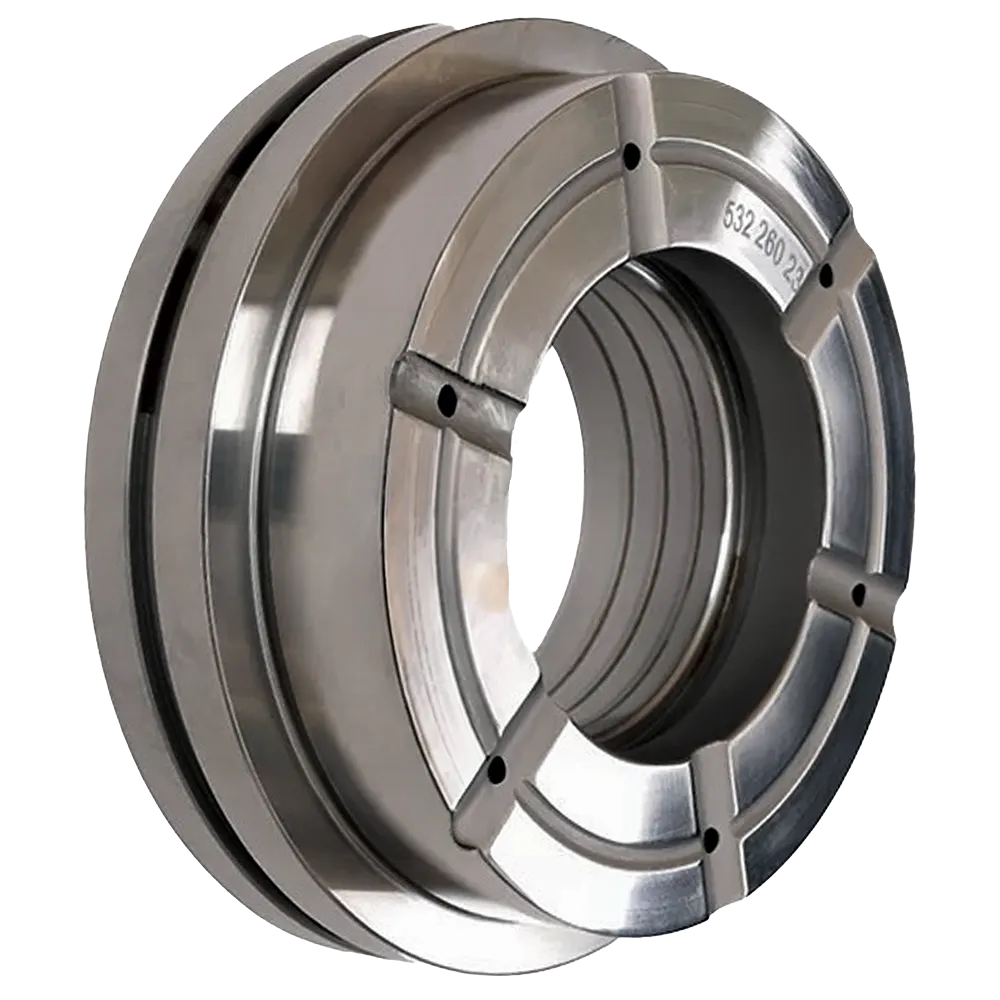

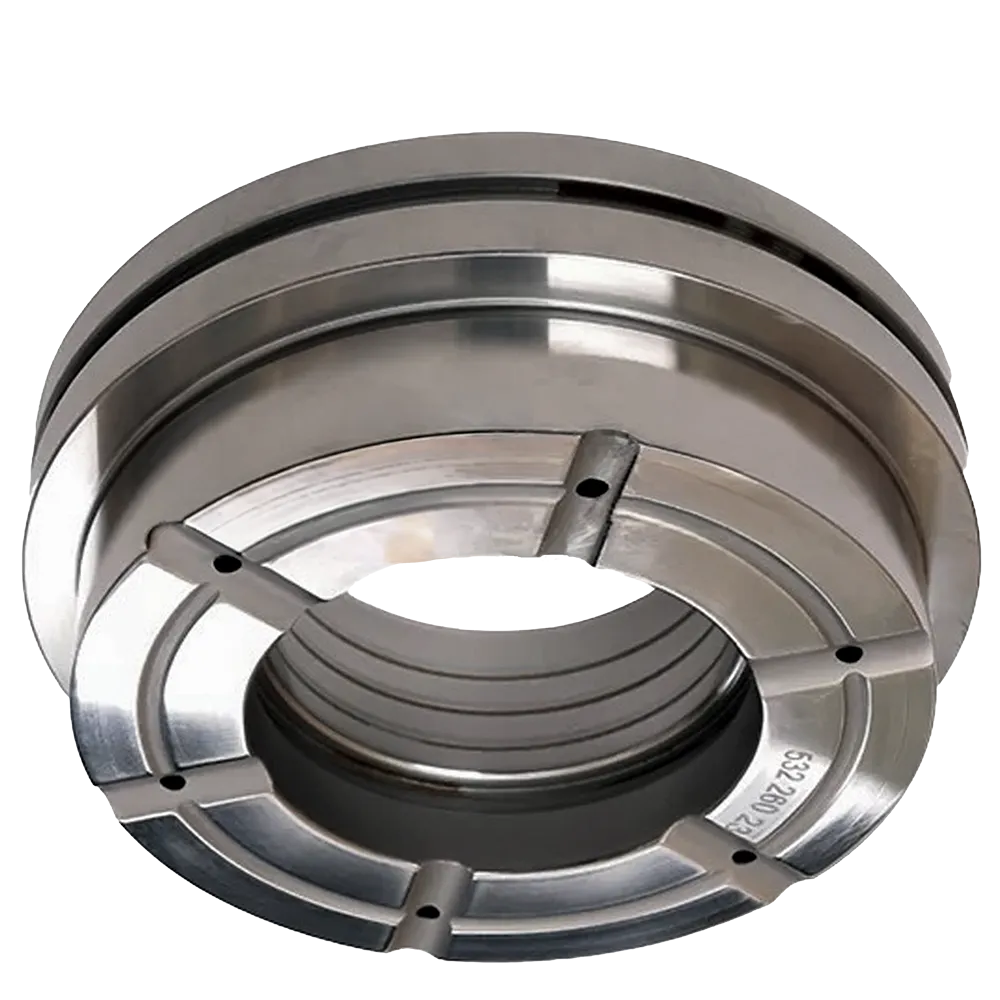

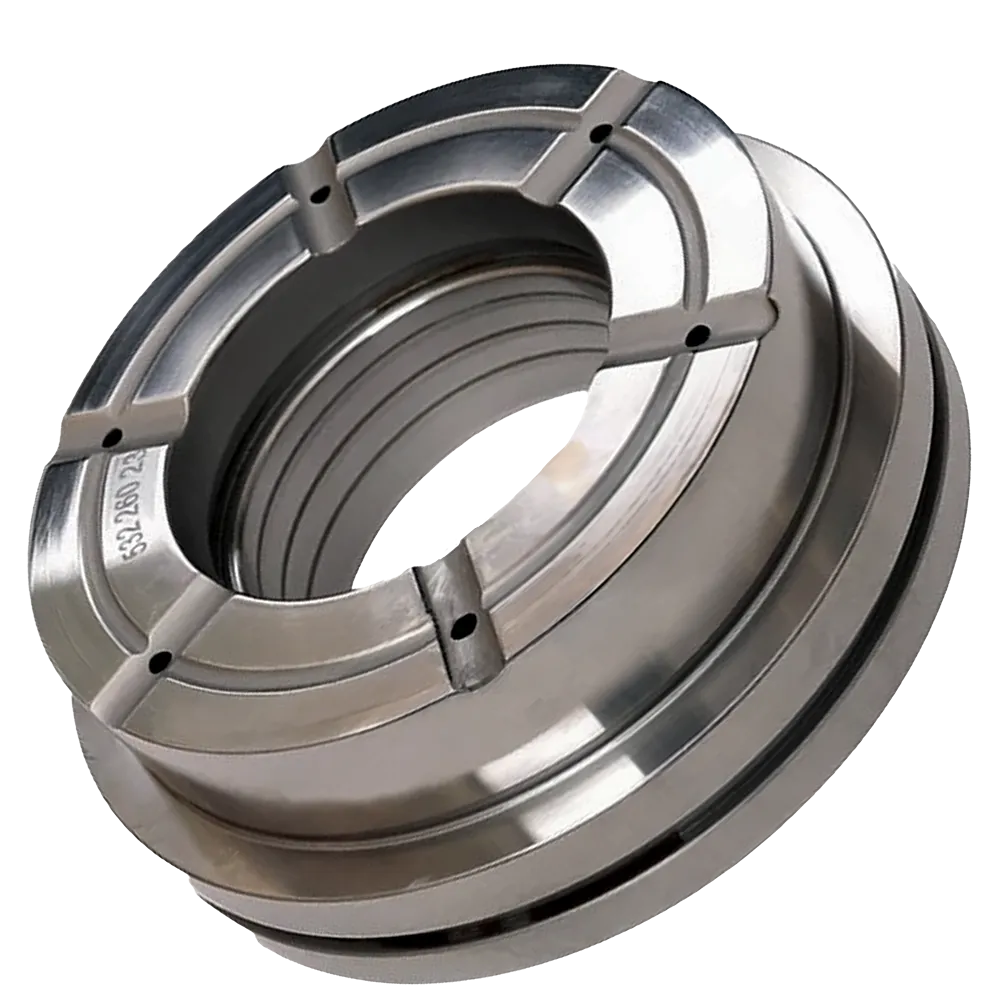

53226023 LINER FRANT INGERSOLL RAND

(532 260 23 Front Liner – Rock Drill / Drifter Application)

Product Overview

The 53226023 LINER FRANT INGERSOLL RAND (also referenced as 532 260 23) is a precision-machined front liner designed for heavy-duty rock drilling and drifter systems used across mining, quarrying, tunneling, and large-scale construction environments.

Installed at the front section of the percussion assembly, this liner plays a critical mechanical role: it supports the piston and shank interface, maintains axial alignment, absorbs impact loads, and protects the housing from accelerated wear. In real-world drilling operations, this component directly influences drilling accuracy, energy transfer efficiency, and overall service life of the machine.

At 3GEN Export, we supply this part as an OEM-grade replacement, manufactured to tight tolerances and engineered for demanding field conditions. We ship worldwide within 5 working days, helping contractors and maintenance teams minimize downtime.

What the 53226023 Front Liner Actually Does

Inside a rock drill or drifter, extreme forces are generated thousands of times per minute. The 53226023 LINER FRANT INGERSOLL RAND acts as a sacrificial wear component positioned between the piston movement zone and the tool interface.

Its main functions include:

• Guiding axial motion of internal components

• Distributing percussion forces evenly

• Preventing metal-to-metal contact between major assemblies

• Maintaining concentric alignment of the drilling system

• Reducing vibration transfer to the housing

• Protecting higher-value structural parts from damage

Because this liner is exposed to constant impact and friction, it is classified as a wear part and must be replaced periodically as part of preventive maintenance schedules.

Manufacturing Characteristics

Based on visual inspection and standard drifter liner design, the 532 260 23 LINER FRANT INGERSOLL RANDfeatures:

• High-strength alloy steel construction

• Precision-ground internal bore with concentric grooves

• Hardened outer surfaces for abrasion resistance

• Machined lubrication channels

• Tight dimensional tolerances for vibration-free operation

These characteristics allow the liner to operate reliably under:

• Continuous high-frequency percussion

• Heavy axial loads

• Dust-intensive environments

• Elevated temperatures

• Variable moisture conditions

Every unit supplied by 3GEN Export is produced for structural consistency, smooth internal finishes, and long service intervals.

Typical Technical Specifications

(Industry-standard values for this component class)

• Part Number: 53226023 / 532 260 23

• Product Type: Front liner (liner frant)

• Material: Hardened alloy steel

• Surface Finish: Precision machined

• Application: Hydraulic rock drills / drifters

• Mounting Position: Front percussion section

• Function: Alignment, wear protection, load distribution

Approximate Weight

Estimated weight: 6.5 – 7.5 kg

(Final weight may vary slightly by production batch.)

Compatible INGERSOLL RAND Equipment

The 53226023 LINER FRANT INGERSOLL RAND is commonly used in several hydraulic drifter and rock drill assemblies manufactured by Ingersoll Rand, including systems deployed in:

YH80

• Surface drilling rigs

• Underground mining drills

• Tunnel boring support units

• Quarry production rigs

Typical compatible platforms include (depending on configuration):

• HC and HL series hydraulic drifters

• Ingersoll Rand surface drill rigs

• Underground jumbo drilling systems

• Modular percussion assemblies used in mining operations

If you are unsure about compatibility with your exact machine model, 3GEN Export can cross-check your serial or assembly drawings before shipment.

Installation Guidance

Replacing the 532 260 23 LINER FRANT INGERSOLL RAND should always be performed during scheduled maintenance or when early signs of wear appear.

General installation steps:

1. Power down and depressurize the drilling system

2. Remove front housing components

3. Extract worn liner carefully to avoid bore damage

4. Clean seating surfaces thoroughly

5. Apply appropriate assembly lubricant

6. Insert new liner using alignment tools

7. Reassemble front section

8. Perform test rotation and dry run

Proper installation ensures:

• Correct piston alignment

• Reduced vibration

• Longer life of adjacent parts

• Stable drilling performance

Common Signs of Front Liner Wear

Monitoring liner condition prevents expensive secondary damage. Replace your 53226023 LINER FRANT INGERSOLL RAND if you observe:

• Reduced drilling accuracy

• Abnormal vibration

• Irregular percussion sound

• Metal debris in lubricant

• Visible scoring or ovalization

• Loss of energy transfer

Timely replacement protects pistons, shanks, and housings.

Why Choose 3GEN Export

3GEN Export is a global OEM spare parts supplier specializing in heavy machinery and rock drilling components.

When ordering the 53226023 LINER FRANT INGERSOLL RAND from us, you benefit from:

• OEM-grade manufacturing standards

• Global delivery in 5 working days

• Export-ready packaging

• Technical verification support

• Bulk order capability

• Professional logistics handling

We supply mining contractors, drilling companies, maintenance workshops, and international distributors across multiple continents.

Applications Across Industries

This liner is widely used in:

• Mining operations

• Quarry production

• Tunnel excavation

• Infrastructure drilling

• Foundation piling support

• Rock anchoring systems

Wherever high-impact drilling is required, the 532 260 23 LINER FRANT INGERSOLL RAND plays a vital mechanical role.

Long-Term Operational Value

Although small compared to major assemblies, the front liner significantly affects:

• Energy efficiency

• Tool lifespan

• Maintenance cycles

• Machine stability

• Operating costs

Replacing worn liners on time improves drilling productivity and prevents cascading failures.

Conclusion

The 53226023 LINER FRANT INGERSOLL RAND is an essential front liner engineered for extreme percussion environments. Designed to maintain alignment, absorb impact forces, and protect critical components, this part is a cornerstone of reliable rock drilling performance.

Supplied by 3GEN Export as an OEM replacement, this liner is available with worldwide shipping in just 5 working days, helping you keep projects moving without unnecessary delays.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
