06119394 VIBRATION PAD BOMAG

H1 – Premium Vibration Isolation Pad for BOMAG Machinery

When it comes to maintaining peak performance of your heavy vibration-machines, the 06119394 VIBRATION PAD BOMAG is the specialist solution engineered for durability, precision, and global availability. As part of the 3GEN Export OEM-grade portfolio, this vibration pad offers exceptional shock-absorption and isolation capability for a wide array of BOMAG models. Whether you’re servicing a tandem compactor or a heavy drum roller, choosing this item ensures you’ll reduce structural stress, increase reliability, and maintain optimum stability.

---

H2 – Why Choose the 06119394 Vibration Pad?

In heavy compaction equipment, vibration isolation is critical: uncontrolled vibration travels through the chassis, accelerates fatigue, and shortens component life. That’s where the 06119394 VIBRATION PAD BOMAG excels. It has been designed to withstand the rigorous demands of road-construction, asphalt-roller and soil-compactor operations. As your trusted supplier, 3GEN Export delivers this part worldwide – across continents – in as fast as 5 working days from dispatch, so your downtime stays minimal.

Key Benefits

• Superior vibration dampening enabling more consistent compaction and reduced frame fatigue

• High-durability elastomer core combined with steel mounting plates ensures longevity even under heavy load cycles

• Designed for ease of fitment on many BOMAG models – simplifying inventory management

• Global shipping readiness: we dispatch every city-site or machine-fleet around the world quickly and reliably

• OEM-grade quality via 3GEN Export – you receive aftermarket competitive pricing without compromising performance

---

H2 – Detailed Product Description

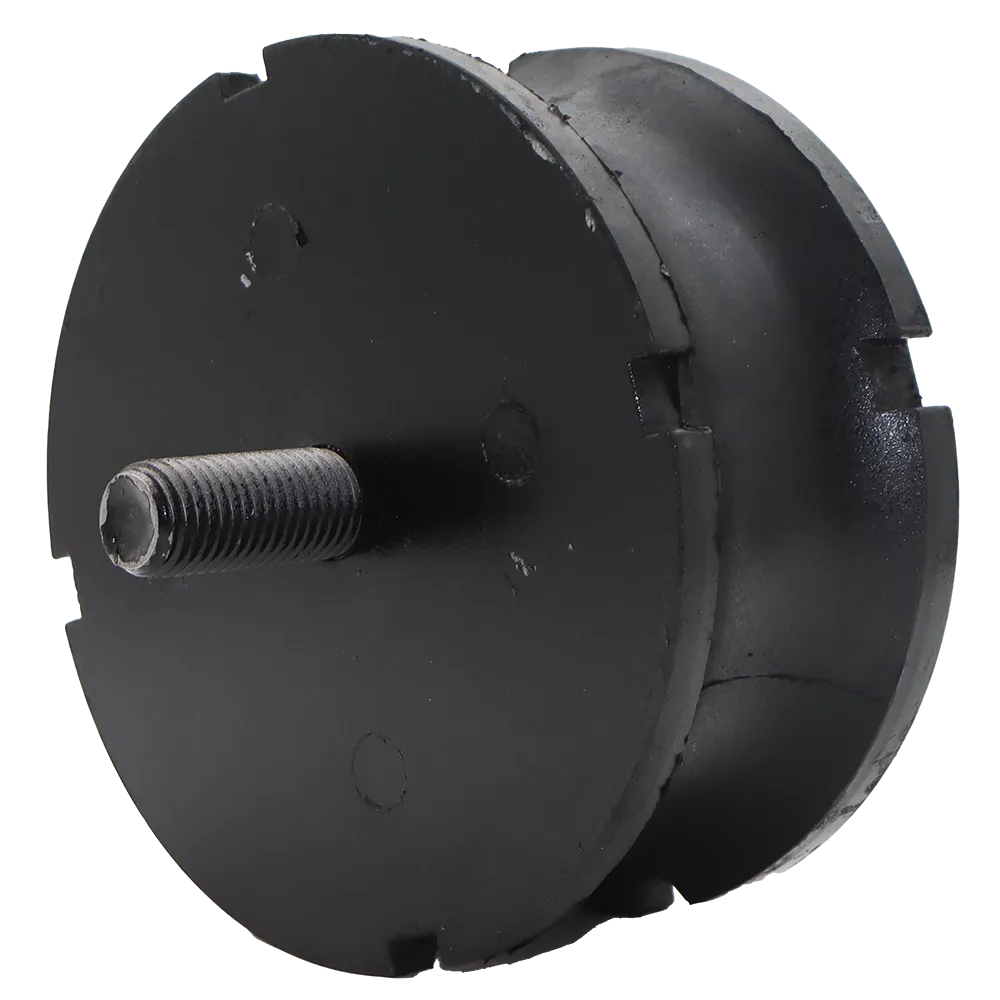

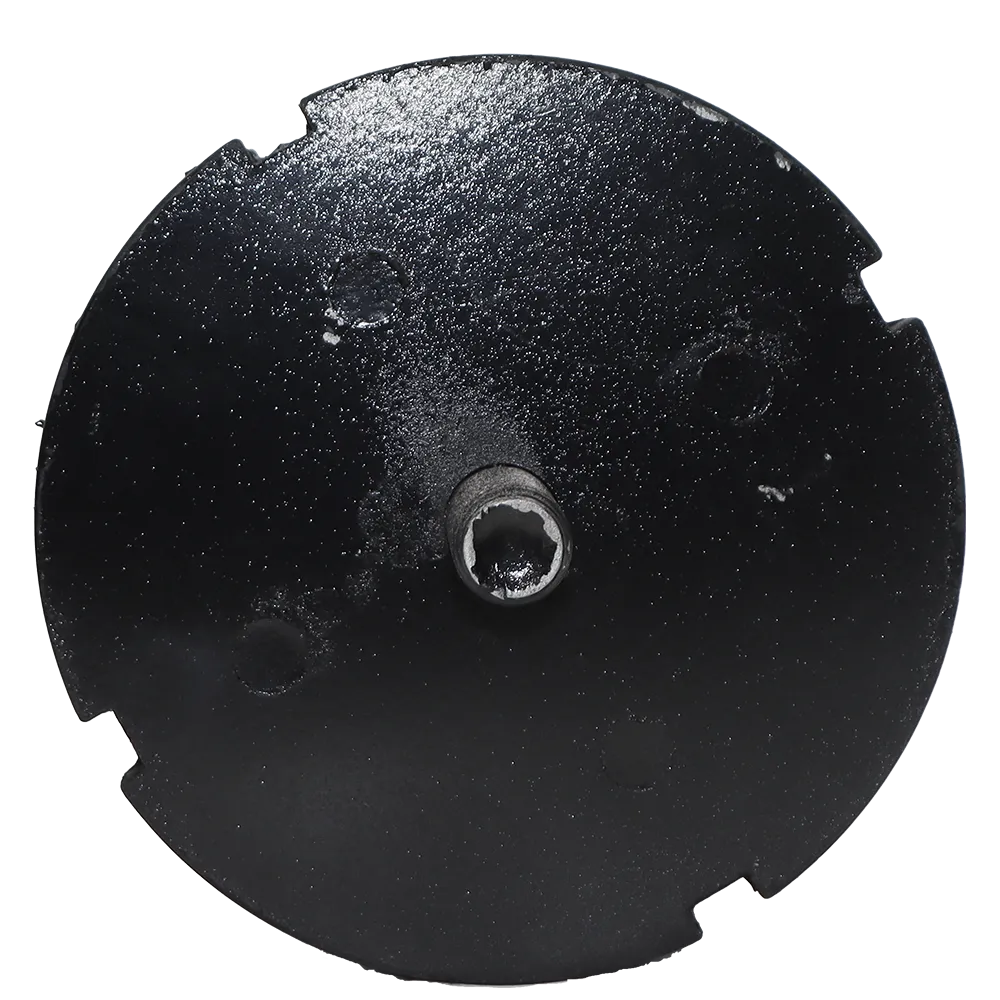

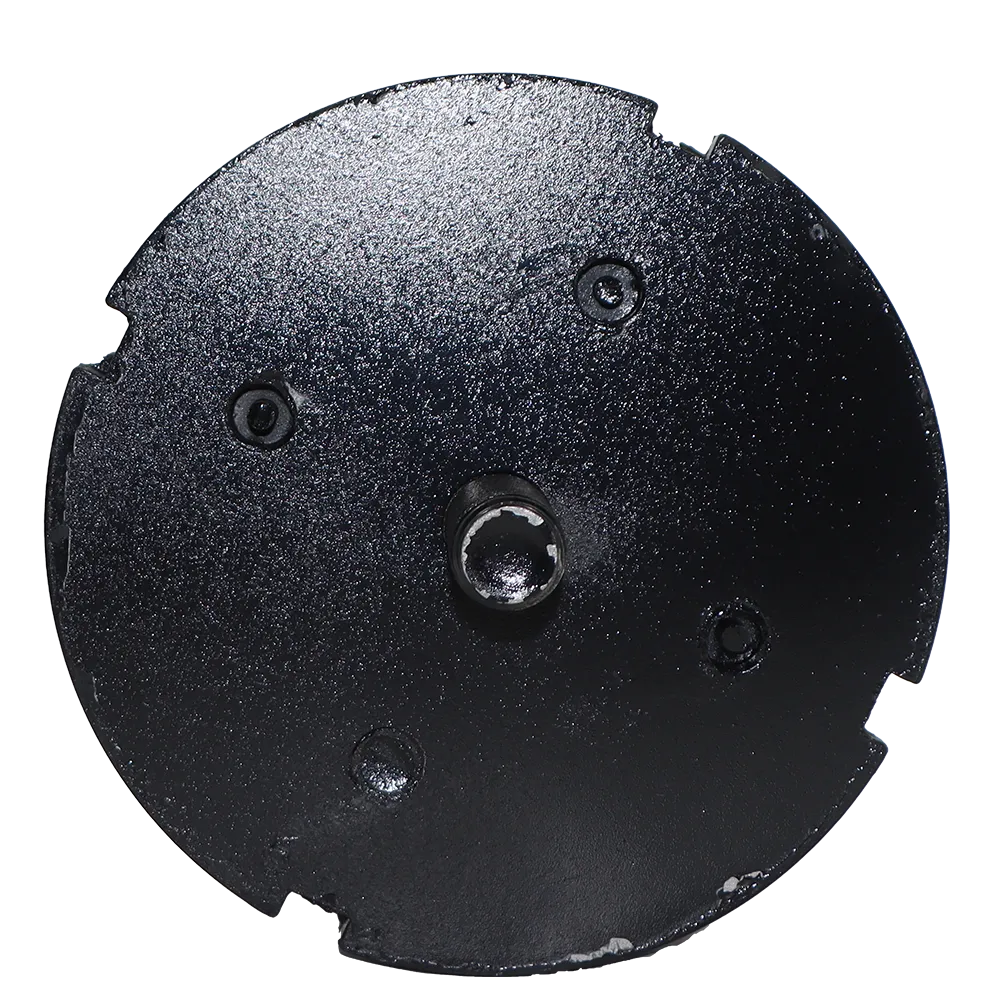

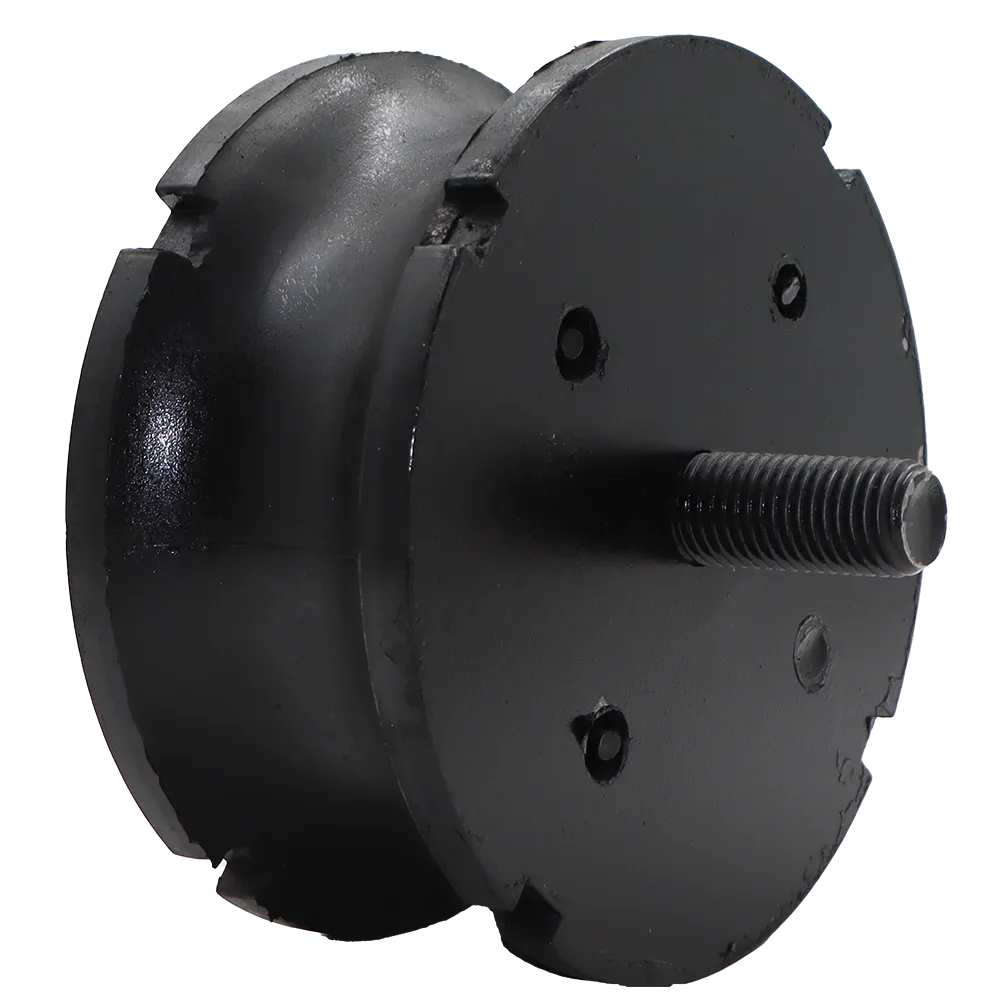

The 06119394 VIBRATION PAD BOMAG features a rugged composite construction tailored to heavy-duty use: a thick rubber body engineered to compress and rebound under repetitive loading, steel end plates with threaded studs for robust mounting, and a shape optimized to distribute force evenly. It sits between the vibrating drum exciter assembly and the chassis/under-carriage frame in many BOMAG rollers, isolating the frame and operator compartment from damaging shock and vibration.

Construction & Materials

• Rubber Elastomer Core: High strength, oil/heat/ozone resistant elastomer, formulated to withstand continuous vibration, torsion and high cycle loads.

• Steel End Plates: Rigid steel plates welded to the elastomer core provide structural strength and even load distribution.

• Dual Threaded Studs: The pad typically includes threaded studs on both mounting faces to securely anchor the assembly.

• Shape & Geometry: The pad is slightly barrel or concave shaped to allow compression and rebound while maintaining contact surfaces – reducing side-loads and improving damping efficiency.

Function & Role

In the vibration system of a BOMAG roller, the 06119394 pad serves as the medium that transmits the vibratory forces from the exciter drum assembly to the machine frame – but in doing so, it attenuates and isolates the harmful vibration. This ensures:

• The frame and structural welds are not subject to uncontrolled vibration fatigue.

• Operator comfort and safety are improved through reduced cabin/seat vibration feedback.

• Key components (hydraulic lines, bearings, electrical harnesses) are protected from high amplitudes of vibration.

• The machine cycles perform with consistent compaction over time because the vibration system remains in alignment and condition.

---

H2 – Technical Specifications

Note: The specified weight and dimensions are approximate – always confirm in your machine’s parts manual. The 4.16 kg weight is published by one third-party catalog.

---

H2 – Compatible BOMAG Models

The 06119394 VIBRATION PAD BOMAG is listed as compatible with a broad range of BOMAG compaction equipment. While machine variants and region-specific options may vary, typical models in which this pad is used include:

• BOMAG BW141, BW141 AD-2, BW141 AD-4

• BOMAG BW151, BW151 AC-2, BW151 AD-2

• BOMAG BW161, BW161 AD-4, W161 AD-CV

• BOMAG BW174 AC-2

• BOMAG BW180, BW184 AD-4

• BOMAG BW202, BW202 AD-4, BW203 AD-4

• BOMAG BW212, BW212D, BW212D-2, BW212PD, etc.

• BOMAG BW213, BW213AD-2, BW213D-2, BW213PD, BW213DH-2

• BOMAG BW214, BW214D, BW214PD, etc.

• BOMAG BW217 (and other similar series)

Important: Though the pad is widely listed for many models, we recommend verifying fitment in your machine’s parts manual or with your parts-supplier. If your machine differs by region or generation, compatibility should be confirmed.

---

H2 – Installation & Maintenance Considerations

Installation Tips

1. Ensure the machine is safely immobilised, the exciter system is stopped and locked out, and the drum and frame are clean from debris damage.

2. Remove the existing vibration pad, noting the orientation and mounting stud length.

3. Clean the mounting surfaces of the drum exciter and machine frame – remove old adhesive, corrosion or rubber residue.

4. Inspect bolt/thread condition – studs must thread securely into mating plates; damaged threads reduce isolation performance.

5. Fit the new 06119394 vibration pad in the correct orientation (studs both sides aligned) and torque bolts to manufacturer-specs.

6. After installation, run a controlled start–stop of the vibration system and inspect for unusual vibration or noise — re-inspect after first few hours of operation.

Maintenance & Service Life

• Although the pad is built for heavy duty, rubber and elastomer materials still degrade over time due to heat, oil contamination, ozone, and mechanical fatigue.

• Inspect the vibration pad during routine maintenance (for example, every 500-1000 hours) and look for cracks, flattened rubber, loose studs or deformation.

• When vibration amplitude increases, operator complaints rise or the frame begins showing fatigue, the vibration pad is a likely candidate. Replacing the pad early can extend the life of the machine.

• As 3GEN Export supplies this pad globally, you can schedule planned replacement rather than emergency downtime.

---

H2 – Why Buy from 3GEN Export?

• Worldwide Delivery: With operations centred on heavy-machinery spare parts, 3GEN Export ships the 06119394 VIBRATION PAD BOMAG to clients around the globe within just 5 working days.

• OEM-Grade Quality: This part meets or exceeds original equipment performance even though it is supplied under our aftermarket programme – excellent quality without OEM price.

• Global Reach, Local Service: Whether your site is in Europe, Asia, Africa, Australia or the Americas, our logistics network is geared for rapid dispatch and reliable customs clearance.

• Dedicated Support: We provide call-out parts options, compatibility consultancy and professional customer service for machinery professionals.

• Transparent Pricing: No hidden fees; what you see is what you pay – your investment in maintenance is efficient and predictable.

---

H2 – Frequently Asked Questions (FAQ)

Q1: Can this pad fit older BOMAG models beyond those listed?
A1: Possibly – many customers report this pad fits earlier or variant machines as well. But machine-specific confirmation is always recommended via serial or parts manual.

Q2: What happens if I install a vibration pad that is under-spec’d?
A2: If a pad lacks adequate load capacity or dampening stiffness, vibration will transmit into the frame, resulting in structural fatigue, loose components, increased operator vibration exposure and higher downtime costs.

Q3: How many hours of service life can I expect?
A3: Service life depends on operating conditions, maintenance, load-cycles and environment. Under normal compaction duty you might expect thousands of hours, but rather than target a number, inspect at each maintenance interval and replace when signs of wear appear.

Q4: Do you provide installation support or replacement guidance?
A4: Yes – 3GEN Export ensures you receive fitment instructions and guidance when required; contact our technical service team if you need support.

Q5: Is the weight of 4.16 kg accurate for all units?
A5: The catalog weight of 4.16 kg (9.17 lb) refers to one standard dimension as noted. Actual field weight may vary slightly depending on machining tolerances or pad variant.

---

H2 – Final Summary

In summary, the 06119394 VIBRATION PAD BOMAG is a robust and reliable solution for vibration isolation in a wide range of BOMAG asphalt and soil-compactor machines. Supplied by 3GEN Export with OEM-grade quality and worldwide shipment in 5 working days, it offers a smart investment in machine longevity, operator comfort and maintenance cost-control. With a weight around 4.16 kg, precision rubber-steel construction, and compatibility across many BOMAG BW141-, BW151-, BW161-, BW212/213- and BW214/217-series machines, this pad covers your needs for heavy-duty compactor environments.

When your compactor’s vibration system demands a dependable, high-performance isolation pad, 3GEN Export delivers. Order your 06119394 VIBRATION PAD BOMAG today and ensure your machine’s performance remains uninterrupted.

---

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
