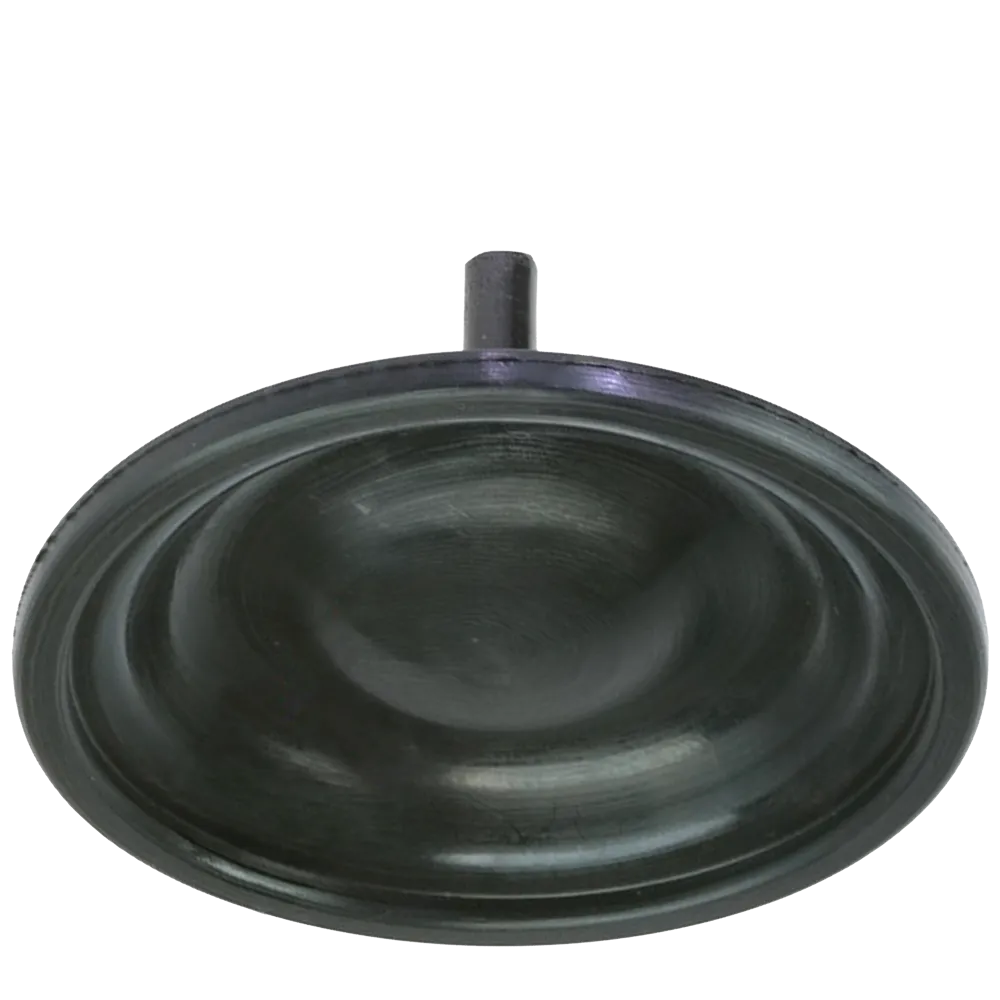

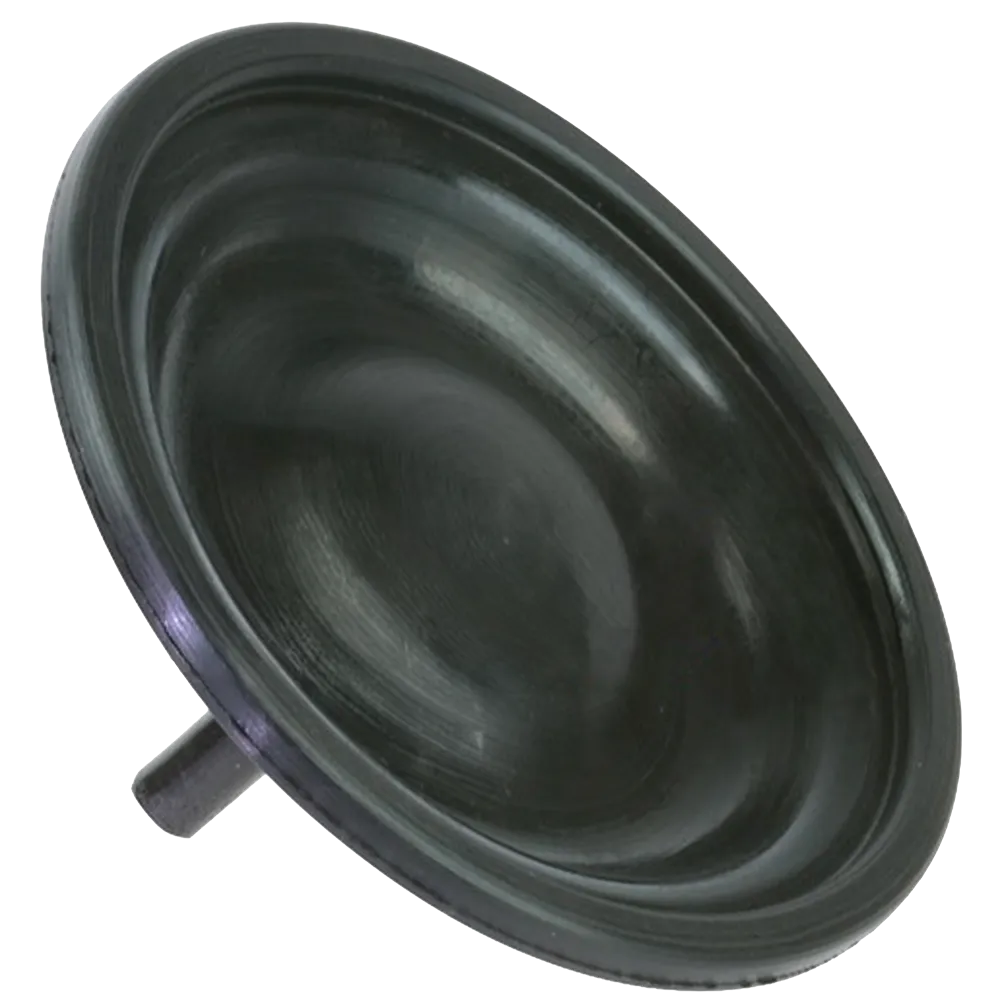

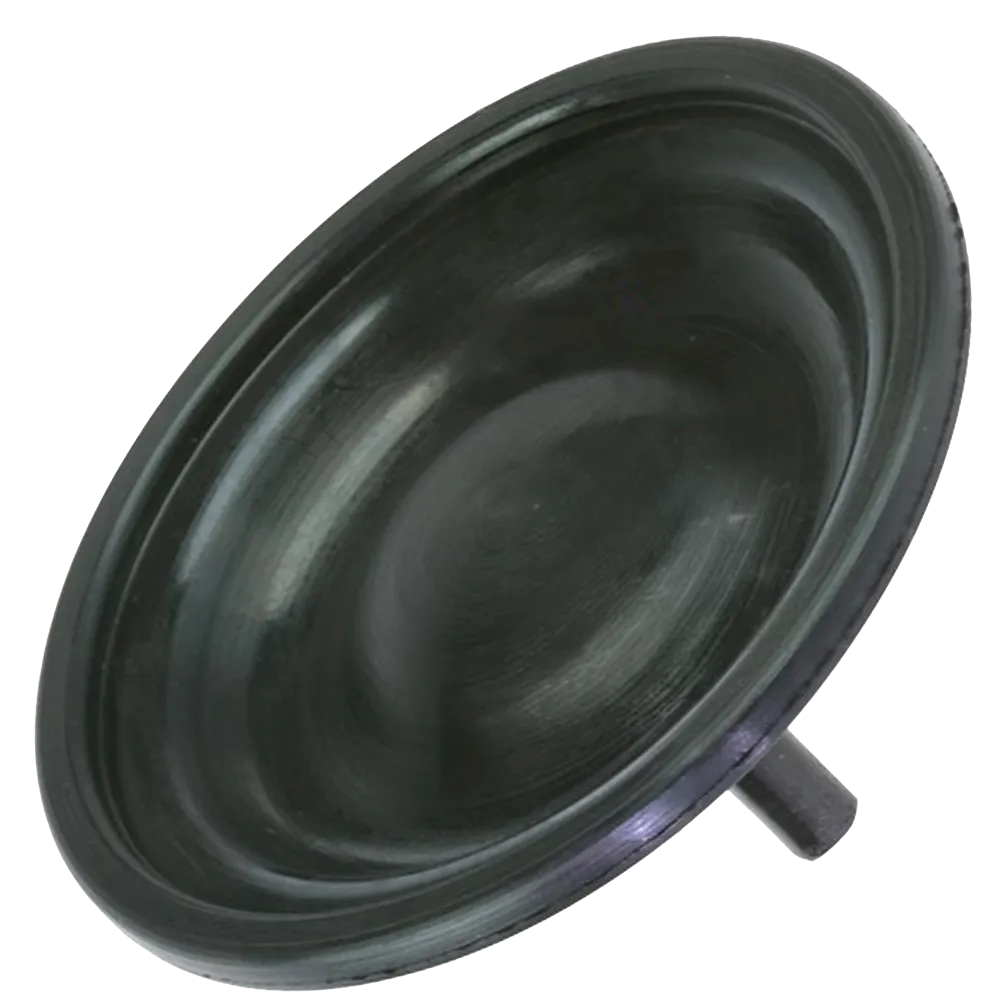

15225488, 152 254 88 DIAPHRAGM SANDVIK

When hydraulic power meets precision engineering, every internal component matters. The 15225488, 152 254 88 DIAPHRAGM SANDVIK is a critical flexible control element used inside hydraulic and pneumatic assemblies of Sandvik rock drilling systems.

Designed to respond instantly to pressure variations, this diaphragm acts as the silent regulator that stabilizes flow, protects internal chambers, and ensures smooth machine response during demanding drilling operations.

At 3GEN Export, we supply this diaphragm as an OEM-grade replacement part, manufactured to match original dimensional tolerances and material behavior. We ship worldwide within 5 working days, helping contractors, quarry operators, and mining professionals minimize downtime and keep production moving.

---

What Is the 15225488 Diaphragm and Why It Matters

Inside modern rock drilling machinery, pressure is everything. The diaphragm functions as a dynamic membrane that separates chambers, regulates hydraulic impulses, and absorbs micro-vibrations created during percussion and rotation cycles.

The 15225488, 152 254 88 DIAPHRAGM SANDVIK is engineered to:

• Maintain stable pressure balance in control circuits

• Prevent cross-contamination between fluid zones

• Reduce shock transfer to sensitive valve components

• Support consistent tool performance under fluctuating loads

Without a properly functioning diaphragm, machines may experience pressure loss, delayed response, or irregular drilling behavior. Over time, this can lead to accelerated wear in valves, pistons, and seals.

This is why replacing worn diaphragms with correctly specified parts is essential for long-term operational reliability.

---

Precision Manufacturing and Material Structure

Each 15225488, 152 254 88 DIAPHRAGM SANDVIK supplied by 3GEN Export is produced using industrial elastomer compounds reinforced for heavy-duty applications. The material blend is selected to withstand:

• Continuous hydraulic pressure cycles

• High-frequency flexing

• Oil and fluid exposure

• Temperature variations in open-pit and underground environments

The molded geometry ensures uniform deformation across the surface, preventing stress concentration and premature cracking. The integrated stem section provides secure seating within the housing, maintaining alignment even during aggressive drilling sequences.

Surface finishing is optimized to reduce friction against mating components while preserving elasticity over extended service intervals.

---

Key Functions Inside Rock Drill Systems

The diaphragm plays several interconnected roles within Sandvik drilling assemblies:

Pressure Regulation

By flexing in response to internal pressure, the diaphragm helps stabilize flow and prevent spikes that could damage valves or cartridges.

Vibration Dampening

Percussive drilling generates constant micro-shocks. This component absorbs part of that energy, protecting downstream parts from fatigue.

Fluid Separation

The diaphragm forms a reliable barrier between hydraulic chambers, ensuring clean operation and preventing fluid mixing.

System Responsiveness

A healthy diaphragm allows control signals to transmit instantly, improving drilling accuracy and operator control.

These combined functions make the 15225488, 152 254 88 DIAPHRAGM SANDVIK far more than a simple rubber element, it is a core contributor to machine efficiency.

---

Typical Applications and Compatible Sandvik Equipment

This diaphragm is commonly used in hydraulic control sections of Sandvik rock drilling machines and drifters, including (but not limited to):

• HL series rock drills

• RD series drifters

• DX and DP drilling rigs

• Selected underground and surface drilling platforms

Compatibility may vary by configuration and production year. For precise matching, sharing your machine model or serial number with 3GEN Export allows our technical team to confirm fitment before shipment.

---

Estimated Technical Specifications

While exact figures may vary slightly by production batch, typical parameters include:

• Component type: Hydraulic diaphragm

• Construction: Reinforced industrial elastomer

• Color: Dark technical black

• Operating medium: Hydraulic oil / compressed fluid systems

• Estimated weight: approximately 0.35 – 0.45 kg

• Function: Pressure regulation and chamber separation

These characteristics ensure dependable operation in both high-cycle mining environments and continuous construction drilling.

---

Signs That Your Diaphragm Needs Replacement

Over time, diaphragms naturally fatigue due to constant flexing. Common symptoms include:

• Unstable hydraulic pressure

• Delayed actuator response

• Oil seepage around control housings

• Reduced drilling efficiency

• Unusual vibration or noise

Replacing the 15225488, 152 254 88 DIAPHRAGM SANDVIK at early warning stages prevents secondary damage to more expensive internal assemblies.

---

Installation Guidelines

Professional installation is recommended. During replacement:

1. Depressurize the hydraulic system completely

2. Clean the housing area thoroughly

3. Inspect mating surfaces for scoring or debris

4. Seat the diaphragm evenly without twisting

5. Reassemble using correct torque values

6. Test system pressure before returning to service

Proper installation ensures the diaphragm performs as intended throughout its service life.

---

Why Choose 3GEN Export

At 3GEN Export, we specialize in heavy machinery spare parts for drilling, mining, and construction equipment. Our diaphragm solutions are supplied as OEM-quality alternatives, produced to meet operational expectations in real-world field conditions.

When you order the 15225488, 152 254 88 DIAPHRAGM SANDVIK from us, you benefit from:

• OEM-grade manufacturing standards

• Global delivery within 5 working days

• Professional export packaging

• Technical fitment support

• Reliable supply for repeat orders

From single replacements to bulk procurement, we help maintenance teams keep machines productive without extended downtime.

---

Operational Advantages of Timely Replacement

Installing a fresh diaphragm delivers measurable benefits:

• Restored hydraulic responsiveness

• Improved drilling consistency

• Reduced wear on valves and pistons

• Lower risk of fluid leakage

• Extended service life of surrounding components

In demanding environments, small components like this diaphragm play an outsized role in overall machine performance.

---

Final Thoughts

The 15225488, 152 254 88 DIAPHRAGM SANDVIK is a compact yet essential element inside Sandvik rock drilling systems. Its ability to regulate pressure, isolate fluids, and absorb vibration makes it indispensable for reliable daily operation.

Backed by 3GEN Export’s OEM-level supply standards and fast worldwide shipping, this diaphragm offers a dependable solution for maintenance professionals who refuse to compromise on quality.

If you need confirmation of compatibility, bulk pricing, or technical assistance, our team is ready to support your project from order to delivery.
