3060 MUX SECTION CUP ATLAS COPCO

When a rock drill is working at full rhythm, the smallest protective components often decide how long the larger, expensive assemblies stay healthy. The 3060 MUX SECTION CUP ATLAS COPCO is one of those quietly critical parts: a cup-shaped protective and sealing element designed to help shield sensitive MUX-section interfaces from dust, slurry, moisture, and abrasive debris that naturally exist in drilling environments.

At 3GEN Export, we supply the 3060 MUX SECTION CUP ATLAS COPCO as an OEM supplier, supporting contractors and service teams who need dependable parts availability. We deliver worldwide in 5 working days, helping you reduce downtime and keep your equipment earning.

What the 3060 MUX SECTION CUP ATLAS COPCO does in the field

In MUX-equipped rock drill setups, the “MUX section” typically refers to the area where control, distribution, and related interfaces require protection from contamination. Even if the larger system is built for harsh conditions, fine particles can work their way into exposed contact points, cavities, and transitions. That’s where a properly fitting cup element becomes important.

The 3060 MUX SECTION CUP ATLAS COPCO is commonly used to:

• Provide a protective barrier against dust and grit ingress

• Reduce contamination risks around MUX-section components

• Help maintain more stable sealing performance in dirty, wet, or abrasive conditions

• Support smoother service intervals by limiting debris buildup in critical zones

Because the part is compact and visually simple, it’s easy to underestimate. In practice, the 3060 MUX SECTION CUP ATLAS COPCO contributes directly to reliability, especially where drilling dust and fine cuttings are constant.

Why contamination control matters on MUX-equipped drilling systems

Rock drilling is an environment where the air itself can behave like sandpaper. When contamination reaches sensitive sections, the chain reaction is predictable:

• Increased wear at interfaces

• Higher likelihood of leakage or inconsistent operation

• More frequent cleaning and rework during maintenance

• Unplanned downtime and higher total cost of ownership

Using the 3060 MUX SECTION CUP ATLAS COPCO as intended helps slow that chain reaction. It’s a small part with a big job: keeping the “mess” away from places that were never meant to grind against it.

Visual design cues from your images

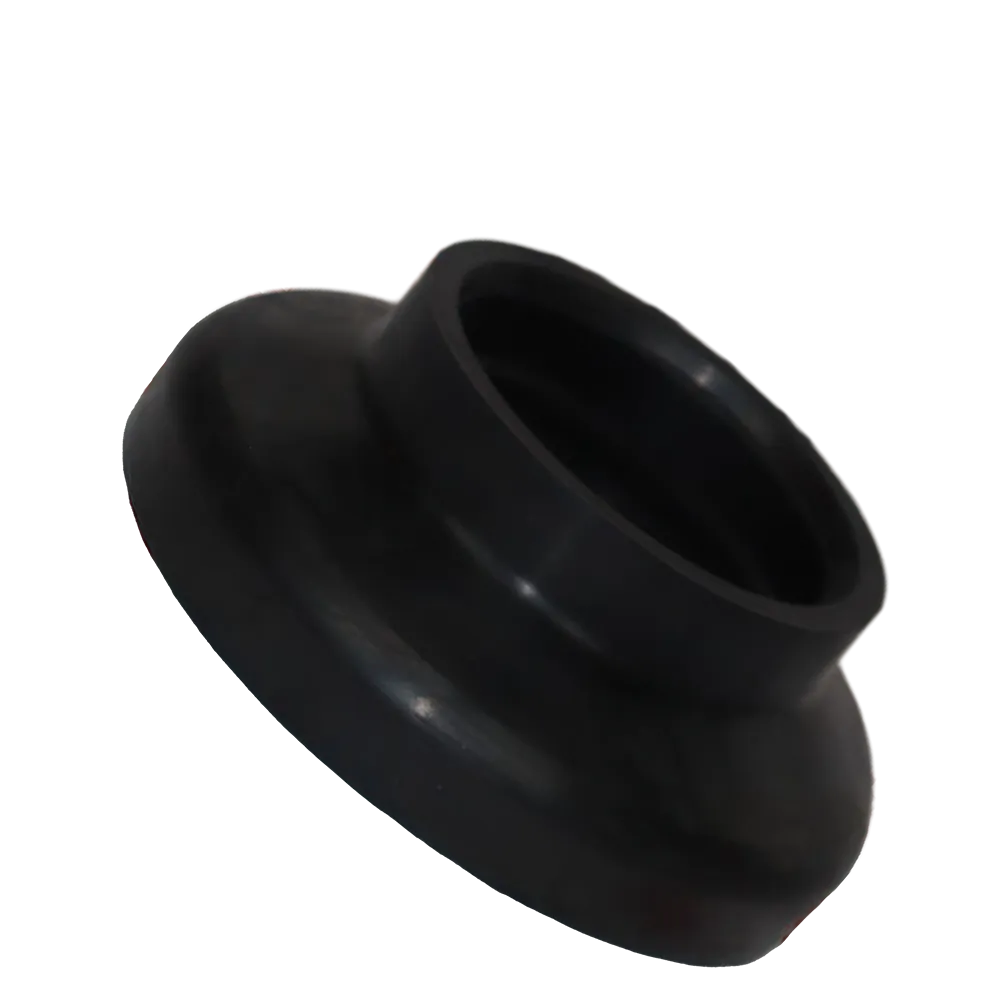

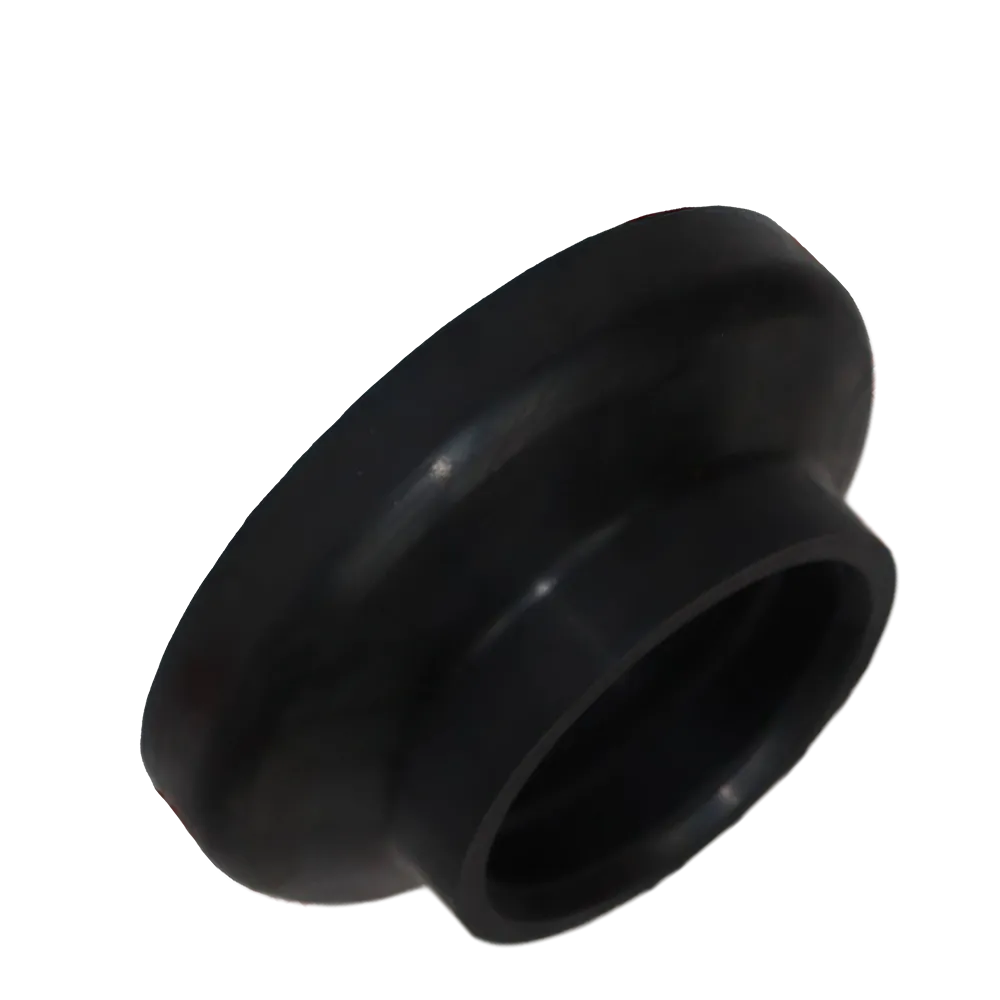

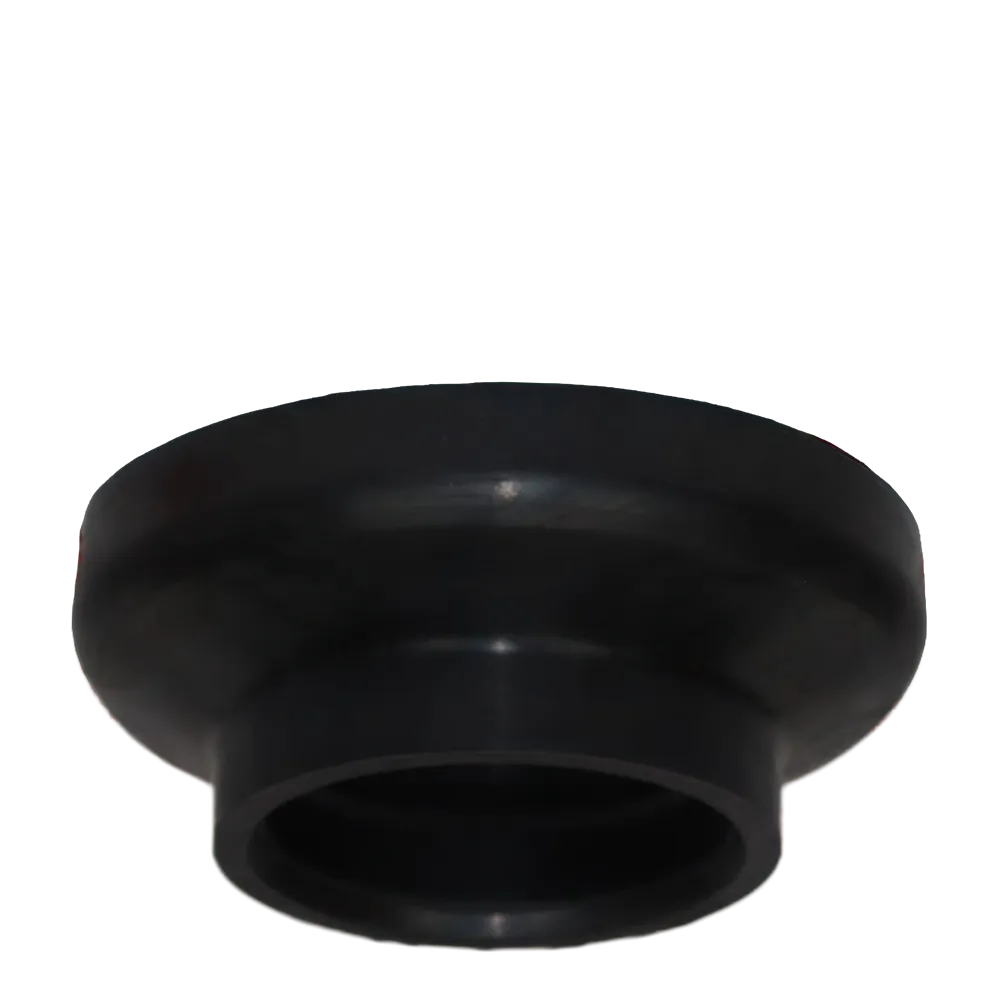

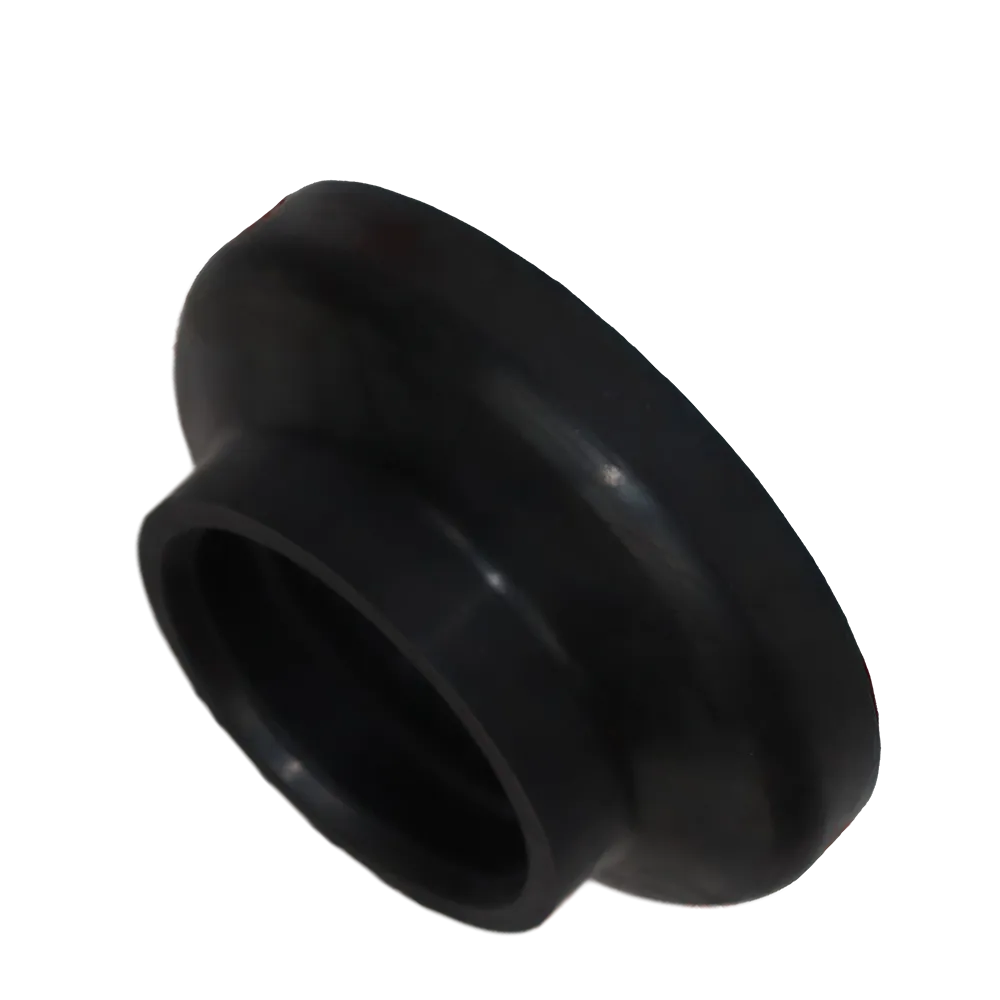

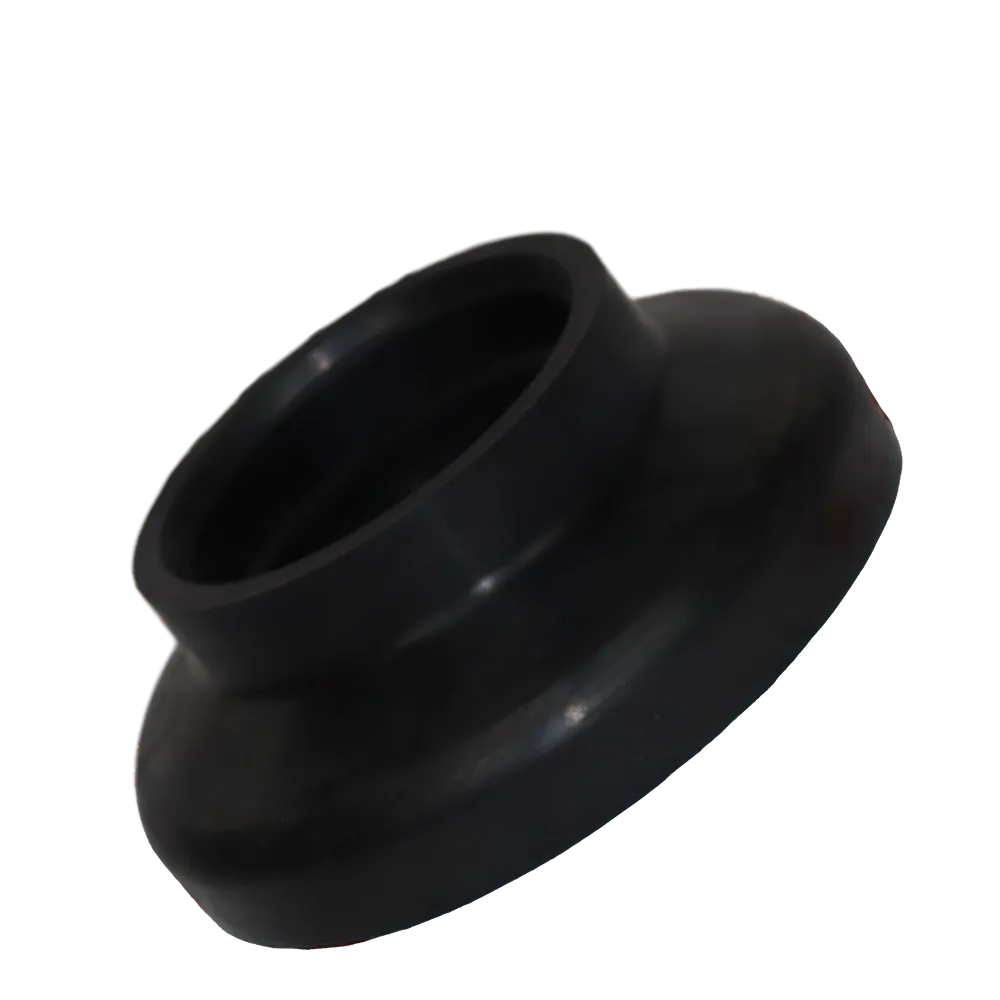

From the photos you provided, the part shows the classic “cup” geometry:

• A broad outer lip/flange that seats against a surface

• A raised inner neck that forms a snug interface around the protected area

• A smooth, molded body consistent with elastomeric or polymer protective parts

This shape is commonly used when a part needs to both seat reliably and flex slightly during installation, while still maintaining a stable barrier once in place. That’s exactly the functional role the 3060 MUX SECTION CUP ATLAS COPCO is expected to serve in a drilling environment.

Materials and performance characteristics

The 3060 MUX SECTION CUP ATLAS COPCO is typically produced from an industrial-grade elastomer or polymer selected for jobsite exposure, think oils, moisture, temperature swings, and abrasive dust.

Depending on the application variant, material properties often prioritize:

• Oil and grease resistance

• Tear resistance under vibration and micro-movement

• Flexibility for installation without cracking

• Dimensional stability to keep seating pressure consistent

Because drill rigs and rock drills can operate across a wide temperature range, the 3060 MUX SECTION CUP ATLAS COPCO must keep its shape and sealing behavior without becoming brittle in cold conditions or overly soft in heat.

If you’re ordering for a specific site condition (extreme cold, chemically aggressive water, high heat), tell us your environment and we’ll help align the correct supply spec through 3GEN Export.

Fit, tolerances, and why “close enough” is risky

A cup-style protective component only works when it fits correctly:

• Too tight, and it may deform, tear during install, or create uneven seating

• Too loose, and it can allow debris pathways or lose retention under vibration

• Wrong lip geometry, and it may not seat flush, creating a “gap highway” for dust

That’s why the 3060 MUX SECTION CUP ATLAS COPCO should be matched to the correct equipment and configuration. A visually similar cup can fail quickly if the lip diameter or neck interface is off by even a small margin.

If your team is servicing multiple drill families, keep part labeling strict, this is exactly the kind of small component that gets mixed up in busy workshops.

Where the 3060 MUX SECTION CUP ATLAS COPCO is used

Based on publicly listed rock drill family references for the COP 3060 series, the MUX variant is part of the COP 3060 line, and related products in that family include COP 3060EX and COP 3060CR.

In practical terms, the 3060 MUX SECTION CUP ATLAS COPCO is used in MUX-related configurations where that protective “cup” is required as part of the drill’s sealing/protection strategy.

Compatible ATLAS COPCO models (family-level)

• COP 3060MUX

• COP 3060EX

• COP 3060CR

Important note for service accuracy: exact placement and usage can differ by revision, configuration, and serial range. For the cleanest ordering outcome, match the 3060 MUX SECTION CUP ATLAS COPCO against your parts manual/serial record, especially if you’re servicing retrofits or mixed fleets.

Installation guide for service teams

Below is a practical, field-friendly approach. It’s intentionally simple, because the most common failures come from rushed installation or contaminated seating surfaces.

1) Prepare the area

Clean the seating surface thoroughly:

• Remove dust cake, old grease lumps, and trapped grit

• Wipe down until the surface is smooth to the touch

• Inspect for burrs, nicks, or sharp edges that could cut the cup

If the seating edge is damaged, the 3060 MUX SECTION CUP ATLAS COPCO may not hold its barrier function for long.

2) Inspect the part before fitting

Check the 3060 MUX SECTION CUP ATLAS COPCO for:

• Any shipping deformation

• Cuts or nicks on the lip

• Cracks around the neck

Even a small lip defect can become a dust pathway under vibration.

3) Fit with controlled pressure

• Align the neck/interface first

• Press the lip evenly, avoid forcing one side down fully before the other

• Ensure the flange sits flush with no “wave” or lifted edge

If you use lubrication, keep it minimal and compatible with the material. Excess grease can trap grit and create an abrasive paste.

4) Final check under operating movement

After assembly:

• Confirm the cup is not rubbing against rotating or moving elements

• Verify it isn’t pinched or twisted

• Re-check seating after initial run-in, if your service routine allows

Maintenance and inspection intervals

The 3060 MUX SECTION CUP ATLAS COPCO is not a “set it and forget it” item in high-abrasion drilling. It should be checked during normal service cycles, especially when:

• The rig is drilling in extremely dusty formations

• Water flushing is inconsistent or muddy

• The drill is running long shifts with minimal downtime

• The jobsite has heavy temperature cycling

A quick visual inspection is often enough:

• Look for hardened shine (material aging)

• Lip deformation or edge lifting

• Tears near the neck or flange

• Embedded grit that won’t clean out

If any of these appear, replacement is usually cheaper than dealing with contamination reaching deeper components.

Common failure symptoms and what they typically mean

If the 3060 MUX SECTION CUP ATLAS COPCO is compromised, you might notice:

• Faster-than-normal grime buildup around the protected area

• Increased need for cleaning during service

• Visible dust trails past the lip edge

• The cup loosening or shifting out of position

These symptoms are often not “just cosmetic.” They are early warnings that contamination control is fading, and the system is beginning to ingest abrasive material.

Technical details and practical specifications

Because this part is a protective cup used in harsh drilling environments, the most useful “specs” for buyers are functional and application-focused rather than lab-style numbers.

Practical specification checklist

• Component type: Protective cup / barrier element for MUX section

• Geometry: Flanged cup with raised neck interface (as shown in images)

• Application environment: Dust, cuttings, vibration, intermittent moisture

• Service priority: Contamination control and sealing support

• Recommended practice: Replace if lip deforms, tears, hardens, or loses seating

Approximate weight (shipping reference)

• Estimated weight: ~0.10 kg

This is an estimate based on the part’s apparent size and typical material density for cup-style protective components. If you need a strict packing list weight for logistics, tell us your preferred carrier and packaging standard and we’ll align it during quotation through 3GEN Export.

Ordering the 3060 MUX SECTION CUP ATLAS COPCO from 3GEN Export

When you order through 3GEN Export, you’re buying from an OEM supplier focused on speed and global reach:

• Worldwide delivery in 5 working days

• Export-ready packaging and documentation support

• Suitable supply for workshop stocking or project-based maintenance planning

To avoid delays, include in your message:

• Your drill model (e.g., COP 3060MUX / related family)

• If possible: serial range or equipment configuration notes

• Quantity required and destination country

FAQs

Is the 3060 MUX SECTION CUP ATLAS COPCO a sealing part or just a cover?

In real-world use, it behaves as both: it’s primarily a protective barrier, but by controlling pathways for dust and moisture, it supports sealing performance around the MUX section.

Can I reuse the 3060 MUX SECTION CUP ATLAS COPCO after removal?

If it’s been compressed, exposed to grit, and removed, reuse is risky. Minor lip deformation is enough to compromise the barrier. Replacement is typically the smarter choice.

Why does this small component matter so much?

Because contamination is cumulative. Small entry points lead to larger service costs later. The 3060 MUX SECTION CUP ATLAS COPCO is a low-cost line of defense against expensive wear.
