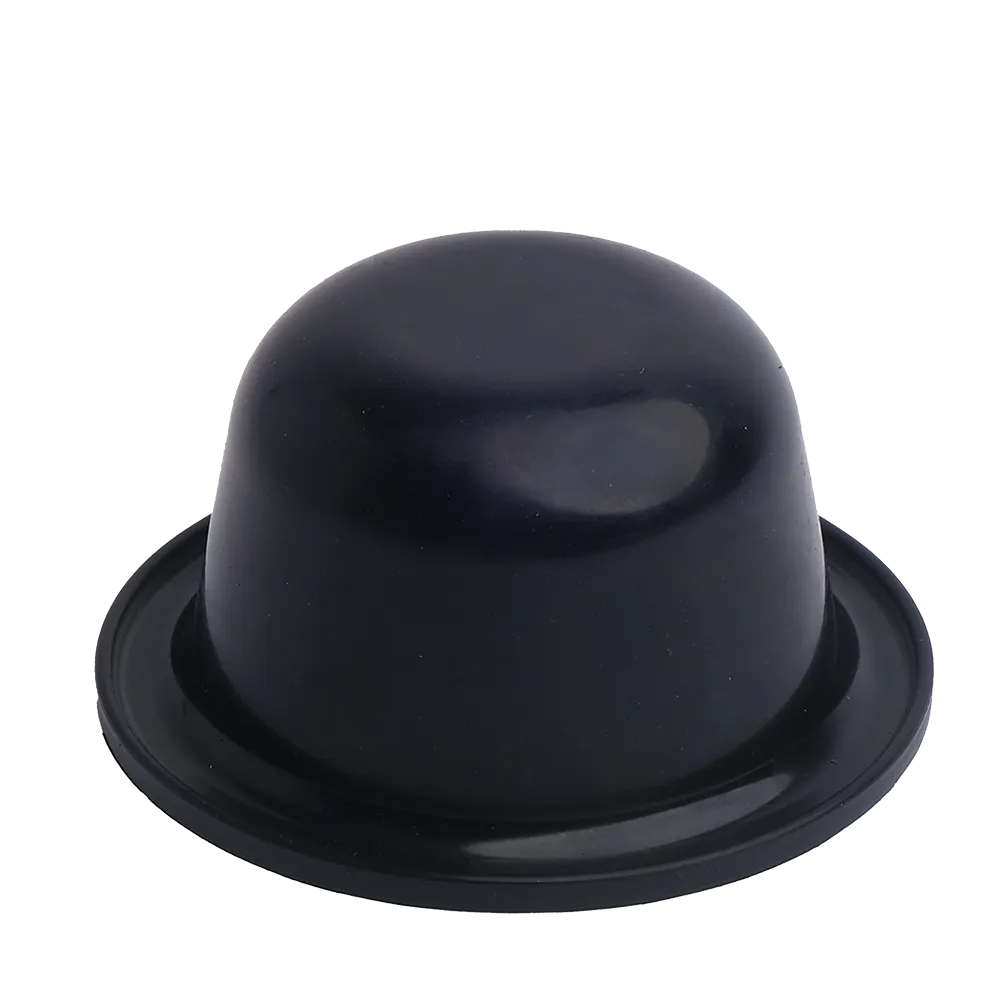

3115247200, 3115 2472 00 Diaphragm Atlas Copco

$525.00
Brand: Atlas Copco
Category: Rubber & Suspension Components
Part Number: 3115247200
Availability: In Stock

Description

3115247200 DIAPHRAGM ATLAS COPCO (Also referred to as 3115 2472 00 Diaphragm for Atlas Copco Rock Drill Equipment) Overview of 3115247200 DIAPHRAGM ATLAS COPCO The 3115247200 DIAPHRAGM ATLAS COPCO is a critical pneumatic component designed to regulate, isolate, and stabilize air or hydraulic pressure within Atlas Copco’s advanced drilling systems. Acting as a flexible membrane, this diaphragm provides accurate pressure balancing between the hydraulic and pneumatic chambers, ensuring consistent performance, reduced vibration, and improved system efficiency in the toughest industrial conditions. At 3GEN Export , we supply the 3115 2472 00 Diaphragm Atlas Copco as an OEM-quality replacement part that meets the exact dimensional and material specifications required by Atlas Copco machinery. Manufactured from high-resilience elastomeric compounds and reinforced with synthetic layers, this diaphragm delivers exceptional durability, elasticity, and sealing capability, critical for maintaining precise pressure control in rock drills and compressors operating under extreme load cycles. Engineering Design and Material Excellence Advanced Polymer Technology The 3115247200 DIAPHRAGM ATLAS COPCO is engineered using high-grade nitrile-butadiene rubber (NBR) blended with special additives to provide a perfect balance of elasticity, tensile strength, and chemical resistance. This material is resistant to mineral oils, hydraulic fluids, and compressed air contaminants, making it ideal for continuous use in drilling environments characterized by high pressure and rapid pulsations. The diaphragm’s geometry ensures equal force distribution during compression and expansion cycles, minimizing material fatigue and preventing deformation. Its precision-molded profile allows for seamless fitment within diaphragm chambers, maintaining a tight seal that prevents air leakage and pressure instability. Reinforced Structural Layer Inside the 3115 2472 00 Diaphragm Atlas Copco , a layer of textile-reinforced fabric provides mechanical support, enhancing rupture resistance and dimensional stability. This reinforcement enables the diaphragm to operate efficiently under pressure ranges exceeding 20 bar while maintaining flexibility and responsiveness. The integration of reinforced layers also ensures stable operation even when subjected to temperature fluctuations between –30°C and +120°C , a range common in deep drilling or high-altitude operations. Functional Role in Atlas Copco Systems The 3115247200 Diaphragm Atlas Copco serves as a pressure regulator and isolation barrier in several pneumatic and hydraulic assemblies within Atlas Copco’s rock drills, compressors, and drifter systems. Its key functions include: Pressure Separation: Isolates hydraulic and pneumatic fluids, preventing cross-contamination between systems. Flow Regulation: Maintains smooth and consistent air delivery to control valves and actuators. Vibration Damping: Reduces pulsations generated by reciprocating pistons during drilling. System Efficiency: Enhances drilling accuracy and machine responsiveness by ensuring constant pressure balance. This diaphragm plays a crucial role in protecting sensitive mechanical components from overpressure or fluid intrusion, ensuring optimal drilling stability and extended component lifespan. Technical Specifications Specification Details Part Number 3115247200 / 3115 2472 00 Product Type Pneumatic / Hydraulic Diaphragm Material Composition Nitrile Rubber (NBR) with Reinforced Fabric Temperature Range –30°C to +120°C Operating Pressure Up to 20 bar Outer Diameter As per OEM standard Inner Sealing Lip Precision-molded elastomer for tight sealing Compatibility Atlas Copco Rock Drills, Compressors, and Pneumatic Units Weight Approximately 0.145 KG Supplier 3GEN Export (OEM Supplier for Heavy Machinery Spare Parts) Delivery Time 5 Working Days Worldwide Compatibility with Atlas Copco Models The 3115247200 DIAPHRAGM ATLAS COPCO is compatible with a wide range of drilling and rock excavation equipment, particularly those utilizing pneumatic and hydraulic pressure control systems. Common applications include: Atlas Copco COP 1838 / COP 2238 / COP 3038 Drifters Atlas Copco ROC L6, ROC L8, ROC D7C Drilling Rigs Atlas Copco Boomer 282, Boomer 353E Underground Drill Rigs Atlas Copco Simba M4 and Simba S7 Production Drilling Systems Atlas Copco Air Compressors and Rock Drill Feed Assemblies Each of these models relies on the diaphragm’s ability to maintain consistent internal pressure and isolate chambers that manage feed control, percussion force, and lubrication distribution. Performance and Advantages 1. Superior Pressure Regulation The 3115 2472 00 Diaphragm Atlas Copco ensures precise and dynamic control over air or oil pressure transitions, eliminating pressure surges that can disrupt drilling operations or damage valves and seals. 2. Enhanced Durability and Fatigue Resistance Its multi-layered structure resists cracking, delamination, and tearing under cyclic loading, extending operational lifespan by up to 30% compared to standard rubber diaphragms. 3. Excellent Elastic Memory The diaphragm quickly returns to its original shape after repeated deformation cycles, maintaining consistent elasticity and sealing performance over thousands of operating hours. 4. Corrosion and Chemical Resistance Engineered to withstand exposure to drilling oils, water vapor, and hydraulic fluids without swelling or chemical degradation, ensuring reliability in all working environments. 5. Cost-Effective and Maintenance-Friendly Easy to install and replace without special tools, this diaphragm reduces downtime and service costs while improving overall machine reliability. How the Diaphragm Works in Atlas Copco Drilling Systems The 3115247200 Diaphragm Atlas Copco operates by flexing between pressure chambers to transmit force and balance air flow. When air or hydraulic pressure acts on one side, the diaphragm deflects proportionally, maintaining a steady output on the other side. This ensures: Consistent feed force for drilling depth accuracy. Reduced vibration transmission to the operator’s cabin and drilling frame. Protection of valves and seals from overload pressures. In rock drill applications, this diaphragm ensures that the percussion system receives a stable supply of pressurized air, which directly affects drilling speed and accuracy. Installation and Maintenance Installation Steps Clean Chamber Surfaces: Remove old gasket material and ensure both sealing surfaces are clean and free from oil residue. Lubricate Lightly: Apply a thin film of compatible grease to the diaphragm edges to prevent pinching during installation. Align Properly: Center the 3115 2472 00 Diaphragm Atlas Copco within its housing groove to ensure an even seal. Secure Assembly: Tighten the chamber cover gradually using cross-pattern torque to avoid distortion. Pressure Test: Run the system at low pressure to verify the diaphragm’s sealing performance before full operation. Maintenance Guidelines Inspect the diaphragm every 500 operating hours for signs of swelling or wear. Replace if visible cracks or deformation are detected. Use only compatible lubricants to maintain material elasticity. Store spares in a cool, dry, UV-protected environment to prevent premature aging. Proper care ensures long-lasting pressure stability and reduces costly downtime in field operations. Manufacturing Precision and Quality Control Every 3115247200 DIAPHRAGM ATLAS COPCO supplied by 3GEN Export undergoes rigorous production and testing processes that adhere to international OEM standards: Compression Molding: Ensures dimensional consistency and uniform thickness. Tensile and Burst Testing: Verifies elasticity and resistance to tearing. Aging Simulation: Tests for temperature and oil exposure endurance. Air Pressure Leak Test: Confirms 100% sealing capability before dispatch. These manufacturing steps guarantee flawless performance and extended lifespan under challenging drilling conditions. Packaging and Worldwide Delivery Each 3115247200 / 3115 2472 00 Diaphragm Atlas Copco is carefully packed in an anti-static, moisture-resistant sealed bag to prevent contamination or deformation during shipment. Every unit includes a part label with barcode, manufacturing batch, and inspection certification. Through 3GEN Export’s global logistics network , all diaphragms are delivered worldwide within 5 working days , ensuring fast replacement and minimal downtime for your Atlas Copco machinery. Why Choose 3GEN Export As a global leader in heavy machinery spare parts supply , 3GEN Export specializes in providing OEM-standard components for brands such as Atlas Copco, Sandvik, Komatsu, and Caterpillar. Our diaphragms and hydraulic components are developed to match or exceed factory specifications in performance, reliability, and endurance. Key Advantages: OEM-grade quality and testing Fast worldwide shipping (5 working days) 1-year product warranty Expert compatibility verification for Atlas Copco models Secure international transactions and full export documentation 3GEN Export stands for precision, reliability, and service excellence, delivering professional-grade spare parts that support continuous drilling operations globally. Cross References The 3115247200 Diaphragm Atlas Copco may also appear under the following alternative or regional references: 3115-2472-00 31152472-00 Diaphragm for Atlas Copco Pneumatic Chamber Assembly Air Regulator Membrane 3115247200 Always verify your machine’s serial number or assembly code before ordering to ensure correct fitment. Conclusion The 3115247200 DIAPHRAGM ATLAS COPCO is more than just a sealing component, it’s an essential part of the precision engineering that drives Atlas Copco drilling systems. Built to withstand extreme operational pressures, its advanced elastomer composition and reinforced structure guarantee lasting flexibility, accuracy, and performance. As an OEM supplier , 3GEN Export ensures that every diaphragm meets international standards of quality and durability while offering fast global delivery within 5 working days . Choosing 3GEN means investing in reliability, efficiency, and the long-term health of your Atlas Copco equipment. Weight: 0.145 KG Delivery: 5 Working Days Worldwide Supplier: 3GEN Export (OEM Supplier for Heavy Machinery Spare Parts) Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
