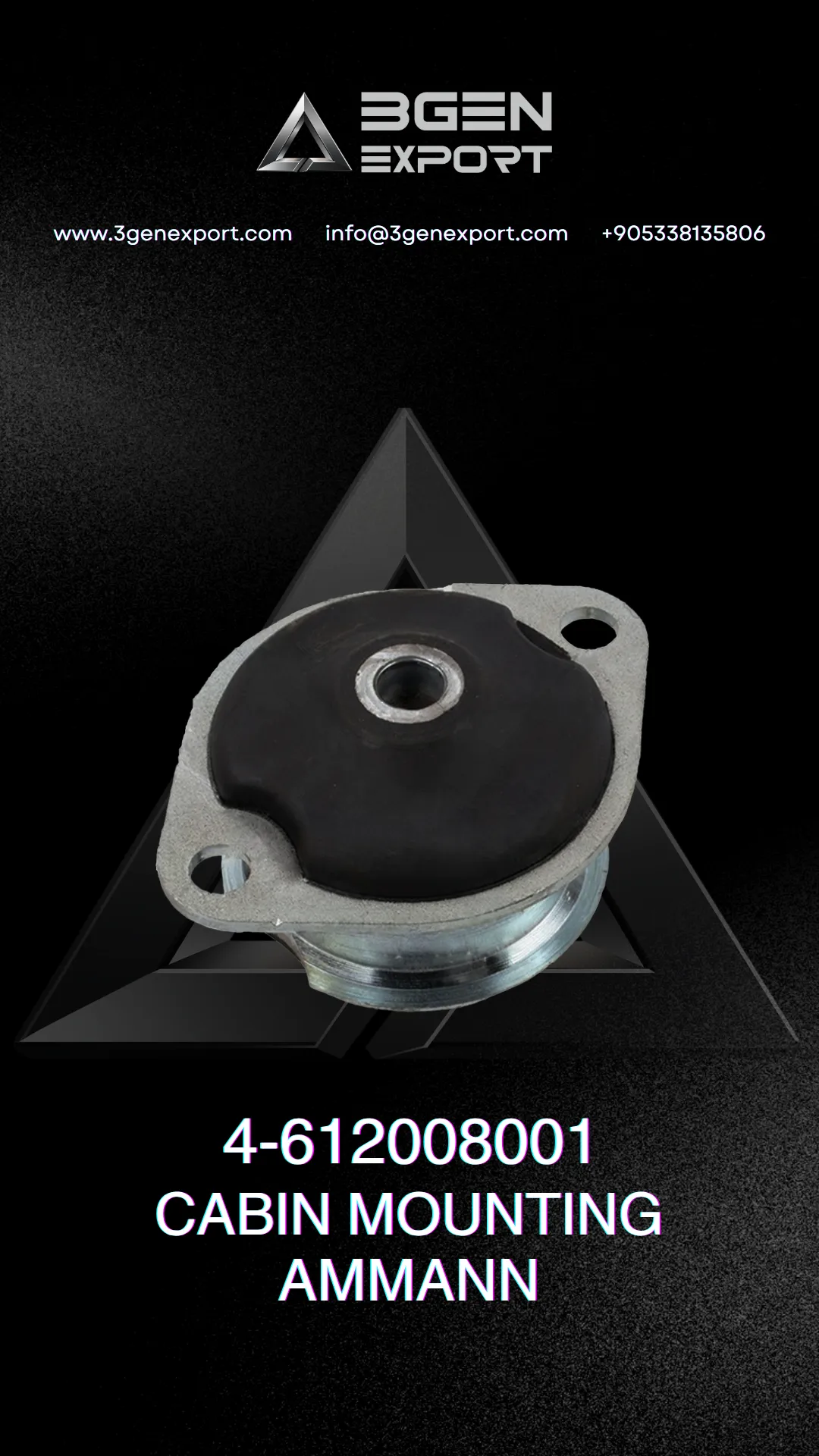

4612008001, 4-612008001 CABIN MOUNTING AMMANN

Overview

The 4612008001, 4-612008001 Cabin Mounting Ammann is a high-performance vibration isolator specifically designed for Ammann heavy machinery cabins. Its main function is to absorb shock and vibration between the cabin structure and chassis, providing operators with superior comfort and improved machine durability during long hours of operation. Constructed with a robust steel core and premium-grade rubber compound, this cabin mounting ensures effective vibration damping across all operational frequencies. Supplied by 3GEN Export as an OEM-standard replacement part, the 4-612008001 Cabin Mounting Ammann delivers precise compatibility and exceptional longevity. Designed for use in Ammann compaction and road construction equipment, it ensures stable cabin support even under extreme conditions such as uneven terrain and high mechanical load cycles.

Function and Importance

Cabin mountings play a critical role in operator comfort and machine integrity. The 4-612008001, 4612008001 Cabin Mounting Ammann is positioned between the machinery’s cabin frame and main chassis to isolate vibration generated by the engine, hydraulic system, and drum assembly. By reducing transmission of oscillations, it helps maintain cabin stability and minimizes noise, fatigue, and mechanical stress.

• Absorbs vibration and mechanical shock from the engine and frame.
• Reduces operator fatigue and improves control precision.
• Prevents structural deformation of the cabin mounting points.
• Enhances lifespan of electronics and control panels by limiting vibration exposure.
• Maintains operator comfort even under prolonged heavy-duty usage.

Design and Material Composition

The 4612008001, 4-612008001 Cabin Mounting Ammann is built using a dual-composition system of vulcanized rubber and precision-machined steel plates. This construction provides an excellent balance between elasticity and load-bearing capacity. Each mounting undergoes advanced vulcanization to guarantee perfect adhesion between the rubber and metal surfaces.

• Core Material: Hardened carbon steel with anti-corrosion zinc coating.
• Elastomer: Industrial-grade rubber compound optimized for dynamic load absorption.
• Structure: Round base with upper and lower flanges and central steel bushing.
• Mounting Type: Bolt-through design for secure chassis connection.
• Finish: Galvanized and treated for corrosion resistance and environmental durability.

Technical Specifications

Part Number	4-612008001
Alternative PN	4612008001
Part Name	Cabin Mounting
Brand	Ammann
Application	Cabin-to-chassis vibration isolation system
Material	Vulcanized rubber bonded to carbon steel
Hardness	60 ±5 Shore A
Approx. Dimensions	Ø 75 × 45 mm
Weight	1.94 kg (≈ 4.27 lbs)
Temperature Range	−30 °C to +100 °C
Load Capacity	400–600 N static load
Finish	Zinc-coated with anti-corrosive surface protection

Compatible Ammann Models

The 4-612008001 Cabin Mounting Ammann is compatible with multiple Ammann compaction and road machinery models, providing stable cabin support and vibration isolation across various equipment configurations. Common compatible models include:

• Ammann ARX16 / ARX20 / ARX23 Tandem Rollers
• Ammann AV26-2 / AV70 / AV95 Series Rollers
• Ammann ASC70 / ASC90 / ASC110 Soil Compactors
• Ammann AP240 Pneumatic Tyred Rollers
• Ammann ARP95 / ARP120 Pivot-Steer Rollers

This mounting can also be cross-applied in similar Ammann chassis platforms where identical cabin isolation configurations are used.

Installation and Maintenance

Proper installation of cabin mountings is essential for vibration control efficiency and operator comfort. The 4-612008001 Cabin Mounting Ammann should be installed following OEM torque and orientation specifications to prevent uneven compression or rubber deformation.

1. Clean both cabin and chassis mounting surfaces before installation.
2. Align the bushing center with the corresponding bolt position.
3. Install using OEM torque settings to avoid excessive preload.
4. Inspect rubber sections for cracks or separation during each maintenance interval.
5. Replace after 2000–2500 operating hours or when significant wear appears.

Routine inspection of mountings is critical in preventing vibration transfer that could damage electrical components, control levers, or cabin frames.

Performance Advantages

Enhanced Operator Comfort

By isolating cabin movement from the machine’s vibrations, the 4-612008001 Cabin Mounting Ammann provides smoother control experience and significantly reduces fatigue during prolonged operation.

Machine Longevity

Effective vibration absorption reduces structural stress across mounting points and weld joints, extending the service life of both the cabin and chassis assembly.

Noise and Vibration Reduction

The precision-engineered rubber compound minimizes structure-borne noise and vibration resonance, resulting in a quieter, more efficient working environment.

Applications

• Road and asphalt compaction machinery
• Soil and landfill compactors
• Hydraulic-driven tandem rollers
• Industrial-grade Ammann construction vehicles
• Heavy road maintenance machinery

Quality Control and Testing

Every 4-612008001 Cabin Mounting Ammann provided by 3GEN Export undergoes extensive quality assurance tests. These include vibration endurance testing, tensile stress testing, compression load evaluation, and thermal aging simulation. Each unit is verified for adhesion integrity between the metal and rubber interface to ensure long-term performance in field conditions. All manufacturing partners comply with ISO 9001 and ISO/TS 16949 quality standards, ensuring consistent production quality equivalent to original equipment specifications. Each mounting is traceable through a batch number for quality tracking and maintenance record integration.

Packaging and Shipping

Each cabin mounting is packaged individually in moisture-resistant film and sealed in reinforced cartons to prevent deformation or surface damage. Products are labeled with the part number, description, and batch code for efficient warehouse management. 3GEN Export provides worldwide delivery within 5 working days via its international logistics network, ensuring fast, reliable, and secure shipping to all destinations.

Why Choose 3GEN Export

• OEM-standard cabin mountings compatible with Ammann machinery.
• High-quality rubber and steel construction for long-term durability.
• Tested for vibration damping, corrosion resistance, and performance.
• Global supply with express delivery in 5 working days.
• Dedicated technical assistance for model compatibility confirmation.

As a trusted global Marketplace of Heavy Machinery Spare Parts, 3GEN Export offers reliable, cost-effective, and technically superior solutions for construction equipment operators, distributors, and contractors worldwide.

Internal Links

Discover more Ammann Spare Parts and browse our range of Rubber & Cabin Mountings for compatible vibration control components.

Weight

1.94 kg (4.27 lbs)

Summary

The 4-612008001 Cabin Mounting Ammann is a robust vibration isolator designed to improve machine performance and operator comfort in Ammann compactors and rollers. Built from premium rubber and corrosion-resistant steel, it ensures excellent vibration damping and long-term durability. Available now from 3GEN Export — your trusted OEM supplier offering global delivery in 5 working days.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
