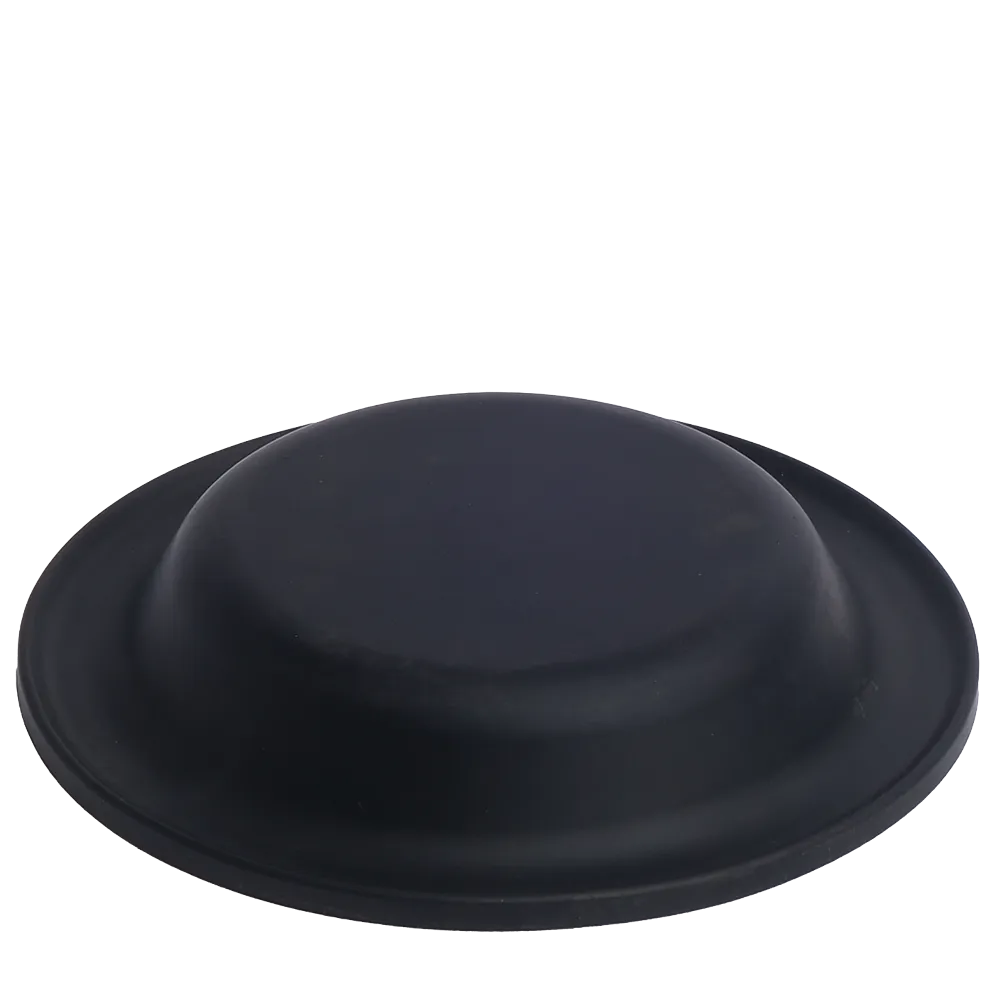

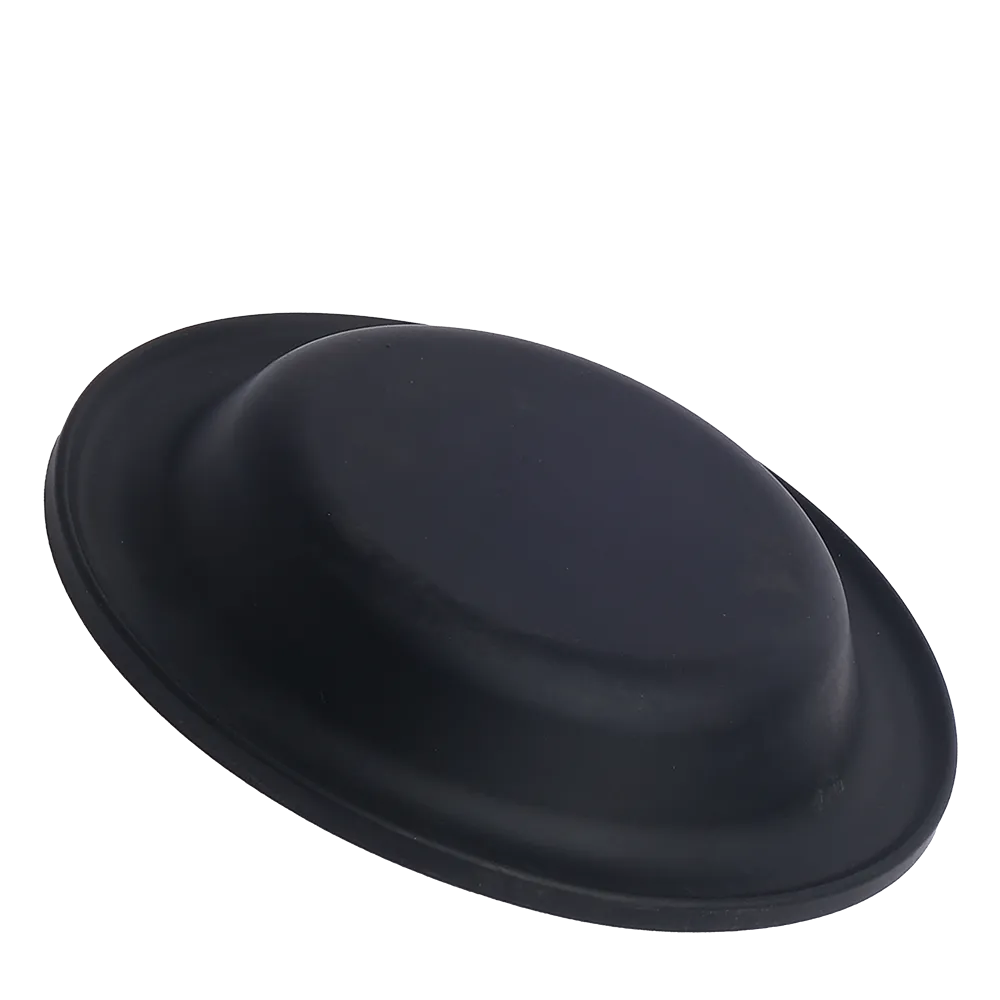

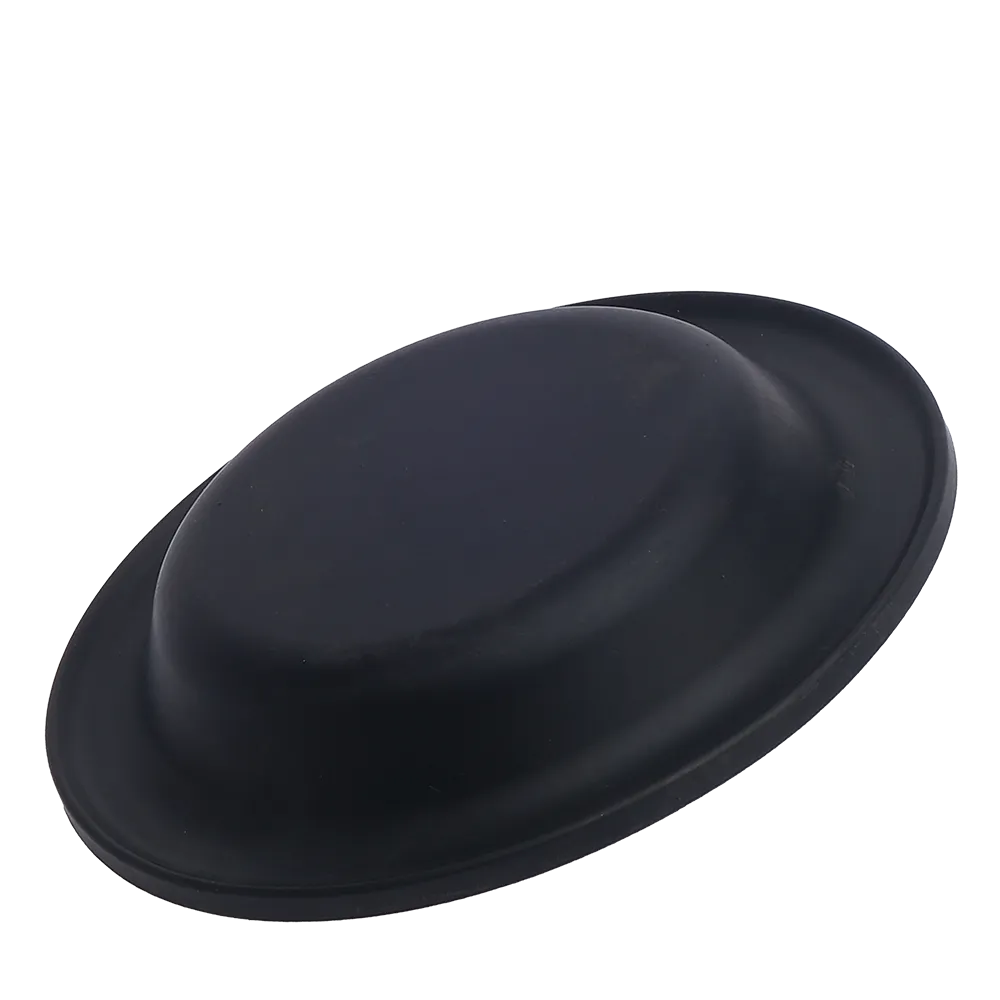

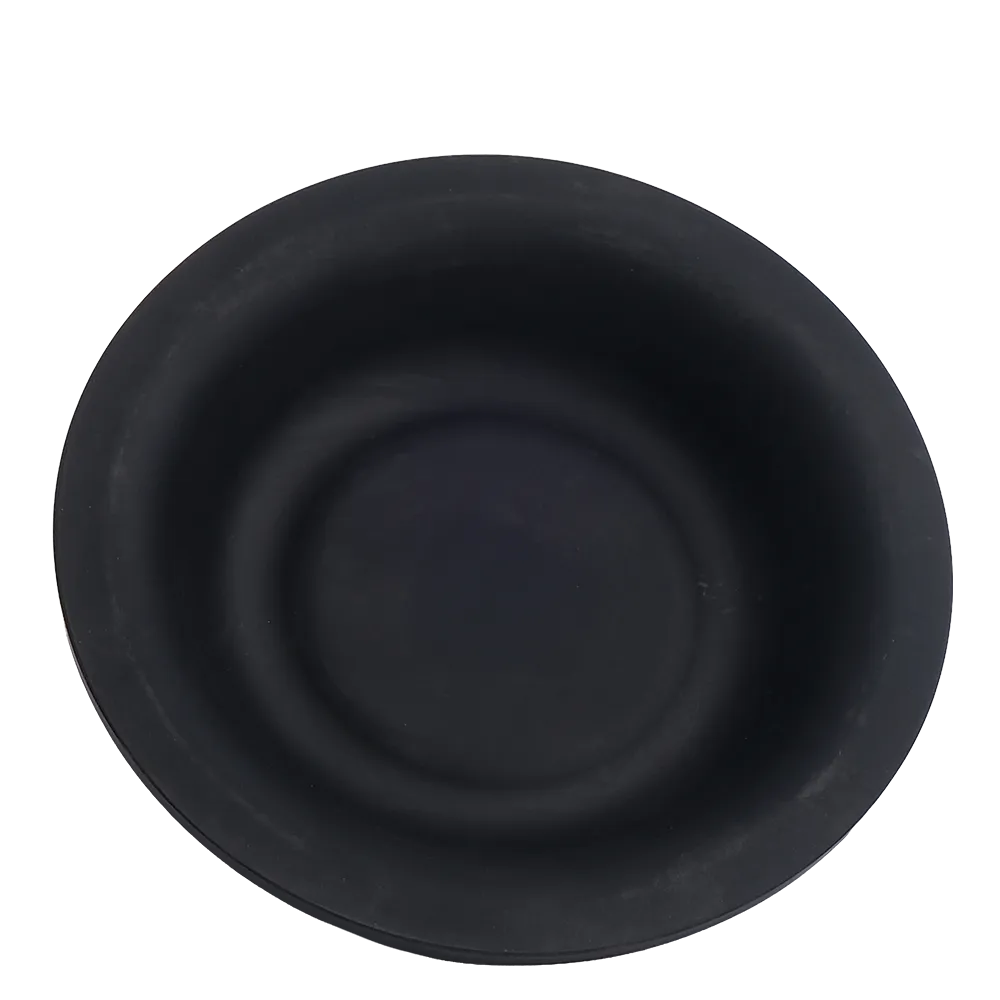

DIAPHRAGM MONTABERT YH ATLAS COPCO

The DIAPHRAGM MONTABERT YH ATLAS COPCO is a high-performance hydraulic sealing component engineered for precision, reliability, and endurance in heavy-duty drilling systems. Designed for use in Atlas Copco and Montabert hydraulic rock drills, this diaphragm ensures smooth pressure transfer, fluid separation, and superior vibration absorption under extreme working conditions.

Manufactured to meet OEM-level quality and performance expectations, it offers exceptional resistance against hydraulic fatigue, oil degradation, and temperature fluctuation — making it an essential part of the hydraulic accumulator and damping systems in rock drills.

Supplied exclusively by 3GEN Export, this diaphragm combines engineering accuracy with global logistics efficiency, guaranteeing fast worldwide delivery within five working days.

---

H2: Product Overview

In every hydraulic drilling system, diaphragms act as the critical sealing interface between the oil and gas chambers inside accumulators or damping units. The DIAPHRAGM MONTABERT YH ATLAS COPCO is specifically designed for the Atlas Copco YH and Montabert drifter series to maintain consistent energy transfer and absorb high-pressure pulses generated during percussion cycles.

Its advanced elastomer construction allows flexible movement while retaining its form under thousands of rapid compression cycles. This elasticity prevents hydraulic shockwaves from damaging other components such as pistons, bushings, and seals.

When installed correctly, it extends the entire system’s lifespan, enhances drilling stability, and reduces overall maintenance downtime.

---

H2: Technical Specifications

• Part Name: DIAPHRAGM MONTABERT YH ATLAS COPCO

• Material: High-resilience Nitrile (NBR) or Hydrogenated Nitrile (HNBR) elastomer

• Application: Hydraulic accumulator / percussion damping system

• Operating Pressure: Up to 350 bar

• Temperature Range: -30 °C to +120 °C

• Burst Pressure: > 500 bar

• Compatibility: Atlas Copco YH & Montabert hydraulic drifters

• Weight: 0.35 kg

• Shape: Concave-dome with reinforced sealing lip

• Elastic Recovery: > 95 % after 10 000 cycles

• Oil Compatibility: Mineral-, synthetic-, and biodegradable-based hydraulic oils

• Mounting Method: Seated between accumulator housing halves

• Maintenance Interval: 2 000–2 500 hours (depending on drilling conditions)

---

H2: Function and Working Principle

During drilling, hydraulic energy is constantly converted into mechanical impact energy by the drifter. Within this process, pressure fluctuations cause potential damage to sensitive components. The DIAPHRAGM MONTABERT YH ATLAS COPCO serves as a protective buffer, separating the nitrogen gas chamber from the hydraulic oil chamber.

When hydraulic pressure rises, the diaphragm flexes to compress the gas chamber, storing energy that will be released once the pressure drops. This movement smooths pressure spikes, stabilizes the percussion cycle, and ensures efficient energy recovery.

In short:

• It absorbs hydraulic shocks,

• Stabilizes pressure flow,

• Protects seals, valves, and pumps, and

• Improves drilling consistency and accuracy.

---

H2: Design and Material Quality

The diaphragm’s material is the cornerstone of its performance. The DIAPHRAGM MONTABERT YH ATLAS COPCO is crafted from industrial-grade elastomer reinforced with synthetic fibers to ensure high tensile strength and fatigue resistance.

Key design features include:

• Oil-resistant rubber composition that withstands mineral and synthetic hydraulic fluids.

• High-elastic dome structure for maximum gas compression and rebound.

• Precision-molded sealing edge for secure seating and zero leakage.

• Thermal stability that prevents material hardening under continuous heat exposure.

Each diaphragm is compression-molded using advanced tooling for uniform wall thickness and consistent elasticity — ensuring balanced performance across multiple drilling cycles.

---

H2: Advantages of Using DIAPHRAGM MONTABERT YH ATLAS COPCO

1. Enhanced Hydraulic Stability: Prevents sudden pressure drops and surges, ensuring constant power output.

2. Extended Component Life: Protects sensitive parts such as pumps, accumulators, and valves from hydraulic shock.

3. Low Maintenance: Long service intervals reduce downtime and total operating cost.

4. High Chemical Resistance: Compatible with a wide range of hydraulic fluids and additives.

5. Superior Temperature Tolerance: Performs reliably in both arctic and tropical drilling environments.

6. Consistent Elastic Memory: Maintains form and flexibility even after thousands of cycles.

---

H2: Compatibility with Atlas Copco & Montabert Models

The DIAPHRAGM MONTABERT YH ATLAS COPCO fits seamlessly into a range of hydraulic systems across multiple models, including:

Atlas Copco Rock Drills

• YH 100 Drifter

• YH 120 Drifter

• YH 150 Drifter

• YH 200 Series

• YH D45 and YH D55 Percussive Units

• Boomer T1 and T2 Series

• ROC D3 and D5 Surface Drills

Montabert Drifters

• HC 20 Series

• HC 28 Series

• HC 50 and HC 60

• HC 95 Drifters

• HC 109 Hydraulic Rock Drills

Because of its standard interface design, it can also be adapted for compatible drifters used in hybrid or re-engineered Atlas Copco–Montabert configurations.

---

H2: Installation Guide

To ensure maximum performance and durability, follow the proper installation procedure:

1. Depressurize the accumulator and remove all residual hydraulic pressure.

2. Clean both housing surfaces to remove oil, metal dust, or debris.

3. Insert the diaphragm centrally, ensuring equal alignment along the seat perimeter.

4. Reassemble and torque bolts to the specified value (refer to the drilling unit manual).

5. Pre-charge with nitrogen gas according to machine specification — never with compressed air.

6. Perform leak and pressure tests before re-commissioning the system.

---

H2: Maintenance and Replacement

The diaphragm should be inspected at regular intervals based on the working hours and the drilling environment. Visual indicators of wear include:

• Surface hardening or cracks

• Loss of elasticity or deformation

• Oil leakage between housing flanges

Routine inspection ensures early detection of wear, preventing sudden hydraulic failure. Replacement is recommended every 2 000–2 500 hours or during major hydraulic maintenance cycles.

---

H2: Engineering and Quality Assurance

Each DIAPHRAGM MONTABERT YH ATLAS COPCO supplied by 3GEN Export undergoes strict quality control and laboratory testing. Every batch is checked for:

• Tensile strength and elongation capacity

• Oil absorption and swelling ratio

• Pressure retention at 350 bar

• Gas permeability resistance

• Dimensional tolerance within ±0.05 mm

This ensures complete reliability and compatibility with original accumulator systems, while maintaining affordable OEM-level pricing.

---

H2: Typical Field Applications

The diaphragm’s versatility allows its use in multiple applications beyond rock drilling:

• Mining Operations: Hydraulic percussion control in open-pit and underground drills.

• Tunneling: Absorption of high-frequency shocks in confined drilling systems.

• Quarrying: Maintains consistent impact energy in surface extraction.

• Construction & Foundation Work: Used in anchor drilling and pile foundation rigs.

Its superior resilience under vibration and pressure also makes it suitable for specialized hydraulic accumulators in industrial machinery.

---

H2: Performance Under Pressure

Laboratory and field tests confirm that the DIAPHRAGM MONTABERT YH ATLAS COPCO maintains structural integrity after more than 10 000 pressure cycles between 0 and 350 bar.

This longevity translates to:

• Reduced system fatigue

• Fewer hydraulic failures

• Consistent percussion output

• Better fuel efficiency in hydraulic circuits

Such resilience makes it a dependable choice for long-term use in demanding drilling environments worldwide.

---

H2: OEM Supply & 3GEN Export Advantage

As a global OEM supplier, 3GEN Export delivers precision-engineered spare parts designed for seamless integration into heavy machinery.

Why choose 3GEN Export:

• Worldwide delivery within 5 working days

• OEM-level engineering standards

• Full traceability and part certification

• Secure international packaging

• Professional after-sales support

Each DIAPHRAGM MONTABERT YH ATLAS COPCO is stocked, packaged, and shipped through 3GEN Export’s centralized logistics centers for rapid dispatch to over 60 countries.

---

H2: Packaging and Logistics

To ensure product safety during transport:

• Each diaphragm is sealed in an anti-static vacuum bag.

• A desiccant pack prevents moisture contamination.

• Products are boxed in shock-absorbent packaging with labeled barcodes and QR tracking.

Standard shipping options cover Europe, Asia, Africa, and the Americas with full tracking and customs documentation.

---

H2: Sustainability and Material Responsibility

3GEN Export maintains eco-efficient manufacturing principles:

• Diaphragms are produced using non-toxic elastomers free from PFCs and phthalates.

• Production waste is recycled in closed-loop systems.

• Packaging materials are 100 % recyclable.

Sustainability is integral to the company’s engineering philosophy, balancing industrial durability with environmental responsibility.

---

H3: Summary of Technical Benefits

---

H2: Conclusion

The DIAPHRAGM MONTABERT YH ATLAS COPCO represents a vital element in maintaining hydraulic precision, stability, and longevity in rock drilling operations. Its superior elastomer composition, proven field durability, and precision-fit compatibility with multiple Atlas Copco and Montabert models make it indispensable for performance-oriented maintenance teams.

Supplied exclusively by 3GEN Export, this diaphragm delivers OEM-grade performance backed by strict quality control, transparent documentation, and worldwide shipping within five working days.

For any mining, quarrying, or construction operation requiring reliable hydraulic accumulator performance, the DIAPHRAGM MONTABERT YH ATLAS COPCO offers the assurance of long-term reliability, reduced downtime, and consistent energy efficiency.

---

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
