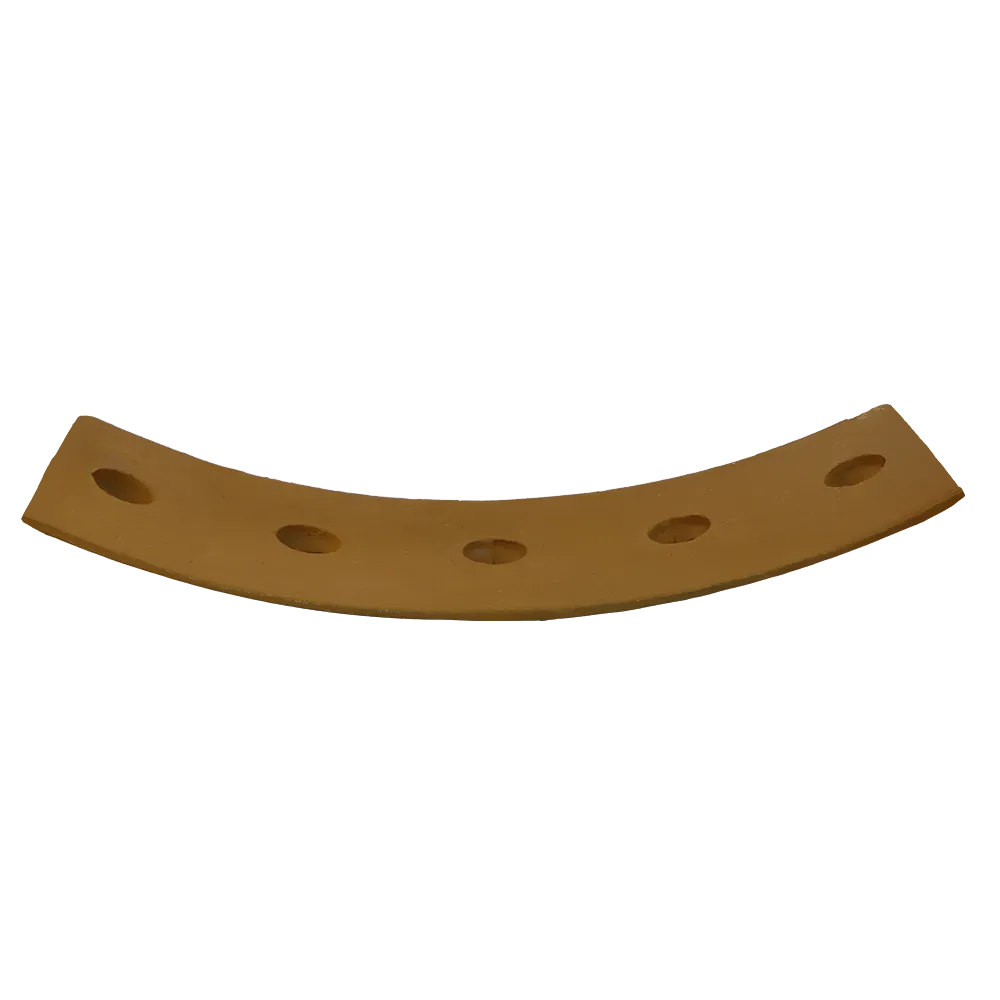

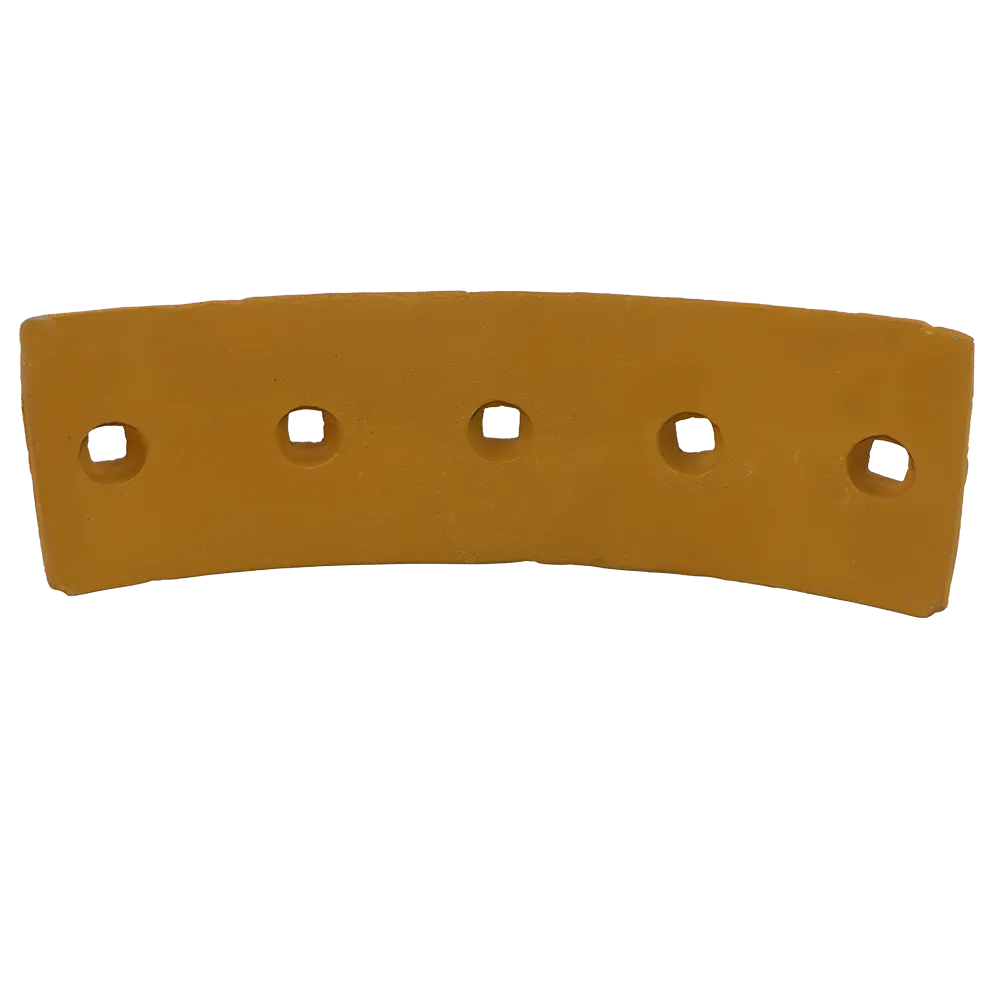

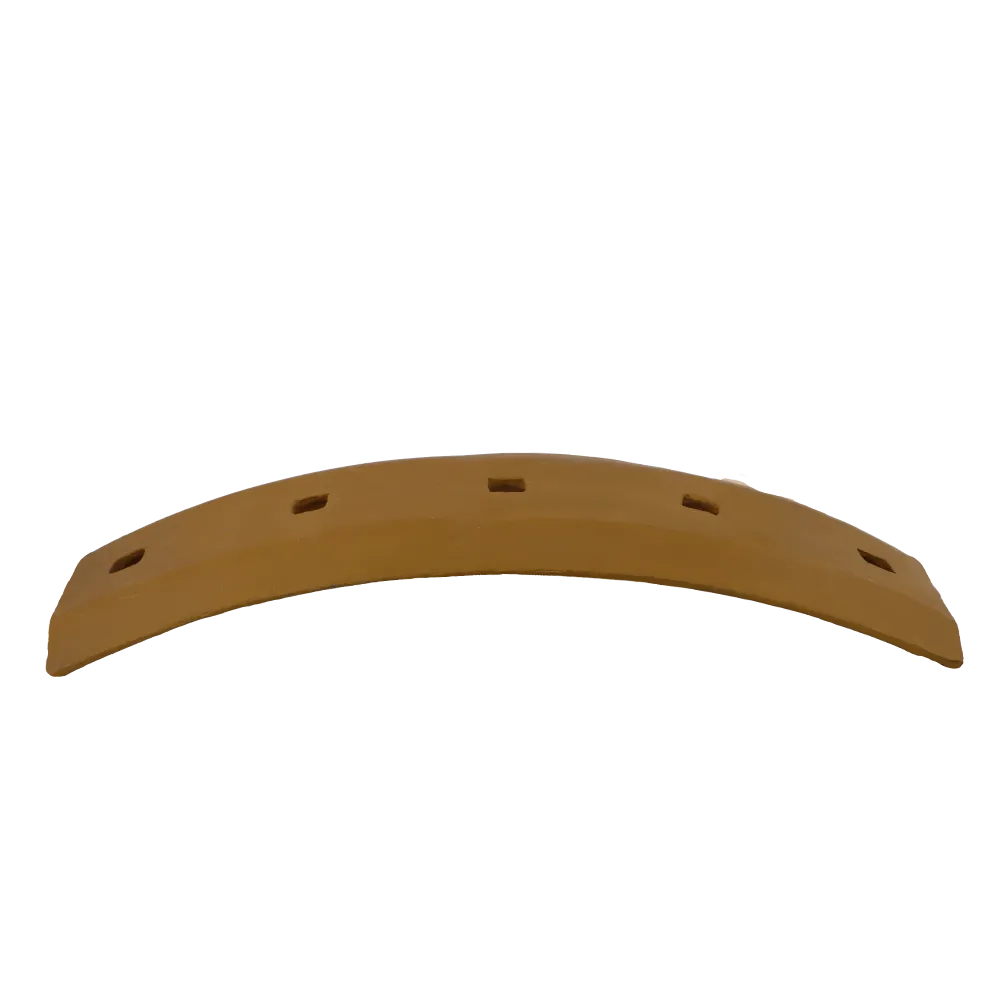

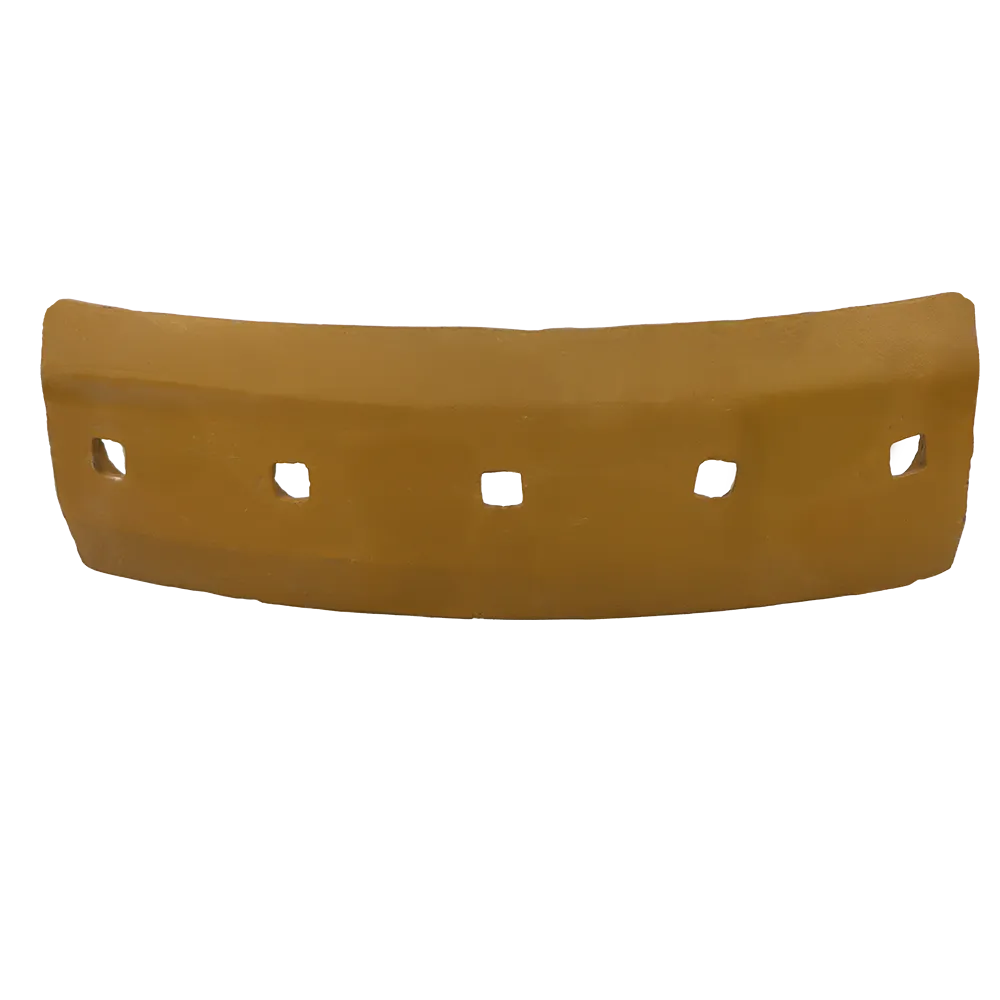

12745093 END PANEL VOLVO

$668.00
Brand: Volvo
Category: Spare Parts
Part Number: 12745093
Availability: In Stock

Description

12745093 END PANEL VOLVO The 12745093 END PANEL VOLVO is a curved cutting-edge side plate designed for Volvo motor graders that work every day in tough road-building, mining and construction environments. Mounted at the outer ends of the moldboard or side blade, this part protects the edge of the bucket or blade from extreme abrasion, keeps the profile of the cutting system correct, and helps material flow cleanly off the board instead of chewing into the side structure. At 3GEN Export, we supply this part as an OEM-quality replacement for professional fleets all over the world. The 12745093 END PANEL VOLVO we offer is built from high-strength wear steel, properly curved and drilled so it bolts straight on to compatible Volvo graders without modification. With our logistics network, we can ship this component and other Volvo wear parts to your site anywhere in the world within 5 working days. Where the 12745093 END PANEL VOLVO Works on Your Machine On a grader or machines equipped with similar blade systems, material constantly scrapes along the cutting edge and then exits at the sides. Those outer zones take a surprising amount of punishment: rocks slide and roll, compacted soil grinds away, and the operator often works with the blade angled, which throws even more force toward the ends. The job of this end plate is to: Shield the side of the moldboard and bucket from direct wear Keep the blade “long” at the outer corners, preventing early rounding-off Maintain a clean, continuous cutting profile from left to right Help material release smoothly instead of grabbing or building up Because it is a sacrificial wear item, the 12745093 END PANEL VOLVO is much cheaper to replace than the main moldboard or bucket edge. Swapping this plate at the right time preserves expensive structural components and keeps the grader performing like it should. Compatible Volvo Models This part number is widely used in the Volvo G900 grader family and related variants. It is listed as suitable for, or used on, the following models: Volvo G930 Volvo G930B Volvo G930C Volvo G940 Volvo G940B Volvo G940C Volvo G946 Volvo G946B Volvo G946C Volvo G960 Volvo G960B Volvo G960C Volvo G970 Volvo G976 Volvo G990 On these machines the 12745093 END PANEL VOLVO is typically fitted at the sides of the moldboard as a lateral cutting and protection plate. In parts catalogs it may also appear under the description “bucket side knife” or “end panel” depending on configuration. Operators should always confirm with their machine’s serial number and parts book, but if you run graders from the G900, G900B or G900C series, this reference is highly likely to be the correct side panel for your cutting assembly. Technical Characteristics and Design Heavy-Duty Wear Steel The panel is made from a high-strength alloy steel chosen for its ability to resist abrasion and impact. It has to endure: Continuous sliding contact with aggregates and soil Impact from scattered rocks and debris Occasional contact with obstacles, kerbs or compacted shoulders The steel is through-hardened or surface-hardened (depending on manufacturer spec) so it wears slowly and evenly instead of chipping or cracking under heavy loads. Curved Profile for Correct Blade Geometry The 12745093 END PANEL VOLVO is not a flat plate; it is pre-formed with a curvature that matches the moldboard profile of the grader. This matters for three big reasons: It maintains a smooth transition from the main cutting edge to the side section. Material follows the curve and rolls off cleanly instead of building up at the edge. The operator can rely on a consistent cutting angle across the full width of the blade. If an end panel is the wrong shape or poorly manufactured, you often see material ridges, irregular cutting, and more vibration at the ends of the board. With a precisely formed plate, grading feels controlled and predictable. Optimised Bolt Hole Layout The part features a row of precisely located square or round bolt holes along its length. These holes line up with the bolt pattern on the moldboard or side assembly of the grader. A good fit is key because: Proper clamping force ensures the plate stays tight, even under vibration. Correct spacing prevents stress concentrations in the panel and moldboard. Installation time is reduced because there is no need for on-site drilling or slotting. On Volvo G900 series graders, the 12745093 END PANEL VOLVO typically uses cutting-edge bolts and nuts that the operator or technician is already familiar with, so replacement is straightforward. Right-Hand and Left-Hand Use Depending on the specific blade configuration, this end plate can be used on either side of the cutting system or paired with a mirrored counterpart. Some graders mount two of these panels, while others combine one panel with a slightly different pattern on the opposite side. Always check the catalog illustration but, in many setups, the 12745093 reference will appear at the outer positions on both ends. Physical Specifications Approximate Dimensions Exact dimensions can vary slightly between manufacturers, but this end plate is typically: Long enough to cover a significant portion of the moldboard side edge Thick enough to offer serious wear life while still accepting standard cutting-edge bolts Curved to match the grader moldboard radius If you need precision dimensions for engineering checks or custom attachments, 3GEN Export can provide detailed measurements for the version we supply. Weight The approximate weight of the 12745093 END PANEL VOLVO is 7.2 kg (7,210 g). Knowing the weight is useful when calculating shipping costs, planning lifting/handling, and estimating wear-part inventory. How the 12745093 END PANEL VOLVO Improves Performance Longer Moldboard Life The moldboard and main cutting edge are expensive structural components. By letting the end panel take most of the punishment at the corners, those core parts are protected. You effectively move the wear zone onto a relatively cheap and easily replaceable component. Better Grading Accuracy When the ends of the blade start to round off or become scalloped, it becomes harder to cut neat shoulders, ditches and slopes. New side plates restore the original straight, crisp line at the edge of the board. That means: Cleaner passes Fewer windrows or ridges More accurate crown and slope creation For contractors who specialise in road building or fine grading, this matters a lot in terms of finish quality and rework costs. Smoother Material Flow A worn or damaged edge creates turbulence and build-up as material tries to leave the moldboard. The curved design of the 12745093 END PANEL VOLVO helps soil and stone roll off smoothly. This reduces drag on the machine, improves fuel efficiency and reduces the chance of material clumping at the ends of the blade. Structural Protection During Side Loads Grader operators often work with the moldboard angled and offset. That means side loads on the blade are common, especially when cutting ditches or working up against banks and shoulders. The end panel acts as a buffer when the machine encounters lateral forces or hits an obstruction near the side of the board. Instead of bending the moldboard edge, the impact is taken by the replaceable plate. Typical Working Environments Machines using the 12745093 END PANEL VOLVO are often found in: Highway and road construction projects Municipal maintenance fleets Mining haul road maintenance teams Quarry access road preparation Industrial sites requiring precise surface preparation In all of these situations, the graders deal with a mix of gravel, crushed rock, compacted fill and soil with varying moisture levels. Side plates must stand up to long operating hours, abrasive material and sometimes harsh climates. The steel and geometry of this panel have been selected with those realities in mind. Installation and Replacement Guidelines Safety First When replacing side plates, always park the grader on level ground, secure the moldboard in a stable position, and use appropriate lock-out procedures. Cutting edges and panels are heavy and have sharp edges, so gloves and eye protection are essential. Removing the Old Panel Clean the area around the bolts to remove packed dirt and rust. Loosen and remove the cutting-edge bolts that secure the worn panel. Support the plate as the last bolts are removed so it doesn’t drop unexpectedly. If bolts are badly corroded, they may need to be cut and replaced. Installing the New 12745093 END PANEL VOLVO Clean the mating surface of the moldboard or side structure. Position the new plate so that all bolt holes line up. Insert new cutting-edge bolts and nuts (re-using hardware is not recommended in heavily corroded setups). Tighten bolts evenly across the plate to achieve correct clamping force. After a short period of operation, re-check bolt torque to compensate for any settling. Correct installation ensures the plate stays tight and wears evenly across its length. Maintenance Tips to Maximise Service Life Check bolts regularly: vibration can slowly loosen hardware, especially on machines working long hours on rough ground. Inspect at service intervals: look for rounding, erosion or cracking at the leading and lower edges of the plate. Replace before failure: if the end plate wears completely through, the moldboard itself will begin to wear, which is far more expensive to repair. Store spares correctly: keep replacement plates dry and stacked carefully to avoid corrosion or deformation before use. By treating the 12745093 END PANEL VOLVO as a planned wear item rather than an emergency replacement, you can keep your graders reliable and avoid downtime during peak work periods. Why Order the 12745093 END PANEL VOLVO from 3GEN Export? 3GEN Export focuses on supplying heavy-machinery spare parts at OEM standard with fast, predictable delivery. When you order this reference from us, you get: OEM-level quality: parts built to fit and perform like the original equipment specification. Global delivery in 5 working days: whether your grader is in Europe, the Middle East, Africa, Asia or the Americas, we can ship directly to your workshop or site. Specialisation in construction and mining equipment: we understand the environment these machines work in and stock parts accordingly. Professional support: our team can help you cross-reference the 12745093 number, check compatibility and coordinate multi-part orders for full blade rebuilds. Reliable packing and logistics: each plate is packed to prevent damage in transit, with attention to rust protection and edge safety. For contractors and fleet managers, partnering with a supplier who truly understands wear parts means fewer surprises and faster turnaround when something needs replacing. Summary The 12745093 END PANEL VOLVO is a key wear item on Volvo G900-series graders and similar machines. It protects the ends of the moldboard, maintains the correct cutting profile, improves material flow and shields the blade structure from lateral impact. Built from wear-resistant steel with a carefully matched curvature and bolt pattern, it is an essential component in any serious grading operation. With 3GEN Export, you can source this part as an OEM-quality replacement and receive it anywhere in the world within five working days. That means less downtime, better performance on site and a longer life for the expensive components behind the cutting edge.
