14Z5031530, 14Z-50-31530 PIN KOMATSU
Description

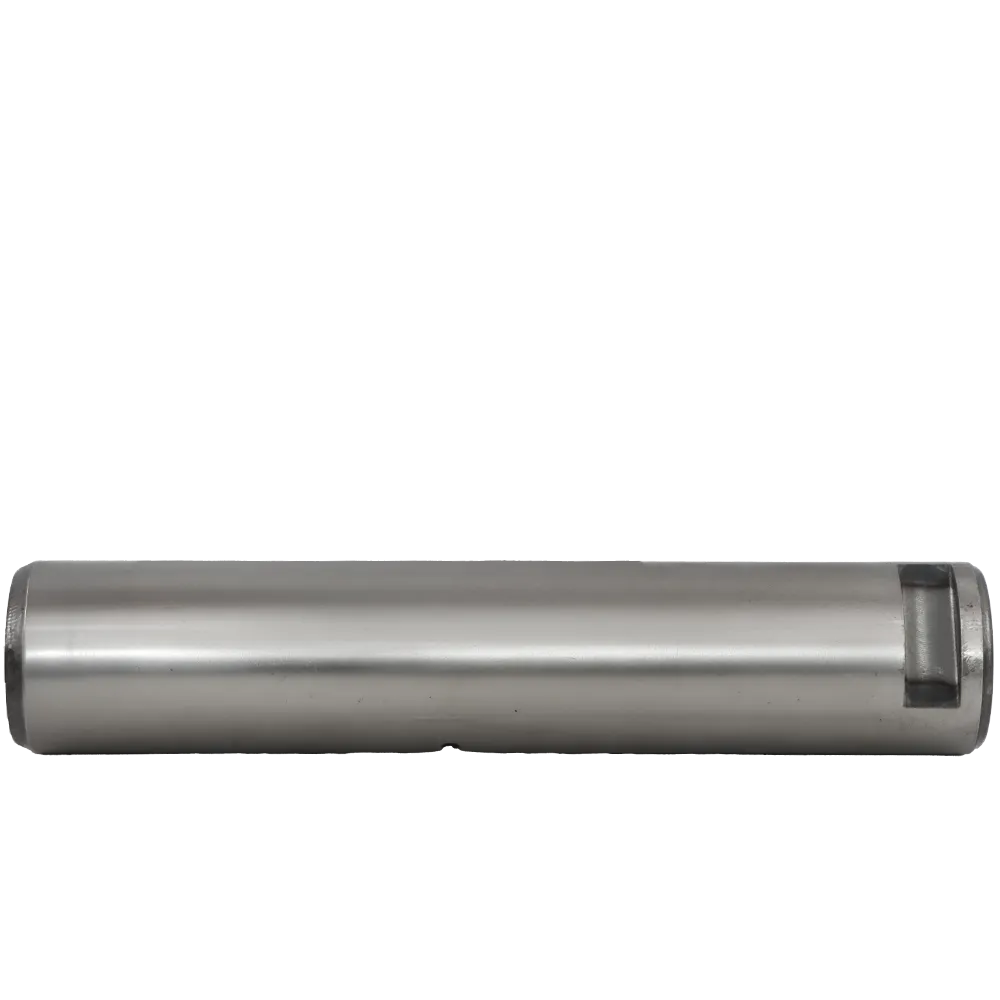

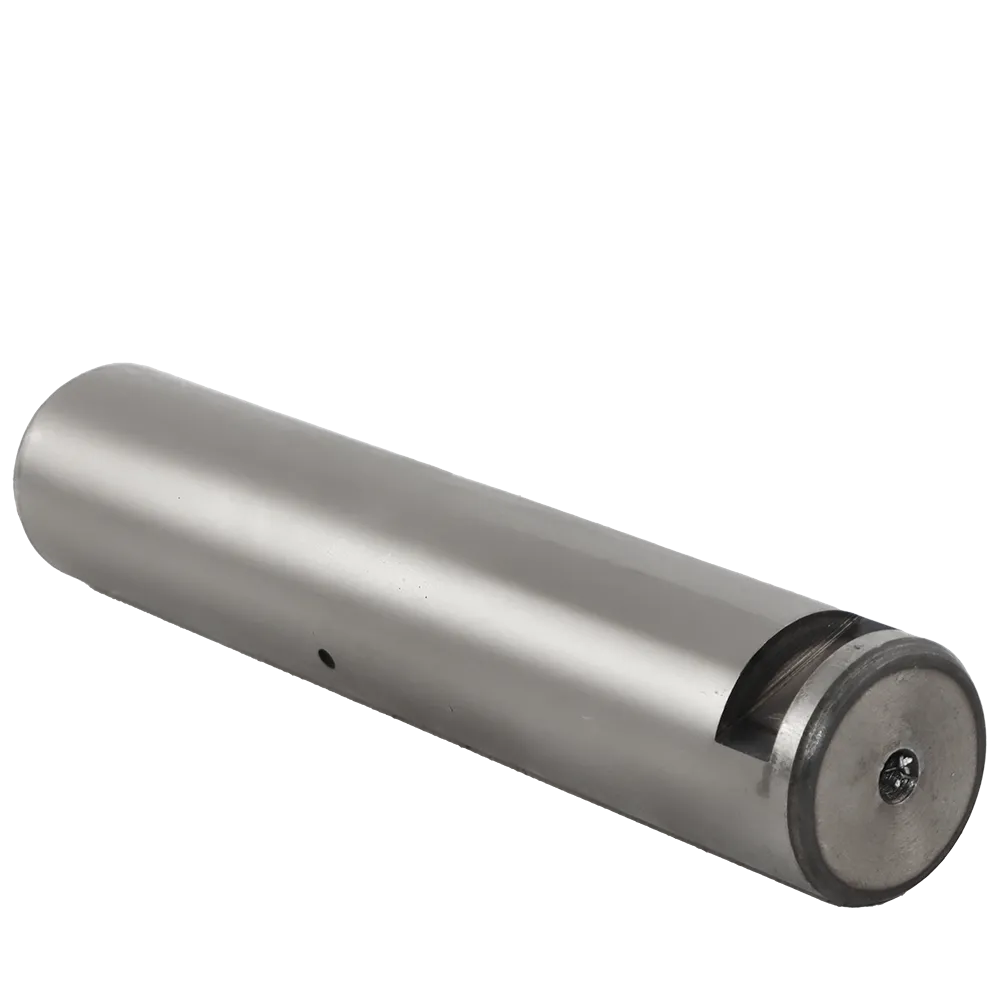

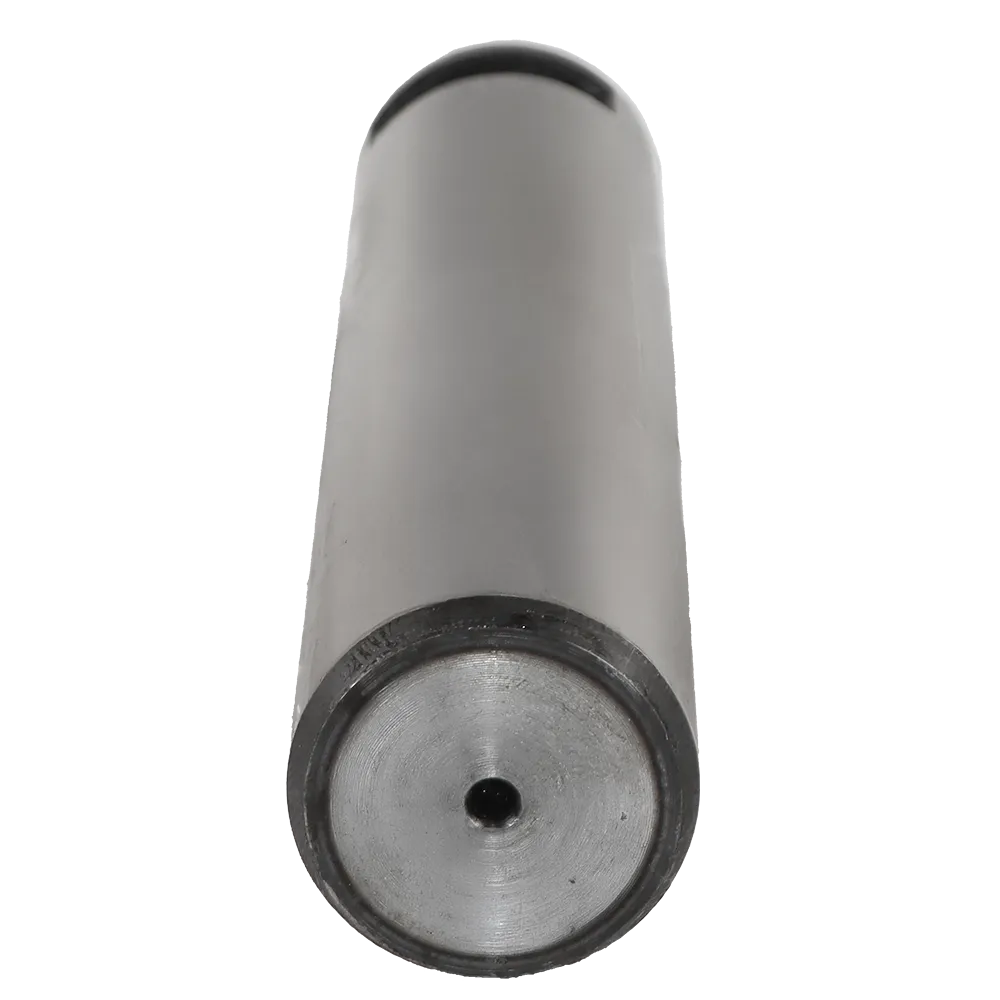

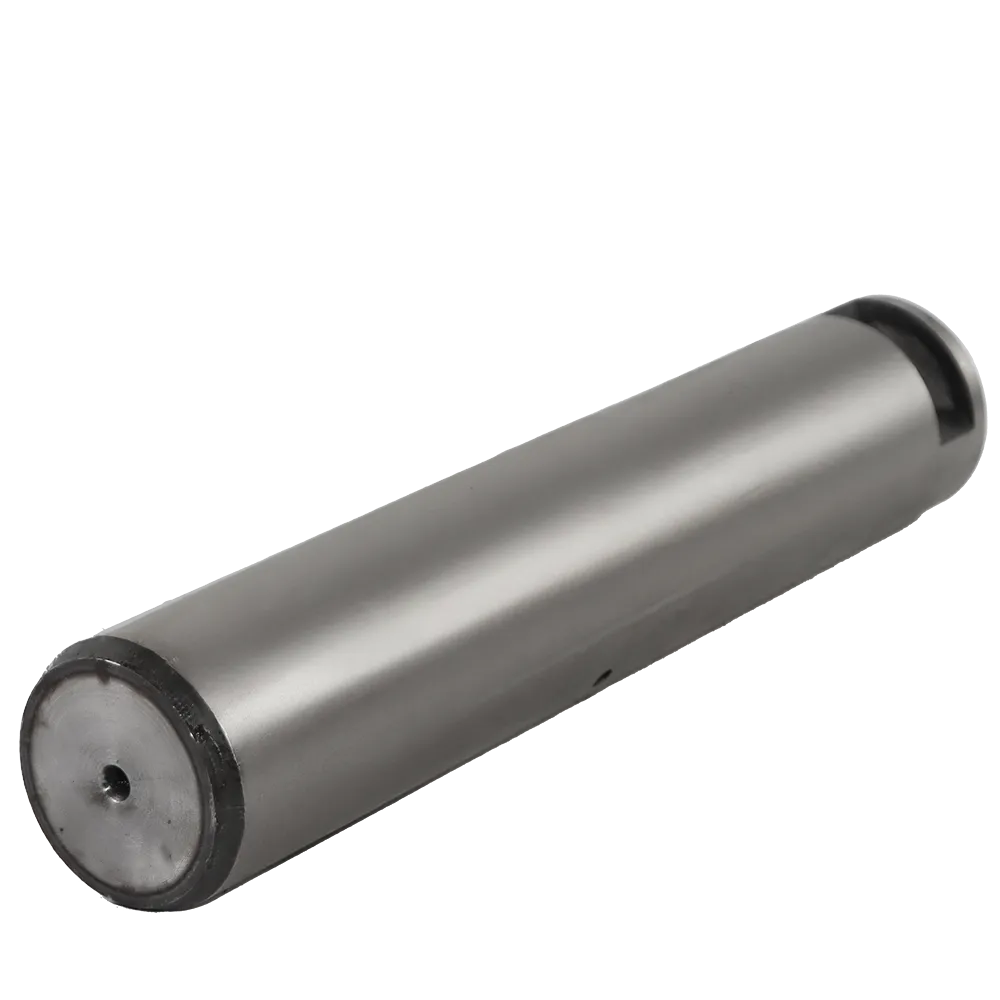

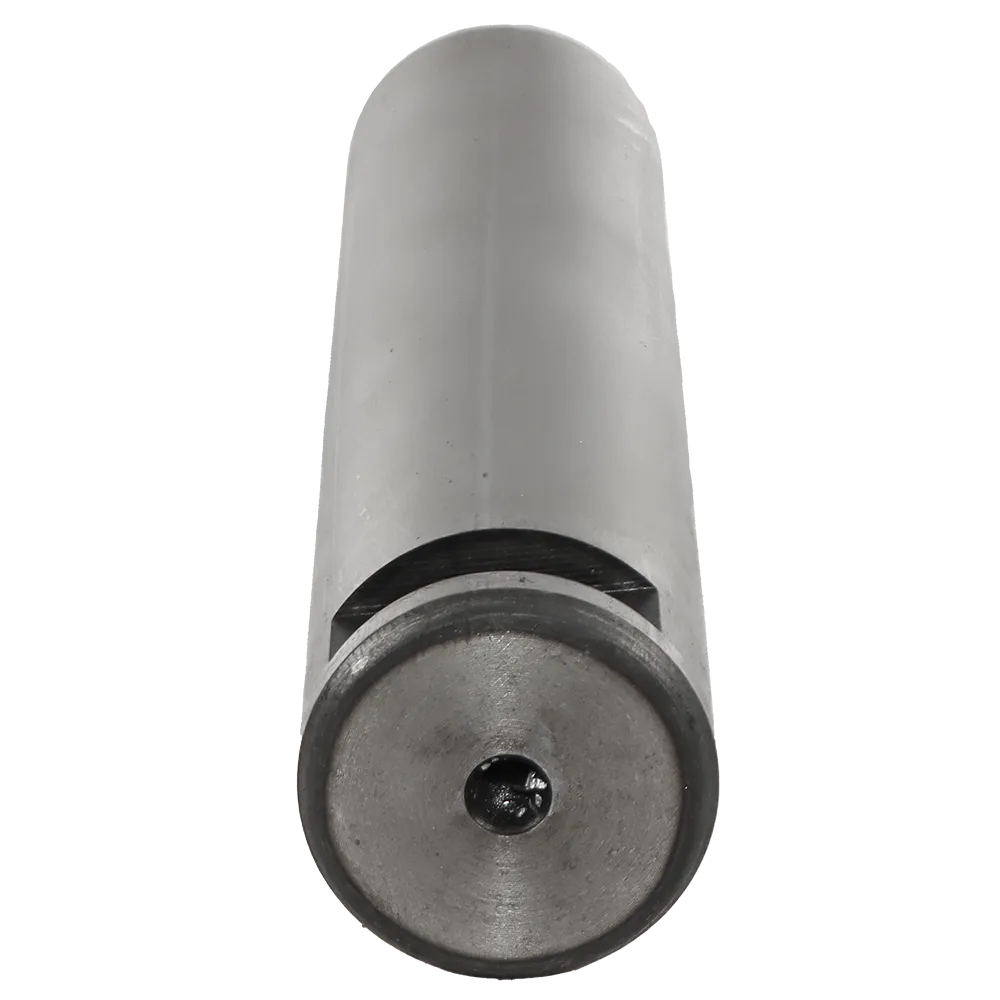

The 14Z5031530 pin is a Komatsu pivot pin, a hardened cylindrical shaft that forms the axis of a pinned joint in the equalizer bar and pivot shaft assembly. What it does in the joint The pin carries shear load between the linked members while letting the joint swing. It works with a bushing, and the two together set the joint's running clearance. Each pin weighs 6.42 kg. Signs the pin needs replacing Scoring or wear marks on the running surface, which open up the joint clearance Ovality or a bend in the shaft after shock loading Pitting or corrosion where the surface layer has broken through Worn keeper plates or snap rings letting the pin walk out Check the pin for scoring, ovality and straightness at service. Keep the joint lubricated and the retention hardware in good order. When either the pin or its bushing is past the wear limit, replace them together, because a new pin in a worn bushing wears out fast. To confirm you have the right pin, check the number on the old pin against 14Z5031530 and have the machine serial number ready.
Frequently Asked Questions
How long does shipping take and does it cost anything?
Shipping is free and every order ships with tracking. Orders are prepared in 1–2 days and in transit 4–5 days, typically 5–7 days door-to-door.
What should I send you to check the fit before ordering?
Send the machine serial number and the number stamped on the old pin. If you can, add a photograph of the pin and the joint it came out of, so we can match it to 14Z5031530.
