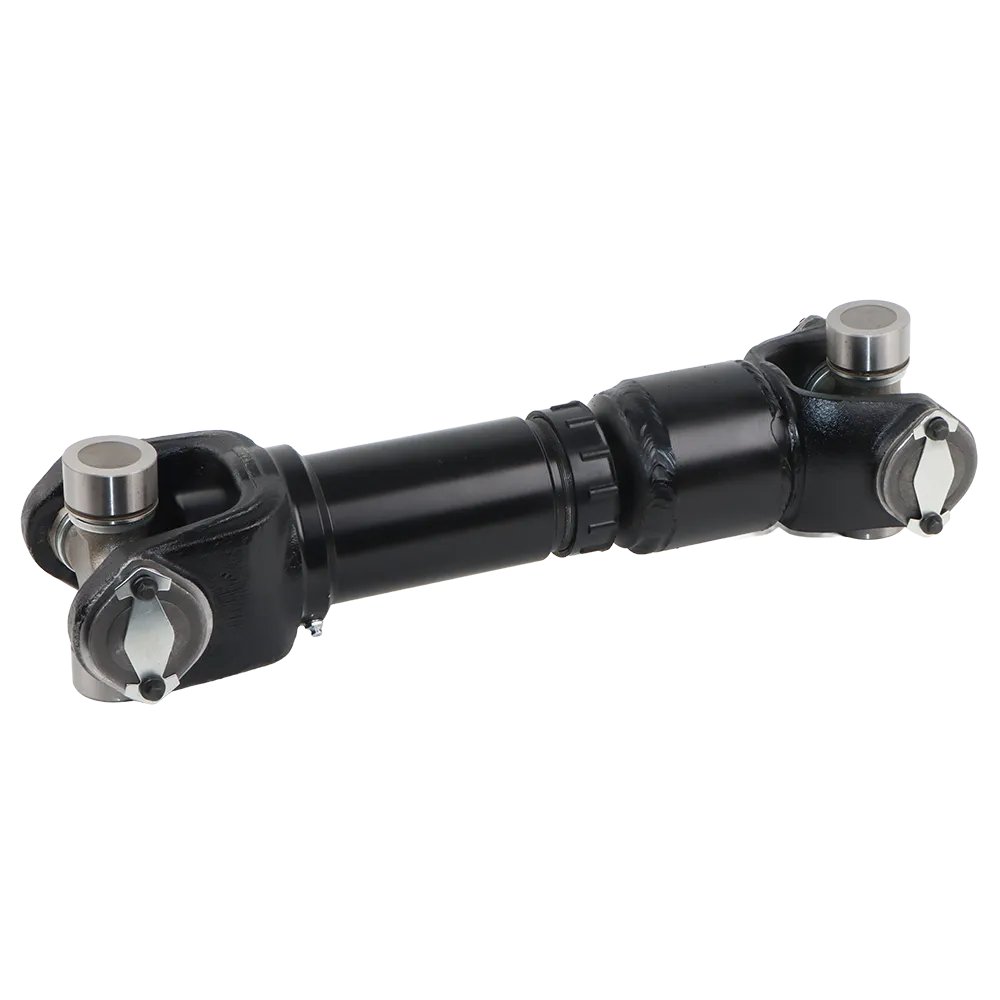

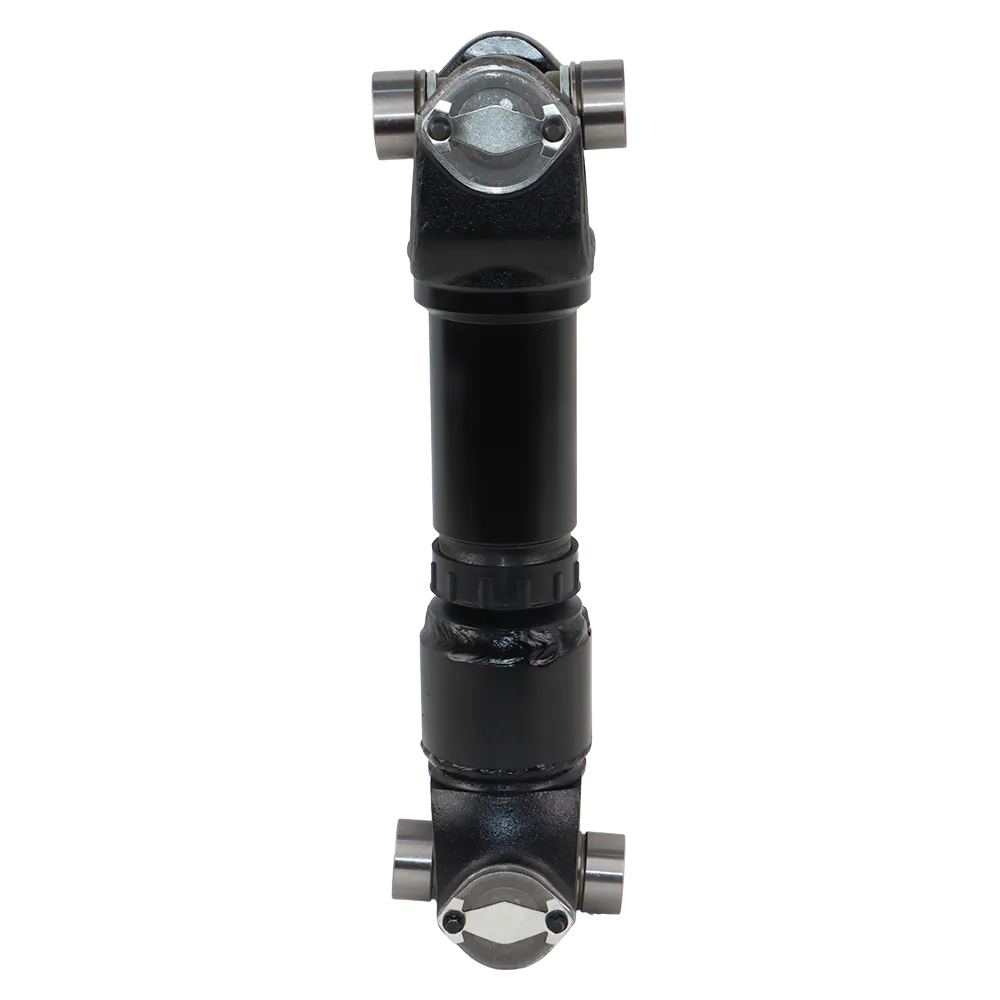

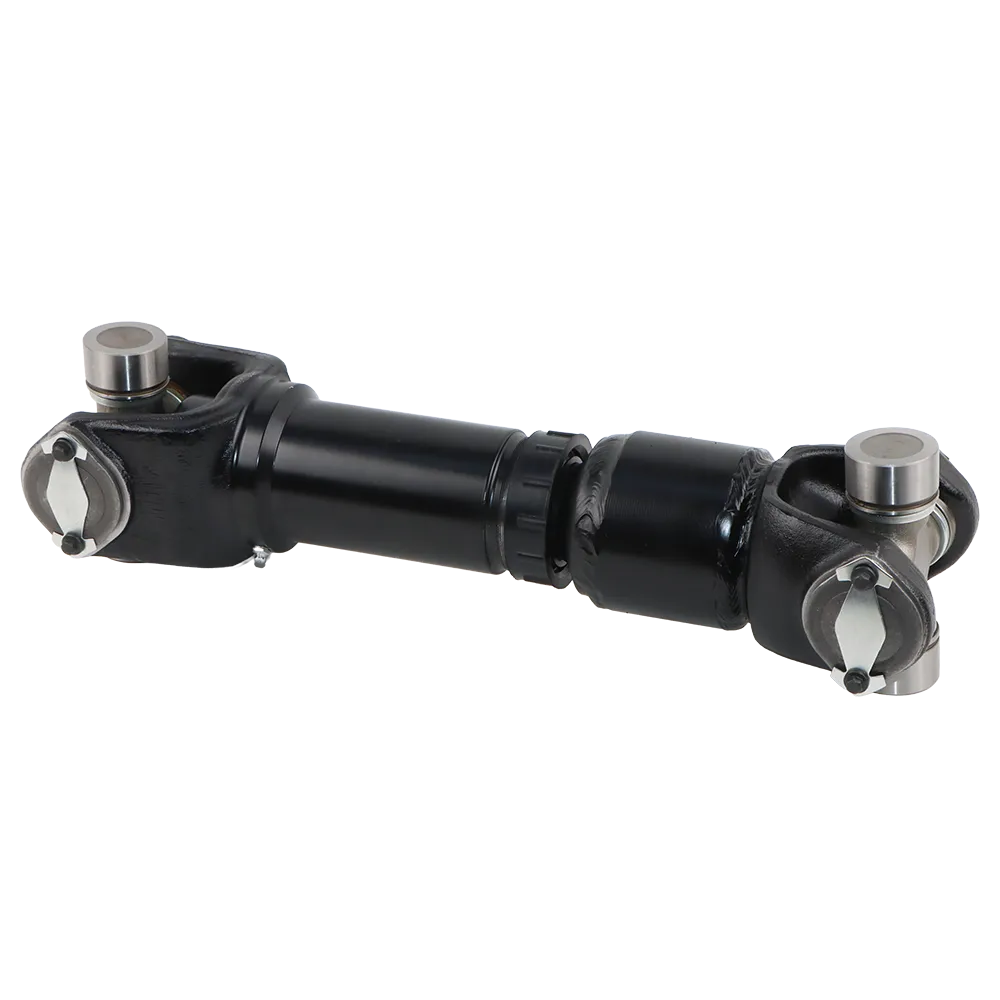

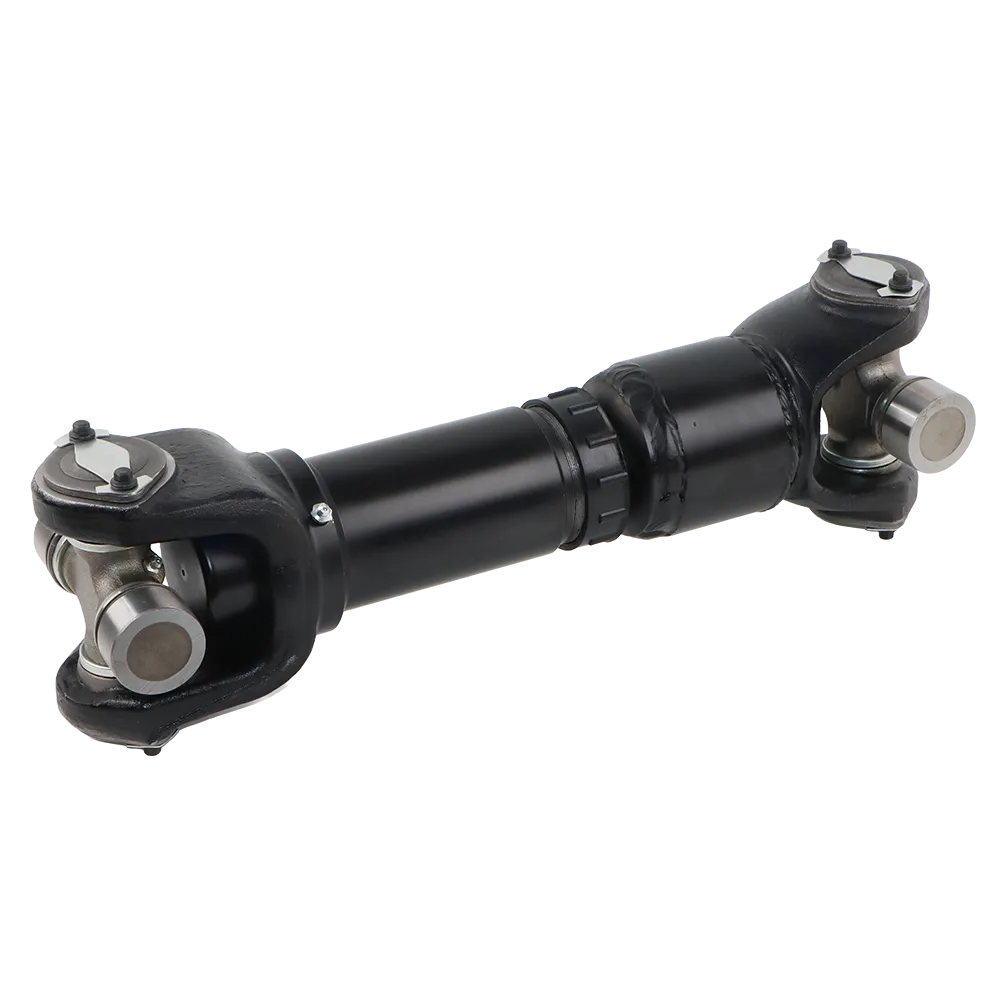

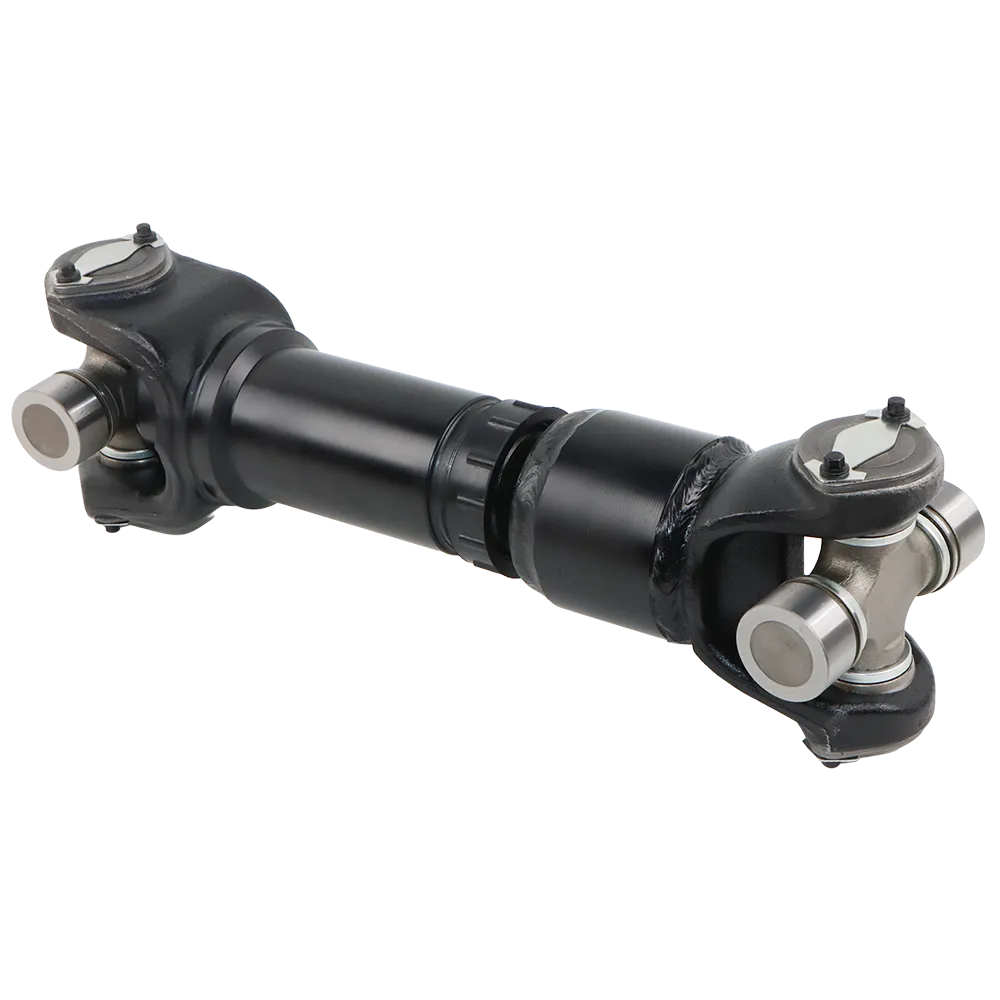

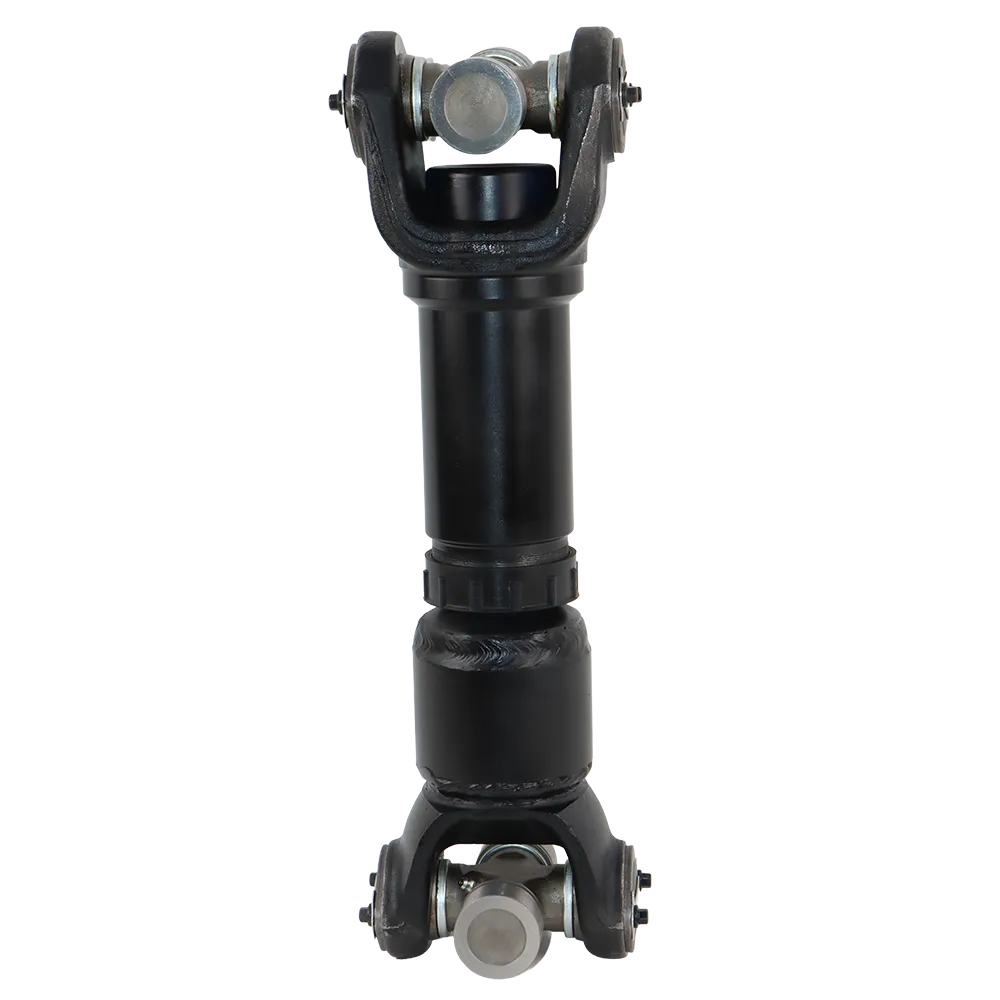

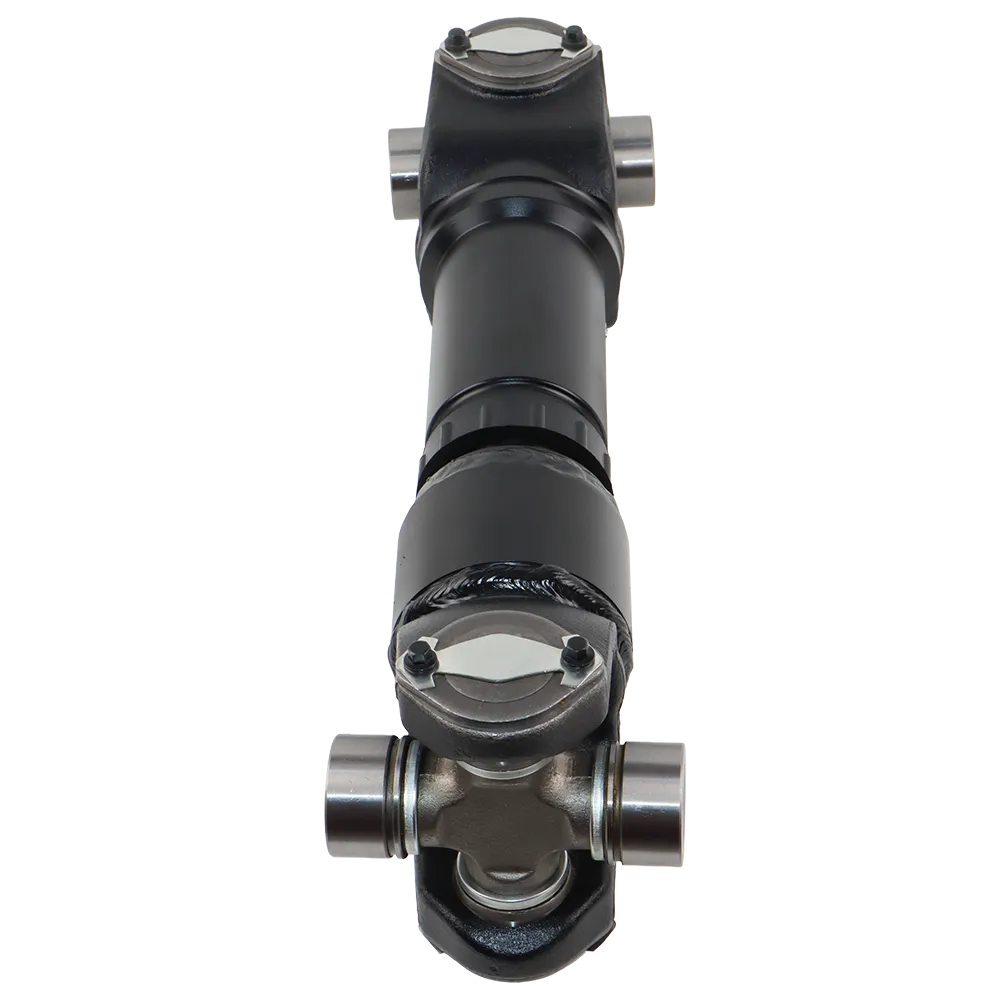

1156761 Slip Joint Group CATERPILLAR – Heavy-Duty Driveline Assembly by 3GEN Export

The 1156761 Slip Joint Group—also written as the 115-6761 Slip Joint Group CATERPILLAR—is a high-performance driveline assembly designed for heavy-duty off-highway machines operating in demanding construction, mining, and earthmoving environments. Engineered to transmit torque smoothly while compensating for axial movement and frame articulation, this component is essential for maintaining drivetrain stability, reducing vibration, and ensuring long-term mechanical reliability.

3GEN Export supplies this part as OEM-grade quality, delivering long-lasting durability and precision for global construction fleets and service centers. With worldwide shipping completed in 5 working days, our customers benefit from fast, consistent access to critical heavy machinery spare parts.

This detailed product description explores the function, specifications, performance features, compatible machine models, installation considerations, and advantages of choosing 3GEN Export for your 1156761 Slip Joint Group needs.

What Is the 1156761 Slip Joint Group Used For?

The 1156761 Slip Joint Group serves as a flexible mechanical connection between rotating shafts in heavy machinery. Its primary purpose is to allow controlled telescopic movement while maintaining torque transfer. Heavy equipment frames bend, twist, and shift under intense working conditions, making fixed-length shafts unsuitable.

The 115-6761 Slip Joint Group CATERPILLAR absorbs and compensates for:

• Axial displacement caused by uneven ground

• Rotational misalignment due to frame flexing

• Torque variations during heavy load cycles

• Angular offset created by machine articulation

• Shaft length changes resulting from suspension movement

Without a properly functioning slip joint group, drivetrain components experience severe stress, accelerated wear, and unpredictable vibration, which can quickly lead to machine downtime.

Key Performance Features of the 1156761 / 115-6761 Slip Joint Group

1. High-Strength Alloy Steel Construction

The 1156761 Slip Joint Group CATERPILLAR is built from heat-treated alloy steel designed to withstand:

• Continuous torsional pressure

• Shock loads during heavy-duty operations

• Abrasive working conditions

• Thousands of hours of cyclical load variations

The reinforced yokes and precision-machined tubes ensure unparalleled strength and a long service lifespan.

2. Precision Universal Joint Bearings

Each end of the slip joint assembly includes robust universal joints that allow smooth rotational motion even under high torque.

These U-joints are engineered to provide:

• Reduced friction

• High rotational accuracy

• Stability under torque spikes

• Improved drivetrain balance

The bearing cups are machined to tight tolerances to ensure consistent performance.

3. Telescopic Spline Design for Axial Movement

The most important functional feature of the 115-6761 Slip Joint Group is its telescopic spline mechanism.

This feature provides:

• Controlled in-and-out movement

• Constant engagement between shafts

• Reduction of axial stress

• Smooth vibration-free rotation

The hardened splines minimize wear while maintaining alignment between rotating components.

4. Industrial-Grade Protective Coating

To protect the assembly from environmental exposure, the 1156761 Slip Joint Group is coated with an industrial anti-corrosion finish for resistance against:

• Moisture

• Salt

• Mud

• Dust

• Chemical exposure

This protective coating ensures extended durability in harsh mining or excavation conditions.

Technical Specifications of the 1156761 Slip Joint Group

Below are the typical technical details associated with the 1156761 / 115-6761 Slip Joint Group CATERPILLAR:

• Part Number: 1156761

• Alternate Format: 115-6761

• Component Type: Slip Joint Group / Driveshaft Assembly

• Category: Powertrain / Drivetrain

• Design: Telescopic tube with dual universal joint ends

• Material: Heat-treated alloy steel with hardened spline area

• Surface Protection: High-resistance industrial coating

• Movement Function: Telescopic axial displacement + angular flexibility

• Mounting: Standard cross-bearing U-joint fitting

• Weight: Approximately 21.5 KG

Depending on machine category and configuration, weight may vary slightly.

Compatible Caterpillar Machine Models for 1156761 Slip Joint Group

The 1156761 Slip Joint Group CATERPILLAR is widely used in small-to-medium sized heavy machinery. It supports driveline systems that require controlled axial movement and shock absorption during operation.

Common compatible models include:

Caterpillar Backhoe Loaders

• CAT 416 Series

• CAT 420D, 420E

• CAT 430D, 430E

• CAT 432, 434, 444

• CAT 446 Series

Caterpillar Wheel Loaders

• CAT 906

• CAT 908

• CAT 914G

• CAT 924 Series

Caterpillar Telehandlers / Toolcarriers

• CAT TH220B

• CAT TH255C

• CAT TH406, TH407

• CAT IT14G

• CAT IT28 (select configurations)

Caterpillar Industrial Loaders

• CAT 262

• CAT 272

• CAT 982 Compact Variants

Caterpillar Skid Steer & Compact Machines

• CAT 236

• CAT 246

• CAT 262B

• CAT 272C

These compatibility references are based on common usage patterns in industry. 3GEN Export can verify exact fitment using your machine’s serial number.

Operational Benefits of the 1156761 Slip Joint Group

1. Smooth Torque Transmission

With its dual U-joint design and precision spline section, the 1156761 Slip Joint Group delivers uninterrupted torque transfer between rotating components—even at varying angles.

2. Vibration Reduction

The telescopic movement prevents binding under stress, significantly lowering vibration levels. This improves operator comfort and reduces wear on surrounding components.

3. Protection Against Driveline Failure

Heavy machinery frequently encounters impact loads. The 115-6761 Slip Joint Group helps absorb these forces and protects:

• Axles

• Differentials

• Gearboxes

• Final drives

• Transmission systems

By absorbing movement and stress, it reduces the risk of catastrophic drivetrain failures.

4. Longer Service Life for Connected Components

Because the slip joint group performs much of the physical compensation work, adjacent components experience dramatically less mechanical stress. This keeps maintenance costs low and increases overall machine uptime.

Structural Features of the 1156761 Slip Joint Group

High-Precision Yokes

The yokes are machined for exact connection tolerances to ensure perfect fitment with universal joints and shaft ends.

Reinforced Welding

High-quality industrial welds ensure structural integrity under heavy working loads and rotational stress.

Hardened Spline Tube

The spline area undergoes heat treatment to ensure durability and extended wear resistance.

Dual-Grease Fitting System

For machines that operate in dust-heavy environments, lubrication fittings allow easy maintenance without full disassembly.

Installation Guidelines for 1156761 Slip Joint Group

Installation must be carried out by trained professionals. Below is a summary of proper installation best practices:

1. Inspect Driveline Alignment

Ensure all adjoining shafts and joints are undamaged and properly aligned.

2. Match Spline Positions

Ensure precise alignment when assembling the slip joint spline; incorrect alignment may cause vibration.

3. Fasten U-Joint Caps Securely

Use proper torque values recommended in the service manual.

4. Check Movement Range

Before fully installing, verify that the slip joint moves smoothly without excessive resistance.

5. Test Under Low RPM

After installation, run the machine at low throttle to observe torque transmission and check for vibrations.

Maintenance Recommendations

Maintaining the 1156761 Slip Joint Group helps maximize performance and longevity. Recommended practices include:

• Regular lubrication of U-joints

• Inspection for rust, dents, or spline wear

• Monitoring vibration levels

• Replacing the bearings if play is detected

• Keeping protective coatings intact

With proper upkeep, the 115-6761 Slip Joint Group can support thousands of operational hours without issues.

Why Heavy Machinery Depends on Slip Joint Groups

Slip joints are indispensable in machines that face dynamic movement and challenging environments. The constant bending, shifting, and shock loading of heavy machinery requires drivetrain components that can flex and absorb movement without failing.

The 1156761 Slip Joint Group CATERPILLAR ensures:

• Driveline flexibility

• Consistent machine stability

• Reduced mechanical stress

• Smooth driving experience

• Longer machine lifespan

Without a quality slip joint group, operators face increased maintenance, downtime, and operational risk.

Why Choose 3GEN Export for 1156761 Slip Joint Group?

3GEN Export is a leading global supplier of heavy machinery spare parts specializing in brands such as Caterpillar, Komatsu, Volvo, Sandvik, and more.

Customers choose 3GEN Export for:

• OEM-grade manufacturing quality

• Worldwide shipping in only 5 working days

• Competitive pricing for bulk and single orders

• Professional technical support

• Fast fitment verification based on machine serial numbers

• High stocking levels for urgent orders

Our commitment to precision, dependability, and global accessibility makes us a trusted supplier for mining companies, construction firms, rental fleets, workshops, and distributors.

Conclusion

The 1156761 Slip Joint Group and its format 115-6761 Slip Joint Group CATERPILLAR represent essential driveline components for multiple machine categories. Offering a crucial blend of torque stability, vibration absorption, and axial flexibility, this part ensures reliable machine performance across rugged job sites.

With 3GEN Export as your OEM supplier, you gain access to durable parts, rapid global delivery, and industry-leading support—all designed to keep your machinery operating at maximum efficiency with minimal downtime.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
