1195306 Bushing Caterpillar

119-5306 Bushing Caterpillar – Heavy Machinery Wear Component

The 1195306 Bushing Caterpillar is a critical cylindrical wear element designed to support rotational and oscillating movement in heavy construction and mining equipment. Known also as 119-5306 Bushing Caterpillar, this component plays a vital role in reducing friction, maintaining alignment, and extending the service life of connected pins, shafts, and housings under extreme load conditions.

Used extensively in demanding Caterpillar machinery applications, the 1195306 Bushing Caterpillar is engineered for environments where constant pressure, vibration, and abrasive contaminants are present. Its robust structure ensures consistent performance in earthmoving, quarrying, mining, and infrastructure projects where reliability is non-negotiable.

Supplied by 3GEN Export, this part is manufactured to OEM specifications and shipped worldwide within 5 working days, ensuring minimal downtime for fleets and workshops.

What Is the Function of the 1195306 Bushing Caterpillar?

The 1195306 Bushing Caterpillar acts as a sacrificial interface between moving metal components. Instead of allowing direct metal-to-metal contact, this bushing absorbs friction and distributes load evenly across the joint assembly.

This design approach:

• Protects expensive structural components
• Maintains correct tolerances during operation
• Reduces vibration and operational noise
• Allows smoother articulation under heavy loads

Because the bushing is designed to wear gradually, it can be replaced during scheduled maintenance without requiring full assembly replacement.

Engineering Design and Material Structure

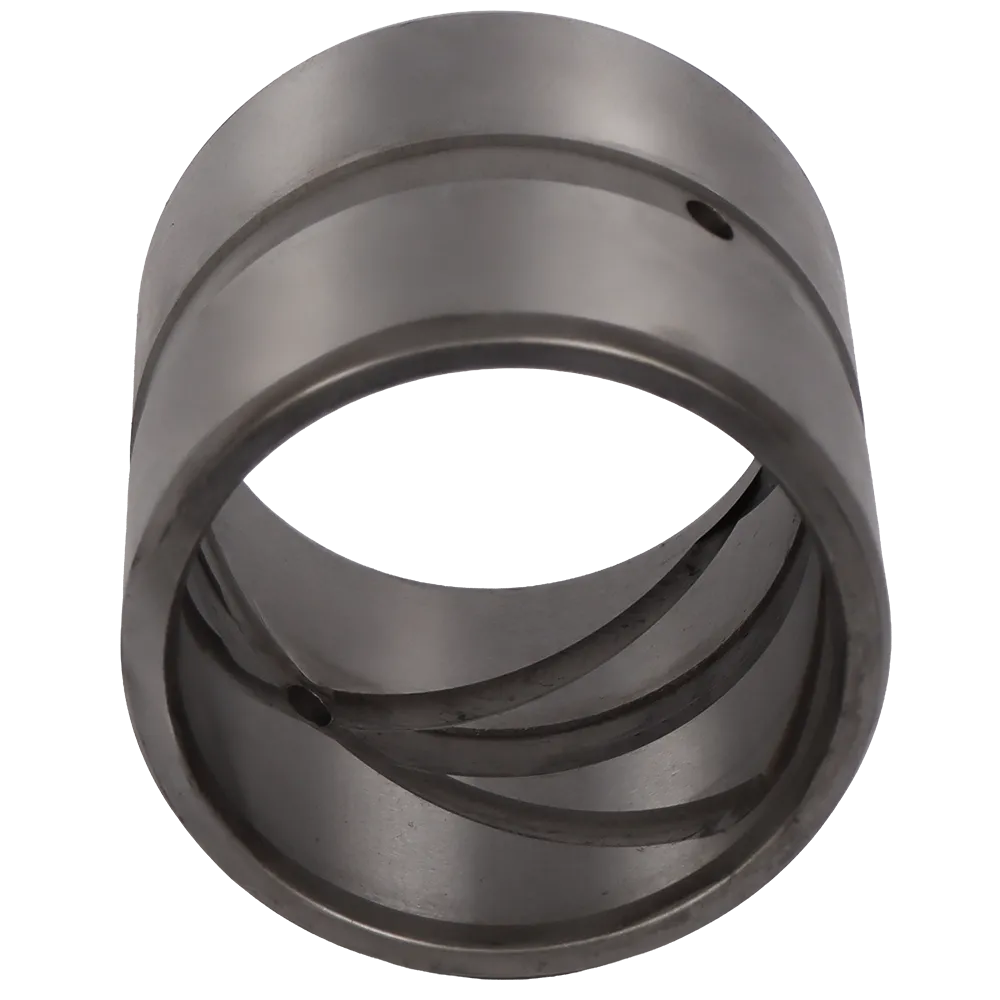

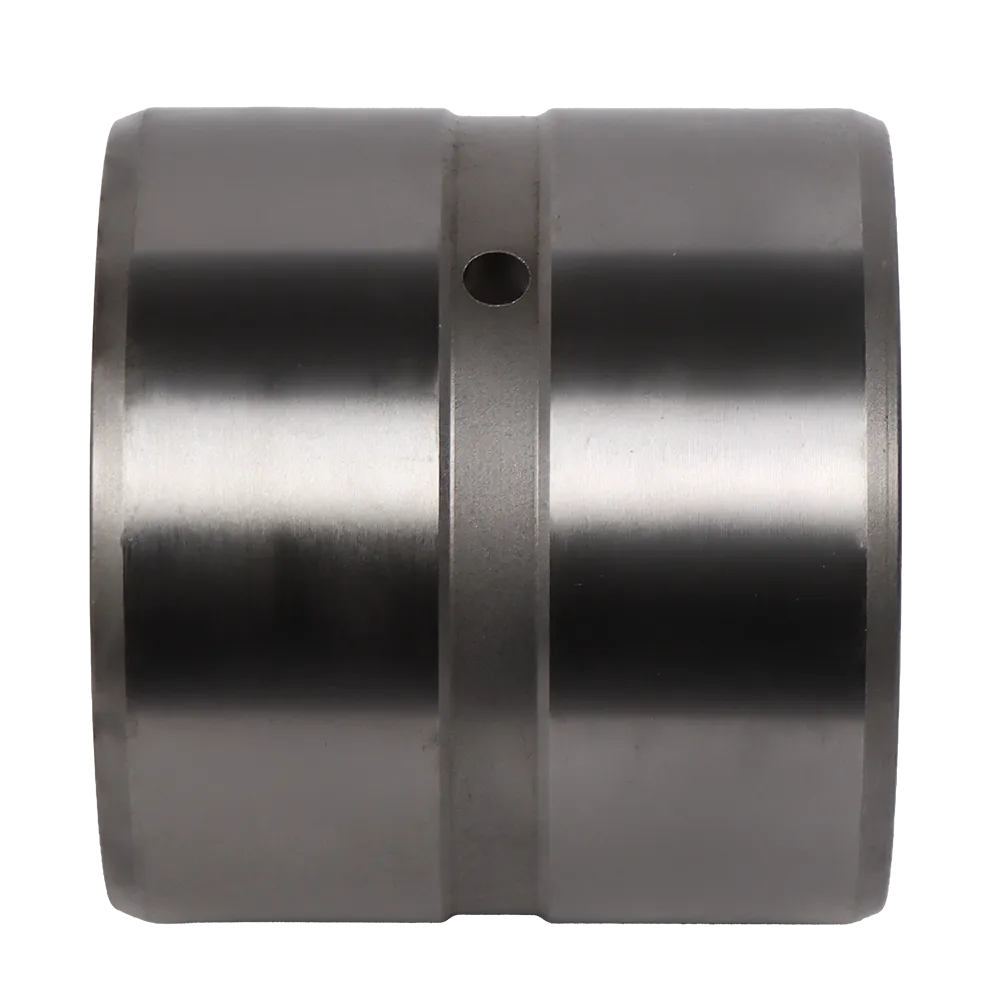

The 119-5306 Bushing Caterpillar is precision-machined using high-grade alloy steel selected for its strength, fatigue resistance, and dimensional stability. The internal bore features controlled surface geometry that supports lubrication retention and uniform load transfer.

Key structural characteristics include:

• Cylindrical body with reinforced wall thickness
• Oil distribution channel for consistent lubrication
• Machined tolerances to support press-fit installation
• Surface treatment for abrasion resistance

This construction allows the 1195306 Bushing Caterpillar to perform reliably in both static and dynamic load conditions.

Applications in Caterpillar Machinery

The 1195306 Bushing Caterpillar is commonly used in pivot points and joint assemblies where controlled rotation or oscillation is required. Typical application zones include:

• Track assemblies
• Suspension linkage systems
• Arm and frame connection points
• Undercarriage structures
• Load-bearing hinge mechanisms

Its design supports continuous movement without deformation, even when exposed to dust, moisture, and high mechanical stress.

Compatible Caterpillar Models

The 119-5306 Bushing Caterpillar is used across a range of Caterpillar heavy equipment models, including but not limited to:

• Caterpillar excavators
• Caterpillar wheel loaders
• Caterpillar bulldozers
• Caterpillar articulated dump trucks
• Caterpillar tracked machinery platforms

Exact compatibility may vary by production series and configuration. For confirmation, 3GEN Export provides model and serial number verification before shipment.

Technical Specifications

Below are the general technical characteristics of the 1195306 Bushing Caterpillar based on application standards:

• Component type: Cylindrical wear bushing
• Material: Hardened alloy steel
• Installation method: Press-fit
• Lubrication support: Internal oil channel
• Surface finish: Precision machined

All dimensions and tolerances comply with OEM-level requirements to ensure seamless integration into Caterpillar systems.

Weight Information

The approximate weight of the 1195306 Bushing Caterpillar is:

• Weight: ~3.4 kg

Weight may vary slightly depending on production batch and dimensional tolerance, but remains within standard Caterpillar operational limits.

Installation and Maintenance Considerations

Correct installation of the 119-5306 Bushing Caterpillar is essential for optimal performance. It is recommended that installation be carried out using appropriate press tools to avoid deformation.

Maintenance best practices include:

• Regular lubrication checks
• Monitoring for ovality or surface scoring
• Replacement during scheduled service intervals
• Inspection of mating pins during bushing replacement

Replacing the bushing at the correct time prevents secondary damage to higher-value components.

Performance Advantages in Heavy-Duty Operations

The 1195306 Bushing Caterpillar delivers consistent performance benefits in harsh working conditions:

• Enhanced load distribution
• Reduced wear on connected parts
• Stable performance under vibration
• Extended component lifespan
• Lower long-term maintenance costs

These advantages make it a preferred solution for contractors and fleet managers focused on reliability and cost control.

Why Choose 3GEN Export?

3GEN Export is a global OEM spare parts supplier specializing in heavy machinery components. Every 119-5306 Bushing Caterpillar supplied is manufactured to OEM standards and undergoes quality verification before dispatch.

What sets 3GEN Export apart:

• OEM-grade production quality
• Worldwide shipping within 5 working days
• Professional export packaging
• Technical support for part compatibility
• Reliable supply for urgent projects

Whether for routine maintenance or urgent breakdown repair, 3GEN Export ensures fast, dependable delivery.

Global Supply and Logistics

The 1195306 Bushing Caterpillar is stocked and shipped globally to support operations in mining sites, construction zones, and industrial facilities worldwide. Our logistics network ensures rapid dispatch and secure delivery regardless of destination.

Industries served include:

• Mining and quarrying
• Infrastructure development
• Heavy construction
• Industrial earthmoving
• Equipment maintenance workshops

Long-Term Value and Operational Reliability

Choosing the 119-5306 Bushing Caterpillar from 3GEN Export means investing in operational continuity. By protecting critical joints and reducing unscheduled downtime, this component contributes directly to machine availability and productivity.

Its role may be small in size, but its impact on equipment longevity is significant.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
