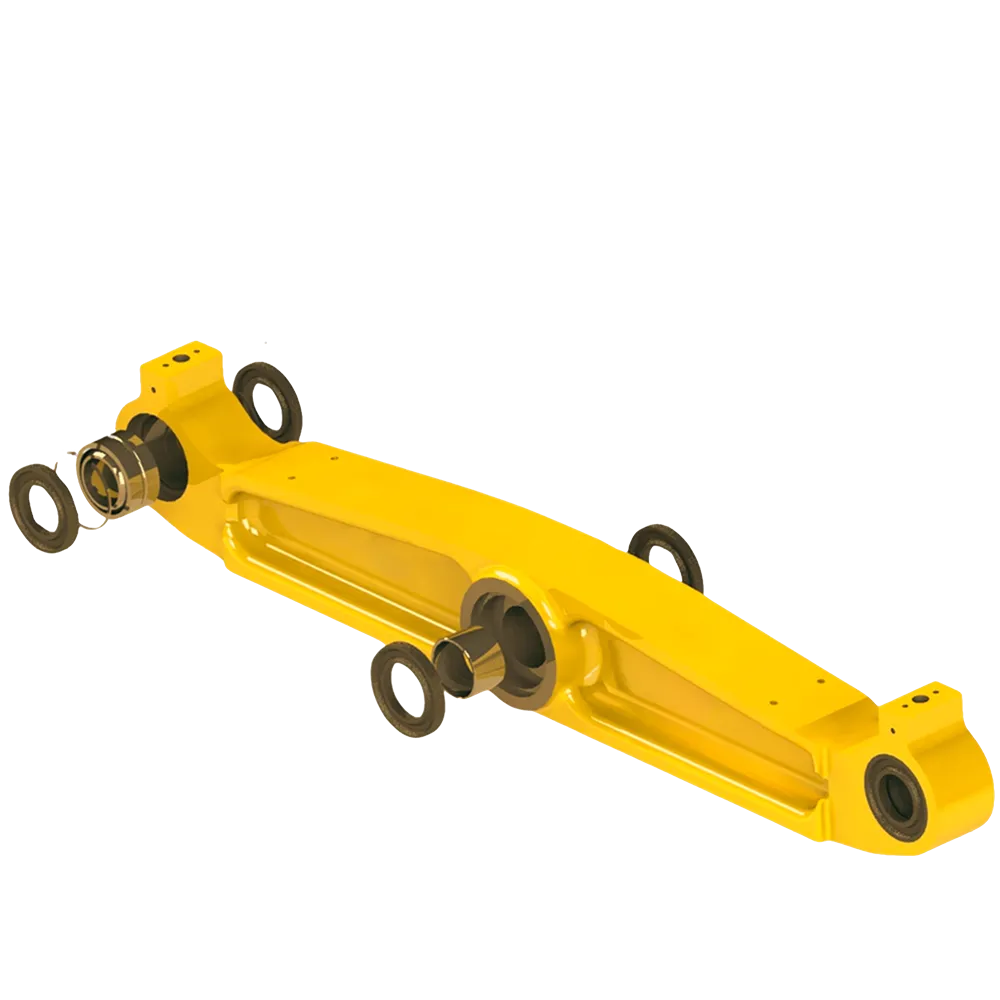

1409698 Equalizer Bar Caterpillar

140-9698 Equalizer Bar for Heavy Machinery Undercarriage Systems

The 1409698 Equalizer Bar Caterpillar is a critical structural component designed to balance load distribution across tracked undercarriage systems operating under extreme working conditions. Identified interchangeably as 1409698 and 140-9698, this equalizer bar is engineered to support stability, durability, and long-term operational efficiency in demanding environments such as mining, quarrying, road construction, and large-scale earthmoving projects.

Manufactured to precise dimensional tolerances and structural requirements, the 140-9698 Equalizer Bar Caterpillarplays a key role in maintaining even ground contact between tracks, reducing stress on adjacent undercarriage components, and improving overall machine control. As an OEM-standard replacement supplied by 3GEN Export, this part offers a dependable solution for operators seeking consistent performance without compromise. Worldwide delivery is available within 5 working days, ensuring minimal downtime for critical machinery.

What Is an Equalizer Bar and Why It Matters

An equalizer bar is a load-balancing component positioned within the undercarriage assembly of tracked machines. Its primary function is to distribute vertical and horizontal forces evenly between the left and right track frames. Without a properly functioning equalizer bar, excessive stress can accumulate on rollers, idlers, track chains, and frames, accelerating wear and increasing the risk of structural damage.

The 1409698 Equalizer Bar Caterpillar is specifically designed to absorb shock loads generated by uneven terrain, heavy payloads, and continuous vibration. By compensating for ground irregularities, it allows tracked machines to maintain stability, traction, and operator control even in the harshest jobsite conditions.

Product Overview: 1409698 Equalizer Bar Caterpillar

The 140-9698 Equalizer Bar Caterpillar is manufactured from high-strength alloy steel, selected for its resistance to deformation, fatigue, and impact stress. Precision casting and machining processes ensure consistent geometry, smooth load transfer, and accurate fitment within compatible undercarriage systems.

This component is suitable for long operating cycles where reliability is non-negotiable. Its structural integrity helps protect surrounding components, ultimately lowering maintenance costs and extending service intervals.

Key Functions of the 140-9698 Equalizer Bar Caterpillar

The 1409698 Equalizer Bar Caterpillar fulfills several essential operational roles:

• Balances load between left and right track frames

• Reduces localized stress on rollers, idlers, and track chains

• Absorbs impact forces from uneven ground

• Enhances machine stability during heavy-duty operations

• Improves undercarriage lifespan and reliability

Through these functions, the equalizer bar contributes directly to machine uptime, operator safety, and predictable performance across variable terrain.

Material Composition and Manufacturing Standards

The 140-9698 Equalizer Bar Caterpillar is produced using premium-grade alloy steel with carefully controlled chemical composition. This material choice ensures high tensile strength, excellent fatigue resistance, and long-term dimensional stability.

Advanced heat treatment processes are applied to improve hardness and toughness while maintaining sufficient flexibility to absorb shock loads. Machined interfaces are finished to tight tolerances to ensure proper alignment and smooth interaction with mating components.

Each unit supplied by 3GEN Export undergoes dimensional inspection and surface quality checks to meet OEM-equivalent standards for structural and functional performance.

Technical Specifications

Below are the general technical characteristics of the 1409698 Equalizer Bar Caterpillar:

• Product Name: 1409698 Equalizer Bar Caterpillar

• Alternative Reference: 140-9698

• Component Type: Undercarriage Equalizer Bar

• Material: High-strength alloy steel

• Manufacturing Process: Precision casting and CNC machining

• Application Area: Tracked undercarriage systems

• Operating Environment: Heavy-duty construction and mining sites

Approximate Weight

• Estimated Weight: ~240 kg

(Exact weight may vary slightly depending on production batch and finishing tolerances.)

Compatible Caterpillar Machine Models

The 140-9698 Equalizer Bar Caterpillar is commonly used in a range of large tracked machines where load balancing and undercarriage durability are critical. Typical compatible models include, but are not limited to:

• Caterpillar DOZER D8R series

Because undercarriage configurations can vary by serial number and production year, it is always recommended to confirm compatibility using the machine’s parts manual or serial reference before installation.

Installation Considerations

Proper installation of the 1409698 Equalizer Bar Caterpillar is essential to ensure optimal performance and longevity. The equalizer bar should be installed on a clean, properly aligned undercarriage assembly with all mating components inspected for wear.

Key installation guidelines include:

• Inspect bushings, pins, and mounting surfaces before fitting

• Ensure correct torque values for all fasteners

• Verify alignment after installation

• Perform a controlled test run to confirm smooth operation

Correct installation minimizes uneven load transfer and prevents premature wear on associated components.

Operational Benefits in Real-World Applications

Using the 140-9698 Equalizer Bar Caterpillar delivers tangible benefits in demanding operational environments:

• Improved traction on uneven terrain

• Reduced vibration transmitted to the chassis

• Lower stress on rollers and idlers

• More predictable handling under heavy loads

• Extended service life of the undercarriage system

These advantages are particularly valuable in applications involving continuous grading, ripping, pushing, or hauling in abrasive ground conditions.

Maintenance and Service Life

While the 1409698 Equalizer Bar Caterpillar is designed for long-term durability, routine inspections are recommended as part of scheduled undercarriage maintenance. Visual checks for cracks, deformation, or abnormal wear patterns can help detect issues early.

Maintaining proper lubrication of associated joints and ensuring alignment remains within specification will further extend service life. When maintained correctly, this equalizer bar can operate reliably over extended service intervals even in high-load applications.

Why Choose 3GEN Export

3GEN Export supplies the 140-9698 Equalizer Bar Caterpillar as an OEM-standard solution for global heavy machinery operators. Our focus is on consistent quality, fast logistics, and dependable customer support.

When sourcing this component from 3GEN Export, you benefit from:

• OEM-standard manufacturing quality

• Global shipping within 5 working days

• Secure export packaging for heavy components

• Experience in international heavy machinery supply chains

• Professional support for part verification and logistics

We understand the cost of downtime and structure our supply processes to keep your equipment moving.

Global Logistics and Packaging

The 1409698 Equalizer Bar Caterpillar is shipped using reinforced wooden crates designed for heavy industrial components. Protective wrapping and internal bracing prevent movement and surface damage during transit.

3GEN Export manages worldwide shipments using reliable logistics partners, ensuring safe and timely delivery to construction sites, ports, or maintenance facilities across multiple regions.

Applications Across Industries

The 140-9698 Equalizer Bar Caterpillar is widely used in:

• Mining and quarrying operations

• Large-scale infrastructure projects

• Road construction and land development

• Earthmoving and bulk material handling

• Heavy industrial site preparation

Its ability to withstand continuous stress makes it a dependable choice for operations where machine stability and uptime are critical.

Summary

The 1409698 Equalizer Bar Caterpillar is a vital undercarriage component engineered to support balance, durability, and operational stability in tracked heavy machinery. Designed to manage extreme loads and uneven terrain, it plays a central role in protecting undercarriage systems and improving machine performance.

Supplied by 3GEN Export as an OEM-standard replacement, this equalizer bar is available with fast worldwide delivery in 5 working days, helping operators minimize downtime and maintain productivity across demanding projects.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
