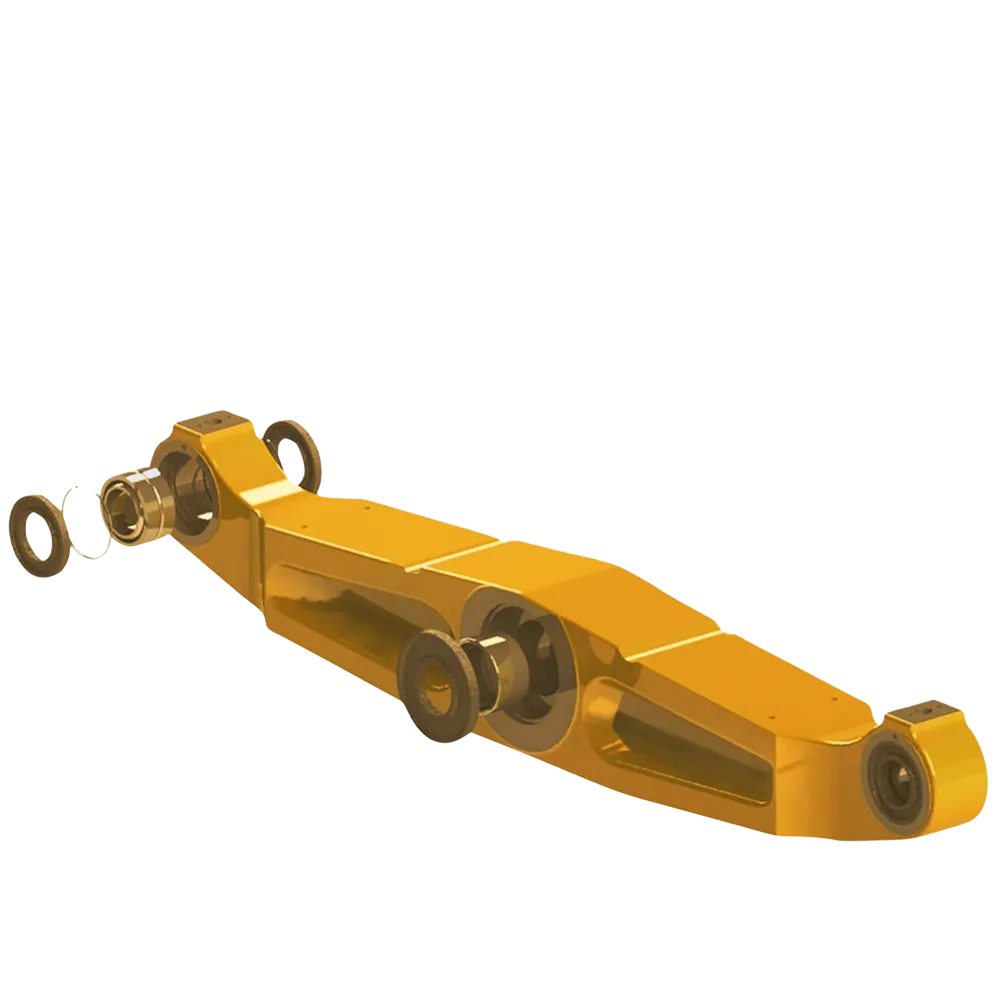

1409699, 140-9699 EQUALIZER BAR CATERPILLAR

The 1409699 Equalizer Bar Caterpillar is a heavy-duty structural suspension component engineered to balance load distribution across the undercarriage system of Caterpillar track-type machines. Designed to absorb shock, stabilize movement, and maintain consistent ground contact, this component plays a critical role in machine stability, traction efficiency, and long-term structural integrity during demanding operations.

Manufactured from high-strength alloy steel and precision-machined to withstand extreme torsional and impact forces, the 140-9699 Equalizer Bar Caterpillar is built for continuous operation in mining, construction, quarrying, and earthmoving environments. Supplied by 3GEN Export as an OEM-quality solution, this equalizer bar delivers reliability, dimensional accuracy, and fast global availability.

Functional Role of the Equalizer Bar

An equalizer bar is a core element of tracked machine suspension systems. Its primary function is to evenly distribute machine weight between the left and right track frames while allowing controlled articulation over uneven terrain.

The 1409699 Equalizer Bar Caterpillar enables independent track movement without transferring excessive stress to the machine frame. This ensures smoother travel, reduced vibration, and improved operator control, especially when working on rough or uneven ground.

Why Equalizer Bars Are Critical in Heavy Machinery

Track-type equipment operates under constant load, shock, and surface irregularities. Without a properly functioning equalizer bar, uneven terrain would cause excessive stress on rollers, frames, and final drive components.

The 140-9699 Equalizer Bar Caterpillar helps:

• Maintain balanced load distribution

• Improve ground contact and traction

• Reduce frame twisting and fatigue

• Absorb shock from obstacles and uneven surfaces

• Extend service life of undercarriage components

This makes the equalizer bar essential for machine durability and operational efficiency.

Material Quality and Structural Strength

The 1409699 Equalizer Bar Caterpillar is produced using premium-grade alloy steel selected for its exceptional strength, impact resistance, and fatigue endurance. The forging and machining processes are tightly controlled to ensure consistent grain structure and dimensional accuracy throughout the component.

Critical load-bearing areas are reinforced to withstand repeated stress cycles without deformation, cracking, or premature wear. This construction allows the equalizer bar to perform reliably under high load conditions over extended service intervals.

Engineering Design and Performance Characteristics

Heavy-Duty Forged Construction

The solid, forged body of the equalizer bar provides the strength required to handle continuous torsional forces generated during machine operation.

Precision Machined Interfaces

Mounting points and bearing surfaces are machined to exact tolerances, ensuring proper alignment with adjacent suspension components and minimizing wear.

Controlled Articulation

The design allows controlled movement between track frames while maintaining overall chassis stability, improving ride quality and operator comfort.

Performance in Extreme Operating Conditions

Machines equipped with the 1409699 Equalizer Bar Caterpillar are expected to perform in environments exposed to:

• High impact loads

• Abrasive ground conditions

• Temperature fluctuations

• Continuous vibration

• Heavy material handling

This equalizer bar is engineered to maintain structural integrity under such conditions, preventing excessive stress transfer to the machine frame and undercarriage.

Compatibility With Caterpillar Equipment

The 1409699 Equalizer Bar Caterpillar is used in various Caterpillar track-type machines where load balancing and suspension articulation are required. Typical applications include:

• Caterpillar DOZER D9R

• Caterpillar DOZER D9T

Exact compatibility depends on machine model and production series. Always verify part numbers against official equipment documentation before installation.

Installation Guidelines and Best Practices

Proper installation is essential for optimal performance and long service life.

Recommended Installation Practices

• Inspect mounting surfaces for wear or damage

• Ensure correct alignment during installation

• Use specified fasteners and torque values

• Lubricate pivot points as required

• Recheck fasteners after initial operating period

Correct installation ensures the 140-9699 Equalizer Bar Caterpillar functions as intended and protects surrounding components from unnecessary stress.

Maintenance and Inspection Considerations

While built for durability, routine inspection is recommended as part of undercarriage maintenance schedules.

Inspection Tips

• Check for surface cracks or deformation

• Inspect mounting bushings and pins

• Monitor for unusual noise or vibration

• Replace if excessive wear is detected

Timely inspection helps prevent secondary damage and costly downtime.

Why Choose 3GEN Export?

3GEN Export is a global OEM spare parts supplier specializing in heavy machinery components for demanding industrial applications.

Advantages of Working With 3GEN Export

• OEM-level manufacturing standards

• Consistent fit and structural accuracy

• Export-grade protective packaging

• Worldwide delivery in 5 working days

• Support for bulk, project, and repeat orders

With 3GEN Export, customers receive reliable components engineered for performance and delivered without delay.

Technical Specifications – 1409699 Equalizer Bar Caterpillar

Weight Information

• Approximate Weight: 296 kg

Weight may vary slightly depending on production tolerance.

Operational Value and Long-Term Benefits

By balancing loads and absorbing shock, the 1409699 Equalizer Bar Caterpillar contributes directly to improved machine stability, reduced undercarriage wear, and longer component service life.

For operators focused on uptime, structural reliability, and predictable maintenance costs, this equalizer bar delivers significant long-term value in demanding operating environments.

Ordering and Global Delivery

The 1409699 Equalizer Bar Caterpillar is available for worldwide shipment through 3GEN Export. Orders are dispatched globally within 5 working days, ensuring minimal downtime and uninterrupted operations.

International logistics support and custom export solutions are available upon request.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
