1409701, 140-9701 EQUALIZER BAR CATERPILLAR

Heavy-Duty Undercarriage Balance Component for Construction Machinery

The 1409701, 140-9701 EQUALIZER BAR CATERPILLAR is a critical structural component designed to maintain balance and stability in heavy tracked machinery. This part plays an essential role within the undercarriage system, allowing equipment to distribute operational loads evenly across both sides of the track assembly. In demanding environments such as construction sites, mining operations, and quarrying activities, maintaining structural equilibrium is crucial for both machine durability and operator safety.

Manufactured for high-load performance, the 1409701, 140-9701 EQUALIZER BAR CATERPILLAR is engineered to withstand extreme working conditions, including constant vibration, heavy mechanical stress, and harsh environmental exposure. Its durable steel construction allows it to support the dynamic forces generated during excavation, grading, and earthmoving operations.

At 3GEN Export, we supply this component as an OEM-quality replacement part for heavy equipment fleets worldwide. Through our global logistics network, we deliver industrial machinery components to customers across multiple continents within 5 working days, helping reduce downtime and maintain operational productivity.

Function of an Equalizer Bar in Heavy Machinery

The equalizer bar is one of the most important structural components in tracked equipment. It connects the left and right track frames, allowing the machine to adapt to uneven terrain while maintaining stability.

Key functions include:

• Distributing machine weight evenly across track frames
• Reducing stress on the undercarriage structure
• Maintaining ground contact during uneven terrain movement
• Absorbing impact forces generated during machine operation
• Supporting smoother machine movement across rough surfaces

Without a properly functioning equalizer bar, heavy equipment may experience excessive structural strain, leading to accelerated wear on the undercarriage system and reduced machine efficiency.

The 1409701, 140-9701 EQUALIZER BAR CATERPILLAR is designed to ensure the equipment remains balanced even when operating under heavy loads or uneven ground conditions.

Structural Design and Engineering

Reinforced High-Strength Steel Construction

The component is manufactured from heavy-duty steel that provides excellent strength and durability. This material is specifically chosen to tolerate high mechanical loads and repeated stress cycles experienced in construction machinery.

The reinforced steel body offers:

• High resistance to structural deformation
• Long operational lifespan under heavy workloads
• Superior load-bearing capability

This robust design ensures that the equalizer bar continues to perform reliably throughout extended machine operating hours.

Precision Machined Mounting Points

The equalizer bar features precisely machined mounting points at both ends, allowing it to connect securely with the track frame assemblies.

These mounting points are engineered to ensure:

• Accurate alignment with the machine chassis
• Reduced vibration during operation
• Proper distribution of mechanical loads

Precision machining helps maintain stable machine geometry during operation.

Integrated Bushings for Smooth Movement

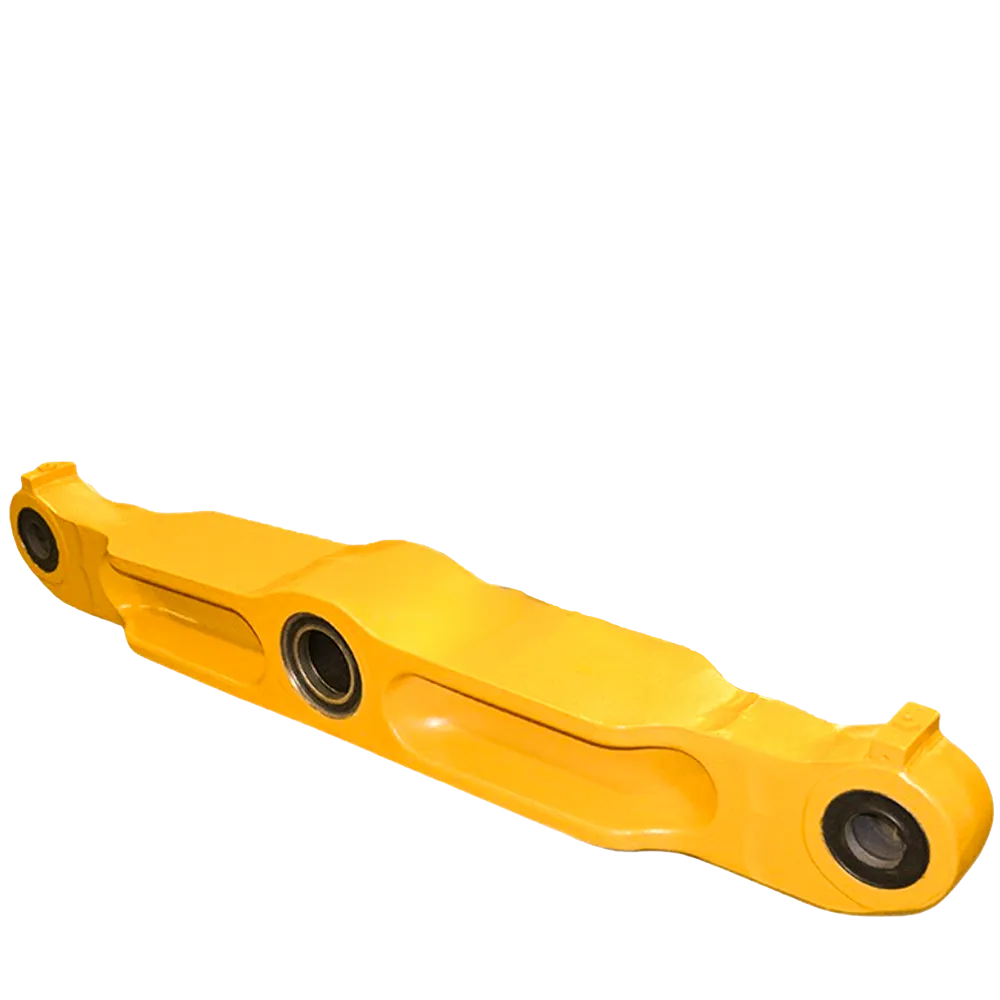

The bushings visible in the mounting areas allow controlled rotational movement. This feature helps absorb shock loads and prevents excessive stress from transferring to the frame structure.

The bushing system supports:

• Controlled articulation of track frames
• Reduced mechanical friction
• Improved undercarriage durability

Protective Surface Coating

To protect the component against corrosion and environmental exposure, the surface is coated with a durable protective finish.

This coating helps resist:

• Moisture and humidity
• Dust and debris accumulation
• Surface oxidation
• Abrasive working conditions

The protective layer ensures the component maintains structural integrity over long operating cycles.

Technical Specifications

Below are the typical technical details associated with this component:

• Product Name: 1409701, 140-9701 EQUALIZER BAR CATERPILLAR
• Alternative Formats: 1409701 / 140-9701
• Component Type: Undercarriage Equalizer Bar
• Material: High-strength forged steel
• Application Area: Track frame balancing system
• Installation Type: Direct replacement component
• Surface Protection: Industrial-grade protective coating
• Estimated Weight: 725 KG

Weight values may vary slightly depending on manufacturing batch and protective coating thickness.

Compatible CATERPILLAR Equipment Models

The 1409701, 140-9701 EQUALIZER BAR CATERPILLAR is commonly used in several large tracked machinery models used in construction and mining.

Typical compatible models include:

• CATERPILLAR DOZER D11N

• CATERPILLAR DOZER D11R

Machine compatibility should always be verified using the equipment serial number and official parts catalog before installation.

Importance for Undercarriage Performance

The undercarriage system of tracked machinery must absorb enormous loads during operation. Uneven terrain, sudden impacts, and heavy material loads all generate significant mechanical forces.

The equalizer bar helps manage these forces by allowing both track frames to move independently while maintaining structural balance.

Benefits include:

• Reduced stress on the machine chassis
• Improved machine stability on uneven terrain
• Increased lifespan of track components
• Enhanced operator control during operation

These advantages contribute directly to more efficient machine performance in demanding work environments.

Shock Absorption and Load Distribution

One of the primary roles of the equalizer bar is to absorb shock loads generated during machine movement.

When equipment travels over rough ground or obstacles, the equalizer bar allows the track frames to adjust independently. This movement helps prevent excessive pressure from being concentrated on a single track assembly.

The result is:

• Improved traction
• Better load distribution
• Reduced mechanical fatigue

Durability in Extreme Operating Conditions

Heavy construction machinery often operates in challenging environments such as mining sites, quarries, and large-scale infrastructure projects.

These environments expose equipment components to:

• Continuous vibration
• Abrasive materials such as sand and gravel
• Extreme temperatures
• High structural loads

The 1409701, 140-9701 EQUALIZER BAR CATERPILLAR is designed to withstand these conditions through its reinforced steel structure and precision engineering.

Installation Guidelines

Proper installation is critical for maintaining undercarriage performance.

Typical installation steps include:

1. Safely lift and secure the equipment.

2. Remove worn or damaged undercarriage components.

3. Align the equalizer bar with the track frame mounts.

4. Install bushings and secure mounting bolts according to torque specifications.

5. Perform a system inspection after installation.

Installation should be carried out by trained technicians familiar with heavy equipment maintenance procedures.

Maintenance Recommendations

To maximize service life, periodic inspections of undercarriage components are recommended.

Maintenance practices include:

• Checking bushings for wear
• Inspecting mounting bolts for looseness
• Monitoring undercarriage alignment
• Cleaning accumulated debris around mounting areas

Preventive maintenance helps avoid unexpected machine downtime.

Performance Advantages

Installing a high-quality equalizer bar offers several operational advantages.

These include:

• Increased machine stability
• Improved undercarriage durability
• Reduced vibration during operation
• Balanced track load distribution
• Enhanced machine control in rough terrain

These benefits contribute to improved efficiency and reduced operating costs.

Why Choose 3GEN Export

At 3GEN Export, we specialize in supplying OEM-quality spare parts for heavy machinery used in construction, mining, and industrial operations.

Our advantages include:

• High manufacturing standards
• Strict quality inspection procedures
• Professional export packaging
• Global logistics support
• Reliable technical assistance

Our goal is to help heavy equipment operators keep their machines running efficiently with minimal downtime.

Global Shipping with Fast Delivery

Through our international distribution network, we ship industrial spare parts to customers worldwide.

Every order is carefully packaged to ensure safe transportation. Our logistics process allows customers to receive their parts within 5 working days, helping maintain uninterrupted operations.

Conclusion

The 1409701, 140-9701 EQUALIZER BAR CATERPILLAR is an essential structural component within the undercarriage system of heavy tracked machinery. Designed for durability and stability, it ensures that operational loads are distributed evenly across the track frames while allowing the machine to adapt to uneven terrain.

Its reinforced steel construction, precision-machined mounting points, and durable surface coating make it suitable for demanding industrial environments.

By sourcing this component from 3GEN Export, equipment operators gain access to reliable OEM-quality parts with fast worldwide delivery.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
