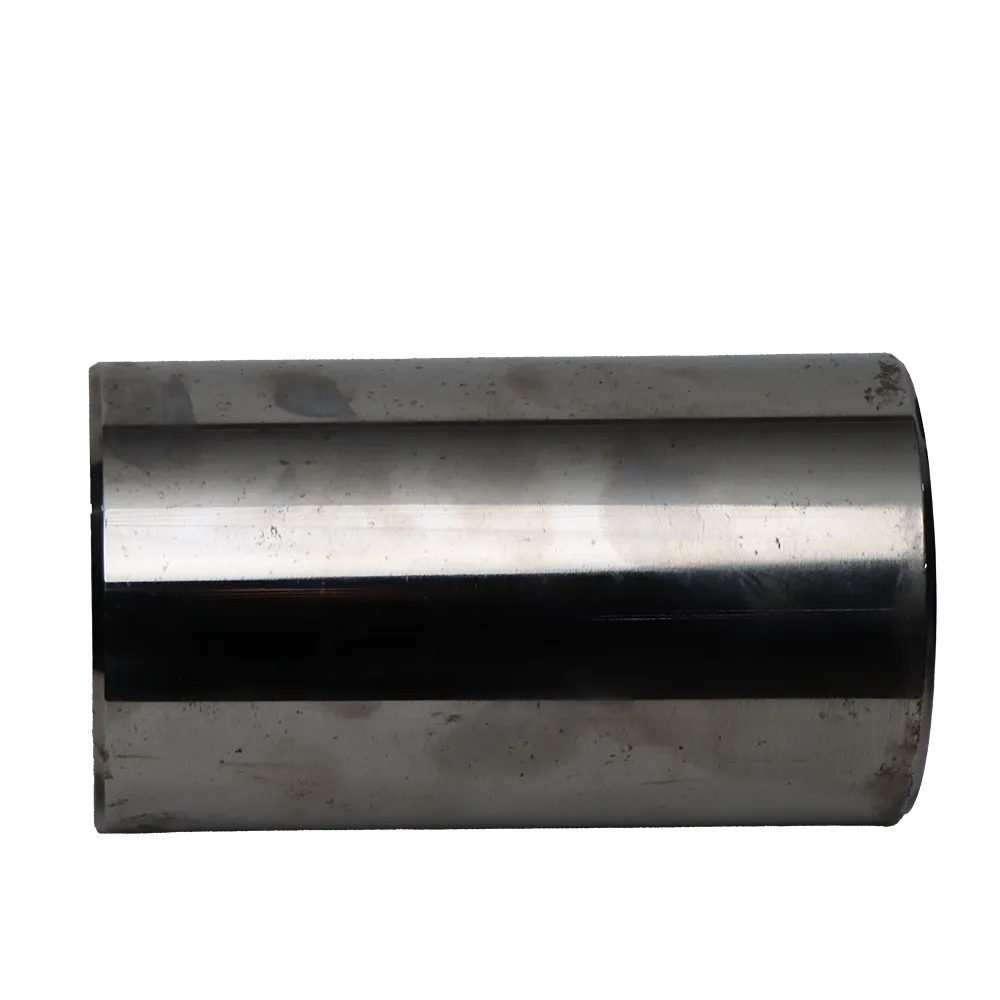

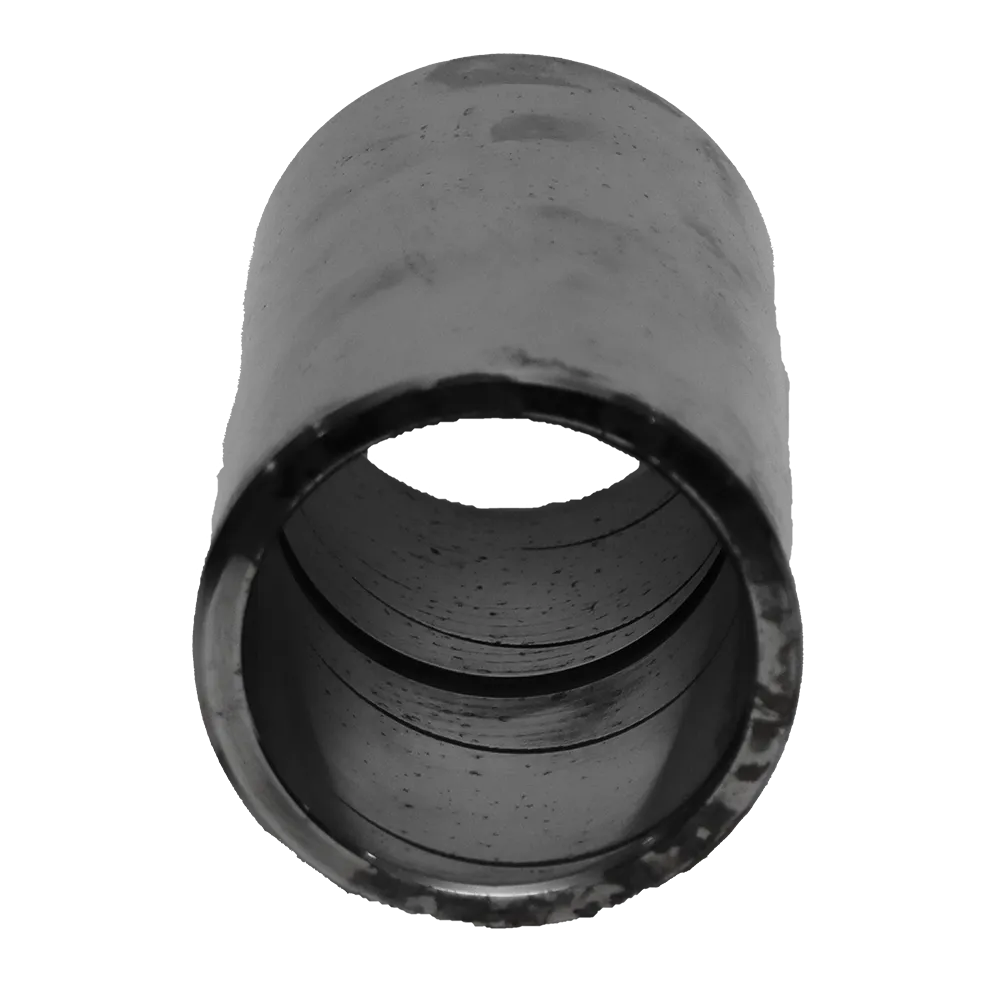

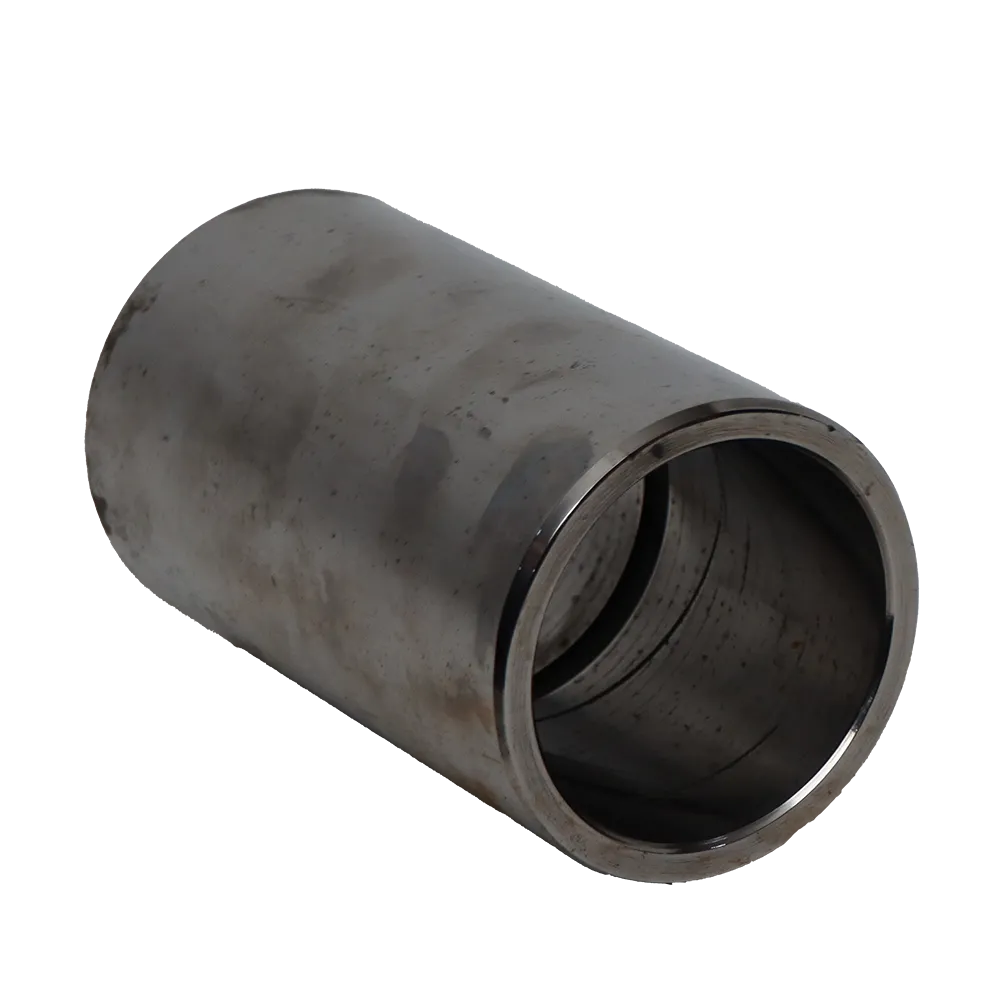

14Y-50-11250 BUSHING
Description
The Komatsu 14Y-50-11250 bushing is a cylindrical plain bearing that lines a pivot bore in the equalizer bar and pivot shaft group. It gives the pin a low-friction, replaceable wear surface, so the bar and housing do not wear instead. Where it sits Our catalogue places this bushing in several equalizer bar and pivot shaft groups. The same part number appears in each of them, some with the power angle power tilt dozer and some without. Signs it needs replacing Slop at the pivot joint, caused by the bore wearing oval and the clearance growing Scoring or seizure marks, which point to poor lubrication or dirt getting into the joint Uneven wear along one edge, which points to a misaligned pin or a bushing pressed in out of round Fretting or corrosion where the bushing meets its housing Keep the grease path clear and the seals that hold the lubricant in place intact. A bushing that runs dry wears out fast.
Frequently Asked Questions
Should I replace the pin when I replace this bushing?
Replace the bushing as a matched set with its pin once the clearance goes past the equipment maker's wear limit, rather than changing the bushing alone.
