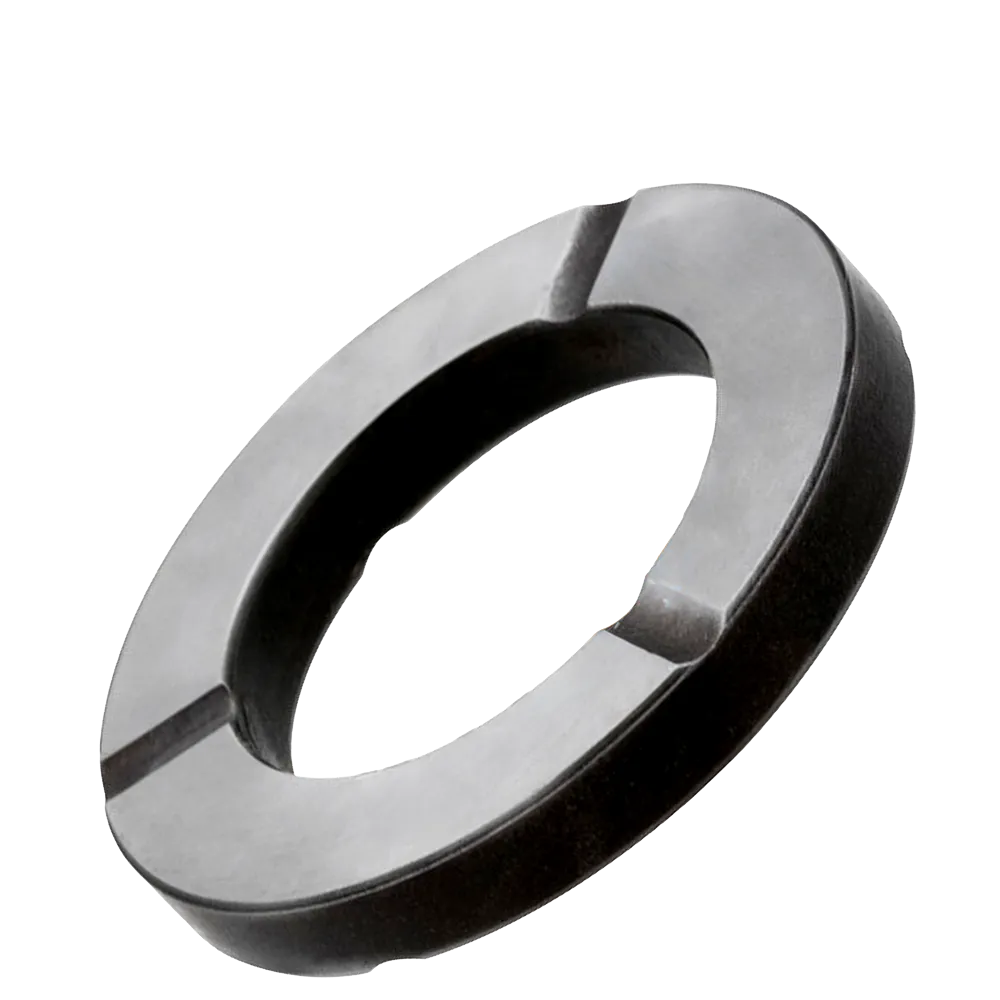

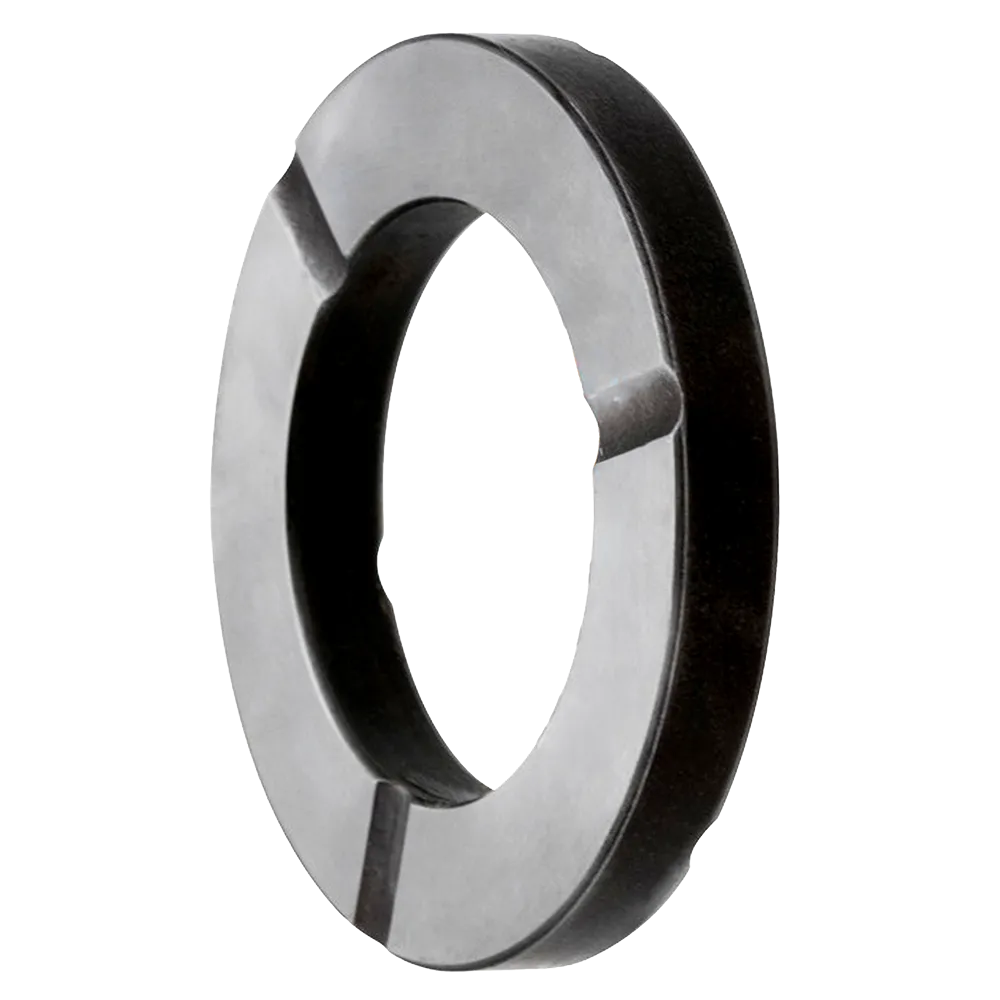

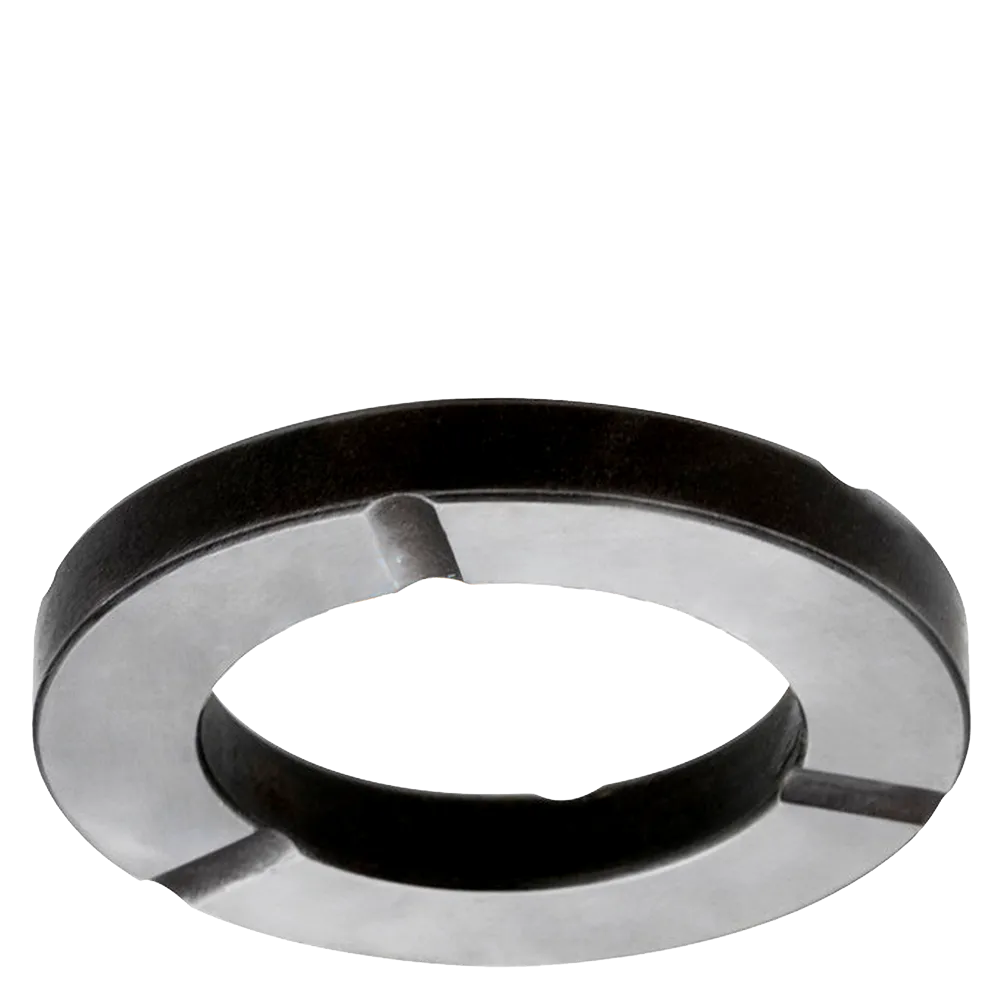

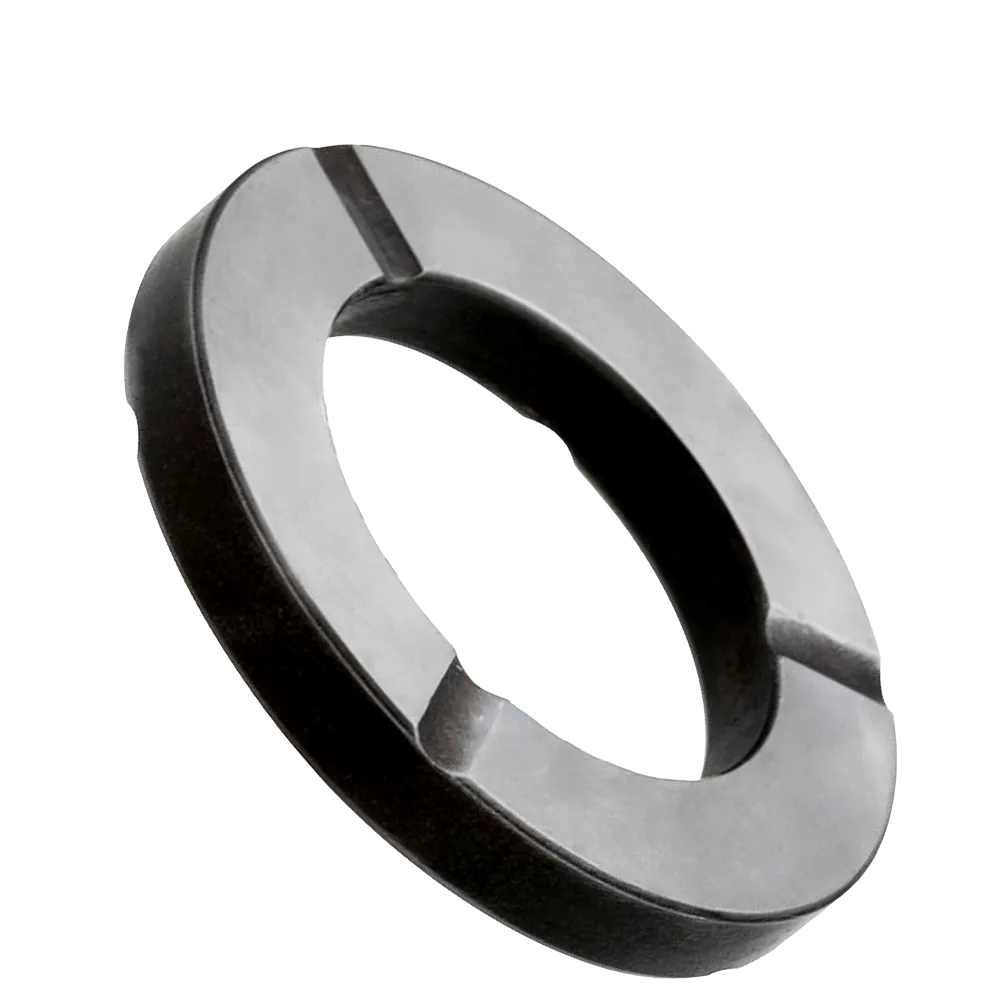

15068938, 150 689 38 PLATE ( BACKING ) SANDVIK

Overview

The 15068938, 150 689 38 Plate (Backing) Sandvik is a precision-engineered component developed for heavy-duty rock drilling and mining equipment operating under extreme mechanical stress. This backing plate plays a critical structural and protective role within Sandvik drilling systems by distributing load evenly, stabilizing adjacent components, and preventing premature wear caused by vibration, shock loads, and continuous friction.

In high-impact drilling environments, even a seemingly simple component such as a backing plate becomes mission-critical. Incorrect tolerances, poor material quality, or uneven surface finishing can lead to alignment issues, accelerated wear of connected parts, and costly downtime. The 15068938, 150 689 38 Plate (Backing) Sandvik is designed to eliminate these risks by ensuring consistent performance, long service life, and reliable compatibility with original equipment configurations.

As 3GEN Export, we supply this part as an OEM-quality solution, manufactured to match original specifications and performance expectations. We support mining, quarrying, and construction operations worldwide with fast logistics, ensuring global delivery within five working days.

What Is a Backing Plate and Why It Matters

A backing plate is a structural support component installed behind or between moving or load-bearing elements in mechanical assemblies. In rock drilling equipment, backing plates serve several essential purposes:

• Acting as a load-distribution surface to reduce point stress

• Maintaining correct alignment of rotating or sliding components

• Absorbing vibration and impact energy during drilling cycles

• Protecting housings and assemblies from direct metal-to-metal contact

The 15068938, 150 689 38 Plate (Backing) Sandvik is specifically engineered for high-impact drilling environments where repetitive shock loads and continuous rotation are unavoidable. Its geometry, thickness, and surface finish are optimized to support surrounding components without deformation or loss of dimensional accuracy.

Material Engineering and Manufacturing Quality

The performance of the 15068938, 150 689 38 Plate (Backing) Sandvik depends heavily on material selection and manufacturing precision. This component is produced using high-strength alloy steel designed to withstand extreme mechanical loads while maintaining structural integrity over long operating cycles.

Key material characteristics include:

• High resistance to compressive and shear forces

• Excellent fatigue strength under cyclic loading

• Controlled hardness for wear resistance without brittleness

• Stable dimensional behavior under temperature variation

Advanced machining and surface finishing processes ensure that contact surfaces remain smooth and consistent, reducing friction and minimizing micro-abrasion on adjacent components. This attention to detail directly translates into longer service intervals and reduced maintenance costs.

Design Features and Functional Advantages

The geometry of the 15068938, 150 689 38 Plate (Backing) Sandvik is engineered to meet the demanding requirements of rock drilling systems. Every edge, surface, and thickness parameter is designed with operational reliability in mind.

Functional advantages include:

• Even load distribution across contact surfaces

• Reduced vibration transfer to connected assemblies

• Enhanced stability during high-impact drilling cycles

• Protection of critical components from uneven stress

By maintaining proper spacing and alignment, this backing plate helps preserve the integrity of the entire drilling assembly. This contributes to smoother operation, improved drilling accuracy, and reduced wear on high-value components such as bushings, bearings, and housings.

Application Areas

The 15068938, 150 689 38 Plate (Backing) Sandvik is used in a wide range of heavy-duty drilling and mining applications, including:

• Surface drilling rigs

• Underground rock drilling equipment

• Top hammer drilling systems

• Hydraulic drifters and rock drills

• Quarry and aggregate production machinery

Its robust construction makes it suitable for harsh environments involving dust, moisture, vibration, and continuous mechanical stress.

Compatible Sandvik Equipment Models

Based on industry application data and equipment configurations, the 15068938, 150 689 38 Plate (Backing) Sandvik is commonly used in various Sandvik rock drilling and drifter systems, including but not limited to:

• Sandvik HL820ST

• Sandvik HL810T

• Sandvik HL820ST-PE

For precise compatibility confirmation, machine model and serial number verification is recommended. As 3GEN Export, we assist customers in confirming correct fitment to avoid installation errors and downtime.

Installation and Fitment Considerations

Proper installation of the 15068938, 150 689 38 Plate (Backing) Sandvik is essential to achieve optimal performance and service life. The plate must be installed on clean, properly aligned surfaces to ensure full contact and even load distribution.

Recommended installation practices:

• Inspect mating surfaces for wear or deformation

• Ensure correct orientation according to equipment design

• Use specified torque values for fasteners

• Avoid reuse of severely worn or damaged adjacent components

Correct installation reduces the risk of uneven stress, vibration amplification, and premature failure of surrounding parts.

Maintenance and Service Life

The 15068938, 150 689 38 Plate (Backing) Sandvik is designed for long-term operation with minimal maintenance requirements. However, periodic inspection is recommended as part of routine equipment servicing.

Maintenance tips include:

• Visual inspection for cracks, deformation, or surface wear

• Checking for abnormal vibration or noise during operation

• Monitoring adjacent components for uneven wear patterns

Replacing the backing plate at the correct service interval helps protect higher-value components and prevents cascading mechanical failures.

Performance Benefits in Real-World Operations

In demanding mining and drilling environments, reliability and uptime are critical. The 15068938, 150 689 38 Plate (Backing) Sandvik contributes directly to operational efficiency by:

• Enhancing overall system stability

• Reducing unplanned downtime

• Extending the lifespan of connected components

• Supporting consistent drilling performance

These benefits translate into lower maintenance costs, improved productivity, and greater operational confidence in the field.

Why Choose 3GEN Export

As 3GEN Export, we specialize in supplying OEM-quality heavy machinery spare parts to customers worldwide. Our approach combines technical expertise, reliable sourcing, and fast logistics to support uninterrupted operations.

What sets us apart:

• OEM-standard manufacturing quality

• Global delivery within five working days

• Support for mining, quarrying, and construction sectors

• Technical assistance for part verification and compatibility

We understand the critical nature of spare parts in heavy equipment operations and work to ensure that every shipment meets performance and reliability expectations.

Estimated Weight

• Approximate weight: 2.1 – 2.4 kg

The exact weight may vary slightly depending on production tolerances and specific equipment configurations.

Summary

The 15068938, 150 689 38 Plate (Backing) Sandvik is a vital structural component designed to support, protect, and stabilize rock drilling assemblies operating under extreme conditions. Its precision engineering, high-strength material composition, and optimized geometry ensure reliable performance in demanding mining and drilling environments.

Supplied by 3GEN Export as an OEM-quality solution, this backing plate offers dependable fitment, long service life, and global availability with fast delivery. Choosing the right backing plate is a small decision with a major impact on equipment reliability, and this component is engineered to meet those expectations.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
