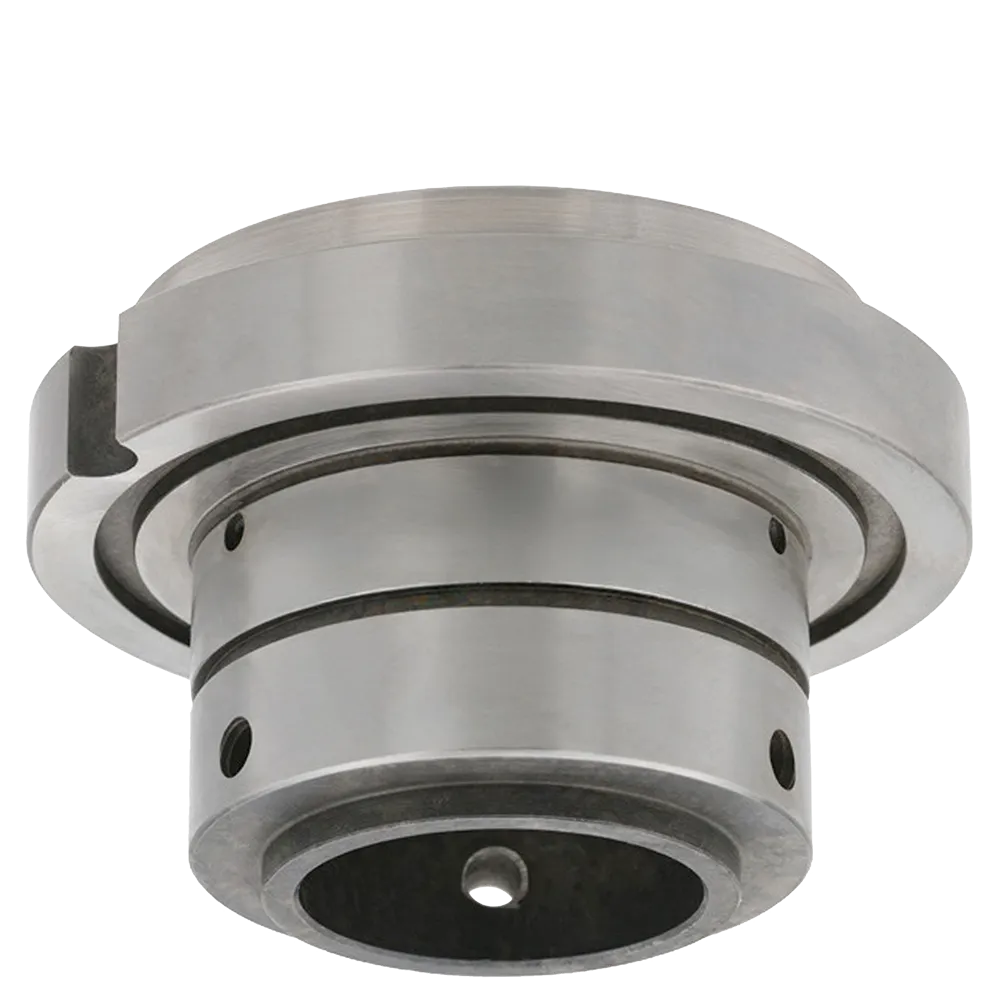

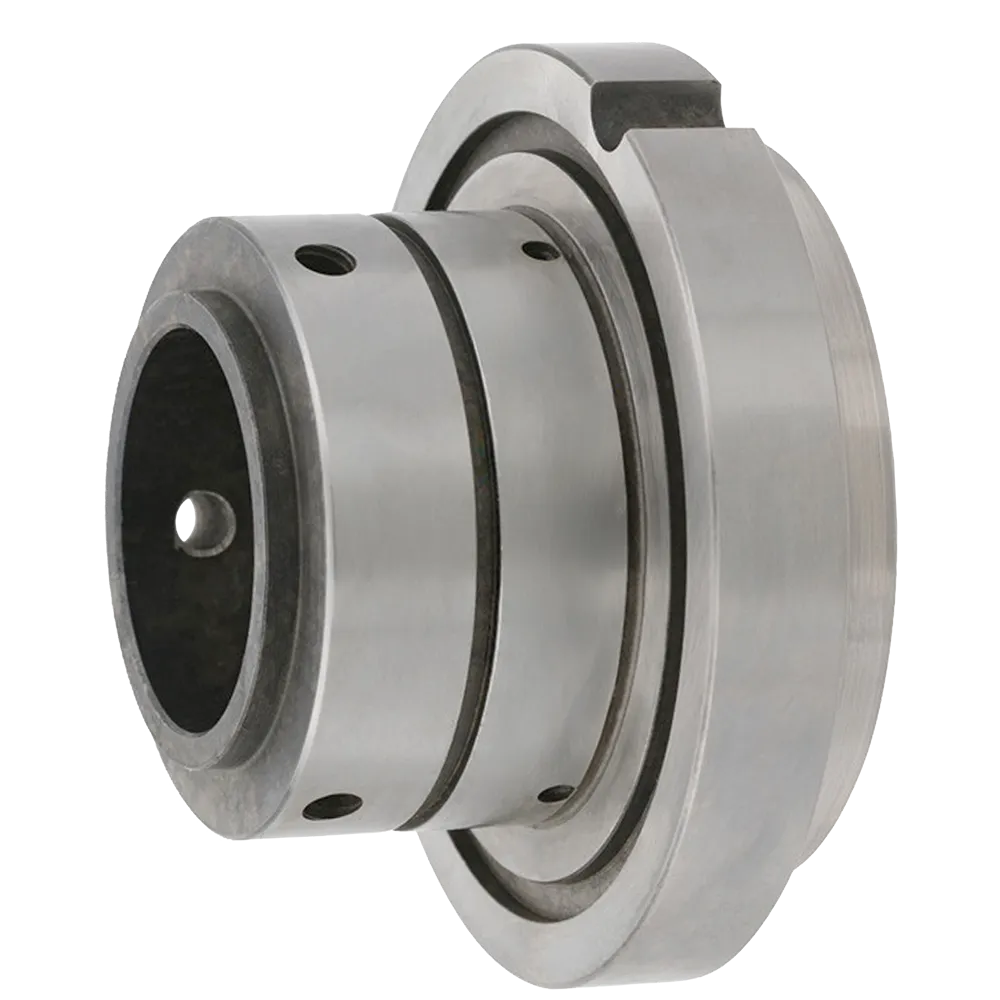

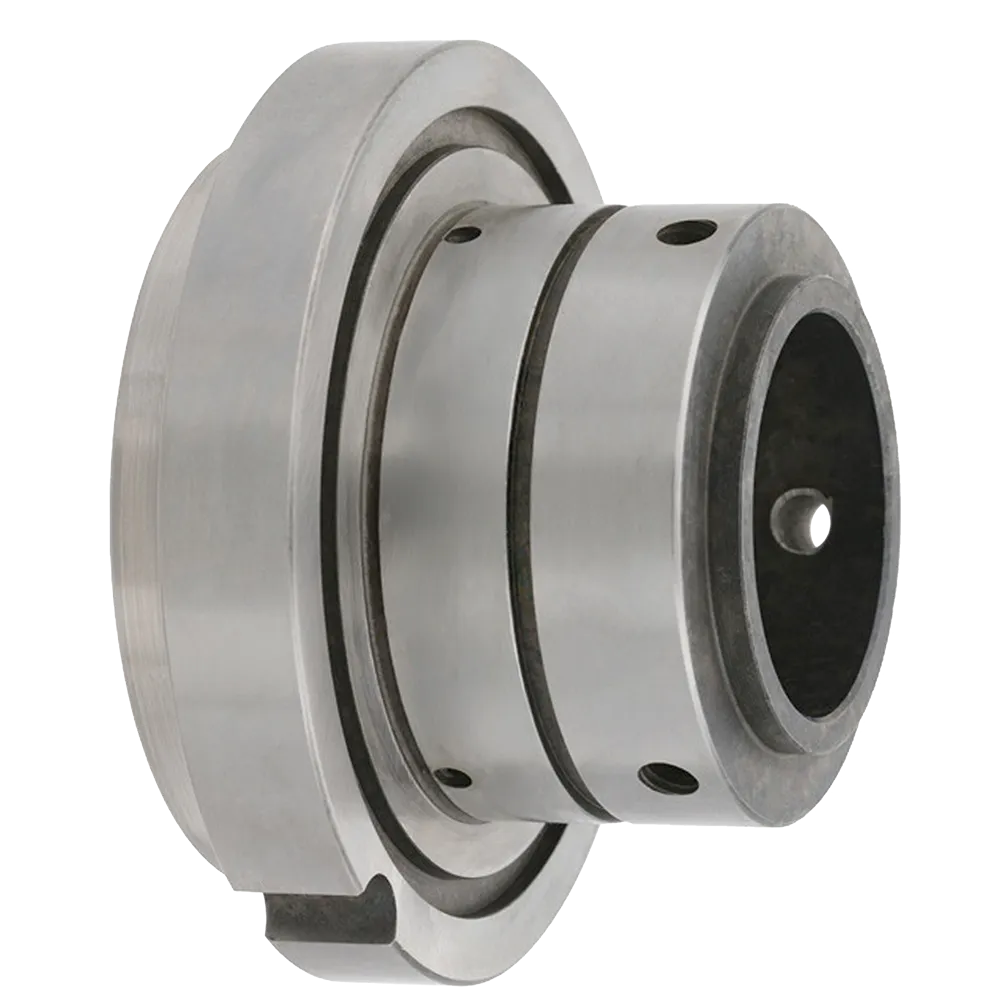

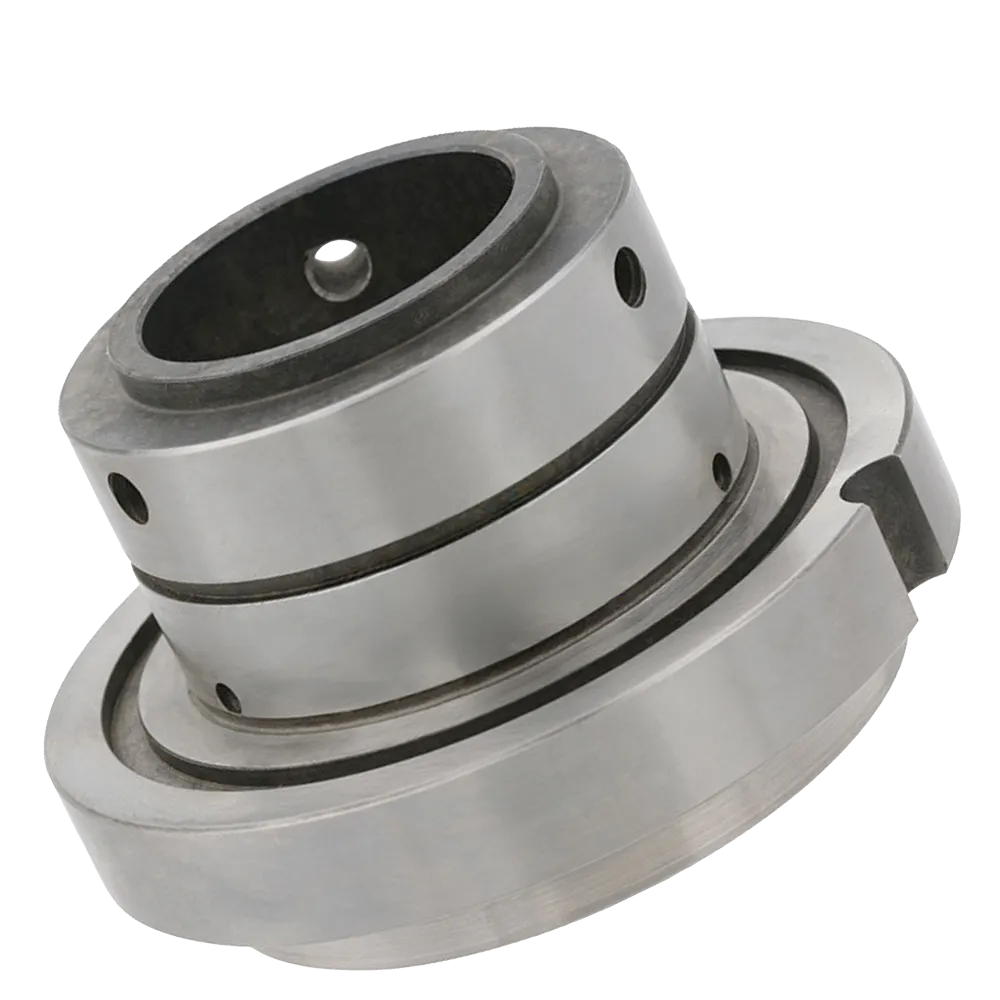

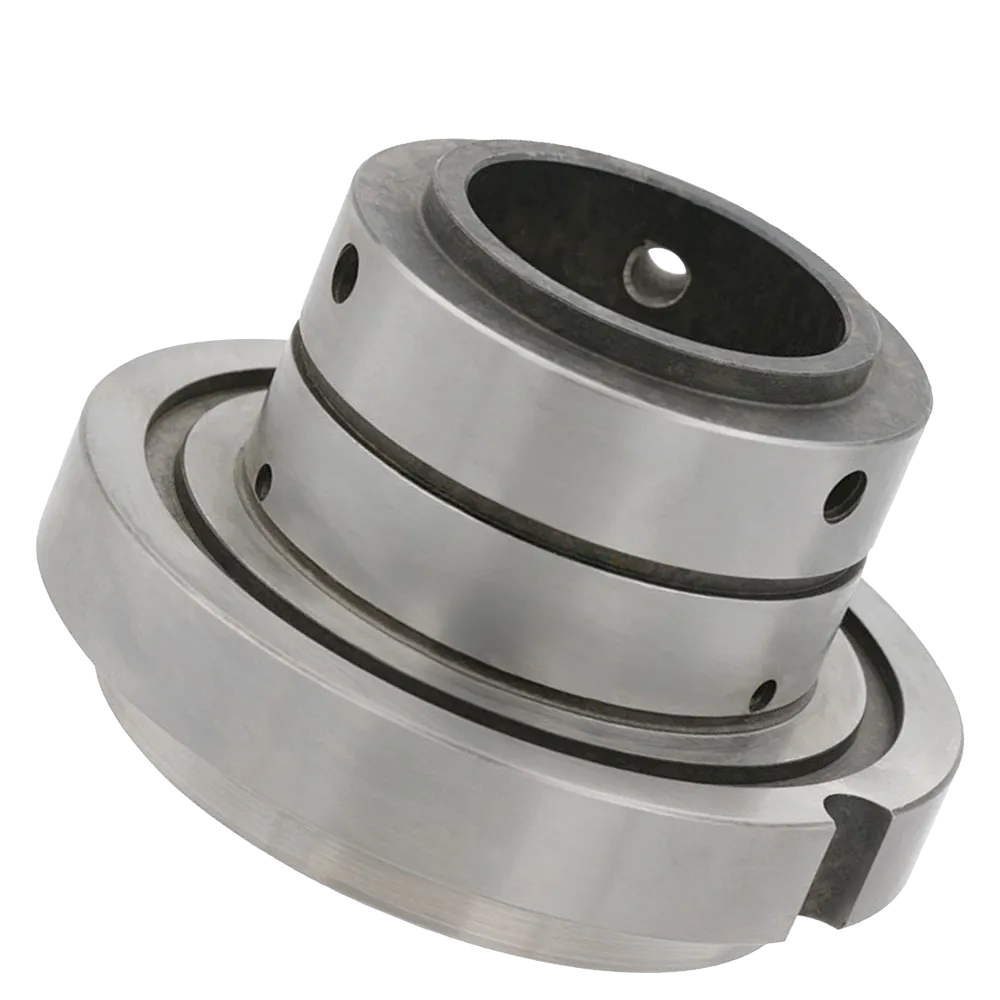

15169138 / 151 691 38 SHANKI BUSHING – SANDVIK Compatible

Overview

The 15169138 / 151 691 38 SHANKI BUSHING is a critical wear component engineered for high-impact rock drilling operations. Designed to support and guide the shank adapter during percussive drilling, this part plays a decisive role in maintaining drilling accuracy, reducing vibration transfer, and protecting adjacent components from premature wear. In demanding environments such as mining, tunneling, quarrying, and construction, consistent performance from the shank bushing is essential for operational efficiency and equipment longevity.

Supplied by 3GEN Export as an OEM-standard alternative, this component is manufactured to precise tolerances, using high-strength alloy steel and advanced heat-treatment processes. It is built to withstand extreme axial loads, repetitive shock waves, and abrasive conditions while maintaining dimensional stability throughout its service life. With global delivery in 5 working days, 3GEN Export ensures fast and reliable access to this critical spare part for projects worldwide.

What Is a Shanki Bushing and Why It Matters

A shanki bushing is installed within the front housing of a rock drill. Its primary function is to center and support the shank adapter, ensuring correct alignment between the drilling tool and the percussion mechanism. During operation, enormous impact energy is transmitted through the shank. Without a properly engineered bushing, this energy would cause excessive play, misalignment, and accelerated wear on the drill string and front-end components.

The 15169138 SHANKI BUSHING SANDVIK compatible design focuses on:

• Maintaining precise radial alignment under load

• Absorbing and distributing impact forces evenly

• Minimizing metal-to-metal friction

• Extending the service life of shank adapters and front housings

By stabilizing the drilling system, this component directly contributes to smoother drilling, improved penetration rates, and reduced downtime.

Material Engineering and Manufacturing Quality

The 151 691 38 SHANKI BUSHING is produced from premium alloy steel selected for its toughness, fatigue resistance, and wear properties. Advanced metallurgical processes are applied to ensure consistent performance in harsh drilling environments.

Key material characteristics

• High tensile strength to resist cracking under shock loads

• Optimized hardness profile to balance wear resistance and impact absorption

• Uniform microstructure achieved through controlled heat treatment

• Precision-machined surfaces for accurate fit and smooth operation

Each unit supplied by 3GEN Export undergoes strict quality checks to verify dimensional accuracy, surface finish, and structural integrity. This ensures compatibility with Sandvik-type rock drill systems without the need for modification.

Functional Advantages in Rock Drilling Operations

Using a correctly manufactured shanki bushing such as the 15169138 SHANKI BUSHING SANDVIK compatibleprovides measurable operational benefits:

Improved drilling stability

The bushing maintains constant alignment between the shank adapter and drill body, reducing vibration and lateral movement during percussion cycles.

Extended component lifespan

By acting as a sacrificial wear surface, the bushing protects higher-value components such as the front head and shank adapter, lowering overall maintenance costs.

Consistent energy transfer

Stable alignment allows more efficient transmission of impact energy to the drill bit, improving penetration rates and reducing energy loss.

Reduced unplanned downtime

Predictable wear patterns make maintenance scheduling easier, preventing unexpected failures in critical drilling operations.

Typical Applications

The 151 691 38 SHANKI BUSHING is widely used in heavy-duty drilling applications where reliability and durability are essential:

• Underground and surface mining operations

• Tunnel excavation projects

• Quarry drilling and blasting

• Foundation and ground-engineering works

• Large-scale infrastructure construction

In each of these environments, the component must perform under continuous stress, exposure to dust and debris, and frequent impact cycles.

Compatible Sandvik Rock Drill Models

The 15169138 / 151 691 38 SHANKI BUSHING is commonly used in Sandvik-type hydraulic rock drills and drifters, including but not limited to:

• SANDVIK HL538

Compatibility may vary depending on configuration and production year. For precise confirmation, 3GEN Export recommends verifying the machine model and serial number before ordering.

Installation Guidelines

Correct installation is essential to achieve maximum service life from the 151 691 38 SHANKI BUSHING.

Installation best practices

• Thoroughly clean the housing bore before installation

• Check for damage or excessive wear in the front housing

• Apply appropriate assembly lubricant as specified by the machine manufacturer

• Ensure the bushing is seated squarely and aligned correctly

• Inspect the shank adapter for wear before reassembly

Following these steps helps prevent uneven wear and ensures optimal performance from the drilling system.

Maintenance and Wear Considerations

Like all wear components in a percussive drilling system, the shanki bushing should be inspected regularly.

Signs of wear include

• Increased vibration during drilling

• Excessive radial play of the shank adapter

• Irregular wear patterns or scoring on the inner surface

• Reduced drilling efficiency

Replacing the bushing at the correct interval prevents secondary damage and maintains consistent drilling performance.

Estimated Technical Specifications

While exact dimensions may vary by application, typical characteristics of the 15169138 SHANKI BUSHING include:

• Component type: Shank support bushing

• Material: Heat-treated alloy steel

• Manufacturing method: Precision machining

• Application: Hydraulic rock drill front housing

Estimated weight

• Approximate weight: 9.5 – 11.0 kg

Weight may vary slightly depending on specific configuration and tolerance range.

Why Choose 3GEN Export

3GEN Export supplies OEM-standard heavy machinery spare parts to customers across the globe. By choosing 3GEN Export for the 151 691 38 SHANKI BUSHING, buyers benefit from:

• OEM-quality manufacturing standards

• Competitive pricing without compromising performance

• Global logistics network

• Delivery to most destinations within 5 working days

• Professional technical support and sourcing expertise

As a trusted supplier in the heavy machinery spare parts market, 3GEN Export focuses on reliability, transparency, and long-term customer partnerships.

Global Supply and Logistics

Time-critical projects demand fast and dependable supply chains. 3GEN Export maintains an efficient international logistics structure, enabling rapid dispatch of high-demand components such as the 15169138 SHANKI BUSHING. Whether supporting a mining operation in remote regions or a construction project in an urban center, the company ensures timely delivery with secure packaging and proper documentation.

Conclusion

The 15169138 / 151 691 38 SHANKI BUSHING SANDVIK compatible is an indispensable component for maintaining stability, efficiency, and durability in hydraulic rock drilling systems. Engineered to withstand extreme operational stress, it protects vital drill components while ensuring consistent performance in the most demanding environments.

Supplied by 3GEN Export as an OEM-standard solution with worldwide delivery in 5 working days, this shanki bushing represents a reliable and cost-effective choice for professionals who cannot afford downtime or compromised drilling accuracy.
