15257638 DISTRIBUTOR SANDVIK (Also searched as 152 576 38)

A rock drill doesn’t fail loudly at first. Most of the time it starts with small signals: a slightly uneven percussion rhythm, a gradual dip in penetration, an oil temperature that creeps up after long cycles, or seals that don’t last as long as they used to. In many drifter systems, those “small signals” trace back to one quiet but critical function: how hydraulic flow is guided and separated inside the drill.

That is the job of the 15257638 DISTRIBUTOR SANDVIK. This component works as a precision flow-routing and sealing element in the internal circuit of a drifter, supporting stable switching and controlled oil distribution for consistent drilling performance. It is widely listed as compatible with HLX5 / HLX5T rock drill & drifter systems and referenced alongside underground drill rigs such as DD320-40, DD310-40, Axera 6, and Axera D07 260.

At 3GEN Export, we supply the 15257638 DISTRIBUTOR SANDVIK as an OEM supplier standard spare part and deliver worldwide in 5 working days. The goal is simple: keep your rig producing meters instead of waiting on parts.

What the 15257638 DISTRIBUTOR SANDVIK does inside a drifter

Inside a hydraulic rock drill, energy is controlled through routing. Percussion and rotation are not “always on” in the same way; they rely on timed hydraulic pathways, controlled sealing between chambers, and predictable pressure behavior. A distributor element contributes to that control by helping direct flow through the internal passages and maintaining separation where it matters.

In practical terms, the 15257638 DISTRIBUTOR SANDVIK supports:

Stable percussion cycles through consistent internal routing
Reduced cross-leakage between hydraulic chambers (better efficiency)
More predictable switching behavior under changing rock hardness
Lower heat build-up by limiting internal losses caused by leakage
Healthier seal life by providing correct sealing lands and groove geometry

When the distributor area is working correctly, drilling feels smooth and “clean.” When it wears, the machine often still runs—but with less efficiency, more heat, and a higher chance of secondary damage.

Reading the part from the images

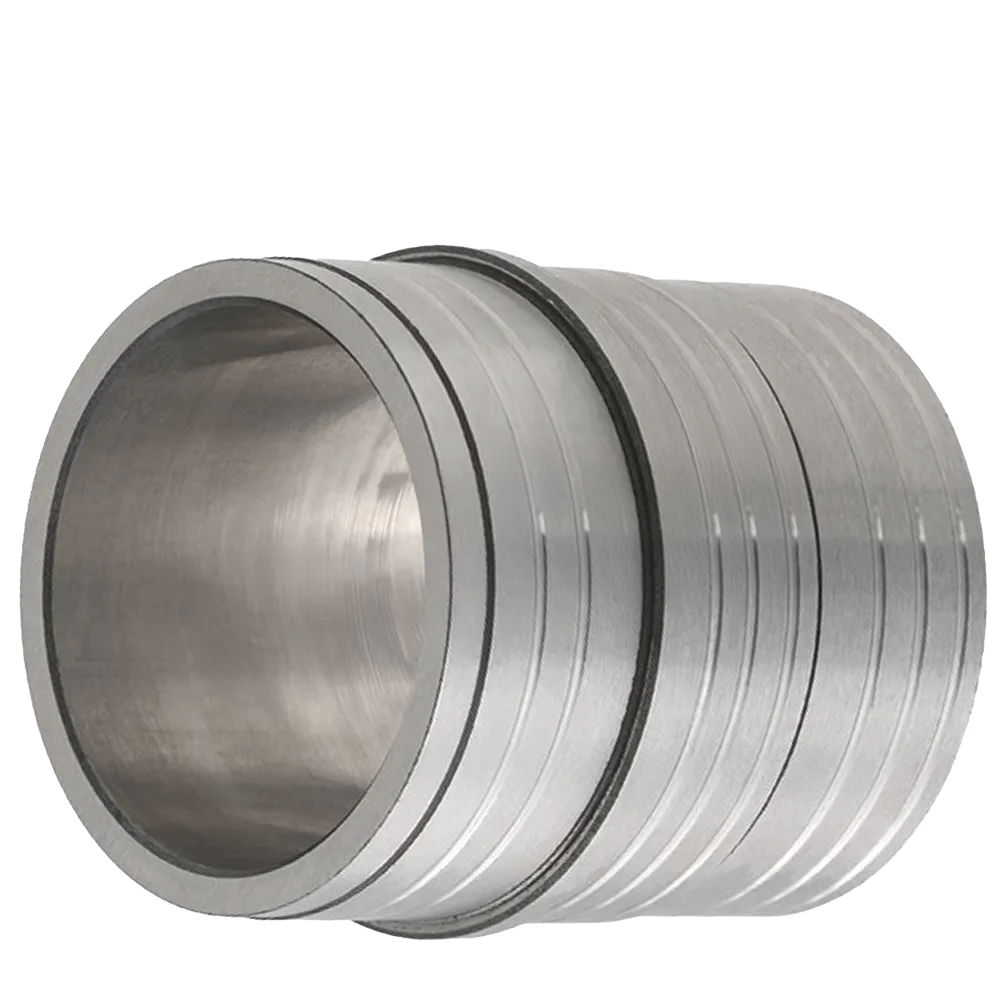

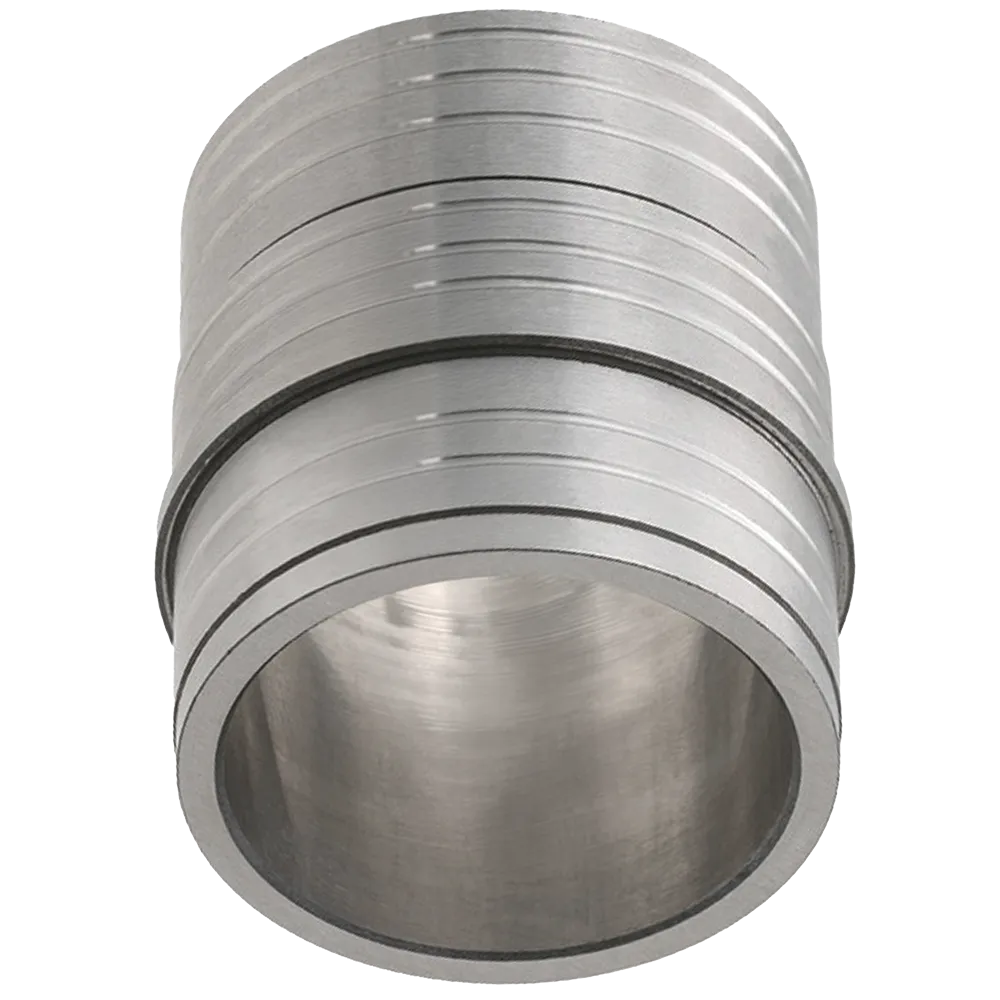

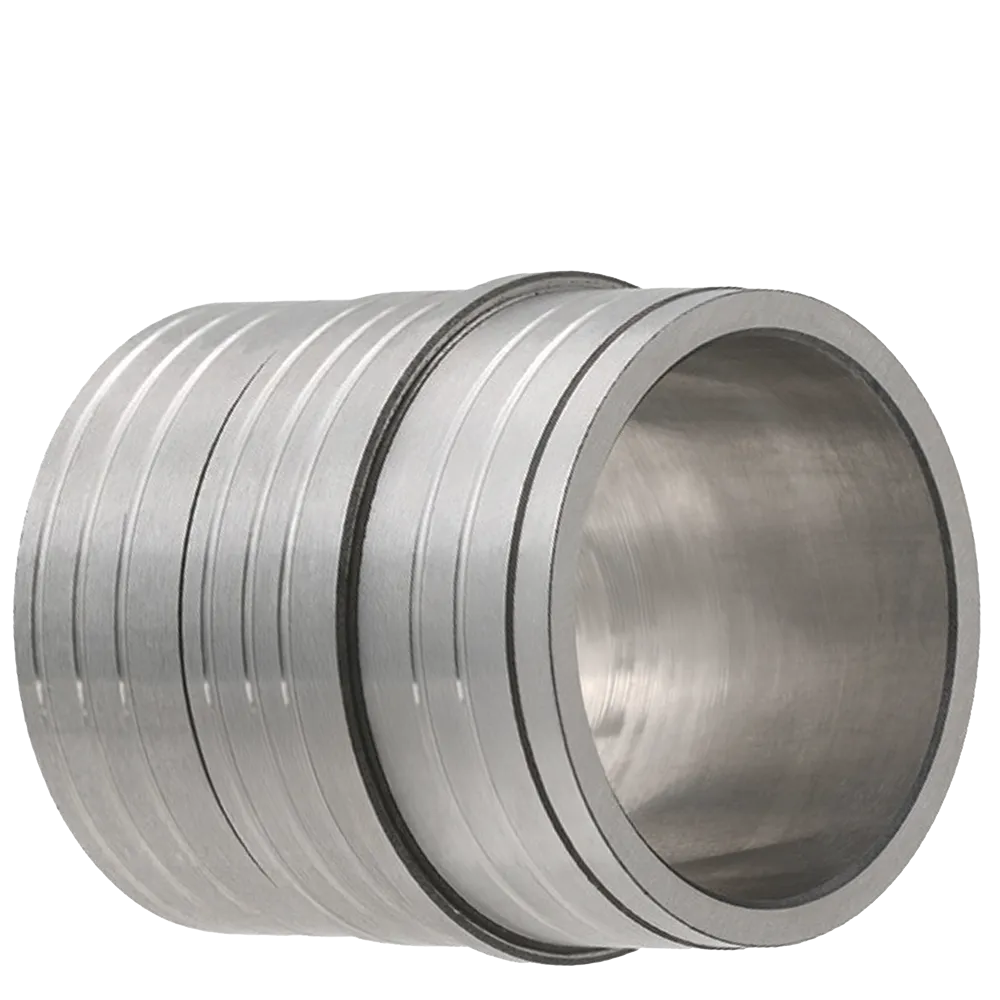

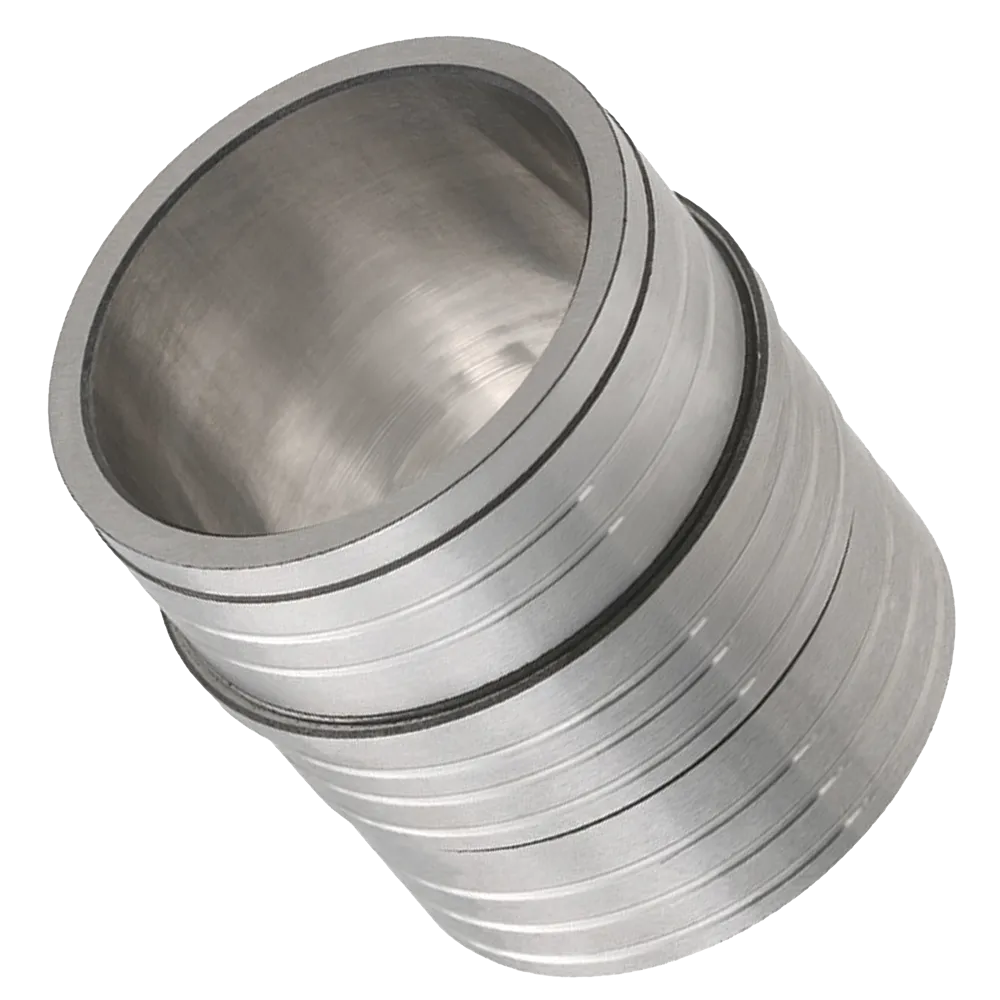

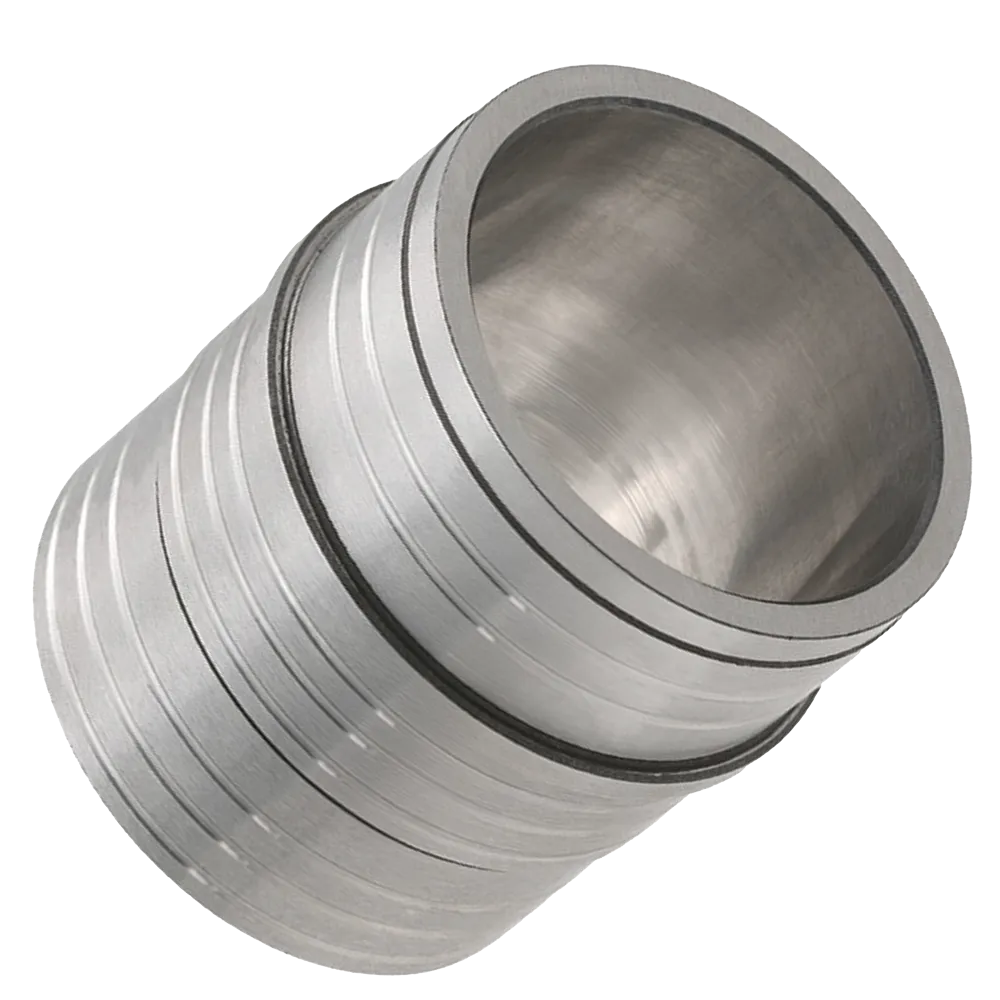

From the photos, the component appears as a precision-machined cylindrical sleeve/bush-style part with:

A smooth, finished internal bore (critical for fit and flow behavior)
Multiple machined grooves and sealing lands
A prominent sealing band area (commonly associated with O-ring seating)
Consistent surface finishing indicating a component designed to work with seals

That geometry matches what many catalogs label as a distributor bush / distributor element in drifter assemblies. One vendor explicitly lists it as “BUSH; DISTRIBUTOR: DRIFTER” for this part number.

Where 15257638 / 152 576 38 is used

Different suppliers map compatibility in two ways: by rock drill/drifter model or by the rig that carries it. For this item, a major aftermarket listing associates the part with:

Rock drill & drifter: HLX5, HLX5T
Underground drill rigs: DD320-40, DD310-40, Axera 6, Axera D07 260

Some catalogs also reference it as fitting Sandvik Drill models TB40 and TB60 in their machine mapping.

Because drill configurations can vary by serial range and build, the safest confirmation is always your drifter model + rig model + serial. But the lists above are the most consistently published cross-references for this part number.

Why precision matters for the 15257638 DISTRIBUTOR SANDVIK

Distributor-type components are not forgiving. Even minor deviations can create performance loss you can feel on the rig:

If the outer diameter tolerance is off, you get leakage and unstable control
If the surface finish is rough, seals wear early and leakage accelerates
If groove geometry is wrong, O-rings can twist, pinch, or extrude
If hardness/heat treatment is inconsistent, scoring appears faster under load

In drilling, you don’t just lose efficiency—you lose predictability. And once predictability is gone, operators compensate by pushing harder, increasing feed pressure, or running longer cycles. That’s when small internal issues become expensive rebuilds.

This is why the 15257638 DISTRIBUTOR SANDVIK should be treated as a control component, not a generic sleeve.

Typical symptoms of a worn distributor element

If your maintenance team is troubleshooting a drifter, here are the most common field signs connected to distributor wear (especially when paired with seal deterioration or oil contamination):

Penetration rate drops even when pressure settings look correct
Percussion becomes irregular or “choppy” under load
Rotation response feels inconsistent in tougher rock sections
Hydraulic oil temperature increases during long drilling cycles
O-rings in the distribution area fail more frequently than expected
Scoring marks appear on the component during teardown inspection
Metal particles increase in oil filtration checks (secondary wear indicator)

Important point: these symptoms don’t always mean the distributor is the only problem. Often, the root cause is contamination or overheating—but the distributor is one of the first places you see the damage.

Technical profile and estimated specifications

Exact dimensions are configuration-dependent, but the 15257638 DISTRIBUTOR SANDVIK is typically characterized by:

Application: internal distribution element for a hydraulic rock drill/drifter
Construction: high-strength steel alloy commonly used for wear-focused parts
Manufacturing: precision-machined bore and outer lands for tight fit
Sealing: designed to work with O-rings and sealing bands in the drifter circuit
Operating environment: high-pressure oil, cyclic loading, vibration, heat

A parts list reference also places 152 576 38 in an assembly context alongside other HLX-type items (such as piston, cylinder, and bushings), which supports the interpretation that it belongs to the internal functional group rather than an external mounting component.

Weight (KG) for shipping and planning

Online listings show different weights depending on whether the vendor is listing net weight, packed weight, or a generic catalog estimate. Two commonly published references are:

0.9000 kg listed as “Weight (KG) 0.9000” for OEM ref 15257638
0.2 kg listed as “Weight Kg/Pcs: 0.2 KG” in another catalog entry

For planning purposes, most buyers use a practical working range of 0.2–0.9 kg, with ~0.9 kg appearing in more detailed distributor-bush listings. When you order from 3GEN Export, we can confirm packing weight and carton dimensions for accurate freight calculation.

Installation guidance for the 15257638 DISTRIBUTOR SANDVIK

Always follow your drifter service manual. The steps below are meant to reduce the most common installation errors that cause premature wear.

1) Cleanliness is the real “tool”

Distributor and sealing areas are extremely sensitive to contamination.

Keep all ports sealed during disassembly
Use lint-free wipes and clean hydraulic oil for lubrication
Do not place the part on dusty benches or abrasive surfaces
Inspect oil filters and sample oil condition if failures repeat

If contamination remains in the system, a new 15257638 DISTRIBUTOR SANDVIK can show scoring quickly, even if the part itself is perfect.

2) Inspect mating surfaces before assembly

Look for:

Scoring lines, dull patches, or discoloration from heat
Burrs near sealing grooves or edges
Uneven wear patterns that suggest misalignment

If you install a new distributor element into a damaged mating surface, the system may still leak internally and performance won’t recover.

3) Seal and O-ring handling

Replace seals rather than reusing them
Lubricate O-rings with compatible hydraulic oil during assembly
Ensure O-rings sit correctly and do not twist in grooves
Avoid sharp tools that can nick sealing surfaces

Most “immediate” leaks after rebuild come from pinched or twisted O-rings, not from the component itself.

4) Assembly and alignment tips

Do not force the distributor into place
Confirm the correct orientation if your configuration specifies it
Torque fasteners to specification and re-check if required after initial run-in
Rotate and seat components gently to protect sealing edges

5) Post-installation checks

After the rebuild:

Run the drill under light load first
Monitor oil temperature rise and drilling sound consistency
Check for abnormal vibration or unstable impact rhythm
Inspect for external leakage (and if output is still weak, consider internal leakage tests)

How to extend service life in real operations

Most distributor wear is accelerated by system conditions. If you want the 15257638 DISTRIBUTOR SANDVIK to last, focus on the causes that destroy surface finish and seals:

Improve oil cleanliness and filtration discipline
Prevent water contamination (condensation and wash-down risks)
Control heat by monitoring oil temperature and cooling efficiency
Maintain correct lubrication and flushing parameters
Avoid prolonged operation with unstable percussion (it increases heat and micro-wear)

In other words: a distributor element lasts longer when the hydraulic system is treated like a clean circuit, not a “dirty power source.”

Purchasing notes and common search formats

Buyers search this part number in multiple formats depending on manuals and procurement systems. To capture all searches on your product page, include:

15257638 DISTRIBUTOR SANDVIK
152 576 38 DISTRIBUTOR SANDVIK
152-576-38 distributor

One aftermarket listing explicitly titles it as “15257638 Distributor Spare Part” and repeats the spaced format 152 576 38, showing how often both are used in catalogs.

Why 3GEN Export

Downtime in drilling is expensive because it stops production immediately. 3GEN Export focuses on making parts supply predictable.

We supply the 15257638 DISTRIBUTOR SANDVIK as an OEM supplier standard spare part
We deliver worldwide in 5 working days
We support fitment confirmation when you share drifter/rig model details
We ship export-ready with professional handling for international logistics

If you share your rig model and drifter type (for example HLX5 or HLX5T), we can confirm the correct match before dispatch—so the part arrives ready to install, not ready to return.

Compatibility summary (as commonly published)

Rock drill/drifter references: HLX5, HLX5T

Underground rig references: DD320-40, DD310-40, Axera 6, Axera D07 260

Additional catalog mapping: Sandvik Drill TB40, TB60

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
