15274538, 152 745 38 COVER, FRONT COMPLETE SANDVIK

When a rock drill is doing real work, the front end of the unit takes the most punishment, continuous vibration, abrasive dust, cyclic loads, heat, and high-speed rotation. The 15274538 COVER, FRONT COMPLETE SANDVIK is built to be that front-end “guardian”: a precision-machined cover assembly that helps protect internal components, supports alignment at the nose of the unit, and creates a stable interface between the housing and the wear-control elements operating at the front of the system.

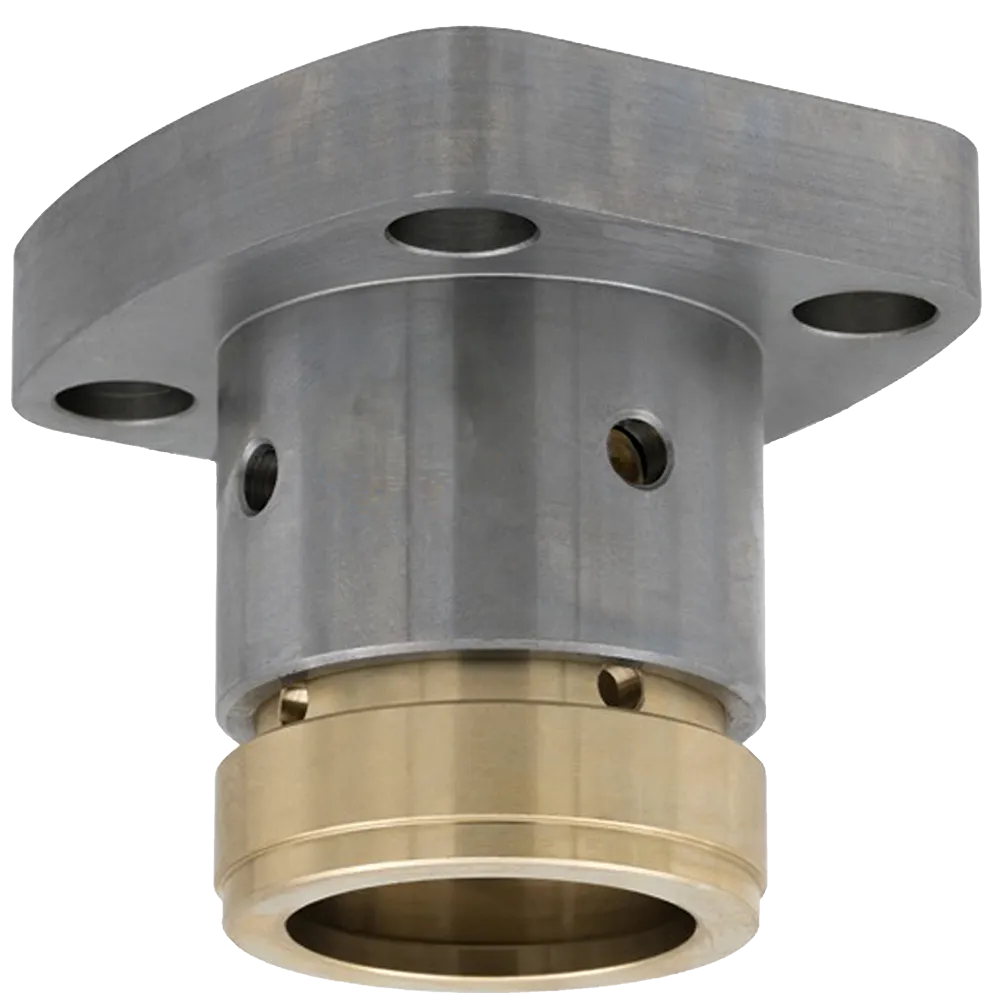

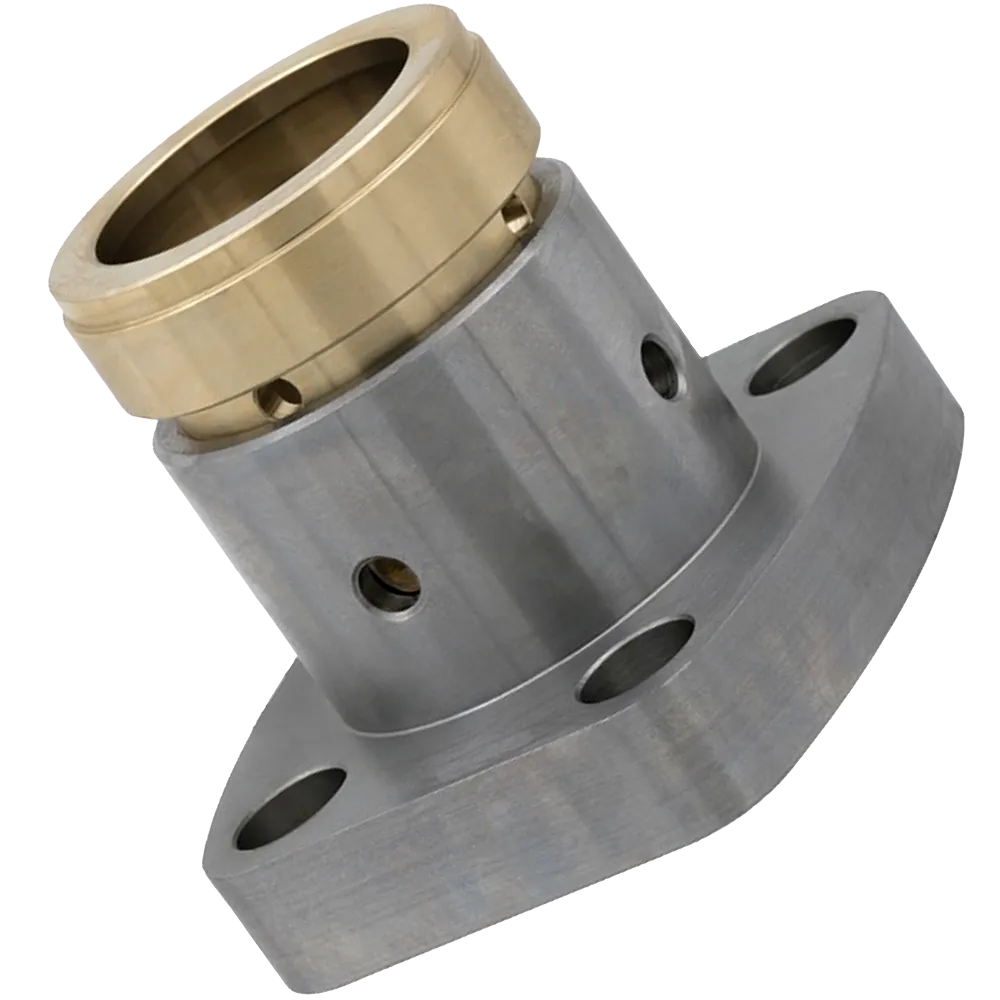

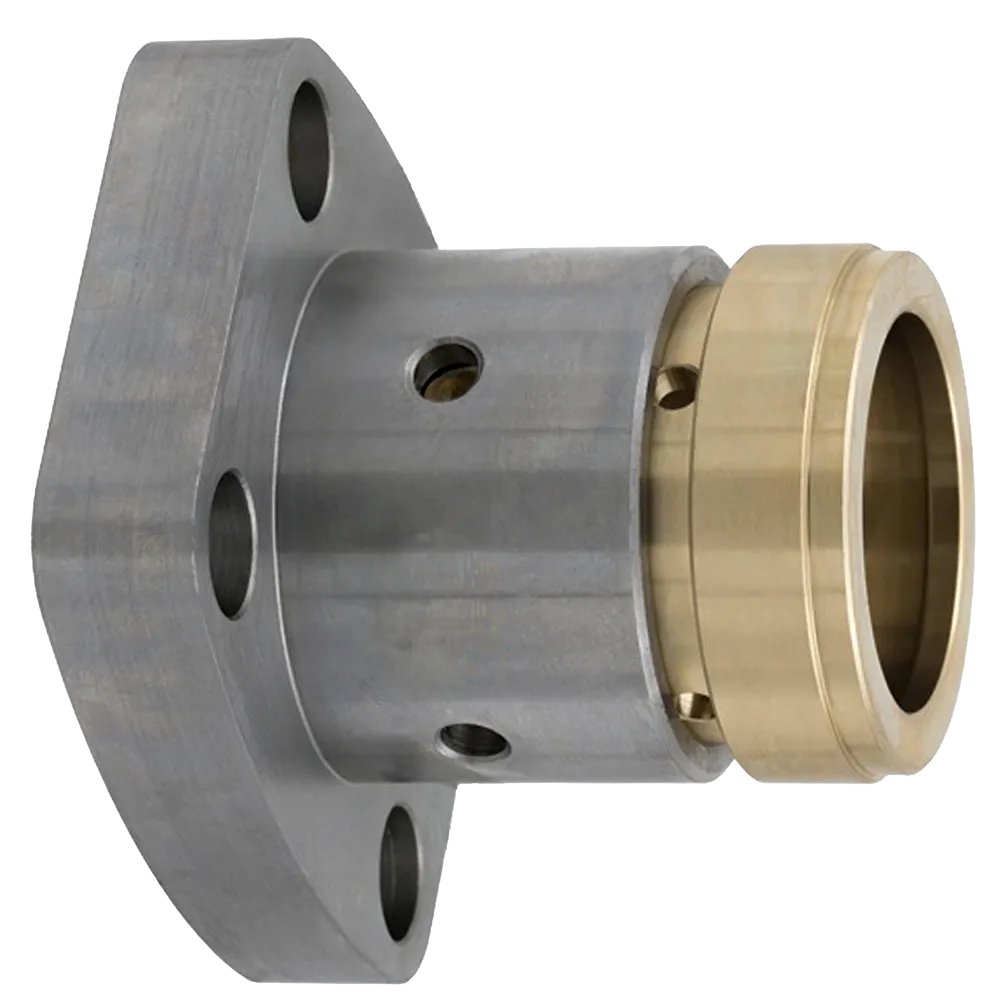

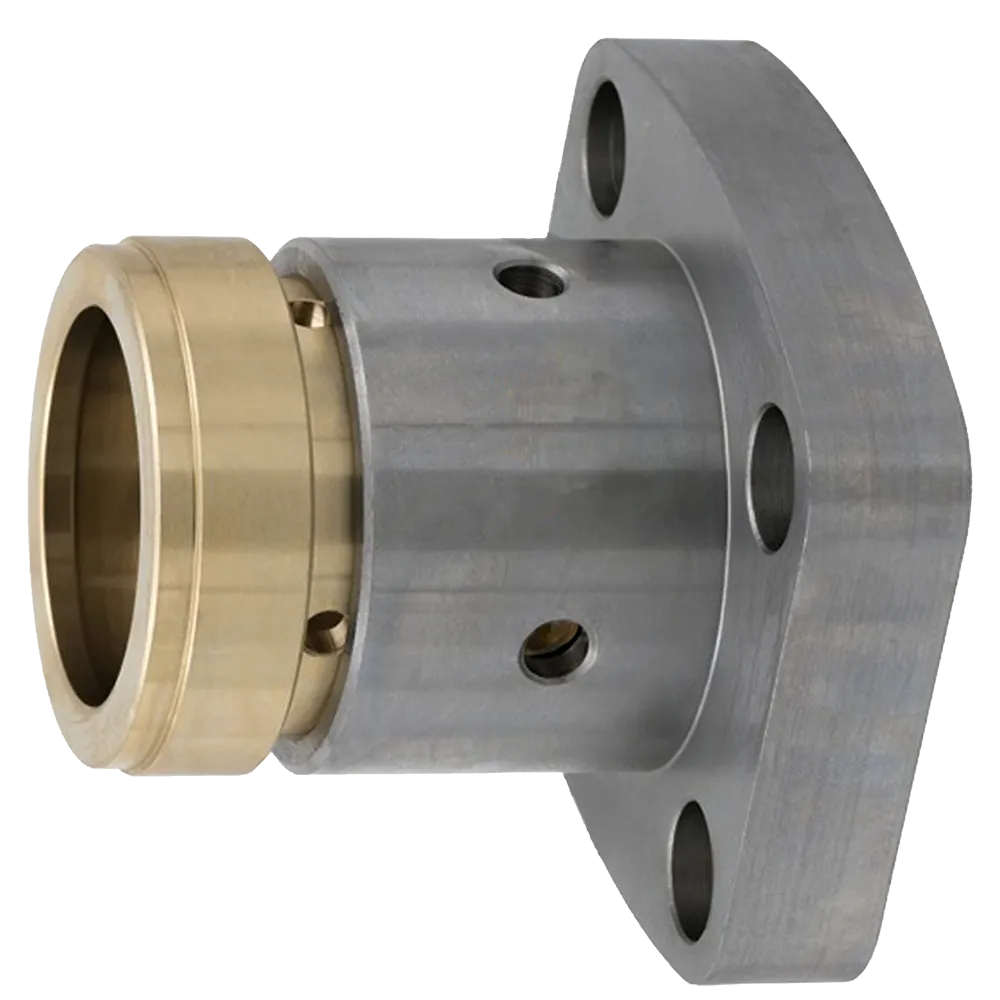

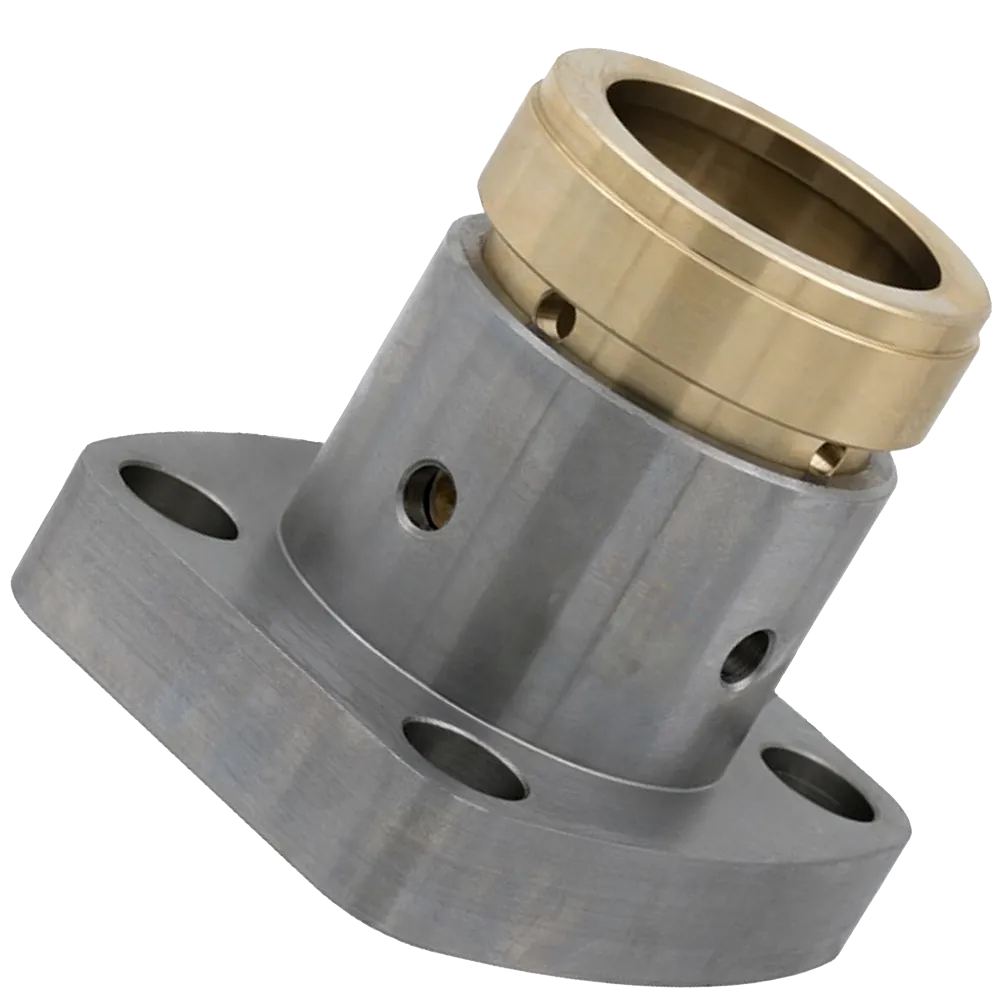

In many drilling setups, this front cover assembly is not just a simple cap. The 152 745 38 COVER, FRONT COMPLETE SANDVIK typically combines a robust structural body with integrated features designed to control wear, manage lubrication paths, and keep sensitive internals protected from debris. The geometry visible in the product images, stepped outer diameters, flange base, and a fitted bronze-colored bearing/bushing element, suggests a purpose-built assembly that supports a rotating or oscillating component while maintaining tight tolerances under load.

At 3GEN Export, we supply the 15274538 COVER, FRONT COMPLETE SANDVIK as an OEM-quality alternative for customers who need dependable performance, repeatable fit, and fast procurement. We ship worldwide in 5 working days, helping drilling operations reduce downtime and keep equipment utilization high.

What the 15274538 COVER, FRONT COMPLETE SANDVIK does

The front area of a drifter/rock drill assembly typically faces three constant threats: misalignment, contamination, and accelerated wear. The 15274538 COVER, FRONT COMPLETE SANDVIK is engineered to reduce those risks by acting as a precision interface component at the nose/front side of the unit.

1) Structural front interface and protection

The 152 745 38 COVER, FRONT COMPLETE SANDVIK forms a rigid protective front boundary. It helps shield internal assemblies from impact, dust intrusion, and splash contamination. In drilling environments, especially in tunneling, bench drilling, and production blasting, front-end sealing and protection are major contributors to service life.

Because the 15274538 COVER, FRONT COMPLETE SANDVIK is a “front complete” assembly, it is commonly treated as a replacement unit rather than a small sub-part. This approach simplifies maintenance: technicians can replace the assembly and restore geometry without spending excessive time reworking worn interfaces.

2) Alignment stability for rotating/wear components

A key role of the 152 745 38 COVER, FRONT COMPLETE SANDVIK is maintaining alignment at the front of the mechanism. That matters because even minor runout or angular deviation can cause:

• uneven wear on bushings and sleeves

• increased vibration and heat

• premature wear on seals

• reduced efficiency in energy transfer

The integrated bronze-colored element shown in the images strongly indicates a bearing/bushing function that supports a rotating or sliding component. In practice, the 15274538 COVER, FRONT COMPLETE SANDVIK contributes to stable, repeatable alignment, critical for consistent drilling output and predictable maintenance intervals.

3) Lubrication handling and controlled wear behavior

Front-end assemblies frequently include features that help manage lubrication, either by channeling grease/oil or by providing surfaces optimized for boundary lubrication. The 152 745 38 COVER, FRONT COMPLETE SANDVIKmay include internal grooves, seats, or pathways that promote lubricant distribution and reduce dry friction at high-load contact points.

This matters because the front end is where abrasive dust tries to “eat” moving interfaces. With correct lubrication behavior, the 15274538 COVER, FRONT COMPLETE SANDVIK helps slow wear progression and maintains operating smoothness.

Design cues you can see in the product images

Even without a full engineering drawing, the visible design features on the 15274538 COVER, FRONT COMPLETE SANDVIK indicate it’s made for heavy-duty, precision positioning:

Stepped outer geometry

The stepped profile typically means the component seats into multiple mating surfaces (housing/retainer positions) and helps control axial location. This is common in rock drill front assemblies where axial loads fluctuate and must be reacted through rigid faces.

Flange-style base

A flange base usually provides a stable mounting face and helps distribute loads. It can also simplify installation by offering a consistent reference plane when the 152 745 38 COVER, FRONT COMPLETE SANDVIK is secured to the mating structure.

Integrated bronze wear element

The bronze-colored insert suggests a bushing/bearing surface designed to run against a harder steel shaft or sleeve. This pairing is widely used to control wear: the softer sacrificial material protects more expensive mating components while maintaining smooth motion.

In short, the 15274538 COVER, FRONT COMPLETE SANDVIK is not decorative hardware. It’s a load-bearing, alignment-critical, wear-managed assembly.

Where the 15274538 COVER, FRONT COMPLETE SANDVIK is used

The 152 745 38 COVER, FRONT COMPLETE SANDVIK is listed for use with SANDVIK HLX5 and SANDVIK RD520 in market references, and it is also shown in listings associated with the RD520–RD525 range.

Because Sandvik configurations can vary by build spec and retrofit history, the safest verification method is matching the part number in your parts book or using the machine model/serial number. Still, based on available listings, the 15274538 COVER, FRONT COMPLETE SANDVIK is associated with:

• Sandvik HLX5

• Sandvik RD520

• Sandvik RD520–RD525 range (market listing)

Common symptoms when the front cover assembly needs replacement

If your drill begins to “feel different” before it fails, the front assembly is often where the story starts. The 152 745 38 COVER, FRONT COMPLETE SANDVIK may need replacement when you see symptoms like:

Abnormal vibration or harsh running

As wear increases, the front end can lose concentricity. That produces vibration, noise, and heat, especially under high feed pressure.

Increased dust ingress or contamination

If the interface is worn or the seating faces are damaged, contamination pathways open. Once abrasive dust gets inside, wear accelerates rapidly.

Visible scoring, oval wear, or looseness

If the integrated bearing surface becomes oval or scored, the system can develop play. The result is faster wear on adjacent components and inconsistent performance.

Lubricant leakage or rapid lubricant darkening

When the sealing and wear surfaces degrade, lubricant quality can deteriorate faster. Darkened lubricant can indicate contamination and metal wear.

Replacing the 15274538 COVER, FRONT COMPLETE SANDVIK at the right time often prevents bigger, costlier damage down the line.

Installation guidance for the 15274538 COVER, FRONT COMPLETE SANDVIK

Below is a practical, field-oriented approach. Always follow the official workshop manual for torque values and safety rules, but these steps reflect common best practices for assemblies like the 152 745 38 COVER, FRONT COMPLETE SANDVIK.

Step 1: Cleanliness first

Before removal, clean the exterior thoroughly. Dirt falling into the housing during disassembly can create immediate wear issues after reassembly.

Step 2: Inspect mating components

When the 15274538 COVER, FRONT COMPLETE SANDVIK is removed, inspect:

• mating shaft/sleeve condition (scoring, heat marks)

• housing seat faces (dings, fretting)

• seal seats and edges

• alignment surfaces

If the mating shaft is heavily worn, replacing only the 152 745 38 COVER, FRONT COMPLETE SANDVIK may not restore proper running clearance.

Step 3: Dry-fit check and seating

Ensure the assembly seats fully and evenly. The flange face should mate flush without forcing. Mis-seating can lead to rapid wear and early failure.

Step 4: Lubrication and initial run

Use the specified lubricant and confirm flow/distribution is correct. After installation, a short controlled run and re-check helps confirm the 15274538 COVER, FRONT COMPLETE SANDVIK is operating smoothly.

Technical details (typical / practical)

Exact specifications depend on your drill configuration and revision, but for a component like the 152 745 38 COVER, FRONT COMPLETE SANDVIK, these are common engineering expectations:

Material build (typical)

• Main body: high-strength steel or alloy steel, precision machined

• Wear surface: bronze/alloy bronze bushing insert (friction-friendly and wear-controlled)

• Surface finish: machining-grade finish on seating and bearing surfaces for stable fit

Functional features (typical)

• stepped OD for controlled seating

• flange mounting face for rigidity

• internal geometry to support alignment and wear management

• possible lubrication pathways (depends on design revision)

Estimated weight

Based on the size and mass visible in the images (steel body + integrated insert), the estimated weight for the 15274538 COVER, FRONT COMPLETE SANDVIK is approximately 4.8–6.2 kg (typical), with a working estimate around 5.4 kg.

(If you share the OD/height measurements, I can tighten this estimate further.)

Why buyers choose 3GEN Export for 15274538 COVER, FRONT COMPLETE SANDVIK

When downtime is expensive, sourcing needs to be predictable. Ordering the 152 745 38 COVER, FRONT COMPLETE SANDVIK from 3GEN Export is designed to be simple:

• OEM-quality alternative manufacturing standards

• Consistent fitment approach focused on industrial tolerances

• Global shipping in 5 working days

• Support for cross-checking by machine model/serial or alternative part references

If you’re replacing the 15274538 COVER, FRONT COMPLETE SANDVIK as part of a larger front-end service, we can also support bundling related wear items to reduce repeat shipping and compress your maintenance window.

Frequently asked questions

Is the 15274538 COVER, FRONT COMPLETE SANDVIK a bushing or a cover?

It’s a front cover assembly that typically includes bearing/bushing functionality (as suggested by the integrated bronze insert). So it behaves like both: it protects the front end and supports a wear interface.

Which machines use 152 745 38 COVER, FRONT COMPLETE SANDVIK?

Listings associate it with Sandvik HLX5 and Sandvik RD520, and also with the RD520–RD525 range.

How fast can you ship?

3GEN Export ships worldwide in 5 working days for stocked items and standard dispatch flows.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
