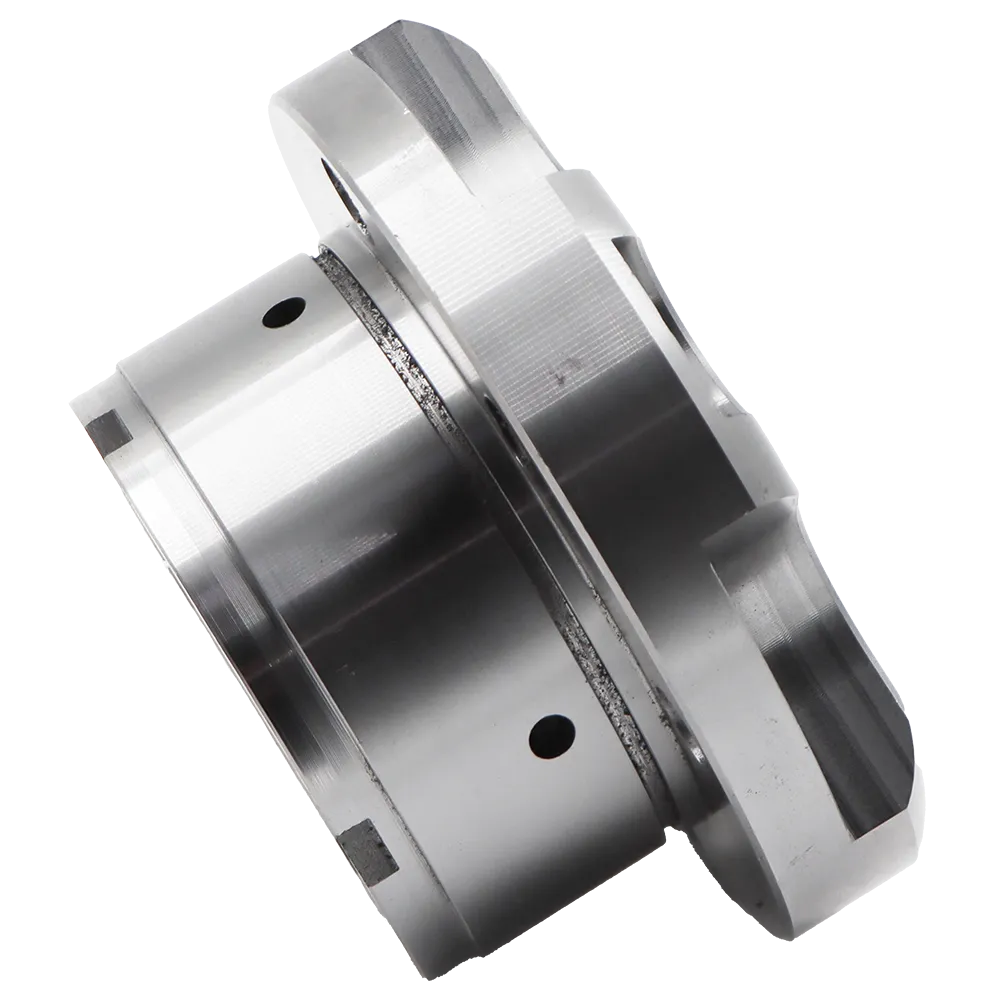

154 035 58 FLANGE SANDVIK – Precision-Machined Support for Reliable Rock Drill Assembly

The 15403558 FLANGE SANDVIK is a high-precision, heavy-duty component designed to integrate seamlessly into the hydraulic and pneumatic systems of Sandvik rock drills. Manufactured to exacting standards, this flange acts as a vital junction in the drifter body, facilitating alignment, torque transfer, and pressure sealing in high-impact drilling environments. Its robust structure, anti-wear finish, and optimized mounting geometry make it an indispensable part of maintaining the mechanical integrity of the Sandvik RD series and other compatible drill rigs.

---

Engineered for Strength and Seamless Fit

Flanges used in rock drilling equipment must withstand extreme axial forces, rapid vibrations, and abrupt directional loads. The 154 035 58 FLANGE SANDVIK is forged and machined using heat-treated alloy steel, known for its high tensile strength and excellent fatigue resistance. Precision CNC milling ensures dimensional accuracy across the entire assembly, with key slots and bolt holes designed to align perfectly with the mounting configuration of Sandvik’s original housing and gear systems.

The dual-keyway interface enhances rotational stability, while the beveled inner bore ensures proper centering around shafts or bushings. Additionally, the inclusion of pressure-relief channels and tapped access holes supports reliable lubrication or vacuum sealing under dynamic operating conditions.

---

Key Features of the 154 035 58 FLANGE SANDVIK

• Material Composition: Heat-treated forged alloy steel with anti-corrosion surface finish

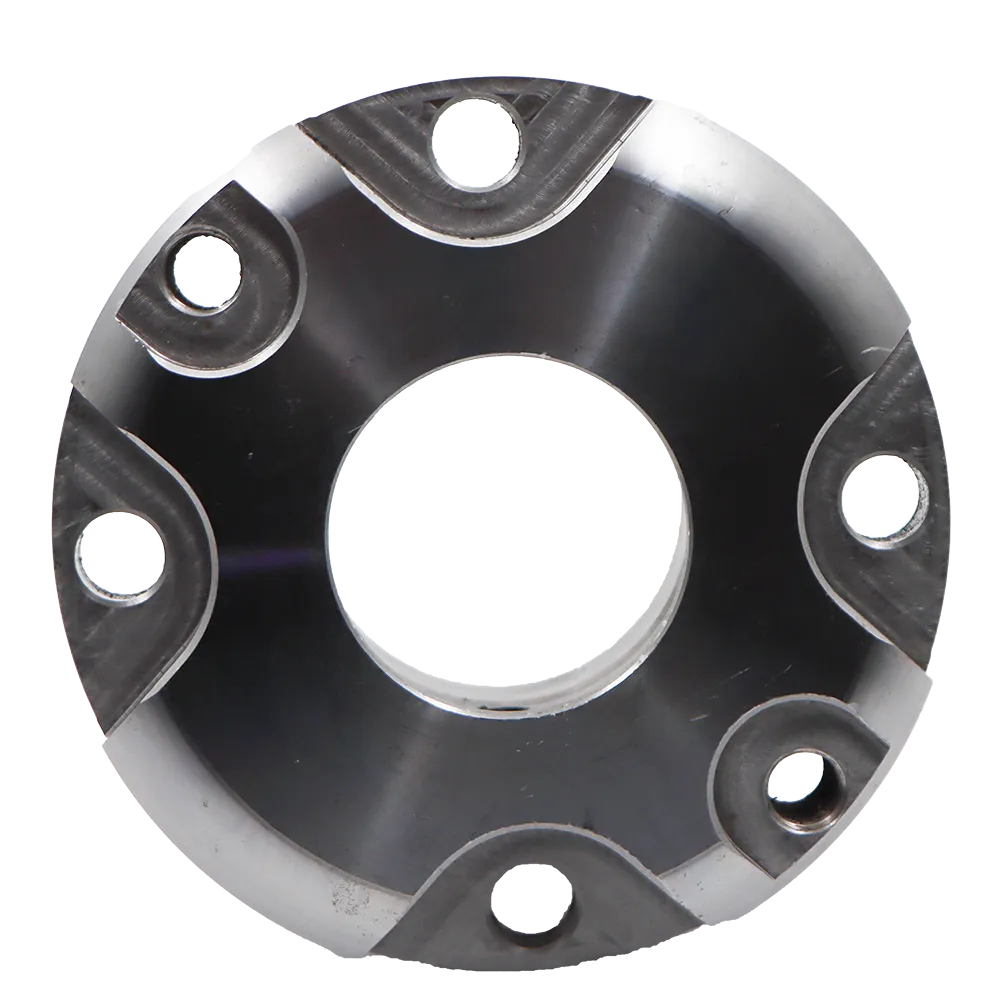

• Mounting Configuration: 6-hole bolted pattern with dual-keyway locking system

• Internal Machining: Precision-ground bore with sealing channel and alignment groove

• Surface Finish: Polished surface to reduce friction and wear over prolonged operation

• Weight Category: Engineered to balance mass without compromising rigidity

• Corrosion Resistance: Oil-treated or zinc-passivated for extended field life

• Functionality: Designed to connect rotating shafts to drifter housings in hydraulic drill heads

---

Compatibility with Sandvik Rock Drill Models

The 154 035 58 FLANGE SANDVIK is specifically engineered for use in Sandvik’s RD series drifters and other compatible hydraulic rock drill platforms. Based on 3GEN Export’s OEM-level manufacturing specifications and field reports, this flange is commonly used in:

• Sandvik RD520 Rock Drifter

• Sandvik HLX5 Series

• Sandvik HL1560ST and HL1560T Models

• Sandvik H200 Hydraulic Drills

If your application involves intense rock fragmentation, tunneling, or quarry drilling, this flange provides a solid mechanical coupling to endure high-torque rotation and axial percussion. Compatibility across multiple RD models ensures versatility for maintenance teams working on a range of machines.

---

Role in Drifter System Integrity

In Sandvik’s drifter design, flanges serve more than just mounting purposes—they play an integral role in pressure regulation, rotational synchronization, and alignment of internal shafts or pistons. The 154 035 58 FLANGE SANDVIKsupports the central shaft within the drifter and maintains a tight seal to prevent hydraulic or pneumatic leaks.

Improper sealing or worn-out flange components can lead to vibration-induced shaft misalignment, affecting the performance and lifespan of key internal components such as rotation bushings, bearing assemblies, and distributor gears. Replacing a worn flange with a high-quality OEM-equivalent like the one from 3GEN Export helps restore drifter performance and avoid costly unplanned downtime.

---

Manufacturing Standards and Quality Assurance

At 3GEN Export, we uphold international manufacturing standards for each 154 035 58 FLANGE SANDVIK we supply. Every unit undergoes:

• Precision Machining Tolerance Checks (within ±0.01mm)

• Stress Relief Heat Treatment to avoid microfractures under load

• Magnetic Particle Inspection (MPI) for crack detection

• Fitment Testing on mock drifter housings

• ISO 9001:2015-Compliant Quality Control Protocols

Thanks to our advanced CNC workshops and experienced engineering teams, we maintain a consistent quality output that rivals original equipment without the inflated cost.

---

Why Choose 3GEN Export?

When ordering the 154 035 58 FLANGE SANDVIK through 3GEN Export, you benefit from:

• OEM-Grade Components: Built to match or exceed factory specifications

• Global Delivery: Shipped worldwide within just 5 working days

• Transparent Pricing: No hidden fees—shipping costs are included

• Warranty Support: Backed by a 1-year manufacturer’s guarantee

• Secure Transactions: Encrypted payment systems and buyer protection protocols

We support hundreds of drilling companies, contractors, and maintenance providers across Europe, Asia, Africa, and the Americas. Whether you’re maintaining a single rig or operating a large fleet, we ensure reliable delivery and unmatched support.

---

Installation Recommendations

When installing the 154 035 58 FLANGE SANDVIK, it is advised to:

• Clean all mating surfaces to ensure smooth contact and seal integrity

• Use calibrated torque wrenches when fastening to avoid warping

• Apply thread-locking fluid on bolts to resist vibration loosening

• Ensure lubrication channels are free from debris

• Align the key slots precisely to avoid stress concentrations on rotating shafts

Incorrect flange installation can compromise system alignment and result in costly mechanical failures. Always refer to the official Sandvik service manual or consult 3GEN Export for specific installation guides.

---

Industries and Applications

This flange is widely used in:

• Mining Operations – Underground and surface rock excavation

• Tunneling Projects – Metro, highway, and hydroelectric developments

• Quarrying – Blasting-hole drilling in aggregate production

• Geotechnical Engineering – Slope stabilization and ground investigation

• Hydraulic Drilling Rigs – High-frequency rock fragmentation systems

Its performance-tested structure makes it a trusted component for mission-critical equipment, especially in conditions where heavy vibration and abrasive dust are common.

---

Order with Confidence from 3GEN Export

Backed by a deep understanding of heavy machinery and a commitment to rapid delivery, 3GEN Export is your trusted OEM supplier for all Sandvik rock drill spare parts. From shafts and bushings to flanges like the 154 035 58 FLANGE SANDVIK, we deliver durability, performance, and value.

Make your drilling systems more reliable—choose 3GEN Export.

---

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
