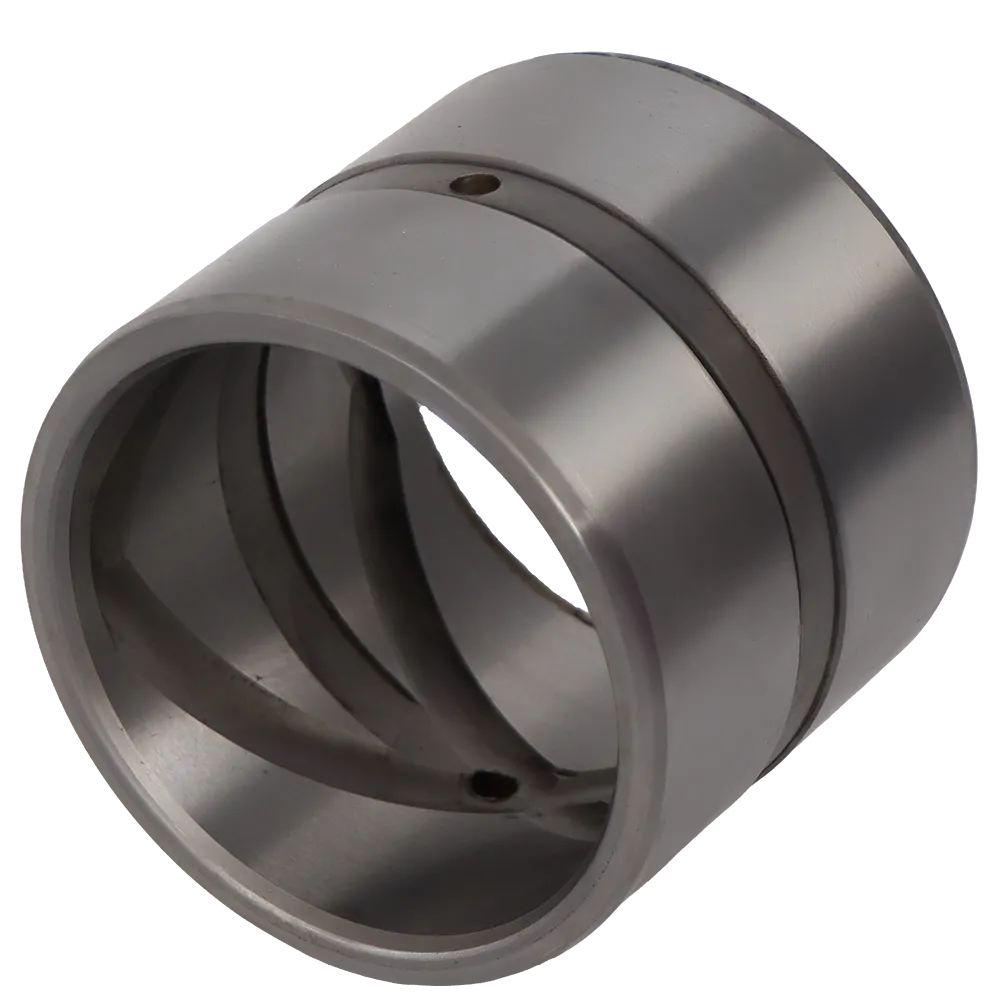

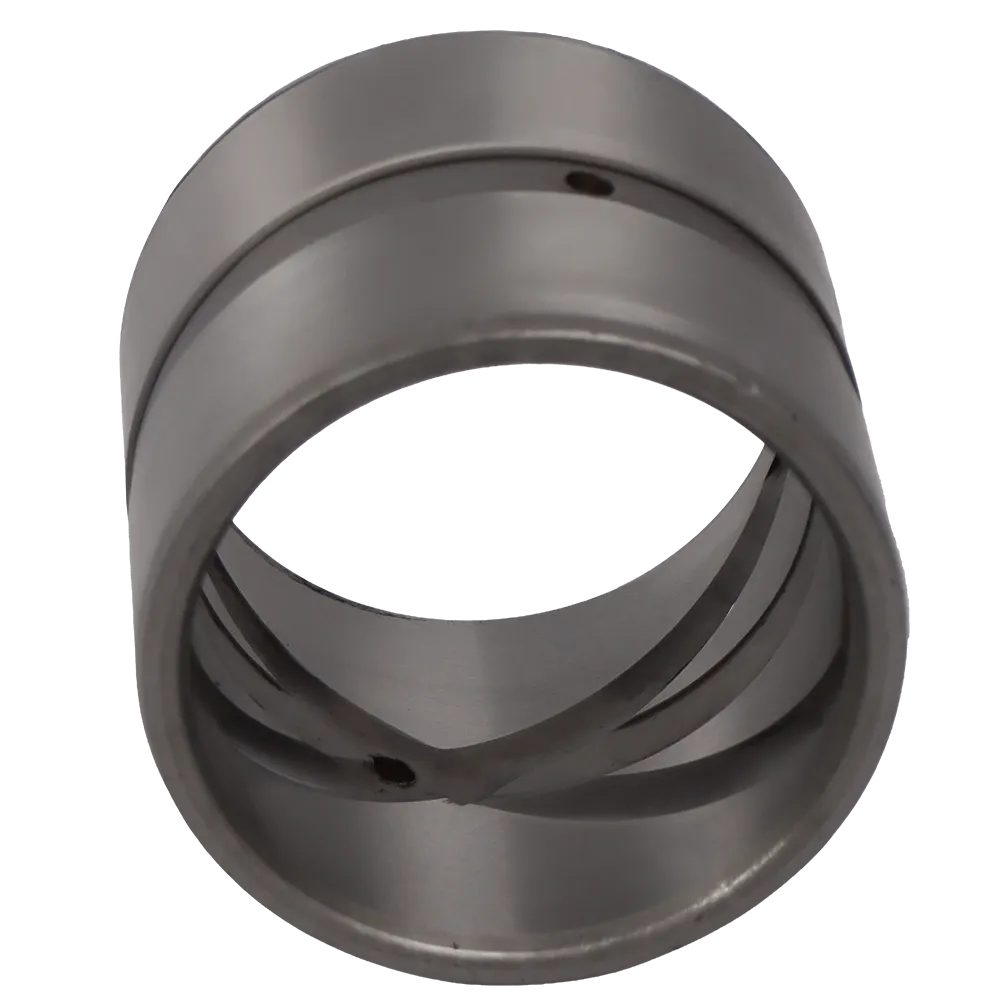

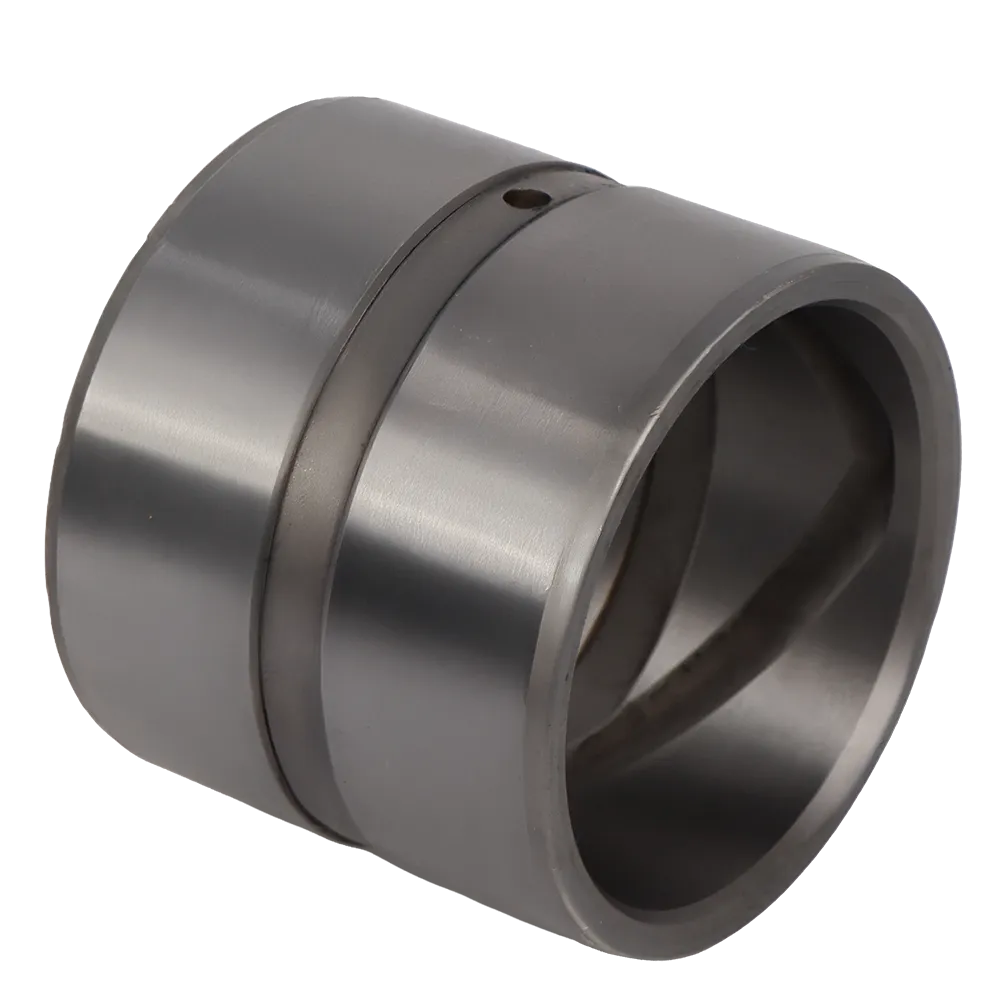

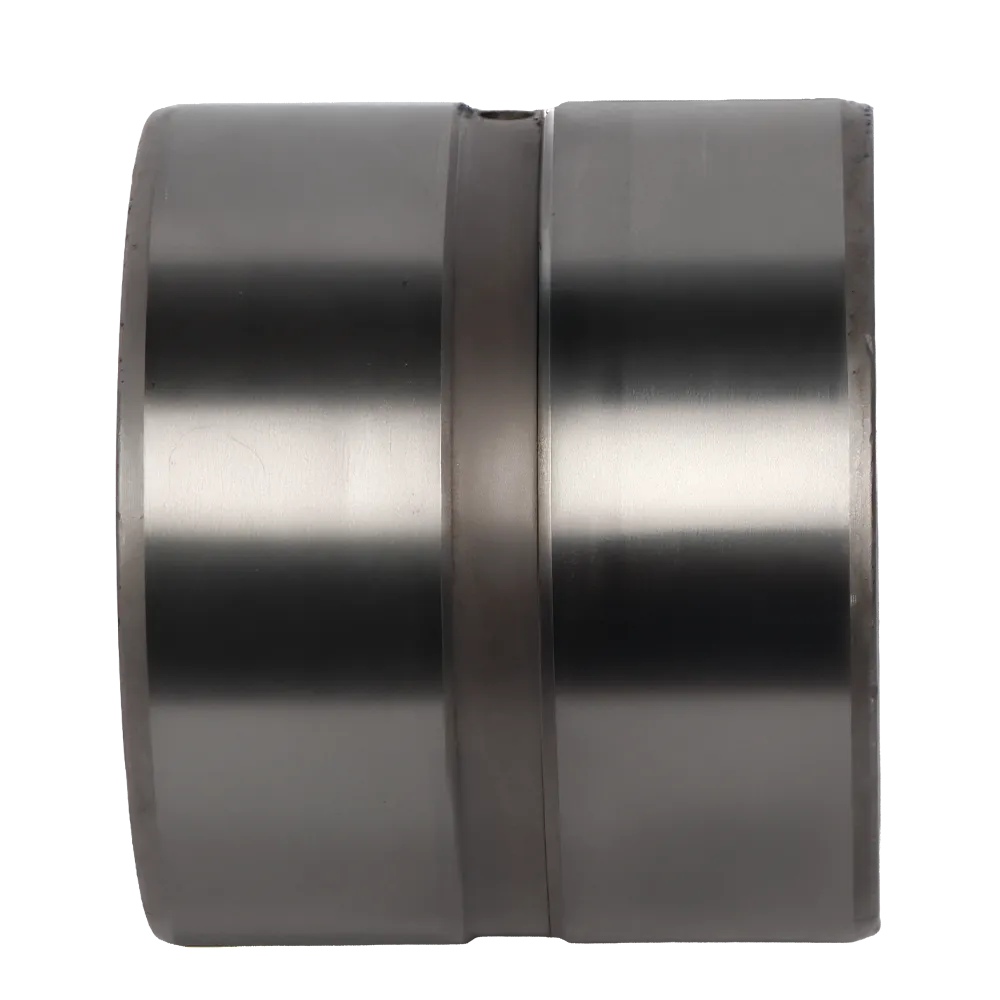

159449A1 BUSHING CASE

$150.00
Brand: Case
Category: Pin & Bushing
Part Number: 159449A1
Availability: In Stock

Description

159449A1 BUSHING CASE High-Precision Bushing Solution for CASE Heavy Machinery The 159449A1 BUSHING CASE is a premium-grade mechanical component engineered to deliver flawless performance under the extreme conditions faced by CASE Heavy Machinery . This part is not just a replacement—it is a reinforcement of your machine’s precision, stability, and long-term structural integrity. Supplied by 3GEN Export , an OEM-level manufacturer and global parts supplier, the 159449A1 BUSHING CASE is designed to meet the rigorous mechanical standards of the construction, mining, and excavation industries. Whether your CASE machine operates in dense clay, abrasive rock, or under constant load, this bushing maintains alignment, absorbs shock, and preserves the life of surrounding components. Understanding the Role of the 159449A1 BUSHING CASE A bushing is a seemingly simple part, but it performs one of the most critical functions inside heavy equipment: it acts as a protective barrier between moving parts. The 159449A1 BUSHING CASE reduces friction, distributes stress, and ensures seamless rotational movement. In a CASE backhoe loader, excavator, or wheel loader, the bushing prevents metal-to-metal contact in pivot joints—areas constantly under dynamic load. Without a precisely fitted bushing, pin and bore wear accelerates, resulting in costly repairs and operational downtime. This particular bushing variant is designed to sustain radial and axial forces while maintaining tight mechanical tolerances. It helps your machine stay true to its factory-calibrated alignment, keeping it smooth, powerful, and efficient even after thousands of working hours. Technical Overview and Manufacturing Excellence Specification Detail Part Number 159449A1 Product Name BUSHING CASE Weight 1.22 kg Material Composition Hardened Alloy Steel (High-Carbon Chromium) Surface Finish Ground and Polished (Ra ≤ 0.8 µm) Hardness Rating 58 – 62 HRC Lubrication Type Centralized Grease Channel with Oil Feed Port Operating Temperature Range −45 °C to +180 °C Expected Service Life > 20,000 working hours under standard conditions Every 159449A1 BUSHING CASE undergoes CNC machining, multi-stage heat treatment, and micro-finishing. Each production batch is tested for hardness, dimensional accuracy, and concentricity. The result is a bushing that delivers perfect fitment and long-term mechanical endurance—exactly what your CASE machine needs to stay productive and reliable. Engineering Features 1. Precision Geometry The bushing’s cylindrical profile is ground to a tolerance of ± 0.02 mm, guaranteeing perfect seating within the bore. Such precision eliminates micro-movement that can cause wear rings and noise over time. 2. Optimized Lubrication System An internal oil channel ensures consistent grease distribution along the full contact surface, reducing friction and preventing dry-run damage. Even under continuous load, lubrication remains uniform, minimizing temperature rise and surface scoring. 3. Enhanced Wear Resistance The 159449A1 BUSHING CASE is treated through induction hardening and tempering. Its internal hardness ensures high resistance against micro-pitting and galling, while the tough core maintains elasticity under shock loads. 4. Corrosion and Dust Protection The bushing’s polished finish and anti-oxidation coating protect it from moisture, dirt, and aggressive working conditions, extending lifespan and keeping maintenance predictable. 5. Noise and Vibration Control The precision-fit design minimizes vibration and operational noise, improving operator comfort and reducing fatigue on structural components. Mechanical Performance Dynamic Load Capacity: > 70 kN Static Load Capacity: > 90 kN Coefficient of Friction: ≤ 0.05 with proper grease Service Temperature: −45 °C to +180 °C Axial Displacement Allowance: ± 0.2 mm Roundness Error: ≤ 0.01 mm These values represent the culmination of advanced metallurgy and controlled manufacturing processes, ensuring stability under heavy stress and repetitive cycles. Compatible CASE Models The 159449A1 BUSHING CASE is compatible with a broad range of CASE heavy-duty equipment, ensuring cross-platform fit and performance reliability: CASE Backhoe Loaders CASE 580 Super N CASE 580 N EP CASE 590 Super N CASE 695 SR CASE Excavators CASE CX130 C CASE CX210 D CASE CX250 D CASE CX290 B CASE Wheel Loaders CASE 721 F CASE 821 G CASE 921 G CASE 1021 G CASE Dozers & Graders CASE 1150 M Dozer CASE 1650 M Dozer CASE 856 C Grader This compatibility makes the 159449A1 BUSHING CASE one of the most versatile components in the CASE lineup, suitable for multiple linkages, pivot points, and structural joints. Installation and Alignment Guide To ensure optimal performance and longevity, 3GEN Export recommends the following installation protocol: Preparation: Thoroughly clean the housing bore and mating surfaces. Remove burrs, debris, and old grease. Alignment: Check the alignment of the bore and pin axis before installation to prevent edge loading. Press-Fit Assembly: Use a hydraulic or mechanical press for uniform insertion. Never strike directly with a hammer. Lubrication: Apply OEM-approved assembly grease through the central hole before reassembling components. Verification: After installation, check for smooth rotational movement and confirm grease flow through all channels. Following these guidelines ensures maximum lifespan and consistent performance. Maintenance and Service Interval Proper lubrication is key to preserving the bushing’s integrity: Re-grease every 250 operating hours under normal conditions. In muddy or abrasive environments, shorten to 100 hours. Inspect clearance and pin wear at each maintenance interval. Replace if radial clearance exceeds 0.5 mm or if visible scoring is observed. By following this schedule, the 159449A1 BUSHING CASE can exceed 20,000 working hours without compromising fit or function. Quality Control and Testing Each unit produced under 3GEN Export’s OEM program undergoes: Dimensional Verification via CMM inspection. Hardness Testing (Rockwell C) to confirm heat treatment. Lubrication Flow Analysis for channel accuracy. Load Simulation Testing to replicate real operating conditions. Surface Integrity Examination under microscopic inspection. Traceability Marking with batch code and inspection certificate. The outcome is a part that meets or exceeds CASE’s OEM standards for durability and precision. Performance Benefits in the Field Reduced Downtime Its long service life means fewer replacements, minimizing unscheduled maintenance and increasing machine uptime. Smooth Machine Operation The accurate internal geometry ensures precise boom and arm movement, giving operators more control and responsiveness. Lower Operating Costs By protecting pins, bores, and joints from excess wear, this bushing extends the life of adjacent components, saving on overall maintenance expenses. Environmental Resilience Designed to withstand mud, dust, water, and temperature fluctuations, it performs flawlessly from frozen terrain to hot asphalt sites. Safety and Structural Integrity A stable linkage system means less unexpected play in the machinery, providing operators with a safer and more predictable working environment. Sustainability and Environmental Considerations 3GEN Export follows environmentally responsible manufacturing practices: Energy-efficient heat treatment systems. Recyclable steel and eco-friendly cutting fluids. Minimal waste via optimized CNC machining. Biodegradable packaging materials. Every 159449A1 BUSHING CASE contributes to a lower carbon footprint without compromising strength or durability. Packaging and Delivery Each bushing is individually packed in anti-corrosive film, labeled with the part number, and shipped in shock-resistant cartons. Bulk shipments are palletized and vacuum-sealed for international freight. All orders include a Certificate of Conformity and a Quality Inspection Report from 3GEN Export. Thanks to 3GEN Export’s global logistics network, you’ll receive your order anywhere in the world within 5 working days . Why Choose 3GEN Export OEM-Grade Engineering: Identical to CASE factory specifications. One-Year Manufacturer Warranty. Secure Global Delivery System (Tracked & Insured). Comprehensive Support: Dedicated team for technical queries and fitment assistance. Inclusive Pricing: All shipping and handling costs are covered in the product price. When you buy from 3GEN Export, you are not just purchasing a component—you are investing in continuity, precision, and trust. Key Specifications Summary Attribute Value Part Number 159449A1 Category BUSHING CASE Brand Compatibility CASE Construction Equipment Weight 1.22 kg Material Alloy Steel (Hardened) Finish Polished + Anti-Corrosive Coating Temperature Range −45 °C – +180 °C Warranty 1 Year Manufacturer Warranty Supplier 3GEN Export Global Delivery 5 Working Days Conclusion The 159449A1 BUSHING CASE defines reliability in modern construction machinery. From backhoe linkages to excavator booms, this part ensures your CASE machine performs at its best—smoother, quieter, and stronger. Manufactured to exact OEM standards, each bushing from 3GEN Export is built for those who cannot afford downtime. With worldwide delivery in five business days and full warranty protection, you receive the performance you expect and the support you deserve. Whether you maintain a single machine or manage an entire fleet, the 159449A1 BUSHING CASE is the intelligent choice for uncompromised quality and operational confidence. Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
