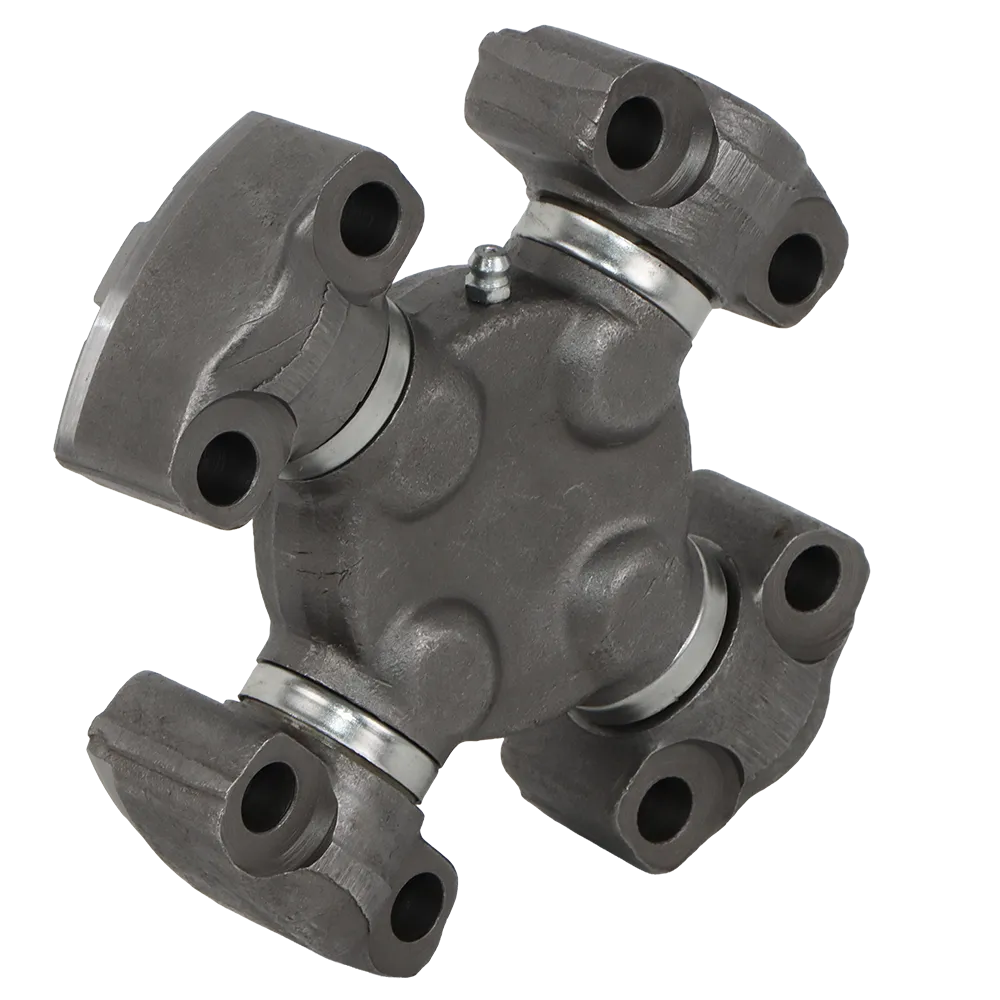

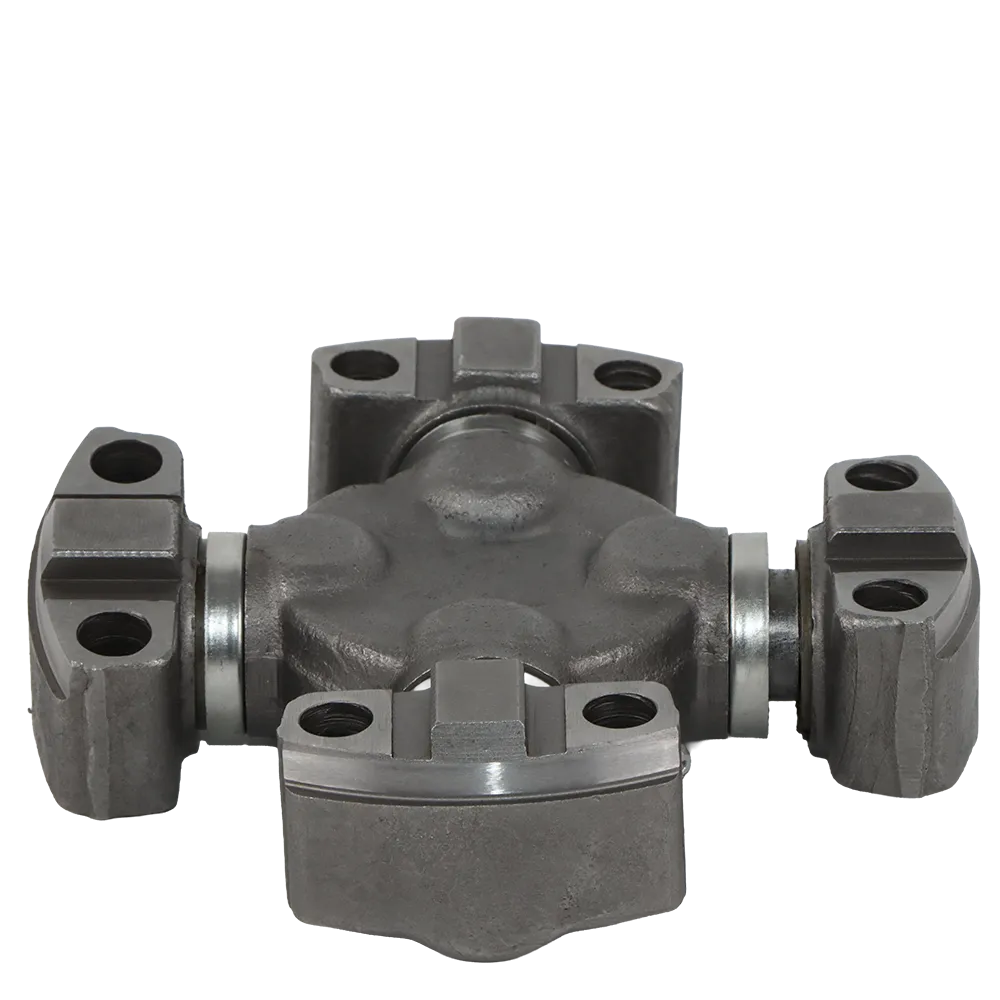

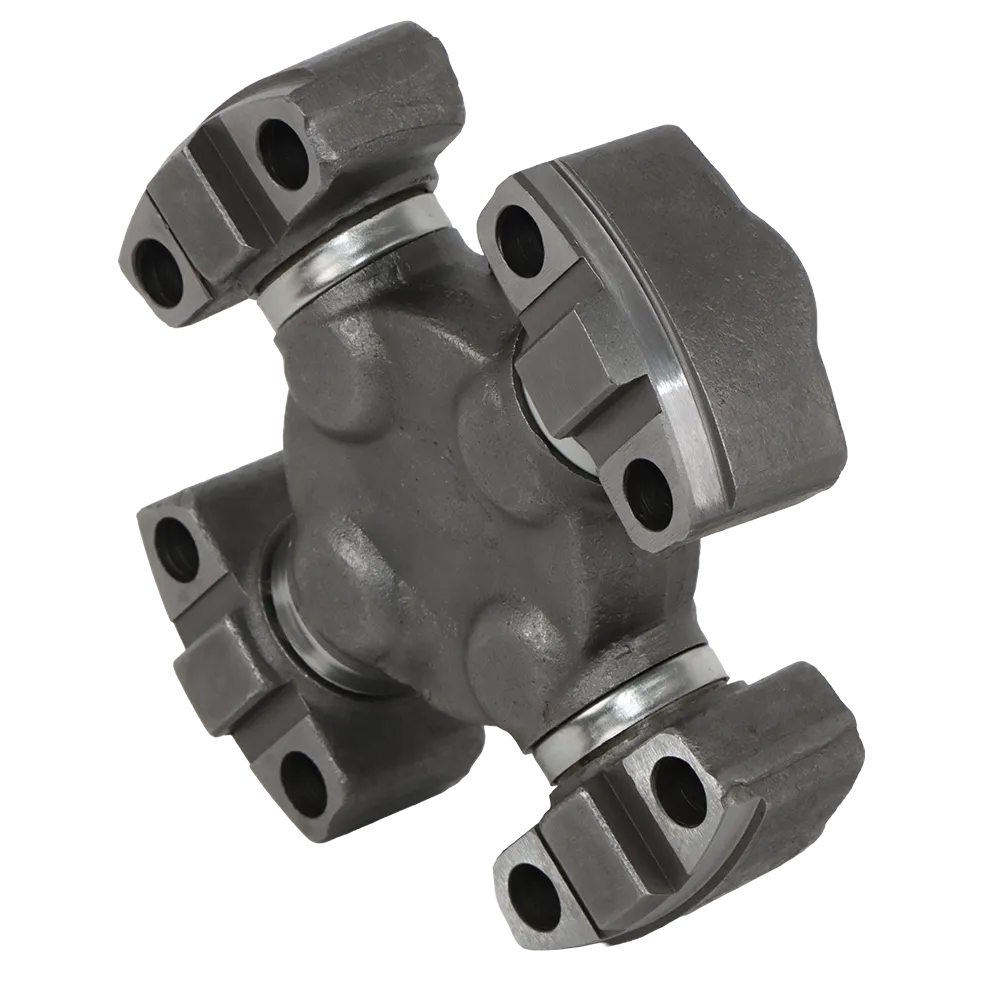

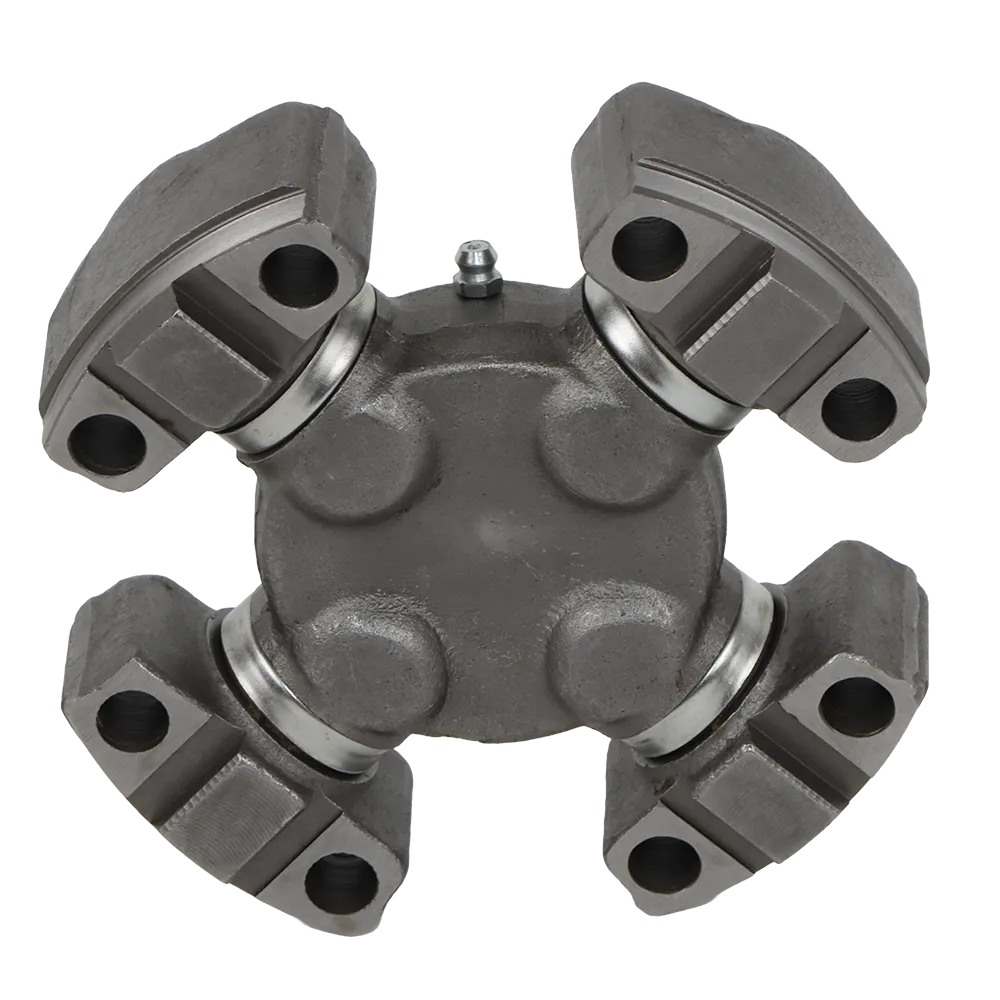

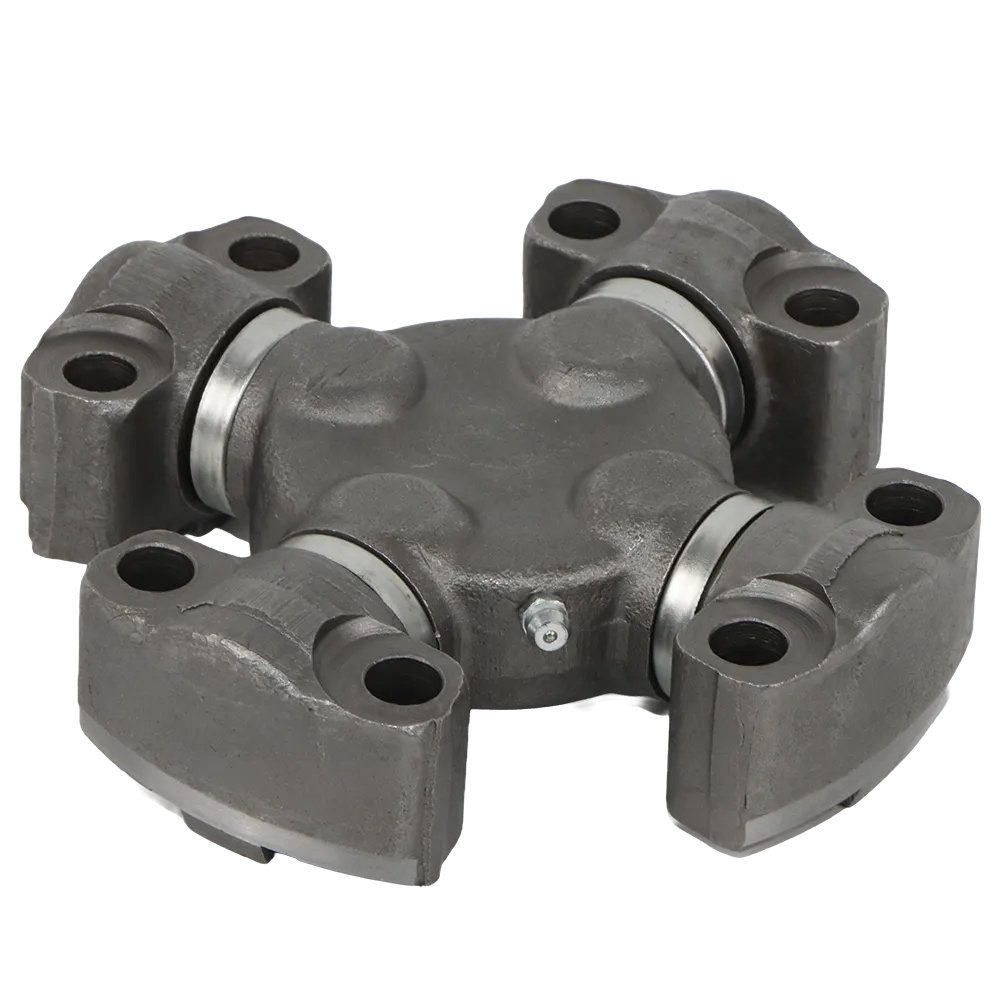

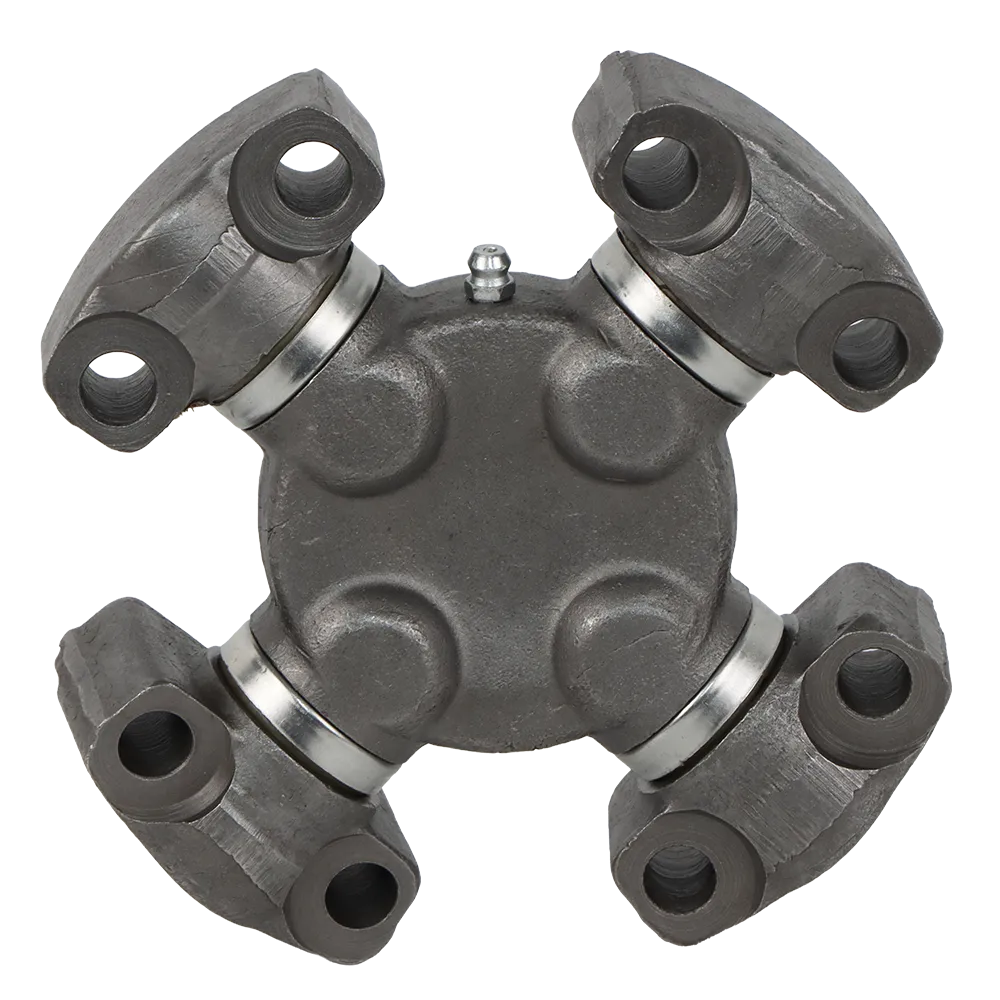

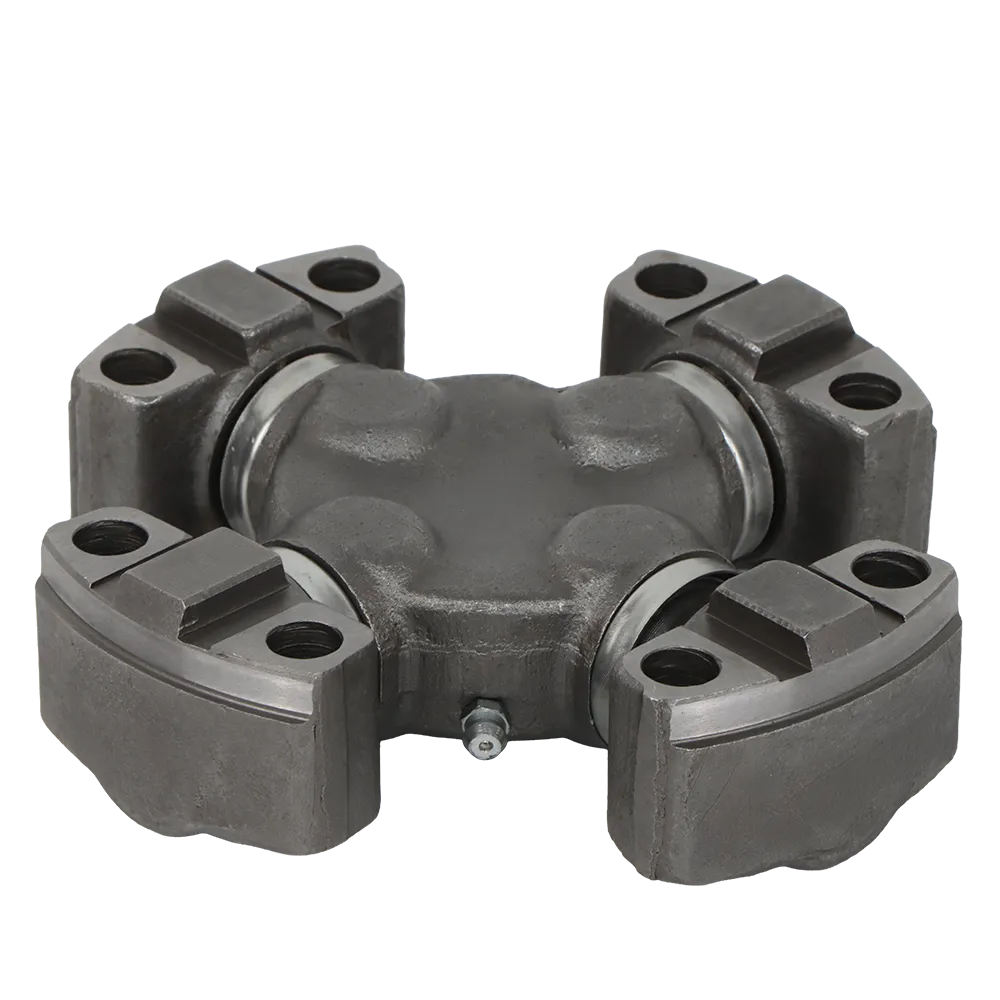

1S9670, 1S-9670 SPIDER CATERPILLAR

Heavy-Duty Spider Assembly for Caterpillar Driveline Systems

The 1S9670 SPIDER CATERPILLAR (also known as the 1S-9670 Spider & Bearing Kit) is a critical driveline component used in heavy Caterpillar machinery to transfer rotational power while absorbing vibration and shock loads. Precision-engineered for high torque and reliability, this spider joint connects drive shafts and ensures consistent motion between rotating parts under severe working conditions.

Supplied globally by 3GEN Export, this component is manufactured to OEM-equivalent standards, ensuring a perfect fit, high durability, and reliable performance for construction, mining, and earthmoving equipment. The 1S9670 SPIDER CATERPILLAR is a robust universal joint spider designed to handle the extreme torque, dust, and temperature variations that Caterpillar machines face daily.

Function and Importance of the 1S9670 SPIDER CATERPILLAR

The spider, often called a universal joint cross or U-joint assembly, is the centerpiece of the driveshaft system in Caterpillar equipment. It connects two yokes, allowing the transmission of rotary motion between misaligned shafts.

The 1S9670 SPIDER CATERPILLAR provides flexibility and strength where rigid coupling is impractical. It compensates for shaft movement during operation, preventing stress on connected parts while maintaining mechanical efficiency. Its integrated bearing caps, precision-ground trunnions, and grease fittings ensure long service life and smooth power transmission across different load conditions.

Key Features and Benefits

1. Premium Alloy Steel Construction

The 1S9670 SPIDER CATERPILLAR is forged from high-strength chromium-molybdenum steel, heat-treated for hardness and fatigue resistance. This guarantees durability against torsional stress, heavy vibration, and fluctuating loads.

2. Pre-Lubricated Bearing Caps

Each bearing cap is pre-greased with high-performance lubricant to reduce friction and heat buildup during operation. The advanced seal design retains lubrication while keeping contaminants like dust and water out.

3. Precision Machining

All surfaces are CNC-machined to ensure perfect concentricity, minimizing vibration and extending bearing life. The tight tolerances provide smooth torque transfer between the drive and driven shafts.

4. Corrosion and Impact Resistance

Nickel-plated bearing journals and phosphate-treated housings prevent rust and wear in harsh environmental conditions, ensuring consistent performance across temperature extremes.

5. Simple Installation

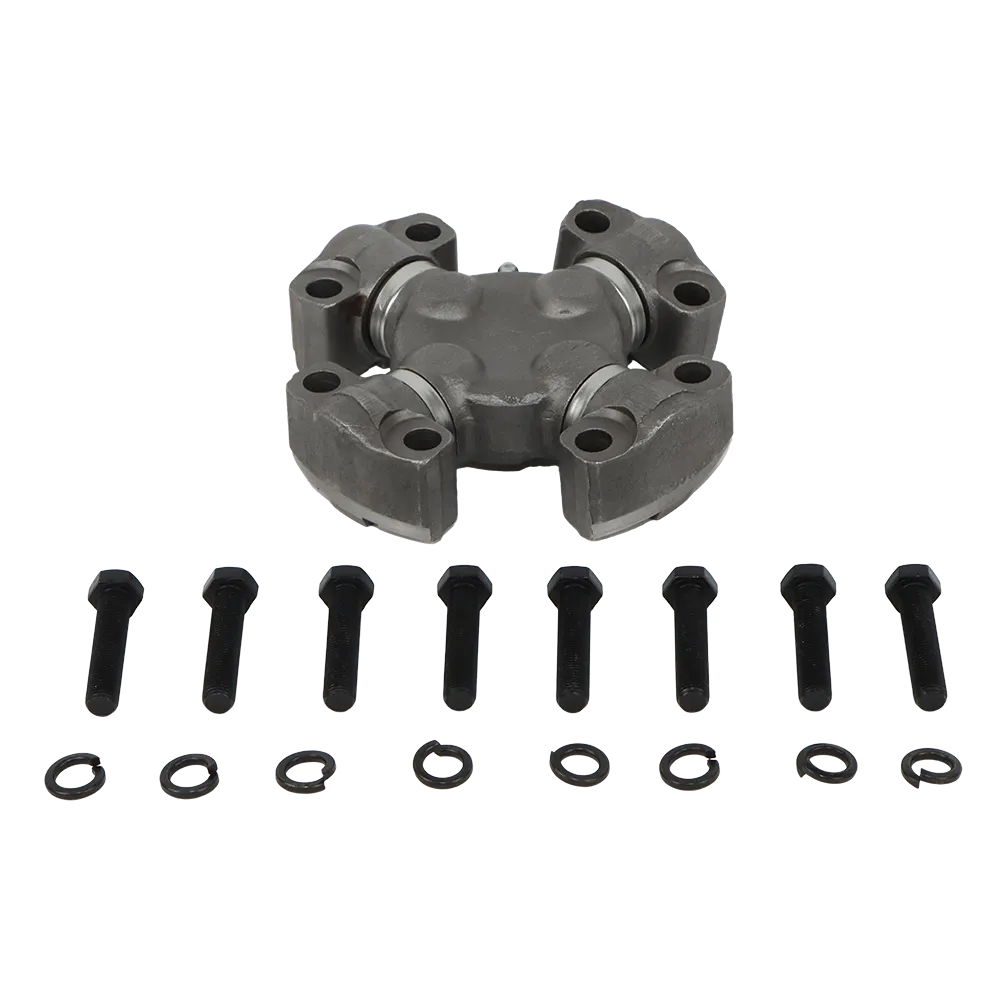

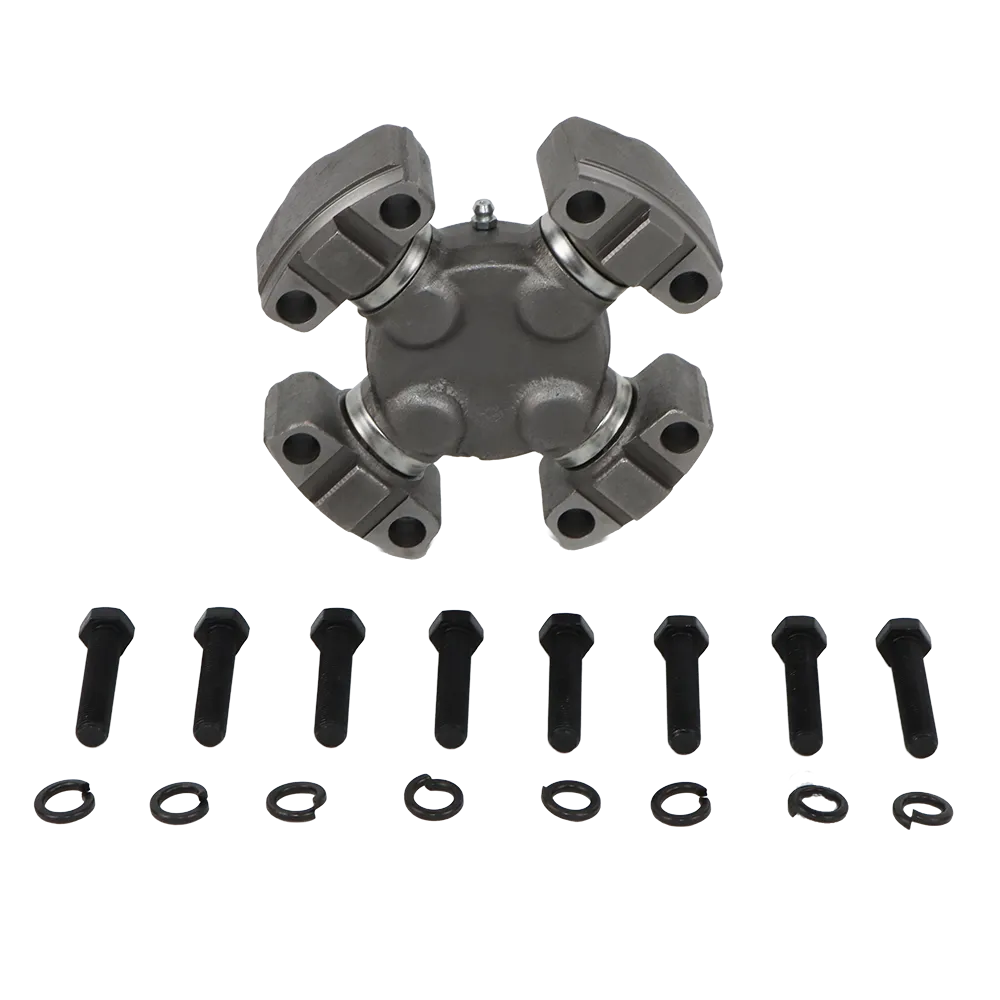

The 1S9670 SPIDER CATERPILLAR is designed for easy installation with its supplied bearing caps, snap rings, and bolts. The bolt pattern and fitment dimensions match OEM Caterpillar driveline systems.

Technical Specifications

Compatible Caterpillar Models

The 1S9670 SPIDER CATERPILLAR is used in a wide range of Caterpillar heavy equipment models that require durable drive couplings. It is commonly compatible with:

• Caterpillar 120G, 12G, 12H Motor Graders

• Caterpillar 980C, 980F, and 980G Wheel Loaders

• Caterpillar 966D, 966E, and 966F Wheel Loaders

• Caterpillar 3208 Engine Drive Assemblies

• Caterpillar D5H and D6H Track-Type Tractors

• Caterpillar 140H, 140K, and 160H Motor Graders

• Caterpillar 826G and 826K Compactors

• Caterpillar 815F and 815K Soil Compactors

• Caterpillar 730 and 740 Articulated Dump Trucks

This spider joint assembly is used across multiple Caterpillar driveline systems, particularly in applications that require high torque transfer with flexible shaft movement.

Engineering and Design

Forged Strength and Balanced Design

The 1S9670 Spider features precision-forged arms that maintain geometric alignment even under heavy bending forces. Its balanced design ensures uniform torque transfer and prevents premature wear on connected components.

Sealed Bearing Technology

Each trunnion arm includes a high-load bearing encased in a steel cap with a triple-lip seal. This design prevents grease leakage and blocks contaminants from entering, extending the bearing’s operational lifespan.

High-Precision Grease Channel

The spider features an internal lubrication channel for efficient grease distribution, ensuring even wear and preventing bearing overheating during extended operation.

Dynamic Load Resistance

Built to operate in extreme environments, the 1S9670 Spider maintains consistent performance in both forward and reverse torque conditions. It endures rapid torque fluctuations without deforming or losing alignment.

Operational Advantages

• Reduced Downtime: The pre-greased and sealed bearings minimize maintenance intervals.

• Enhanced Equipment Efficiency: Maintains optimal torque transfer with minimal power loss.

• Vibration Absorption: Dampens driveline vibrations for smoother operation and reduced noise.

• Extended Service Life: Engineered to last up to 2× longer than conventional U-joints under identical working conditions.

• High Compatibility: Designed for direct replacement without modification in OEM Caterpillar assemblies.

Installation and Maintenance

Installation Procedure

1. Clean the yokes and remove old grease or contaminants.

2. Insert the spider into the yoke, aligning bearing caps correctly.

3. Press-fit bearing caps evenly to avoid misalignment.

4. Install the snap rings securely to lock bearings in place.

5. Grease the joint via the provided fitting until lubricant appears at all seals.

Maintenance Recommendations

• Lubricate every 250 operating hours or as per manufacturer’s schedule.

• Inspect seals regularly for wear or damage.

• Avoid using excessive pressure during greasing to protect seals.

• Replace the spider if any play or unusual noise is detected in the driveline.

Proper maintenance ensures the 1S9670 SPIDER CATERPILLAR operates smoothly for thousands of hours without loss of efficiency.

Material and Metallurgical Details

Alloy Composition

The 1S9670 SPIDER CATERPILLAR uses a chromium-molybdenum steel alloy, selected for its high fatigue strength and wear resistance. This ensures superior resistance to cracking under torsional stress.

Heat Treatment

Each spider is induction-hardened for surface durability while maintaining a tough, ductile core. The result is a perfect balance between strength and flexibility, crucial for driveline components exposed to repetitive loading.

Coating and Corrosion Resistance

The surface is phosphate-treated and coated with anti-rust oil before packaging, ensuring resistance against moisture and oxidation during long-term storage or operation in humid environments.

Performance in Real-World Conditions

• Mining & Quarrying: Handles shock loads from uneven terrain and heavy hauling.

• Construction Equipment: Maintains stable torque delivery in loaders, dozers, and graders.

• Agricultural Machinery: Provides reliable joint flexibility under continuous directional changes.

• Industrial Applications: Used in custom powertrain systems requiring high torque alignment.

The spider’s balanced load distribution and sealed bearings make it ideal for both high-speed and heavy-load operations.

Quality Assurance – 3GEN Export Standards

All 1S9670 SPIDER CATERPILLAR units supplied by 3GEN Export undergo multiple inspection stages:

• Dimensional and geometric accuracy testing

• Surface hardness verification (Rockwell HRC 58–62)

• Fatigue and torsion testing under dynamic load cycles

• Bearing pre-lubrication and seal integrity testing

Each component is certified to meet or exceed OEM performance requirements, guaranteeing consistent quality across every shipment.

Packaging and Delivery

Each spider assembly is individually packed in protective foam and sealed in moisture-resistant wrapping. For bulk orders, 3GEN Export provides wooden export-grade crates ensuring safe international transport.

Global Delivery:

• Shipped worldwide within 5 working days

• Full documentation support (commercial invoice, packing list, HS codes)

• Optional air and sea freight logistics for high-volume clients

Why Choose 3GEN Export

3GEN Export is a trusted OEM-quality supplier specializing in heavy machinery spare parts for global brands including Caterpillar, Volvo, Sandvik, Komatsu, and Atlas Copco.

When you order the 1S9670 SPIDER CATERPILLAR, you benefit from:

• OEM-equivalent precision manufacturing

• Consistent stock availability and 5-day global shipping

• Expert support for model compatibility and installation guidance

• Competitive pricing and long-term supply partnerships

3GEN Export’s reliability and global reach make it the preferred source for professional machinery operators worldwide.

Summary

The 1S9670 SPIDER CATERPILLAR is a high-strength driveline component engineered to deliver unmatched durability, flexibility, and performance in demanding environments. Built to OEM specifications and supplied by 3GEN Export, it provides efficient power transfer, vibration absorption, and long-lasting reliability.

Ideal for loaders, graders, dozers, and dump trucks, this spider assembly guarantees smoother torque flow, reduced wear, and minimal maintenance downtime.

Order your 1S9670 SPIDER CATERPILLAR today from 3GEN Export — and experience OEM-level precision with global delivery in just 5 working days.
