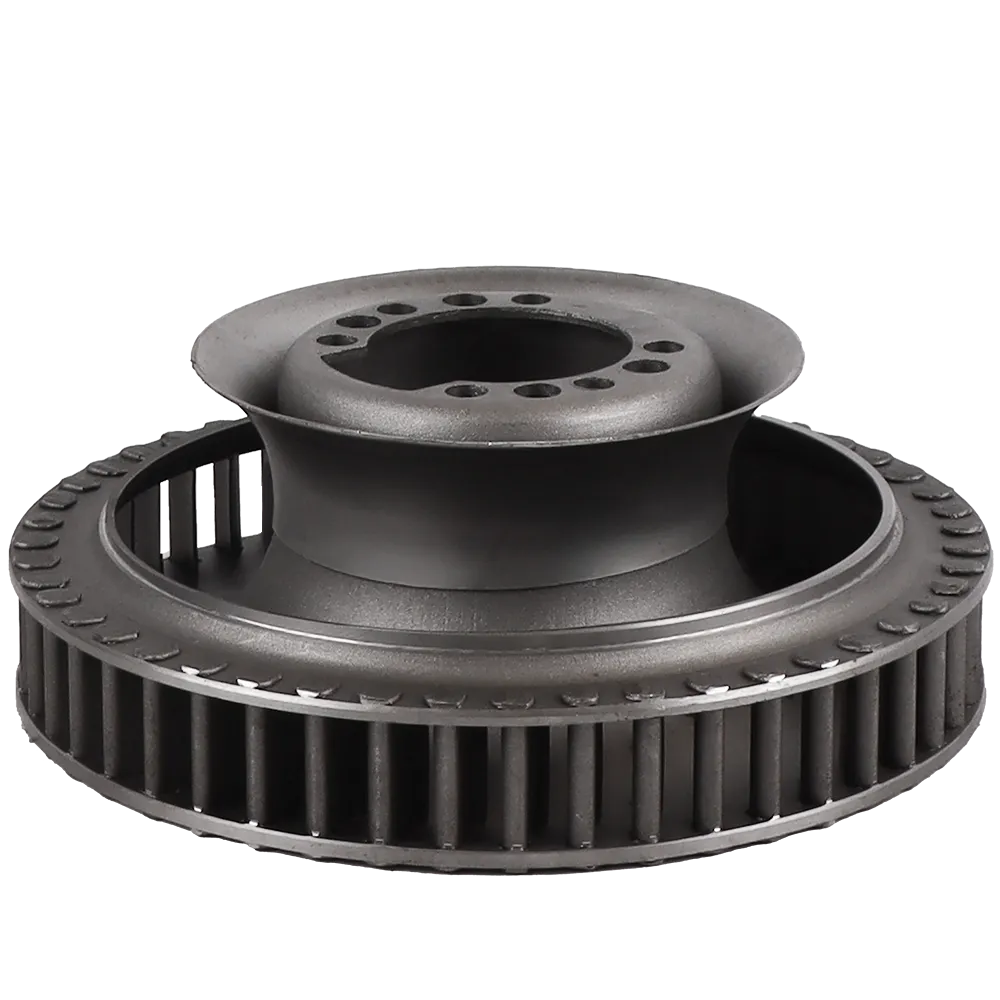

1T0292, 1T-0292 STATOR ASSEMBLY (GUIDE WHEEL) CATERPILLAR
Description
1T0292 Stator Assembly (Guide Wheel) , Caterpillar Torque Converter The 1T0292 (1T-0292) is a Caterpillar Stator Assembly , also known as a Guide Wheel Assembly, used inside the torque converter of CAT heavy equipment. It redirects hydraulic fluid between the impeller and turbine to multiply engine torque , enabling dozers, loaders, and scrapers to move heavy loads from a standstill. This OEM-grade aftermarket replacement from 3GEN Export is cross-referenced with part numbers 1T1991 and 380-1482 . What Is the 1T0292 Caterpillar Stator Assembly? The 1T0292 Stator Assembly is a precision-engineered internal component of the torque converter in Caterpillar powertrain systems. The stator sits between the impeller (pump) and the turbine inside a sealed, fluid-filled housing. Its primary purpose is torque multiplication , the mechanism that allows heavy equipment to generate maximum pulling and pushing force at low ground speeds without stalling the engine. Without a functioning stator, the torque converter operates as a simple fluid coupling with no torque multiplication, resulting in severely reduced machine performance under load. How Does the Stator Work in a Torque Converter? The stator performs three critical functions inside the torque converter: Redirects Hydraulic Fluid , As transmission fluid exits the turbine, it flows opposite to engine rotation. The stator's angled blades intercept this returning fluid and redirect it to match the impeller's rotation, preventing energy loss and boosting efficiency. Multiplies Engine Torque , By redirecting fluid to strike the impeller blades in the direction of engine rotation, the stator adds force to the system. This torque multiplication is what allows dozers, loaders, and scrapers to move heavy loads from a standstill. One-Way Clutch Operation , The stator is mounted on a sprag clutch that locks at low speeds for maximum torque multiplication, then freewheels at higher speeds for efficient coupling. This automatic transition optimizes both pulling power and travel speed. Technical Specifications Specification Value OEM Part Number 1T0292 / 1T-0292 Part Type Stator Assembly (Guide Wheel Assembly) System Torque Converter , Power Train Brand Caterpillar (CAT) Cross-Reference Numbers 1T1991 (1T-1991), 380-1482 (3801482) Weight 4.7 lbs (2.14 kg) Dimensions (L × W × H) 9.5 × 9.0 × 3.3 in (24.1 × 22.9 × 8.4 cm) Material Heat-treated cast steel with precision-machined blade surfaces Finish Anti-corrosion coating Condition New , OEM-grade aftermarket What Caterpillar Machines Use the 1T0292? The 1T0292 Stator Assembly is verified for the following Caterpillar equipment. Always confirm fitment using your machine's serial number through the Caterpillar SIS (Service Information System) or by contacting our technical team. Track-Type Tractors (Dozers) Caterpillar D4D Caterpillar D4E Caterpillar D4H Caterpillar D4H TSK II Track Loaders Caterpillar 941 / 941B Caterpillar 951B / 951C Caterpillar 955H Wheel Loaders Caterpillar 920 Caterpillar 930 / 930R Caterpillar 936 / G936 Caterpillar 950 Wheel Scrapers Caterpillar 613 / 613B / 613C Specialty Equipment Caterpillar 518 Skidder Caterpillar 561H Pipelayer How Do I Know If My Stator Assembly Needs Replacement? A failing stator assembly causes measurable performance loss. Watch for these symptoms: Loss of pulling power at low speeds , The machine struggles to push, dig, or grade under load despite normal engine RPM. This indicates the stator is no longer locking properly for torque multiplication. Overheating transmission fluid , A damaged stator causes inefficient fluid circulation, generating excess heat. Check your transmission temperature gauge for higher-than-normal readings. Increased fuel consumption , Without proper torque multiplication, the engine works harder to achieve the same output, burning more fuel per hour of operation. Sluggish acceleration under load , If the machine feels like it's "slipping" when transitioning from stationary to working speed, the stator's one-way clutch may be worn or damaged. Metallic debris in transmission fluid , During fluid analysis or filter inspection, metal particles from worn stator blades or sprag clutch components indicate immediate replacement is needed. How to Replace the 1T0292 Stator Assembly Replacing the stator assembly requires full torque converter disassembly. Follow these professional guidelines: Refer to the Caterpillar Service Manual specific to your machine's model and serial number for exact disassembly/assembly sequences, torque specifications, and clearance values. Replace all seals and bearings during the rebuild. Once the torque converter is opened, internal seals and O-rings should never be reused. Inspect the sprag clutch (one-way clutch) for worn struts, springs, and snap rings. A new stator installed on a worn sprag clutch will fail prematurely. Verify blade orientation , The stator is directional. Incorrect installation reverses fluid flow and eliminates torque multiplication entirely. Check clearances between the stator, turbine, and impeller using a dial indicator before final assembly. Maintain absolute cleanliness , Any contamination introduced during the rebuild can cause catastrophic bearing failure. Work in a clean environment and air-dry all components. Frequently Asked Questions What is Caterpillar part number 1T0292? The 1T0292 is a Stator Assembly (Guide Wheel Assembly) for the torque converter in Caterpillar heavy equipment. It multiplies engine torque at low speeds by redirecting hydraulic fluid inside the torque converter housing. What is the cross-reference for 1T0292? The 1T0292 is interchangeable with Caterpillar part numbers 1T1991 (1T-1991) and 380-1482 (3801482). Always verify using your machine's serial number before ordering. What machines does the 1T0292 fit? The 1T0292 fits Caterpillar D4D, D4E, D4H, and D4H TSK II dozers; 941, 941B, 951B, 951C, and 955H track loaders; 920, 930, 930R, 936, G936, and 950 wheel loaders; 613, 613B, and 613C scrapers; 518 skidder; and 561H pipelayer. What is the difference between a stator and an impeller? The impeller (pump) is driven by the engine and pushes hydraulic fluid toward the turbine. The stator sits between them and redirects returning fluid to multiply torque. The impeller creates flow; the stator amplifies force. How much does the 1T0292 weigh? The 1T0292 Stator Assembly weighs approximately 4.7 lbs (2.14 kg) and measures 9.5 × 9.0 × 3.3 inches (24.1 × 22.9 × 8.4 cm). Does 3GEN Export ship the 1T0292 internationally? Yes. 3GEN Export ships worldwide from warehouses in Turkey, USA, and Dubai. Standard delivery is within 5 business days to most destinations. All parts include professional packaging and documentation. Why Source from 3GEN Export? OEM-Grade Quality , Manufactured to meet or exceed original Caterpillar specifications for blade geometry, material hardness, and dimensional accuracy. Verified Cross-Compatibility , Every part number validated against OEM catalogs. This part cross-references with 1T1991 and 380-1482. Global Shipping , Ships worldwide from Turkey, USA, and Dubai. Standard delivery within 5 business days. 1-Year Warranty , Full warranty on material and manufacturing defects. Technical Support , Our team verifies fitment for your specific machine serial number before you order. Order Your 1T0292 Stator Assembly Today Don't let a failing torque converter stator cost you thousands in fuel waste and lost productivity. The 1T0292 Caterpillar Stator Assembly from 3GEN Export restores full torque multiplication capability , backed by OEM-grade quality, global shipping, and expert technical support. Need help verifying fitment? Send us your machine model and serial number, and our technical team will confirm compatibility within 24 hours.
Frequently Asked Questions
What is Caterpillar part number 1T0292?
The 1T0292 is a Stator Assembly (Guide Wheel Assembly) for the torque converter in Caterpillar heavy equipment. It multiplies engine torque at low speeds by redirecting hydraulic fluid inside the torque converter housing.
What is the cross-reference for 1T0292?
The 1T0292 is interchangeable with Caterpillar part numbers 1T1991 (1T-1991) and 380-1482 (3801482). Always verify using your machine serial number before ordering.
What machines does the 1T0292 fit?
The 1T0292 fits Caterpillar D4D, D4E, D4H, D4H TSK II dozers; 941, 941B, 951B, 951C, 955H track loaders; 920, 930, 930R, 936, G936, 950 wheel loaders; 613, 613B, 613C scrapers; 518 skidder; and 561H pipelayer.
What is the difference between a stator and an impeller?
The impeller is driven by the engine and pushes hydraulic fluid toward the turbine. The stator sits between them and redirects returning fluid to multiply torque.
How much does the 1T0292 weigh?
The 1T0292 weighs approximately 4.7 lbs (2.14 kg) and measures 9.5 x 9.0 x 3.3 inches.
Does 3GEN Export ship internationally?
Yes. 3GEN Export ships worldwide from Turkey, USA, and Dubai within 5 business days.
