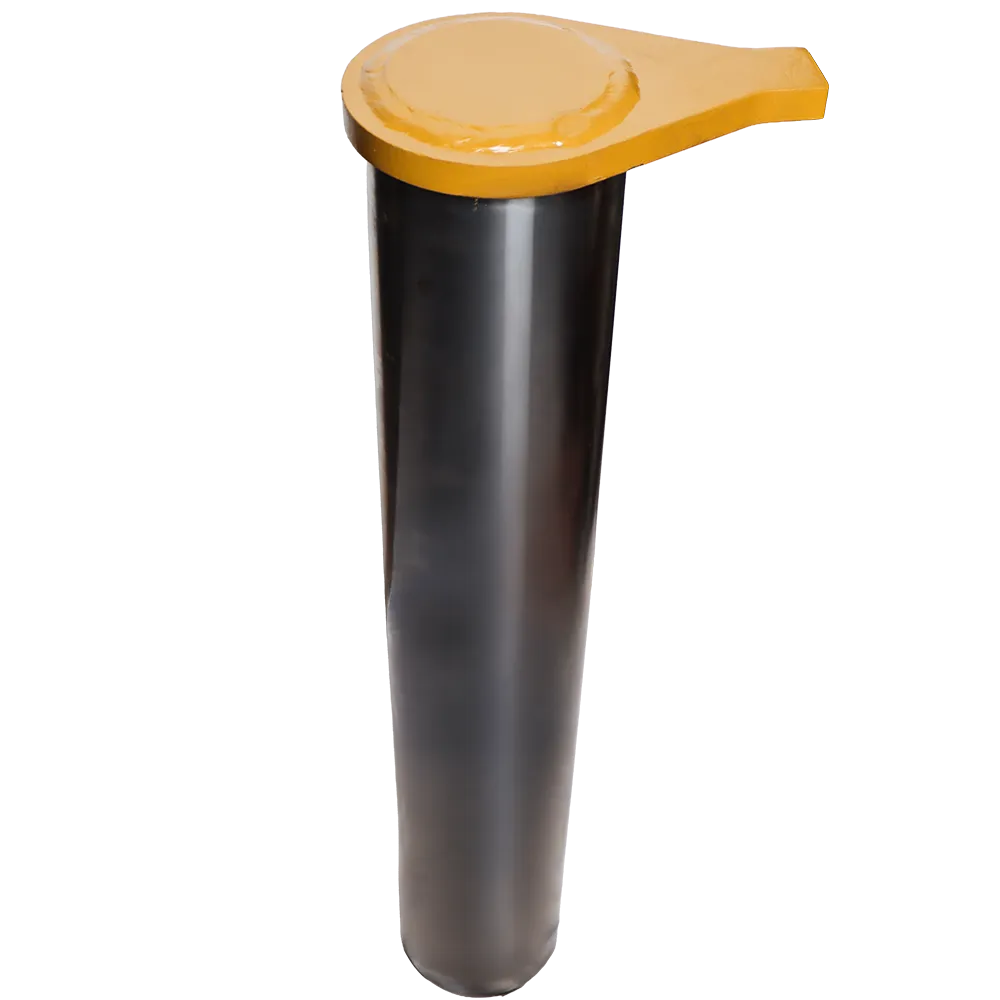

2344042, 234-4042 PIN 4140 CATERPILLAR

High-Strength Structural Pin for Caterpillar Heavy Machinery Applications

The 2344042, 234-4042 PIN 4140 CATERPILLAR is a heavy-duty structural component designed to provide reliable pivot and load-bearing support in Caterpillar earthmoving and construction equipment. Manufactured from high-strength alloy steel, this precision-machined pin plays a crucial role in maintaining stability and movement within critical machine assemblies such as bucket linkages, arms, frames, and articulated structures.

Heavy machinery operates under extreme mechanical loads, especially in mining, quarrying, demolition, and large-scale construction environments. Components that connect moving structural parts must withstand constant pressure, shock forces, and repetitive movement cycles. The 2344042, 234-4042 PIN 4140 CATERPILLAR is engineered to handle these stresses while maintaining dimensional accuracy and structural integrity over long service intervals.

Produced from 4140 alloy steel, known for its high tensile strength and fatigue resistance, this pin ensures consistent performance even under harsh operating conditions. The precision cylindrical design allows smooth rotational movement between connected components while minimizing wear within bushings and mounting brackets.

Supplied by 3GEN Export, a global OEM-standard spare parts provider, this component is available with worldwide delivery within 5 working days, allowing equipment operators and maintenance teams to quickly replace worn pivot components and maintain operational efficiency.

What Is the 2344042 Pin Used For?

Role of Structural Pins in Heavy Equipment

Pins are fundamental mechanical components used to connect moving parts within heavy equipment assemblies. They act as pivot points that allow controlled motion while supporting large mechanical loads generated by hydraulic systems and machine weight.

The 2344042, 234-4042 PIN 4140 CATERPILLAR is typically installed in high-stress locations where structural components must rotate or articulate during machine operation. Examples include loader arms, bucket mechanisms, linkage assemblies, and chassis articulation points.

Functions of this component include:

• Providing a pivot axis for moving assemblies
• Supporting high structural loads
• Maintaining alignment between mechanical components
• Allowing smooth movement within bushings
• Reducing friction between connected parts

Because pivot pins experience constant rotational movement and heavy stress, they must be manufactured with exceptional strength and dimensional accuracy.

Engineering Material: 4140 Alloy Steel

Why 4140 Steel Is Used in Heavy Equipment Pins

The 2344042, 234-4042 PIN 4140 CATERPILLAR is manufactured from 4140 alloy steel, a chromium-molybdenum steel widely used in high-performance mechanical applications.

This material is known for its excellent combination of:

• High tensile strength
• Impact resistance
• Fatigue resistance
• Wear resistance
• Heat treatment capability

When used in heavy machinery pivot pins, 4140 steel provides long-term durability even under extreme mechanical loads. Heat treatment processes further enhance hardness and surface strength while maintaining a tough core to absorb shock forces.

Precision Manufacturing and Machining

High Accuracy Cylindrical Geometry

The 2344042, 234-4042 PIN 4140 CATERPILLAR is manufactured with precise cylindrical geometry to ensure proper fit within bushings and mounting brackets. Precision machining ensures minimal tolerance variation, allowing smooth articulation between connected components.

Benefits of accurate machining include:

• Reduced friction during movement
• Proper alignment of machine structures
• Improved load distribution
• Lower wear rates on surrounding components

This precision ensures consistent mechanical performance during continuous machine operation.

Surface Finishing for Wear Resistance

The polished surface of the pin reduces friction against bushings and other rotating surfaces. A smoother finish helps minimize abrasion and wear, extending the lifespan of both the pin and the surrounding components.

Surface finishing also improves resistance to environmental exposure such as dust, debris, and moisture commonly encountered in heavy machinery operating environments.

Structural Strength and Load Capacity

Heavy construction and mining equipment generate massive loads during digging, lifting, and pushing operations. Structural pins must absorb these forces without deformation or fatigue.

The 2344042 pivot pin provides high load-bearing capacity thanks to:

• Alloy steel construction
• Heat-treated hardness
• Solid cylindrical structure
• Optimized diameter and length design

This combination allows the component to withstand repetitive stress cycles while maintaining mechanical reliability.

Technical Specifications

Compatible Caterpillar Equipment Models

The 2344042, 234-4042 PIN 4140 CATERPILLAR is commonly used in various Caterpillar construction and earthmoving equipment depending on machine configuration.

Typical compatible machines include:

• Caterpillar 320 Series Hydraulic Excavators
• Caterpillar 323 Excavators
• Caterpillar 325 Excavators
• Caterpillar 329 Excavators
• Caterpillar 330 Series Excavators
• Caterpillar Heavy Construction Equipment Platforms

Compatibility may vary depending on machine serial numbers, linkage configurations, and production versions. Equipment manuals should always be consulted before installation.

Advantages of the 2344042 Structural Pin

High Mechanical Strength

The alloy steel composition allows the component to support heavy structural loads without bending or deformation.

Long Wear Life

The combination of heat-treated material and polished surfaces reduces wear between the pin and surrounding bushings.

Smooth Machine Articulation

Precision machining allows connected parts to rotate smoothly, improving the efficiency of hydraulic movement systems.

Reliable Replacement Component

The design matches the original dimensions used in Caterpillar equipment, allowing straightforward installation during machine maintenance.

Applications in Construction and Mining Equipment

The 2344042, 234-4042 PIN 4140 CATERPILLAR is used in multiple high-load areas within heavy machinery including:

• Excavator arm joints
• Bucket linkage connections
• Boom articulation points
• Frame pivot assemblies
• Structural linkage mechanisms

These applications require components capable of maintaining alignment and load support during continuous machine operation.

Maintenance and Replacement Guidelines

Pivot pins gradually experience wear due to friction and heavy loads. Routine inspection during machine servicing helps identify when replacement is necessary.

Maintenance recommendations include:

• Checking for excessive play in linkage assemblies
• Inspecting surface wear or scoring
• Monitoring irregular machine movement
• Lubricating pivot points regularly

Timely replacement of worn pins helps prevent damage to surrounding components such as bushings and mounting brackets.

Packaging and Global Delivery

Every unit supplied by 3GEN Export is prepared using export-grade packaging designed for safe international transportation.

Packaging includes:

• Protective wrapping materials
• Reinforced shipping cartons or crates
• Industrial transport protection
• Secure palletized export handling

3GEN Export provides worldwide shipping within 5 working days, helping customers quickly obtain essential spare parts for heavy equipment maintenance.

Estimated Product Weight

Estimated weight of the 2344042 structural pin:

Approximate Weight:94 KG

The exact weight may vary slightly depending on the production batch and finishing process.

Why Choose 3GEN Export?

3GEN Export is a global supplier specializing in OEM-standard spare parts for heavy construction, mining, and industrial equipment.

Advantages include:

• OEM-level manufacturing quality
• Extensive international logistics network
• Rapid delivery within 5 working days
• Reliable spare parts sourcing
• Professional export packaging

With global delivery capability and dependable product quality, 3GEN Export helps equipment owners maintain continuous machine operation.

Conclusion

The 2344042, 234-4042 PIN 4140 CATERPILLAR is a high-strength structural pivot component engineered for demanding Caterpillar machinery applications. Its 4140 alloy steel construction, precision machining, and wear-resistant surface ensure long-term reliability in heavy construction and mining environments.

By sourcing this component through 3GEN Export, equipment operators gain access to dependable spare parts delivered quickly worldwide, helping reduce downtime and maintain operational productivity.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
