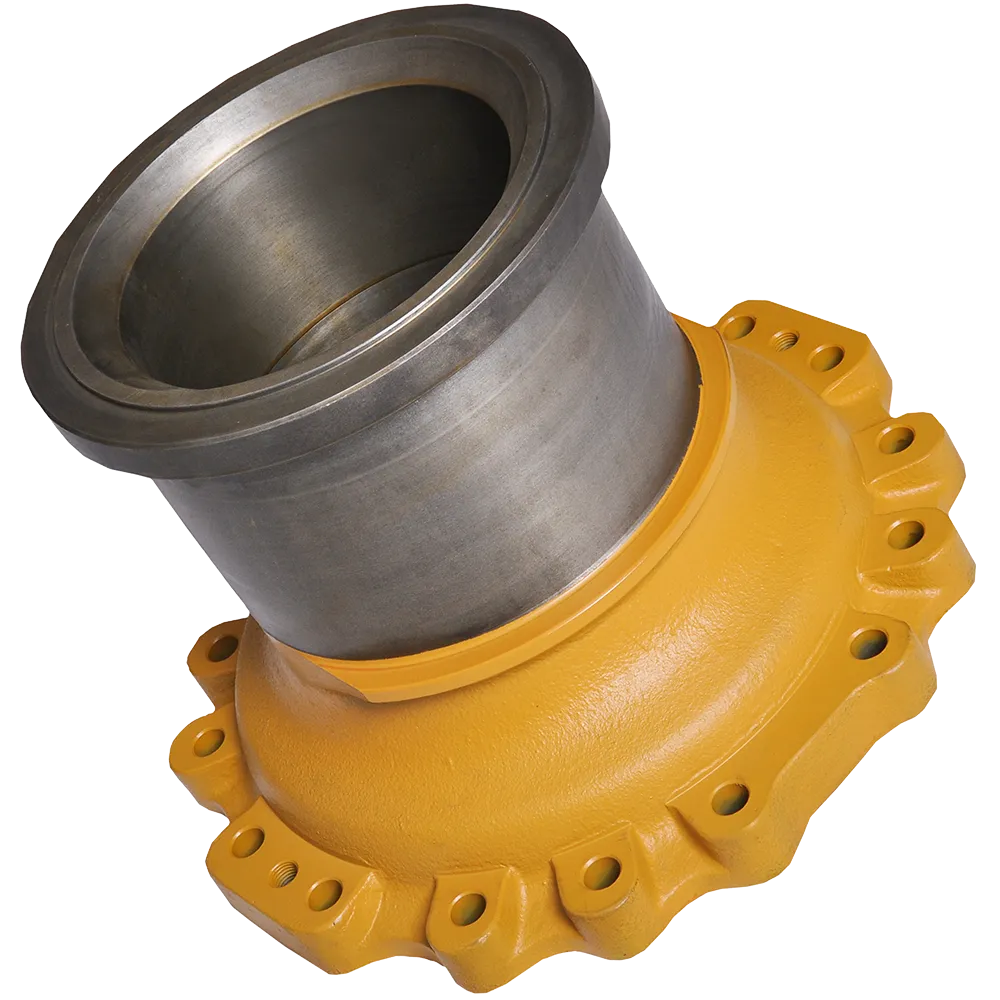

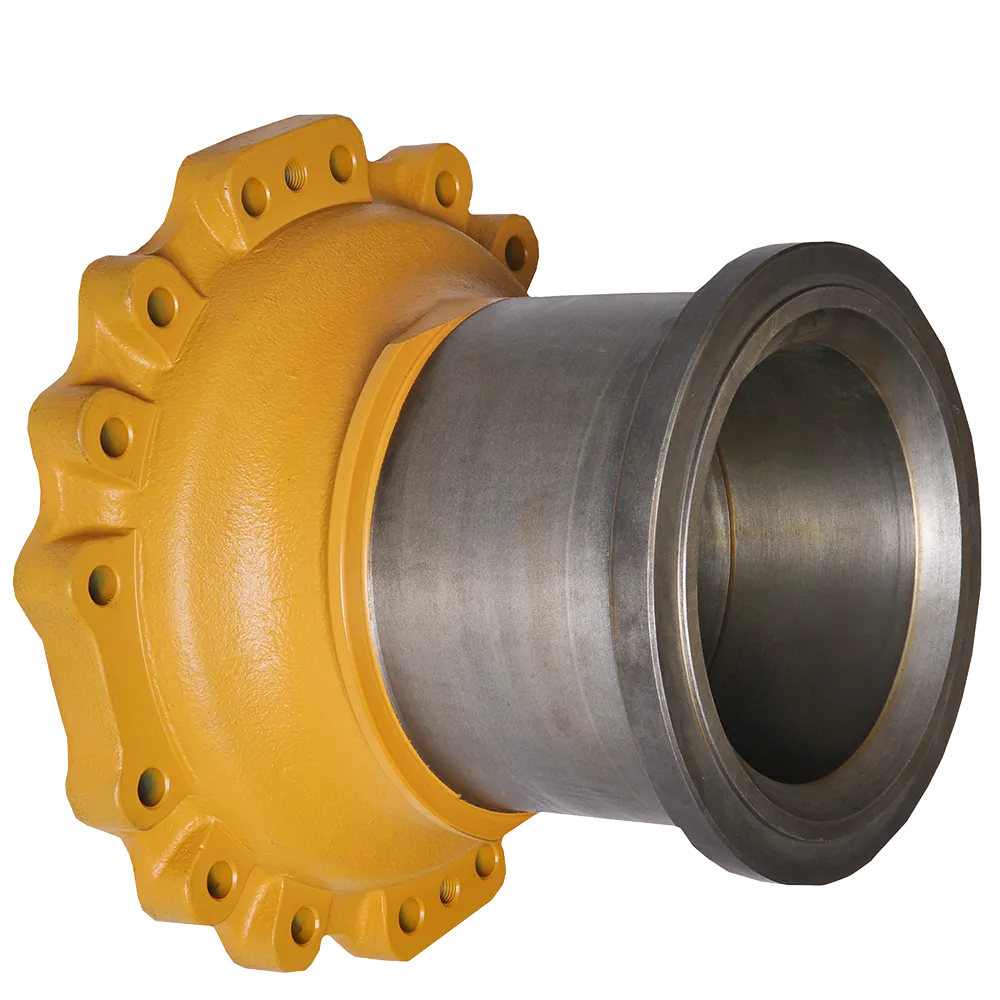

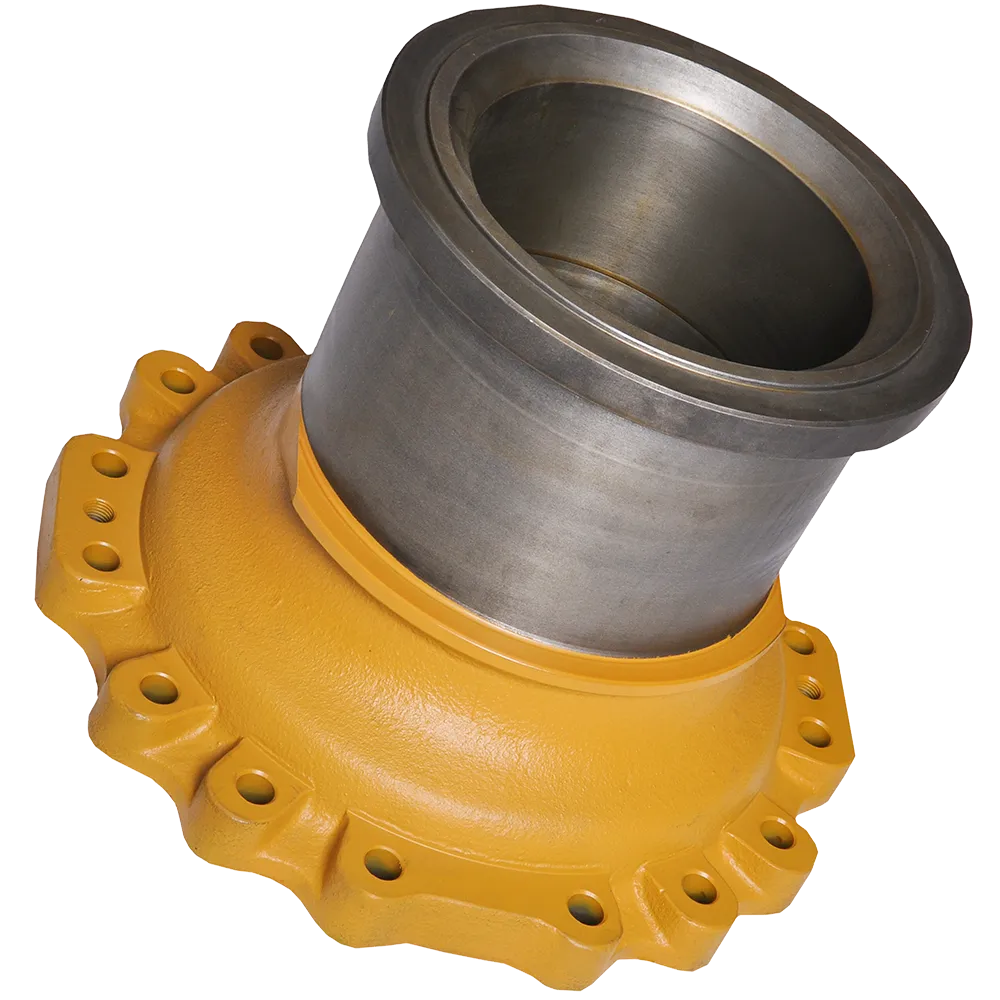

23A2211120, 23A-22-11120 CASE KOMATSU

Heavy Duty Drivetrain Housing for Komatsu Crawler Machines

The 23A2211120, 23A-22-11120 CASE KOMATSU is a critical structural component used in the drivetrain system of large crawler machines. In heavy construction and mining equipment, drivetrain housings are responsible for supporting rotating components, maintaining alignment, and protecting internal mechanisms from harsh operating environments.

Crawler machines are exposed to extreme mechanical stress while pushing large volumes of earth, rocks, or other materials. Because of this, the drivetrain assembly must be protected by strong and precisely manufactured structural components. The 23A2211120, 23A-22-11120 CASE KOMATSU provides this structural integrity while ensuring the internal transmission elements operate smoothly.

This component is typically installed within the drive system where shafts, bearings, and other moving elements are housed. Its cylindrical structure and reinforced flange allow secure mounting to surrounding assemblies while providing proper support to the rotating parts inside.

The 23A2211120, 23A-22-11120 CASE KOMATSU is engineered to operate reliably under high torque loads and continuous vibration. Machines used in quarrying, mining, and infrastructure construction depend on durable drivetrain housings like this to maintain mechanical stability and operational efficiency.

At 3GEN Export, we supply OEM-level heavy machinery spare parts for customers worldwide. Through our global logistics network, the 23A2211120, 23A-22-11120 CASE KOMATSU can be delivered internationally within 5 working days, helping equipment operators reduce downtime and maintain productivity.

Function of the Komatsu Drivetrain Case

Structural Support for Power Transmission

The primary role of the 23A2211120, 23A-22-11120 CASE KOMATSU is to act as a structural housing for key drivetrain components. In crawler machines, power generated by the engine is transmitted through multiple mechanical assemblies before reaching the tracks.

This drivetrain housing supports and stabilizes internal components such as shafts, bearings, and gears. Maintaining proper alignment between these parts is essential for efficient power transfer.

Without a strong and precisely engineered housing, drivetrain components may become misaligned, which can cause increased wear, vibration, and potential system failure.

Protection Against Environmental Contamination

Heavy machinery often operates in environments filled with dust, mud, rocks, and abrasive debris. These contaminants can damage internal drivetrain components if they are not properly enclosed.

The 23A2211120, 23A-22-11120 CASE KOMATSU acts as a protective barrier that shields internal mechanical parts from external contamination. By preventing dirt and debris from entering the drivetrain system, this housing helps extend the operational lifespan of critical machine components.

Maintaining Mechanical Alignment

Alignment is a critical factor in any mechanical drivetrain system. When shafts and bearings are properly aligned, rotational movement becomes smoother and mechanical stress is reduced.

The internal bore of this Komatsu drivetrain case is precisely machined to maintain exact tolerances. This precision ensures that the internal components operate with minimal friction and vibration.

Engineering Design and Manufacturing

High Strength Cast Steel Structure

The 23A2211120, 23A-22-11120 CASE KOMATSU is manufactured using high strength cast steel specifically designed for heavy industrial machinery.

Cast steel offers several advantages for heavy equipment components:

• High resistance to mechanical fatigue
• Strong load bearing capability
• Excellent structural durability
• Long operational lifespan

These properties allow the drivetrain housing to withstand extreme mechanical forces during machine operation.

Precision CNC Machining

After the casting process, the component undergoes precision machining using advanced CNC equipment. This machining process ensures that the internal bore and mounting surfaces meet strict dimensional tolerances.

Accurate machining allows the drivetrain housing to integrate perfectly within the machine’s mechanical assembly.

Key benefits include:

• Improved component alignment
• Reduced vibration during operation
• Smooth rotation of internal shafts
• Increased mechanical efficiency

Reinforced Mounting Flange

The outer structure of the housing features a reinforced mounting flange with multiple bolt holes. This flange allows the component to be securely attached to adjacent drivetrain assemblies.

The reinforced flange distributes mechanical loads evenly across the housing, preventing structural deformation under high stress conditions.

Technical Specifications

Product Identification

Product Name: 23A2211120, 23A-22-11120 CASE KOMATSU

Part Number: 23A2211120

Alternative Part Number: 23A-22-11120

Component Type: Drivetrain housing / transmission case

Machine System: Crawler drive system

Manufacturing Details

Material: Heavy duty cast steel

Production Method: Precision casting and CNC machining

Surface Protection: Industrial corrosion resistant coating

Structural Features

Reinforced cylindrical housing

Heavy duty mounting flange

Multiple bolt installation points

Machined internal bore for bearing and shaft support

Designed for high torque mechanical systems

Estimated Weight

Approximate weight of the 23A2211120, 23A-22-11120 CASE KOMATSU:

135 KG – 155 KG

Weight may vary slightly depending on production specifications and machining tolerances.

Compatible Komatsu Machine Models

The 23A2211120, 23A-22-11120 CASE KOMATSU is used in several large crawler machines produced by Komatsu.

Common compatible models include:

Komatsu D155A

Komatsu D155AX

Komatsu D155A-3

Komatsu D155A-5

Komatsu D155AX-5

Komatsu D155A-6

Komatsu D155AX-6

Compatibility may vary depending on machine configuration and serial number range.

Industrial Applications

Mining Operations

Mining equipment must operate under extreme mechanical stress and harsh environmental conditions. Durable drivetrain housings ensure that internal mechanical systems remain protected and stable.

Quarrying and Aggregate Production

Machines used in quarry operations experience constant vibration and heavy loads. Reliable drivetrain structures help maintain mechanical integrity in these environments.

Earthmoving and Infrastructure Construction

Crawler machines used in road construction, dam building, and large infrastructure projects require durable mechanical systems. Strong drivetrain housings support the machine’s ability to operate continuously under demanding workloads.

Installation Overview

Installation of drivetrain housings should always be performed by trained technicians.

Typical installation steps include:

Inspection of the drivetrain assembly

Removal of worn or damaged housing components

Cleaning and preparation of mounting surfaces

Installation of the Komatsu drivetrain housing

Torque tightening of mounting bolts

Reassembly of internal components

Operational testing of the machine

Correct installation helps prevent mechanical misalignment and premature component wear.

Global Supply by 3GEN Export

3GEN Export is a global supplier specializing in heavy machinery spare parts for construction, mining, and industrial equipment.

Our customers benefit from:

OEM-level spare part supply

Reliable international logistics

Professional export packaging

Fast delivery worldwide

We deliver the 23A2211120, 23A-22-11120 CASE KOMATSU to customers across the globe within 5 working days, ensuring machines return to operation as quickly as possible.

Export Packaging and Shipping

Heavy machinery parts require careful packaging for international transport.

At 3GEN Export, each drivetrain housing is prepared using professional export packaging methods including:

Protective industrial wrapping

Reinforced wooden crates

Shock resistant internal packaging

Secure palletized shipment

These measures ensure safe transportation to any destination worldwide.

Advantages of This Komatsu Drivetrain Housing

Key advantages include:

High structural durability

Precision engineered fit

Resistance to heavy mechanical loads

Protection for drivetrain components

Long operational lifespan

Reliable performance in demanding environments

Conclusion

The 23A2211120, 23A-22-11120 CASE KOMATSU is an essential structural component within the drivetrain system of Komatsu crawler machinery. Its reinforced cast steel design and precision machining allow it to support internal mechanical components while maintaining alignment and protecting them from environmental contamination.

Reliable drivetrain housings play a crucial role in maintaining the performance and longevity of heavy construction equipment. With proper installation and maintenance, this component helps ensure stable operation of crawler machines in mining, quarrying, and large scale earthmoving applications.

As an OEM-level supplier, 3GEN Export provides this heavy machinery component with fast international delivery. Our global logistics network ensures the part can reach customers worldwide within 5 working days, helping operators keep their machines running without interruption.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
