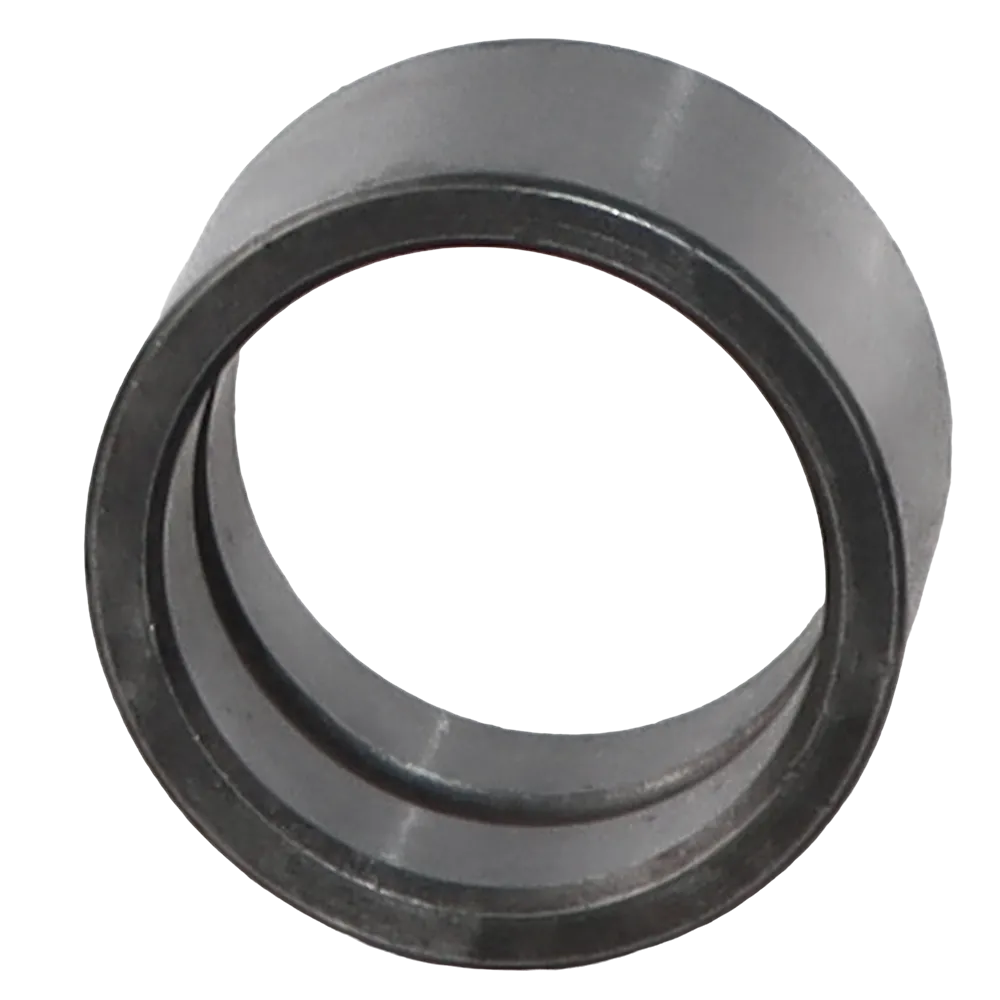

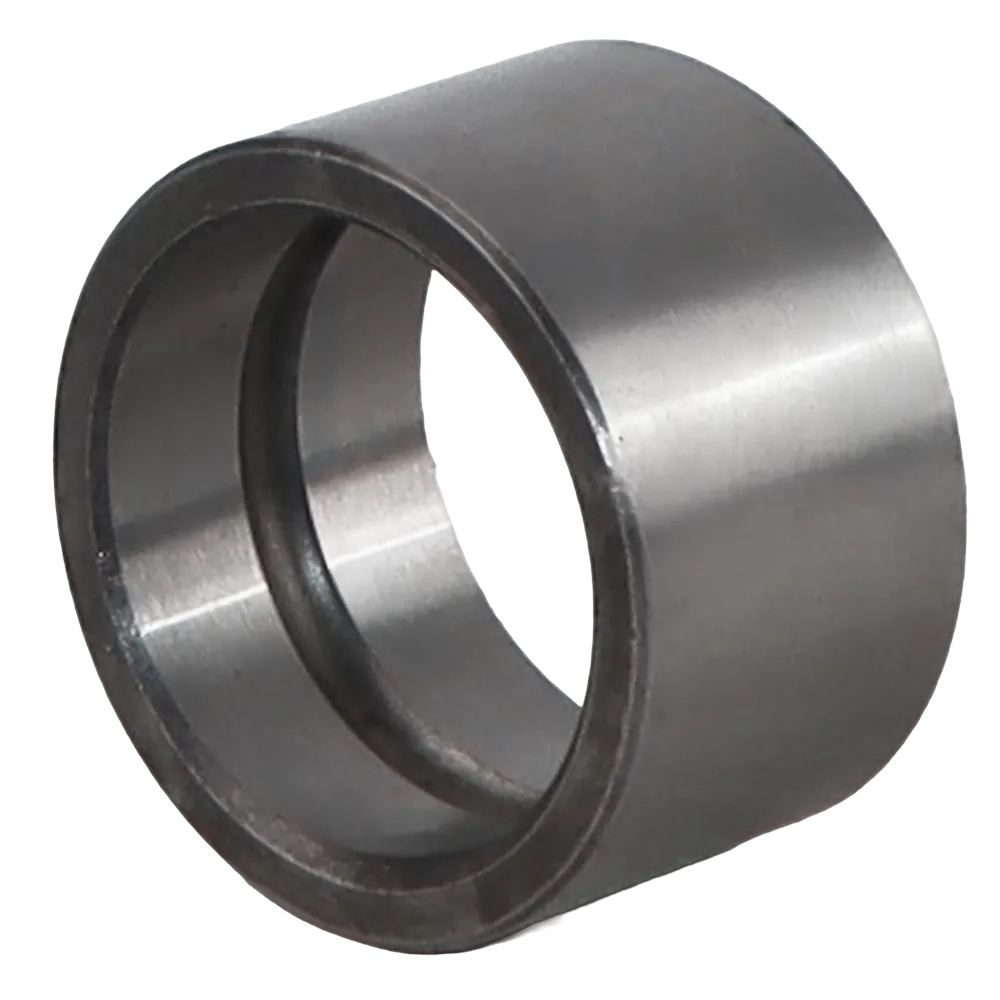

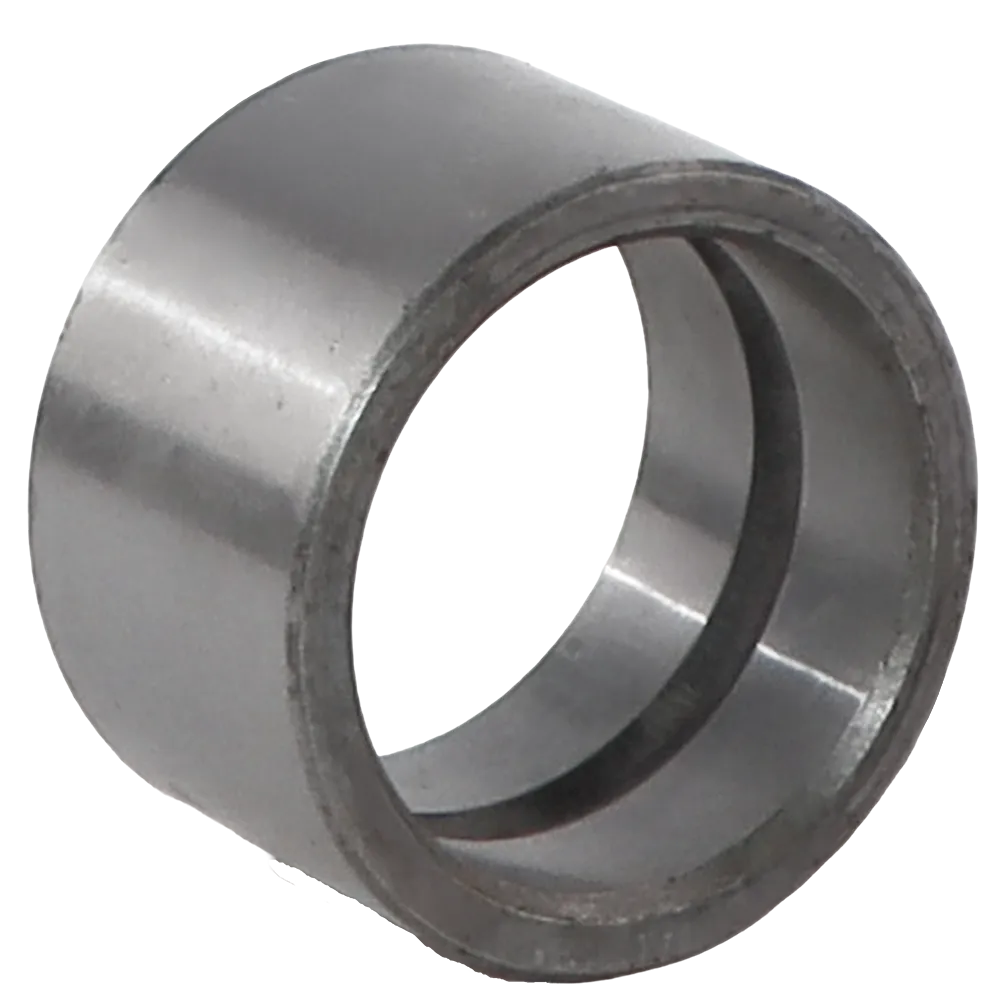

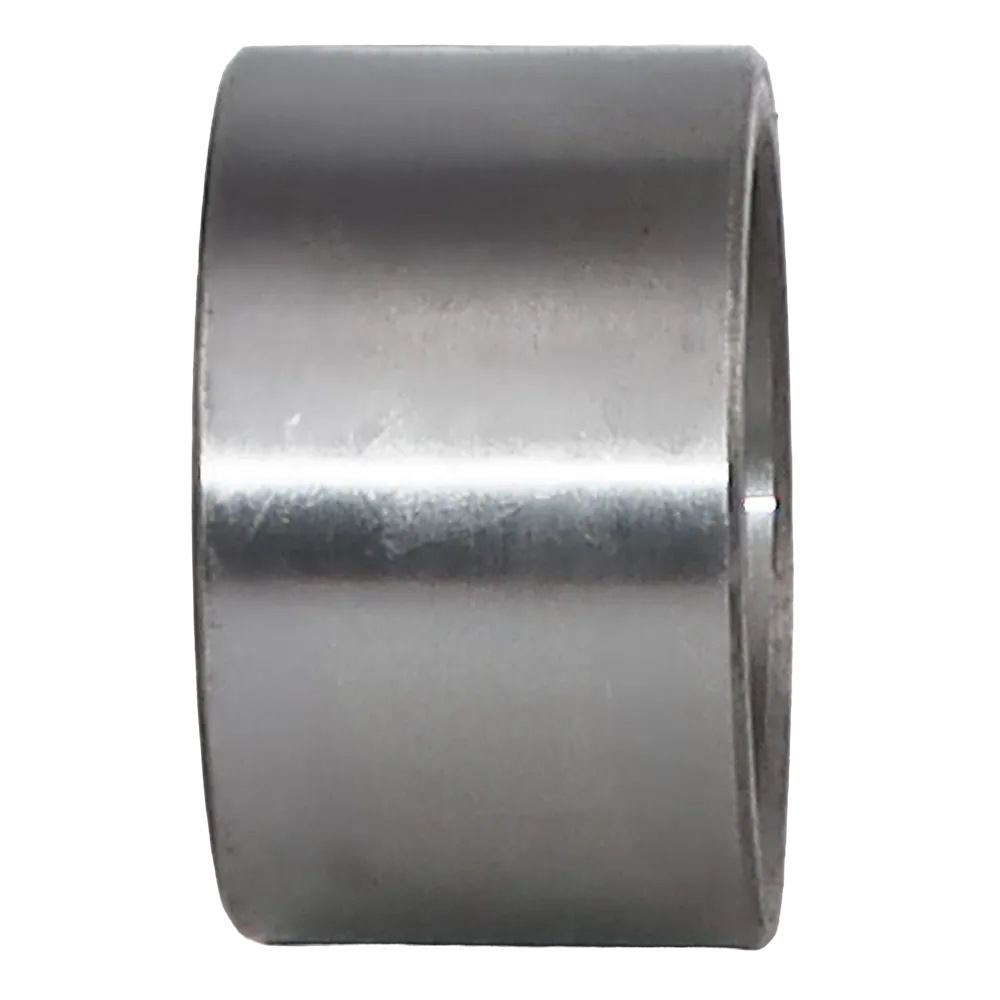

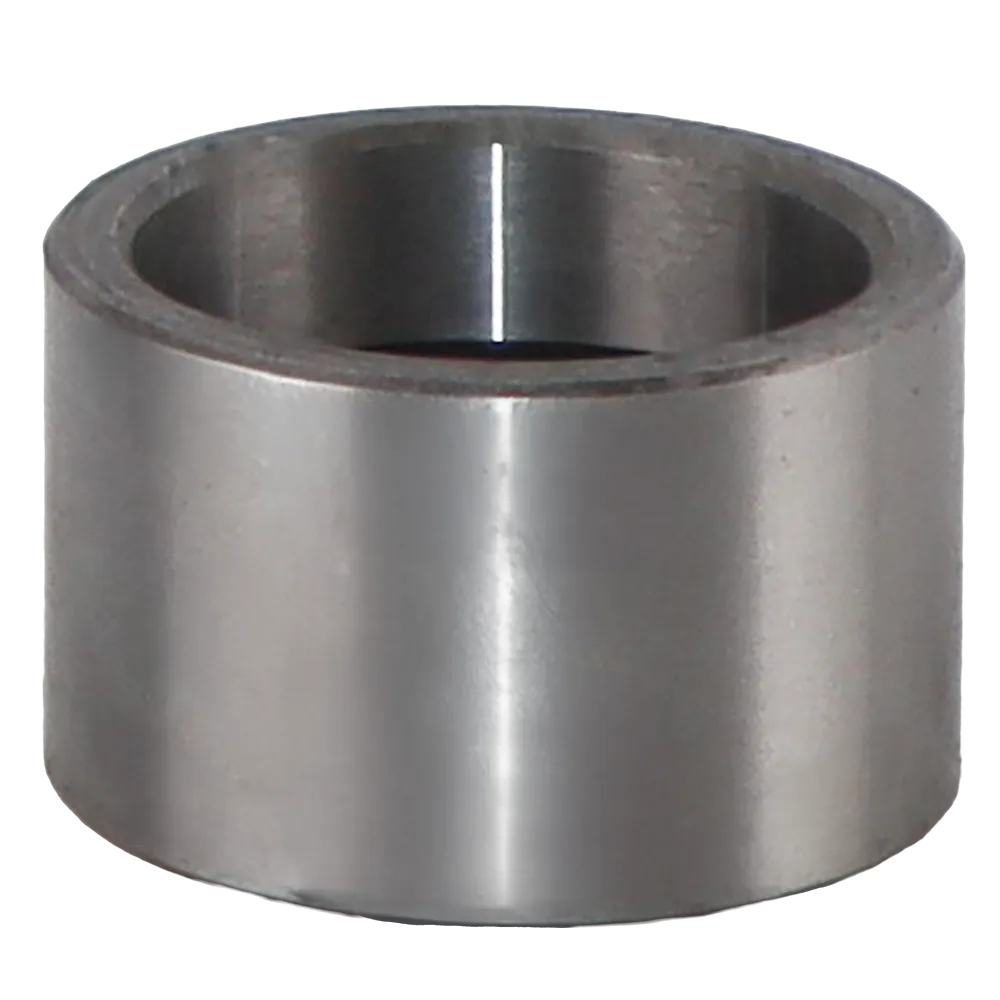

23A-27-11620 BUSHING KOMATSU / 23A2711620 BUSHING KOMATSU – OEM-Quality Precision by 3GEN Export

---

Overview

The 23A-27-11620 BUSHING KOMATSU is a crucial wear-resistant component used in the pivot points and linkage systems of Komatsu heavy machinery. Acting as the intermediary between the pin and housing, this bushing ensures smooth articulation, reduced friction, and extended service life of mechanical joints.

At 3GEN Export, our commitment to precision manufacturing and OEM-grade engineering guarantees that the 23A2711620 BUSHING KOMATSU meets the exact dimensional and performance requirements of Komatsu equipment. Manufactured using advanced metallurgy and precision grinding techniques, this part ensures exceptional wear resistance, tight tolerances, and stable operation under high mechanical loads.

---

Function and Purpose of the 23A-27-11620 BUSHING KOMATSU

In Komatsu’s complex mechanical systems, bushings function as the critical interface between moving parts, absorbing frictional forces and preventing direct metal-to-metal contact. The 23A-27-11620 BUSHING KOMATSU is specifically designed to maintain the alignment and motion accuracy of the pins within the booms, arms, and undercarriage assemblies.

When installed correctly, this bushing ensures:

• Reduced friction between pin and bore surfaces.

• Extended lifespan of both the pin and the housing.

• Controlled movement with minimal vibration and wear.

• Improved lubrication retention within the joint area.

The performance of the entire linkage system often depends on the condition of this bushing. A high-quality replacement like the 23A2711620 BUSHING KOMATSU guarantees smooth machine operation, accurate movements, and reduced maintenance downtime.

---

Material Composition and Manufacturing

The 23A-27-11620 BUSHING KOMATSU is produced using induction-hardened alloy steel, selected for its high compressive strength, fatigue resistance, and durability in abrasive environments. Every stage of production, from forging to grinding, adheres to strict OEM tolerances.

Manufacturing Process Overview:

1. Alloy Selection: High-carbon chromium-molybdenum steel chosen for wear resistance.

2. Forging: The material is forged under controlled heat for uniform grain structure.

3. Machining: CNC machining ensures precision in both internal and external diameters.

4. Heat Treatment: Induction hardening increases surface hardness while maintaining a tough, flexible core.

5. Grinding: Mirror-smooth finish achieved through multi-stage grinding for optimal fit and lubrication flow.

6. Quality Inspection: Each bushing is measured to ±0.01 mm accuracy for diameter and roundness.

Technical Highlights:

• Material: Alloy steel (Cr-Mo or SAE 4140 equivalent)

• Surface Hardness: 58–62 HRC

• Core Toughness: Maintained through tempered core design

• Coating: Phosphate anti-corrosion treatment

• Tolerance: ±0.01 mm

• Lubrication Retention: Internal oil grooves for consistent grease film

• Weight: 0.16 kg

This combination of mechanical strength and refined surface precision makes the 23A2711620 BUSHING KOMATSUone of the most reliable pivot bushings for Komatsu machines operating under heavy load conditions.

---

Engineering and Performance Benefits

The 23A-27-11620 BUSHING KOMATSU is engineered to provide superior operational reliability and extended service intervals even in extreme environments such as mining, quarrying, and construction.

Key Advantages:

• Reduced Friction: The precision-ground inner diameter creates a micro-smooth contact surface that minimizes energy loss and heat generation.

• Extended Durability: Hardened steel structure withstands continuous oscillation and impact.

• Enhanced Lubrication: Grease retention grooves maintain consistent film lubrication, even under high pressure.

• Dimensional Stability: Maintains shape and fit under extreme load and temperature variations.

• Corrosion Protection: The phosphate coating shields against oxidation and environmental corrosion.

These performance benefits collectively improve machine uptime and reliability—critical for Komatsu operators seeking minimal service interruptions.

---

Compatible Komatsu Models

The 23A-27-11620 BUSHING KOMATSU is compatible with a wide range of Komatsu machines, particularly in the D-series bulldozers and PC-series excavators. It’s frequently used in critical connection points such as boom arms, linkage joints, and pivot assemblies.

Common Compatible Models Include:

• Bulldozers:

  • Komatsu D65EX-15

  • Komatsu D65PX-15

  • Komatsu D85EX-15

  • Komatsu D85PX-15

  • Komatsu D155AX-5

  • Komatsu D155AX-6

• Excavators:

  • Komatsu PC200-6, PC200-7

  • Komatsu PC210LC-8

  • Komatsu PC220LC

  • Komatsu PC240NLC

• Wheel Loaders:

  • Komatsu WA320-6

  • Komatsu WA380-6

  • Komatsu WA470-6

This bushing is particularly critical in boom-to-arm joints, bucket linkages, and blade assemblies, where high lateral loads demand maximum strength and stability.

---

Installation and Maintenance Guidelines

Proper installation of the 23A2711620 BUSHING KOMATSU ensures long-term performance and minimal maintenance.

Installation Procedure:

1. Surface Cleaning: Remove rust, grease, or debris from the bore before inserting the bushing.

2. Lubrication: Apply assembly grease to both outer and inner surfaces for smooth fitting.

3. Press Fit: Use a hydraulic press to install the bushing evenly—avoid hammering to prevent distortion.

4. Alignment Check: Ensure the bushing is centered and seated fully flush within the housing.

5. Final Inspection: Rotate the mating pin by hand to verify smooth, friction-free movement.

Maintenance Recommendations:

• Grease joints at regular intervals to maintain consistent lubrication.

• Check for wear every 500 operational hours.

• Replace both pin and bushing simultaneously to maintain proper tolerance.

• Avoid operating equipment with worn bushings, as this can damage housings and increase maintenance costs.

Following these best practices ensures the 23A-27-11620 BUSHING KOMATSU functions flawlessly for thousands of operational cycles.

---

Quality Assurance and OEM-Grade Standards

At 3GEN Export, each 23A-27-11620 BUSHING KOMATSU undergoes rigorous testing to ensure it meets or exceeds OEM specifications. The production and inspection processes include:

• Dimensional verification using Coordinate Measuring Machines (CMM).

• Rockwell hardness testing to ensure consistent surface hardness.

• Concentricity and roundness inspection for perfect alignment.

• Lubrication channel testing to verify proper grease flow.

• Visual inspection for surface finish and coating quality.

Every bushing is individually serialized for traceability and shipped with quality documentation verifying inspection results.

---

Technical Specifications

---

Application in Komatsu Equipment

The 23A-27-11620 BUSHING KOMATSU is used across various joint assemblies, primarily where rotational or oscillating motion occurs under heavy loads. Its role is essential in areas subjected to repetitive stress and high mechanical friction.

Typical Application Areas:

• Boom pivot points

• Arm-to-link connections

• Blade and bucket linkage assemblies

• Track roller and undercarriage joints

• Lift cylinder connections

In these locations, the bushing not only supports axial loads but also ensures that vibration and oscillation forces are evenly distributed. Its precise fit prevents mechanical play and enhances machine stability during operation.

---

Performance Under Harsh Conditions

Komatsu machines often operate in the harshest working environments—construction, mining, forestry, and quarrying. The 23A2711620 BUSHING KOMATSU is designed to thrive in these demanding conditions, offering superior resistance to wear, impact, and temperature extremes.

Performance Attributes:

• Operates efficiently under extreme pressure.

• Maintains alignment in dusty and abrasive environments.

• Prevents galling or scoring due to advanced lubrication retention.

• Remains dimensionally stable under temperature fluctuations.

The advanced metallurgical composition ensures that even after prolonged operation, the bushing retains its cylindrical precision and structural integrity.

---

Packaging and Logistics

Each 23A-27-11620 BUSHING KOMATSU is securely packed using corrosion-resistant materials to prevent oxidation during transit. Foam padding and sealed export cartons ensure the part reaches your facility in pristine condition.

3GEN Export ensures global delivery within 5 working days, with full shipment tracking and commercial documentation support for international logistics and customs clearance.

---

Why Choose 3GEN Export

As a leading OEM supplier of heavy machinery parts, 3GEN Export provides unparalleled quality, service, and global accessibility. We understand the critical nature of construction equipment downtime, which is why our delivery and quality assurance processes are optimized for reliability and speed.

Key Advantages:

• OEM-quality parts engineered for performance.

• Global delivery in 5 business days.

• Comprehensive stock for Komatsu, Caterpillar, Volvo, and more.

• 1-year manufacturer warranty on all products.

• Secure international packaging and logistics management.

When you choose 3GEN Export, you gain a partner that ensures the continued efficiency, reliability, and profitability of your machinery operations worldwide.

---

Conclusion

The 23A-27-11620 BUSHING KOMATSU / 23A2711620 BUSHING KOMATSU represents the intersection of precision, durability, and engineering excellence. Designed to sustain heavy loads, minimize friction, and extend the life of your equipment, this bushing is an indispensable component for any Komatsu machine.

Backed by 3GEN Export’s commitment to OEM-quality manufacturing and fast global delivery, this part ensures your machinery performs at its full potential—no matter the location, no matter the challenge.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
