23A7001071, 23A-70-01071 CIRCLE BOX KOMATSU

The 23A7001071, 23A-70-01071 CIRCLE BOX KOMATSU is best described as a heavy-duty grader circle-reverse housing component built for the work equipment side of the machine rather than the engine or general transmission group. Public sources are not fully consistent on this code: some catalog-style listings label 23A-70-01071 as a circle-reverse gear assembly and associate it with GD525A and GD625A, while aftermarket grader-parts sellers market the same code as a complete circle box for GD655 in the circle drawbar support and circle reverse section. Because your uploaded product photo clearly shows a large machined housing body rather than a gear, the safest commercial naming for this listing is “23A7001071, 23A-70-01071 CIRCLE BOX KOMATSU,” with serial-number verification recommended before order.

From a buyer’s perspective, that distinction matters. A technician searching this code is usually not looking for a decorative casting or a simple cover. They are trying to match a critical grader work-equipment component that helps support, align, and protect the internal circle-reverse mechanism. In real machine use, the circle-reverse area is central to blade angle control, circle rotation stability, and the grader’s ability to hold precise cutting positions under continuous working load.

What this part is in practical terms

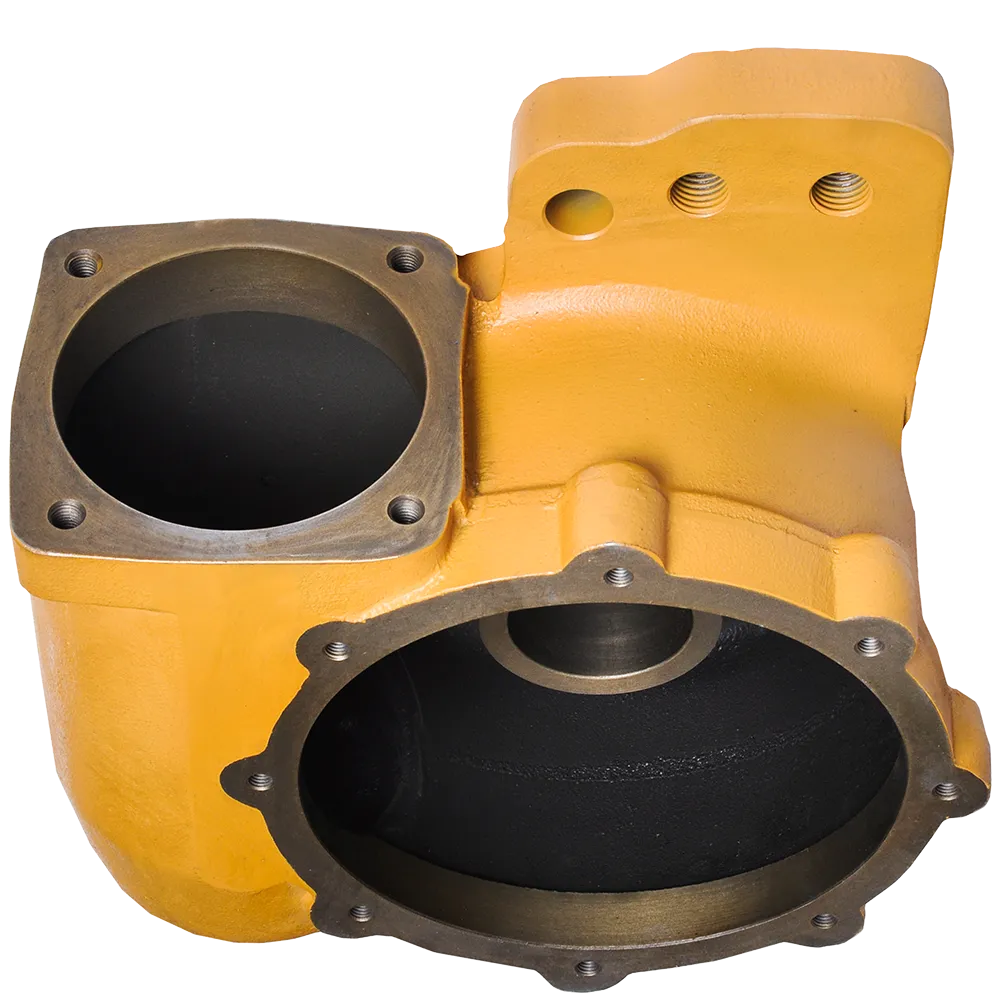

The uploaded image shows a robust cast-and-machined body with a large circular bore, a reinforced outer wall, a square side chamber, and multiple precision-drilled mounting points. That geometry is exactly what buyers expect from a housing-style part that must seat internal rotating elements and keep them aligned under shock, vibration, and repeated directional load changes.

This is why the phrase circle box makes strong practical sense for the part in your photo. The component is built like a structural housing. It has the wall thickness, bore depth, and machined seating surfaces needed to carry internal parts rather than act as a free-moving gear. In grader applications, a circle box of this type serves as the stable body around which critical reverse-gear or circle-drive elements can operate with proper positioning.

Why the 23A-70-01071 circle box matters on a grader

A motor grader is one of the most precision-dependent machines on a jobsite. It does not just push material. It trims, levels, crowns, and controls final grade. That means the machine’s circle and blade movement system has to respond accurately every time the operator changes angle or working position.

If the circle-reverse housing area is worn, cracked, out of alignment, or poorly machined, the entire work feel of the grader can change. The operator may notice harder engagement, uneven response, movement inconsistency, unwanted play, or poor blade-angle holding under load. Even when the internal gear or worm elements are in acceptable condition, a damaged housing can shorten their service life by letting load paths shift where they should remain controlled.

That is why a component such as the 23A7001071, 23A-70-01071 CIRCLE BOX KOMATSU should be viewed as a structural and functional work-equipment part, not just a catalog code. It helps maintain the internal environment where the grader’s circle-reverse mechanism can work smoothly and predictably.

What the uploaded product image reveals

Heavy cast structure

The first thing the image communicates is mass and rigidity. The body is clearly designed to resist flex. The outer form has enough thickness to handle the kind of repeated mechanical stress that graders generate during circle movement and blade positioning.

Precision-machined circular bore

The large central bore is not a rough cast opening. It is visibly machined for controlled fit. That matters because housing components in this area must locate bearings, gear carriers, or mating assemblies very accurately. Even small dimensional errors can translate into misalignment, noise, or premature wear during operation.

Side chamber and integrated mounting section

The square side chamber strongly suggests an internal drive-path connection rather than a passive support bracket. It looks built to interface with a connected housing, drive member, or gear train section. The base area with threaded holes also indicates a fixed mounting role inside a broader grader assembly.

Service-friendly fastening layout

The ring of fastening points around the upper opening suggests a serviceable assembly concept. In heavy machinery, this usually means the housing is intended to allow access to internal parts during overhaul, inspection, or rebuild procedures.

Main function of the 23A7001071, 23A-70-01071 CIRCLE BOX KOMATSU

The practical function of this part is to provide a protected, accurately machined enclosure for circle-reverse-related components inside the grader work-equipment system. In a well-built housing, the internal gears and related moving parts stay aligned, lubrication stays where it should, and structural load is carried by the housing instead of being passed unpredictably into neighboring parts.

For the buyer, that translates into three real-world benefits.

First, the correct housing helps preserve precise circle control. A grader operator depends on consistent blade-angle response, especially in finish grading, shoulder maintenance, and road shaping.

Second, the right housing protects adjacent parts. If the seating surfaces, bore geometry, and mounting faces are correct, gears, bearings, and mating shafts work under the conditions they were designed for.

Third, a sound circle box reduces the risk of repeat repairs. In many rebuilds, replacing only worn internals while leaving the housing unchecked can lead to shortened service life for the new components.

Publicly associated Komatsu grader models

Because the online sources for this part number are inconsistent, the most honest approach is to list the models currently associated with 23A-70-01071 in public catalog and aftermarket references, while advising buyers to verify by serial number and old part code.

Public references currently connect this code to the following grader models:

• Komatsu GD525A
• Komatsu GD625A
• Komatsu GD655

The GD525A and GD625A association appears in catalog-style listings that label the code as a circle-reverse gear assembly, while aftermarket seller pages identify the same code as a complete circle box for GD655. That means the code is clearly tied to Komatsu grader circle-reverse systems, but the exact commercial naming may vary depending on the source and the way the supplier groups the assembly.

Fitment note you should keep on the product page

When listing this part online, it is smart to include a fitment note stating that model compatibility must be confirmed by serial number, drawing, and old part marking. The reason is simple: public references disagree on whether 23A-70-01071 should be sold primarily as a gear assembly or as a complete circle box, and that kind of mismatch can cause costly ordering errors if a buyer relies on model name alone.

Technical details and product specifications

Since a full factory engineering sheet is not publicly available in the sources reviewed, the best way to present specifications is to combine what can be observed from the product image with what can be stated responsibly for e-commerce use.

Product specification summary

Part name: Circle Box

Alternative commercial naming found online: Gear Ass’y, Circle Reverse / Circle Box Complete

Part number: 23A-70-01071

Alternative search format: 23A7001071

Brand: Komatsu

Machine type: Motor grader

System area: Circle drawbar support and circle reverse / grader work equipment

Known public model associations: GD525A, GD625A, GD655

Material type: Heavy-duty cast and machined metal body

Surface condition in image: Painted exterior with precision-machined internal and mounting surfaces

Estimated weight: approximately 18–22 KG based on the visible casting size and housing volume in the uploaded photo; exact shipping weight should be confirmed before dispatch.

Why the estimated weight matters

For a part like this, weight is not just a freight number. It also signals structural purpose. A circle-reverse housing must have enough mass to resist distortion and keep internal running surfaces stable. Lighter, underbuilt castings may look acceptable at first glance but often perform poorly once real grader loads are applied.

How this part supports grader performance

A grader’s productivity comes from accuracy, not brute force alone. The operator constantly adjusts the moldboard position to match terrain, road crown, material condition, and finish tolerance. The circle-reverse mechanism is one of the systems that makes those adjustments possible.

That means the housing around that mechanism contributes directly to machine behavior. When the circle box maintains correct internal geometry, the machine feels more controlled. Blade-angle changes happen more consistently. The internal drive relationship stays tighter. The operator spends less time compensating for mechanical slack.

On the other hand, if the housing has worn seats, distorted mounting faces, or poor machining, even a new internal gear set may not perform as expected. That is why experienced buyers do not treat the housing as a secondary item. In many cases, it is the part that determines whether the rebuild will actually last.

Typical reasons for replacement

The 23A7001071, 23A-70-01071 CIRCLE BOX KOMATSU may be replaced for several practical reasons.

One common reason is internal wear on seating surfaces. Over time, repeated load and vibration can affect the areas where bearings, retainers, or mating components locate inside the housing.

Another reason is cracking or structural fatigue. Graders work under shock load, and structural parts around the circle system can suffer from long-term stress, especially on older machines or machines used in harsh road-maintenance environments.

A third reason is rebuild standardization. When a workshop opens the circle-reverse assembly and finds multiple worn internals, it often makes sense to replace the housing too if alignment or fit is no longer trustworthy.

Installation and inspection recommendations

Before fitting a replacement circle box, the workshop should inspect the complete mating group rather than treating the housing as a standalone item. The mounting faces, internal gears, shafts, seals, and related support parts should all be reviewed together. A new housing installed next to worn internal elements can still leave the assembly with shortened life.

The installer should also verify bolt-hole alignment, bore seating condition, and related serial compatibility. On grader work-equipment parts, serial-range differences matter. Even when a part number appears close or visually similar, the correct housing must match the real machine configuration.

For e-commerce buyers, this is why listing both number formats matters. Some customers search 23A7001071, while others search 23A-70-01071. Including both formats naturally in the content improves discoverability without forcing awkward repetition.

Why this part has strong search value

This code has very good commercial SEO potential because it combines a precise Komatsu OEM-style number with a highly specific grader work-equipment function. Buyers searching for this part are usually high-intent users: workshop managers, export buyers, fleet maintenance teams, or resellers trying to match a removed component quickly.

That means the product page should do more than repeat the number. It should explain what the part is, what it does, what grader system it belongs to, and why serial confirmation is important. Search engines increasingly reward pages that answer the real technical question behind the part number, not just pages that stuff the same phrase dozens of times.

For this reason, the strongest commercial copy for this item is not a thin part-number listing. It is a structured product page that combines number recognition, functional explanation, fitment caution, and clear supply positioning.

Why buyers choose 3GEN Export

At 3GEN Export, we supply heavy machinery spare parts as an OEM supplier for customers who need dependable sourcing, accurate communication, and fast international shipping. A component such as the 23A7001071, 23A-70-01071 CIRCLE BOX KOMATSU is not the kind of item buyers want to guess on. They want a supplier who understands that this is a grader work-equipment housing tied to the circle-reverse area and that correct matching matters.

That is exactly where our supply approach adds value. We help customers source the right part codes for demanding heavy equipment applications, and we support worldwide delivery in 5 working days so urgent repairs and rebuild schedules can move forward without unnecessary delay.

Final evaluation

The 23A7001071, 23A-70-01071 CIRCLE BOX KOMATSU should be marketed as a grader circle-reverse housing component with a strong emphasis on structural support, internal alignment, and controlled operation of the circle-reverse system. Public sources do not fully agree on the naming of this code, but they consistently place it in Komatsu grader circle-reverse related applications and associate it with models including GD525A, GD625A, and GD655. Because your uploaded image clearly shows a housing-style part rather than a gear, presenting it commercially as a circle box is the most technically sensible choice, provided you also advise serial-number verification.
