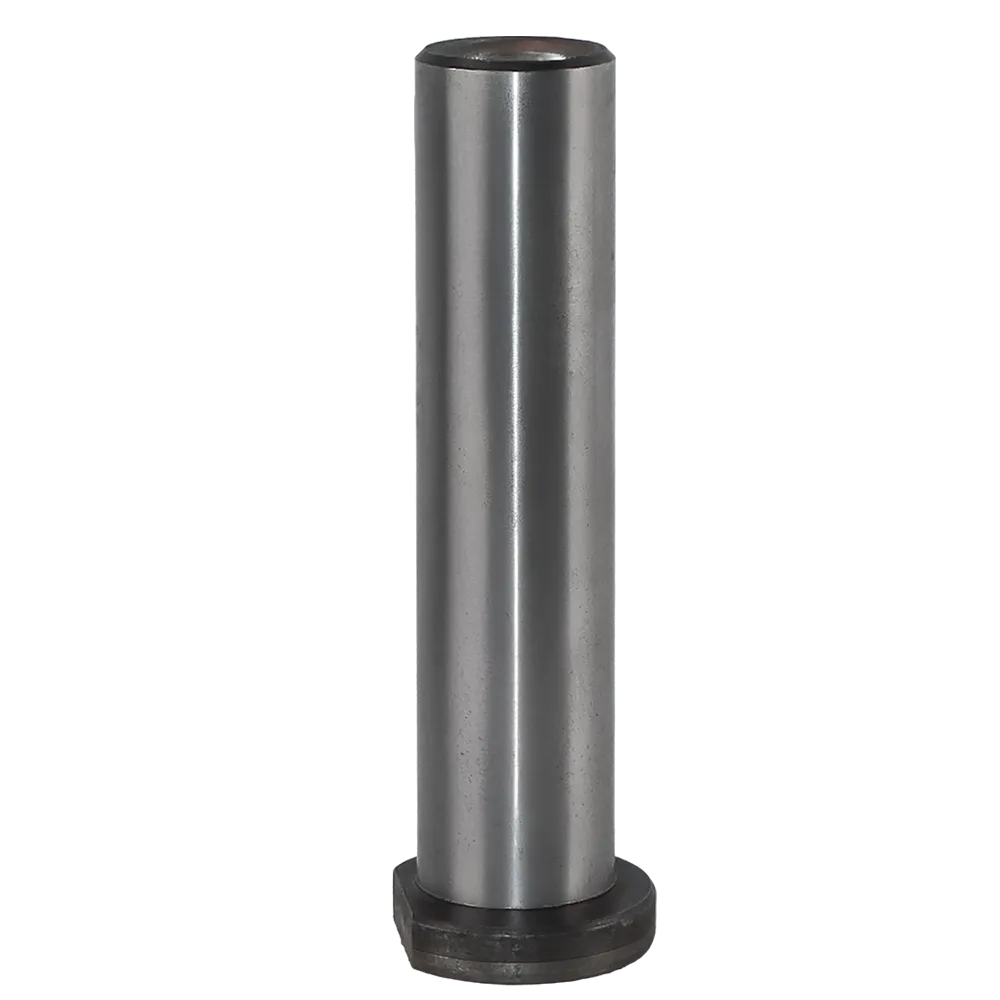

23A-70-12131 SHAFT KOMATSU | 23A7012131 SHAFT KOMATSU

---

Overview

The 23A-70-12131 SHAFT KOMATSU (also listed as 23A7012131 SHAFT KOMATSU) is a high-precision heavy machinery component engineered to deliver consistent strength, durability, and reliability across Komatsu’s most demanding construction and earthmoving applications. As an OEM-grade replacement offered exclusively by 3GEN Export, this shaft is designed to perform under extreme working conditions, maintaining structural integrity even under repetitive stress, high load cycles, and abrasive environmental exposure.

Built using high-grade alloy steel and finished with advanced surface hardening technology, the 23A-70-12131 shaft is vital for ensuring the precise alignment, motion transfer, and load distribution required in Komatsu machinery systems. It is primarily utilized in boom linkage joints, swing arms, and undercarriage assemblies, providing the secure pivoting motion that allows for controlled articulation and efficient force transmission.

3GEN Export supplies this shaft as part of its global heavy machinery spare parts portfolio — ensuring worldwide delivery within 5 working days and full OEM-level compatibility for multiple Komatsu models used in mining, construction, and industrial earthworks.

---

Engineering Excellence and Design

The 23A-70-12131 SHAFT KOMATSU has been manufactured through a meticulous machining process that guarantees exact dimensional accuracy. The part undergoes multi-stage thermal treatment, followed by grinding and polishing to achieve exceptional surface smoothness and perfect concentricity.

Its core design includes:

• Material Composition: High-alloy, carbon-enriched steel.

• Surface Treatment: Induction hardening and micro-polishing for wear resistance.

• Heat Treatment: Multi-layer heat tempering for maximum strength and internal hardness.

• Tensile Strength: Exceeds 1000 MPa for high load-bearing performance.

• Tolerance: Machined within ±0.01 mm precision for perfect fitting in Komatsu booms and linkages.

• Corrosion Protection: Phosphate and oil-based anti-corrosive coating for extended service life.

Each shaft is produced under strict OEM-level quality control and tested against load, torque, and fatigue to ensure uninterrupted operation in high-impact working environments.

---

Function and Role in Komatsu Machinery

The 23A-70-12131 SHAFT KOMATSU functions as a central load-bearing connector in the linkage systems of Komatsu machinery. It acts as the pivotal element that connects key mechanical components—such as boom arms, bucket links, and hydraulic assemblies—allowing precise and smooth movement across multiple axes.

Its main functions include:

• Load Distribution: Evenly transfers hydraulic power to mechanical joints, reducing stress on adjacent bushings and bearings.

• Motion Control: Ensures alignment and linearity in boom articulation, preventing torsional misalignment.

• Durability Under Pressure: Resists bending, shear, and torsional fatigue during repetitive heavy-duty excavation and lifting operations.

• Maintenance Optimization: Engineered to minimize frictional wear between adjoining parts, reducing downtime and extending service intervals.

This shaft plays an essential role in preserving the functional harmony of the machine’s entire movement system, keeping Komatsu equipment performing at peak efficiency even in continuous-duty cycles.

---

Compatibility with Komatsu Models

The 23A-70-12131 / 23A7012131 SHAFT KOMATSU is compatible with a broad range of Komatsu heavy equipment models, particularly in their hydraulic excavator and dozer series.

This part number is widely used in:

• Komatsu PC200-6 Hydraulic Excavator

• Komatsu PC210-7 Hydraulic Excavator

• Komatsu PC220-7 / PC220-8 Hydraulic Excavators

• Komatsu PC240LC-8 Excavator

• Komatsu D65EX-16 Bulldozer

• Komatsu D85A-21 / D85PX-15 Dozer Models

• Komatsu WA250 / WA320 Wheel Loaders (selected models)

• Komatsu GD655 Grader Series (for linkage applications)

It can also be cross-referenced for use in equivalent machinery configurations where identical shaft dimensions and tolerance specifications are required.

---

Technical Specifications

---

Durability and Performance

Durability is at the core of the 23A-70-12131 SHAFT KOMATSU. Every unit undergoes fatigue testing and high-pressure stress simulation to ensure optimal longevity even under cyclic load conditions. The hardened surface prevents deformation and scoring during continuous motion, while the smooth finish reduces friction against bushing inner diameters.

This engineering excellence results in:

• Enhanced Wear Resistance: Resistant to both abrasive and adhesive wear.

• Reduced Maintenance: Requires less frequent lubrication and inspection.

• Improved Equipment Efficiency: Maintains smoother movement, reducing energy loss across joints.

• Extended Component Life: Protects associated bushings, pins, and seals.

The part’s strength-to-weight ratio ensures efficient torque transfer without compromising structural rigidity — a critical requirement for Komatsu’s high-performance hydraulic systems.

---

Installation and Maintenance Guidelines

Proper installation and maintenance of the 23A-70-12131 SHAFT KOMATSU are essential for maximizing performance.

Installation Tips:

• Clean all surrounding contact surfaces before assembly.

• Apply the manufacturer-recommended molybdenum disulfide (MoS₂) lubricant for anti-seizure protection.

• Ensure alignment with adjacent bushings and retainers before tightening bolts.

• Avoid hammering or forcing the shaft during fitting to prevent micro-cracks or surface scoring.

Maintenance Recommendations:

• Periodically inspect the shaft for signs of scoring, corrosion, or uneven wear.

• Re-lubricate at scheduled maintenance intervals, especially in high-dust environments.

• Replace both the shaft and corresponding bushings together for best mechanical alignment and longevity.

• Always use OEM-grade parts to maintain the factory-specified tolerances and performance balance.

---

Why Choose 3GEN Export

3GEN Export is an international OEM-grade supplier specializing in Komatsu heavy machinery spare parts. Each product we supply, including the 23A7012131 SHAFT KOMATSU, undergoes rigorous quality verification to ensure it meets or exceeds original manufacturer specifications.

Our global logistics network ensures:

• Worldwide Delivery within 5 Working Days

• OEM-Level Precision and Performance

• Secure Packaging and Traceable Shipping

• After-Sales Technical Assistance

We are dedicated to supporting heavy machinery operators, dealers, and contractors with reliable and efficient parts supply that keeps your Komatsu fleet running with minimal downtime.

---

Applications in Heavy-Duty Operations

The 23A-70-12131 SHAFT KOMATSU is not just a replacement component — it’s a structural backbone in the mechanical ecosystem of your equipment. Whether you’re working in mining, quarrying, construction, or road development, this shaft provides the stability and endurance required to meet daily operational demands.

Common Applications Include:

• Arm joint assembly in excavators

• Pivot connection between boom and dipper link

• Load-bearing component in bulldozer blade tilting mechanisms

• Rotational axis support in hydraulic linkage systems

This shaft’s precision fit guarantees optimal alignment, reducing vibration and noise while improving the smoothness of equipment movement.

---

Summary

The 23A-70-12131 / 23A7012131 SHAFT KOMATSU represents the perfect combination of mechanical strength, precision manufacturing, and longevity. When sourced from 3GEN Export, customers receive an OEM-grade component ready to perform under the harshest industrial conditions.

With global logistics ensuring 5-day delivery, competitive pricing, and superior build standards, this shaft provides the confidence and durability that Komatsu equipment operators demand for long-term productivity.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
