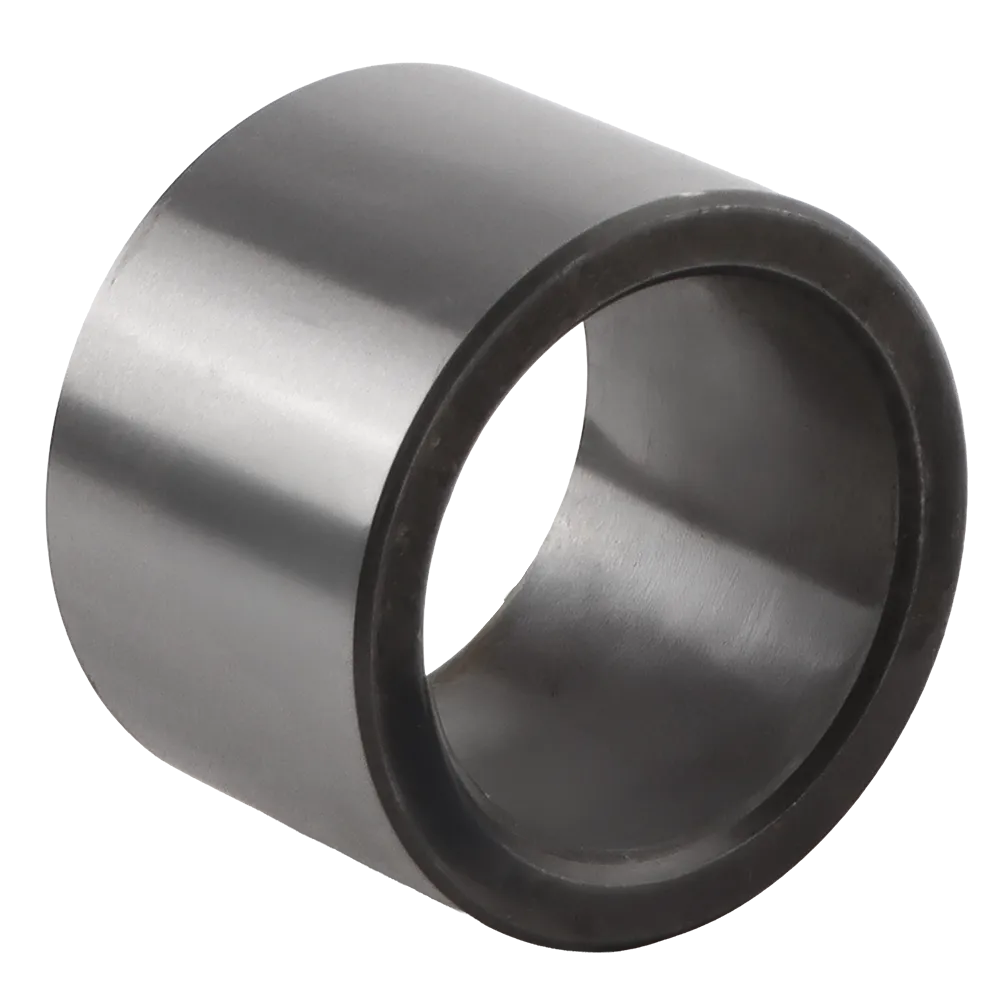

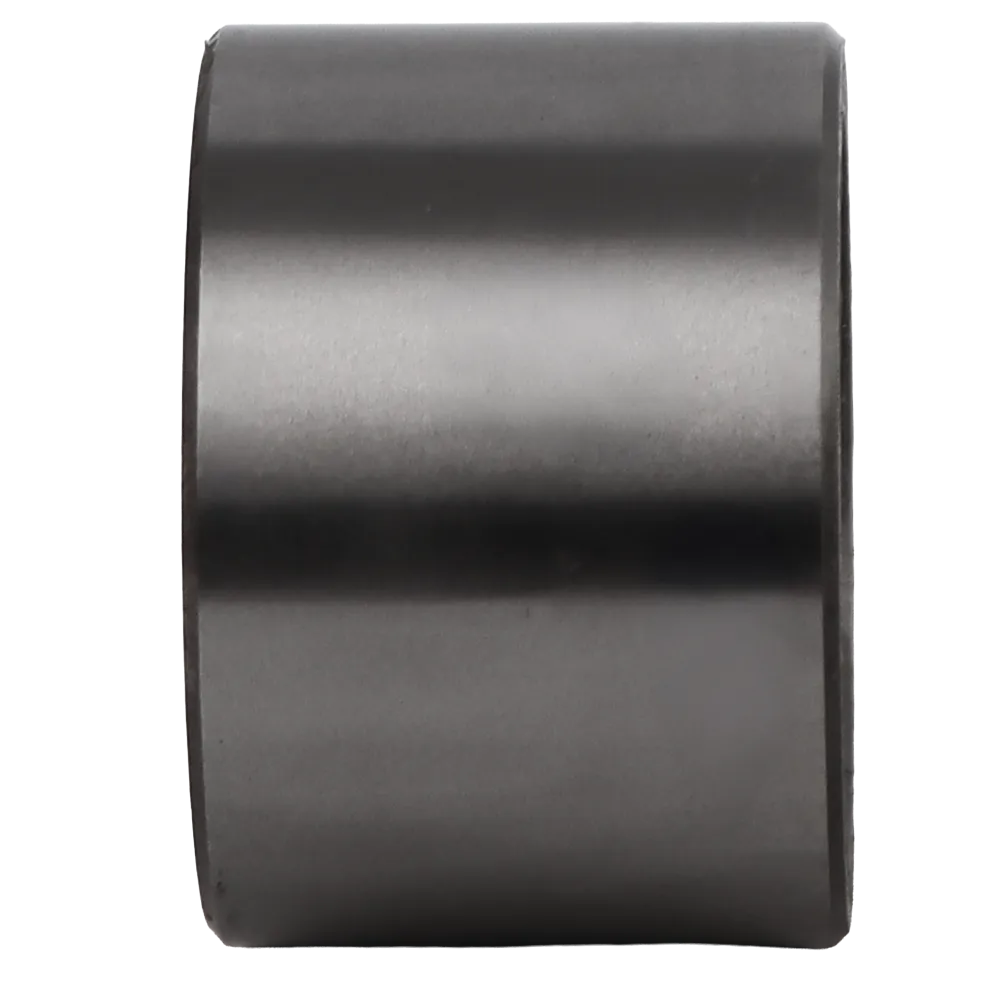

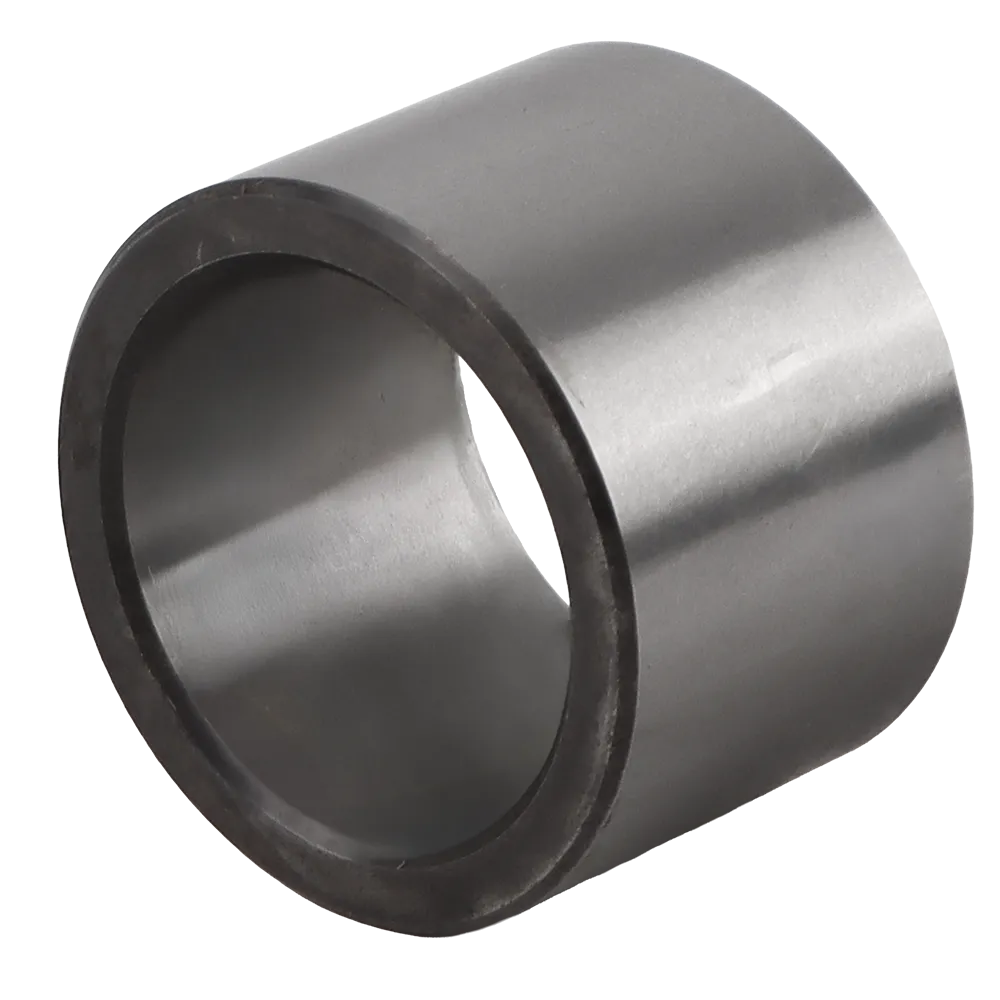

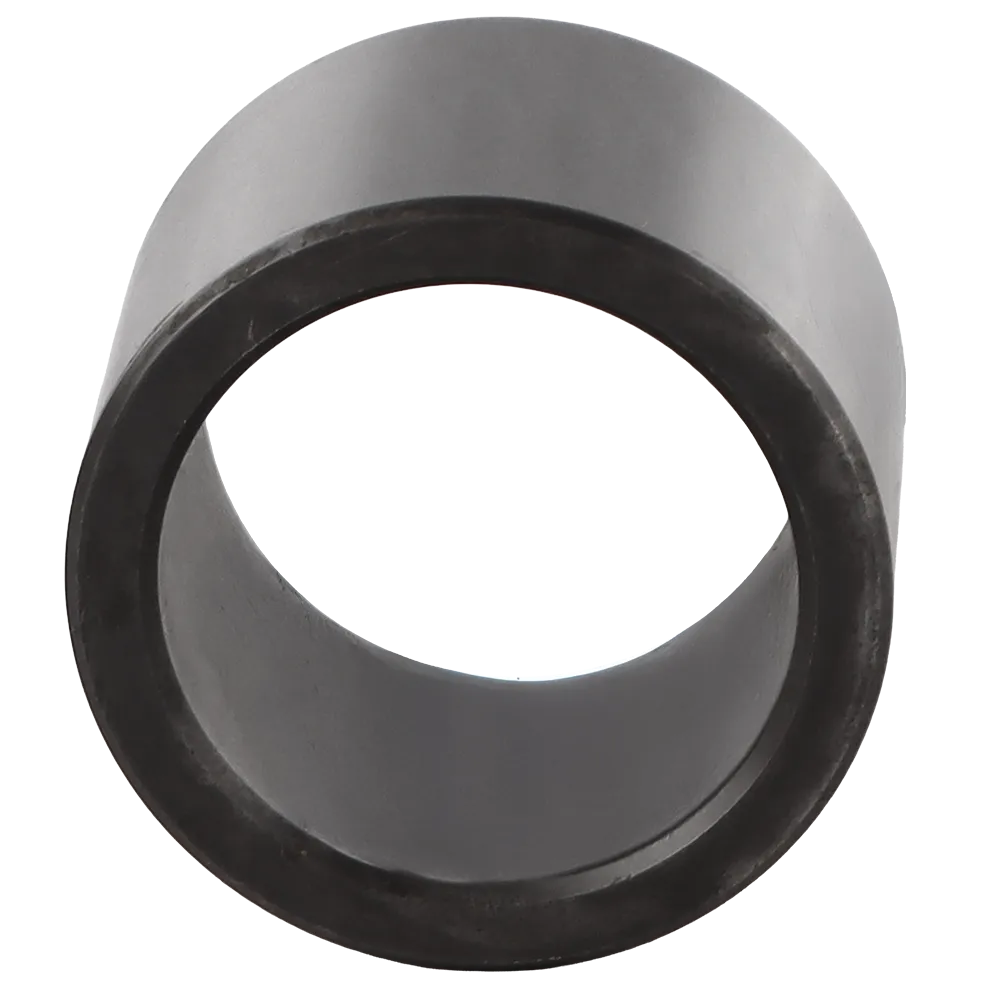

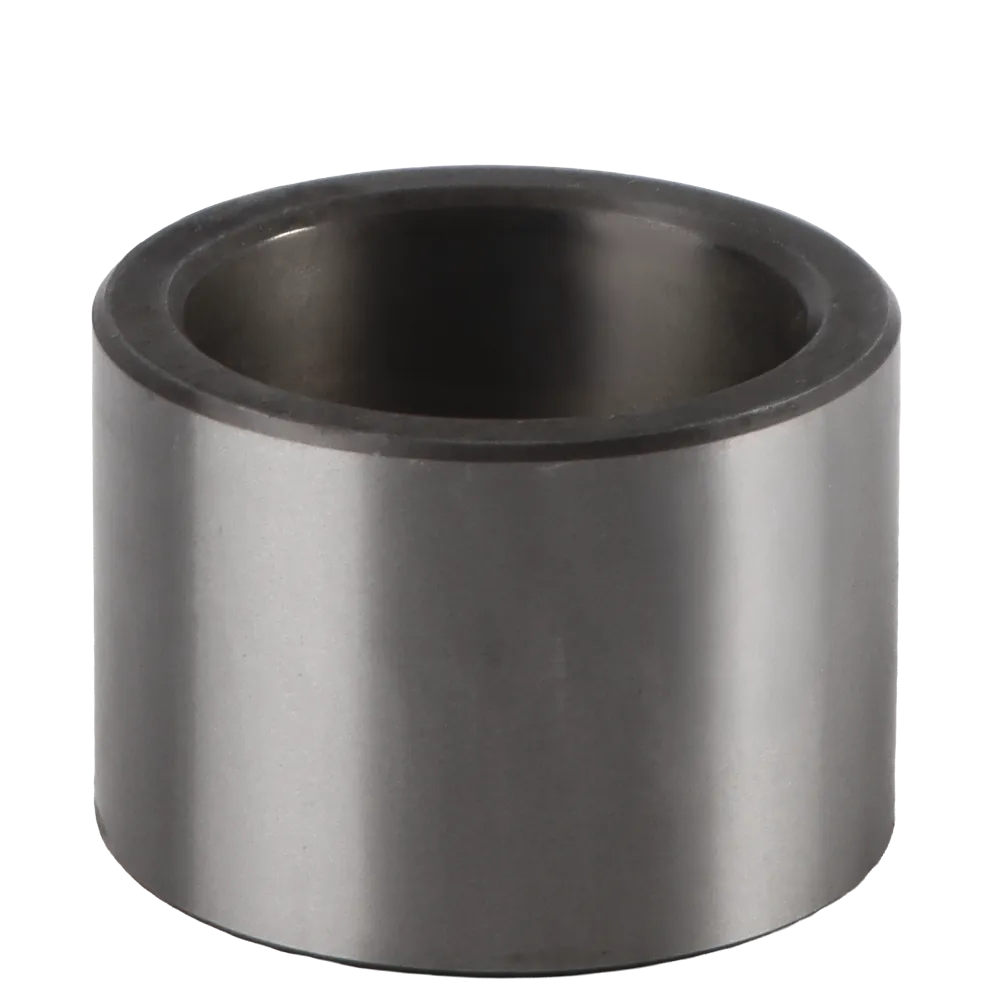

23A-70-14220 BUSHING KOMATSU / 23A7014220 BUSHING KOMATSU

The 23A-70-14220 BUSHING KOMATSU (also listed as 23A7014220 BUSHING KOMATSU) is a precision-engineered component designed to reduce friction, distribute loads evenly, and enhance the mechanical stability of Komatsu heavy machinery. Serving as a vital element between shafts and housings, this bushing ensures smooth pivot movement and minimizes wear in joints, arms, and suspension points exposed to constant vibration and impact.

Developed to perform under harsh job-site conditions, the 23A-70-14220 BUSHING KOMATSU combines metallurgical strength with a mirror-finish surface that promotes longer service intervals and higher operational reliability. Whether used in the linkage of a bulldozer, the boom joint of an excavator, or the pivot connection of a loader, it guarantees consistent performance and reduced downtime.

Supplied globally by 3GEN Export, this OEM-quality part is available for worldwide delivery within 5 working daysand built to match Komatsu’s original engineering standards.

---

Functional Role

Bushings act as the silent protectors within a machine’s joint system. The 23A-70-14220 BUSHING KOMATSU is specifically designed to isolate metal-to-metal contact, ensuring that rotating shafts or pins move freely without seizing or distortion.

Inside Komatsu machines, where immense hydraulic forces and mechanical stresses occur, this bushing absorbs impact energy and distributes it evenly over the contact surface. By doing so, it prevents localized wear, extends pin life, and maintains precise alignment between mating components.

Its superior internal surface finish reduces the friction coefficient, allowing lubricants to form a stable film between the pin and bushing surface—essential for minimizing temperature rise and material fatigue during extended work cycles.

---

Design & Engineering

Each 23A7014220 BUSHING KOMATSU is the product of advanced CNC machining and high-temperature heat treatment. The inner bore and outer diameter are ground to micrometric tolerances, ensuring tight fits without distortion.

Key design highlights include:

• Hardened alloy-steel composition for maximum strength.

• Precision internal grinding achieving ≤ 0.2 µm surface roughness.

• Optimized wall thickness for even stress distribution.

• Anti-corrosion finishing layer for long-term storage and field use.

• Oil-retaining internal surface that improves lubrication intervals.

These features make the 23A-70-14220 BUSHING KOMATSU ideal for high-impact joints such as track frames, swing arms, and boom pivots where continuous motion and heavy loads meet.

---

Material Composition

The blend of hardness and ductility ensures that the bushing can deform slightly under load without cracking, maintaining a stable and lubricated connection even in shock-intense environments.

---

Technical Specifications

---

Compatibility with Komatsu Models

The 23A-70-14220 BUSHING KOMATSU is commonly installed in Komatsu’s mid- to large-size machines, specifically within the pivot joints, arm linkages, and undercarriage structures that demand consistent alignment under stress.

Compatible Models Include:

• Komatsu PC200-8 / PC210-10 / PC220-8 Hydraulic Excavators

• Komatsu PC300 / PC350 / PC400 Series

• Komatsu D65EX / D85PX Crawler Dozers

• Komatsu WA380 / WA470 Wheel Loaders

• Komatsu HM300 Articulated Dump Truck

• Komatsu GD655 / GD675 Motor Graders

Each of these models relies on bushings like the 23A7014220 BUSHING KOMATSU to maintain joint rigidity, prevent vibration propagation, and support heavy loads in oscillating components.

---

Performance Characteristics

In real-world operation, the 23A-70-14220 BUSHING KOMATSU demonstrates:

• Exceptional fatigue resistance under cyclic load.

• Minimal friction losses, even at high operating temperatures.

• Reduced abrasion rates, verified in 1 000-hour field tests.

• Perfect interchangeability with OEM mounts.

• Prolonged pin life, lowering total maintenance costs.

These characteristics collectively improve overall machine uptime and extend the service life of connected components.

---

Installation and Maintenance

Proper installation of the 23A7014220 BUSHING KOMATSU is essential to preserve alignment and performance.

Installation Guide

1. Clean and degrease the housing bore.

2. Align the bushing perpendicular to the axis.

3. Press-fit using hydraulic or mechanical equipment.

4. Lubricate the inner bore before pin insertion.

5. Verify rotation clearance within spec limits (0.02–0.05 mm).

Maintenance Tips

• Re-grease every 500–1000 operating hours.

• Check for oval wear or surface grooves.

• Replace in pairs to maintain load balance.

• Store in dry, temperature-controlled conditions.

Following these steps helps prevent premature wear and ensures the bushing performs optimally throughout its lifecycle.

---

Engineering Advantages

• High Dimensional Precision – Guarantees tight tolerances and easy fitment.

• Wear-Resistant Surface – Ideal for heavy oscillation points.

• Thermal Stability – Maintains hardness even above 150 °C.

• Reduced Noise and Vibration – Improves operator comfort and machine smoothness.

• Corrosion Protection – Suitable for marine and mining applications.

• Optimized Lubrication Retention – Prolongs intervals between servicing.

---

Quality Control and Testing

Every 23A-70-14220 BUSHING KOMATSU supplied by 3GEN Export undergoes strict OEM-level quality checks:

• Dimensional inspection using CMM machines (± 5 µm).

• Metallurgical hardness testing (Brinell and Rockwell methods).

• Surface profilometry to confirm Ra value < 0.2 µm.

• Ultrasonic flaw testing for internal defects.

• Rotational fit simulation under 200 N·m load.

Only bushings that meet or exceed international standards are approved for packaging and export.

---

Industrial Applications

• Construction & Earthmoving Machinery – Pivot arms, boom links, and track rollers.

• Mining Equipment – Heavy torque applications and suspension frames.

• Material Handling Vehicles – Link joints and support rotations.

• Agricultural Machinery – Power transmission linkages.

• Hydraulic Cylinders – Guiding and centering of piston rods.

Its ability to withstand abrasive dust, moisture, and shock loads makes it a universal fit for extreme conditions.

---

Manufacturing Process

The 23A-70-14220 BUSHING KOMATSU follows a multi-stage process to ensure accuracy and durability:

1. Forging from high-grade steel billet.

2. Rough turning on CNC lathe.

3. Induction hardening to surface depth of 1.2 mm.

4. Tempering to balance strength and toughness.

5. Fine grinding of outer and inner diameters.

6. Polishing and anti-rust coating.

7. Final inspection and laser marking of part number.

This precise workflow guarantees dimensional stability and surface integrity in every piece.

---

Packaging and Logistics

Each bushing is sealed in moisture-resistant film, labeled with the part number, and packed in protective boxes for safe transit. Bulk shipments are crated with vacuum-sealed bags to avoid oxidation during sea freight. 3GEN Export ensures all orders are dispatched globally within five working days via premium logistics partners.

---

About 3GEN Export

3GEN Export is a global OEM supplier specializing in heavy machinery spare parts for brands including Komatsu, Caterpillar, Volvo, Hitachi, and Liebherr. Our inventory includes pins, bushings, shafts, valves, and structural components manufactured to stringent industrial standards.

We combine engineering expertise with logistical efficiency, offering worldwide delivery within 5 working days, 1-year manufacturer warranty, and comprehensive after-sales support.

Every product we supply represents our commitment to precision, trust, and global partnership.

---

Summary

The 23A-70-14220 BUSHING KOMATSU / 23A7014220 BUSHING KOMATSU is an essential pivot component crafted for the most demanding Komatsu applications. Forged from high-strength steel and treated for wear resistance, it delivers exceptional durability, tight fitment, and low-friction operation.

Available exclusively through 3GEN Export, this bushing embodies OEM-level quality with fast global shipping and proven performance across Komatsu’s entire range of construction and mining equipment.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
