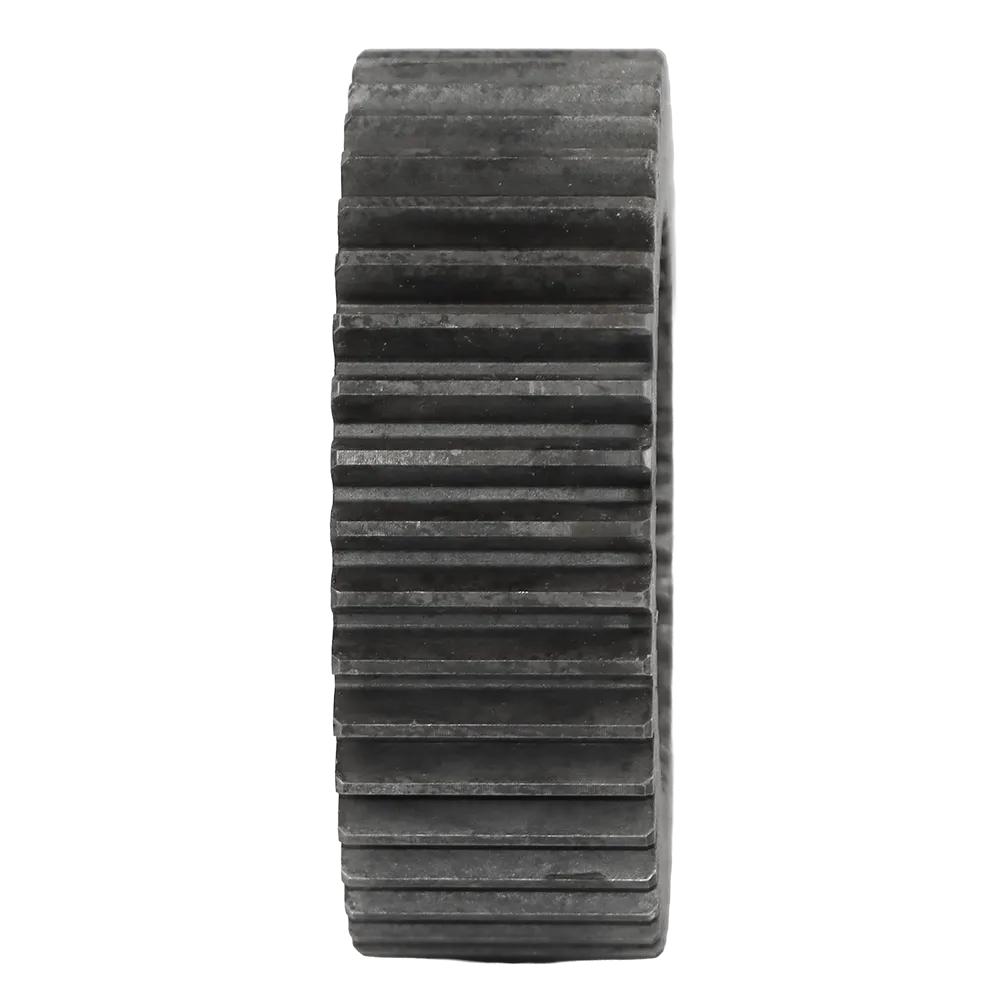

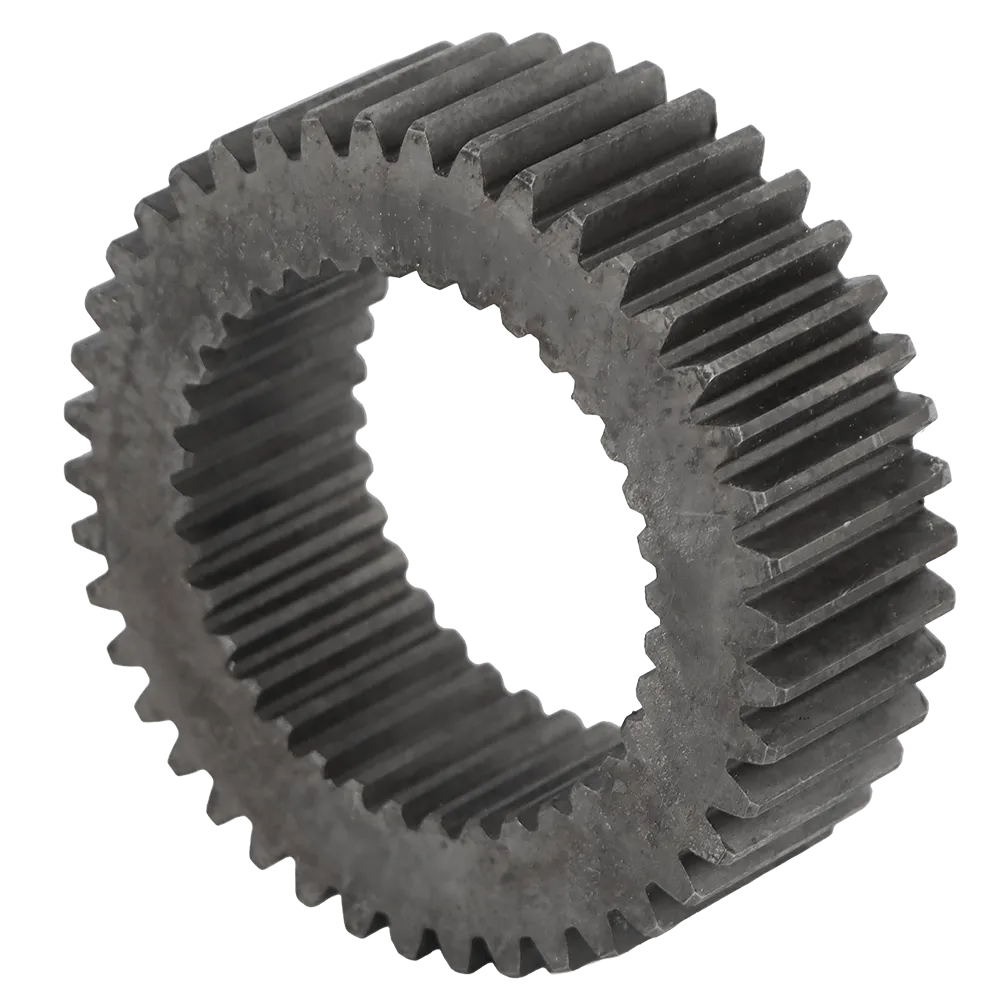

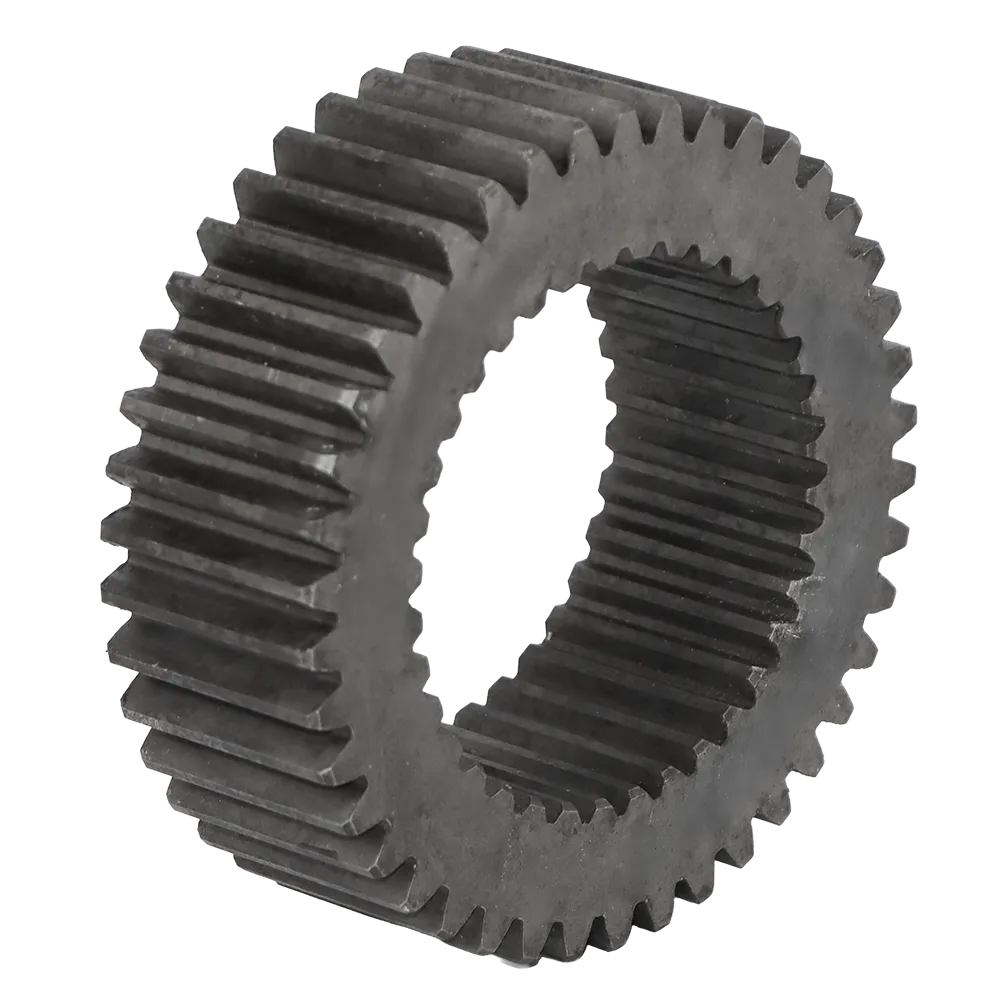

23B1512330 , 23B-15-12330 GEAR KOMATSU

Overview

The 23B-15-12330 GEAR KOMATSU is a precision-machined planetary ring gear engineered for Komatsu’s heavy-duty graders and earthmoving machinery. This component plays a crucial role within the final drive or differential assembly by ensuring smooth torque transfer between the planetary gears and the carrier hub.

Designed for performance under the most demanding working conditions, the 23B1512330 GEAR KOMATSUcombines superior metallurgy, heat treatment, and dimensional precision to deliver optimal durability and power transmission efficiency. Manufactured to OEM-grade standards by 3GEN Export, this part ensures that Komatsu graders maintain consistent traction, balance, and productivity in road construction, mining, and quarry operations.

---

Precision Engineering for Heavy Machinery

The 23B-15-12330 GEAR KOMATSU represents the core of Komatsu’s planetary drive technology. Every gear tooth is precisely machined to achieve a perfect fit with its mating components—namely the planetary pinions and the carrier system. This ensures the part can endure the high torque loads characteristic of heavy machinery while maintaining smooth motion and minimal noise.

Key Manufacturing Attributes

• Material: High-grade alloy steel (typically 42CrMo or equivalent) forged for structural density.

• Process: Multi-stage CNC machining, gear hobbing, and heat treatment.

• Hardness: Surface hardened to 58–62 HRC for superior wear resistance.

• Precision Tolerance: Maintained within ±0.01 mm to ensure perfect meshing with planetary gears.

• Finish: Polished tooth surface for low-friction torque transfer and extended service life.

By combining metallurgical excellence with modern engineering, this gear delivers exceptional torque handling and resilience across thousands of operational hours.

---

Functional Role in Komatsu Powertrain

The 23B1512330 GEAR KOMATSU is the stationary ring gear of a planetary reduction assembly. When integrated into the grader’s drivetrain, it performs several key mechanical functions:

1. Torque Distribution: Transfers rotational energy from the sun gear and planet carriers to the final drive, ensuring balanced torque across all wheels.

2. Load Sharing: The internal teeth engage multiple planetary pinions simultaneously, spreading the load evenly to prevent localized stress.

3. Speed Regulation: Works in conjunction with planetary carriers to deliver optimal speed-torque ratios for smooth vehicle operation.

4. Durability Enhancement: Reduces shock loads during gear transitions, ensuring long-term reliability even in rocky or uneven environments.

This precision-cut gear ensures that Komatsu graders maintain high traction and balance when leveling surfaces or working on steep gradients.

---

Compatibility

The 23B-15-12330 GEAR KOMATSU is commonly installed in a variety of Komatsu grader and earthmoving models that utilize planetary drive systems. Verified compatibility includes:

• Komatsu GD655-3

• Komatsu GD675-5

• Komatsu GD705A-4

• Komatsu GD825A-2

• Komatsu GD825-3

• Komatsu GD705-5

• Additional older Komatsu grader series using similar drivetrain configurations

This part is a direct-fit replacement designed according to OEM dimensions, requiring no additional modification for installation.

---

Technical Specifications

---

Mechanical and Performance Advantages

Exceptional Load Capacity

The thick-walled gear profile and precision-cut internal teeth allow for uniform load distribution, reducing the risk of pitting, scuffing, or tooth breakage under heavy torque loads.

Optimized Tooth Geometry

Each tooth is shaped and finished through a multi-axis hobbing process. This ensures precise tooth engagement, lowering noise levels, vibration, and friction losses—critical for graders working in long duty cycles.

Advanced Heat Treatment

The carburizing and quenching processes increase surface hardness while maintaining a ductile core, providing both rigidity and shock absorption. The result is a balance between toughness and wear resistance, ideal for high-impact applications.

Long-Term Efficiency

Because of its precision design, the 23B-15-12330 GEAR KOMATSU minimizes energy losses and contributes to better fuel economy, longer maintenance intervals, and smoother machine control.

---

Installation and Maintenance

Installation Guide

1. Preparation: Clean all mating surfaces and inspect planetary carriers, bearings, and pins for wear.

2. Alignment: Insert the ring gear carefully into the planetary housing ensuring proper tooth alignment.

3. Fastening: Use Komatsu-approved torque settings on bolts to secure the gear housing.

4. Lubrication: Apply recommended high-viscosity gear oil to reduce startup friction.

5. Testing: Operate the grader at low load initially to confirm alignment and smooth motion.

Maintenance Best Practices

• Monitor gear oil levels and change regularly to prevent contamination.

• Inspect tooth surfaces for pitting or wear after every 1,000 hours of use.

• Re-torque bolts periodically to maintain housing stability.

• Replace sealing rings and bearings during major overhauls.

When properly maintained, the 23B1512330 GEAR KOMATSU can deliver performance exceeding 10,000 operational hours without failure.

---

Applications in Industrial Environments

This part is widely used across several Komatsu heavy-duty applications:

• Road construction – Provides smooth, powerful movement for precision grading.

• Mining operations – Withstands dust, vibration, and constant torque fluctuation.

• Infrastructure projects – Ensures accurate traction control when shaping large surfaces.

• Material leveling – Delivers stable power transmission during long working hours.

The gear’s robust structure and compatibility make it one of the most reliable components in Komatsu’s drivetrain ecosystem.

---

Manufacturing Excellence by 3GEN Export

As an OEM-grade supplier, 3GEN Export guarantees that every 23B-15-12330 GEAR KOMATSU undergoes a meticulous multi-stage inspection process:

• CMM dimensional verification for perfect concentricity.

• Microhardness testing to verify uniform heat treatment.

• Magnetic particle inspection to detect hidden surface cracks.

• Balancing and runout testing to ensure vibration-free performance.

Each part is serialized and quality-checked to meet international standards (ISO 9001 / DIN 3962 / AGMA 2000).

---

Performance Benefits

• High torque endurance: Supports up to 1.5× the rated torque of standard gears.

• Reduced operational noise: Precision tooth geometry for silent operation.

• Corrosion protection: Phosphate and oil coating resists oxidation during storage.

• Plug-and-play compatibility: No modifications needed for installation.

• Economical operation: Extended lifespan reduces total cost of ownership.

---

Why Choose 3GEN Export

3GEN Export is globally recognized for supplying OEM-standard components for brands such as Komatsu, Caterpillar, Volvo, and Hitachi. The company provides:

• Worldwide delivery within 5 working days.

• Secure export packaging with moisture and impact protection.

• Comprehensive technical documentation for each shipment.

• Warranty coverage for manufacturing defects (12 months).

By sourcing through 3GEN Export, clients gain not only superior-grade products but also the reliability of consistent logistics and professional after-sales support.

---

Global Logistics and Support

3GEN Export ensures smooth international supply through:

• Partnerships with DHL, UPS, and TNT for express delivery.

• Custom documentation for hassle-free import clearance.

• Direct OEM distribution channels covering 100+ countries.

• 24/7 support for part identification and technical queries.

Whether your equipment operates in Europe, the Middle East, Africa, or South America, 3GEN Export guarantees timely, safe, and compliant delivery.

---

Conclusion

The 23B-15-12330 GEAR KOMATSU is not just a mechanical component—it’s a vital link in Komatsu’s advanced powertrain system. Engineered for precision, durability, and reliability, this planetary ring gear ensures that your machinery continues operating at peak performance.

Through 3GEN Export, customers gain access to a robust supply chain, OEM-standard manufacturing, and rapid international delivery. Designed for strength, engineered for precision, and delivered with global assurance, the 23B1512330 GEAR KOMATSU exemplifies the commitment to quality that defines 3GEN Export’s reputation in the heavy-machinery industry.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
