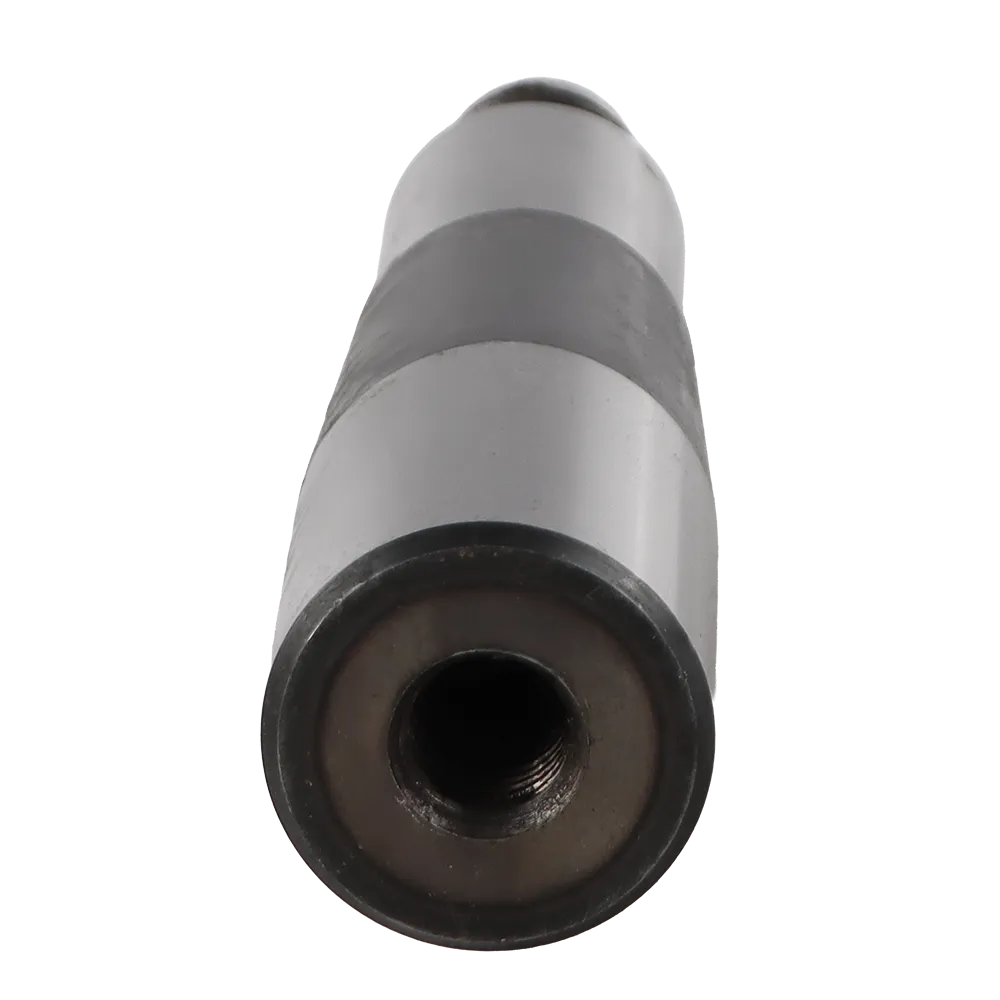

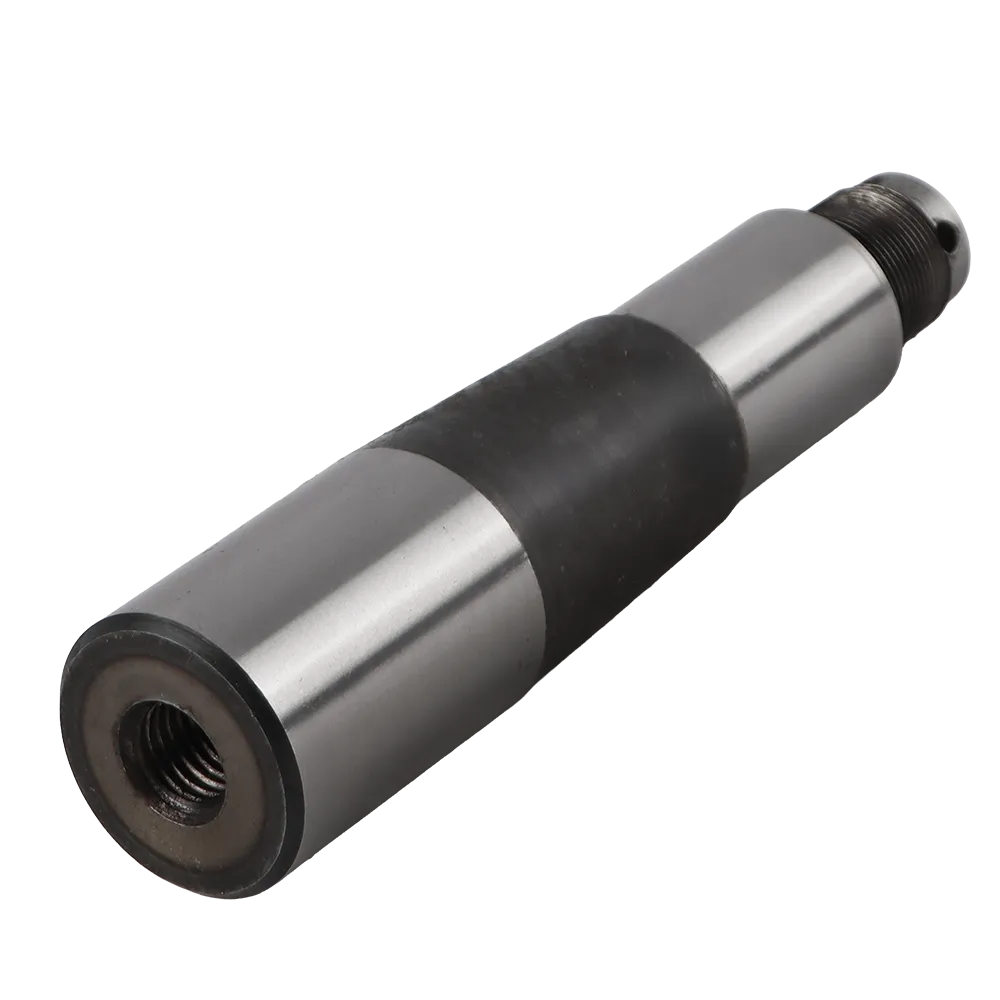

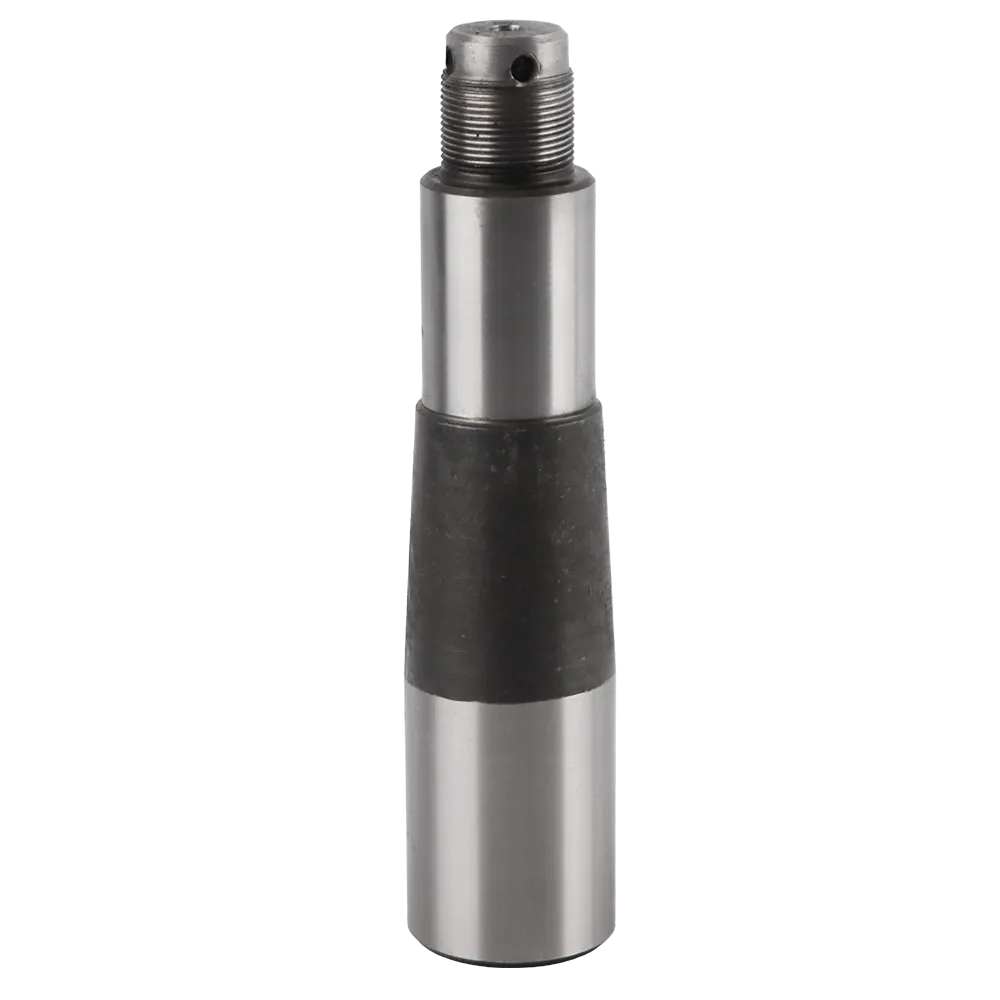

23B2711330 , 23B-27-11330 PIN KOMATSU

Overview

The 23B-27-11330 PIN KOMATSU is a critical connecting component used in Komatsu heavy machinery, engineered to handle extreme operating pressures, repetitive mechanical loads, and environmental stress. It ensures the stable linkage of pivotal sections within the machine, such as arms, booms, and buckets, enabling smooth, controlled motion during excavation and material handling.

With its precision-machined structure and durable surface treatment, the 23B2711330 PIN KOMATSU ensures excellent dimensional stability, alignment, and fatigue resistance. This component is essential for maintaining hydraulic balance, reducing energy losses, and extending the lifespan of associated bushings and bores.

Produced and supplied by 3GEN Export, a global OEM-grade supplier of heavy machinery spare parts, this pin is designed to deliver superior performance and longevity. Every product is inspected and dispatched worldwide within five working days, ensuring reliability and fast service for maintenance teams across all industries.

Engineering Excellence and Construction

Material Composition

The 23B-27-11330 PIN KOMATSU is manufactured using high-strength alloy steel known for its combination of toughness, fatigue resistance, and excellent machinability. The composition is typically equivalent to AISI 4140 (42CrMo4), a chromium-molybdenum steel that offers a fine balance between hardness and elasticity.

Material Details:

• Base Alloy: 42CrMo4 / AISI 4140 hardened steel

• Surface Treatment: Induction-hardened and tempered to achieve superior surface hardness

• Hardness Level: 55–60 HRC on the outer surface, 30–35 HRC at the core

• Coating: Phosphate or anti-corrosive oil film for oxidation protection

• Finish: Ground and polished to mirror smoothness for minimal friction during operation

This careful metallurgical composition allows the 23B2711330 PIN KOMATSU to withstand repetitive shock loads, while its internal ductility prevents brittle failure even under torsional stress.

Dimensional Characteristics

• Total Length: ≈ 165 mm

• Diameter: ≈ 42 mm

• Thread Pitch: M16 × 2.0 mm (standard fine thread)

• Surface Roughness: ≤ 0.4 µm

• Weight: ≈ 2.44 kg

Every 23B-27-11330 PIN KOMATSU is CNC machined with ultra-low tolerance deviation (±0.005 mm) to ensure perfect fitment within Komatsu boom, arm, and bucket assemblies.

Function and Mechanical Role

The 23B-27-11330 PIN KOMATSU acts as a mechanical hinge and load distributor in Komatsu’s heavy equipment linkage systems. It connects structural components that must pivot freely while maintaining precise alignment, such as:

• Arm-to-boom joints

• Boom-to-bucket couplings

• Tilt and lift cylinder linkages

Its fundamental purpose is to sustain rotational motion under compression and shear, ensuring that all parts move smoothly within hydraulic motion sequences.

Mechanical Functions:

• Transfers hydraulic cylinder force to the working tool (bucket or blade)

• Maintains geometric stability of moving joints

• Minimizes side load stress on bushings

• Ensures accurate pivot alignment during load cycles

• Absorbs impact during digging, lifting, or grading operations

Without this precision-engineered pin, the machine’s articulation system would experience misalignment, excessive vibration, and premature wear, causing loss of efficiency and possible component failure.

Key Performance Features

• High Strength: Built to endure axial and radial forces during demanding excavation cycles.

• Surface Hardness: Induction-hardened to resist wear and abrasion.

• Perfect Geometry: Maintains tight tolerance for consistent rotation without play.

• Anti-Corrosive Coating: Phosphate treatment for long-lasting rust protection.

• Friction Reduction: Polished surface minimizes wear on mating bushings.

• Threaded Design: Securely locks into housing with precision thread pitch.

• Heat Resistance: Performs consistently in high-temperature hydraulic environments.

• Extended Lifespan: Exceeds 10,000 operational hours under normal duty conditions.

Every 23B-27-11330 PIN KOMATSU from 3GEN Export is tested for concentricity, micro-cracks, and surface uniformity using advanced non-destructive inspection methods.

Compatible Komatsu Models

The 23B-27-11330 PIN KOMATSU is used in a variety of Komatsu construction and mining machines. It is typically installed in boom, arm, and bucket linkages or hydraulic pivot joints.

Commonly Compatible Models Include:

• Komatsu PC200 / PC210 / PC220 / PC240 Excavators

• Komatsu PC270 / PC290 / PC300 / PC350 Series

• Komatsu D65 / D85 Bulldozers

• Komatsu WA320 / WA380 / WA470 Wheel Loaders

• Komatsu GD511 Motor Graders

• Komatsu PW160 / PW180 Wheeled Excavators

(Compatibility should be verified through the official Komatsu parts manual or serial plate.)

Technical Specifications

Manufacturing and Testing Process

Each 23B-27-11330 PIN KOMATSU undergoes an intensive production and inspection cycle to meet 3GEN Export’s OEM-grade quality benchmarks.

Production Stages

1. Raw Steel Forging: The base alloy is forged under high pressure to improve internal grain structure.

2. CNC Machining: Computer-controlled machining ensures perfect symmetry and size precision.

3. Induction Hardening: High-frequency induction increases surface hardness and fatigue strength.

4. Tempering: Controlled heating relieves stress while preserving structural stability.

5. Grinding and Polishing: Surface roughness is reduced to ensure low friction.

6. Thread Rolling: Threads are formed for high tensile strength under torque.

7. Final Coating: Protective oil or phosphate finish applied for corrosion defense.

Quality Control Steps

• Dimensional Inspection: Verified via Coordinate Measuring Machines (CMM).

• Hardness Testing: Rockwell HRC test conducted at multiple depths.

• Crack Detection: Magnetic particle inspection.

• Surface Finish Verification: Profilometer check for Ra < 0.4 µm.

• Fitment Testing: Random samples fitted into OEM bushings to confirm tolerance accuracy.

Operational Advantages

Installing the 23B-27-11330 PIN KOMATSU delivers measurable improvements in the performance and reliability of Komatsu machines:

1. Reduced Friction Loss: Mirror-finished surface minimizes heat generation in the joint.

2. Extended Bushing Life: Smooth rotation reduces galling and scoring.

3. Vibration Control: Maintains structural harmony between boom and arm assemblies.

4. Fuel Efficiency: Less mechanical drag translates into better hydraulic energy transfer.

5. Lower Maintenance Downtime: Enhanced durability reduces replacement intervals.

6. Improved Operator Comfort: Minimizes oscillation and backlash during precision operations.

For contractors and fleet operators, these benefits lead directly to reduced maintenance costs and increased productivity on the job site.

Installation and Maintenance

Installation Tips

• Clean both pin and bore surfaces before assembly.

• Lightly lubricate with high-pressure molybdenum grease.

• Align components correctly to avoid cross-loading.

• Torque threaded ends according to Komatsu’s service guidelines.

• Verify free pivot motion after tightening.

Maintenance Recommendations

• Re-lubricate periodically depending on duty cycle.

• Inspect for scoring, rust, or surface deformation.

• Replace pin and bushing together if excessive play is observed.

• Store unused pins in a dry, oiled condition to prevent oxidation.

Proper maintenance ensures the 23B-27-11330 PIN KOMATSU maintains full operational efficiency throughout its lifecycle.

Environmental Durability

The 23B2711330 PIN KOMATSU is designed for extreme conditions found in construction, quarrying, and mining sites.

Environmental Performance Ratings:

• Corrosion Resistance: 72-hour salt spray protection

• Temperature Tolerance: –40 °C to +200 °C

• Vibration Endurance: 20 g impact rated

• Dust Resistance: Suitable for unsealed hydraulic environments

It is therefore ideal for excavators and loaders that operate in mud, water, dust, or salt-heavy atmospheres.

Industrial and Site Applications

• Earthmoving Equipment: Pivot points on booms, sticks, and buckets.

• Bulldozers: Ripper frame or blade joint systems.

• Wheel Loaders: Lift arm pivot and hydraulic cylinder linkages.

• Grading Equipment: Moldboard and blade rotation linkages.

• Mining Machinery: Crusher and conveyor mechanical joints.

The 23B-27-11330 PIN KOMATSU performs consistently across all sectors where load-bearing rotational connections are required.

Why Choose 3GEN Export

3GEN Export specializes in delivering OEM-quality heavy machinery parts to clients in more than 60 countries. Our strength lies in engineering consistency, fast logistics, and deep technical expertise.

Key Advantages of Buying from 3GEN Export:

• OEM-grade manufacturing standards

• Worldwide delivery in 5 working days

• 1-year warranty on all parts

• Competitive wholesale pricing

• Dedicated after-sales support team

• Secure global shipping and packaging

3GEN Export is not just a supplier , it’s your trusted partner for building stronger, longer-lasting Komatsu machinery systems.

Economic Benefits

Replacing worn components like the 23B-27-11330 PIN KOMATSU contributes directly to cost optimization in fleet management:

• Reduces hydraulic inefficiency and bushing failures.

• Prevents expensive boom and arm repair costs.

• Restores accurate machine geometry for safe operation.

• Increases resale value of used machinery.

• Minimizes downtime losses through predictable service intervals.

Every pin supplied by 3GEN Export helps operators extend machine life while maintaining peak productivity.

Summary Table

Conclusion

The 23B-27-11330 PIN KOMATSU is a masterfully engineered connector that safeguards the integrity and precision of Komatsu’s hydraulic motion systems. Through superior metallurgy, precision machining, and enhanced corrosion protection, it offers dependable performance across all job-site environments.

From construction to mining, this component ensures flawless pivot motion, extended bushing life, and optimal energy efficiency.

When you source your 23B2711330 PIN KOMATSU from 3GEN Export, you benefit from:

• Proven OEM-level engineering

• Global shipping within 5 working days

• Comprehensive quality control

• Industry-leading reliability

For fleets demanding consistent uptime and structural reliability, the 23B-27-11330 PIN KOMATSU stands as a cornerstone of mechanical excellence.
