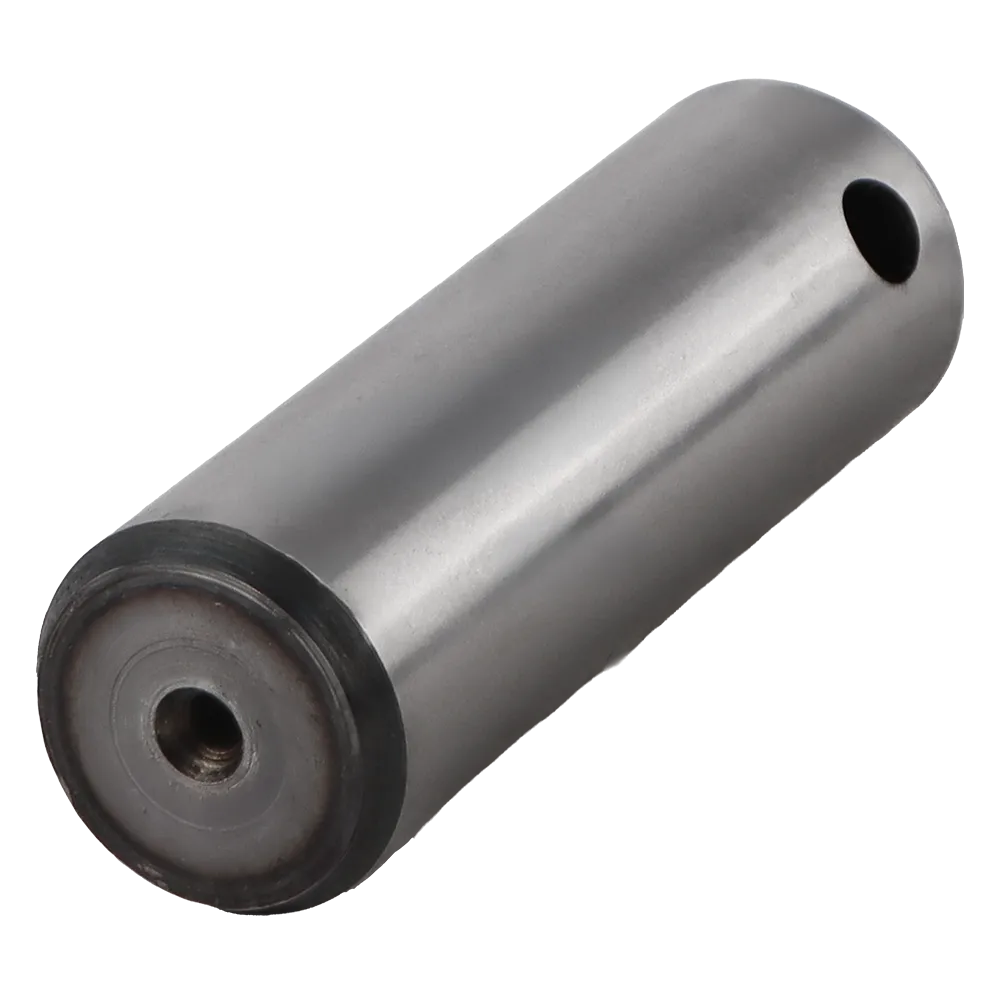

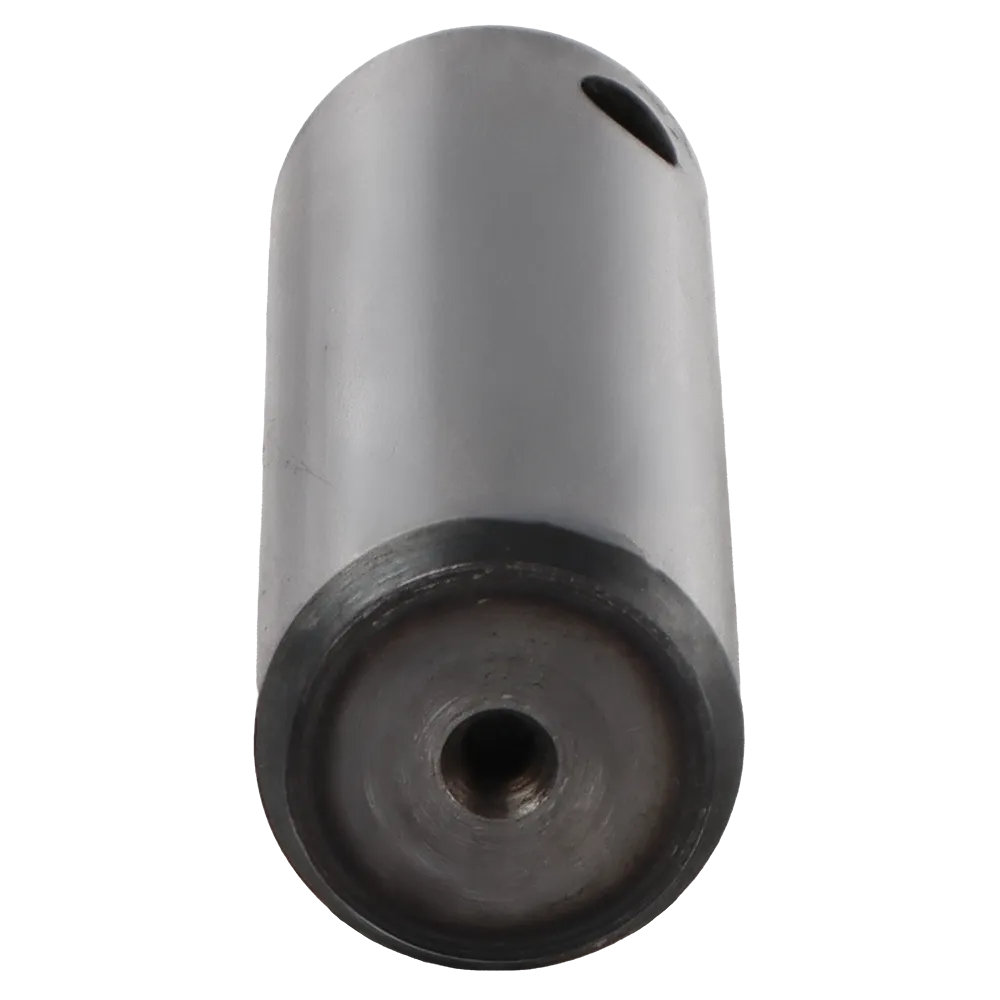

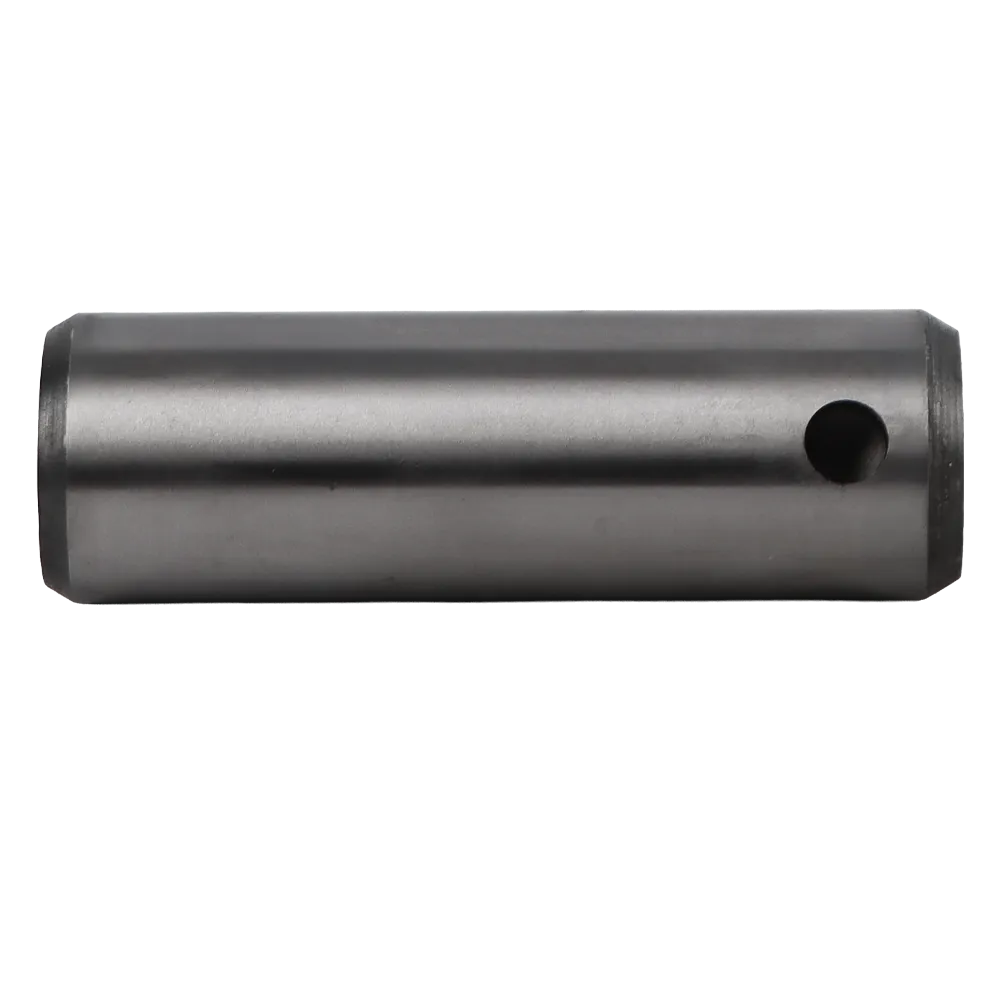

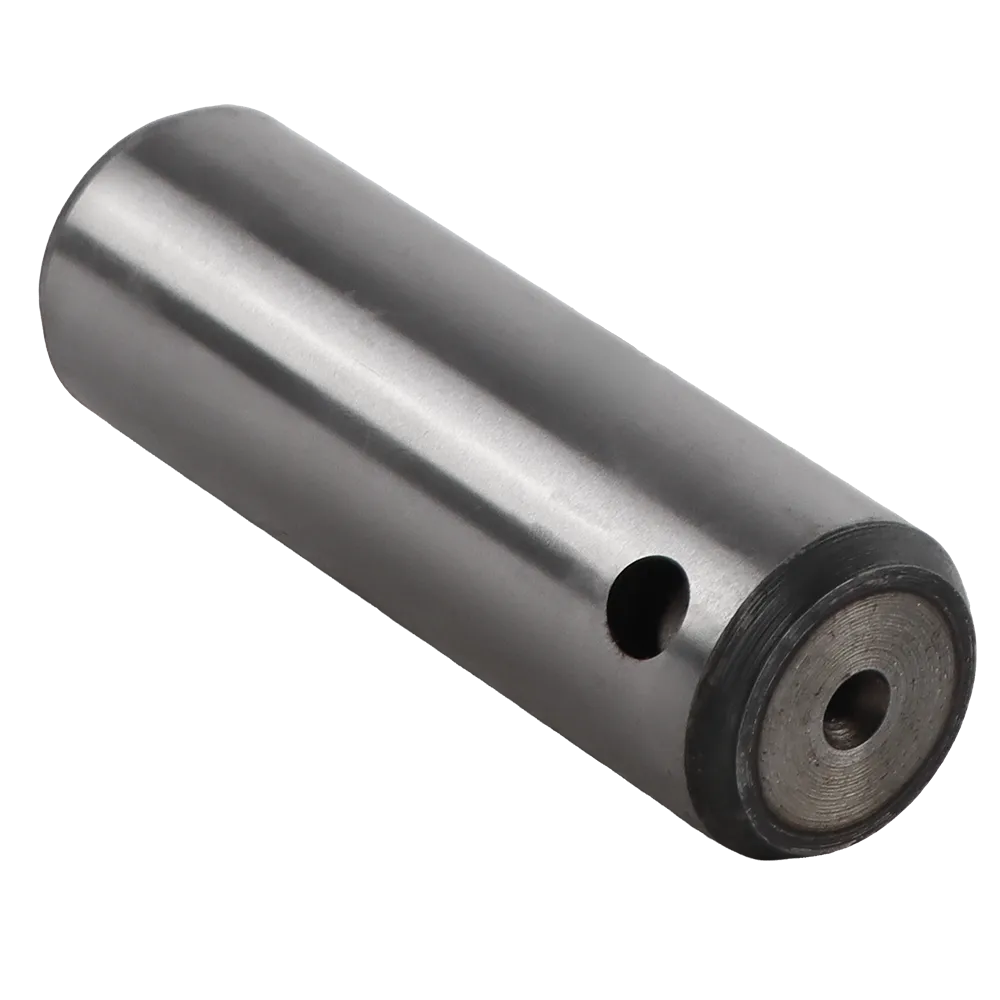

23B2711540 , 23B-27-11540 PIN KOMATSU

Overview

The 23B-27-11540 PIN KOMATSU is a high-precision, load-bearing mechanical component used in Komatsu’s heavy machinery systems. Serving as a pivot connector between key structural elements, this pin enables smooth articulation of the boom, arm, and bucket linkages under extreme operational stress. Its hardened steel composition, mirror-finished surface, and corrosion-resistant coating make it one of the most durable parts in the Komatsu assembly structure.

Manufactured and supplied by 3GEN Export , a trusted OEM-level global supplier , the 23B2711540 PIN KOMATSU ensures unmatched reliability and dimensional accuracy. Each component is engineered to withstand dynamic and static forces in demanding working conditions such as mining, construction, and quarry operations. With worldwide delivery in 5 working days, 3GEN Export provides the speed, quality, and confidence professionals expect in heavy machinery parts.

Function and Purpose

In Komatsu machinery, the 23B-27-11540 PIN KOMATSU functions as a pivot joint pin, serving as the mechanical axis that links moving components like the boom, arm, and bucket. The pin’s purpose is to transmit forces between parts while allowing controlled rotation, ensuring smooth and efficient operation.

Main Functional Roles:

• Acts as a structural connector between the arm and hydraulic linkage.

• Maintains precise alignment of connected assemblies.

• Transmits both axial and radial loads during digging or lifting.

• Reduces mechanical stress and vibration through a low-friction interface.

• Provides rotational freedom between connected linkages without compromising stability.

The precision-ground surface of this pin enables tight tolerances with its corresponding bushing, minimizing wear while maximizing machine performance.

Material Composition and Construction

The 23B-27-11540 PIN KOMATSU is manufactured from high-grade 42CrMo4 alloy steel (AISI 4140 equivalent) , a material chosen for its exceptional tensile strength, fatigue resistance, and machinability. This alloy undergoes advanced heat treatment and surface finishing processes that make it ideal for high-impact mechanical applications.

Material Properties

• Base Material: 42CrMo4 / AISI 4140 Alloy Steel

• Yield Strength: ≥ 850 MPa

• Tensile Strength: ≥ 1100 MPa

• Elongation: 12–14%

• Surface Hardness: 58–62 HRC (hardened zone)

• Core Hardness: 30–36 HRC

• Heat Treatment: Quenched and tempered

• Surface Finish: Polished Ra ≤ 0.4 µm

• Corrosion Protection: Black oxide + oil coating

This advanced metallurgy ensures superior hardness and flexibility balance , preventing both fracture and deformation during extended service life.

Technical Specifications

Design Features

1. Precision Machined Geometry

Each 23B-27-11540 PIN KOMATSU is CNC-machined with micron-level accuracy to guarantee perfect circularity and dimensional balance. The result is seamless alignment in the assembly, reducing vibration and premature wear.

2. Hardened Load-Bearing Surface

The pin’s outer surface is induction-hardened to 58–62 HRC to resist abrasion and indentation from high contact pressures within bushings.

3. Corrosion Protection Layer

A black oxide and oil-sealed finish prevents rust and corrosion, even in humid or abrasive job-site conditions.

4. Grease Distribution Hole

The central lubrication hole allows even grease distribution, reducing friction and enhancing service life.

5. Chamfered Edges

Smooth chamfered ends ensure effortless installation and protect the internal bushing surface during assembly.

Engineering and Production Process

The 23B-27-11540 PIN KOMATSU is the result of advanced metallurgical and precision engineering processes.

Manufacturing Steps:

1. Raw Material Selection: Certified 42CrMo4 bars are inspected for microstructural consistency and purity.

2. CNC Rough Machining: Pins are pre-formed into near-final dimensions with controlled tolerance.

3. Heat Treatment: Quenching and tempering increase strength and reduce brittleness.

4. Finish Machining and Grinding: High-precision CNC grinding ensures a perfect cylindrical surface.

5. Lubrication Hole Drilling: Automated drilling for precise lubrication flow.

6. Surface Hardening and Polishing: Induction hardening followed by fine polishing to achieve mirror finish.

7. Anti-Corrosion Coating: Application of black oxide and protective oil film.

8. Quality Inspection: Dimensional and hardness tests guarantee OEM-level reliability.

Each pin is meticulously inspected for dimensional precision, hardness uniformity, and microcrack absence before packaging.

Compatibility with Komatsu Models

The 23B-27-11540 PIN KOMATSU is used across a variety of Komatsu machinery, including excavators, dozers, and loaders that utilize linkage systems with similar pivot configurations.

Compatible Komatsu Models Include:

• Excavators: PC200, PC210, PC220, PC240, PC300, PC350, PC400, PC450, PC490

• Dozers: D65EX, D85EX, D155AX

• Wheel Loaders: WA320, WA380, WA470

• Backhoe Loaders: WB93, WB97, WB115

• Motor Graders: GD555, GD675

Common Assemblies:

• Arm-to-boom joint connection

• Boom-to-bucket linkage

• Tilt mechanism joints

• Hydraulic cylinder pivot point

The dimensional precision of the 23B2711540 PIN KOMATSU allows it to fit perfectly into Komatsu assemblies that require the same standard of mechanical integrity and rotation precision.

Performance and Durability

The 23B-27-11540 PIN KOMATSU has been tested for mechanical endurance under simulated field conditions involving vibration, impact, and rotational stress.

Key Performance Metrics:

• Load Bearing Capacity: > 320 MPa axial load

• Torsional Strength: 400 Nm

• Impact Resistance: 30 kN shock load capacity

• Service Life: Exceeds 10,000 operational hours under standard lubrication intervals

Its hardened construction and finely polished geometry ensure stability under the high-pressure cycles common in hydraulic and linkage systems.

Installation and Maintenance

Installation Procedure

1. Clean both the bushing and pin bore before installation.

2. Apply high-pressure lithium-based grease to both contact surfaces.

3. Insert the pin carefully to avoid edge scoring.

4. Secure with the designated locking bolt or clip.

5. Test for smooth pivot rotation.

Maintenance Guidelines

• Re-lubricate every 250 to 400 operational hours.

• Replace if diameter wear exceeds 0.5 mm.

• Inspect periodically for surface scratches, cracks, or corrosion.

• Use OEM-grade bushings for best fit and longevity.

Regular maintenance extends the lifespan of both the pin and the surrounding mechanical components.

Environmental Endurance

This pin is designed to perform in extreme environmental conditions.

Environmental Resistance:

• Operating Temperature: –40°C to +200°C

• Corrosion Resistance: > 600 hours (ASTM B117 salt spray test)

• Water Resistance: Full functionality under submerged test conditions

• Dust Resistance: Stable operation in heavy particulate exposure environments

Whether exposed to mud, humidity, or gravel, the 23B-27-11540 PIN KOMATSU maintains its integrity and functional accuracy.

Applications

The 23B-27-11540 PIN KOMATSU is used in:

• Earthmoving Equipment: Boom, arm, and bucket linkages.

• Mining Machinery: Rock excavation and lifting systems.

• Construction Equipment: Load-bearing mechanical pivots.

• Industrial Machinery: Articulated linkage systems and hydraulic joints.

The versatility of its size and material properties allows it to adapt to multiple Komatsu configurations requiring heavy load and torque endurance.

Advantages of 3GEN Export OEM Supply

Why Choose 3GEN Export

• OEM Quality Standards: Designed and tested to meet original manufacturing tolerances.

• Fast Delivery: Global shipment within 5 working days.

• Material Assurance: Certified 42CrMo4 alloy steel composition.

• Technical Support: Guidance on installation, compatibility, and maintenance.

• Global Reach: Distribution network spanning over 60 countries.

3GEN Export Commitment

3GEN Export’s OEM-standard production ensures seamless integration with your Komatsu equipment, reducing downtime, improving mechanical efficiency, and enhancing operational safety.

Economic and Operational Value

Investing in the 23B-27-11540 PIN KOMATSU means ensuring consistent machine performance and reducing maintenance overhead.

Operational Benefits

• Reduced wear on bushings and brackets.

• Improved load transfer stability.

• Smoother hydraulic motion and precision articulation.

• Lower long-term maintenance costs.

• Extended equipment lifespan.

Each pin’s precision and surface integrity result in fewer replacements, contributing directly to cost efficiency and productivity.

Summary of Key Features

Conclusion

The 23B-27-11540 PIN KOMATSU (also identified as 23B2711540 PIN KOMATSU) is an essential part of Komatsu’s mechanical framework. Designed to deliver peak performance in excavators, dozers, and loaders, this pin combines metallurgical excellence with advanced manufacturing precision.

Its superior hardness, smooth rotation capability, and corrosion resistance ensure reliable operation even under the harshest working conditions. With OEM-level quality assurance and a robust structure designed for longevity, the 23B-27-11540 PIN KOMATSU remains the ideal solution for professionals seeking durability and precision.

Supplied exclusively by 3GEN Export, this component offers global delivery within 5 working days, making it the dependable choice for maintenance, rebuilds, and upgrades of Komatsu equipment worldwide.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
