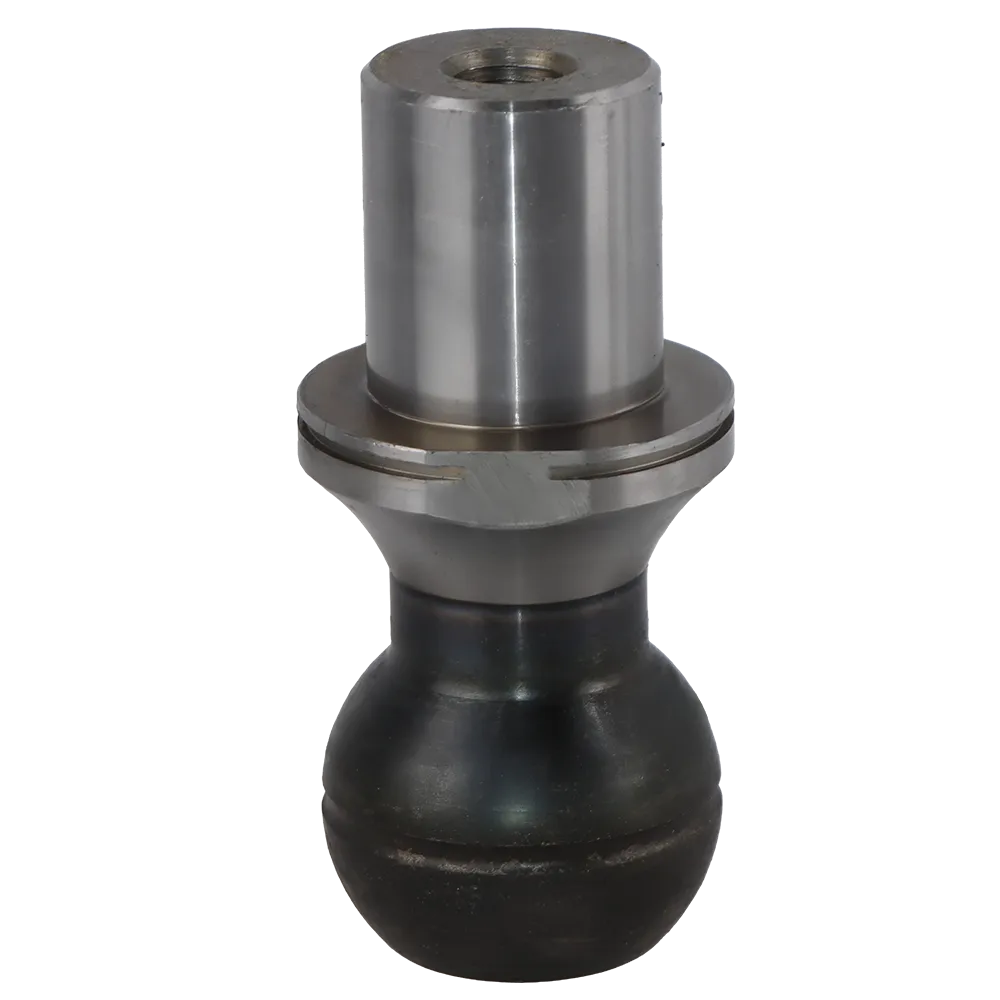

23B2711553 , 23B-27-11553 STUD BALL KOMATSU

Precision-Engineered Pivot Component for Komatsu Heavy-Duty Equipment

The 23B-27-11553 STUD BALL KOMATSU (also catalogued as 23B2711553 STUD BALL KOMATSU) is a robust spherical-joint component used extensively in Komatsu construction and earth-moving machinery. Acting as a load-bearing and pivoting connector between hydraulic linkages and frame assemblies, this stud ball delivers the precise motion control and strength required for long-term operation in harsh worksites.

Developed and supplied by 3GEN Export, it represents the ideal balance of engineering precision, material durability, and dimensional accuracy. Each part is designed to integrate flawlessly with Komatsu’s mechanical architecture, ensuring stability under extreme pressure and continuous articulation under repetitive motion cycles.

Engineered for Strength and Flexibility

The 23B-27-11553 STUD BALL KOMATSU is a key structural joint that allows controlled rotational movement while supporting substantial compressive and shear forces. Its spherical head serves as the central pivot between arms, linkages, or suspension components, providing flexibility without compromising rigidity.

3GEN Export manufactures this component using high-tensile alloy steel that undergoes multi-stage forging, heat treatment, and CNC finishing. The result is a stud ball capable of withstanding continuous impact loads and maintaining precision alignment over thousands of operating hours.

This design minimizes mechanical play, enhances load transfer, and significantly reduces vibration and noise—crucial for the stability of steering, suspension, and boom systems on Komatsu machines.

Material Composition and Mechanical Design

The 23B-27-11553 STUD BALL KOMATSU is machined from a chromium-molybdenum alloy steel with superior toughness and wear resistance. The surface of the ball is hardened to resist abrasion, while the core remains ductile to absorb shock and torsional stress.

A black oxide coating provides corrosion resistance and surface protection against environmental contaminants such as moisture, dust, and hydraulic oil. The base of the stud includes a precision-threaded bore to facilitate secure installation within the assembly.

Every production batch is inspected for concentricity, dimensional tolerance, and surface finish to maintain consistent quality across all units.

Technical Specifications

Dimensional Accuracy and Assembly Fit

To ensure seamless interchangeability, every 23B-27-11553 STUD BALL KOMATSU is manufactured within a tolerance band of ± 0.01 mm on critical diameters. The smooth curvature of the spherical section guarantees uniform contact pressure distribution, thereby preventing localized stress and premature wear.

During installation, the internal thread allows easy seating and tightening, ensuring that the stud ball remains firmly positioned even under repetitive oscillations. When paired with precision bushings and housing components, it creates a near-frictionless motion path—critical for excavators, loaders, and dozers operating under variable loads.

Applications and Compatible Komatsu Models

The 23B-27-11553 STUD BALL KOMATSU is widely used in Komatsu’s heavy-machinery lineup. It functions as a critical link in boom and arm assemblies, steering systems, and hydraulic cylinders. Verified applications include:

• Komatsu PC200 – Hydraulic Excavator

• Komatsu PC300 – Excavator Series

• Komatsu WA470 – Wheel Loader

• Komatsu D155 – Dozer Series

• Komatsu GD655 – Motor Grader

• Komatsu HD465 – Rigid Dump Truck

• Komatsu HM400 – Articulated Hauler

These models rely on the stud ball’s dual-radius design to provide smooth articulation under both axial and torsional load paths. The component ensures precise mechanical motion across linkages, allowing operators to maintain control and balance even during high-torque or uneven-terrain operations.

Installation and Maintenance Recommendations

Installation Guidelines

1. Clean the mating surfaces thoroughly to remove debris or old grease.

2. Align the threaded section and tighten according to Komatsu’s torque chart.

3. Verify that the ball head rotates freely without friction points.

4. Apply lithium-based grease to enhance lubrication during first operation cycles.

Maintenance Tips

• Inspect regularly for signs of surface wear, pitting, or corrosion.

• Re-lubricate at scheduled service intervals to preserve articulation smoothness.

• Replace immediately if excessive play or surface flattening is observed.

When properly installed and maintained, the 23B-27-11553 STUD BALL KOMATSU can achieve a service life exceeding 5,000 operational hours, even in high-load excavation or quarry environments.

Quality Assurance and Testing

3GEN Export follows a rigorous multi-stage inspection protocol:

• Dimensional Verification: Every unit undergoes coordinate-measuring inspection.

• Surface Integrity: Polished surfaces are tested for micro-cracks using dye penetrant methods.

• Load Simulation: Random samples are subjected to compressive loads exceeding rated capacity.

• Salt Spray Testing: Corrosion resistance validated under ISO 9227 standards.

These processes guarantee reliability that meets or surpasses global OEM expectations, ensuring that every 23B2711553 STUD BALL KOMATSU operates flawlessly under field conditions.

Advantages of Choosing 3GEN Export

When sourcing Komatsu replacement components, precision and logistics matter. 3GEN Export offers both:

• OEM-grade engineering with global quality standards.

• 1-year manufacturer warranty on all stud ball and pivot parts.

• Worldwide delivery within 5 working days.

• All transactions protected by advanced security protocols.

• Dedicated after-sales support and technical guidance.

Our extensive portfolio covers over 50,000 heavy-machinery parts for Komatsu, Caterpillar, Volvo, Hitachi, and other brands. Each product is crafted to maximize machine uptime and reduce maintenance downtime.

3GEN Export – Global OEM Supplier for Komatsu Parts

The 23B-27-11553 STUD BALL KOMATSU reflects 3GEN Export’s commitment to engineering innovation and operational reliability. Whether used in a loader’s linkage system or an excavator’s arm joint, it delivers consistent performance, minimal wear, and optimal articulation in every cycle.

Choose 3GEN Export for fast shipping, precise fit, and OEM-grade quality trusted worldwide.

Weight

Approximate Weight: 1.46 kg

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
