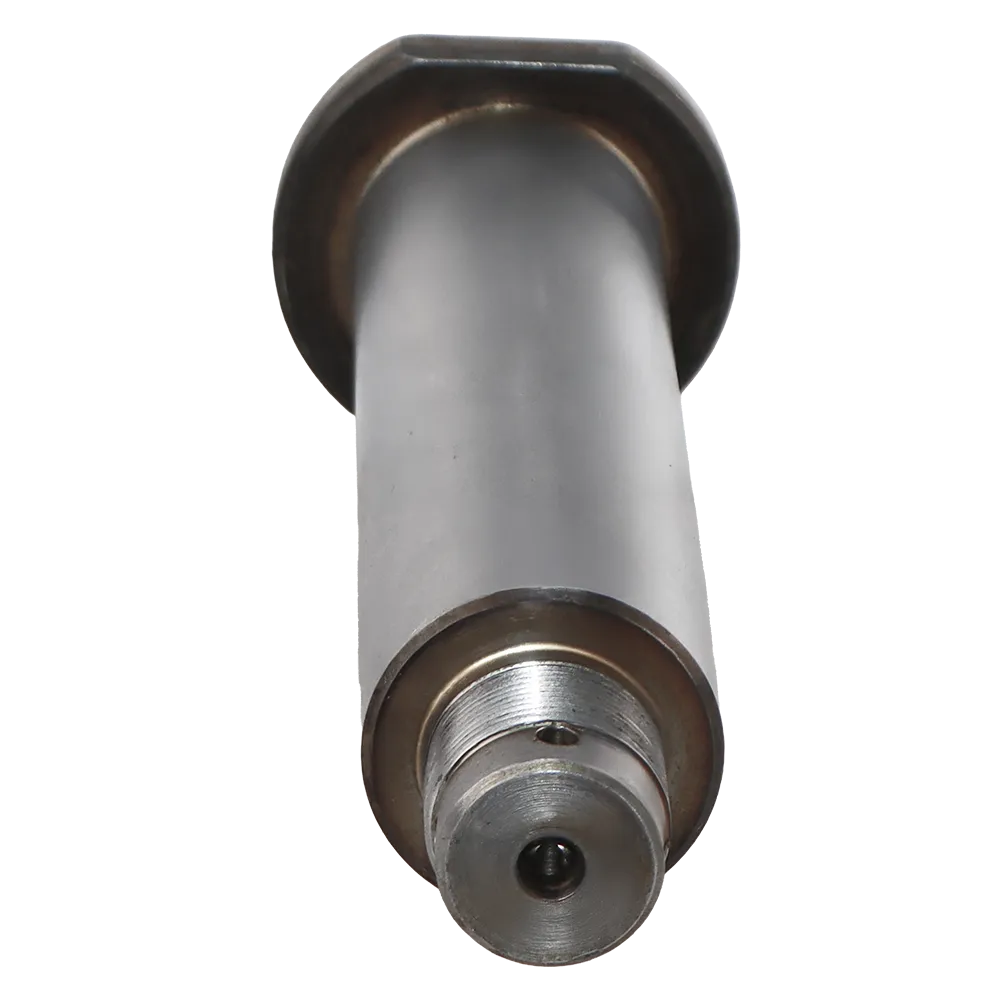

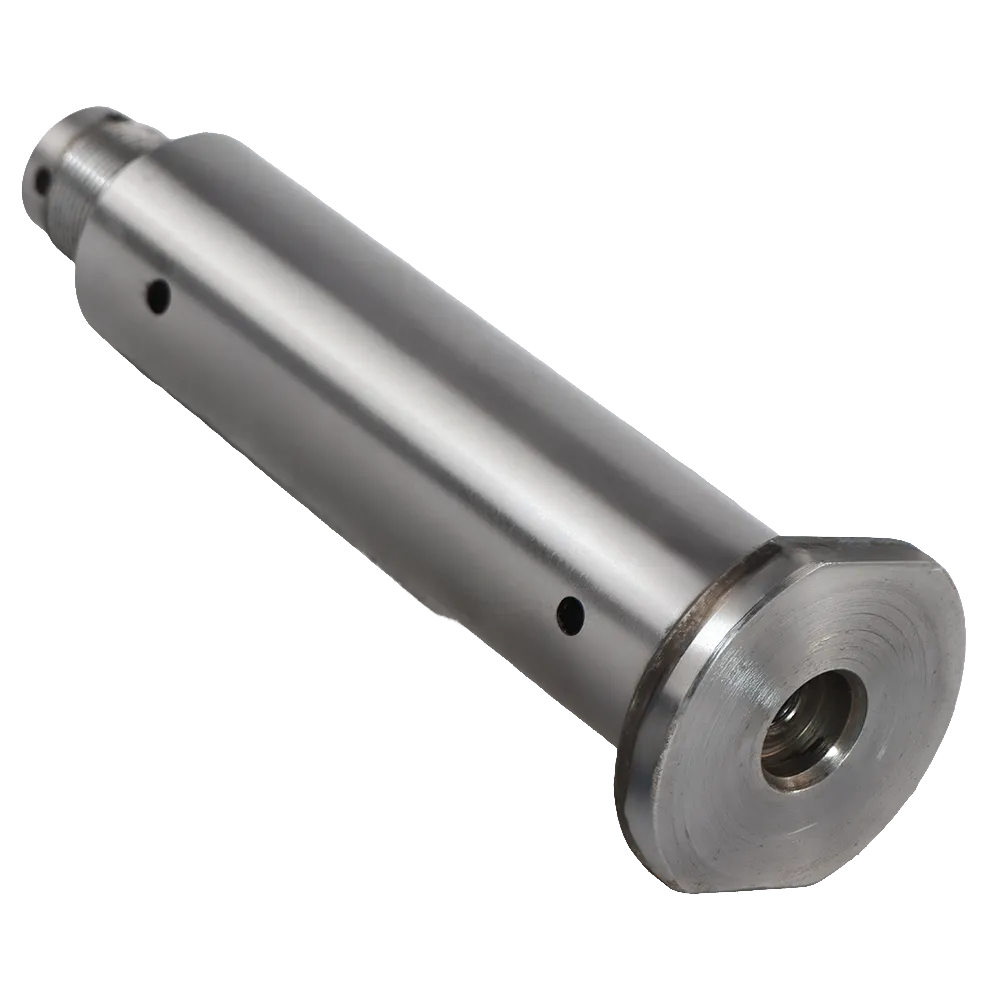

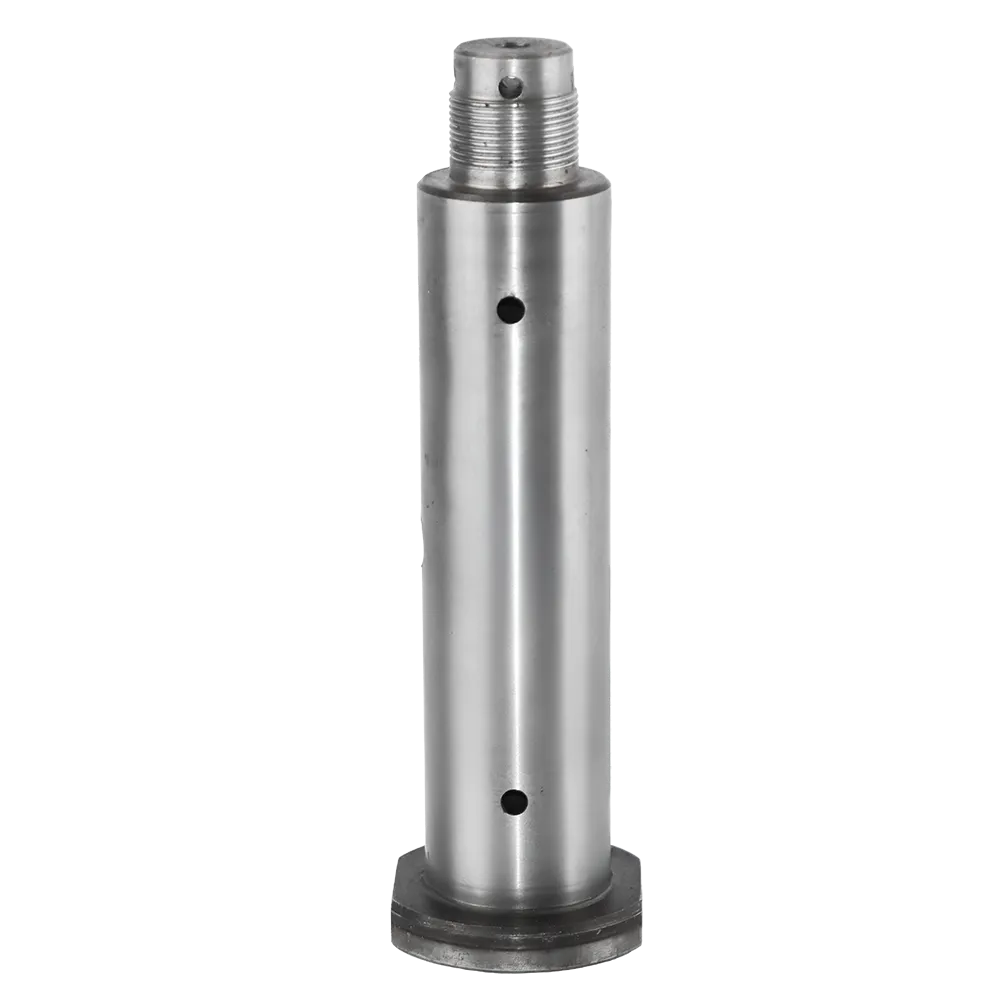

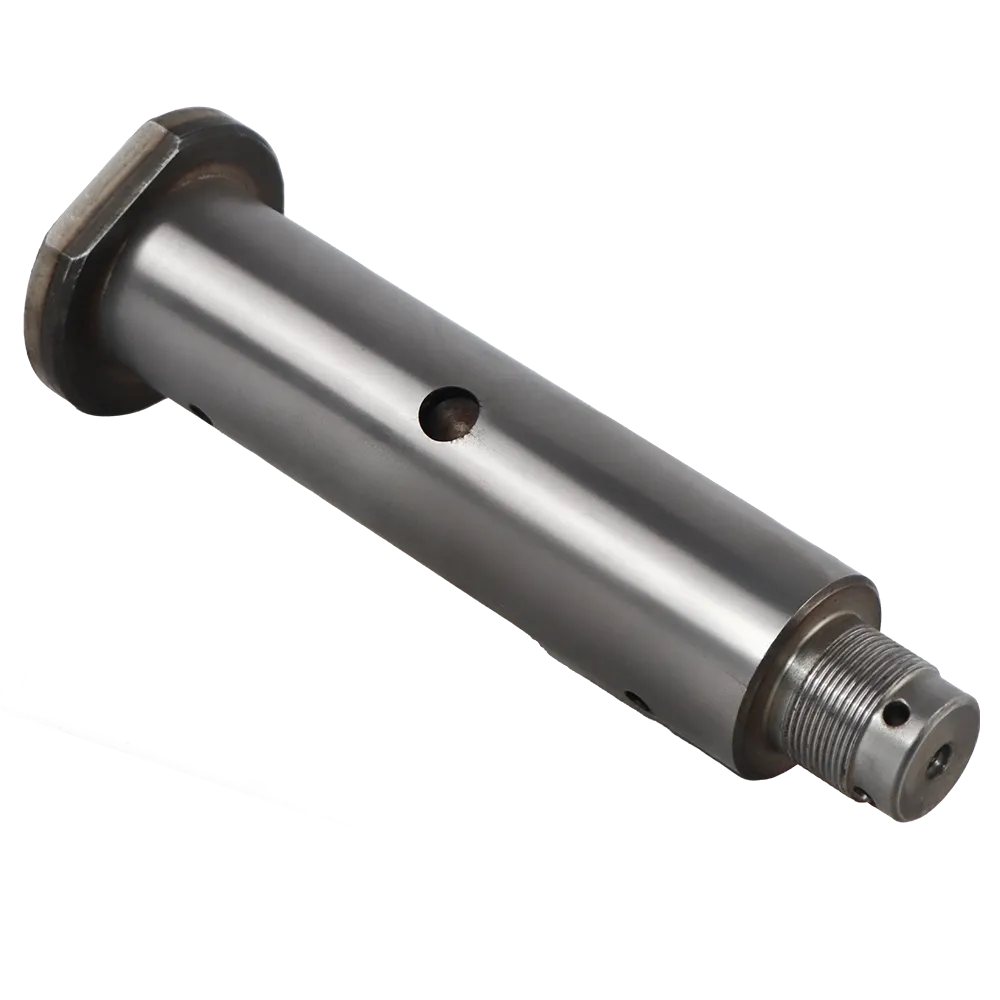

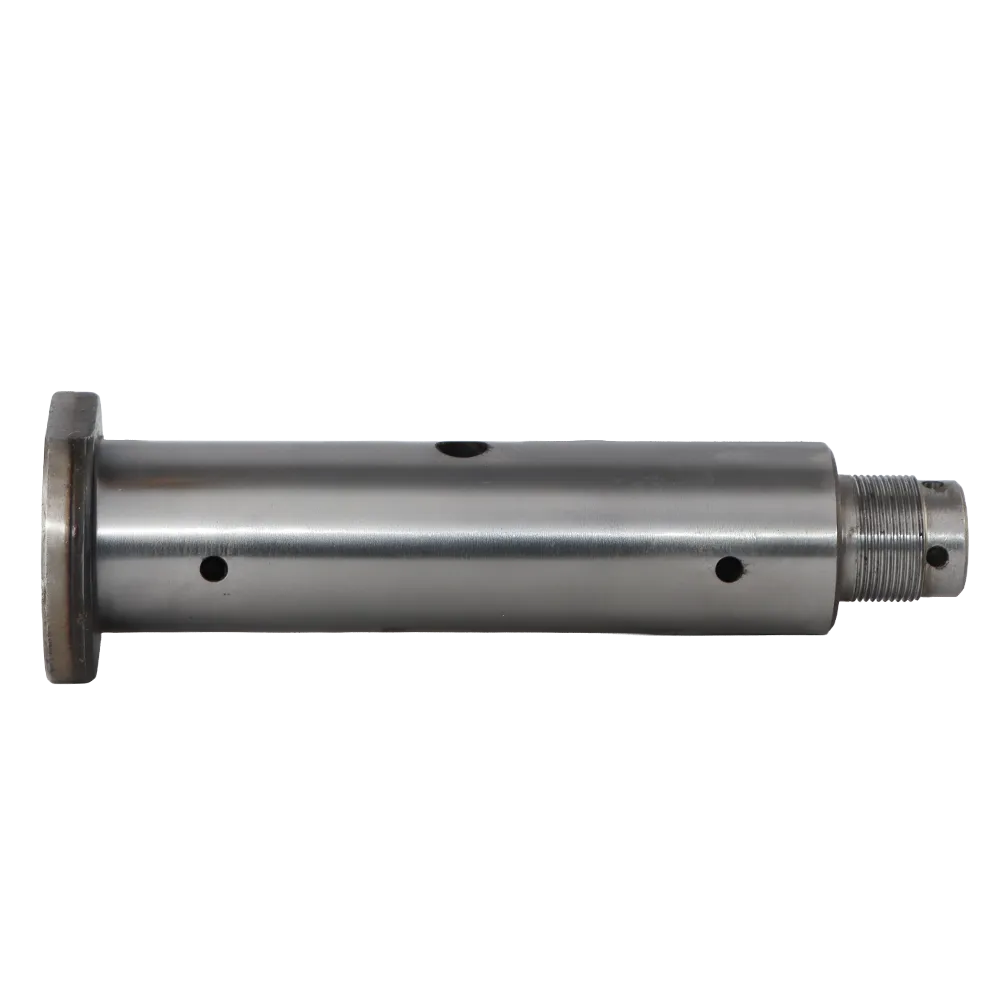

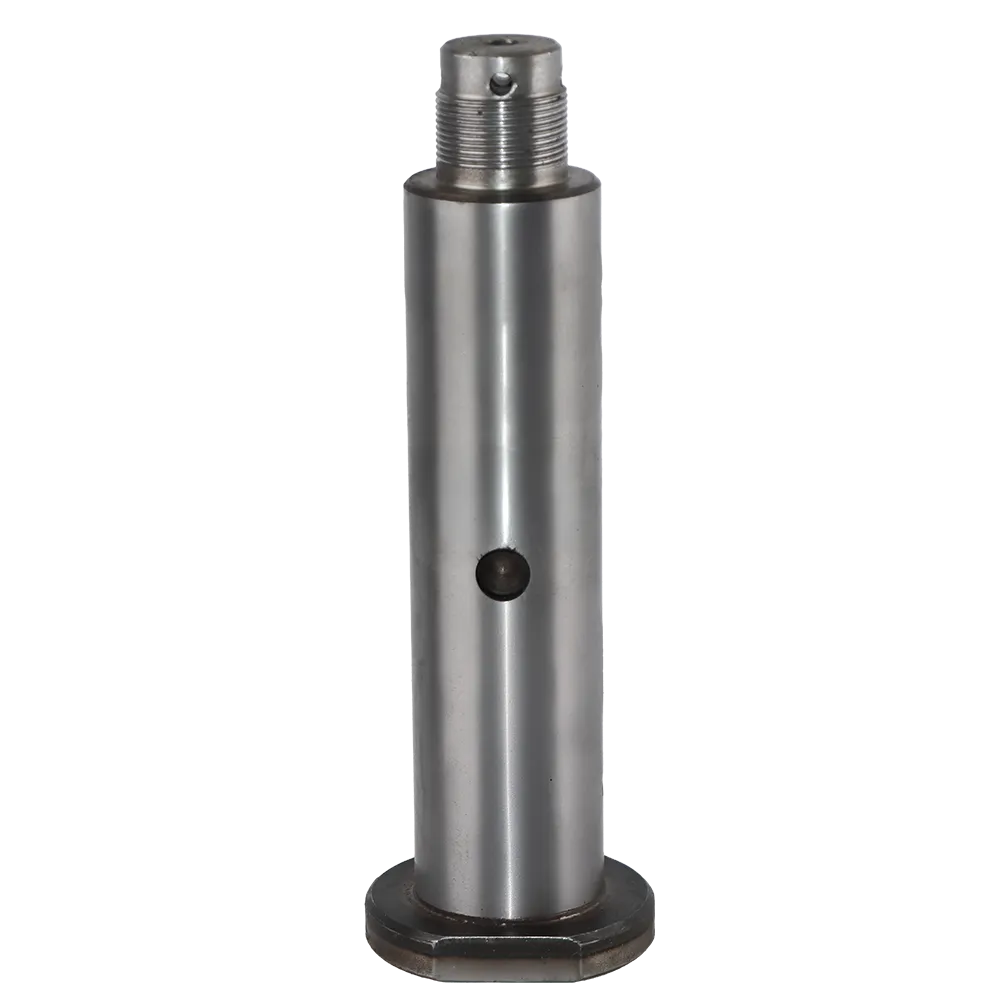

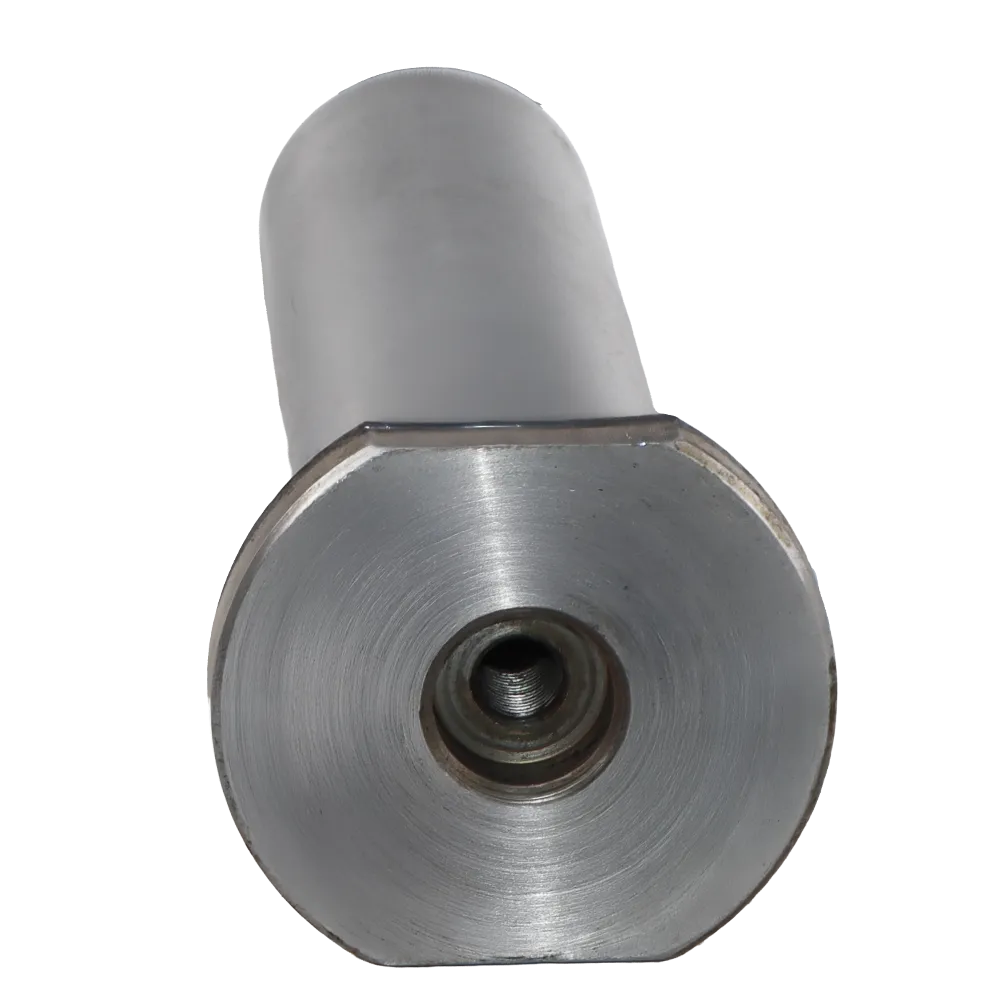

23B-27-31520 PIN KOMATSU – OEM Replacement by 3GEN Export

Overview

The 23B-27-31520 PIN KOMATSU is a precision-engineered steel pin designed to perform a critical function in the structural and hydraulic systems of Komatsu heavy machinery. Serving as a key connecting element between the boom, arm, and bucket assemblies, this pin allows rotational movement while maintaining rigidity under intense working pressures.

Developed and manufactured by 3GEN Export, the 23B2731520 PIN KOMATSU is produced according to strict OEM-equivalent standards to guarantee long-term durability and perfect mechanical compatibility. With exceptional tensile strength, impact resistance, and anti-corrosion treatment, this pin ensures that Komatsu excavators and loaders continue to deliver reliable performance even in the harshest construction, quarrying, and mining environments.

The Role of the 23B-27-31520 PIN KOMATSU

Precision in Motion

At the core of Komatsu’s hydraulic system lies the perfect balance between strength and mobility. The 23B-27-31520 PIN KOMATSU is engineered to achieve this harmony, allowing pivot joints to move with precision while maintaining the stability of the boom, stick, and bucket. This motion control is essential for maintaining digging accuracy, load stability, and overall machine safety.

Designed for Heavy-Duty Environments

Each 23B2731520 PIN KOMATSU undergoes advanced CNC machining to meet tight tolerances that prevent misalignment and excessive wear. Its hardened surface and robust internal composition make it capable of withstanding axial and radial loads during repetitive, high-impact operations—such as rock excavation, foundation drilling, and material handling.

Technical Specifications

Compatibility

The 23B-27-31520 PIN KOMATSU is compatible with a wide range of Komatsu machines, commonly used in the joint assemblies of booms, arms, and cylinders.

Compatible Komatsu Models Include:

• Komatsu PC200-7

• Komatsu PC210-8

• Komatsu PC220-8

• Komatsu PC240NLC-8

• Komatsu PC300-7

• Komatsu PC350-8

• Komatsu PC400-8R

• Komatsu WA320-6

• Komatsu WA380-6

• Komatsu D65EX-16

• Komatsu D85EX-15R

• Komatsu GD655-5 Grader

These machines rely on this pin for maintaining precise movement and mechanical stability in their linkage systems.

Engineering and Manufacturing Excellence

High-Strength Alloy Construction

The 23B2731520 PIN KOMATSU is crafted from a specially selected high-tensile alloy steel containing chromium and molybdenum. This ensures exceptional fatigue strength, resistance to cracking, and minimal elongation under load. The result is a part that maintains structural integrity even under constant stress.

Advanced Heat Treatment

Each pin undergoes multi-stage heat treatment processes that enhance surface hardness and depth penetration. Induction hardening produces a tough outer layer resistant to abrasive wear, while the tempered core retains flexibility to absorb shock loads. This dual-property design prevents brittleness and ensures longevity.

Precision Machining

Using 5-axis CNC machines, every 23B-27-31520 PIN KOMATSU is machined to tight tolerances with exacting concentricity. This precision eliminates play or uneven load distribution, enabling the pin to integrate seamlessly into Komatsu’s pivot assemblies.

Key Features and Benefits

• High Wear Resistance: Maintains structural integrity under high friction and load.

• Perfect OEM Fit: Precisely replicates original dimensions for effortless installation.

• Polished Finish: Reduces friction and supports efficient lubrication flow.

• Corrosion Protection: Nickel-chromium surface coating enhances durability.

• Lubrication Channels: Integrated grease ports maintain consistent lubrication.

• Extended Service Life: Withstands high-impact and torsional stresses without deformation.

• OEM-Grade Quality: Produced in accordance with ISO 9001-certified manufacturing standards.

Functional Performance

Seamless Load Transfer

In heavy-duty operations, the 23B-27-31520 PIN KOMATSU transmits dynamic loads between moving assemblies such as boom and stick linkages. Its uniform cylindrical design and precision-ground surface guarantee uniform contact across the bushing, minimizing localized stress.

Reduced Downtime

The superior wear resistance of the 23B2731520 PIN KOMATSU results in fewer replacements and less downtime. Its compatibility with OEM seals and bushings further enhances performance by maintaining optimal joint clearances and preventing contamination ingress.

Efficiency Under Pressure

Thanks to its hardened core and friction-optimized surface, this pin allows for smooth mechanical transitions even under high hydraulic pressure. Whether excavating dense materials or operating in extreme weather, it consistently provides stability and smooth articulation.

Applications

The 23B-27-31520 PIN KOMATSU is used in multiple linkage applications across Komatsu machines, including:

• Boom-to-Arm Connection Points

• Arm-to-Bucket Pivot Joints

• Hydraulic Cylinder Mounts

• Loader Lift Arm Assemblies

• Dozer Blade Mount Points

Its performance ensures balanced power transmission across machine components, critical for maintaining precision and safety in high-output operations.

Installation & Maintenance

Installation Tips

1. Clean all bores and mating surfaces before installation.

2. Apply high-pressure grease or recommended lubricant before assembly.

3. Use proper hydraulic press tools to ensure even seating.

4. Avoid hammering, which can cause microfractures.

5. Verify alignment using digital calipers for ±0.02 mm accuracy.

Maintenance Guidelines

• Regularly check lubrication levels through integrated grease holes.

• Replace seals if leakage occurs.

• Inspect the pin every 500 operating hours for wear or scoring.

• Always pair with compatible Komatsu bushings for optimal performance.

Under proper maintenance, the 23B-27-31520 PIN KOMATSU can achieve service lives exceeding 5,000 operating hours.

Why Choose 3GEN Export

3GEN Export stands as a globally recognized OEM supplier for heavy machinery spare parts. Our components are engineered for longevity, consistency, and precision across the full Komatsu equipment range.

Why 3GEN Export?

• OEM-equivalent quality assurance

• 5-day worldwide delivery

• Precision-engineered components

• Competitive global pricing

• ISO 9001 manufacturing standards

• Safe packaging and logistics

• Expert post-purchase technical support

3GEN Export ensures that every 23B2731520 PIN KOMATSU maintains the same structural reliability as the original component, while delivering at a fraction of the cost.

Packaging & Delivery

Each 23B-27-31520 PIN KOMATSU is individually sealed in anti-corrosive packaging to prevent moisture damage during transport. For bulk orders, products are foam-protected within wooden crates and labeled for easy warehouse tracking.

• Weight: 1.35 KG per unit

• Shipping Time: 5 working days worldwide

• Shipping Options: Air freight, sea freight, or express delivery

• Traceability: Each package includes part number, barcode, and 3GEN Export branding for inventory efficiency.

Summary

The 23B-27-31520 PIN KOMATSU (23B2731520) is a premium-quality steel component designed for heavy-duty Komatsu excavators and loaders. Engineered to endure high stress and rotational loads, it guarantees stable operation, long service life, and precise articulation under all field conditions.

With advanced metallurgy, fine surface finishing, and 3GEN Export’s global logistics capability, this pin represents the ideal balance between mechanical excellence and operational reliability. Whether operating in construction, quarrying, or mining, it provides unwavering support to your machine’s moving joints and ensures minimal downtime.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
