23B7015150, 23B-70-15150 WORM KOMATSU

Heavy-Duty Worm Gear for Komatsu Grader Drive and Circle Reverse Applications

The 23B7015150, 23B-70-15150 WORM KOMATSU is a grader transmission and drive component identified in public parts catalogs as GEAR, WORM. Catalog references place it in the circle reverse gear section of Komatsu motor graders, which means it is part of the mechanism that helps control blade-circle movement and supports accurate grader operation in roadwork, leveling, and surface shaping applications. Public sources also list its weight at approximately 6.030 kg, with one aftermarket listing showing a close value of 6.2 kg.

For buyers searching by part number, this product may appear as 23B7015150 or 23B-70-15150. Both formats refer to the same Komatsu worm gear. Using both number styles on your product page is important because some customers search with dashes and others search without them. In real purchasing behavior, that small difference affects visibility across Google, Search GPT, internal site search, and marketplace indexing.

At 3GEN Export, we present this part as an OEM supplier solution for professional heavy machinery buyers who need reliable replacement components for Komatsu graders. We deliver all over the world in 5 working days, which is especially valuable when a grader is waiting for repair, fleet service, or urgent export preparation.

What Is 23B7015150, 23B-70-15150 WORM KOMATSU?

This part is not a general-purpose shaft or a simple rotating component. Public Komatsu-oriented parts sources identify it specifically as a worm gear used in the circle reverse gear assembly on grader models. That detail matters because worm gears are used where controlled torque transfer, precise engagement, and dependable rotational movement are required. In a grader environment, that makes the worm a critical working part rather than a secondary support item.

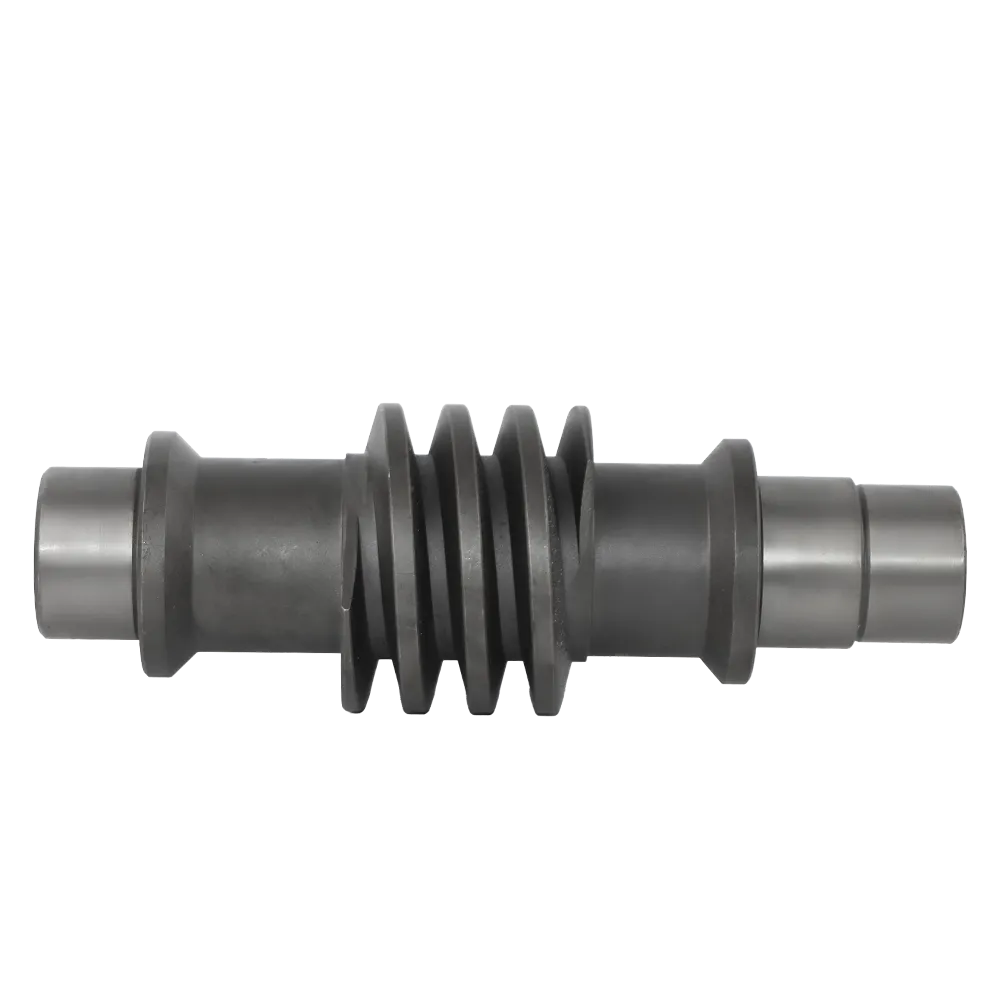

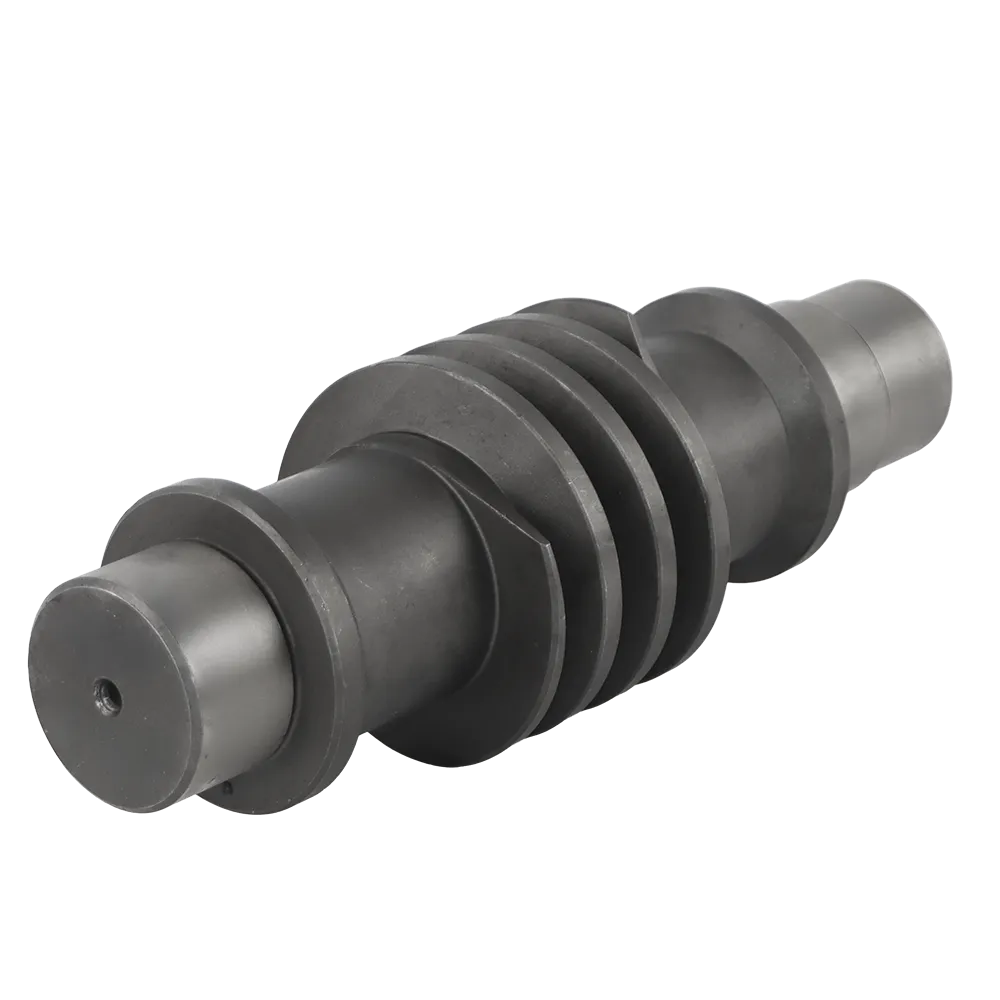

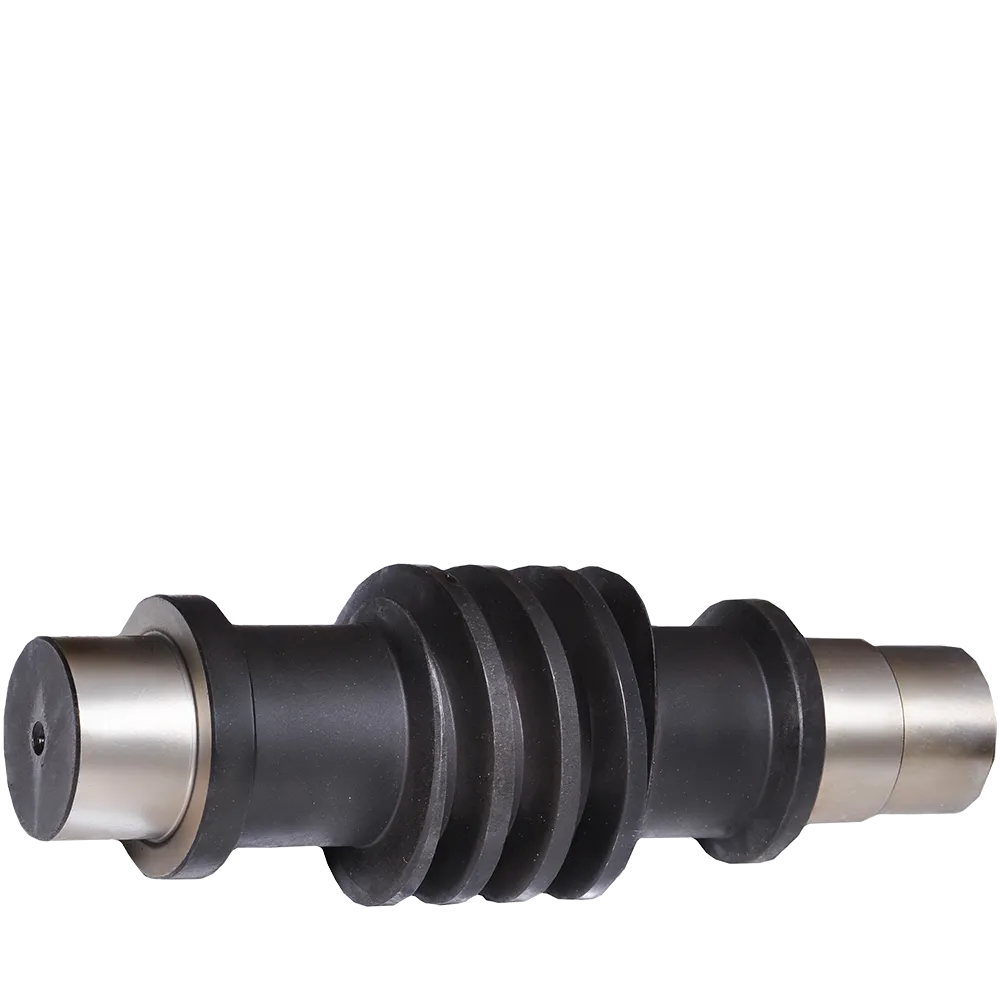

The product images you shared support that classification. The component shows the familiar form of a heavy-duty worm-style drive part, with a machined shaft body, precision-finished end journals, and a central helical gear profile designed for controlled mechanical engagement. It looks purpose-built for power transmission under load, which aligns with how this part is described in public parts catalogs and supplier listings. This visual match strengthens the positioning of the product as a grader drive component for demanding field use.

Why This Worm Gear Matters on Komatsu Graders

A motor grader depends on accurate blade movement and controlled transmission of force through several linked systems. The circle reverse gear area is especially important because it influences how the blade circle responds during grading and surface shaping. If the worm gear is worn, damaged, or poorly matched, the grader may lose smoothness, precision, and consistency during operation. That can lead to slower work, rougher finish quality, and higher wear on connected components. This explanation is an operational inference based on the part’s documented location in the circle reverse gear assembly.

In practical terms, the 23B7015150, 23B-70-15150 WORM KOMATSU helps keep grader performance controlled where precision really matters. Road building, shoulder maintenance, ditch work, yard preparation, and quarry route finishing all depend on clean grader blade control. When the drive side of that system is working as intended, the operator can maintain better confidence in how the machine responds. That means more accurate surface shaping and more stable work quality across long operating hours. This is also an inference from the part’s role in grader circle reverse gear systems and the general function of Komatsu motor graders.

Product Function and Mechanical Role

Worm gears are designed to transmit motion and torque in a compact and controlled way. In heavy machinery, that design is valuable because it supports strong engagement and reliable movement under load. Since this Komatsu part is listed in the circle reverse gear section, its job is tied to blade-circle control rather than engine timing, pump drive, or final drive reduction. Buyers looking at this part should therefore understand it as a grader work-equipment transmission component.

That mechanical role gives the part a direct effect on operating feel. A well-made worm gear contributes to smoother transmission of force, steadier movement, and more predictable equipment response. In a grader, that matters because the machine is expected to produce fine tolerances over large surfaces. Even a strong machine can lose grading quality if precision drive components in the circle mechanism are worn or damaged.

Technical Details of 23B7015150, 23B-70-15150 WORM KOMATSU

Below are the most useful public reference details available for this product.

Part number formats

23B7015150
23B-70-15150

Official catalog-style part name

GEAR, WORM

Product group

Transmission and drive component
Circle reverse gear component for Komatsu graders

Weight in KG

Public parts catalogs list the weight as 6.030 kg, while one aftermarket listing shows 6.2 kg. For product listing purposes, 6.03 kg is the strongest catalog-based figure.

Construction profile

Supplier descriptions present this worm gear as a durable, precision-made part for heavy-duty Komatsu grader use. One commercial listing describes alloy-steel construction and a corrosion-resistant finish, but those details come from a seller page rather than an official Komatsu catalog, so they should be treated as seller-provided specifications rather than factory-issued data.

Compatible KOMATSU Models for 23B7015150, 23B-70-15150 WORM KOMATSU

Public fitment sources consistently connect this part with Komatsu motor graders. The broadest model list appears in parts-catalog mirrors and related listings, while individual supplier pages often mention only a smaller group of machines. When combined carefully, the overlapping model picture is clear enough to build a strong SEO-friendly compatibility section, with the usual reminder that final confirmation should always be made by part number and serial range.

Commonly referenced Komatsu grader models

GD305A-1A
GD355A
GD405A
GD505A
GD510R-1
GD511A-1
GD521A-1
GD521A-1E
GD525A-1C
GD605A
GD611A-1
GD621A-1
GD621R-1
GD623A
GD661A
GD655
GD675

Some marketplace listings also mention GD511, GD605, and similar short forms without the full suffix structure. Those abbreviated model names are useful for search visibility because buyers often search that way, but on a technical level the safest approach is still to verify the exact machine designation and serial number. Supplier pages and catalog mirrors can differ slightly in how they shorten or group the models.

Fitment note

Because public sources show serial-specific notes for some grader models, fitment should always be confirmed before order. For example, one circle reverse gear diagram for the GD523A-1 shows that earlier serial numbers used a different gear reference and later serial numbers used 23B-70-15150, which is a strong reminder that serial ranges matter in grader parts ordering.

Performance Benefits of This Komatsu Worm Gear

Supports controlled torque transfer

A worm gear is built to transmit movement through a compact, controlled mechanism. In grader service, that helps the machine manage blade-circle movement more predictably. Since this part belongs to the circle reverse gear group, its performance directly affects one of the grader’s most important working systems.

Helps maintain grading precision

Motor graders are chosen for jobs that demand finish quality, not just raw pushing force. The worm gear’s role in the circle reverse mechanism means it contributes to how smoothly and accurately the blade assembly responds. This is a functional inference based on the documented assembly location of the part.

Built for demanding machine environments

Commercial descriptions emphasize durability, wear resistance, and heavy-duty suitability. Even where official metallurgy details are not published, that positioning is consistent with what buyers expect from a grader drive component exposed to load, vibration, dirt, and repeated work cycles.

Important for uptime and consistent machine behavior

When a grader’s circle reverse mechanism is not working correctly, operators often feel the problem immediately in machine response. Replacing a worn worm gear can be part of restoring normal function, reducing unnecessary delay, and improving confidence in field performance. This is again a grounded operational inference based on the part’s documented function.

Typical Use Cases for 23B7015150, 23B-70-15150 WORM KOMATSU

This part is especially relevant in the following situations.

Grader transmission or circle mechanism repair

When the circle reverse gear assembly is being repaired, rebuilt, or refreshed, the worm gear is one of the parts buyers often need to inspect or replace.

Fleet refurbishment

Used Komatsu graders prepared for continued service, resale, or export often need transmission and blade-control drive parts reviewed carefully. A fresh worm gear can be part of restoring reliable mechanical response.

Preventive workshop planning

Parts teams supporting motor graders sometimes keep high-demand drivetrain and work-equipment items on hand because a single worn gear can interrupt machine availability.

International parts sourcing

Because graders are used in road construction, mining support, and infrastructure projects worldwide, many buyers need export-ready sourcing for exact part numbers. This part number is already visible across international supplier channels, showing active demand in global markets.

Buying Considerations Before Ordering

Before purchasing, buyers should check more than the product title.

Verify both number formats

Search with 23B7015150 and 23B-70-15150. Many catalog systems index both, and using only one can hide relevant results.

Confirm the machine family

This part is associated with Komatsu motor graders, not excavators or crawler dozers. Buyers should match the machine type correctly before ordering.

Check serial range where possible

Serial-dependent application is common in heavy machinery. The GD523A-1 diagram result is a good public example showing that not every machine in the same family uses the same gear reference across all serial numbers.

Match the assembly location

Because this is listed in the circle reverse gear section, buyers should confirm they need the worm gear from that specific area rather than another drive or steering component.

Why 3GEN Export for 23B7015150, 23B-70-15150 WORM KOMATSU

At 3GEN Export, we understand that grader downtime affects much more than one machine. It delays roadwork, finishing schedules, and maintenance plans across entire projects. That is why we position this Komatsu worm gear as a professional OEM supplier solution for workshops, contractors, resellers, and fleet operators who need dependable support for transmission and drive components.

Worldwide delivery in 5 working days

Fast delivery is critical when a grader is waiting for repair or a fleet needs urgent service planning. We deliver all over the world in 5 working days.

OEM supplier approach

We supply professional replacement solutions for heavy machinery buyers who need reliable fitment-focused sourcing.

Heavy machinery specialization

Our marketplace is built around spare parts for construction and industrial equipment, so buyers get a product offering shaped around real equipment needs.

Export-ready support

International buyers need clear communication, practical supply handling, and dependable fulfillment. That is part of how we support Komatsu spare parts customers globally.

SEO Strategy for This Product Page

To keep the keyword density in a healthy range, the page should not repeat one exact phrase excessively. Instead, it should combine the main keyword with natural supporting variations such as:

23B7015150
23B-70-15150
Komatsu worm gear
Komatsu grader worm
gear worm Komatsu
Komatsu circle reverse gear part
Komatsu grader transmission component

This structure helps the page rank for multiple real-world search patterns while keeping the content readable for buyers. It also reduces the risk of over-optimization, which is especially important for long-form product pages designed for both Google and Search GPT.

Detailed Product Overview for Buyers

The 23B7015150, 23B-70-15150 WORM KOMATSU is a specialized grader gear used in a precision-sensitive working system. It is not the kind of part buyers replace casually. When it is needed, it usually matters because the machine’s circle reverse gear area must operate smoothly and predictably. That makes this product valuable to customers who understand grader maintenance and want a part listing that reflects real machine function rather than generic wording.

From an e-commerce perspective, this is exactly the kind of heavy-equipment part that benefits from a strong SEO structure. Buyers search by number, by machine model, by product type, and sometimes by function. Some will type 23B7015150, others will type 23B-70-15150 worm, and others may search for Komatsu grader worm gear. A strong product page must capture all of those entry points while still making technical sense to the person reading it.

Final Summary

The 23B7015150, 23B-70-15150 WORM KOMATSU is a Komatsu GEAR, WORM used in the circle reverse gearassembly of multiple motor grader models. Public catalog data identifies it as a grader drive component with a listed weight of 6.030 kg, while overlapping model references connect it with grader families such as GD305A-1A, GD510R-1, GD511A-1, GD521A-1, GD525A-1C, GD611A-1, GD621A-1, GD621R-1, GD623A, GD661A, GD655, and GD675, depending on catalog source and machine version.

For buyers who need a professional product listing, this part should be positioned as a high-value Komatsu grader worm gear that supports precise mechanical engagement in the circle reverse gear system. At 3GEN Export, we supply this product as an OEM supplier and deliver all over the world in 5 working days.

Weight in KG

6.03 kg

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
