2532740 PIN TRACK MASTER CATERPILLAR

253-2740 Undercarriage Master Pin for Track Chain Systems

The 2532740 PIN TRACK MASTER CATERPILLAR is a critical undercarriage component designed to connect and secure track chain links in heavy machinery operating under extreme load and abrasive conditions. This part functions as the master connection point within the track system, allowing controlled assembly, disassembly, and stable power transmission across the undercarriage.

Manufactured for durability, dimensional accuracy, and long service life, this master pin plays a decisive role in maintaining track alignment, reducing vibration, and ensuring smooth machine movement. In crawler-type equipment where ground contact, traction, and load balance are essential, the reliability of the master pin directly affects productivity and operational safety.

Supplied by 3GEN Export as an OEM-standard undercarriage solution, the 253-2740 PIN TRACK MASTER CATERPILLAR is available with worldwide delivery in just 5 working days, supporting fleets and service centers across global markets.

What Is a Track Master Pin and Why It Matters

A track master pin is the primary locking element used to join track links and complete the track chain loop. Unlike standard track pins, the master pin is designed for controlled removal and installation during undercarriage maintenance, making it a service-critical component.

The 2532740 PIN TRACK MASTER CATERPILLAR ensures that track links remain firmly connected while allowing technicians to open the chain without damaging surrounding components. This balance between strength and serviceability is essential for minimizing downtime during track replacement or inspection procedures.

Without a properly engineered master pin, track systems are exposed to misalignment, uneven load distribution, and accelerated wear across sprockets, rollers, and bushings.

Application Areas of the 253-2740 PIN TRACK MASTER CATERPILLAR

This component is used extensively in crawler-type machines operating in demanding environments, including:

• Excavators working in rock, soil, and mixed terrain

• Dozers performing continuous pushing and grading operations

• Track loaders exposed to high torque and side loads

• Heavy construction and mining machinery with steel track systems

• Earthmoving equipment operating under high impact cycles

The 2532740 PIN TRACK MASTER CATERPILLAR is engineered to withstand repetitive shock loads, torsional stress, and constant surface contact without compromising dimensional stability.

Design Characteristics Observed from the Product Images

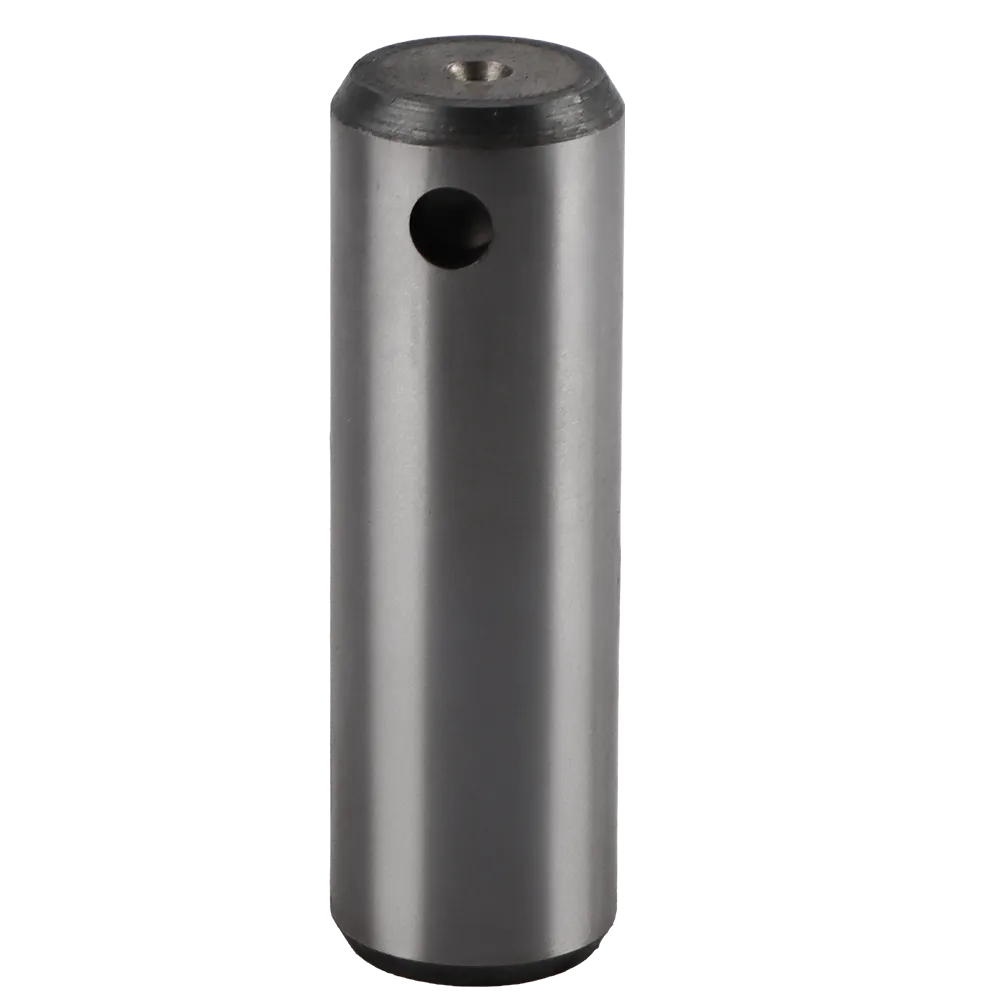

Based on the provided images, the master pin features a precision-machined cylindrical body with a polished external surface and a central lubrication or locking bore. The chamfered edges support easier insertion during installation, while the uniform diameter ensures consistent pressure distribution across track links.

The internal bore and side hole visible in the images indicate compatibility with locking mechanisms or lubrication pathways commonly used in heavy-duty undercarriage systems. This design supports reduced friction during operation and easier service intervention when required.

Material Structure and Manufacturing Quality

The 253-2740 PIN TRACK MASTER CATERPILLAR is produced from high-strength alloy steel selected for its resistance to:

• Surface fatigue

• Shear stress

• Impact deformation

• Abrasive wear

Advanced heat treatment processes improve core toughness while maintaining a hardened outer surface. This combination allows the pin to absorb extreme loads without cracking, bending, or premature surface degradation.

Precision machining ensures tight tolerances, which is essential for maintaining correct track pitch and preventing uneven wear across the undercarriage.

Role in Undercarriage Performance and Machine Stability

The track system is one of the most heavily stressed assemblies in crawler machinery. Every movement transfers force through the track pins, bushings, and links. The 2532740 PIN TRACK MASTER CATERPILLAR serves as a structural anchor point, ensuring that power from the drive sprocket is transmitted evenly across the track chain.

By maintaining proper alignment and minimizing play between components, this master pin helps:

• Reduce vibration and noise

• Prevent track derailment

• Improve traction efficiency

• Extend the life of rollers, sprockets, and idlers

Technical Specifications – 2532740 PIN TRACK MASTER CATERPILLAR

General Information

• Part Number: 2532740

• Alternate Format: 253-2740

• Component Type: Track master pin

• Installation Type: Press-fit with service access

• Application: Steel track chain systems

Material & Engineering

• High-strength alloy steel

• Precision-ground external surface

• Heat-treated for wear resistance

• Designed for high-impact, high-load environments

Approximate Weight

• Weight: 9.2 kg

(Weight may vary slightly depending on production batch.)

Compatible CATERPILLAR Models

The 2532740 PIN TRACK MASTER CATERPILLAR is commonly used in undercarriage systems of various Caterpillar machines, including but not limited to:

• Caterpillar D6 Series Dozers

• Caterpillar D7 Series Dozers

• Caterpillar 320 Series Excavators

• Caterpillar 323 Excavators

• Caterpillar 325 Excavators

• Caterpillar Track-Type Loaders

Compatibility may vary depending on undercarriage configuration and serial number range. 3GEN Export can assist with verification upon request.

Installation Guidelines and Best Practices

Correct installation of the master pin is essential for long-term undercarriage performance. The track links must be properly aligned, and press-fit forces should be applied evenly to avoid scoring or deformation.

After installation, locking elements or retention mechanisms should be secured according to the machine’s service manual. Periodic inspection ensures that the 253-2740 PIN TRACK MASTER CATERPILLAR remains seated correctly and free from abnormal wear.

Performance in Harsh Working Conditions

Heavy machinery often operates in environments where dust, mud, moisture, and rock impact are unavoidable. The 2532740 PIN TRACK MASTER CATERPILLAR is designed to maintain structural integrity under these conditions while resisting corrosion and surface damage.

Its robust construction supports long operating cycles in mining, quarrying, infrastructure, and large-scale earthmoving applications.

Maintenance Strategy and Replacement Timing

Routine undercarriage inspections should include checking the master pin for:

• Surface scoring

• Excessive play

• Deformation

• Difficulty during track separation

Replacing the master pin during scheduled undercarriage service helps prevent secondary damage to track links and bushings, reducing overall maintenance costs.

Why Choose 3GEN Export

By sourcing the 2532740 PIN TRACK MASTER CATERPILLAR from 3GEN Export, customers benefit from:

• OEM-standard manufacturing quality

• Consistent dimensional accuracy

• Professional export handling

• Global logistics network

• Worldwide delivery in 5 working days

3GEN Export specializes in supplying heavy machinery spare parts to international markets with speed, reliability, and technical awareness.

Long-Term Cost Efficiency

While small relative to the overall machine, the master pin plays a decisive role in undercarriage longevity. A well-engineered component like the 253-2740 PIN TRACK MASTER CATERPILLAR helps reduce unplanned downtime and protects high-value track assemblies.

Timely replacement and correct installation directly translate into improved machine uptime and operational efficiency.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
