26563568, 265 635 68 PLATE , BASE SANDVIK

$424.00
Brand: Sandvik
Category: Transmission & Drive Components
Part Number: 26563568
Availability: In Stock

Description

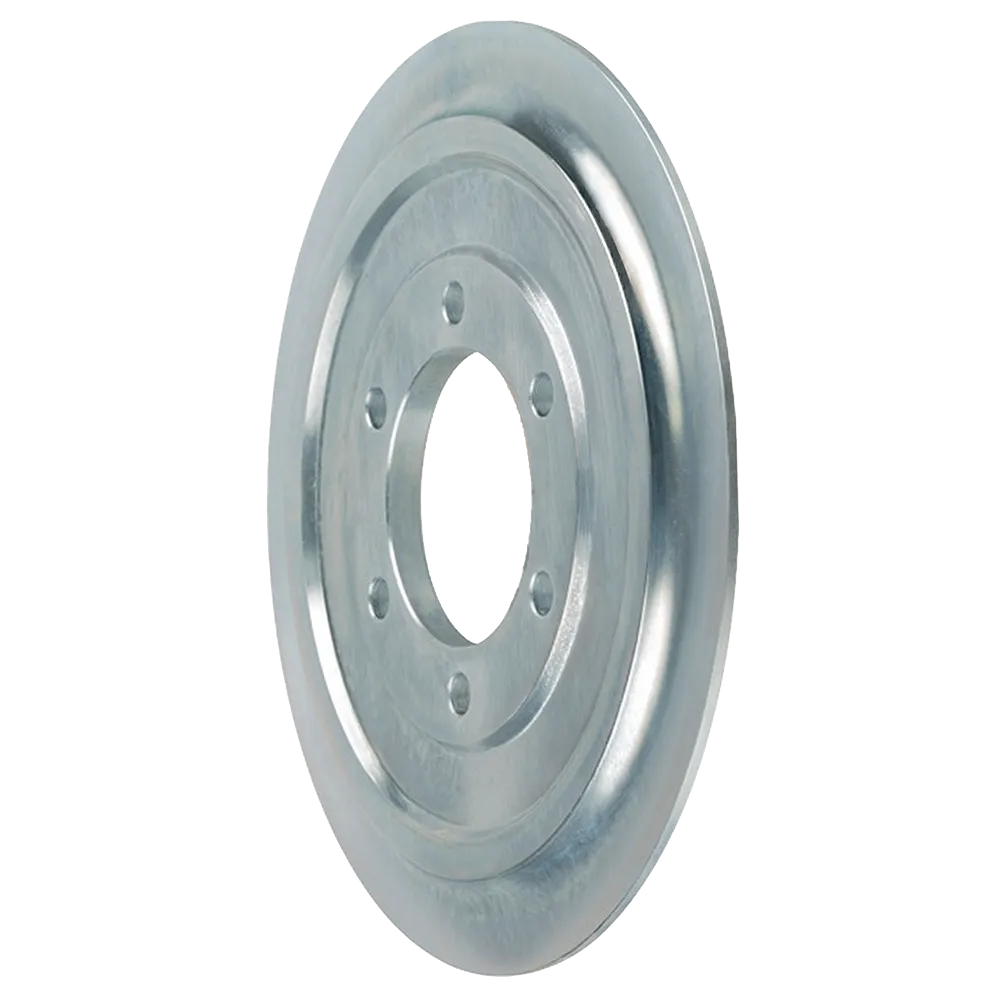

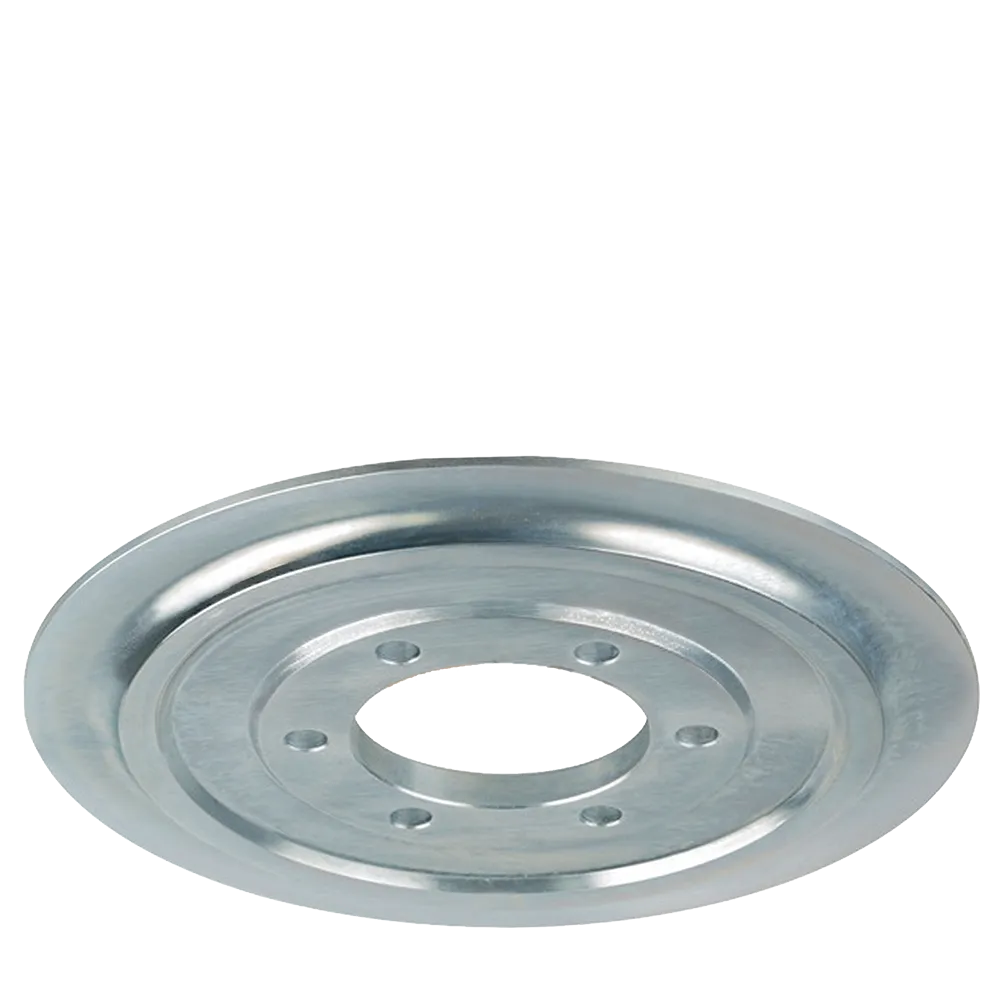

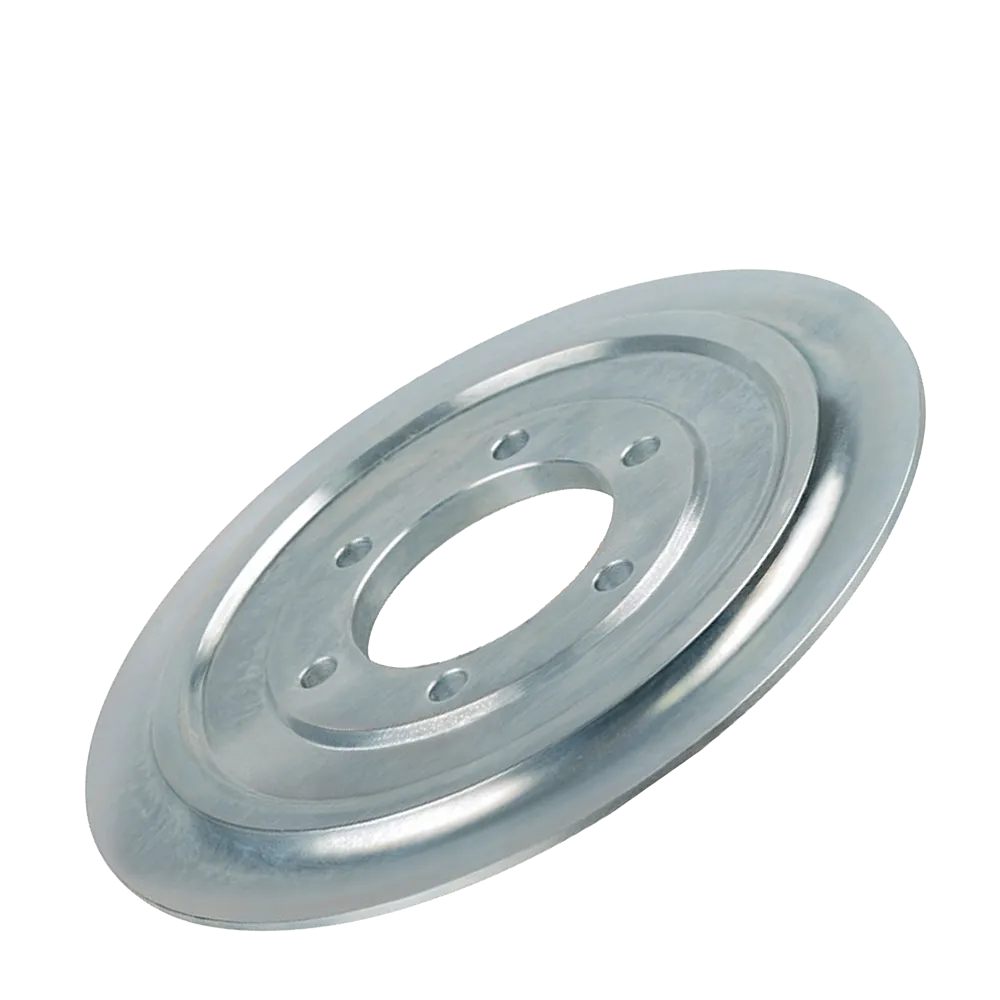

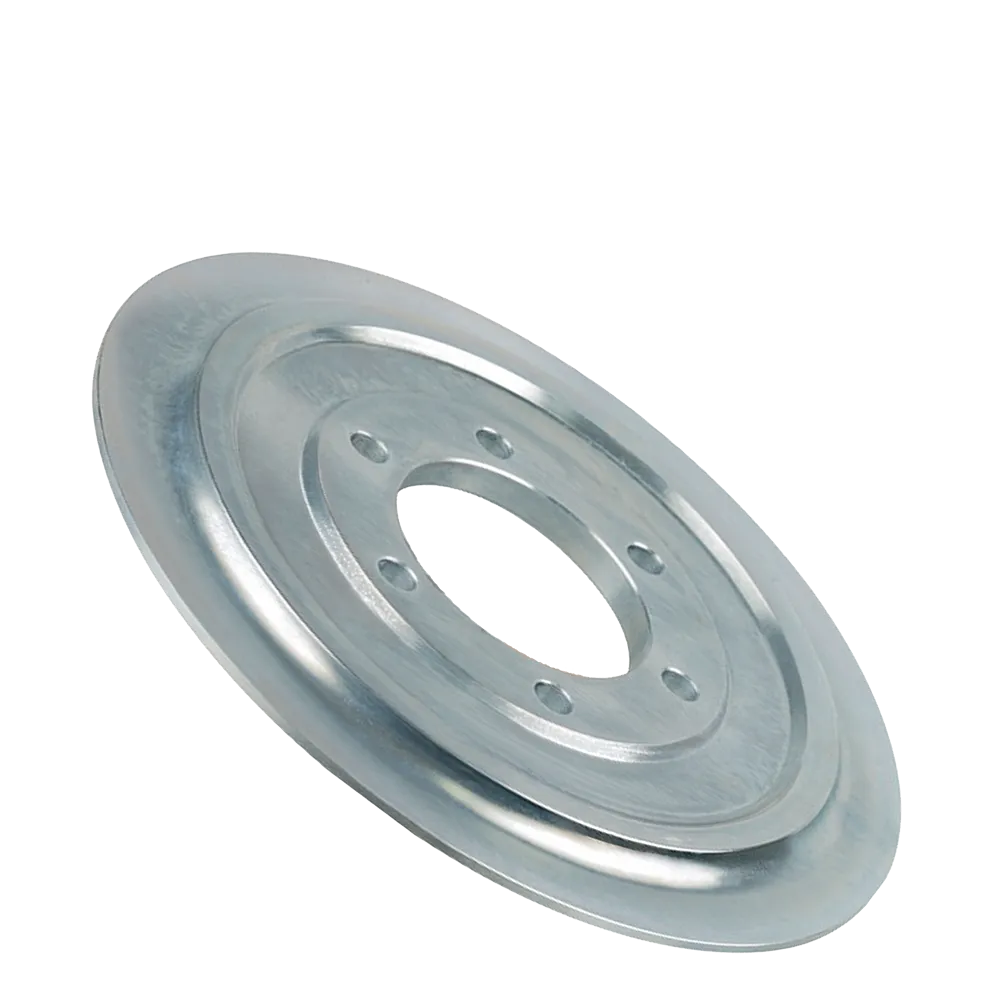

26563568, 265 635 68 PLATE, BASE SANDVIK If you’re running a high-output drilling operation, “small” components are often the ones that quietly decide whether a shift stays productive or turns into a stop-and-fix story. The 26563568, 265 635 68 PLATE, BASE SANDVIK is one of those parts: a precision-machined base plate that supports alignment, load distribution, and stable seating for connected assemblies in Sandvik/Tamrock drilling equipment. When a base plate is even slightly out of spec, the machine doesn’t always fail dramatically at first; it starts whispering through vibration, uneven wear patterns, fastener loosening, and misalignment that slowly eats the life out of nearby components. At 3GEN Export, we supply the 26563568, 265 635 68 PLATE, BASE SANDVIK as an OEM-supply solution manufactured to OEM-level specifications and quality controls for heavy-duty field use. We ship worldwide in 5 working days, so you can keep your machine moving instead of waiting on long lead times. The 26563568, 265 635 68 PLATE, BASE SANDVIK in the images is a circular, formed and machined metal plate with a central bore and multiple evenly spaced mounting holes. This geometry is designed for repeatable positioning, consistent clamping force, and predictable load paths. In drilling rigs, that combination matters because impact loads, torque pulses, and vibration don’t just stress the main components; they stress every interface. What the 26563568, 265 635 68 PLATE, BASE SANDVIK does in the machine A base plate sounds simple until you remember what it has to survive. In rock drilling, you’re dealing with: Constant vibration and resonance Repeated torque cycles Dust contamination Temperature swings High clamp loads around bolted joints Occasional shock loads from tool engagement or jam events The 26563568, 265 635 68 PLATE, BASE SANDVIK is built to act as a stable foundation between connected parts. Depending on the exact assembly location, it can serve one or more of these functions: Provide a flat and true mounting surface for a rotating or stationary subassembly Maintain alignment between mating components by controlling face runout and parallelism Spread clamping forces from fasteners to reduce localized deformation Support seals, guards, covers, or interface rings that rely on correct geometry Reduce vibration transfer by ensuring uniform contact and correct preload distribution Because the 26563568, 265 635 68 PLATE, BASE SANDVIK has a central opening and multiple fastener holes, it’s typically used where a shaft, hub, coupling, or centered component needs clearance while the plate itself remains securely bolted. That’s a very common requirement in drilling equipment: you want access through the center, but you also want the outer ring to lock down reliably. Why base plate accuracy matters more than people think In the field, a worn base plate can hide in plain sight. Operators may replace the “obvious” wear parts first, but if the interface plate underneath is bent, scored, or slightly oval around bolt holes, the new parts still won’t sit correctly. Here’s what commonly happens when a base plate is no longer dimensionally correct: Bolts need frequent re-torque because the contact face is not perfectly flat A rotating component develops micro-wobble, accelerating bearing wear Gaskets or seals start weeping because compression is uneven Bolt holes elongate over time as loads shift and clamp force becomes inconsistent Vibration increases, which then cascades into cracked brackets, fatigued welds, and premature failures nearby Replacing the 26563568, 265 635 68 PLATE, BASE SANDVIK at the right time is often cheaper than repeatedly replacing higher-cost components that are only suffering because the foundation surface is compromised. Build features you can see in the product images From the photos provided, the 26563568, 265 635 68 PLATE, BASE SANDVIK shows several design details that point to heavy-duty interface use: Circular profile for balanced load distribution and consistent centering Central bore for shaft or assembly clearance Multiple evenly spaced mounting holes for stable fastening and repeatable positioning Formed edge / rim profile that adds stiffness and helps resist warping Machined seating surfaces for reliable clamping and face contact That rim profile is especially important. A thin flat plate can flex under clamp loads or vibration. A formed profile increases rigidity dramatically without requiring excessive thickness, which helps maintain geometry under load. Materials and surface protection While exact metallurgy can vary by application batch and assembly requirement, base plates like the 26563568, 265 635 68 PLATE, BASE SANDVIK are typically produced from high-quality steel selected for: Strength under clamp load Resistance to fatigue cracking Dimensional stability after forming/machining Compatibility with protective coatings Many plates in this category are supplied with a corrosion-resistant finish (commonly zinc-based or similar industrial protection) to reduce oxidation in humid, wet, or chemically aggressive mining environments. Surface protection is not cosmetic here; corrosion at the interface can change contact behavior and make future disassembly far harder than it should be. Technical details and practical specifications Because Sandvik/Tamrock parts catalogs can list different measurement variants depending on the rig configuration, the safest way to treat “specs” for a base plate is to focus on functional tolerances and fit requirements rather than guessing exact diameters from photos. Typical functional specifications for a base plate like this Flatness control for uniform clamping Concentricity between central bore and bolt circle Bolt hole position accuracy to prevent stress concentration during installation Surface finish appropriate for seated contact (prevents micro-slip and fretting) Stiffness against deformation under bolt preload Estimated weight Estimated weight: approximately 2.0 kg This is a practical estimate based on the visible geometry and typical steel mass for a formed/machined plate of this type. For precise logistics or inventory control, weight can be confirmed by packing list or direct measurement at dispatch. Where the 26563568, 265 635 68 PLATE, BASE SANDVIK is used Online listings consistently associate this part number with Sandvik/Tamrock drilling equipment, including DT-series rigs and at least one DD-series reference. Based on available parts dealer catalogs, the 26563568, 265 635 68 PLATE, BASE SANDVIK is used with: Tamrock/Sandvik DT820 Tamrock/Sandvik DT821 Sandvik DD321 Because drilling rigs can be configured differently across years and markets, the best practice is to confirm by machine model and serial number, then cross-check the assembly diagram. But if your machine is in the DT820/DT821 family, or the DD321 reference applies to your configuration, the 26563568, 265 635 68 PLATE, BASE SANDVIK is a highly relevant match according to the published catalogs above. Common reasons customers replace this base plate You typically replace the 26563568, 265 635 68 PLATE, BASE SANDVIK for one of these reasons: Bolt holes show elongation or fretting marks The plate face has scoring from debris intrusion The plate has visible warping or “dish” from impact or over-torque A connected assembly keeps loosening even after correct torque procedure Seal surfaces are no longer uniform, causing repeated leaks There is vibration that cannot be corrected by replacing adjacent wear parts In drilling operations, it’s normal to see “secondary damage” when a base plate is neglected. A fresh interface plate can stabilize the entire stack, which is why many maintenance teams treat this part as a smart preventive replacement during major service intervals. Installation guidance for the 26563568, 265 635 68 PLATE, BASE SANDVIK Correct installation is what turns a good part into a reliable repair. Base plates depend on surface contact and correct preload. Preparation Clean the mating surfaces thoroughly: Remove rust, debris, and old gasket material Wipe away oil and dust so the plate seats fully Check the mating face for burrs or raised damage Inspect fasteners and washers: Replace bolts if threads are stretched or corroded Use correct grade fasteners for the application Make sure washers are not cupped or cracked Fit check Before final torque: Place the 26563568, 265 635 68 PLATE, BASE SANDVIK on the mating surface Confirm the bolt pattern aligns smoothly without forcing bolts into position Ensure the plate sits flush with no rocking If the plate rocks, the issue may be the mating surface, not the plate. Correcting that now prevents repeat failures later. Tightening sequence Tighten bolts in a star/cross pattern to distribute clamping load evenly Increase torque in stages rather than going straight to final torque After initial run time, re-check torque if your maintenance procedure requires it (many drilling environments do) Even torque distribution is especially important for circular plates because uneven clamping can introduce distortion and create micro-gaps where fretting begins. Operational benefits when the correct plate is installed Once the 26563568, 265 635 68 PLATE, BASE SANDVIK is installed correctly and paired with sound fasteners and clean mating faces, you typically see real improvements in: Joint stability (less bolt loosening) Reduced vibration transmission through the assembly Better alignment for connected rotating or centered components Longer life for bearings, seals, and adjacent wear parts Easier serviceability during future maintenance cycles This is why base plates are often described as “quiet achievers.” They don’t create power, but they protect the geometry that allows the machine to deliver power efficiently. Why source from 3GEN Export At 3GEN Export, we focus on the same things your maintenance team cares about: Consistent fitment and repeatable geometry OEM-supply manufacturing standards (without using restricted wording) Packaging suitable for export logistics Fast global shipping in 5 working days A supply approach built around minimizing downtime When you order the 26563568, 265 635 68 PLATE, BASE SANDVIK from 3GEN Export, you’re not just buying a metal disc. You’re restoring the reliability of an interface point that directly affects alignment, sealing, vibration behavior, and the lifespan of the components stacked above it. Quick checklist before ordering To ensure the 26563568, 265 635 68 PLATE, BASE SANDVIK matches your machine: Confirm your rig model (DT820, DT821, DD321 references are published) Confirm the bolt count and pattern match your removed part Confirm the central opening size matches your assembly clearance requirement If available, cross-check your parts diagram for the same part number If your removed plate matches the geometry shown in your images and your rig falls into the published model references, you are in the correct direction for fitment. Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
