3128078549 / 3128 0785 49 HOLDER ATLAS COPCO

When you’re running a rock drilling fleet, the small “holding” parts are often the silent reason a machine stays tight, aligned, and dependable shift after shift. The 3128 0785 49 HOLDER ATLAS COPCO is one of those parts: a precisely machined holder designed to secure and position a related component in the structure of an Atlas Copco drilling rig system. In practice, the 3128 0785 49 HOLDER ATLAS COPCO helps keep assemblies stable against vibration, impact, and repetitive load cycles—exactly the kind of punishment underground and surface drilling equipment sees every day.

Because rigs are built around modular sub-assemblies, a holder like 3128 0785 49 HOLDER ATLAS COPCO is not just “a metal block.” It is a locating and fastening interface. Its geometry (machined faces, elongated mounting slots, and retaining features) is designed so that installation can be aligned correctly, torque can be held consistently, and the supported component stays where it is supposed to stay. That reliability matters for operator safety, predictable drilling performance, and the long-term cost of ownership.

At 3GEN Export, we supply the 3128 0785 49 HOLDER ATLAS COPCO as an OEM supplier part with fast global logistics—worldwide delivery in 5 working days—so you can keep downtime short and maintenance planning simple.

What the 3128 0785 49 HOLDER ATLAS COPCO Does in Real Working Conditions

A drilling rig is basically a controlled vibration factory: percussion energy, rotation, hydraulic pulsation, and structural resonance all occur at once. If a supported item shifts by even a few millimeters, you can end up with:

• abnormal wear patterns

• loosening fasteners

• misalignment that transfers stress into adjacent parts

• noise and vibration felt by the operator

• reduced consistency in drilling output

The 3128 0785 49 HOLDER ATLAS COPCO is built to reduce those risks by providing a rigid, repeatable seat and fastening footprint. The elongated slots visible in the holder’s body allow controlled adjustment during installation, which helps technicians align the assembly during service work. After alignment, the holder locks down firmly, resisting micro-movement that can otherwise “walk” parts out of place over time.

If your maintenance team has ever chased repeated loosening, uneven wear, or fitment problems in an assembly that should be stable, a properly specified and correctly installed 3128 0785 49 HOLDER ATLAS COPCO can be the difference between “fixing symptoms” and restoring the system’s original, intended geometry.

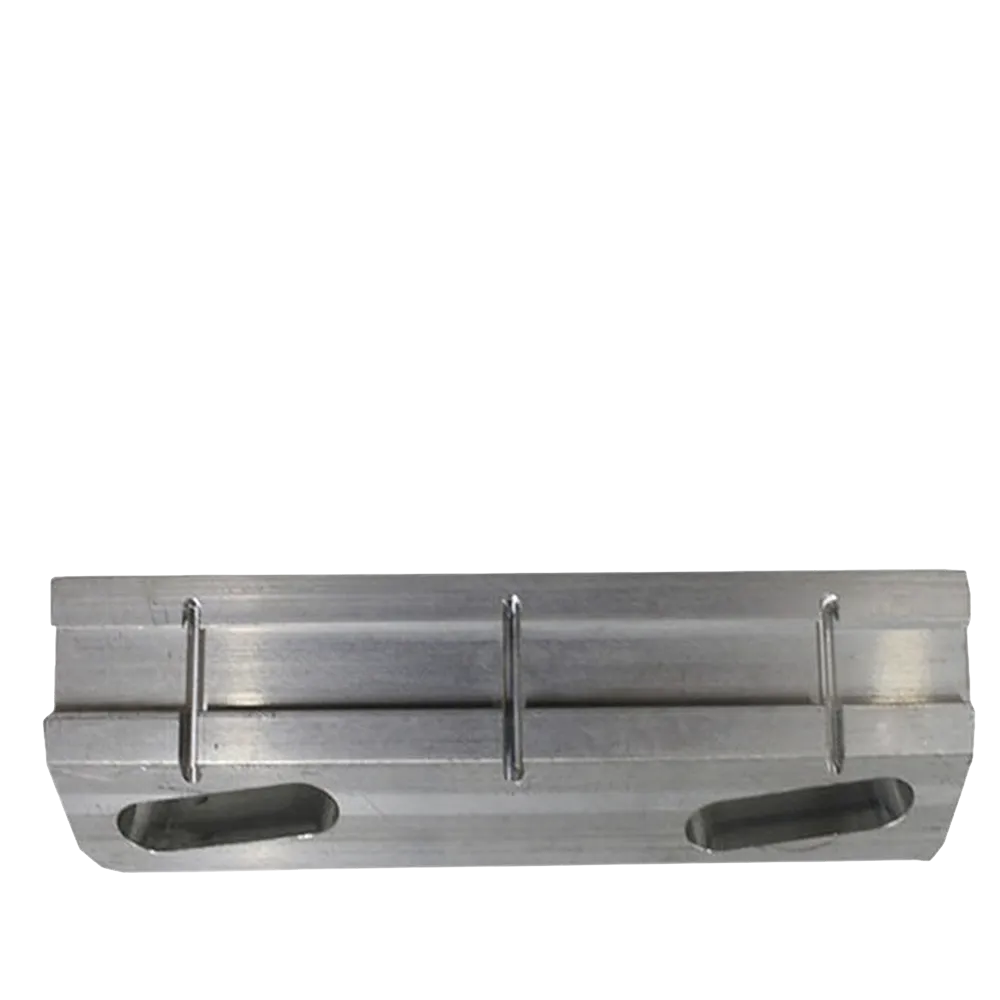

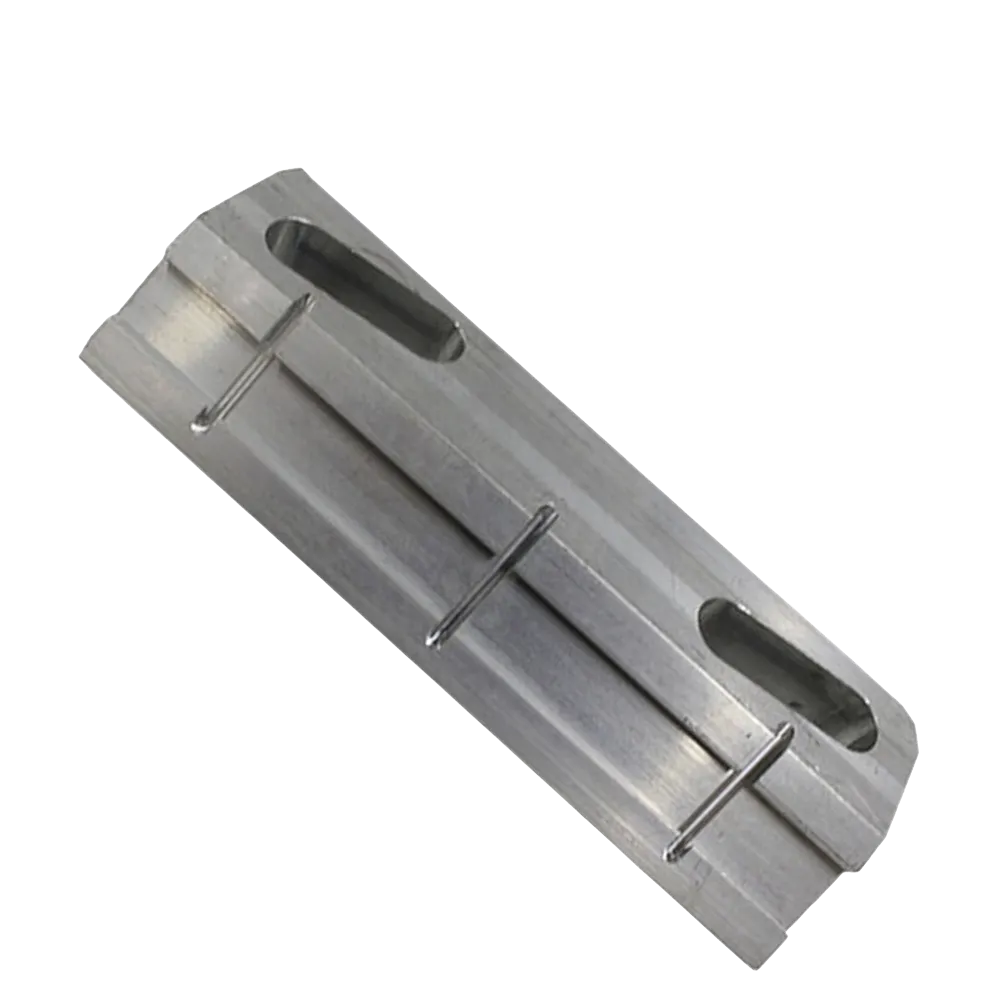

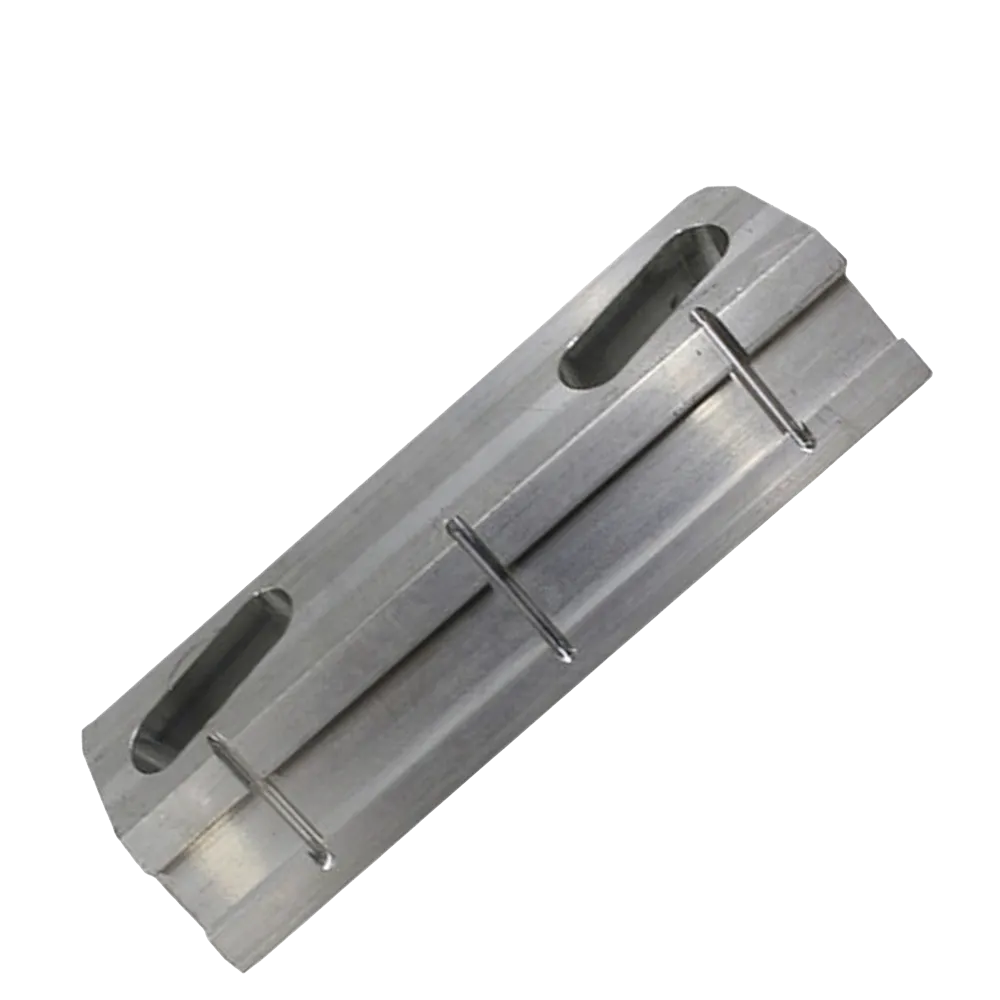

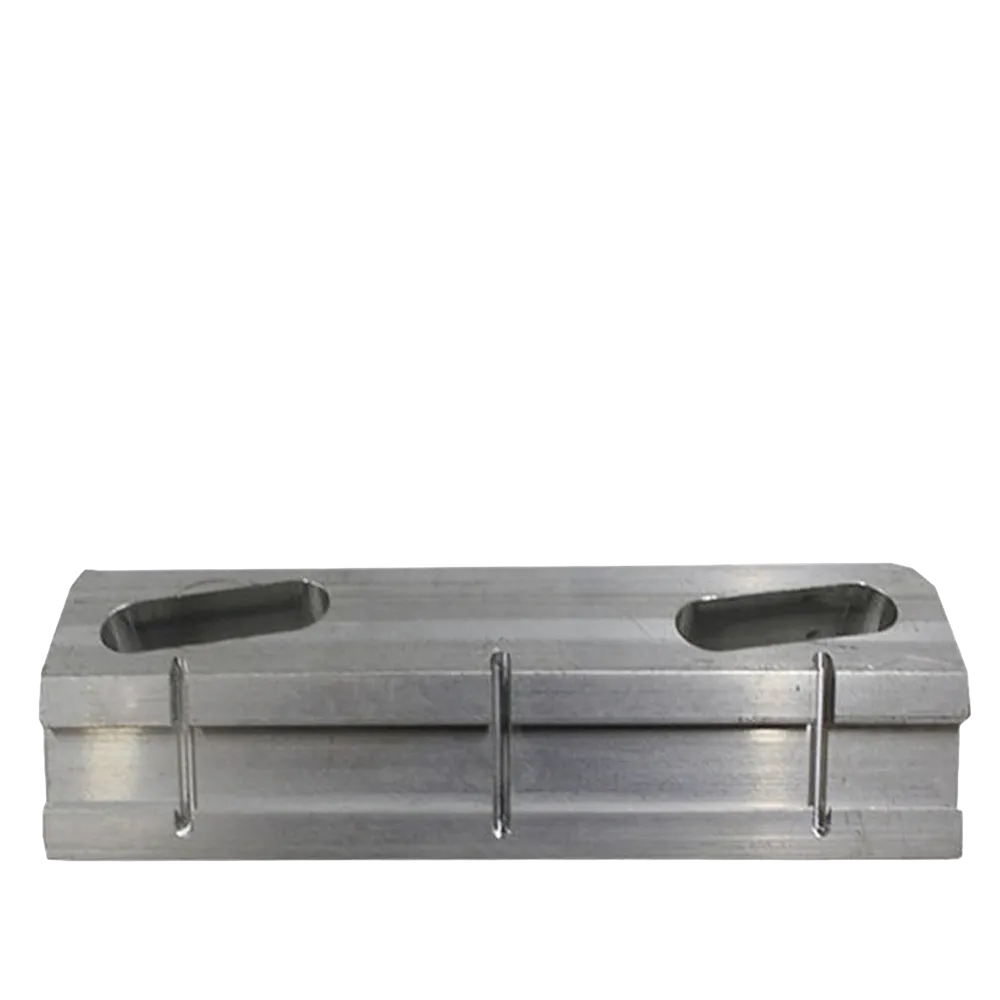

Key Visual / Design Features (Based on the Part Geometry)

From the part’s visible construction, the 3128 0785 49 HOLDER ATLAS COPCO typically includes:

• A machined metal body with clean faces for stable seating

• Two elongated mounting slots designed for adjustable positioning and secure bolting

• Retaining wire/clip features across the face (used to keep a mating component secured and prevent shifting under vibration)

• A profile that supports alignment and consistent contact across the assembly

This layout is common on holders used in drilling rigs because it combines adjustability (for correct fitment) with rigidity (to keep that fitment stable).

Compatible Atlas Copco Models (Where This Part Is Commonly Referenced)

Supplier listings and parts-catalog references commonly associate 3128 0785 49 HOLDER ATLAS COPCO with Atlas Copco rock drilling equipment families such as:

• Boomer 104

• Boltec 235

• Roc D55

• Boomer MD (referenced in spare parts catalogue documentation)

Important note for accuracy: drilling rigs can have configuration differences by serial range, region, and upgrade kits. The safest verification method is always your machine’s serial number + parts manual cross-check. If you share the rig model and serial range, your team can confirm the exact fitment quickly.

Technical Details and Specifications (Practical, Service-Oriented)

Because holders are interface parts, their “specs” are less about flashy numbers and more about fit, stability, and machining correctness.

Typical specification profile

• Product name: 3128 0785 49 HOLDER ATLAS COPCO

• Alternative format / PN: 3128078549, 3128 0785 49

• Part type: Machined holder / mounting holder

• Mounting: Slotted bolt holes for alignment and fastening

• Function: Secures and positions a related assembly component

• Application environment: High vibration, abrasive, high-duty drilling conditions

Weight

Based on supplier listing information, the approximate weight is 0.5 kg (may vary slightly by production revision and packaging method).

Why the 3128 0785 49 HOLDER ATLAS COPCO Matters for Performance

A holder is often treated as “hardware,” but functionally it’s closer to a precision positioning part. Here’s what the 3128 0785 49 HOLDER ATLAS COPCO supports in daily operation:

1) Consistent alignment under load

In drilling equipment, alignment affects wear rate, energy transfer, and assembly life. A properly seated 3128 0785 49 HOLDER ATLAS COPCO helps keep the supported item in the correct position so loads remain distributed as designed.

2) Reduced fastener fatigue and loosening

Micro-movement is the enemy of bolted joints. When an assembly can shift, the bolts see cyclic stress that encourages loosening. The 3128 0785 49 HOLDER ATLAS COPCO provides a stable contact footprint that reduces that “movement-starts-loosening-starts-more-movement” chain reaction.

3) Better maintenance predictability

Uncontrolled vibration-driven wear is messy: it can show up in unpredictable places. By restoring the correct holding interface, the 3128 0785 49 HOLDER ATLAS COPCO helps the rest of the assembly wear in a more expected, serviceable pattern.

4) Protection of adjacent components

When an assembly shifts, it tends to transfer stress into neighboring parts—brackets, plates, housings, hoses, or protective covers—creating secondary failures. A correct 3128 0785 49 HOLDER ATLAS COPCO reduces that risk.

Common Failure or Replacement Triggers

Even a robust holder can eventually need replacement, especially when machines run continuously in aggressive ground conditions. Common reasons to replace 3128 0785 49 HOLDER ATLAS COPCO include:

• Slot deformation from repeated over-torque or impact loading

• Wear on seating faces that reduces clamping stability

• Damage to retaining features (clip/wire retention points bent or fatigued)

• Distortion after an incident (shock load, collision, jam, or misalignment event)

• Recurring looseness that persists after correct torque procedure—often a sign the holder’s interfaces are no longer true

If technicians keep retightening and the problem comes back, replacement is often more cost-effective than repeated downtime.

Installation Guidance (Field-Friendly)

Below is a practical installation approach for the 3128 0785 49 HOLDER ATLAS COPCO that fits most slotted-holder applications. Always follow your rig’s official procedure if it specifies torque values or alignment methods.

Step 1: Safety and access

• Lockout/tagout (or your site’s equivalent).

• Clean access around the mounting area.

• Make sure the supported component is properly supported before removing the old holder.

Step 2: Remove the old holder

• Mark the existing position if alignment matters.

• Loosen fasteners evenly.

• Remove the holder and inspect bolts, washers, and mating surfaces.

Step 3: Inspect mating surfaces

• Remove debris, hardened dust, rust, or burrs.

• Check for scoring, step wear, or cracks on the mounting base.

• Confirm the supported component is not damaged (otherwise the new holder will inherit the same problem).

Step 4: Test fit the new 3128 0785 49 HOLDER ATLAS COPCO

• Place the 3128 0785 49 HOLDER ATLAS COPCO in position and confirm full contact on seating faces.

• Use the slots to align the supported component exactly where it needs to be (centerline, clearance, parallelism).

Step 5: Torque correctly

• Tighten progressively and evenly.

• If your procedure requires threadlocker or specific bolt grades, follow that exactly.

• After initial run-in, re-check torque at the next service interval (especially in high vibration zones).

Step 6: Final check

• Confirm no binding, rubbing, or contact with moving parts.

• Confirm retainers/clips are properly seated and not under stress.

Maintenance Tips to Extend Holder and Assembly Life

To keep the 3128 0785 49 HOLDER ATLAS COPCO working like it should:

• Keep mounting faces clean during service—debris under a holder creates misalignment and uneven clamping.

• Avoid over-torque—it can deform slots and reduce long-term stability.

• Check for early movement signs (polished rub marks, unusual dust patterns, repeated loosening).

• Replace worn fasteners—bolts and washers are part of the clamping system, not just “hardware.”

• Watch for vibration sources—misalignment elsewhere in the system can destroy a holder prematurely.

Purchasing Notes: Part Number Formats and Search Visibility

To help your buyers, technicians, and search systems find this part quickly, this product should be indexed under multiple PN formats:

• 3128078549

• 3128 0785 49

• 3128 0785 49 HOLDER ATLAS COPCO

• 3128078549 HOLDER ATLAS COPCO

Using both spaced and unspaced formats is important because maintenance logs, vendor lists, and parts catalogues don’t always follow the same convention.

Why Order from 3GEN Export

When downtime is expensive, procurement speed matters as much as technical correctness. 3GEN Export supplies the 3128 0785 49 HOLDER ATLAS COPCO as an OEM supplier part and supports international shipping workflows built for industrial spare parts—so your maintenance team gets what they need without long lead times.

• OEM supplier sourcing approach

• Export-ready packaging and documentation

• Worldwide delivery in 5 working days

• Support for part-number verification using your machine details

FAQ

Is 3128078549 the same as 3128 0785 49?

Yes—these are two common formatting styles for the same part number family used in listings and catalog references.

Which rigs use the 3128 0785 49 HOLDER ATLAS COPCO?

It is commonly referenced in supplier listings and spare-parts documentation connected to rigs like Boomer 104, Boltec 235, Roc D55, and Boomer MD.

What is the weight?

Supplier listing data indicates an approximate weight of 0.5 kg (revision/packaging can affect the exact number slightly).

Can I install it without alignment steps?

You can, but you shouldn’t. The slots exist for a reason: alignment helps prevent premature wear and repeat loosening.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
