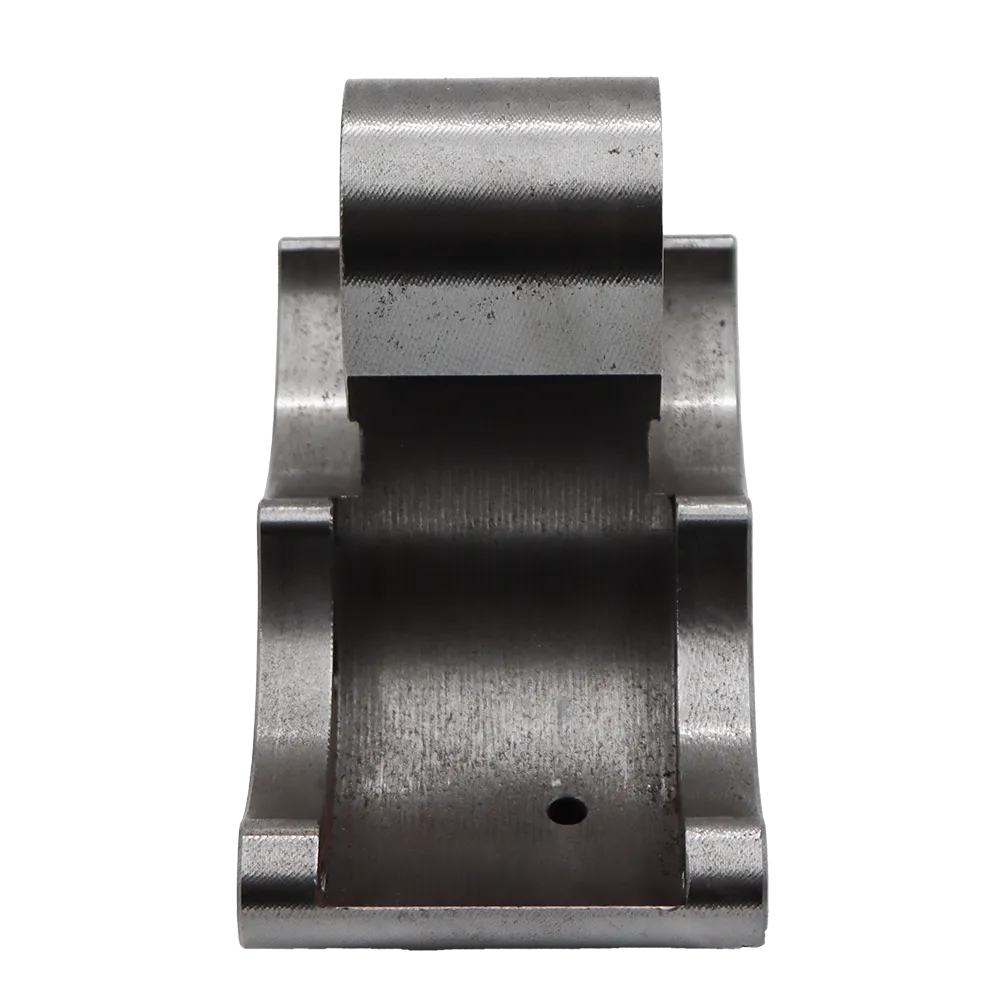

3128240300 – 3128 2403 00 JAW ATLAS COPCO

The 3128 2403 00 JAW ATLAS COPCO is a precision-engineered structural component designed to ensure reliable gripping, clamping, and alignment inside high-performance ATLAS COPCO hydraulic and pneumatic rock drilling systems. Its geometry, surface treatment, load-carrying capability, and long-cycle durability make it one of the most critical elements in the entire drill rig mechanism. Whether the machine is operating in mining, tunneling, quarrying, or large-scale construction, the jaw plays an essential role in stabilizing components under continuous vibration, shock loads, dust exposure, and extreme working pressures.

This product has been meticulously developed to provide dependable mechanical engagement within the drifter assembly. In ATLAS COPCO systems, the 3128 2403 00 JAW ATLAS COPCO typically works in conjunction with moving pistons, sleeves, guides, and structural housings. It must endure repetitive cycles while maintaining dimensional stability, resisting micro-abrasion, and securing critical alignment tolerances.

3GEN Export supplies the 3128240300 JAW as a high-grade OEM-level spare manufactured to match the material strength, tolerances, and longevity required by ATLAS COPCO drilling engineers. Our strict machining standards and surface finishing methods ensure that each jaw provides excellent functionality with minimal maintenance intervals.

Below, you will find a deeply detailed technical, mechanical, and operational analysis designed for engineers, procurement specialists, machine rebuilders, and drilling experts requiring an in-depth understanding of the part.

Role of the 3128 2403 00 JAW ATLAS COPCO in Drilling Machinery

The 3128 2403 00 JAW ATLAS COPCO serves as a fixed and load-bearing anchoring component inside the drifter’s mechanical architecture. In rock drills, jaws are typically used to:
• Support and secure guide bushing assemblies
• Absorb axial and radial forces during piston strikes
• Maintain alignment of rotating or reciprocating components
• Reduce structural deflection under vibration
• Provide precise seating surfaces for internal mechanisms

In heavy rock-drilling systems, all structural parts are exposed to intense stress conditions. Jaw components must therefore tolerate:
• Thousands of per-minute vibration cycles
• High-impact forces from striker pistons
• Cyclic torque loads
• Fine dust, moisture, and temperature fluctuations
• Constant metal-to-metal micro-contact

If a jaw loses rigidity, alignment is compromised. This creates uneven wear in shank adapters, piston rods, rotation units, and guides. Over time, it may lead to catastrophic damage. The 3128240300 JAW prevents such failures by providing stable geometric equilibrium for the entire assembly.

Material Engineering Characteristics

The 3128 2403 00 JAW ATLAS COPCO is produced from high-strength alloy steel that has undergone a series of critical metallurgical treatments:
• Forging for improved grain structure
• Precision CNC machining for dimensional tolerance
• Heat-treating for increased hardness and fatigue resistance
• Surface finishing to reduce friction and wear
• Micro-polishing to improve contact stability

These processes enhance:
• Structural rigidity
• Impact resistance
• Wear life
• Tensile strength
• Surface hardness in critical load zones

The multi-contour geometry of the jaw provides optimized distribution of compressive forces. Each internal radius, machined edge, and mounting point is intentionally designed to resist shearing and deformation even under extreme mechanical load.

Dimensional Performance and Mounting Stability

The 3128 2403 00 JAW ATLAS COPCO includes several precisely machined mounting holes and contact surfaces. These ensure:
• Easy integration into the drifter structure
• Accurate positioning of the adjoining shaft or guide
• High resistance to displacement under load
• Stable surface-to-surface contact with the machine frame

The mounting holes are aligned for balanced load transmission. Incorrect positioning or counterfeits can create misalignment of key components like pistons, bearings, and sleeves. The 3128240300 JAW guarantees consistent machine geometry.

Mechanical Behavior Under Heavy-Duty Applications

In mining and tunneling, machine heads may operate continuously for long shifts—often in conditions involving:
• Shock impacts
• Abrasive dust
• Water flushing
• Hydraulic surges
• Extreme temperature variations

The 3128240300 – 3128 2403 00 JAW ATLAS COPCO withstands these conditions due to:
• Reinforced architecture
• High load-bearing walls
• Stress-relieved sections that prevent crack propagation
• Optimized mass distribution for vibration control

Its reinforced central curvature acts as a structural shield, balancing internal machine forces and reducing wear on surrounding components.

Compatibility With ATLAS COPCO Models

The 3128 2403 00 JAW ATLAS COPCO is typically used in the following rock drill models:

• ATLAS COPCO COP 1838
• ATLAS COPCO COP 1038
• ATLAS COPCO COP 1132
• ATLAS COPCO COP 1838ME
• ATLAS COPCO COP 1638
• ATLAS COPCO Tunneling and Quarrying Drill Families (varies by configuration)

If you require confirmation for a specific drill type, 3GEN Export provides compatibility verification support for all technical inquiries.

Technical Specifications

• Part Name: 3128 2403 00 JAW ATLAS COPCO
• Part Number: 3128240300
• Category: Drifter Structural Component
• Material: High-strength alloy steel
• Manufacturing: Precision CNC + Heat Treatment
• Weight: 1.75 KG (±5%)
• Function: Alignment and load-bearing support inside drilling assemblies
• Application: Mining, Tunneling, Quarrying, Civil Engineering

Each unit undergoes strict dimensional verification to ensure maximum performance in demanding field conditions.

Operational Benefits

Extended Component Lifespan

Proper structural stability reduces wear on adjacent parts, including bushings, drivers, bearings, sleeves, and pistons.

Reduced Maintenance Costs

A stable alignment means fewer breakdowns and fewer replacements of surrounding components.

Improved Machine Efficiency

A well-seated jaw ensures smoother piston travel, stable impact energy transfer, and reduced vibration.

Lower Vibrational Fatigue

Vibration dampening lowers operator fatigue, increases tool life, and keeps drilling power consistent.

Why Choose 3GEN Export OEM Supply?

3GEN Export provides world-class OEM-level spare parts for heavy machinery. Customers working in mining, drilling, construction, and tunneling trust our precision-machined components because they deliver consistency, safety, and extended operational life.

When ordering the 3128 2403 00 JAW ATLAS COPCO from 3GEN Export, you receive:
• OEM-grade metallurgy and precision
• Perfect dimensional tolerance
• Global delivery within 5 working days
• Strict quality assurance
• Competitive international pricing
• Reliable after-sales support

Our supply chain is engineered for fast response, making 3GEN Export the preferred partner for B2B procurement teams and drilling professionals worldwide.

Installation & Maintenance Recommendations

Before Installation

• Verify the mounting surfaces are clean and free from foreign particles
• Confirm correct orientation using your machine’s technical manual
• Perform compatibility check with associated components

During Installation

• Tighten bolts to manufacturer torque specifications
• Ensure the jaw is seated flush against the frame
• Align with piston and guide components

After Installation

• Recheck torque after first operation cycle
• Monitor for early signs of misalignment
• Inspect periodically during maintenance intervals

Proper installation ensures the 3128240300 JAW performs flawlessly over extended cycles.

Conclusion

The 3128 2403 00 JAW ATLAS COPCO is an essential high-strength component that plays a critical role in stabilizing and supporting drilling mechanisms under extreme loads. With its reinforced geometry, precision machining, and industrial-grade metallurgy, it ensures long-term operational reliability in harsh mining and tunneling environments.

Supplied exclusively by 3GEN Export as an OEM-level product with worldwide delivery in 5 working days, this part is the ideal choice for machine rebuilders, drilling contractors, and procurement departments demanding superior performance and long-term durability.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
