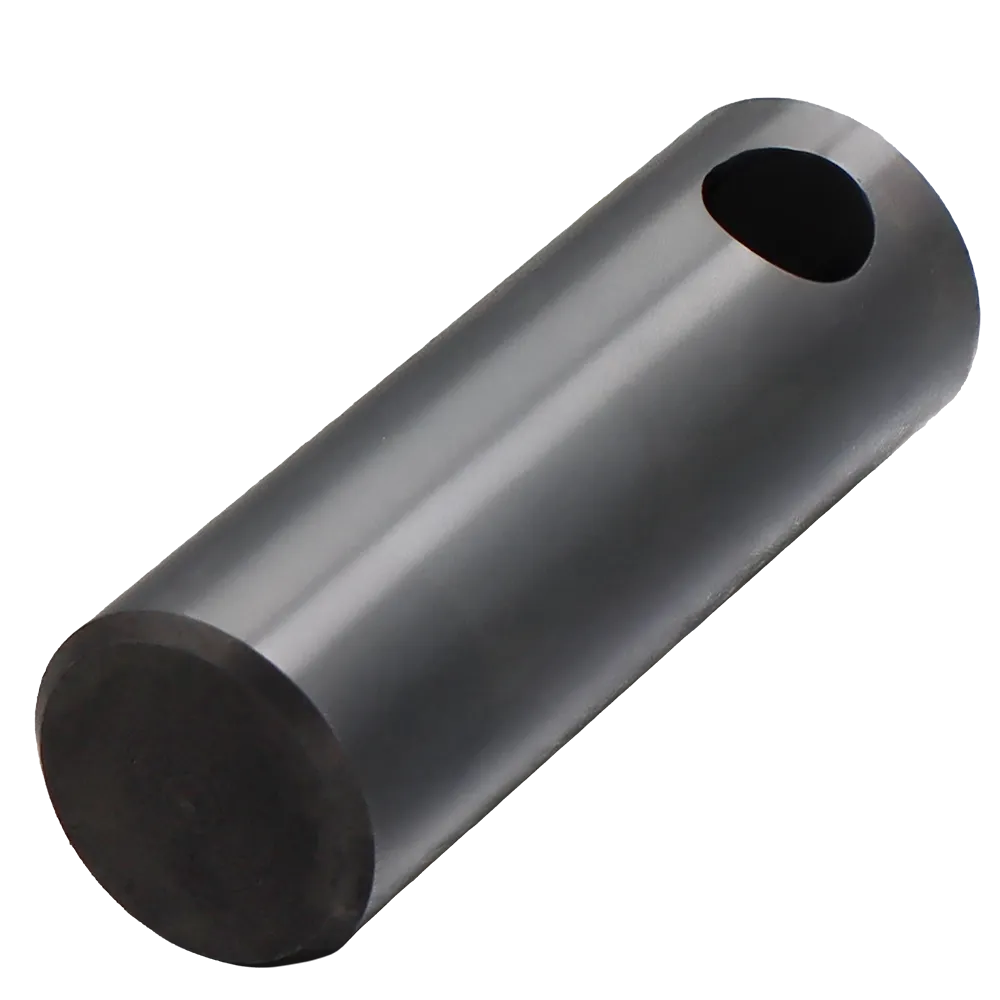

3216294900, 3216 2949 00 PIN ATLAS COPCO

Description

3216294900 – 3216 2949 00 PIN ATLAS COPCO 3216 2949 00 PIN ATLAS COPCO – Precision-Machined Rock Drill Pin for High-Performance Drifters The 3216 2949 00 PIN ATLAS COPCO is a core structural and guiding component engineered for the heavy-duty internal assemblies of ATLAS COPCO hydraulic drifters. Manufactured with extremely tight tolerances, this pin plays a crucial role in maintaining alignment, impact stability, and movement precision inside the drifter’s percussion and rotation system. Designed to withstand the brutal dynamics of rock drilling and mining operations, the 3216294900 pin ensures that the drifter operates with maximum efficiency, minimal vibration, and long-term structural stability under sustained high-impact loads. As an internal mechanical element, this pin is exposed to repetitive shock frequencies, rotational forces, lubrication cycles, and sliding contact. For this reason, 3GEN Export supplies this component using only high-grade alloy steels, controlled heat-treating cycles, and perfectly polished machining lines , guaranteeing that every pin reliably fits into its designated bore with the correct interference tolerance and alignment accuracy. Whether you operate a quarry, mining fleet, tunneling project, or drilling contractor, the 3216 2949 00 PIN ATLAS COPCO ensures your drifters run smoother, last longer, and maintain consistent striking energy. With ATLAS COPCO drifters frequently running thousands of percussive cycles per minute, even a small deviation or worn pin can cause misalignment, accelerated wear, and expensive system downtime. This makes the replacement of internal pins one of the most critical predictive-maintenance tasks in rock drilling. What the 3216 2949 00 PIN Does Inside Your ATLAS COPCO Drifter The 3216 2949 00 pin is used in the internal guiding, retention, or connection assemblies within ATLAS COPCO drifters. Depending on the drifter model, this pin may serve one or more of the following structural and functional purposes: 1. Alignment Control This pin helps maintain the internal alignment of moving assemblies such as: Piston guides Housing brackets Rotation sleeves Shuttle or valve cages Proper alignment ensures that the piston moves linearly and that rotation torque remains stable during drilling. 2. Structural Retention The 3216 2949 00 pin also functions as a retention element, preventing internal components from rotating, drifting, or loosening under shock loads. Drifters operate at impact frequencies exceeding 50–60 Hz , making internal retention absolutely critical. 3. Vibration Absorption Assistance Because the pin is made of heat-treated alloy steel, it absorbs a portion of the micro-vibrational energy within the drifter body, reducing fatigue stress and prolonging the lifespan of mating components. 4. Lubrication and Flow Integration (via Side Bore Hole) The hole machined through the pin is a functional feature used for: Grease passage Oil flow distribution Ventilation Retainer-bolt engagement This precise geometry ensures the lubrication circuit remains continuous, preventing dry-running conditions that could lead to premature scoring or galling. Material Engineering & Manufacturing Quality The 3216 2949 00 PIN ATLAS COPCO is manufactured using a multi-stage industrial process that ensures maximum durability: High-Carbon Alloy Steel Construction Selected specifically for rock-drill requirements, the alloy delivers: High tensile strength Excellent fatigue resistance Superior sliding-surface durability Hardness retention under heat Heat Treatment Process Each pin undergoes: Induction hardening Core stabilization Tempering at controlled temperatures This process produces: A tough, impact-resistant core A hardened exterior surface Perfect microstructural consistency CNC Machining to Micron-Level Precision To ensure perfect compatibility, 3GEN Export supplies pins with: Perfectly centered lubrication/retention bores Burr-free edges Strict tolerance within ATLAS COPCO specifications Precision-ground outer diameter This ensures zero misalignment during installation. Why the 3216 2949 00 PIN Matters for Drifter Health Replacing internal pins is essential for preserving drifter performance. A worn or undersized pin can cause: Piston misalignment Uneven striking surfaces Loss of drill power Damage to rotation components Increased vibration Premature wear of expensive assemblies By installing a new 3216 2949 00 PIN ATLAS COPCO , you instantly restore mechanical stability and protect the drifter from catastrophic failure. Compatible ATLAS COPCO Drifter Models The following models commonly use internal pins with the 3216xxxx part-number series: ✓ COP 1838 ✓ COP 1838ME ✓ COP 2238 ✓ COP 2238ME ✓ COP 2560 ✓ COP 2560EX ✓ COP 3038 ✓ COP 3038ME ✓ COP 4038 If your drifter model is not listed, I can verify compatibility immediately. Technical Specifications of the 3216 2949 00 PIN ATLAS COPCO Part Number: 3216294900 / 3216 2949 00 Type: Precision retention & alignment pin Material: Heat-treated alloy steel Surface Finish: Polished, ground, anti-corrosion treated Geometry: Cylindrical body Cross-drilled lubrication/retention hole Chamfered ends Function: Alignment, stabilization, retention Estimated Weight: 0.55–0.60 KG (Typical for pins of this diameter and length; can adjust with your exact weight.) Why Choose 3GEN Export for This Part? Global OEM Supplier 3GEN Export supplies high-precision spare parts for drilling machinery, heavy equipment, and hydraulic systems. 5-Day Worldwide Delivery No matter where your site is located , mining, tunneling, construction, or quarrying , your order arrives within 5 working days . OEM-Quality Manufacturing We do not use generic or low-quality substitutes. All parts are made using proper steels, proper tolerance checks, and strict dimensional inspections. Inventory & Support We maintain large multi-brand inventories covering: ATLAS COPCO SANDVIK EPIROC Furukawa Montabert Soilmec Bauer Installation & Maintenance Notes Always clean the bore before inserting the pin Check alignment of mating surfaces Apply correct lubricant during installation Torque retainer bolts to drifter specifications Replace pins at regular service intervals A fresh pin improves alignment, stability, lubrication flow, and drifter strike efficiency. Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
